  1. CompletingtheAutomatedVerificationof a Small Hypervisor W. Paul, S. Schmaltz, A. Shadrin Saarland University Thessaloniki, Oct 3, 2012 TexPoint fonts used in EMF. Read the TexPoint manual before you delete this box.: AAAAAA

  2. Background • 2007-2010: efforttoformallyverify MS HyperV • partof German Verisoft-XT project (Paul, Broy, Podelski, Rybalchenko…), 13 Mio € • MS Windows + Research (Cohen, Moskal, Leino,…) • Wefailed 2010 • developmentoflightweightverificationtool (VCC) successful • wedid not knowsemanticsofmodels/whattoprove • outlineofexcitingpaperandpenciltheorycompleted in Cohen/Paul/Schmaltz SOFSEM 2013 • formal proofin VCC forsmallhypervisorcompleted: this talk

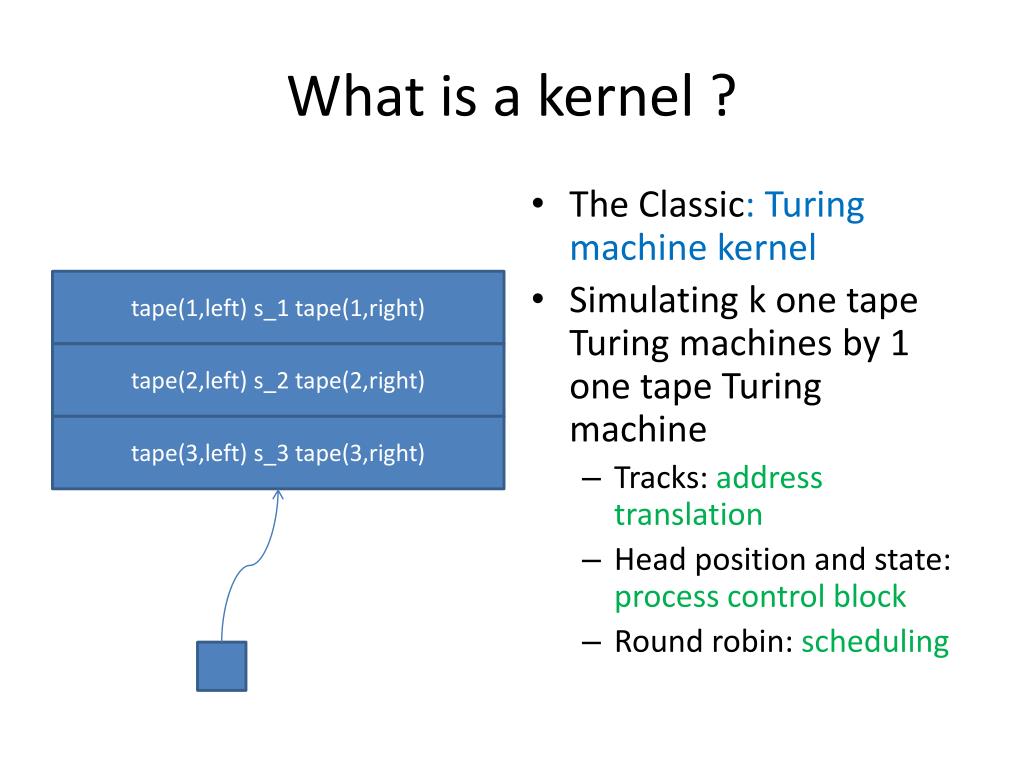

  3. Whatis a kernel ? • The Classic: Turing machinekernel • Simulating k onetape Turing machinesby 1 onetapeTuring machine • Tracks: addresstranslation • Head positionandstate: processcontrol block • Roundrobin: scheduling tape(1,left) s_1 tape(1,right) tape(2,left) s_2 tape(2,right) tape(3,left) s_3 tape(3,right)

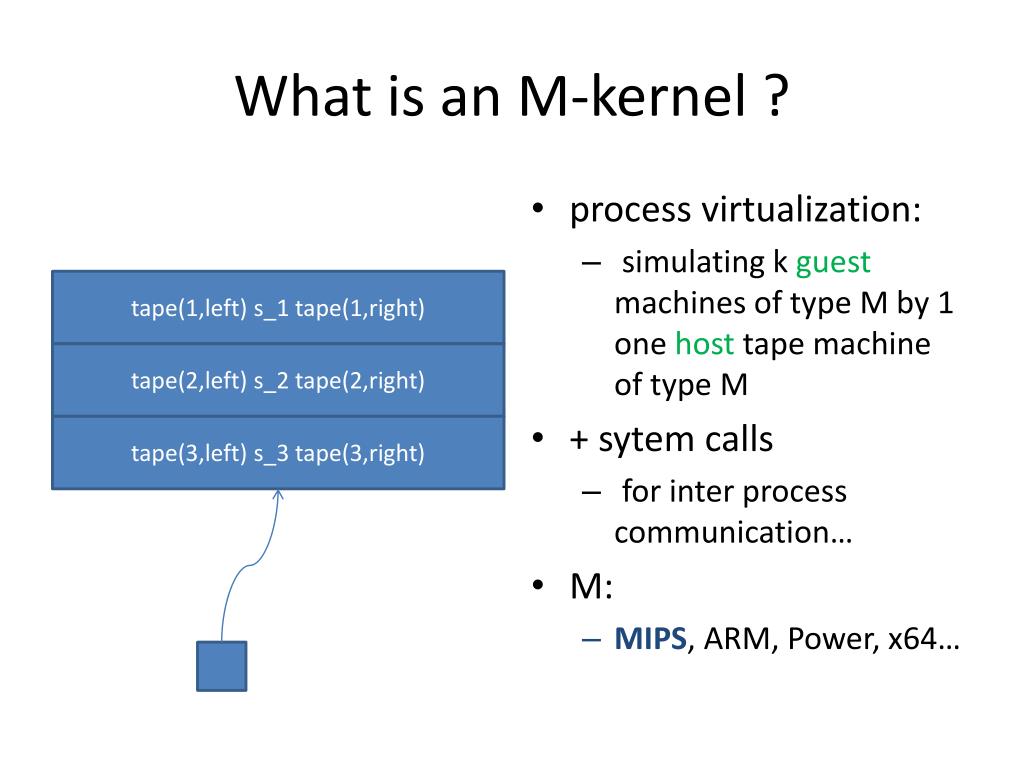

  4. Whatis an M-kernel ? • processvirtualization: • simulating k guestmachinesof type M by 1 onehosttapemachineof type M • + sytemcalls • forinterprocesscommunication… • M: • MIPS, ARM, Power, x64… tape(1,left) s_1 tape(1,right) tape(2,left) s_2 tape(2,right) tape(3,left) s_3 tape(3,right)

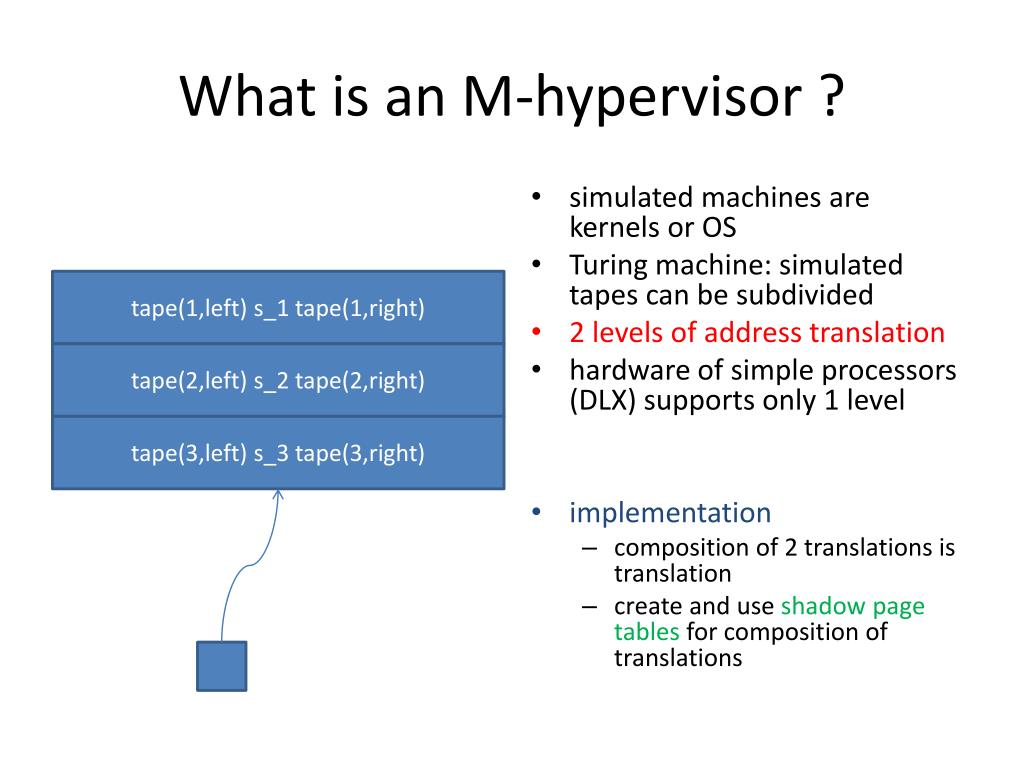

  5. Whatis an M-hypervisor ? • simulatedmachinesarekernelsor OS • Turing machine: simulatedtapescanbesubdivided • 2 levelsofaddresstranslation • hardwareof simple processors (DLX) supportsonly 1 level • implementation • compositionof 2 translationsistranslation • createanduseshadowpagetablesforcompositionoftranslations tape(1,left) s_1 tape(1,right) tape(2,left) s_2 tape(2,right) tape(3,left) s_3 tape(3,right)

  6. babyhypervisor • simulate n MIPS machinesby 1 MIPS machine • guestsimulationrelation • memory: guest(u).m in translatedmemoryofhost • registers: guest(u).R = • host.R: u current • In PCB_u: otherwise

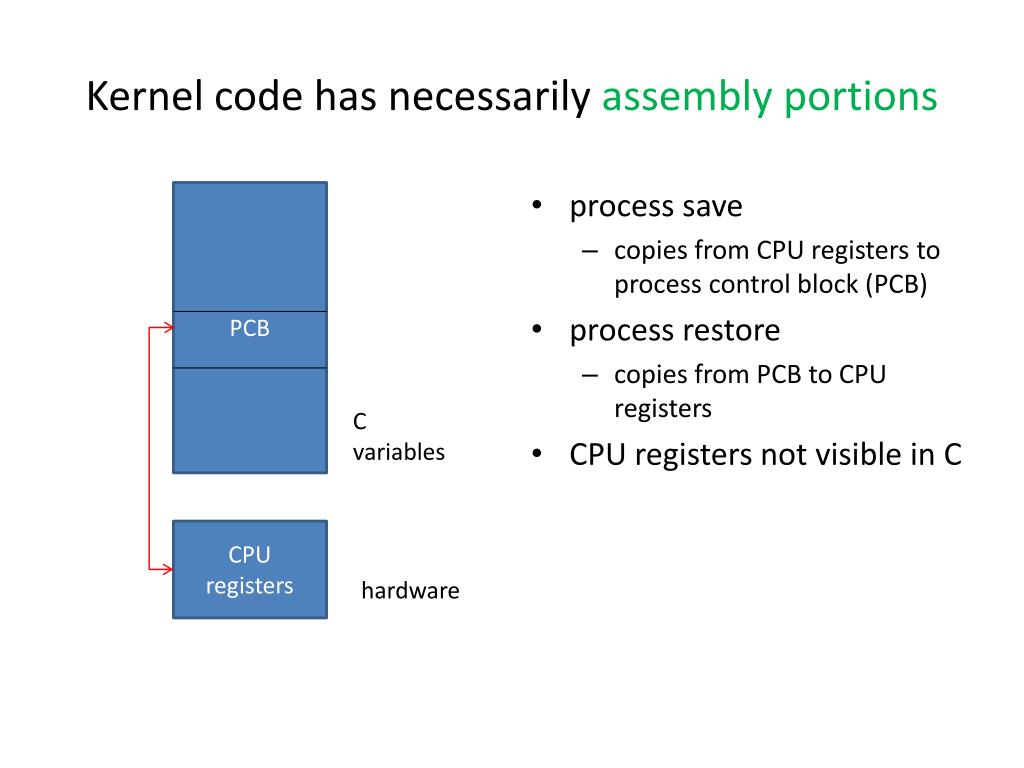

  7. Kernelcodehasnecessarilyassemblyportions • process save • copiesfrom CPU registerstoprocesscontrol block (PCB) • processrestore • copiesfrom PCB to CPU registers • CPU registers not visible in C PCB C variables CPU registers hardware

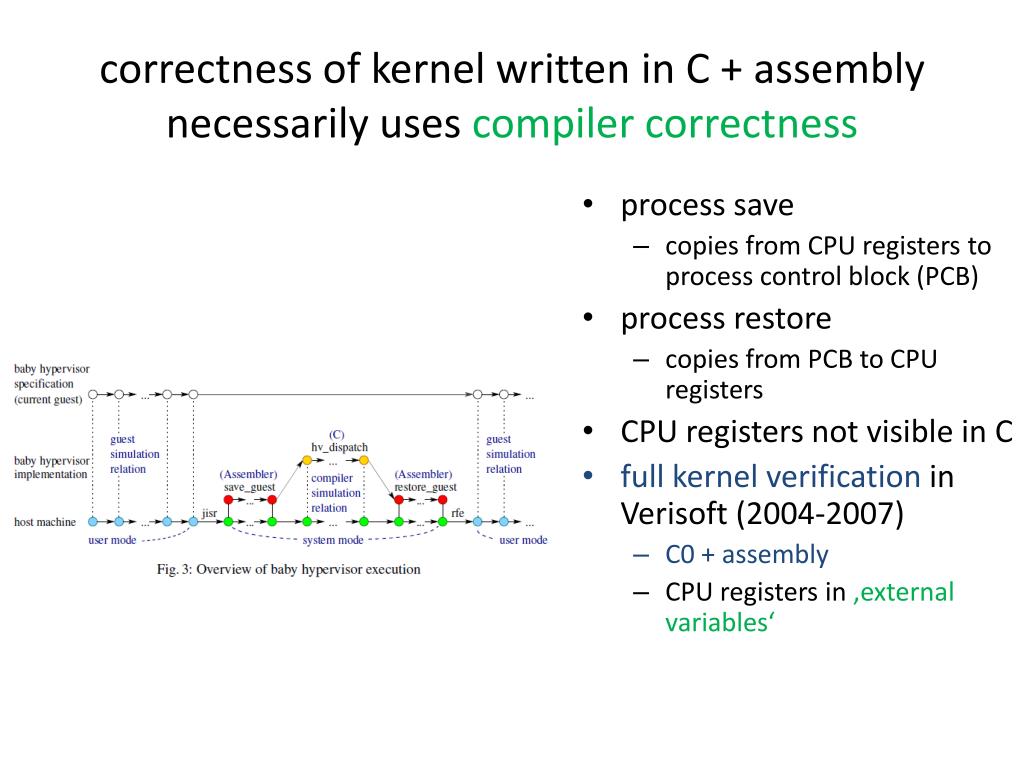

  8. correctnessofkernelwritten in C + assemblynecessarilyusescompilercorrectness • process save • copiesfrom CPU registerstoprocesscontrol block (PCB) • processrestore • copiesfrom PCB to CPU registers • CPU registers not visible in C • fullkernelverificationin Verisoft (2004-2007) • C0 + assembly • CPU registers in ‚external variables‘

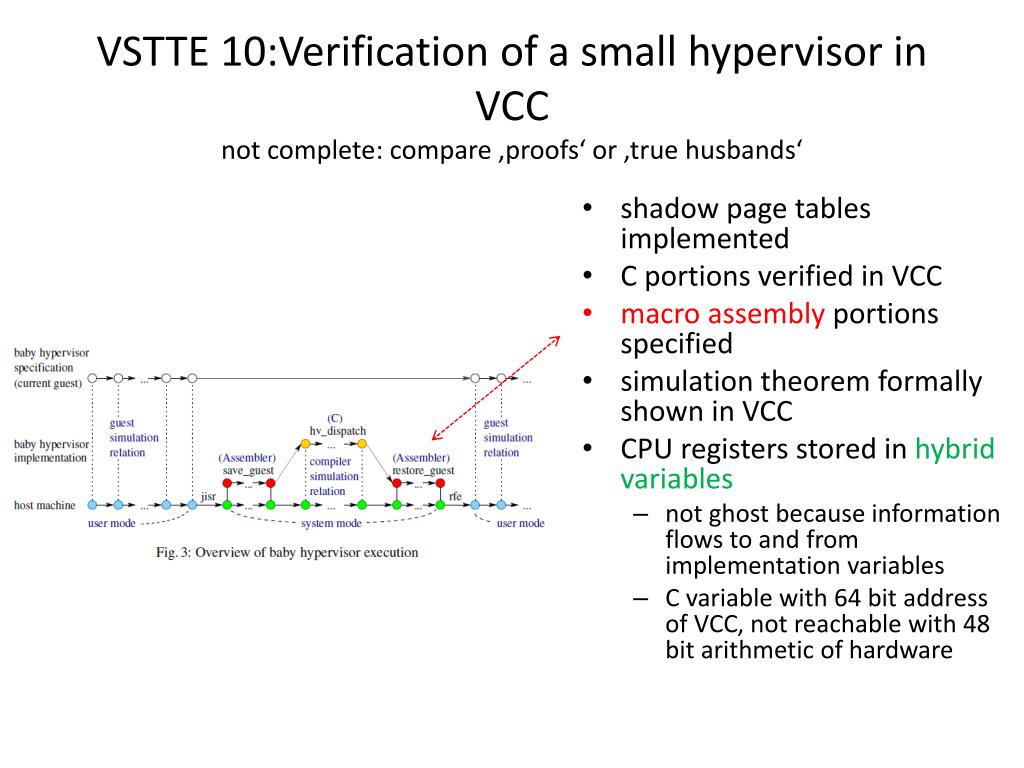

  9. VSTTE 10:Verification of a smallhypervisor in VCCnot complete: compare ‚proofs‘ or ‚truehusbands‘ • shadowpagetablesimplemented • C portionsverified in VCC • macroassemblyportionsspecified • simulationtheoremformallyshown in VCC • CPU registersstored in hybrid variables • not ghostbecauseinformationflowstoandfromimplementation variables • C variable with 64 bitaddressof VCC, not reachablewith 48 bitarithmeticofhardware

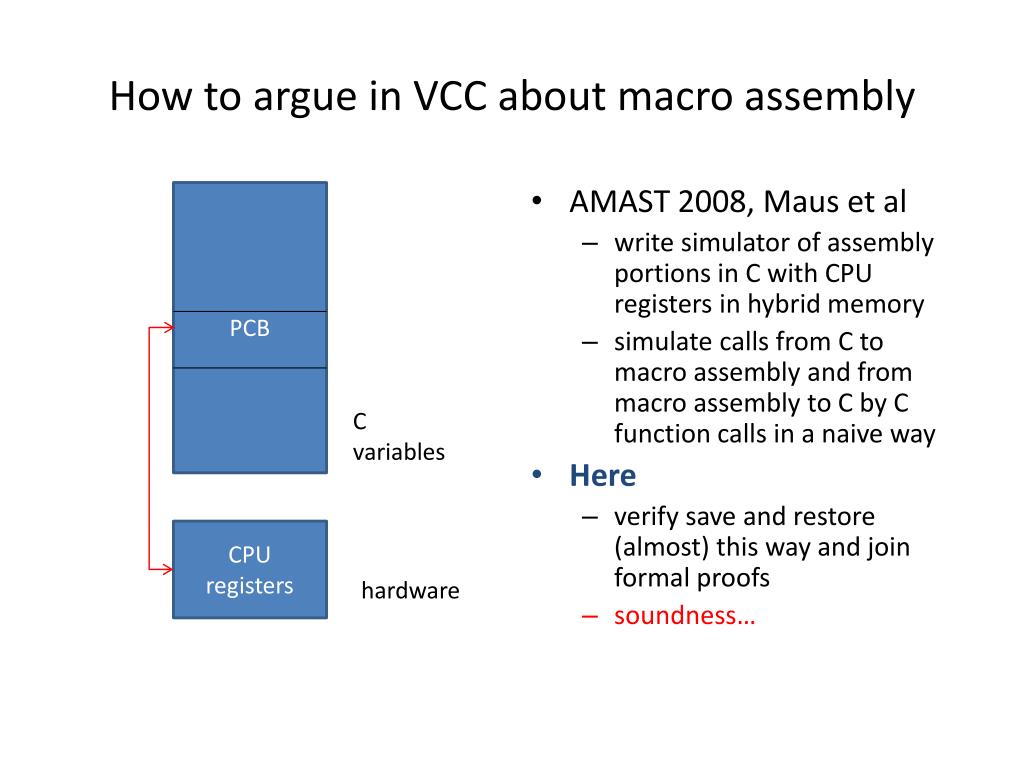

  10. Howtoargue in VCC aboutmacroassembly • AMAST 2008, Maus et al • writesimulatorofassemblyportions in C with CPU registers in hybrid memory • simulatecallsfrom C tomacroassemblyandfrommacroassemblyto C by C functioncalls in a naive way • Here • verify save andrestore (almost) thiswayandjoin formal proofs • soundness… PCB C variables CPU registers hardware

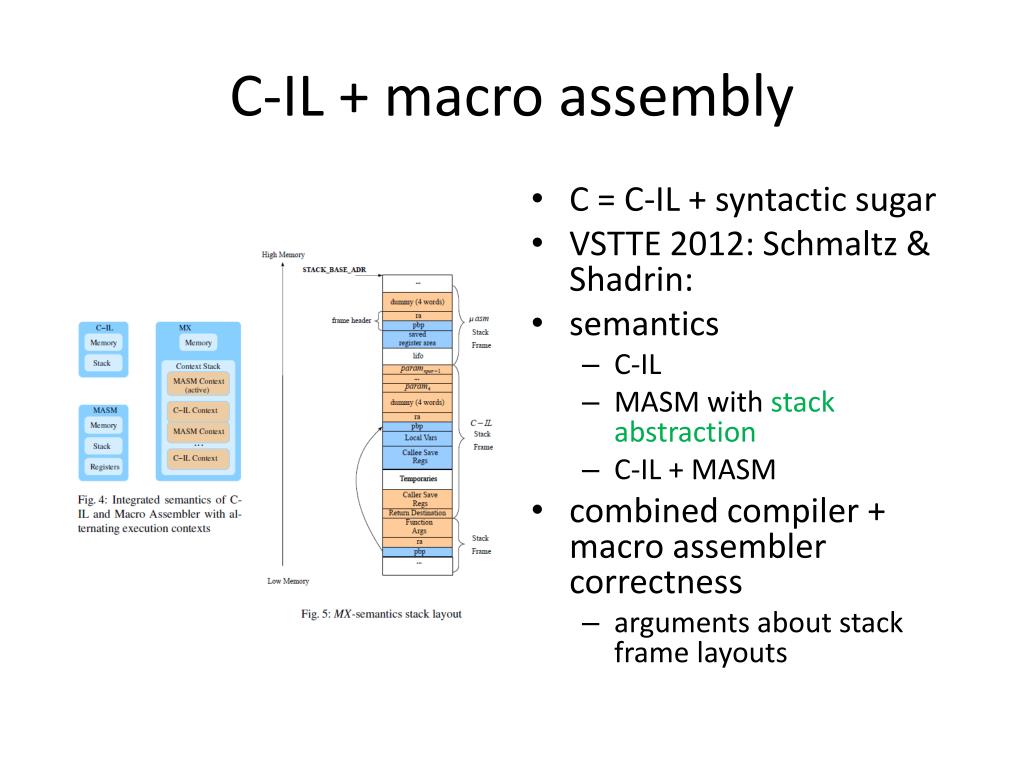

  11. C-IL + macroassembly • C = C-IL + syntacticsugar • VSTTE 2012: Schmaltz & Shadrin: • semantics • C-IL • MASM withstackabstraction • C-IL + MASM • combinedcompiler + macroassemblercorrectness • argumentsaboutstackframelayouts

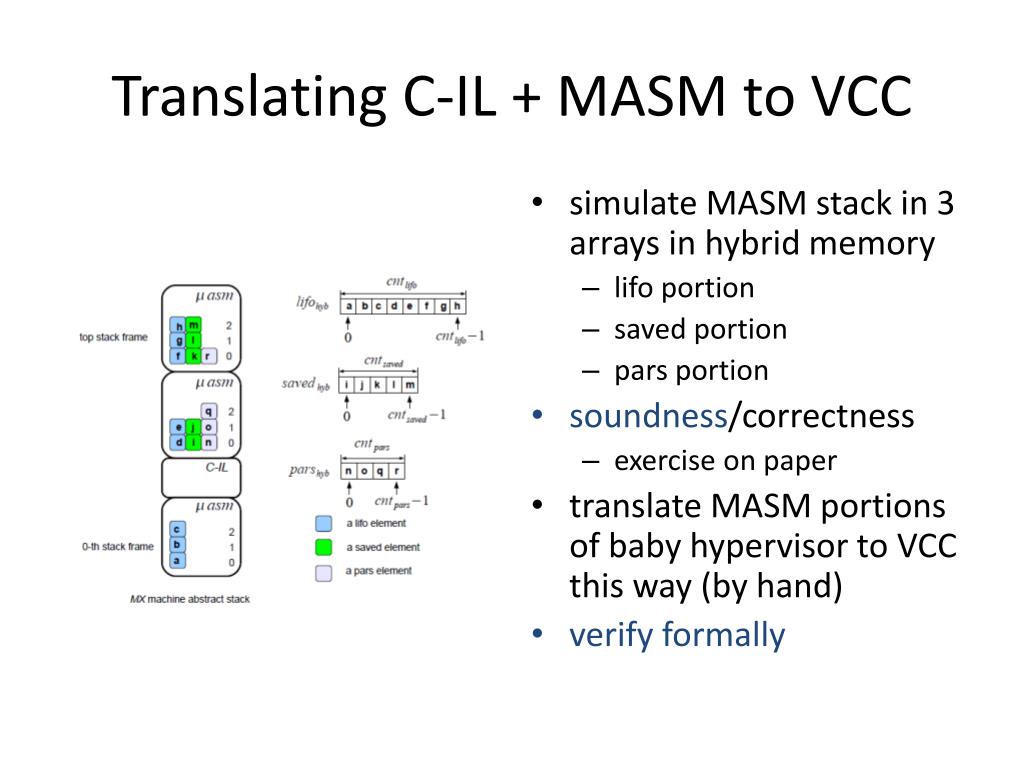

  12. Translating C-IL + MASM to VCC • simulate MASM stack in 3 arrays in hybrid memory • lifoportion • savedportion • pars portion • soundness/correctness • exercise on paper • translate MASM portionsofbabyhypervisorto VCC thisway (byhand) • verifyformally

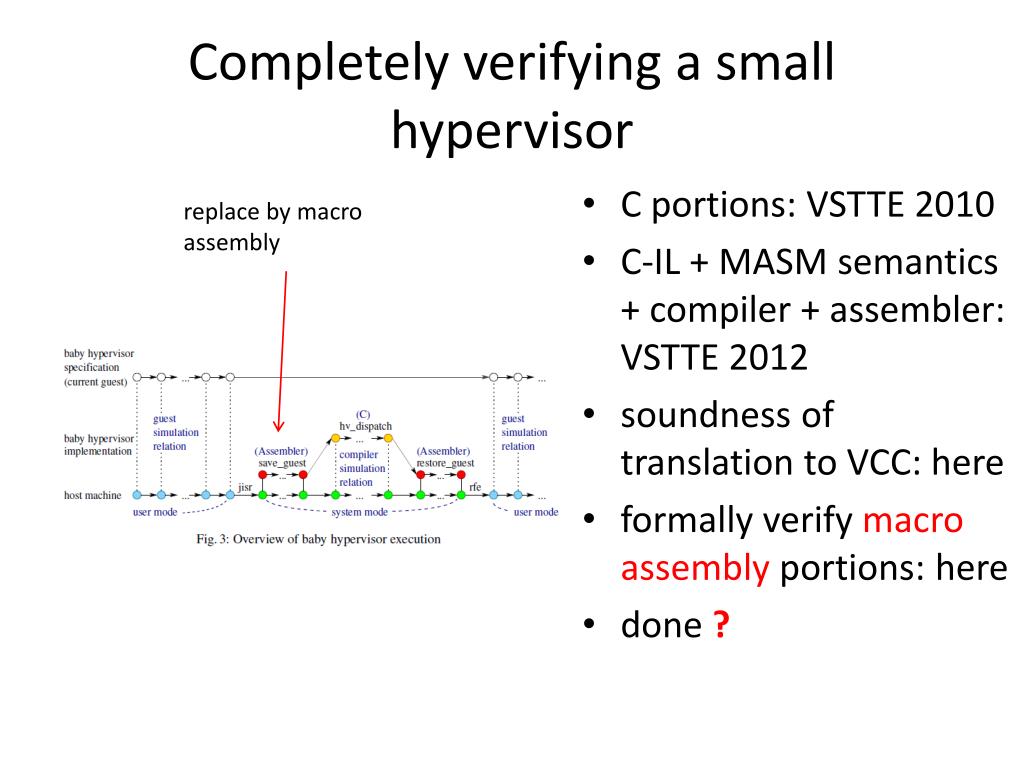

  13. Completelyverifying a smallhypervisor • C portions: VSTTE 2010 • C-IL + MASM semantics + compiler + assembler: VSTTE 2012 • soundnessoftranslationto VCC: here • formallyverifymacroassemblyportions: here • done? replacebymacroassembly

  14. Completelyverifying a smallhypervisor • C portions: VSTTE 2010 • C-IL + MASM semantics + tcompiler + assembler: VSTTE 2012 • soundnessoftranslationto VCC: here • formallyverifymacroassemblyportions: here • save andrestorestackandbasepointer • invisible in macroassembly replacebymacroassembly

  15. 3 languagelevels ! • C-IL + MASM + assembly • semantics ? • proceedings: switch MASM/assemblywithemptystack • thenextendprevioussoundnessproofs • exercise asm

  16. combinedlanguagesemanticsgeneral

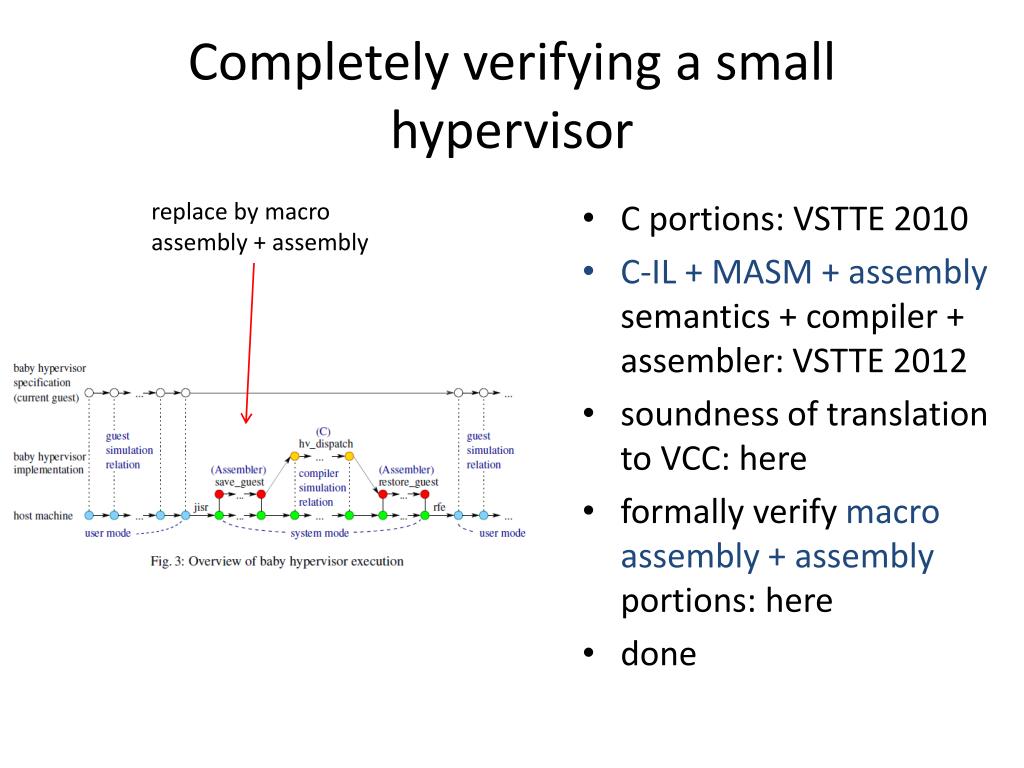

  17. Completelyverifying a smallhypervisor • C portions: VSTTE 2010 • C-IL + MASM + assemblysemantics + compiler + assembler: VSTTE 2012 • soundnessoftranslationto VCC: here • formallyverifymacroassembly + assemblyportions: here • done replacebymacroassembly + assembly
