SoC Clock Synchronizers Project

This presentation focuses on the synchronization challenges faced in large chip designs with multiple clock domains. We discuss the problems of data transfer between different clock domains, the risks of metastability, and synchronization failure probability. The project motivation highlights the increasing frequency of synchronization issues in the industry, necessitating better solutions. Various synchronization classifications and solutions, including mesochronous, plesiochronous, and asynchronous methods, will be explored. Our goals include comparing these methods based on latency, area, power, and simplicity.

nikita
Télécharger la présentation

SoC Clock Synchronizers Project

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SoC Clock Synchronizers Project Characterization Presentation Elihai Maicas Harel Mechlovitz

  2. Presentation Agenda: • The synchronization problem • Project motivation • Synchronization classifications • Various solutions • Our goals • Timeline

  3. The synchnization problem • Large chips have multiple clock domains because: • Chip interfaces with several unrelated blocks • Chip has inner IPs that require different frequency • Chip size is growing, what makes it hard to design one LARGE single clock • And more…

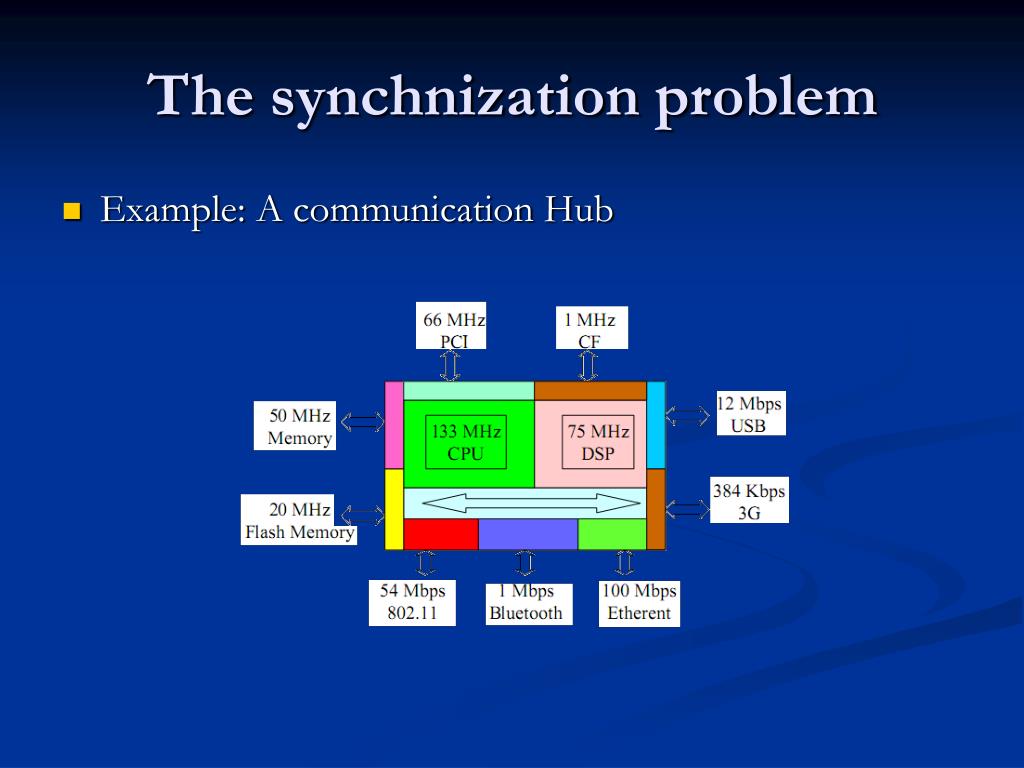

  4. The synchnization problem • Example: A communication Hub

  5. The synchnization problem • When spreading out the problem, it comes to transfer data from transmitter to receiver: • Given that ckA and ckB are not from the same clock domain, there is a probability that the receiver won’t sample the data correctly • Metastability • ts/th issues • Duplicate / dropped samples

  6. The synchnization problem • What is the probability of this unfortunate situation to occur ? • In general, the probability of synchronization failure can be calculated as follows:P(failure) = P(enter metastable state) · P(still in metastable state after tw)

  7. The synchnization problem • Flip-flop can enter a metastable state, when its data input D changes the state during the aperture time or sampling window of the flip-flop • Probability of an input transition to occur during the sampling window is computed by dividing the apeture time ta by the clock period tcy

  8. Project motivation • Sync problems become more and more frequent in the industry • Common knowledge is quite insufficient • Solutions are not well categorized • Too little do we know about the various solutions • Common synchronization mistakes • Some of the solutions were never looked at closely for proper correctness checking

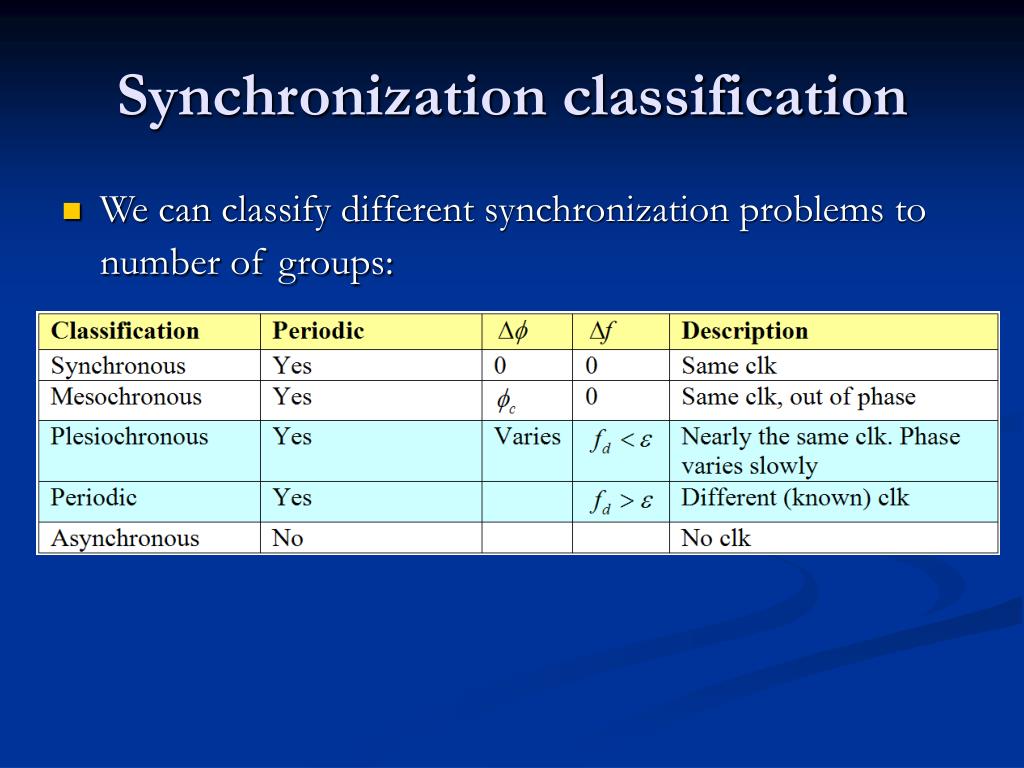

  9. Synchronization classification • We can classify different synchronization problems to number of groups:

  10. Synchronization classifications • Mesochronous • Phase difference stays constant • We could have a problem if clkB came too fast after clkA (not allowing proper ts), or too slow (not allowing th)

  11. Synchronization classifications • Plesiochronous • Phase difference drifts • ∆f< ε • Other • Every few cycles we might have a sync problem needs to be solved

  12. Synchronization classifications • Periodic • Events are periodic, therefore enables prediction • The sychronizer can detect a conflict enough time a head for the resualt to be ready on time

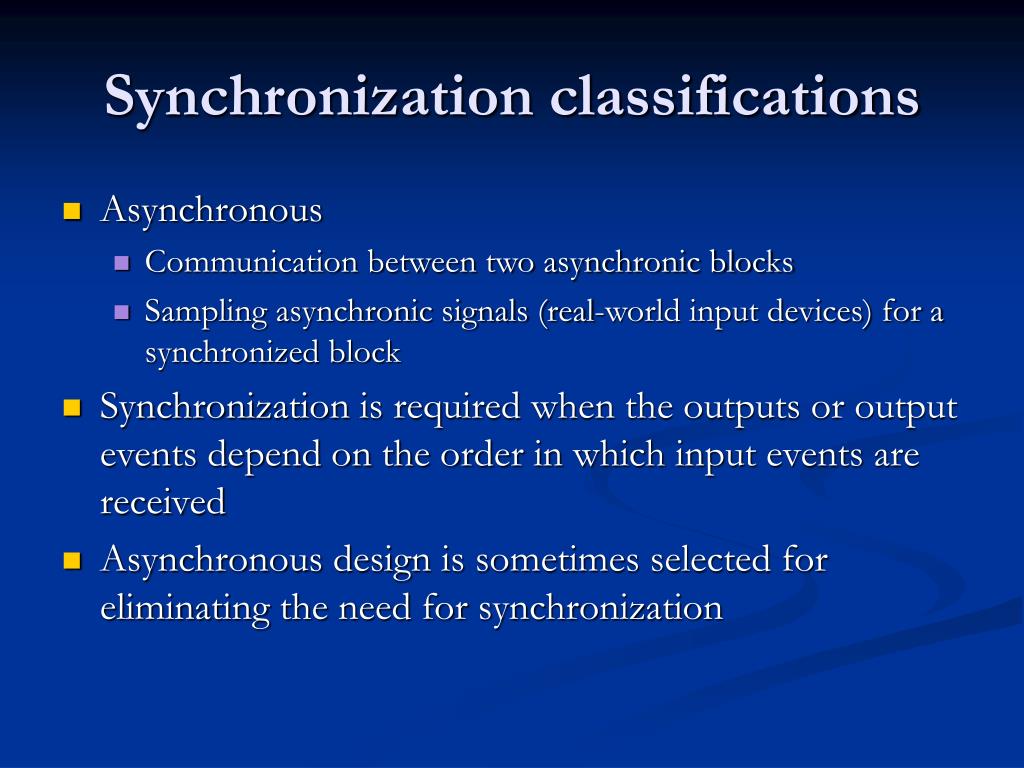

  13. Synchronization classifications • Asynchronous • Communication between two asynchronic blocks • Sampling asynchronic signals (real-world input devices) for a synchronized block • Synchronization is required when the outputs or output events depend on the order in which input events are received • Asynchronous design is sometimes selected for eliminating the need for synchronization

  14. Various solutions • General solution • The Two-FF synchronizer AKA Brute-Force synchronizer • The first flop samples signal A • AW has a high probability of being in a metastable state • The second flop samples AW after a large waiting time allowing the metastable state to decay

  15. Various solutions • Mesochronous solution • By delaying the clock with the actual phase difference, one of the registers will sample correctly

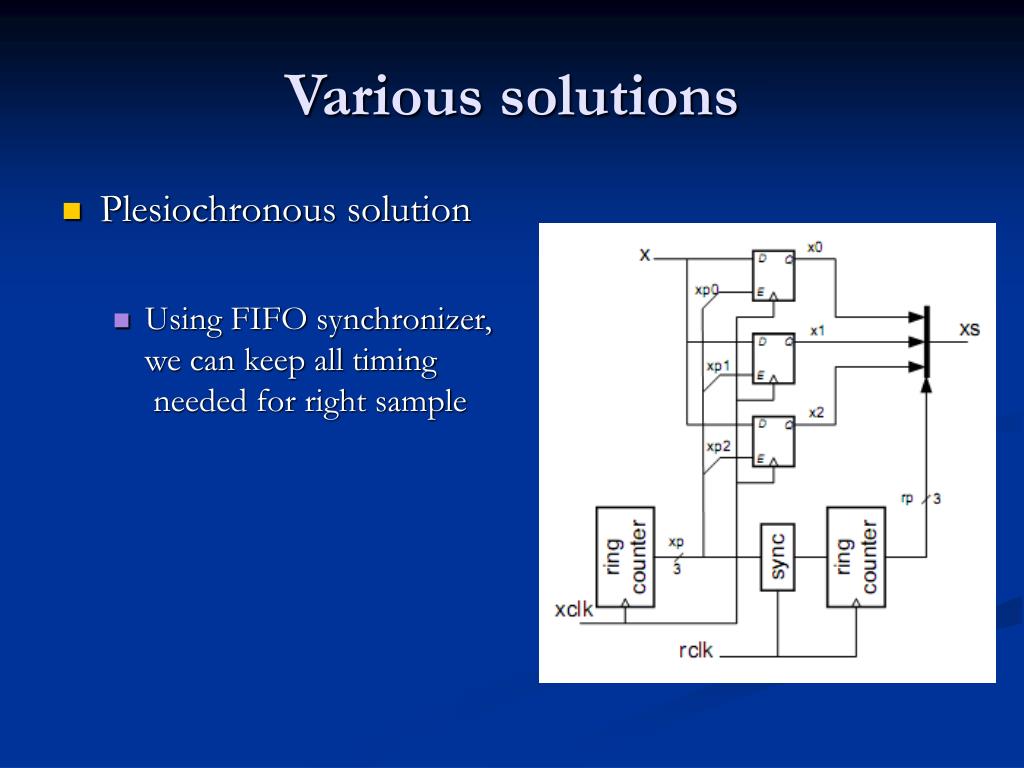

  16. Various solutions • Plesiochronous solution • Using FIFO synchronizer, we can keep all timing needed for right sample

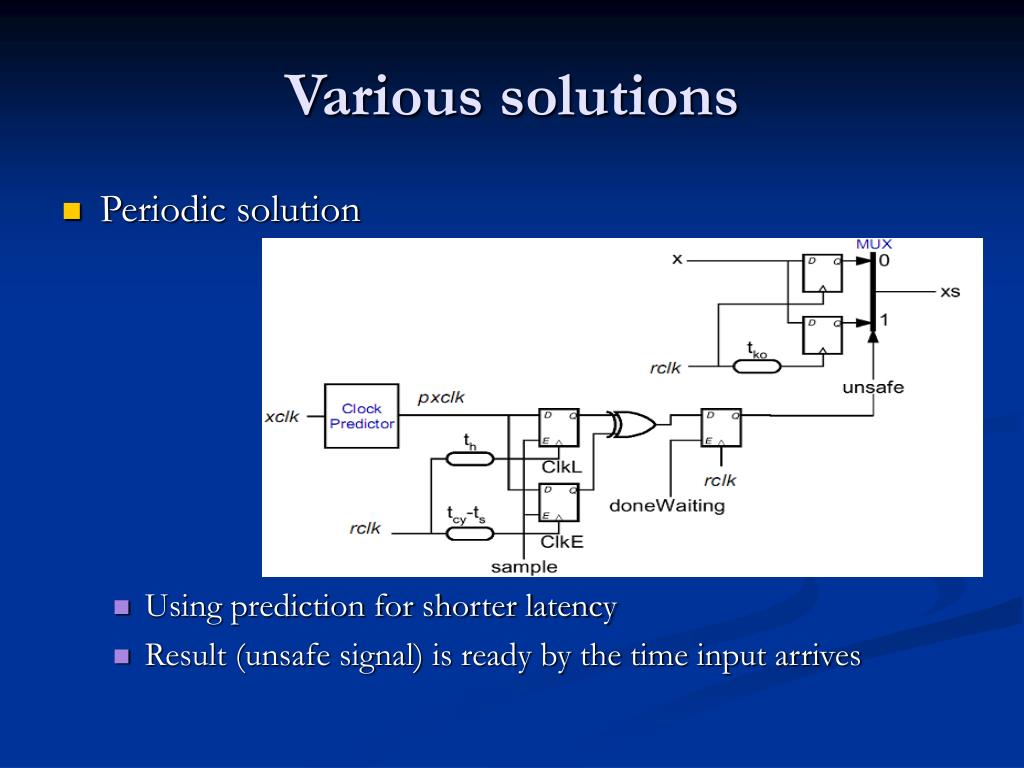

  17. Various solutions • Periodic solution • Using prediction for shorter latency • Result (unsafe signal) is ready by the time input arrives

  18. Various solutions • Asynchronous solution • Both clocks are aperiodic • Advantages • Lower probability of synchronization failure • Inherent flow-control

  19. Our goals • Our main goal is to compare between various synchronization methods, with the following criteria: • Latency • Area • Power • Simplicity • Plug-n-play • Categorize the various solutions and give certain parameters for the choosing process of a synchronizer

  20. Our goals • In addition, we will check correctness of above circuits with the following circuit:

  21. Timeline

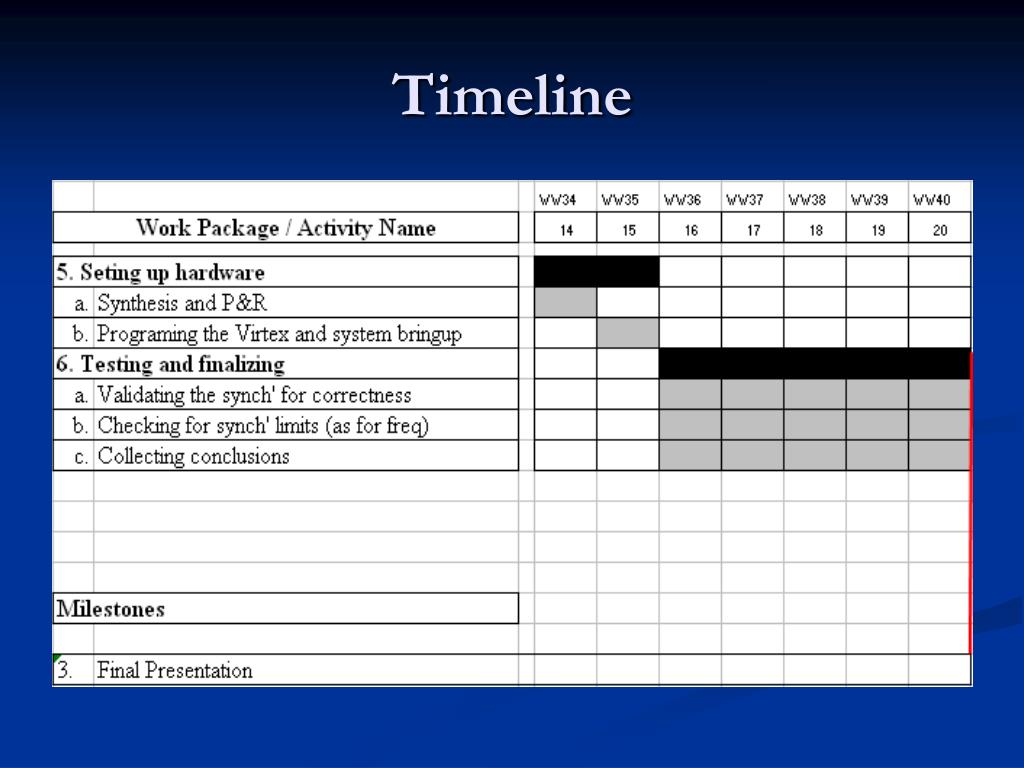

  22. Timeline

  23. Timeline

  24. Q & A
