  1. SMART BUILDING Yousef Awwad Te-Yuan Huang Newlin Rajkumar Group No.11

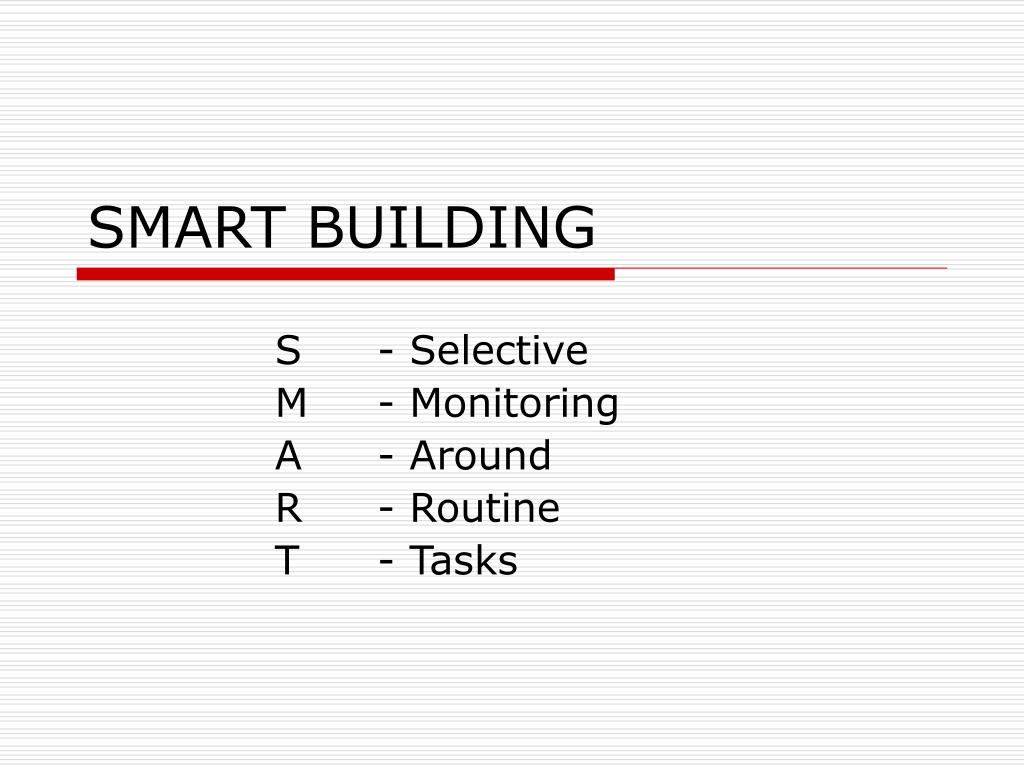

  2. SMART BUILDING S - Selective M - Monitoring A - Around R - Routine T - Tasks

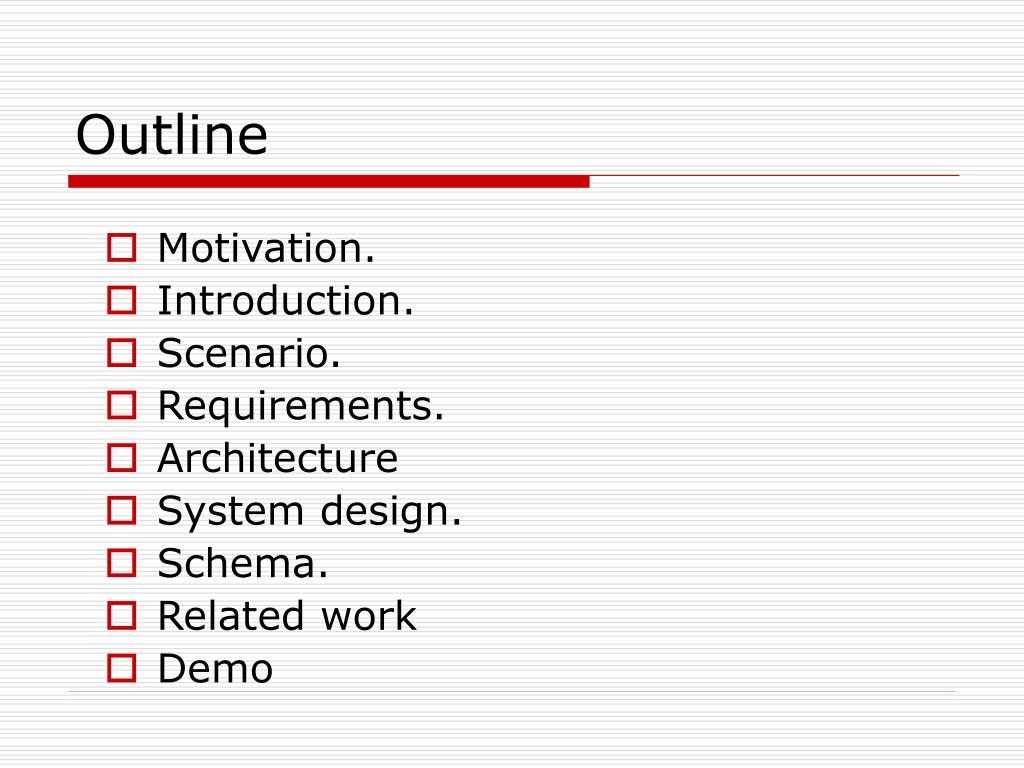

  3. Outline • Motivation. • Introduction. • Scenario. • Requirements. • Architecture • System design. • Schema. • Related work • Demo

  4. Motivation • To gain more experience in the wireless sensor network field. • To employ wireless sensor network for the benefits of users (students and visitors to NCTU buildings).

  5. Introduction • What is a smart building? • Smart building system gives information for the users about each element inside the building by using wireless sensor networks. • RFID readers and tags are also used to achieve this goal. • A tag is attached near each object in the building.

  6. …Introduction • Smart building data: - Offices: office’s name, professor’s name, professor’s schedule, publications and others. • Class rooms: class room schedule and other information. • Laboratories: lab’s name, lab’s members, researches and others. • Advertising boards: advertisements sorted by date.

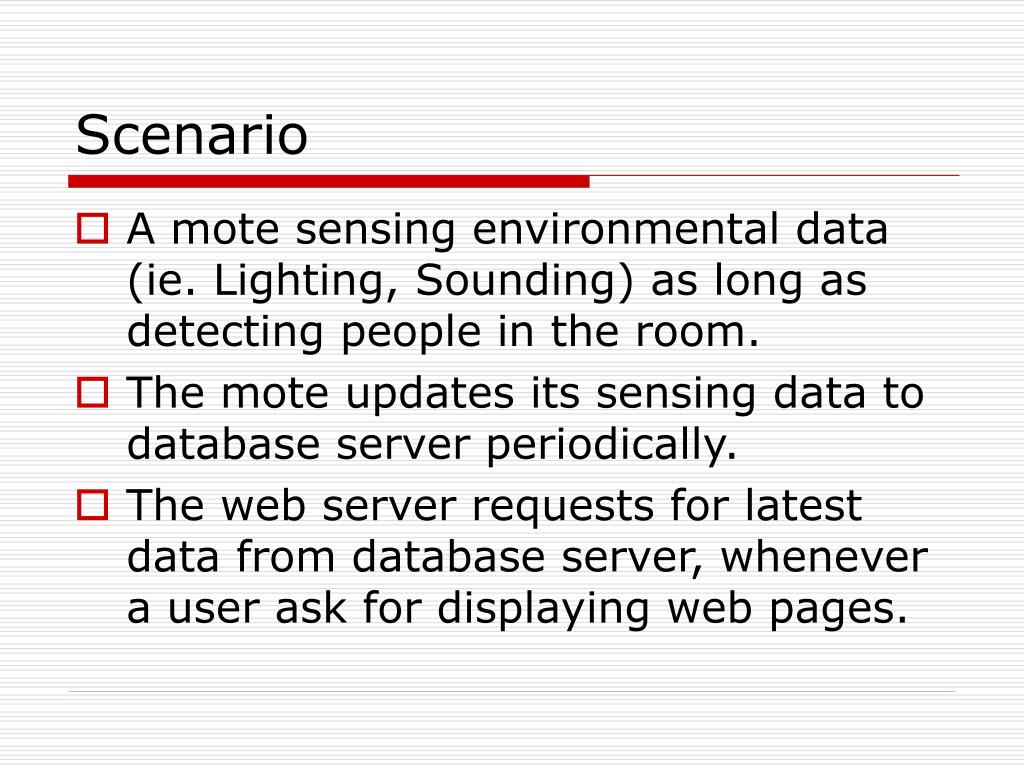

  7. Scenario • A mote sensing environmental data (ie. Lighting, Sounding) as long as detecting people in the room. • The mote updates its sensing data to database server periodically. • The web server requests for latest data from database server, whenever a user ask for displaying web pages.

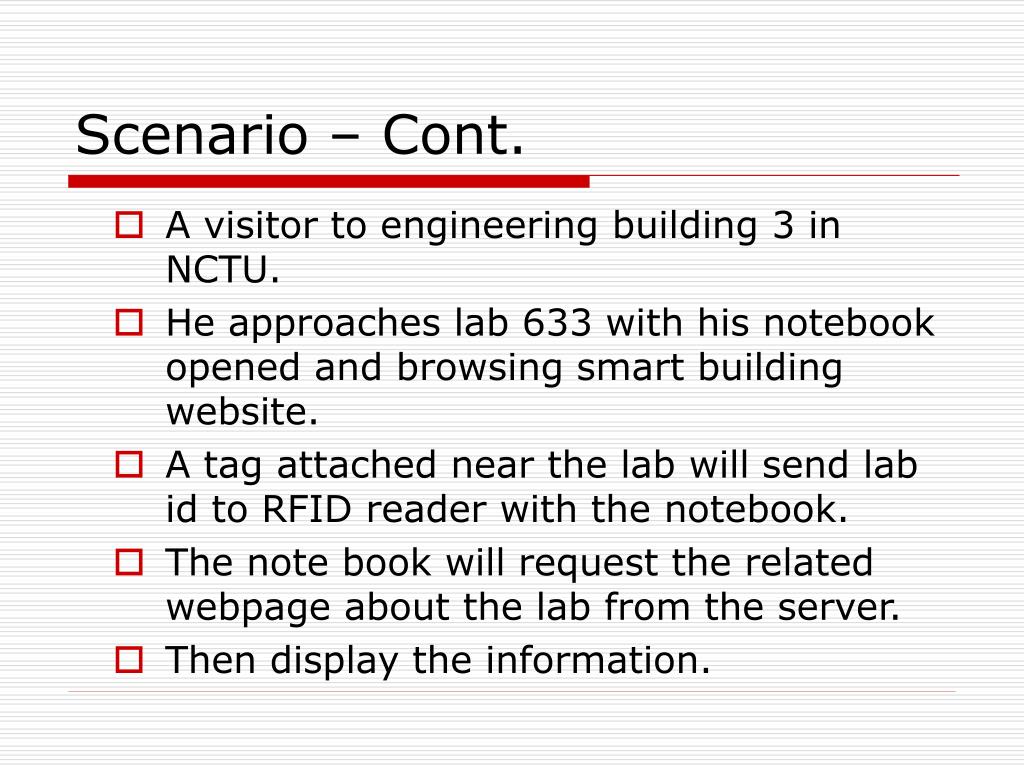

  8. Scenario – Cont. • A visitor to engineering building 3 in NCTU. • He approaches lab 633 with his notebook opened and browsing smart building website. • A tag attached near the lab will send lab id to RFID reader with the notebook. • The note book will request the related webpage about the lab from the server. • Then display the information.

  9. Architecture

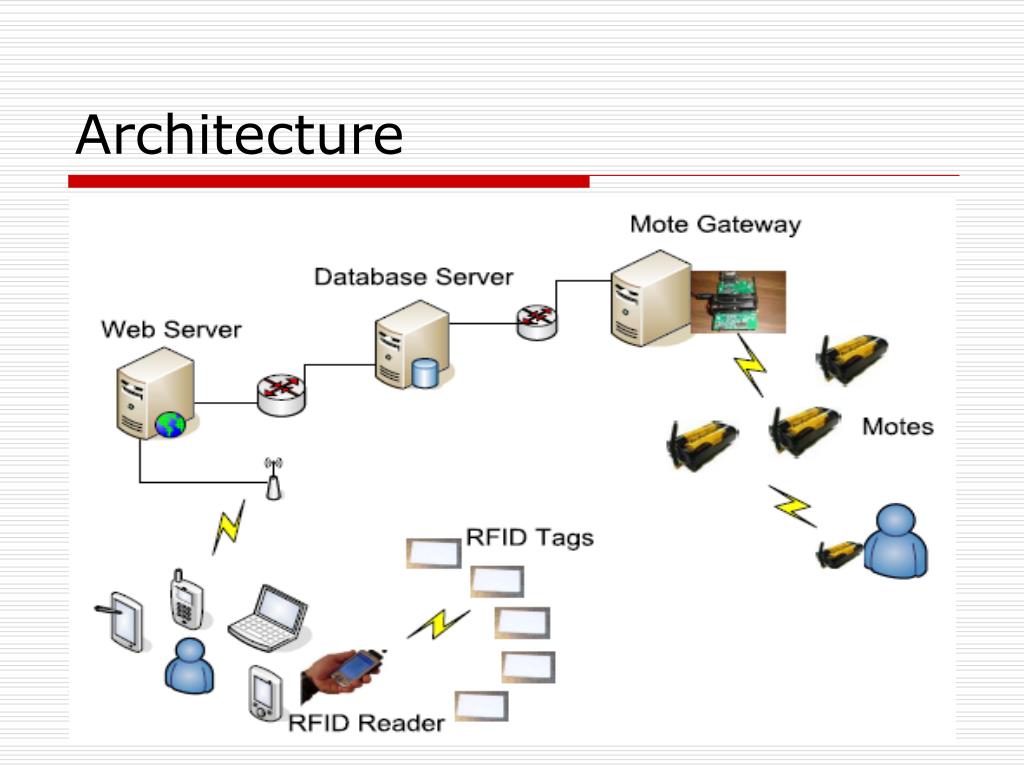

  10. Architecture

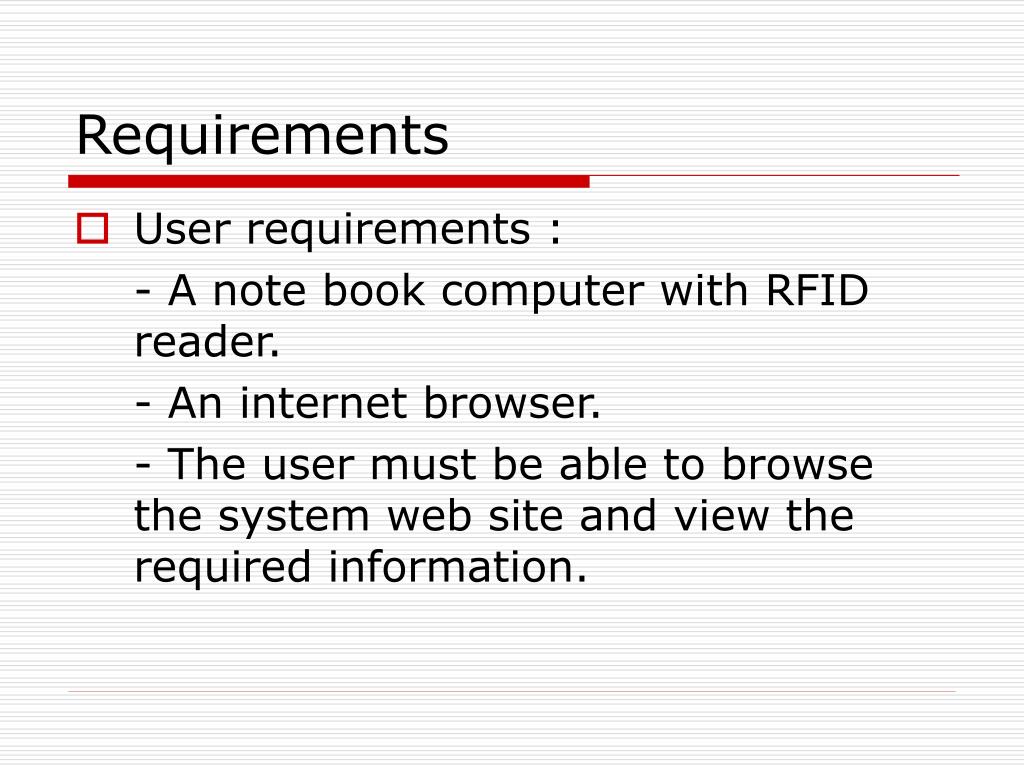

  11. Requirements • User requirements : - A note book computer with RFID reader. - An internet browser. - The user must be able to browse the system web site and view the required information.

  12. …Requirements • System requirements: - A server to store the web pages (http server) - RFID tags. - A wireless network. - A library or API to support the RFID. - Other non-functional requirements such as user friendly interface and security.

  13. System Design • System is designed as the following: - Using Visual studio.net inherited with RFID library to: * Retrieve ID value from the reader * Allow write new ID value to the RFID tag * Design the web pages and the interface.

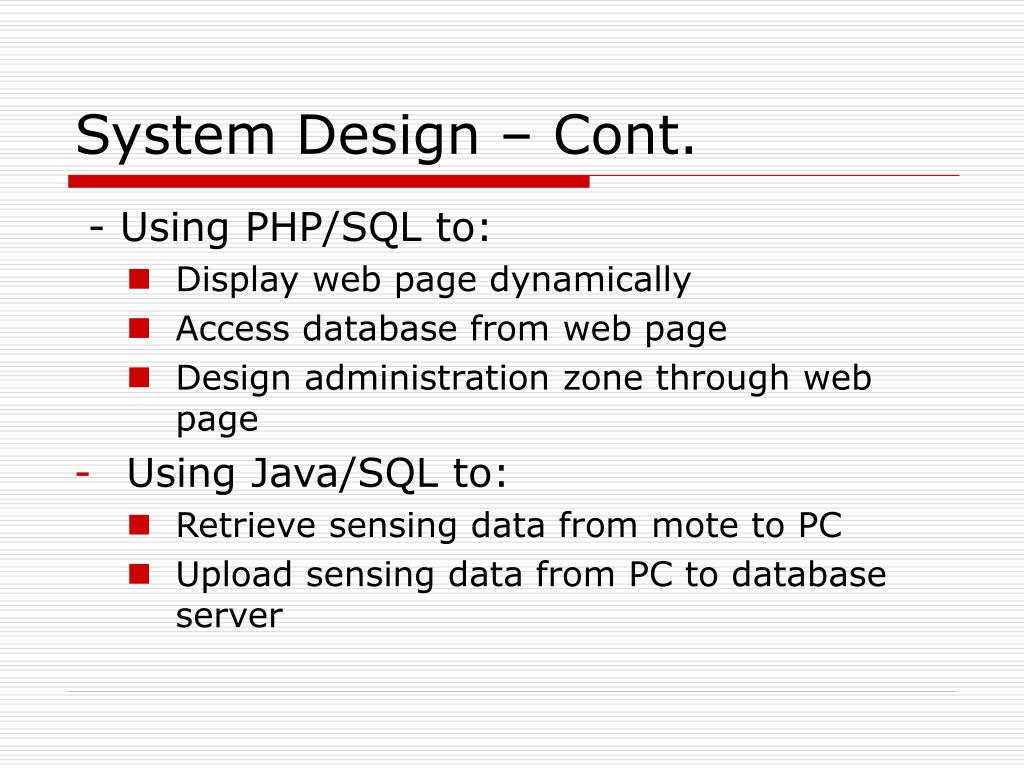

  14. System Design – Cont. - Using PHP/SQL to: • Display web page dynamically • Access database from web page • Design administration zone through web page • Using Java/SQL to: • Retrieve sensing data from mote to PC • Upload sensing data from PC to database server

  15. Schema • Installing all requirements (frameworks and libraries). • Doing experiments on RFID; writing to and reading from the tag. • Collecting information about the engineering building 3. • Building the web pages for every element. • Building the HTTP server. • Integrate the whole system.

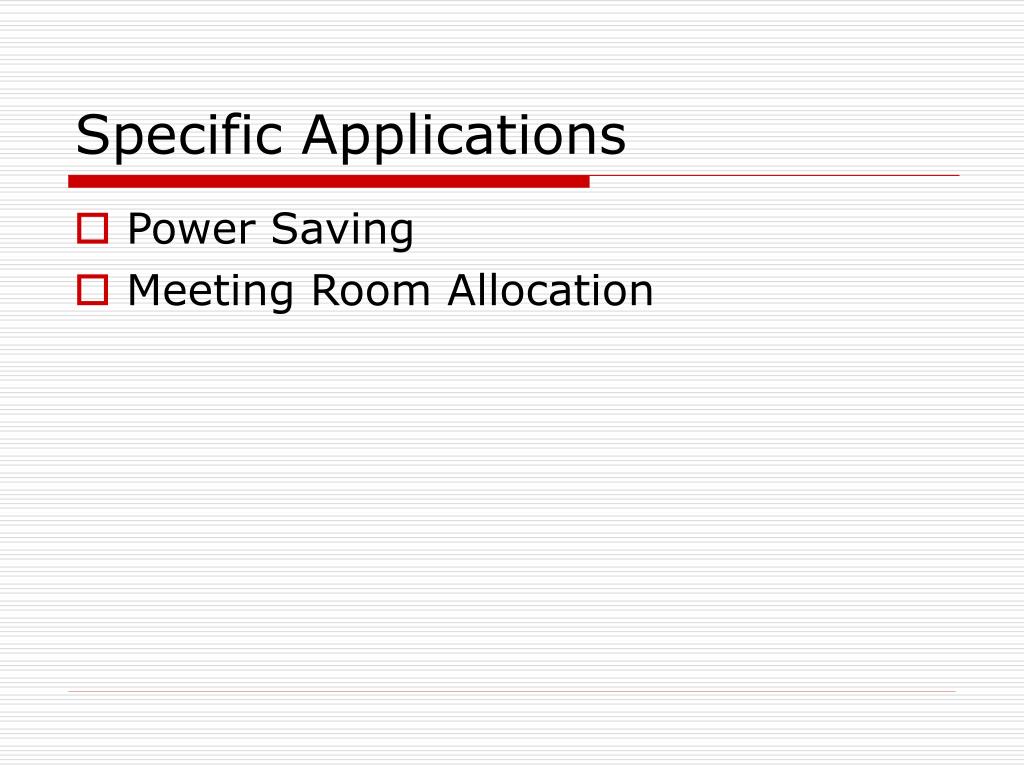

  16. Specific Applications • Power Saving • Meeting Room Allocation

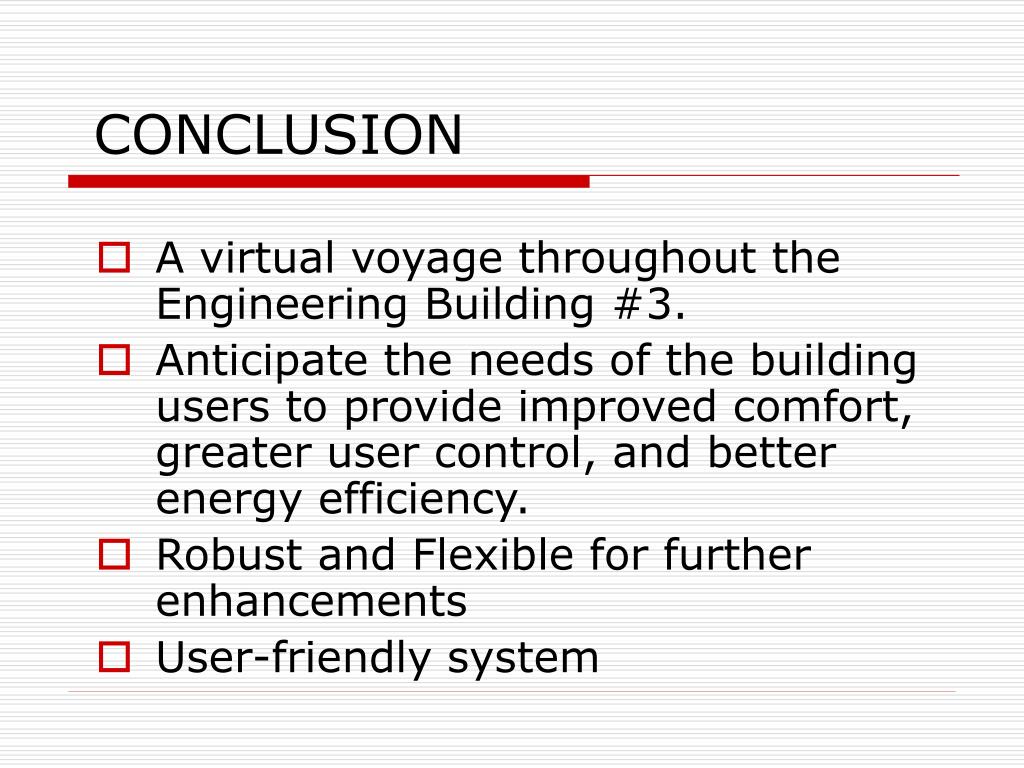

  17. CONCLUSION • A virtual voyage throughout the Engineering Building #3. • Anticipate the needs of the building users to provide improved comfort, greater user control, and better energy efficiency. • Robust and Flexible for further enhancements • User-friendly system

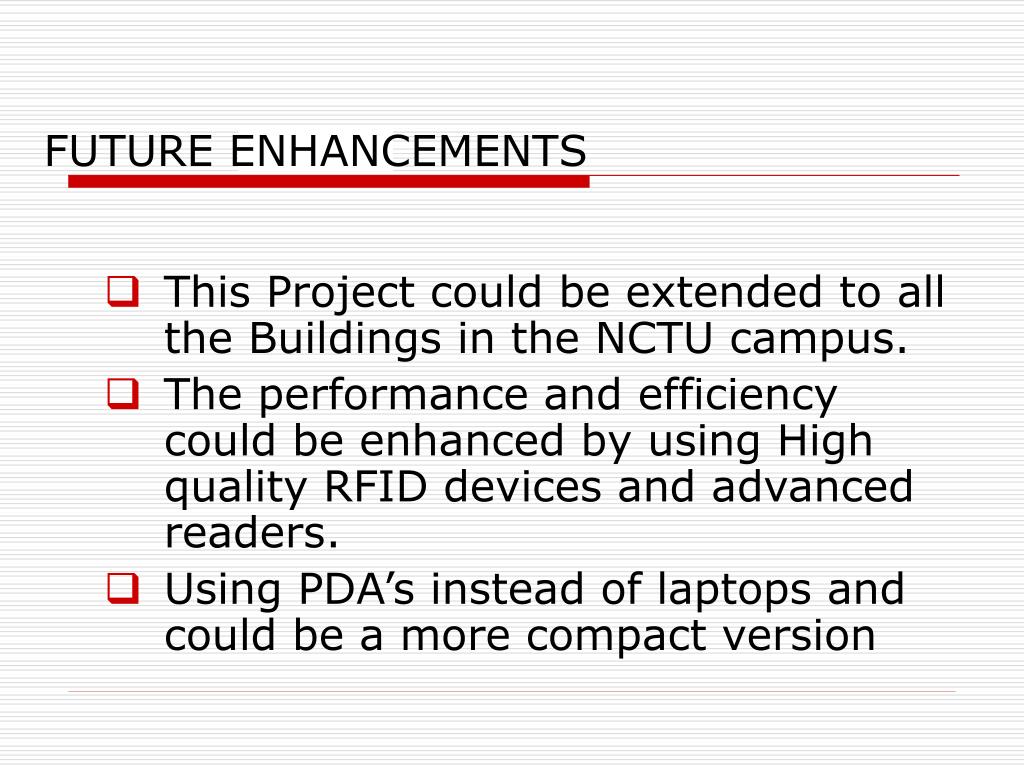

  18. FUTURE ENHANCEMENTS • This Project could be extended to all the Buildings in the NCTU campus. • The performance and efficiency could be enhanced by using High quality RFID devices and advanced readers. • Using PDA’s instead of laptops and could be a more compact version

  19. Related Work • 1-A Tree Tour with Radio Frequency Identification (RFID) and a Personal Digital Assistant (PDA) Sean Hoyt, Doug St. John, Denise Wilson and Linda Bushnell -A popular tree tour at the University of Washington campus -Using RFID and PDA to view information about trees.

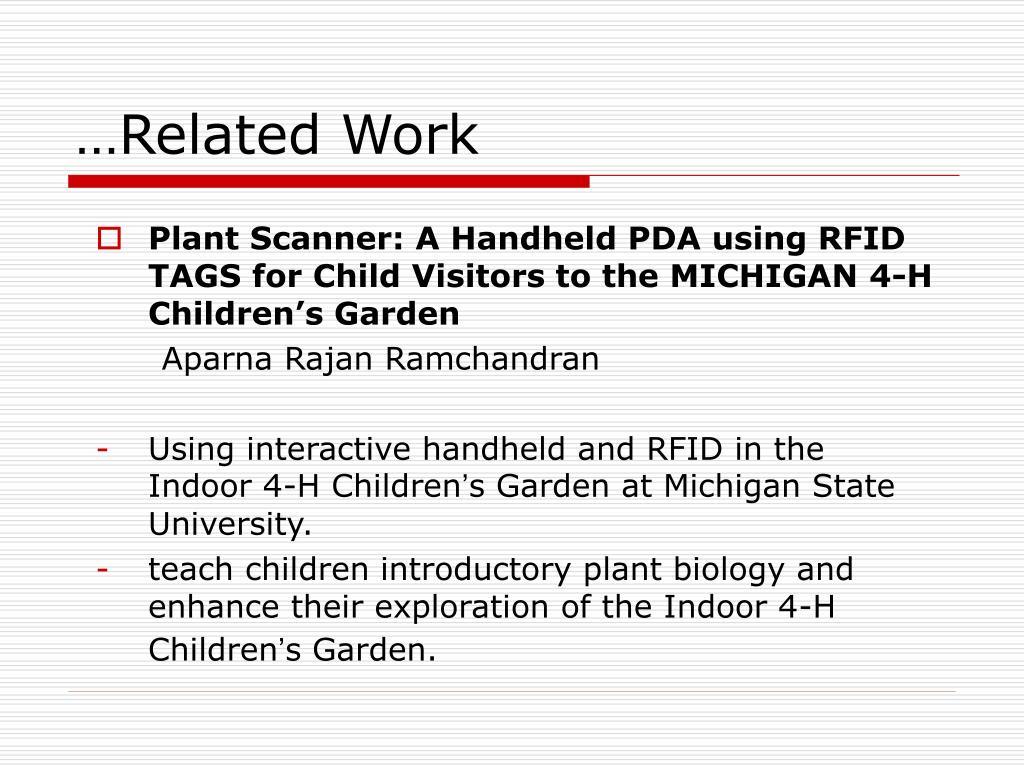

  20. …Related Work • Plant Scanner: A Handheld PDA using RFID TAGS for Child Visitors to the MICHIGAN 4-H Children’s Garden Aparna Rajan Ramchandran • Using interactive handheld and RFID in the Indoor 4-H Children’s Garden at Michigan State University. • teach children introductory plant biology and enhance their exploration of the Indoor 4-H Children’s Garden.
