Dependability & Maintainability Theory and Methods Part 1: Introduction and definitions

Andrea Bobbio Dipartimento di Informatica Universit à del Piemonte Orientale, “ A. Avogadro ” 15100 Alessandria (Italy) bobbio@unipmn.it - http://www.mfn.unipmn.it/~bobbio/IFOA. Dependability & Maintainability Theory and Methods Part 1: Introduction and definitions.

ninon
Télécharger la présentation

Dependability & Maintainability Theory and Methods Part 1: Introduction and definitions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

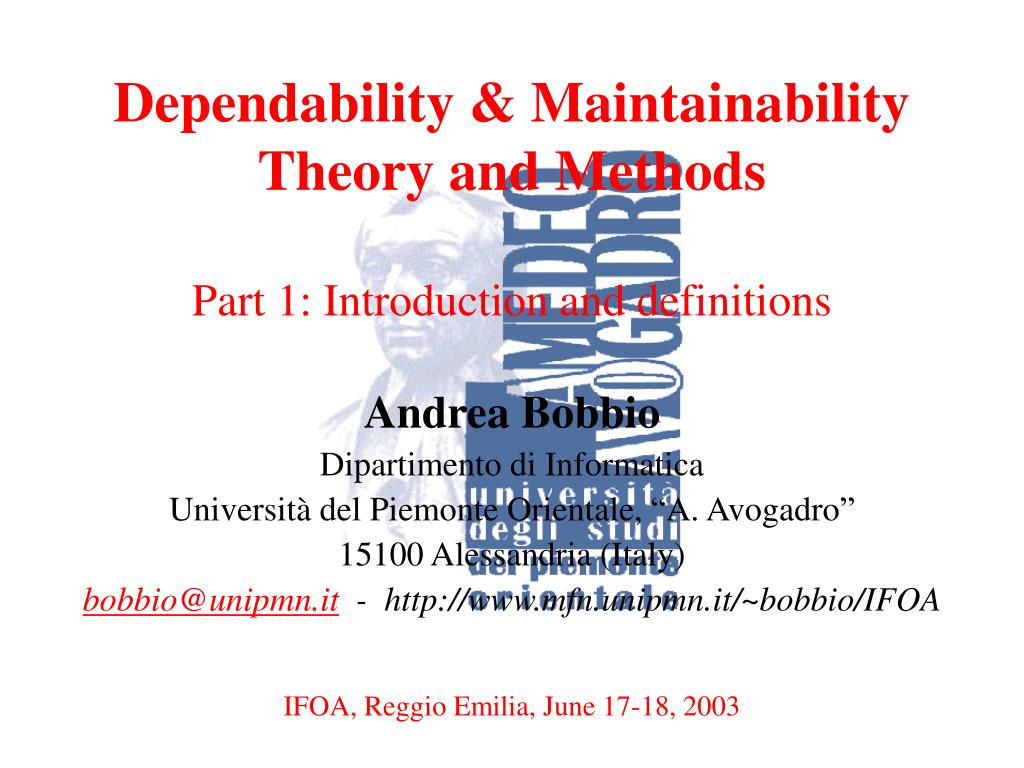

  1. Andrea Bobbio Dipartimento di Informatica Università del Piemonte Orientale, “A. Avogadro” 15100 Alessandria (Italy) bobbio@unipmn.it - http://www.mfn.unipmn.it/~bobbio/IFOA Dependability & Maintainability Theory and MethodsPart 1: Introduction and definitions IFOA, Reggio Emilia, June 17-18, 2003 Reggio Emilia, June 17-18, 2003

  2. Dependability: Definition Dependability is the property of a system to be dependable in time, i.e. such that reliance can justifiably be placed on the service it delivers. Dependability extends the interest on the system from the design and construction phase to the operational phase (life cycle). Reggio Emilia, June 17-18, 2003

  3. What dependability theory and practice wants to avoid Reggio Emilia, June 17-18, 2003

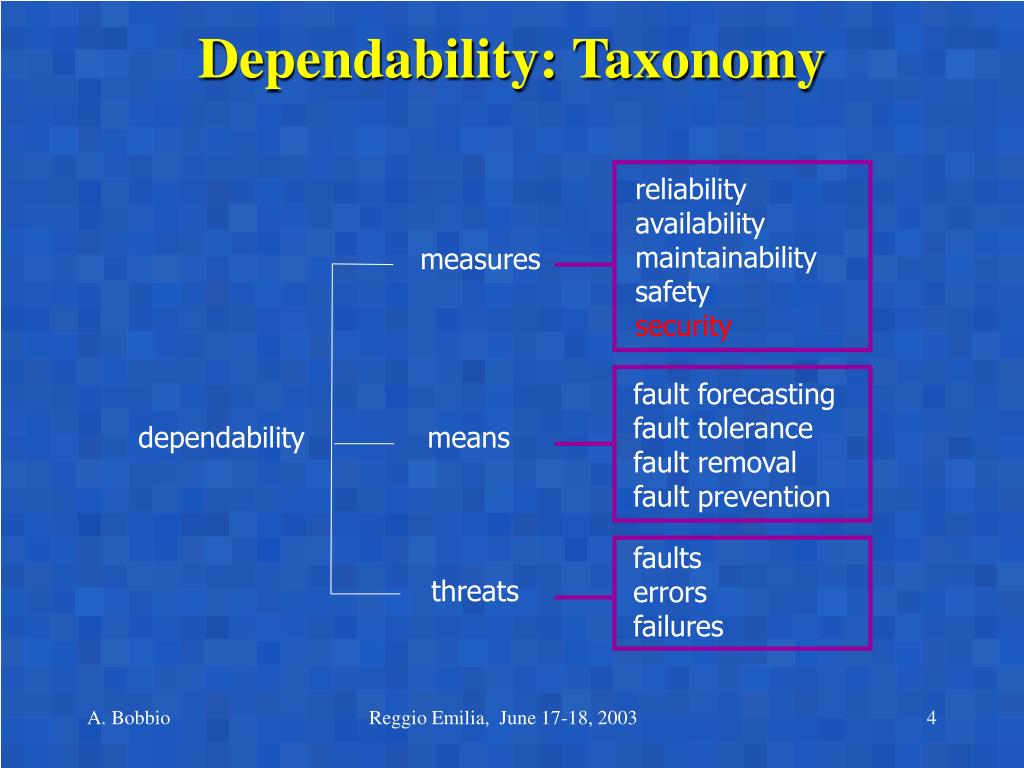

  4. fault forecasting fault tolerance fault removal fault prevention means faults errors failures threats Dependability: Taxonomy reliability availability maintainability safety security measures dependability Reggio Emilia, June 17-18, 2003

  5. Quantitative analysis The quantitative analysis aims at numerically evaluating measures to characterize the dependability of an item: • Risk assessment and safety • Design specifications • Technical assistance and maintenance • Life cycle cost • Market competition Reggio Emilia, June 17-18, 2003

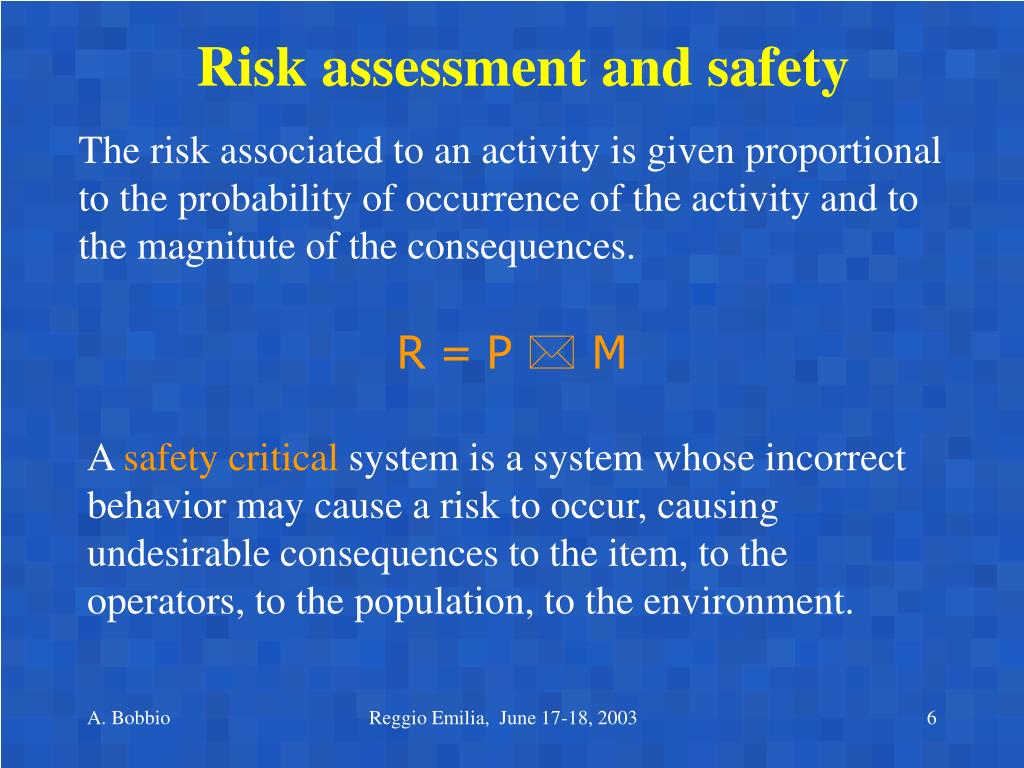

  6. Risk assessment and safety The risk associated to an activity is given proportional to the probability of occurrence of the activity and to the magnitute of the consequences. R = P  M A safety critical system is a system whose incorrect behavior may cause a risk to occur, causing undesirable consequences to the item, to the operators, to the population, to the environment. Reggio Emilia, June 17-18, 2003

  7. Design specifications • Technological items must be dependable. • Some times, dependability requirements (both qualitative and quantitative) are part of the design specifications: • Mean time between failures • Total down time Reggio Emilia, June 17-18, 2003

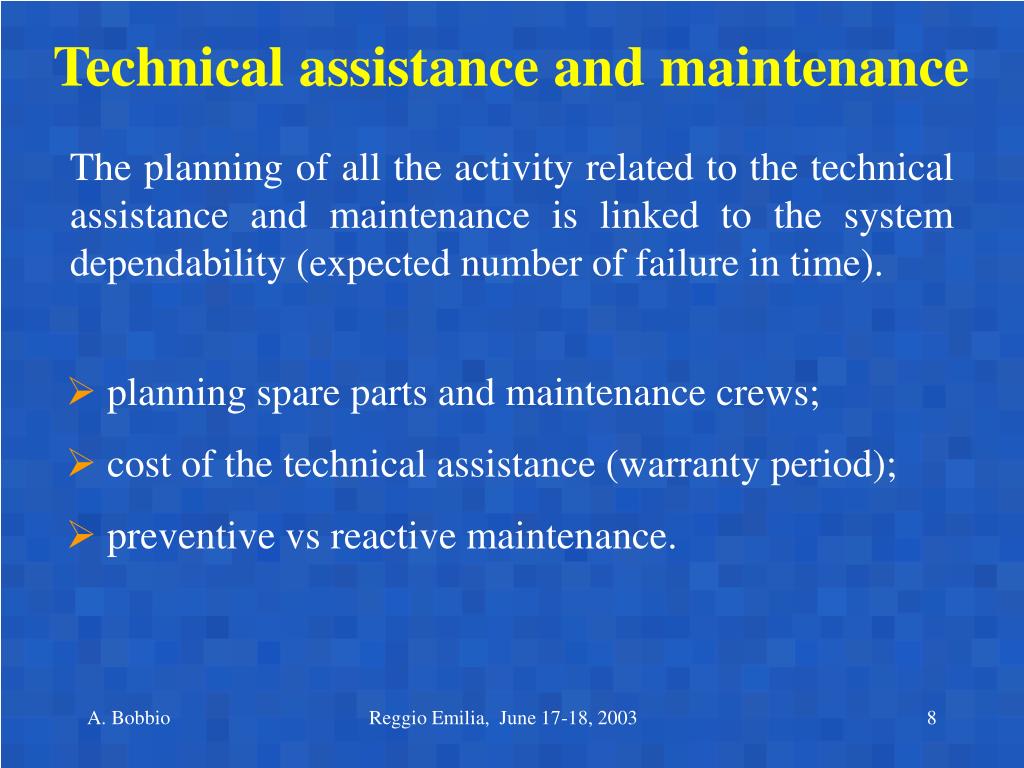

  8. Technical assistance and maintenance The planning of all the activity related to the technical assistance and maintenance is linked to the system dependability (expected number of failure in time). • planning spare parts and maintenance crews; • cost of the technical assistance (warranty period); • preventive vs reactive maintenance. Reggio Emilia, June 17-18, 2003

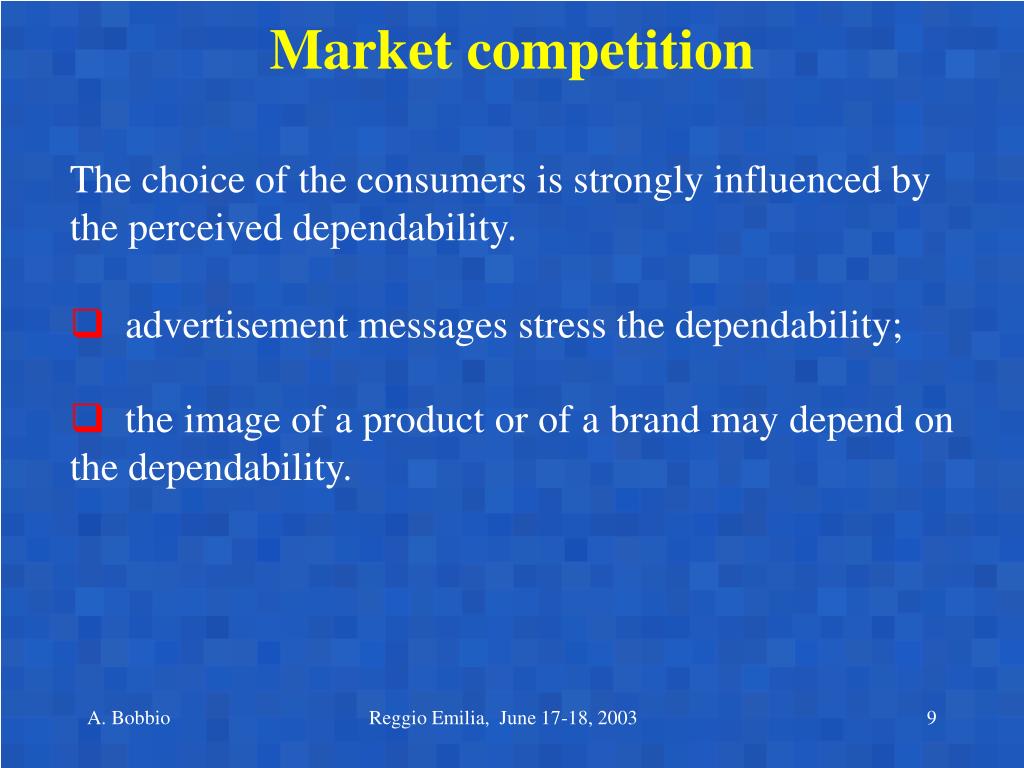

  9. Market competition • The choice of the consumers is strongly influenced by the perceived dependability. • advertisement messages stress the dependability; • the image of a product or of a brand may depend on the dependability. Reggio Emilia, June 17-18, 2003

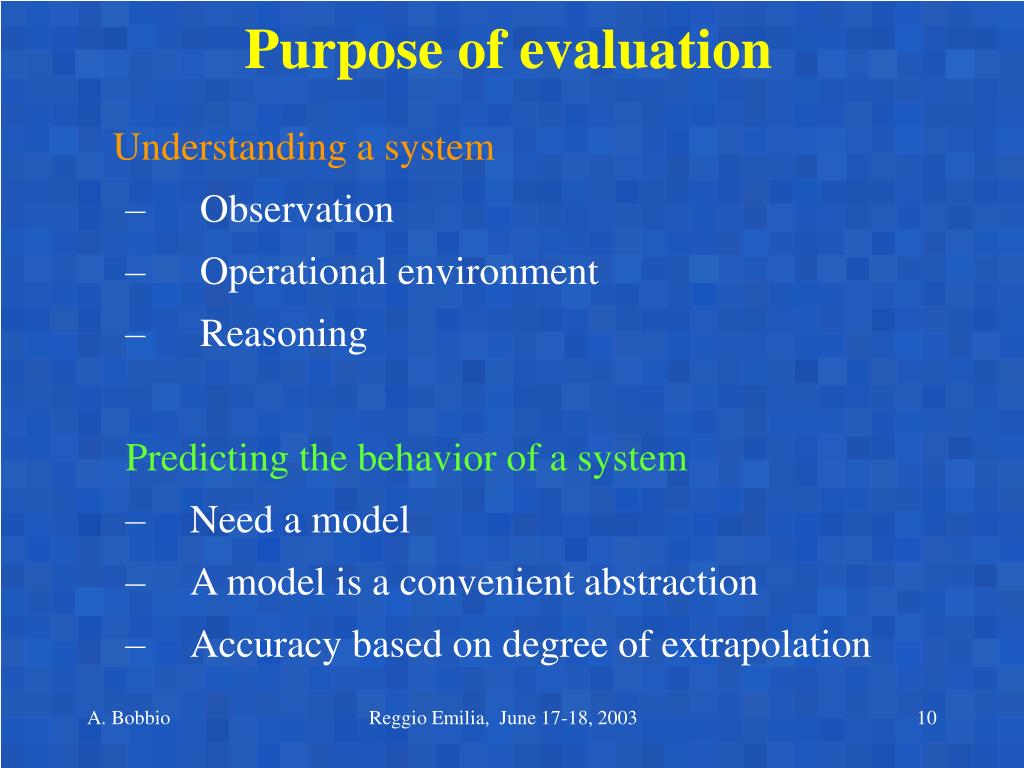

  10. Understanding a system Observation Operational environment Reasoning Predicting the behavior of a system Need a model A model is a convenient abstraction Accuracy based on degree of extrapolation Purpose of evaluation Reggio Emilia, June 17-18, 2003

  11. Measurement-Based Most believable, most expensive Not always possible or cost effective during system design Methods of evaluation • Model-Based • Less believable, Less expensive • Analytic vs Discrete-Event Simulation • Combinatorial vs State-Space Methods Reggio Emilia, June 17-18, 2003

  12. Most believable, most expensive; Data are obtained observing the behavior of physical objects. field observations; measurements on prototypes; measurements on components (accelerated tests). Measurement-Based Reggio Emilia, June 17-18, 2003

  13. Models • Closed-form • Answers • Numerical • Solution • Analytic • Simulation All models are wrong; some models are useful Reggio Emilia, June 17-18, 2003

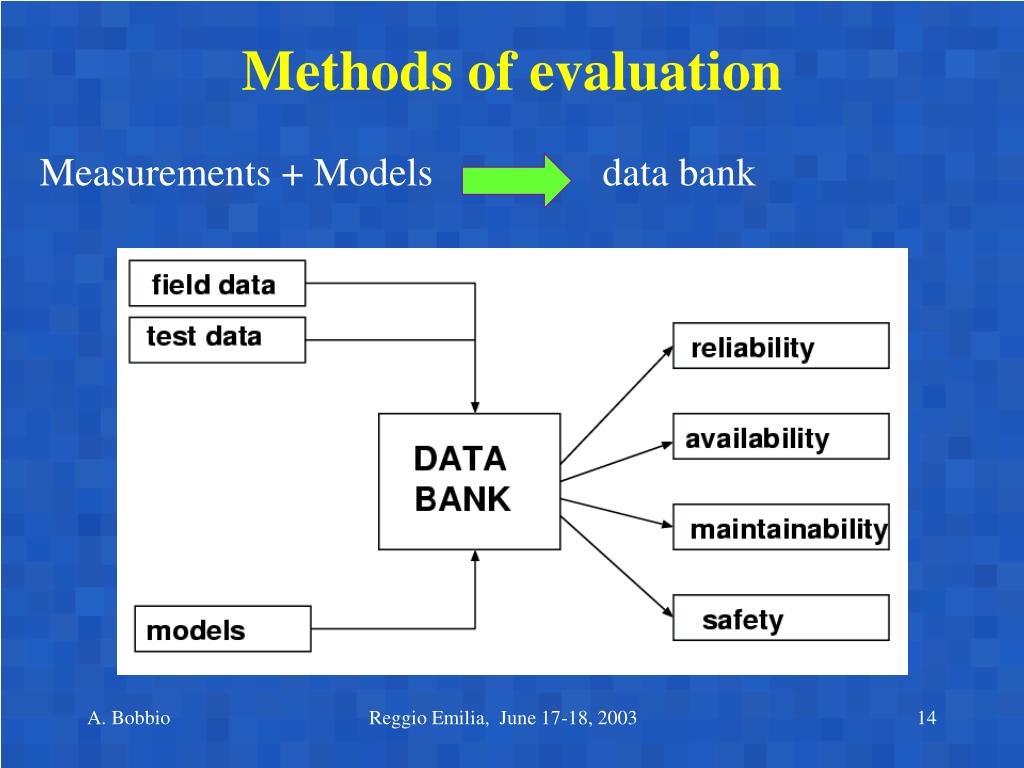

  14. Measurements + Models data bank Methods of evaluation Reggio Emilia, June 17-18, 2003

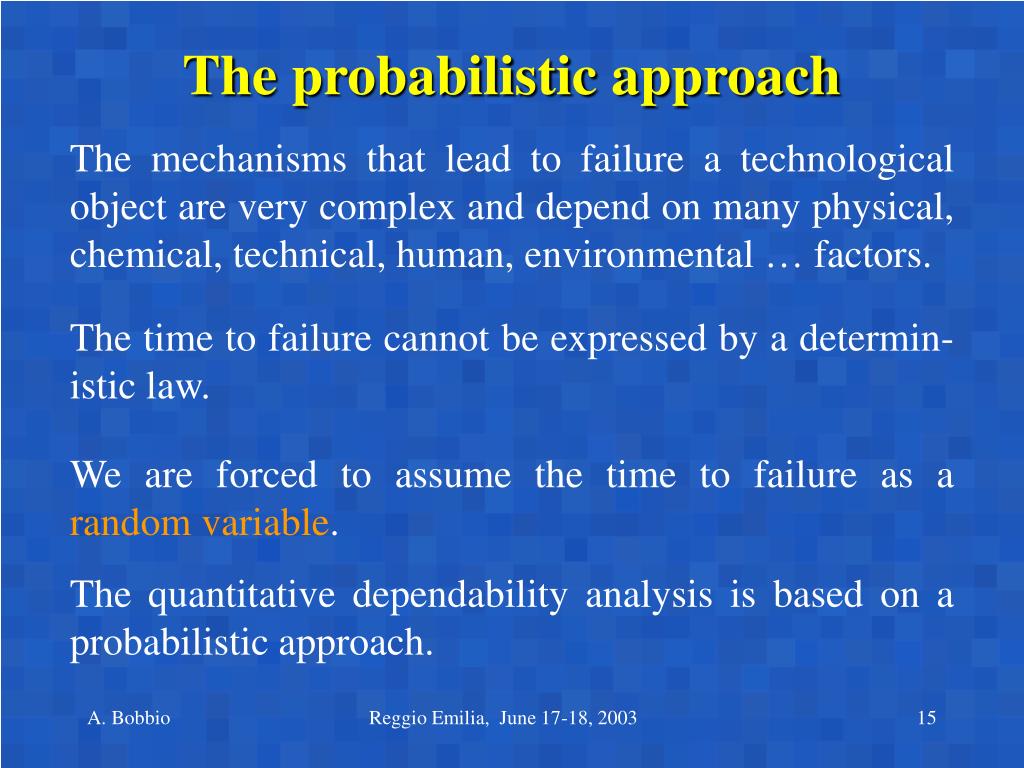

  15. The probabilistic approach The mechanisms that lead to failure a technological object are very complex and depend on many physical, chemical, technical, human, environmental … factors. The time to failure cannot be expressed by a determin-istic law. We are forced to assume the time to failure as a random variable. The quantitative dependability analysis is based on a probabilistic approach. Reggio Emilia, June 17-18, 2003

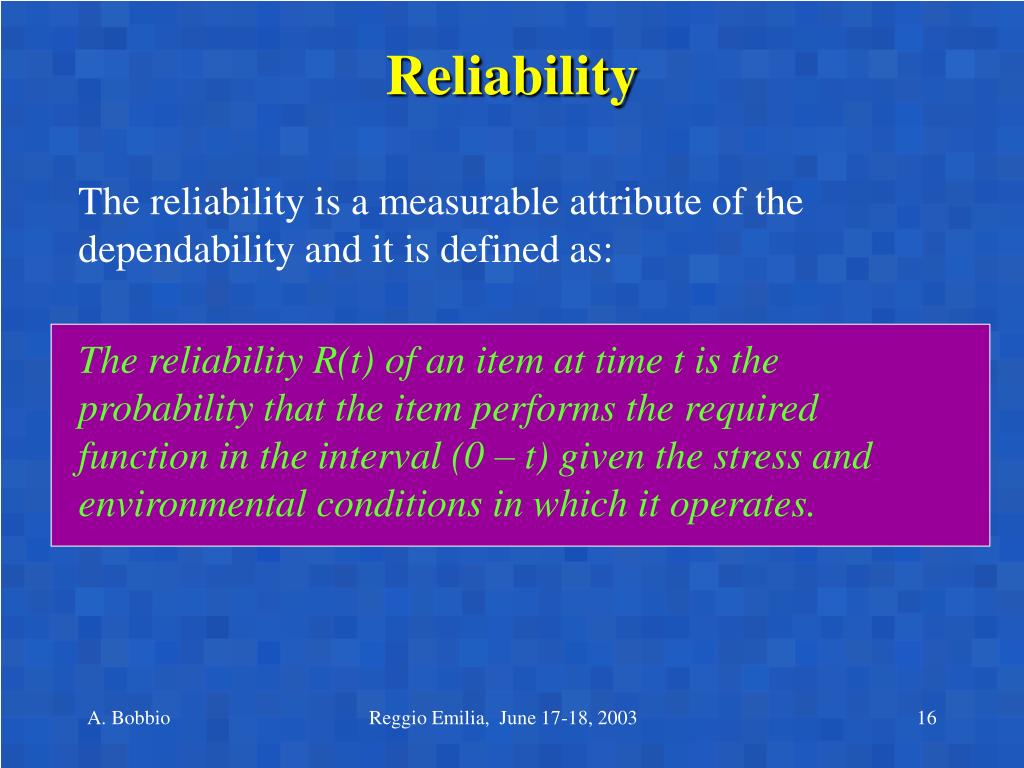

  16. Reliability The reliability is a measurable attribute of the dependability and it is defined as: The reliability R(t) of an item at time t is the probability that the item performs the required function in the interval (0 – t) given the stress and environmental conditions in which it operates. Reggio Emilia, June 17-18, 2003

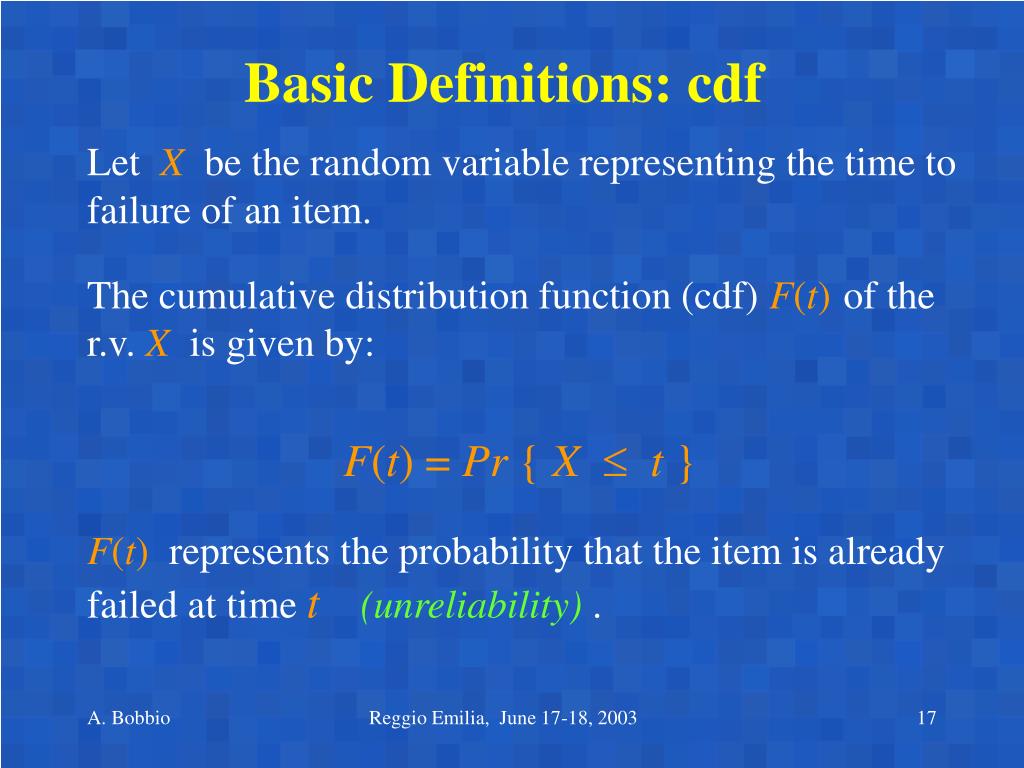

  17. LetXbe the random variable representing the time to failure of an item. Basic Definitions: cdf Thecumulative distribution function (cdf) F(t)of the r.v. X is given by: F(t) = Pr { X  t } F(t) represents the probability that the item is already failed at time t (unreliability) . Reggio Emilia, June 17-18, 2003

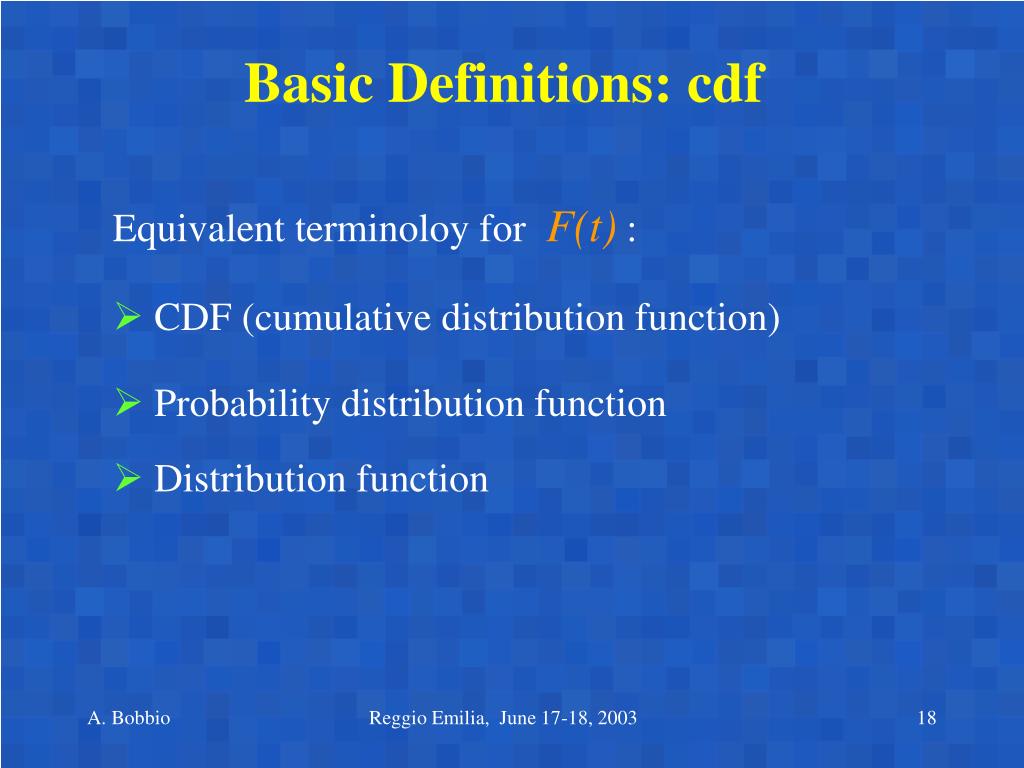

  18. Equivalent terminoloy for F(t): CDF (cumulative distribution function) Probability distribution function Distribution function Basic Definitions: cdf Reggio Emilia, June 17-18, 2003

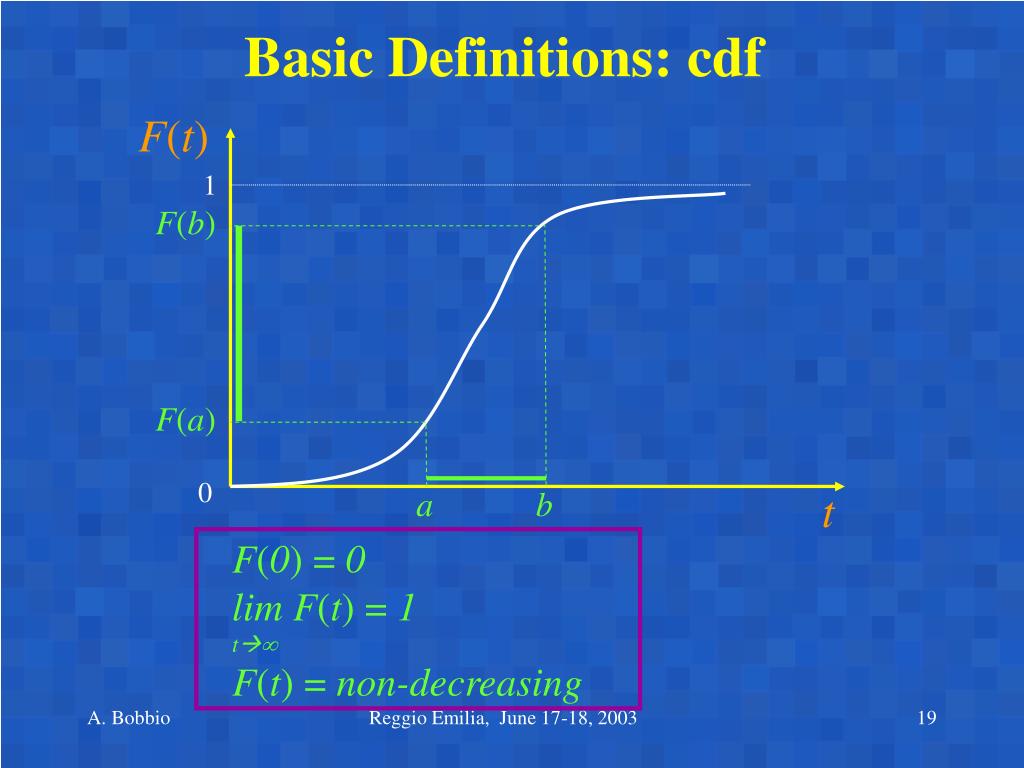

  19. Basic Definitions: cdf F(t) 1 F(b) F(a) 0 a b t F(0) = 0 lim F(t) = 1 t F(t) = non-decreasing Reggio Emilia, June 17-18, 2003

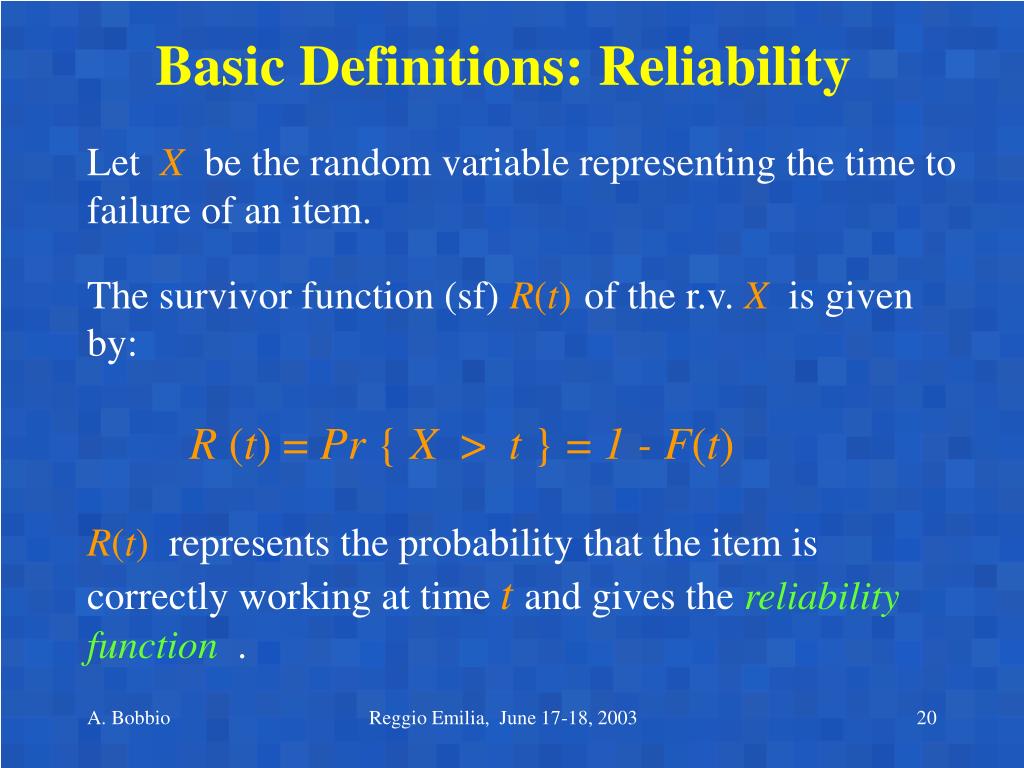

  20. LetXbe the random variable representing the time to failure of an item. Basic Definitions: Reliability Thesurvivor function (sf) R(t)of the r.v. X is given by: R (t) = Pr { X > t } = 1 -F(t) R(t) represents the probability that the item is correctly working at time t and gives the reliability function . Reggio Emilia, June 17-18, 2003

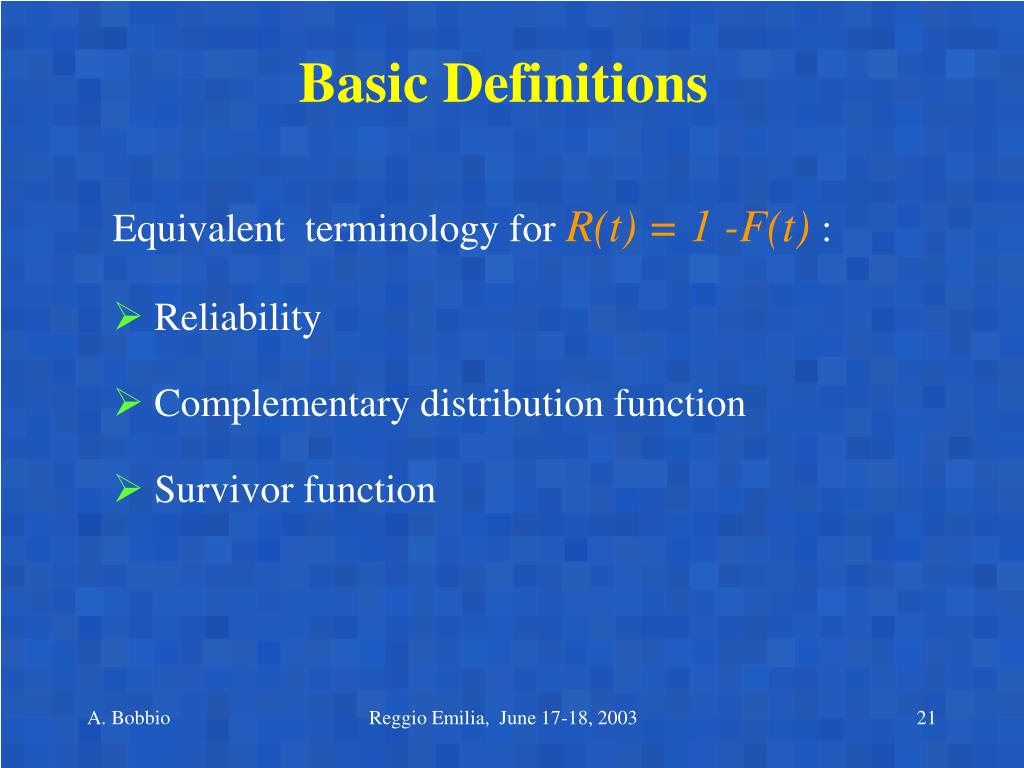

  21. Equivalent terminology for R(t) = 1 -F(t): Reliability Complementary distribution function Survivor function Basic Definitions Reggio Emilia, June 17-18, 2003

  22. Basic Definitions: Reliability R(t) 1 R(a) 0 a b t R(0) = 1 lim R(t) = 0 t R(t) = non-increasing Reggio Emilia, June 17-18, 2003

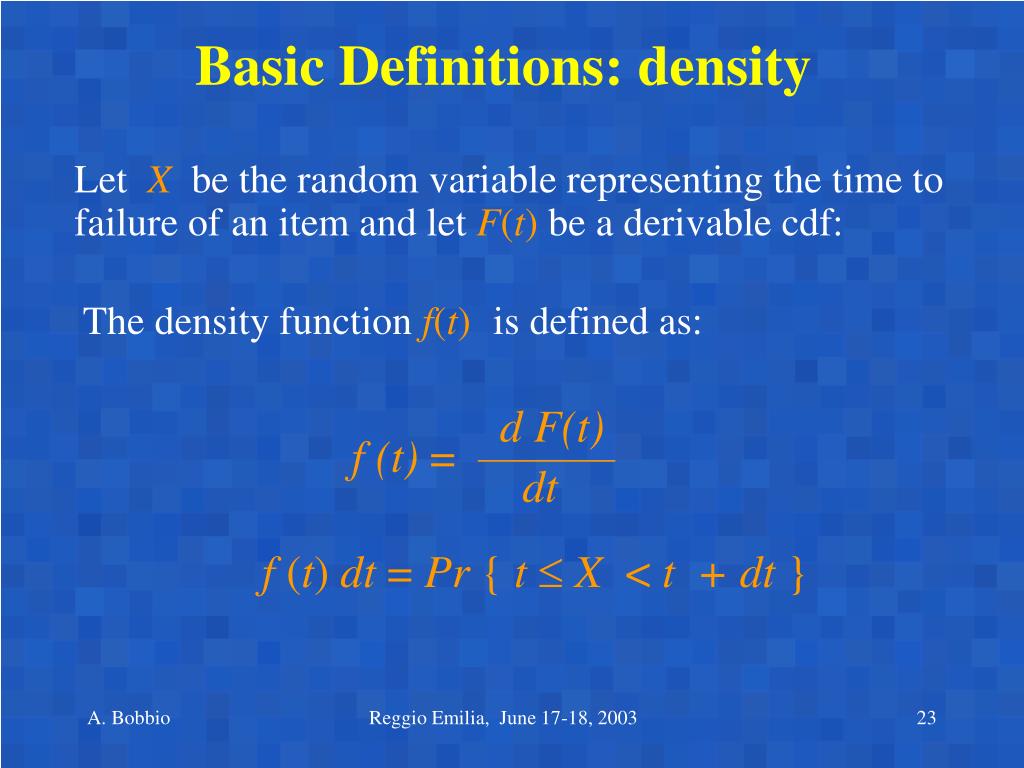

  23. LetXbe the random variable representing the time to failure of an item and let F(t)be a derivable cdf: Basic Definitions: density Thedensity function f(t)is defined as: d F(t) f (t) = ——— dt f (t)dt = Pr { tX < t + dt } Reggio Emilia, June 17-18, 2003

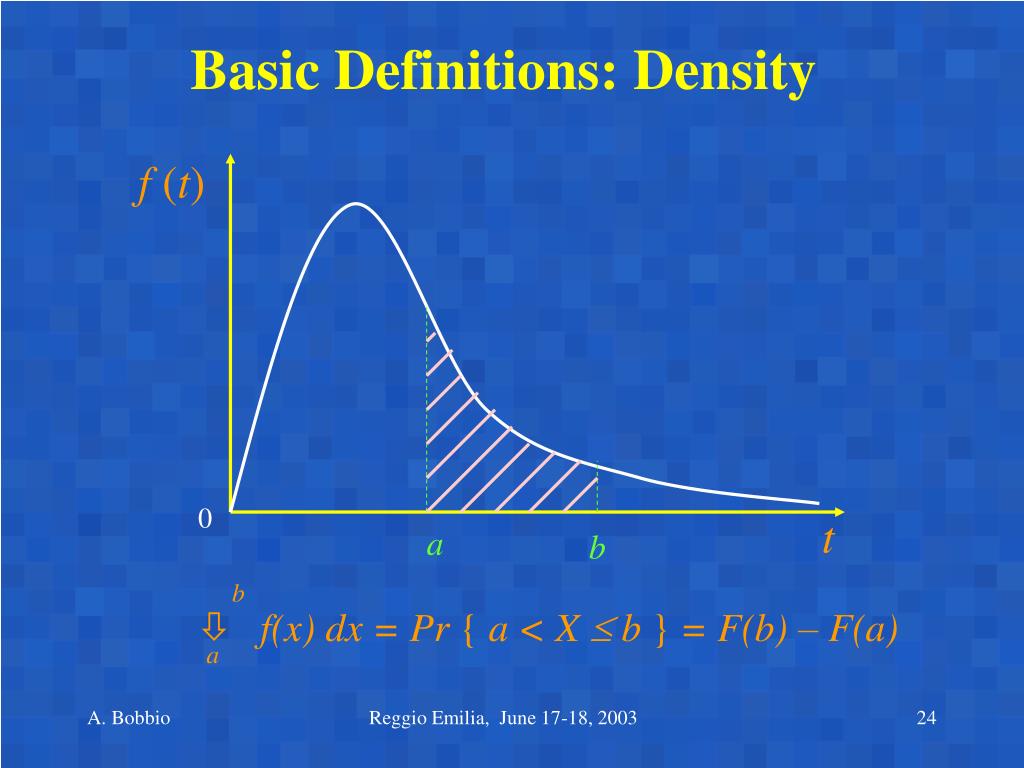

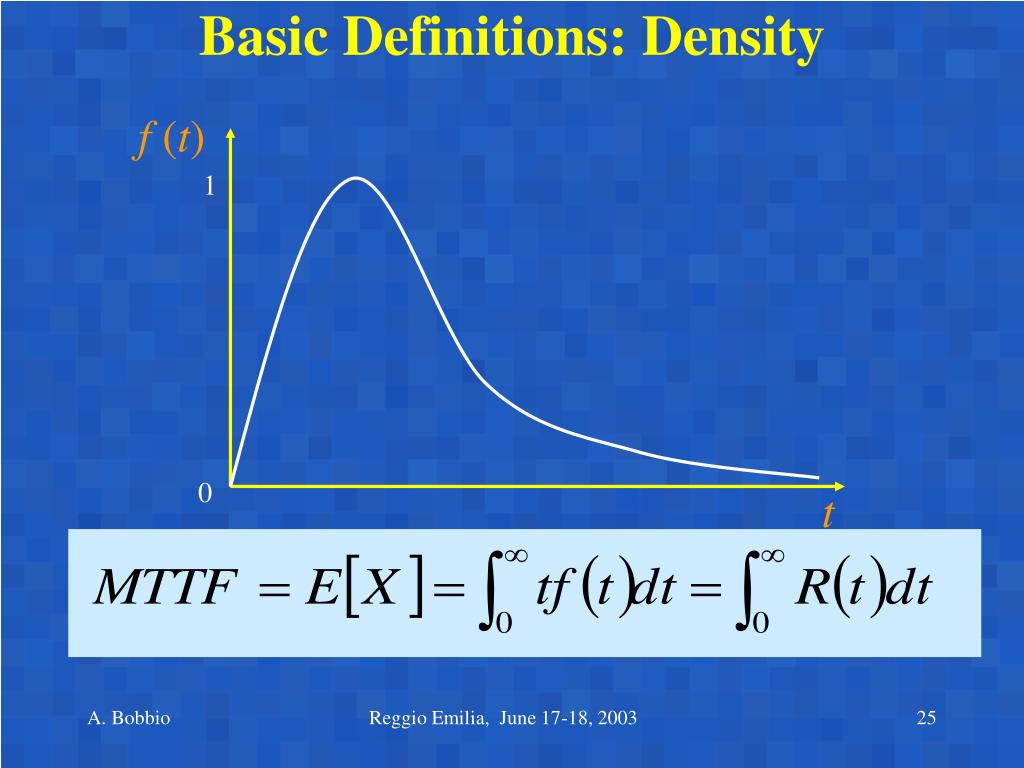

  24. Basic Definitions: Density f (t) 0 t a b b  f(x) dx = Pr { a < X  b } = F(b) – F(a) a Reggio Emilia, June 17-18, 2003

  25. Basic Definitions: Density f (t) 1 0 t Reggio Emilia, June 17-18, 2003

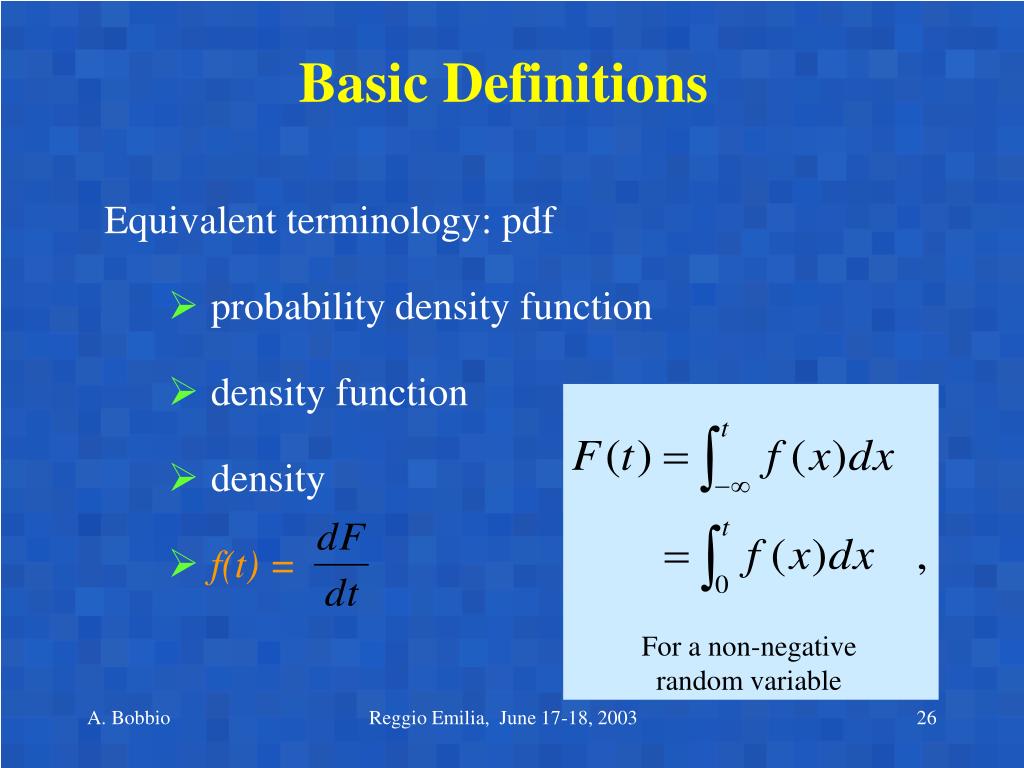

  26. Equivalent terminology: pdf probability density function density function density f(t) = Basic Definitions For a non-negative random variable Reggio Emilia, June 17-18, 2003

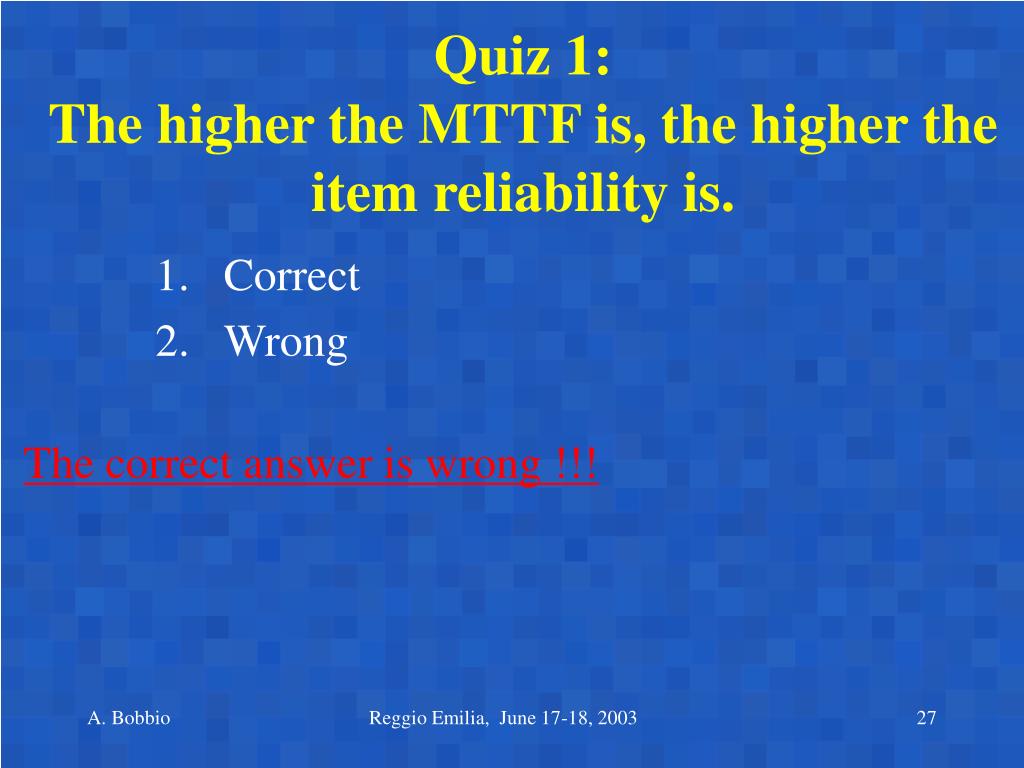

  27. Correct Wrong Quiz 1:The higher the MTTF is, the higher the item reliability is. • The correct answer is wrong !!! Reggio Emilia, June 17-18, 2003

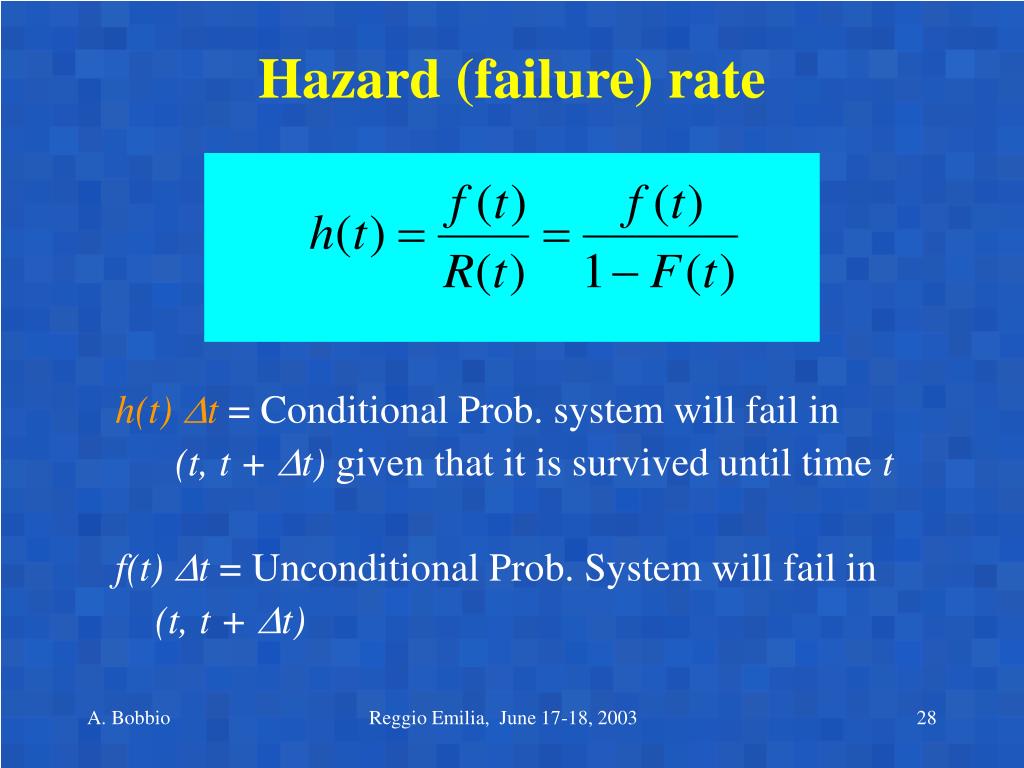

  28. h(t) t = Conditional Prob. system will fail in (t, t + t) given that it is survived until time t f(t) t = Unconditional Prob. System will fail in (t, t + t) Hazard (failure) rate Reggio Emilia, June 17-18, 2003

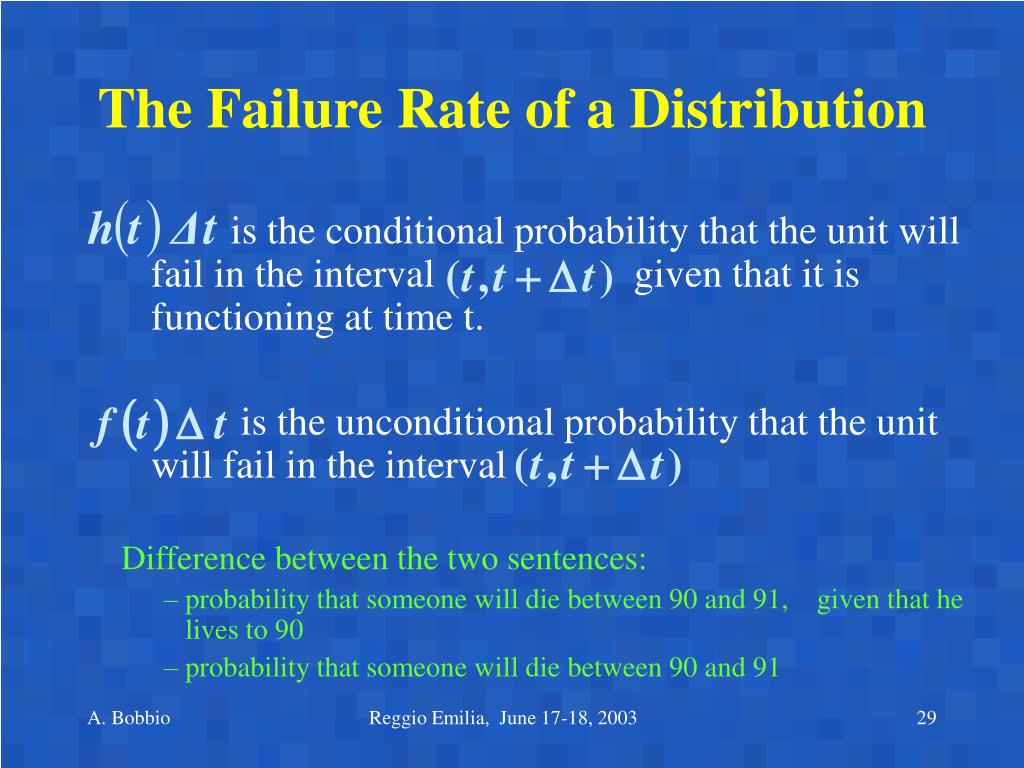

  29. is the conditional probability that the unit will fail in the interval given that it is functioning at time t. is the unconditional probability that the unit will fail in the interval Difference between the two sentences: probability that someone will die between 90 and 91, given that he lives to 90 probability that someone will die between 90 and 91 The Failure Rate of a Distribution Reggio Emilia, June 17-18, 2003

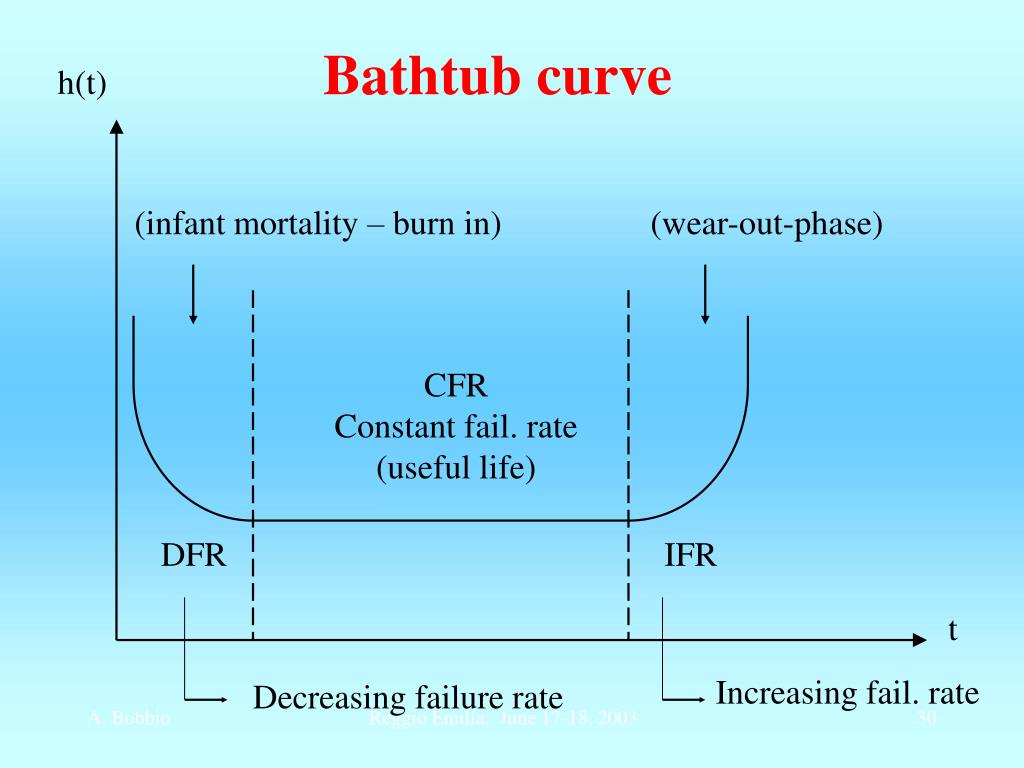

  30. Bathtub curve h(t) (infant mortality – burn in) (wear-out-phase) CFR Constant fail. rate (useful life) DFR IFR t Increasing fail. rate Decreasing failure rate Reggio Emilia, June 17-18, 2003

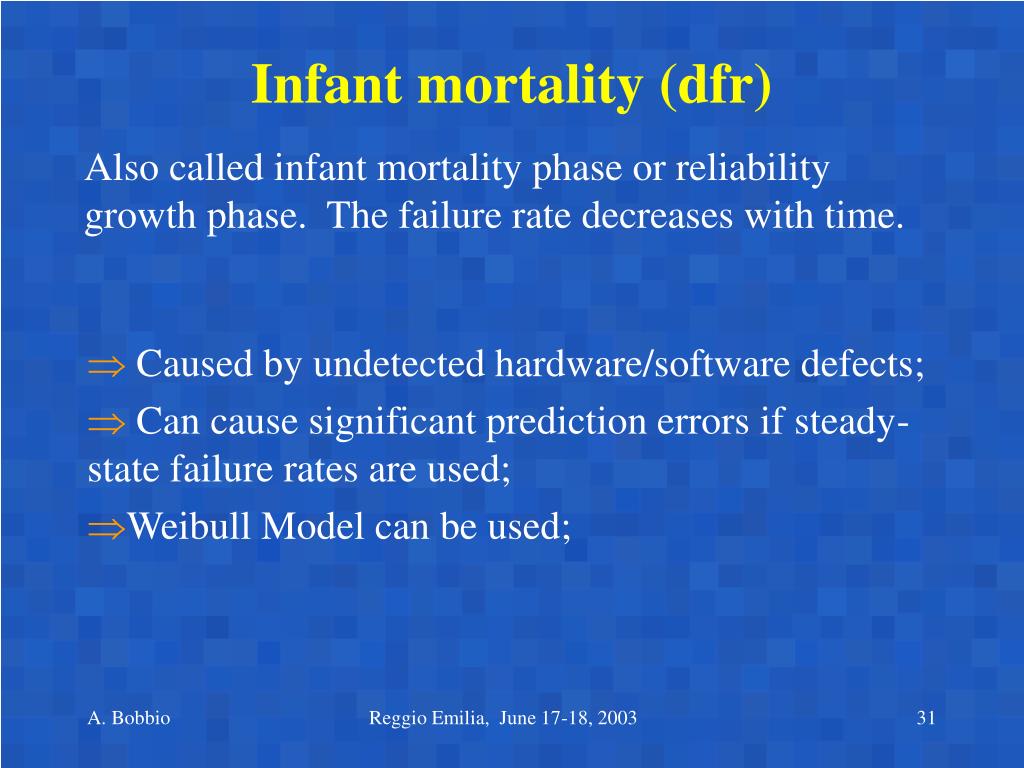

  31. Infant mortality (dfr) Also called infant mortality phase or reliability growth phase. The failure rate decreases with time. • Caused by undetected hardware/software defects; • Can cause significant prediction errors if steady-state failure rates are used; • Weibull Model can be used; Reggio Emilia, June 17-18, 2003

  32. Useful life (cfr) The failure rate remains constant in time (age independent) . • Failure rate much lower than in early-life period. • Failure caused by random effects (as environmental shocks). Reggio Emilia, June 17-18, 2003

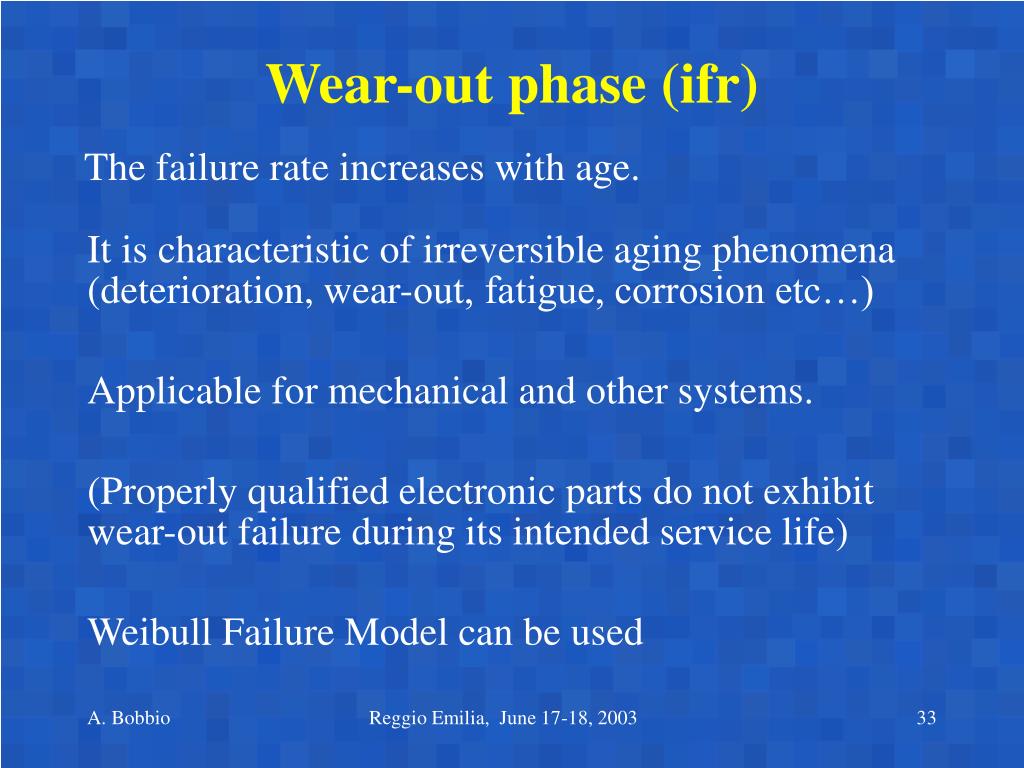

  33. Wear-out phase (ifr) The failure rate increases with age. It is characteristic of irreversible aging phenomena (deterioration, wear-out, fatigue, corrosion etc…) Applicable for mechanical and other systems. (Properly qualified electronic parts do not exhibit wear-out failure during its intended service life) Weibull Failure Model can be used Reggio Emilia, June 17-18, 2003

  34. Cumul. distribution function: Reliability : Density Function : Failure Rate (CFR): Mean Time to Failure: Exponential Distribution Failure rate is age-independent (constant). Reggio Emilia, June 17-18, 2003

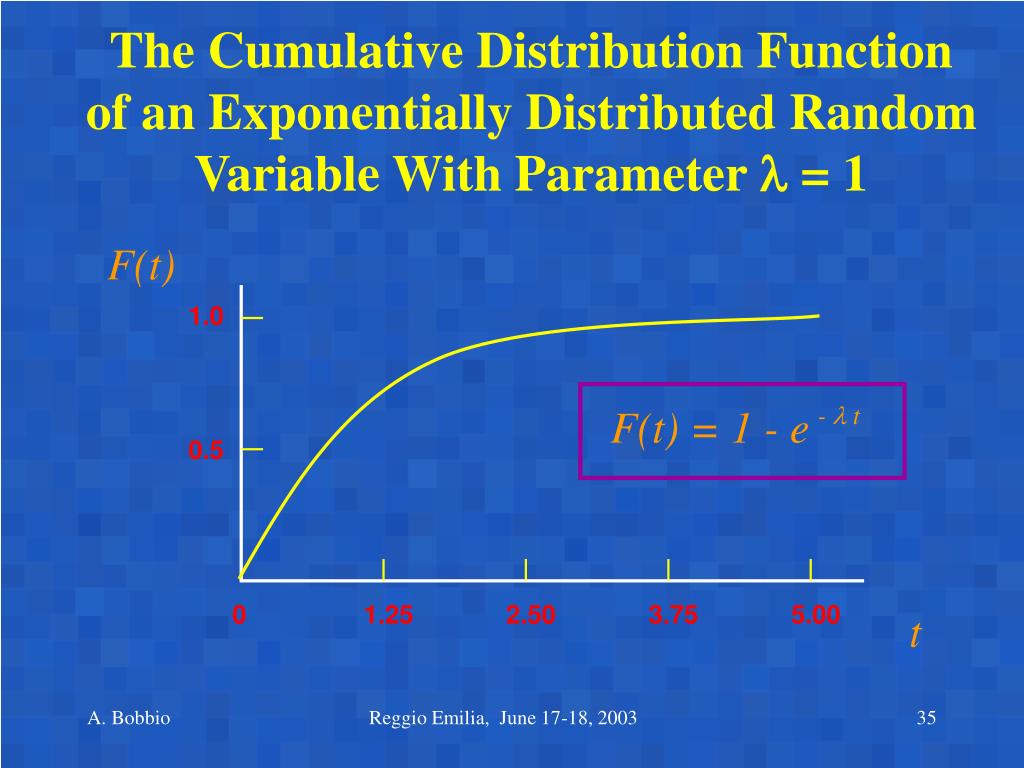

  35. The Cumulative Distribution Function of an Exponentially Distributed Random Variable With Parameter  = 1 F(t) 1.0 F(t) = 1 - e -  t 0.5 0 1.25 2.50 3.75 5.00 t Reggio Emilia, June 17-18, 2003

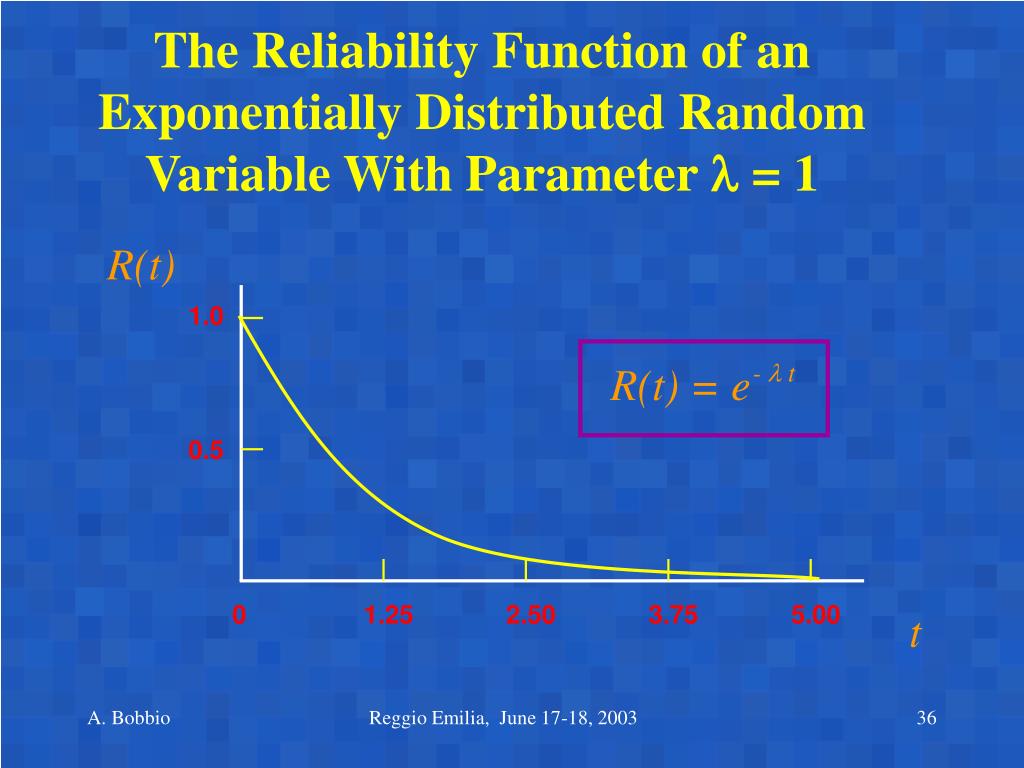

  36. R(t) = e -  t The Reliability Function of an Exponentially Distributed Random Variable With Parameter  = 1 R(t) 1.0 0.5 0 1.25 2.50 3.75 5.00 t Reggio Emilia, June 17-18, 2003

  37. Exponential Density Function (pdf) f(t) MTTF = 1/  Reggio Emilia, June 17-18, 2003

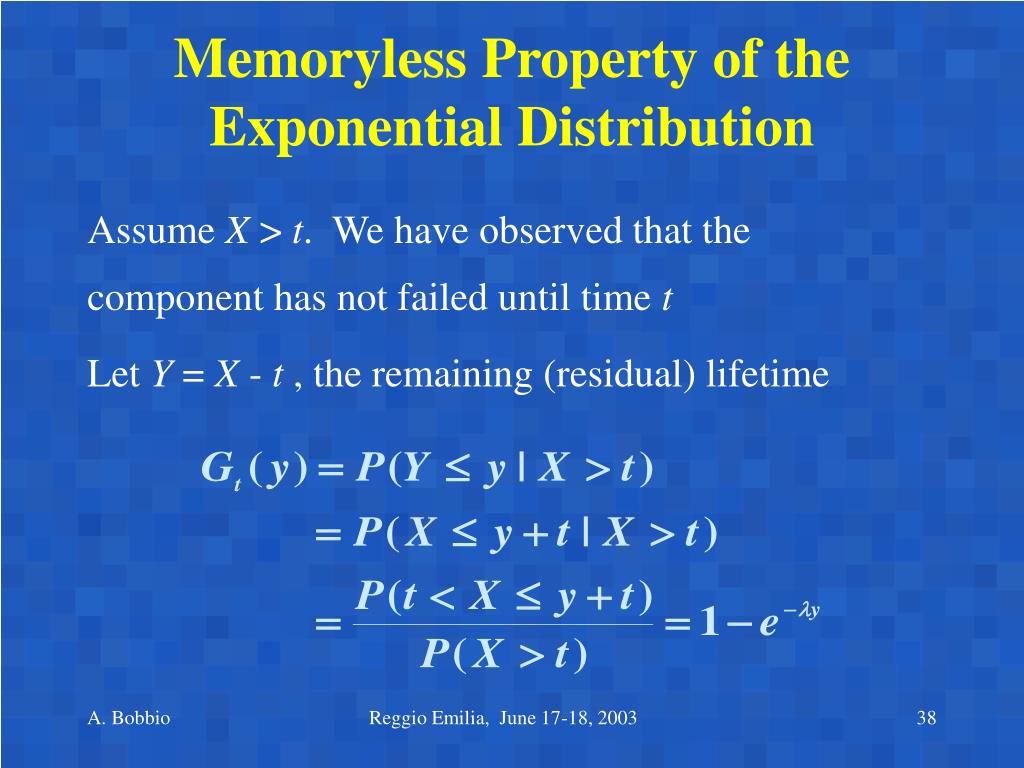

  38. Memoryless Property of the Exponential Distribution • Assume X > t. We have observed that the component has not failed until time t • Let Y = X - t , the remaining (residual) lifetime Reggio Emilia, June 17-18, 2003

  39. Thus Gt(y) is independent of t and is identical to the original exponential distribution of X The distribution of the remaining life does not depend on how long the component has been operating An observed failure is the result of some suddenly appearing failure, not due to gradual deterioration Memoryless Property of the Exponential Distribution (cont.) Reggio Emilia, June 17-18, 2003

  40. 1. They will always fail at the same time 2. They have the same probability of failing at time ‘t’ during operation 3. When these two components are operating simultaneously, the component which has been operational for a shorter duration of time will survive longer Quiz 3:If two components (say, A and B) have independent identical exponentially distributed times to failure, by the “memoryless” property, which of the following is true? Reggio Emilia, June 17-18, 2003

  41. Distribution Function: Density Function: Reliability: Weibull Distribution Reggio Emilia, June 17-18, 2003

  42. Weibull Distribution : shape parameter; : scale parameter. Failure Rate: Dfr Cfr Ifr Reggio Emilia, June 17-18, 2003

  43. Failure Rate of the Weibull Distribution with Various Values of  Reggio Emilia, June 17-18, 2003

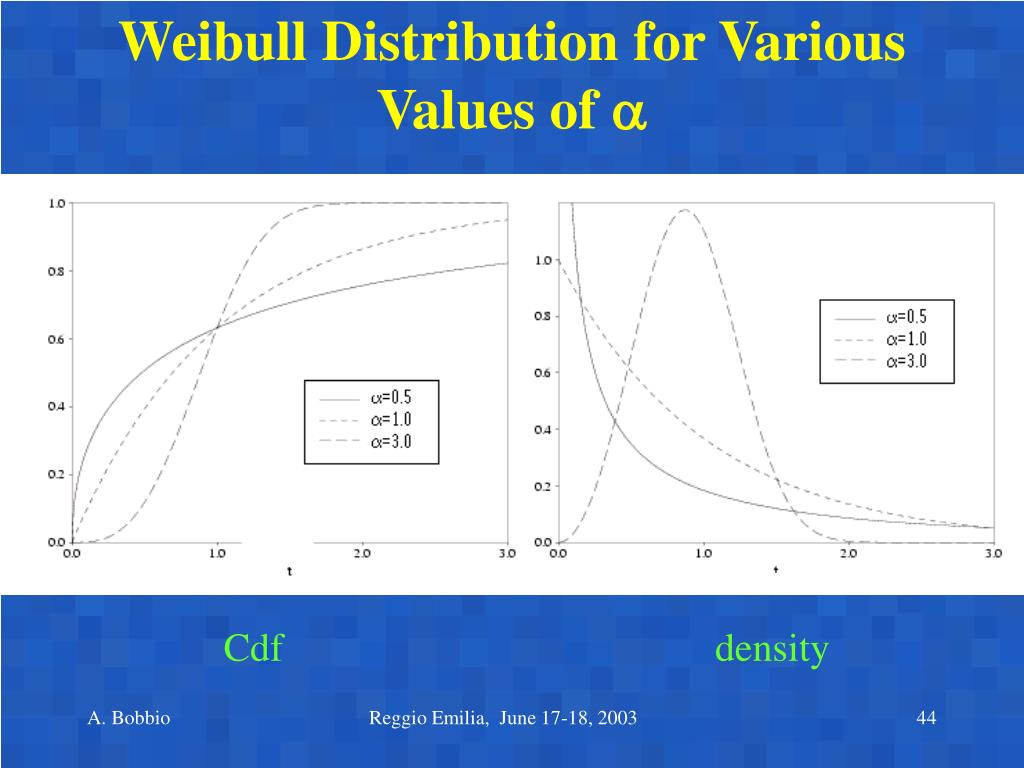

  44. Weibull Distribution for Various Values of  Cdf density Reggio Emilia, June 17-18, 2003

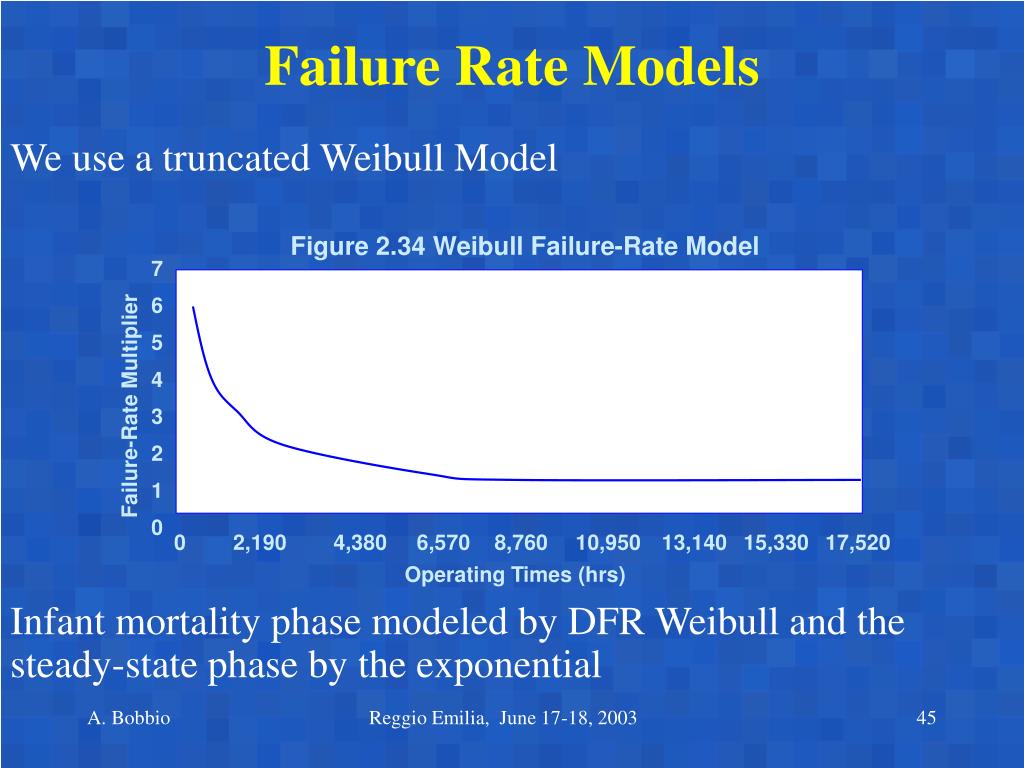

  45. We use a truncated Weibull Model Infant mortality phase modeled by DFR Weibull and the steady-state phase by the exponential Failure Rate Models Figure 2.34 Weibull Failure-Rate Model 7 6 5 4 3 2 1 0 Failure-Rate Multiplier 0 2,190 4,380 6,570 8,760 10,950 13,140 15,330 17,520 Operating Times (hrs) Reggio Emilia, June 17-18, 2003

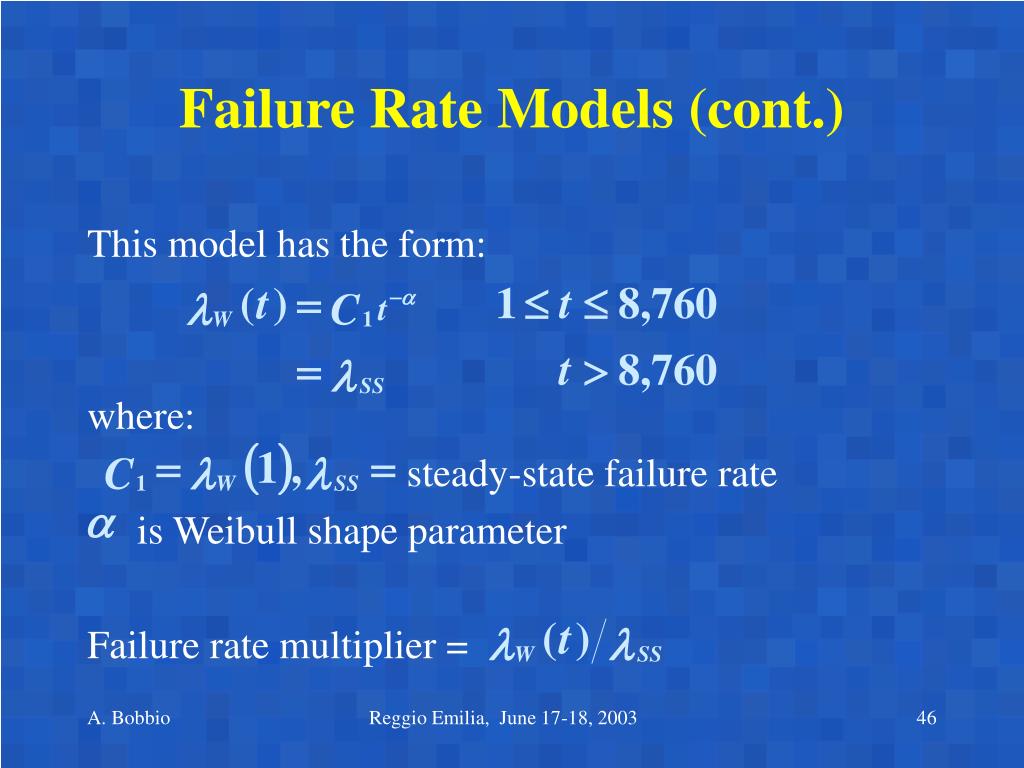

  46. This model has the form: where: steady-state failure rate is Weibull shape parameter Failure rate multiplier = Failure Rate Models (cont.) Reggio Emilia, June 17-18, 2003

  47. There are several ways to incorporate time dependent failure rates in availability models The easiest way is to approximate a continuous function by a piecewise constant step function Failure Rate Models (cont.) Discrete Failure-Rate Model 7 6 5 4 3 2 1 0 Failure-Rate Multiplier 0 2,190 4,380 6,570 8,760 10,950 13,140 15,330 17,520 Operating Times (hrs) Reggio Emilia, June 17-18, 2003

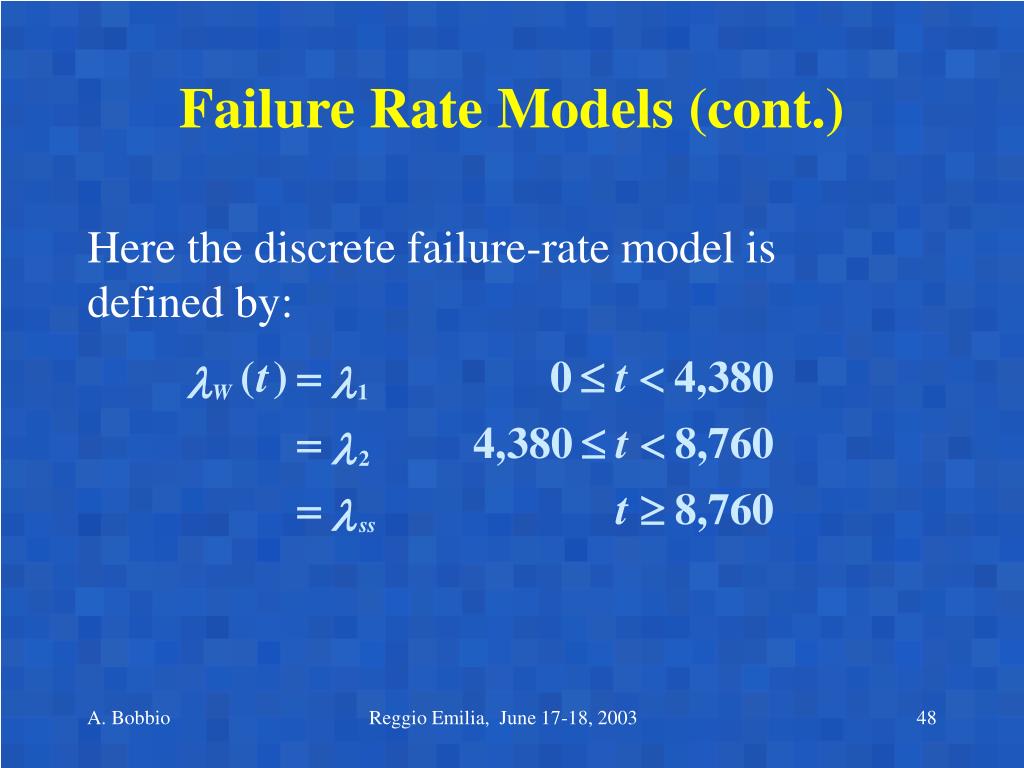

  48. Here the discrete failure-rate model is defined by: Failure Rate Models (cont.) Reggio Emilia, June 17-18, 2003

  49. A lifetime experiment X 1 1 X 2 2 X 3 3 X 4 4 X N N t = 0 N i.i.d components are put in a life test experiment. Reggio Emilia, June 17-18, 2003

  50. A lifetime experiment X 1 1 X 2 2 X 3 3 4 X 4 X N N Reggio Emilia, June 17-18, 2003
