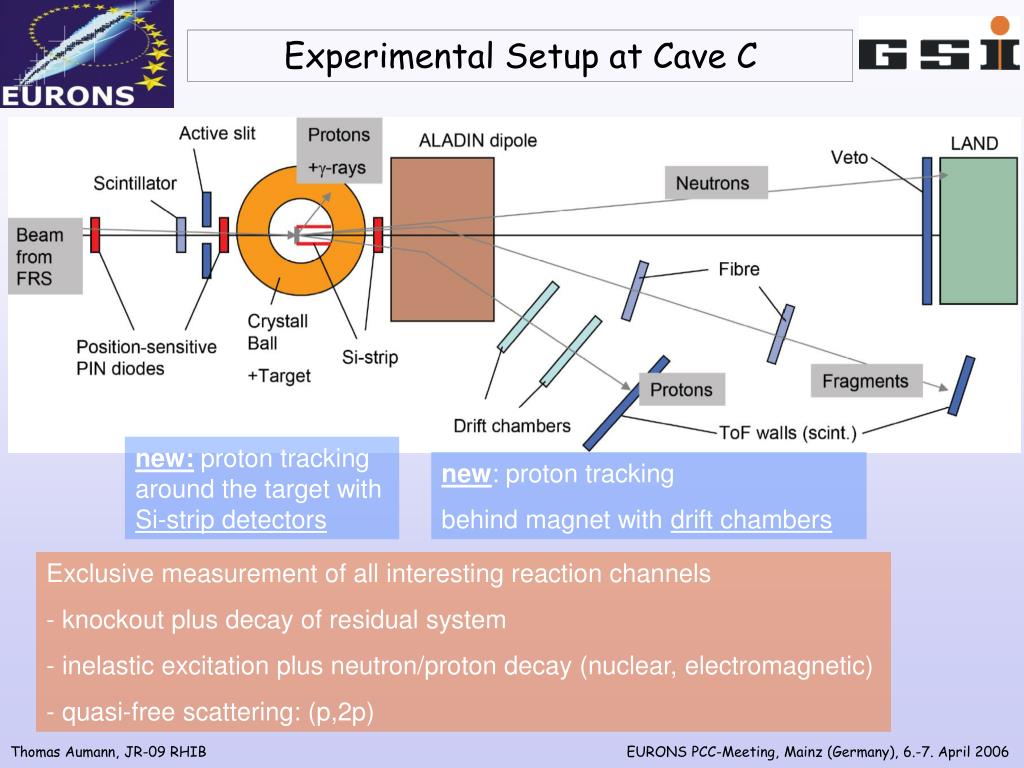

Experimental Setup at Cave C. new: proton tracking around the target with Si-strip detectors. new : proton tracking behind magnet with drift chambers. Exclusive measurement of all interesting reaction channels - knockout plus decay of residual system

nira
Télécharger la présentation

Experimental Setup at Cave C

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Experimental Setup at Cave C new: proton tracking around the target with Si-strip detectors new: proton tracking behind magnet with drift chambers Exclusive measurement of all interesting reaction channels - knockout plus decay of residual system - inelastic excitation plus neutron/proton decay (nuclear, electromagnetic) - quasi-free scattering: (p,2p) EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  2. Progress from RHIB Thomas Aumann (GSI) EURONS PCC meeting, Mainz 6th April 2006 • High-resolution tracking diamond detectors (TUM) • good timing and position resolution, radiation hard • prototype tests performed • High-resolution tracking silicon detectors (GSI) • zero-degree detector for tracking of fragments and protons (in one detector) plus proton-recoil detector for quasi-free scattering experiments • prototype tests performed • Large-area detectors for heavy ions and light charged particles (Santiago de Compostela) • simulations performed, characteristic parameters defined RHIB Tasks EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  3. Progress from RHIB • High-resolution velocity measurements (Santiago de Compostela) • first RPC prototypes available • beam time request for tests with high-energy HI submitted • Pilot experiments and simulations (Madrid, GSI, Chalmers, Aarhus, Daresbury) • quasi-free scattering (p,2p), p(pn) etc in inverse kinematics • simulations including reaction theory (Surrey) • first full-scale experiment for quasi-free scattering in preparation • High-transmission beam line (Giessen) • ion-optical calculations and optimization of FRS-CaveC(RHIB) beam lins • Low-mass tracking detectors (FZR) (prototype ready) EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  4. Diamond detectors Prototype detectors Test with 1 GeV/u 27Al beam - time resolution s~60 psec (independent from signal amplitude) - efficiency 98.5% (segmentation) HADES start detector 1x1 cm2, 50mm substrate, 4x4 segmentation low-noise 2 GHz preamps EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  5. Diamond detectors Prototype detectors Tests at the Munich Tandem with 117 MeV 16O beam (energy loss equ. 1 GeV/u Kr) - Charge-collection spread 18% (inhomogeneity of polychrytaline material) - Charge-collection depth 15 mm - Variation of thickness ±1 mm 1x1 cm2, 100mm substrate, 4x4 segmentation EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  6. Diamond detectors Prototype detectors Tests at the Munich Tandem with 117 MeV 16O beam (energy loss equ. 1 GeV/u Kr) Radiation Hardness max dose 101116O ions/mm2 → tracking detectors for high-rate invironment (e.g., mid focus Super-FRS) 1x1 cm2, 100mm substrate, 4x4 segmentation EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  7. Si-strip detectors • AMS type detectors • DSSDs, 300  m thick, 41 × 72 mm2 • Strip pitch 100 m • Readout chips – VA64HDR9a (64 ch, very low power dissipation) • Energy resolution – 50 keV • Dynamic range – 100 keV - 14 MeV • 1024 readout channels/detector • Designed to work in vacuum (total power dissipation < 3 W/detector) • 9 detectors + FEE boards are available EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  8. Si-strip detectors • Beam test of 4 detectors - FRS@GSI, November 2005 fragments produced from 12C beam with E = 350 MeV/u EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  9. Si-strip detectors Results position measurement dE resolution Noise level EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  10. Experimental Setup at Cave C new: proton tracking around the target with Si-strip detectors new: proton tracking behind magnet with drift chambers Exclusive measurement of all interesting reaction channels - knockout plus decay of residual system - inelastic excitation plus proton decay (nuclear, electromagnetic) - quasi-free scattering: (p,2p) EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  11. Quasi-free scattering in inverse kinematics • kinematical complete measurement of (p,pn), (p,2p), (p,pd), (p,a), .... reactions • redundant experimental information: kinematical reconstruction from proton momenta plus gamma rays, recoil momentum, invariant mass • sensitivity not limited to surface → spectral functions → knockout from deeply bound states • cluster knockout reactions EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006

  12. Si-strip detectors for QFS experiment EURONS PCC-Meeting, Mainz (Germany), 6.-7. April 2006
