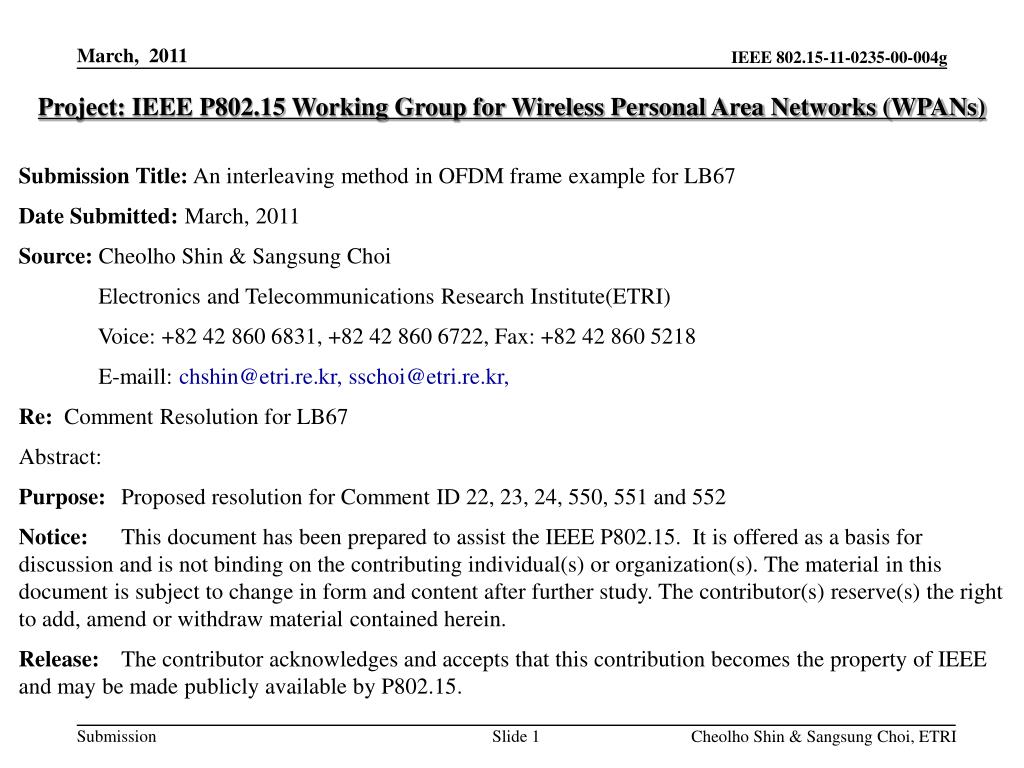

  1. March, 2011 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title:An interleaving method in OFDM frame example for LB67 Date Submitted: March, 2011 Source: Cheolho Shin & Sangsung Choi Electronics and Telecommunications Research Institute(ETRI) Voice: +82 42 860 6831, +82 42 860 6722, Fax: +82 42 860 5218 E-maill: chshin@etri.re.kr, sschoi@etri.re.kr, Re: Comment Resolution for LB67 Abstract: Purpose:Proposed resolution for Comment ID 22, 23, 24, 550, 551 and 552 Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Slide 1

  2. An interleaving method in OFDM frame example for LB67 March, 2011 IEEE 802 Plenary Session Singapore March 2011 Cheolho Shin & Sangsung Choi Slide 2

  3. March, 2011 • Summary • For CID 22 and 550 • Comment : Consider the modified Interleaving factor 'Nrow‘ • Proposed change: Change Nrow From 12 to 3 for OFDM option2 and MCS 0. • Refer to Slide 4 for Draft 2(D2) and Slide 8 for Draft 3(D3) in this document . • For CID 23 and 551 • Comment : Reconsider the results of Interleaving for J.4 • Proposed change: Refer to Slide 6 and Slide 7 in this document. In D2, Slide 6 was used to generate the interleaving results Table J.8. But, Slide 7 is correct interleaving method. • For CID 24 and 552 • Comment : Insert an example for 'PIB attribute phyOFDMInterleaving = 1‘ • Proposed change: Refer to Doc.213. Slide 3

  4. March, 2011 Interleaving method for OFDM option 2 and MCS level 0 in D2 - When the PIB attribute phyOFDMInterleaving is zero, Ncbps is 12 and Nrow is 12. -> In this configuration, no bit interleaving is necessary. Slide 4

  5. March, 2011 Interleaving method for OFDM option 2 and MCS level 0 in D2 - When the PIB attribute phyOFDMInterleaving is one, Ncbps is 48 and Nrow is 12. Slide 5

  6. March, 2011 Interleaving method for OFDM option 2 and MCS level 3 in D2 - When the PIB attribute phyOFDMInterleaving is zero or one, Ncbps is 96 and Nrow is 12. -> Following interleaving method was used in Table J.8 of Annex J Slide 6

  7. March, 2011 Interleaving method for OFDM option 2 and MCS level 3 in D2 - When the PIB attribute phyOFDMInterleaving is zero or one, Ncbps is 96 and Nrow is 12. Slide 7

  8. March, 2011 Interleaving method for OFDM option 2 and MCS level 0 in D3 - When the PIB attribute phyOFDMInterleaving is zero, Ncbps is 12 and Nrow is 3. Slide 8

  9. March, 2011 Interleaving method for OFDM option 2 and MCS level 0 in D3 - When the PIB attribute phyOFDMInterleaving is one, Ncbps is 48 and Nrow is 3. Slide 9

  10. March, 2011 Interleaving method for OFDM option 2 and MCS level 3 in D3 - When the PIB attribute phyOFDMInterleaving is zero or one, Ncbps is 96 and Nrow is 12. Slide 10
