  1. Introduction to NETSMarla MeehlNETS ManagerSCD Network Engineering and Technology Section (NETS) December 8, 1998

  2. Basic Contextual Information

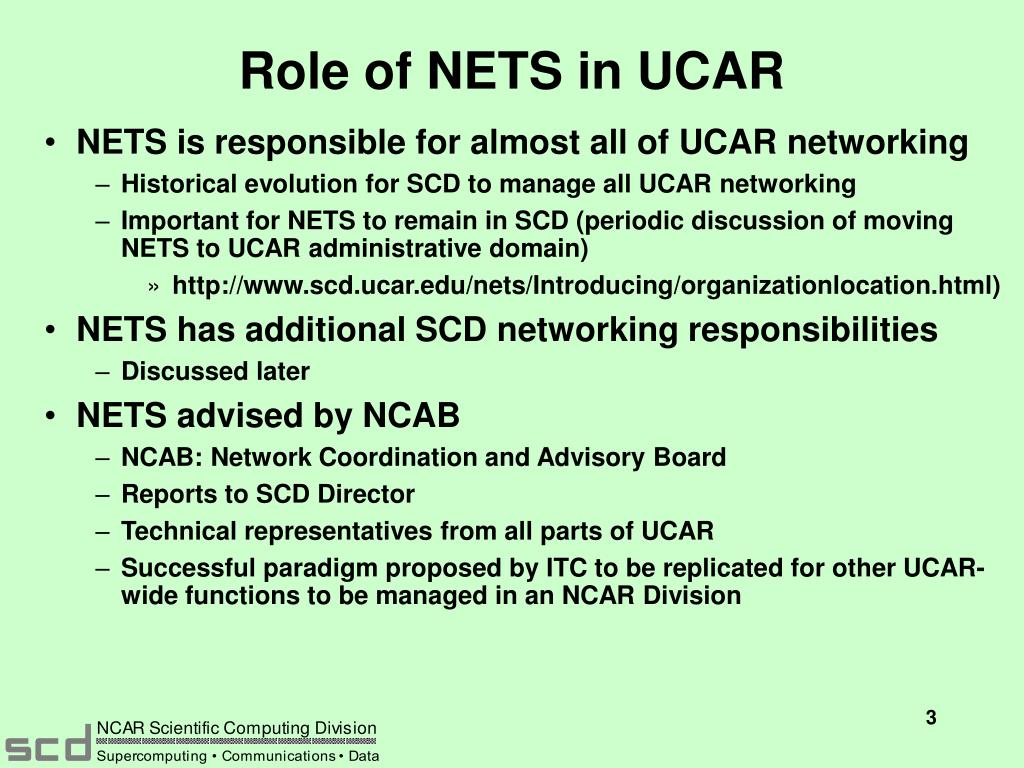

  3. Role of NETS in UCAR • NETS is responsible for almost all of UCAR networking • Historical evolution for SCD to manage all UCAR networking • Important for NETS to remain in SCD (periodic discussion of moving NETS to UCAR administrative domain) • http://www.scd.ucar.edu/nets/Introducing/organizationlocation.html) • NETS has additional SCD networking responsibilities • Discussed later • NETS advised by NCAB • NCAB: Network Coordination and Advisory Board • Reports to SCD Director • Technical representatives from all parts of UCAR • Successful paradigm proposed by ITC to be replicated for other UCAR-wide functions to be managed in an NCAR Division

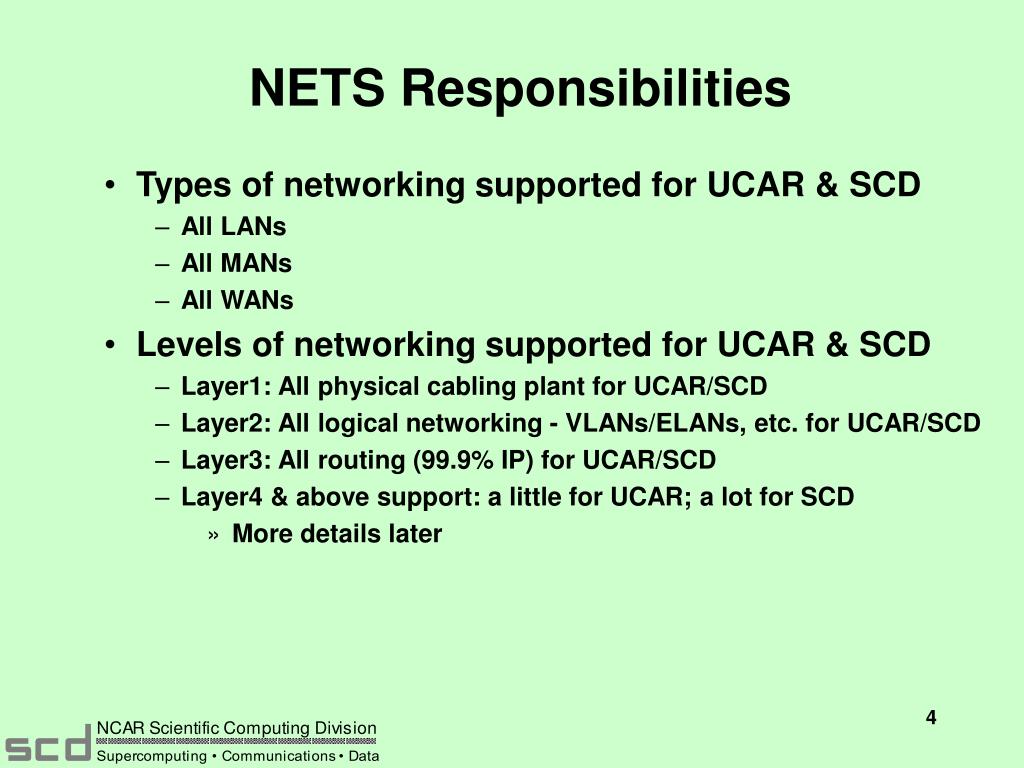

  4. NETS Responsibilities • Types of networking supported for UCAR & SCD • All LANs • All MANs • All WANs • Levels of networking supported for UCAR & SCD • Layer1: All physical cabling plant for UCAR/SCD • Layer2: All logical networking - VLANs/ELANs, etc. for UCAR/SCD • Layer3: All routing (99.9% IP) for UCAR/SCD • Layer4 & above support: a little for UCAR; a lot for SCD • More details later

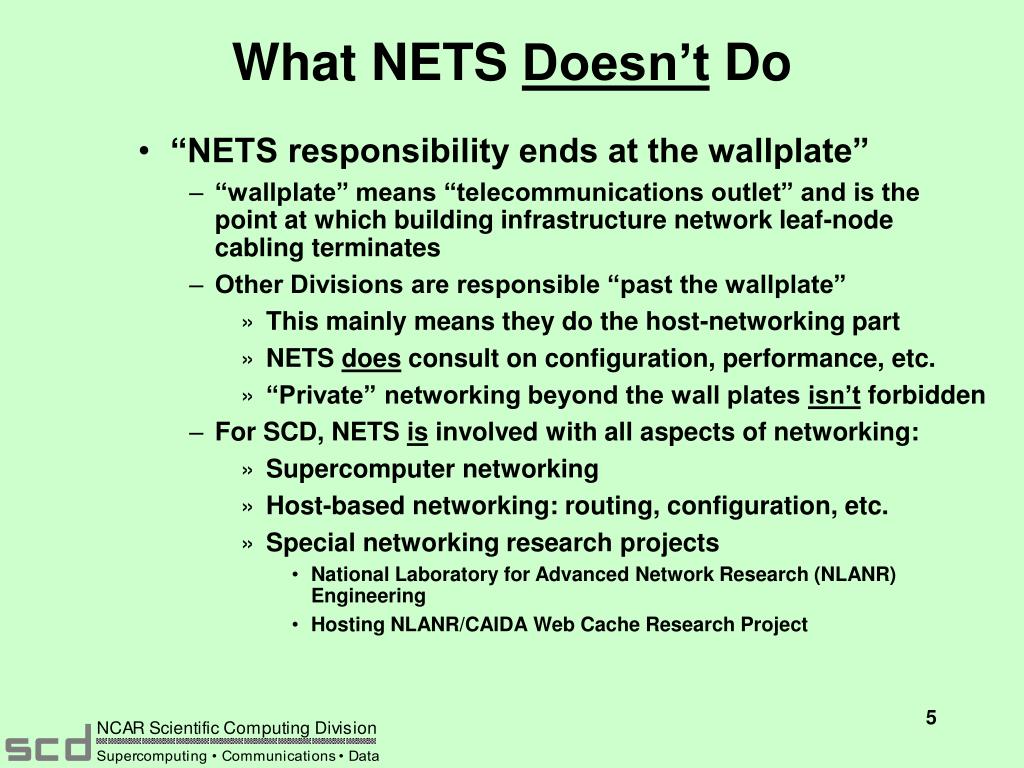

  5. What NETS Doesn’t Do • “NETS responsibility ends at the wallplate” • “wallplate” means “telecommunications outlet” and is the point at which building infrastructure network leaf-node cabling terminates • Other Divisions are responsible “past the wallplate” • This mainly means they do the host-networking part • NETS does consult on configuration, performance, etc. • “Private” networking beyond the wall plates isn’t forbidden • For SCD, NETS is involved with all aspects of networking: • Supercomputer networking • Host-based networking: routing, configuration, etc. • Special networking research projects • National Laboratory for Advanced Network Research (NLANR) Engineering • Hosting NLANR/CAIDA Web Cache Research Project

  6. What NETS Doesn’t Do (cont.) • NETS doesn’t do DNS, email, security policy, etc. • NETS does implement security perimeters based on CSAC recommendations • NETS doesn’t do MSS networking: HiPPI, FC, etc. • These use non-IP channel-extension protocols • NETS doesn’t do telephones and PBXs • NETS does install the telephone cabling • And we do inter-site tie-lines • NETS doesn’t do first-level NOC/operations • Handled by Computer Room Operators • They determine which Network Engineer to call • We will visit network monitor station later

  7. How Networking is Paid For • UCAR networking funding mechanisms • Space tax: all UCAR programs (including SCD) pay for networking via an annual “tax” based upon square footage occupied by the program • Space tax pays for “standard service” as defined by NCAB • Includes all LAN, MAN, and WAN networking necessary for, and benefiting, UCAR as a whole • Includes all UCAR cabling and core networking to the “wallplate” • Includes 10-Mbps service to the office • Includes telephone wiring and inter-site telephone tie-lines • NETS charges back for anything beyond standard service • Host-connects greater than 10-Mbps • “Rush” jobs (less than 1-week advance notice) • “Special” networking (e.g., satellite hookups) • SCD networking funding mechanism • Line item in SCD budget

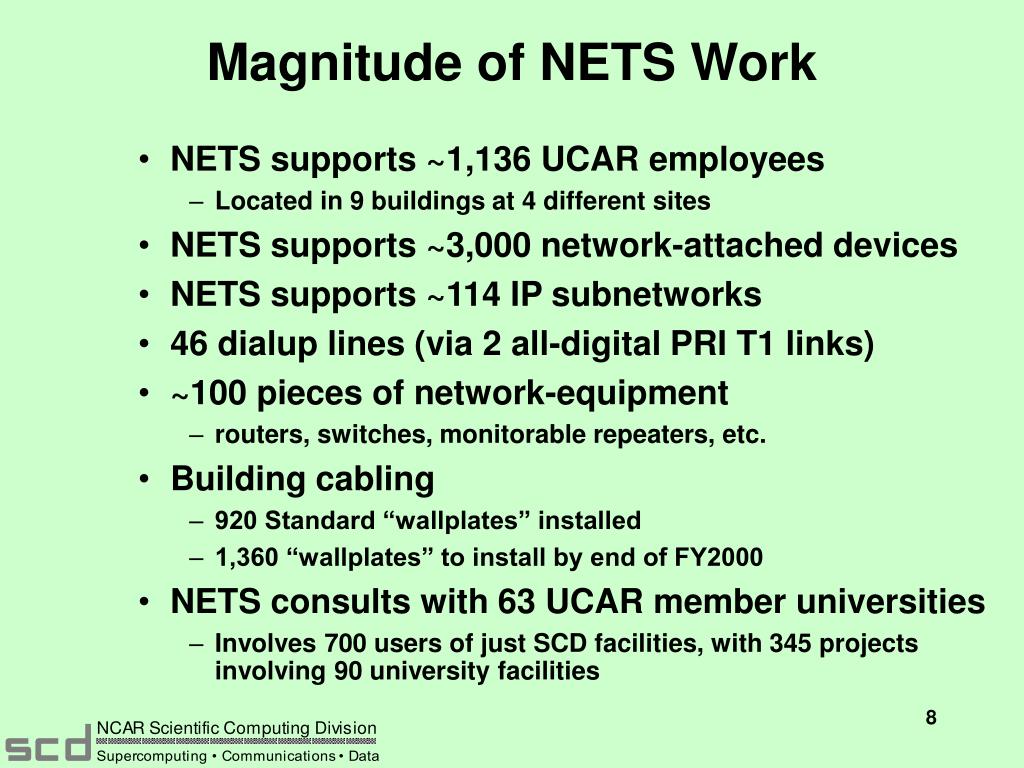

  8. Magnitude of NETS Work • NETS supports ~1,136 UCAR employees • Located in 9 buildings at 4 different sites • NETS supports ~3,000 network-attached devices • NETS supports ~114 IP subnetworks • 46 dialup lines (via 2 all-digital PRI T1 links) • ~100 pieces of network-equipment • routers, switches, monitorable repeaters, etc. • Building cabling • 920 Standard “wallplates” installed • 1,360 “wallplates” to install by end of FY2000 • NETS consults with 63 UCAR member universities • Involves 700 users of just SCD facilities, with 345 projects involving 90 university facilities

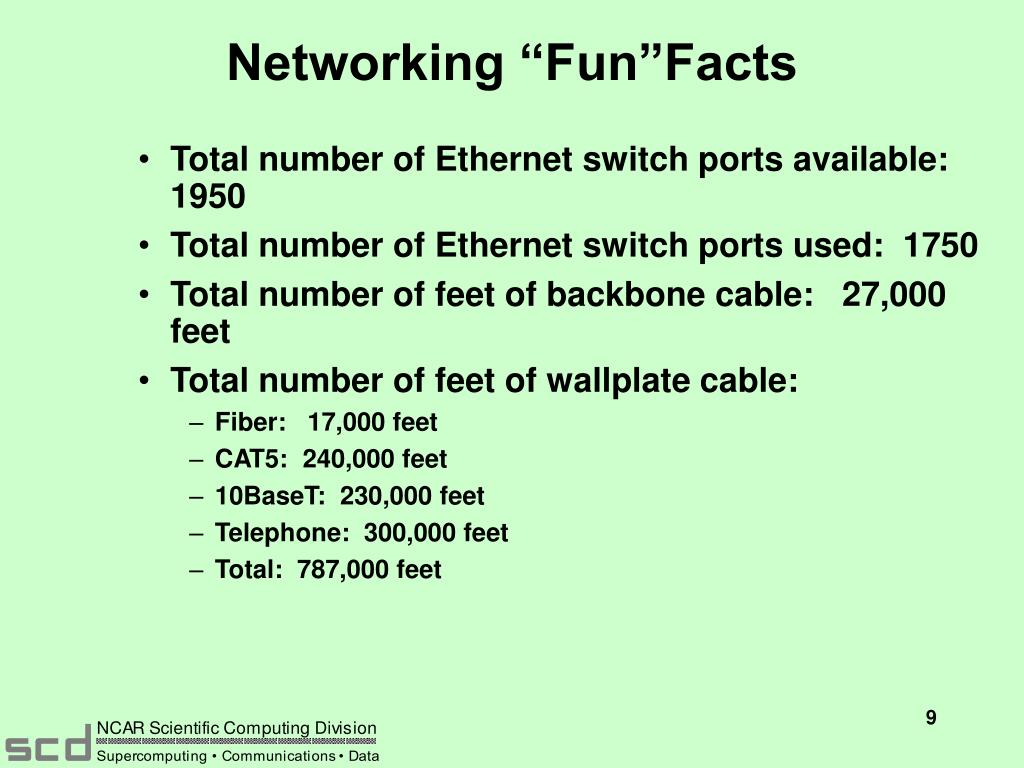

  9. Networking “Fun”Facts • Total number of Ethernet switch ports available: 1950 • Total number of Ethernet switch ports used: 1750 • Total number of feet of backbone cable: 27,000 feet • Total number of feet of wallplate cable: • Fiber: 17,000 feet • CAT5: 240,000 feet • 10BaseT: 230,000 feet • Telephone: 300,000 feet • Total: 787,000 feet

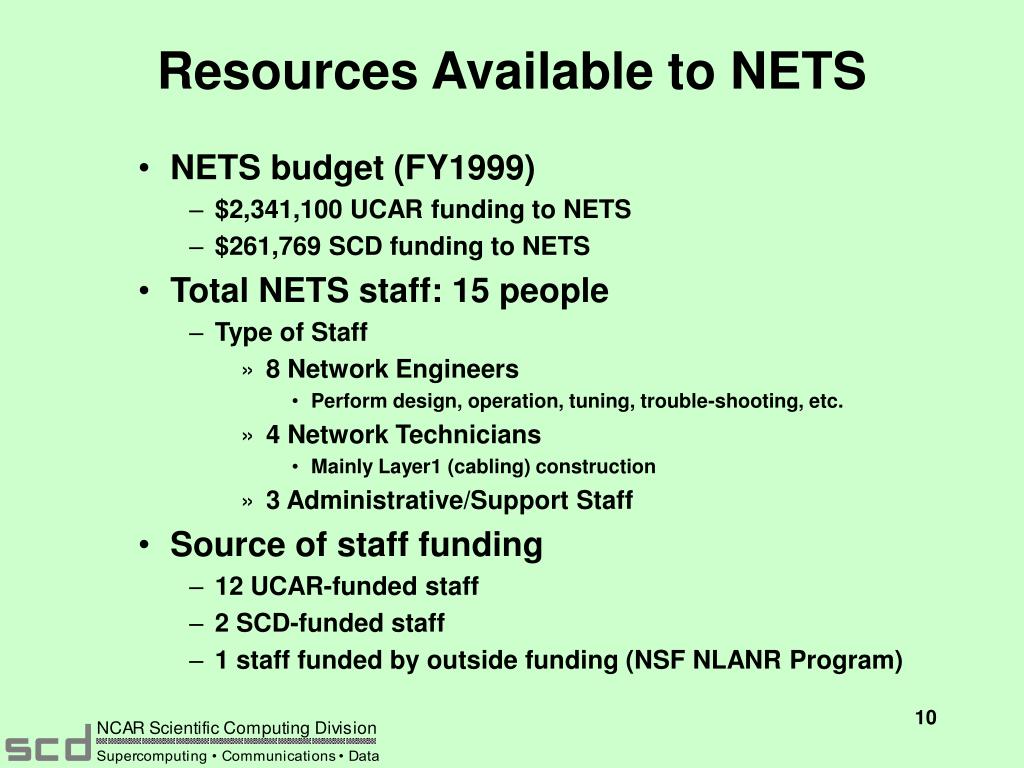

  10. Resources Available to NETS • NETS budget (FY1999) • $2,341,100 UCAR funding to NETS • $261,769 SCD funding to NETS • Total NETS staff: 15 people • Type of Staff • 8 Network Engineers • Perform design, operation, tuning, trouble-shooting, etc. • 4 Network Technicians • Mainly Layer1 (cabling) construction • 3 Administrative/Support Staff • Source of staff funding • 12 UCAR-funded staff • 2 SCD-funded staff • 1 staff funded by outside funding (NSF NLANR Program)

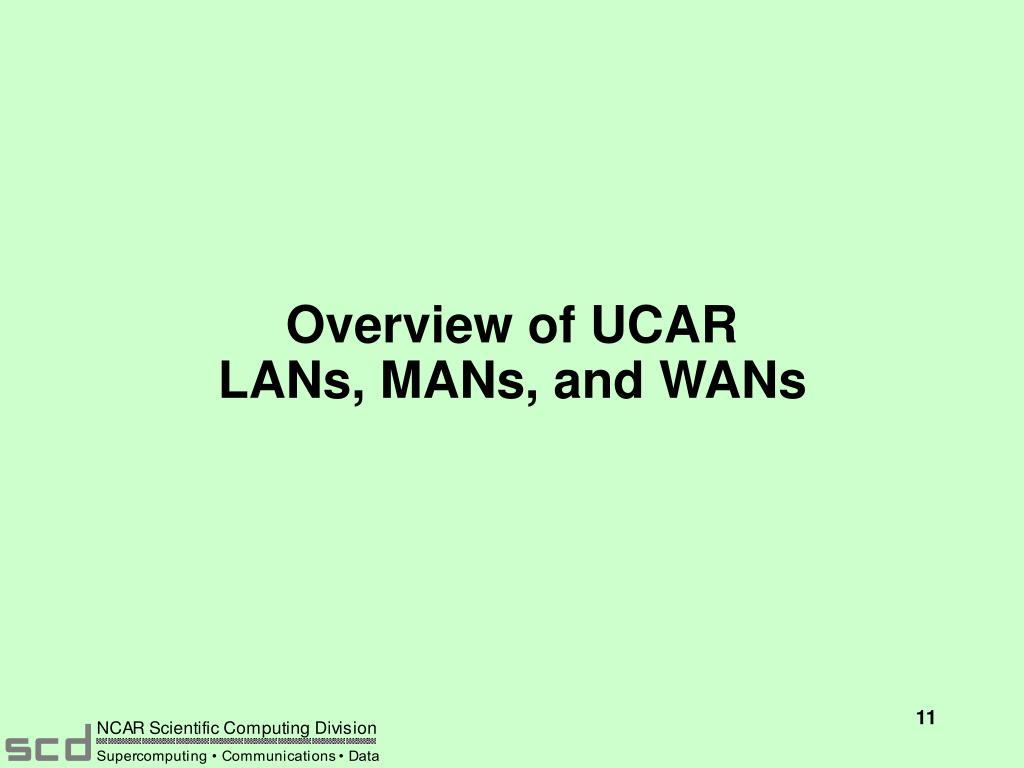

  11. Overview of UCARLANs, MANs, and WANs

  12. LANs

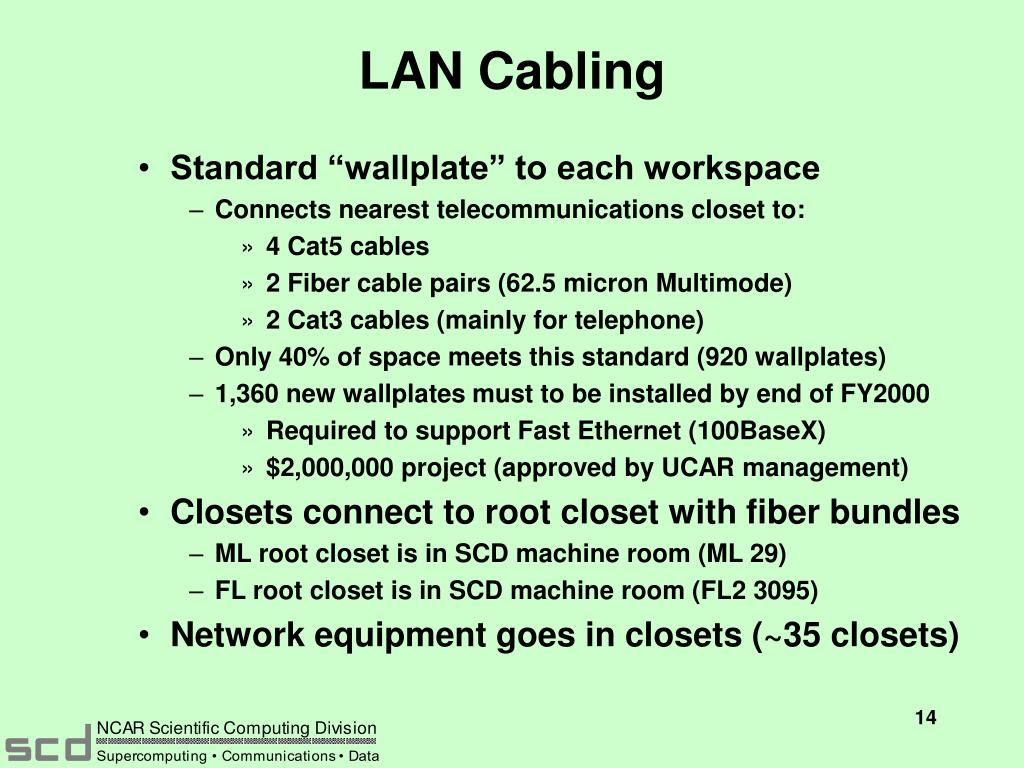

  13. LAN Cabling • Standard “wallplate” to each workspace • Connects nearest telecommunications closet to: • 4 Cat5 cables • 2 Fiber cable pairs (62.5 micron Multimode) • 2 Cat3 cables (mainly for telephone) • Only 40% of space meets this standard (920 wallplates) • 1,360 new wallplates must to be installed by end of FY2000 • Required to support Fast Ethernet (100BaseX) • $2,000,000 project (approved by UCAR management) • Closets connect to root closet with fiber bundles • ML root closet is in SCD machine room (ML 29) • FL root closet is in SCD machine room (FL2 3095) • Network equipment goes in closets (~35 closets)

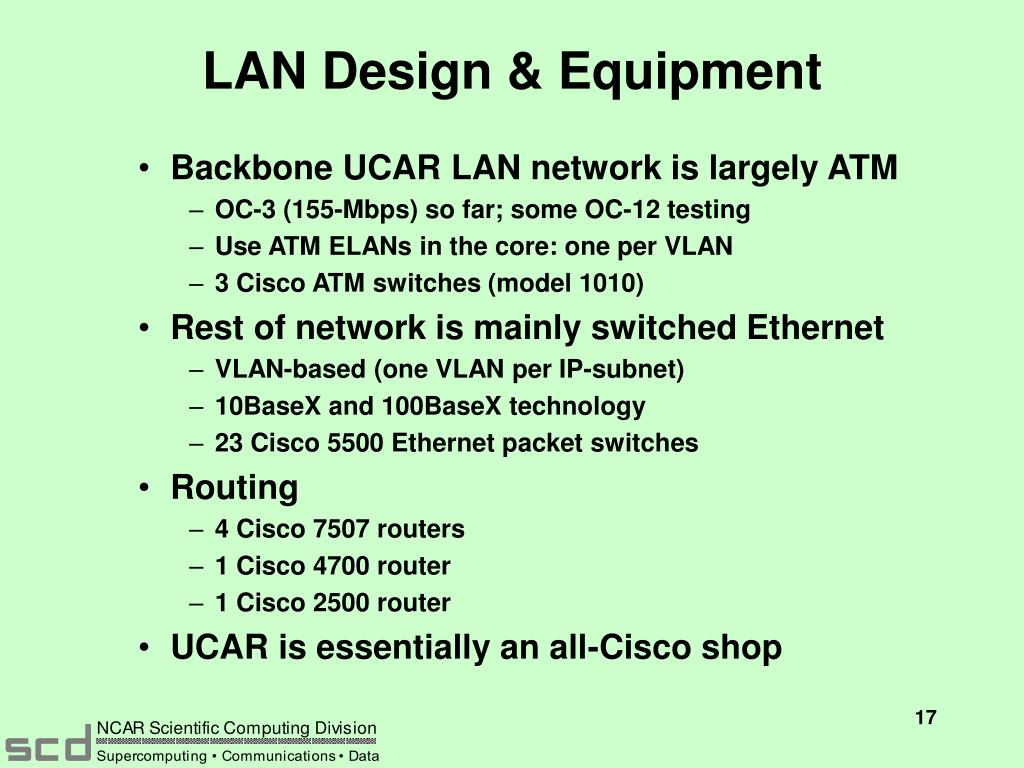

  14. LAN Design & Equipment • Backbone UCAR LAN network is largely ATM • OC-3 (155-Mbps) so far; some OC-12 testing • Use ATM ELANs in the core: one per VLAN • 3 Cisco ATM switches (model 1010) • Rest of network is mainly switched Ethernet • VLAN-based (one VLAN per IP-subnet) • 10BaseX and 100BaseX technology • 23 Cisco 5500 Ethernet packet switches • Routing • 4 Cisco 7507 routers • 1 Cisco 4700 router • 1 Cisco 2500 router • UCAR is essentially an all-Cisco shop

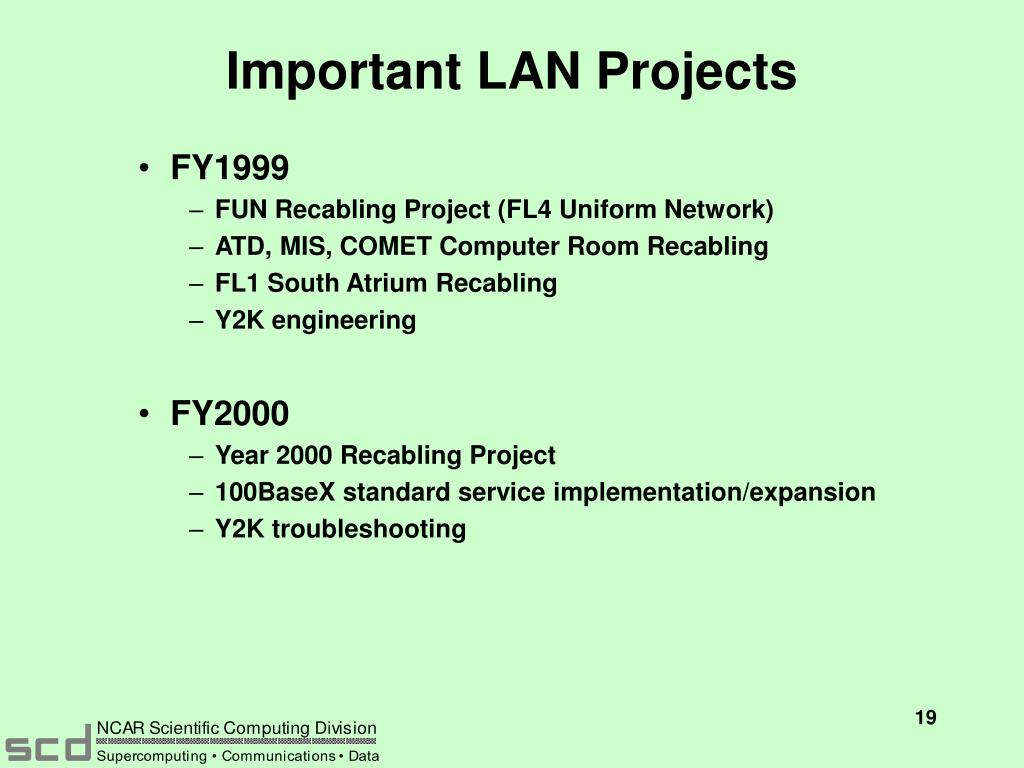

  15. Important LAN Projects • FY1999 • FUN Recabling Project (FL4 Uniform Network) • ATD, MIS, COMET Computer Room Recabling • FL1 South Atrium Recabling • Y2K engineering • FY2000 • Year 2000 Recabling Project • 100BaseX standard service implementation/expansion • Y2K troubleshooting

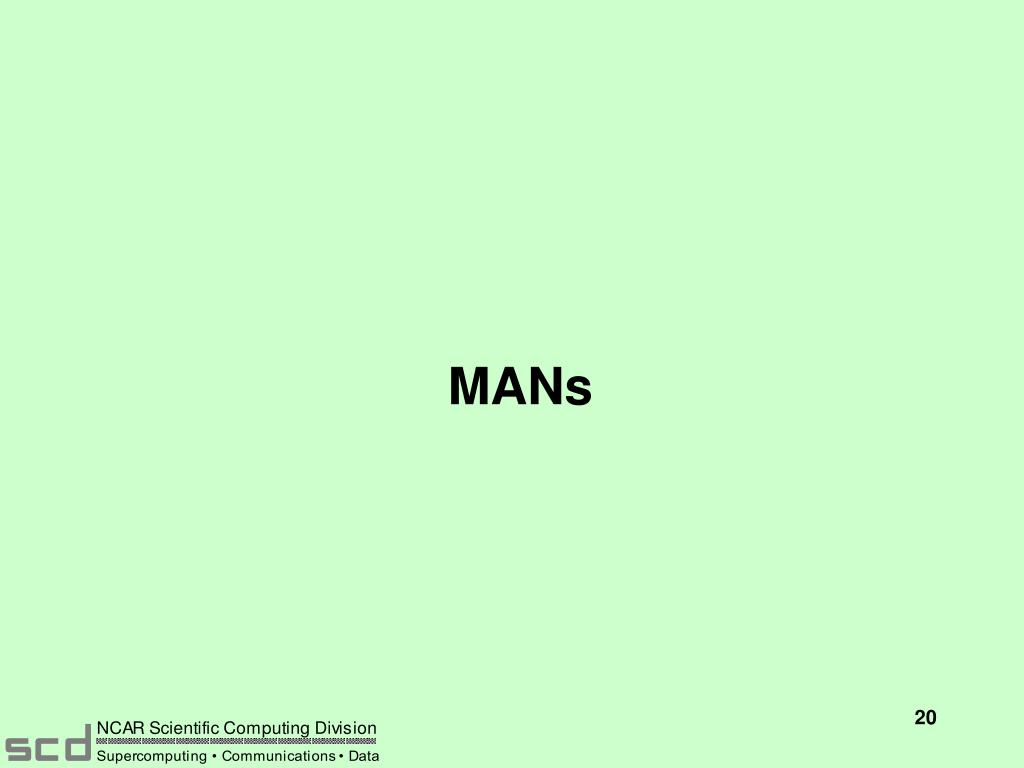

  16. MANs

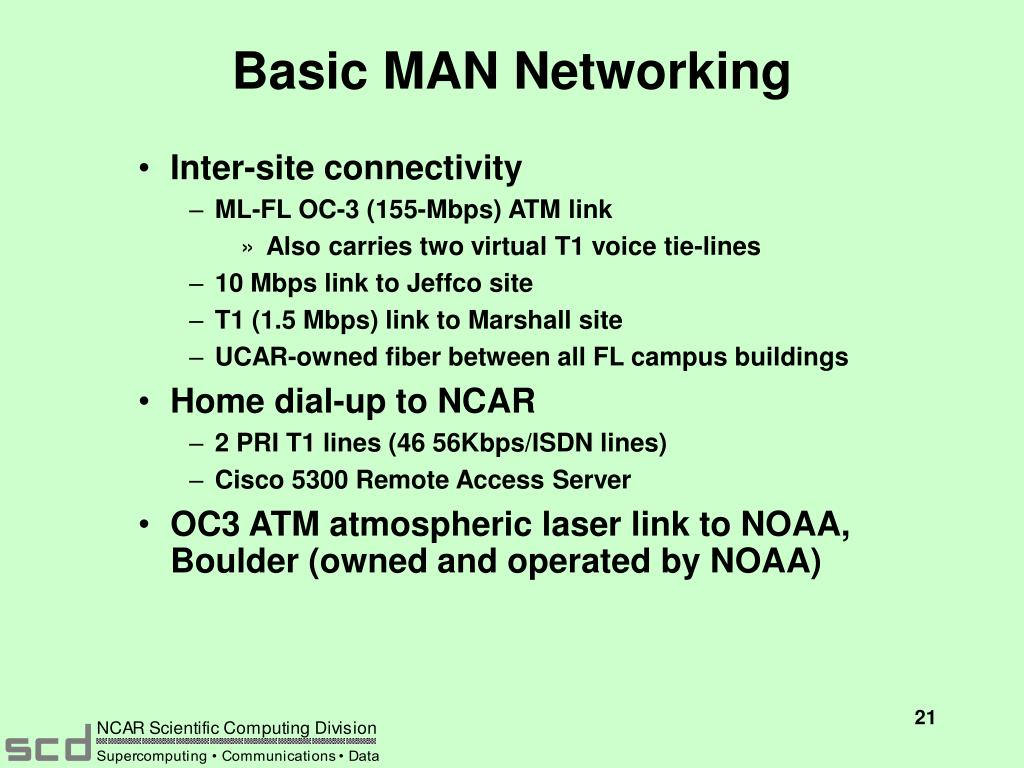

  17. Basic MAN Networking • Inter-site connectivity • ML-FL OC-3 (155-Mbps) ATM link • Also carries two virtual T1 voice tie-lines • 10 Mbps link to Jeffco site • T1 (1.5 Mbps) link to Marshall site • UCAR-owned fiber between all FL campus buildings • Home dial-up to NCAR • 2 PRI T1 lines (46 56Kbps/ISDN lines) • Cisco 5300 Remote Access Server • OC3 ATM atmospheric laser link to NOAA, Boulder (owned and operated by NOAA)

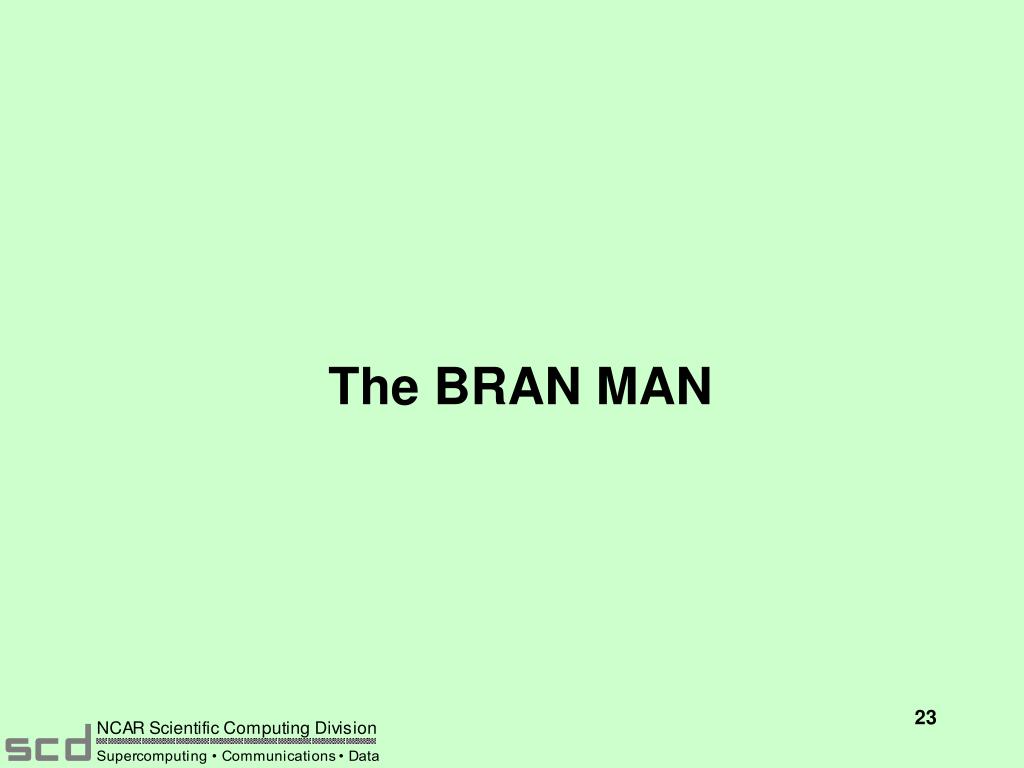

  18. The BRAN MAN

  19. BRAN • Boulder Research and Administration Network • “Fiber for a healthy community” • Consortium to build private fiber loop in Boulder • City of Boulder • University of Colorado-Boulder • National Institute of Standards and Technology (NIST) - Boulder • National Oceanic and Atmospheric Administration (NOAA) - Boulder • NCAR/UCAR • Connects partners’ facilities + US West & ICG POPs • Includes ML-FL link of ~20 fiber pairs • Construction estimated at $350,000/partner • Essentially provides unlimited free bandwidth • Bypasses US West • Provides competition between US West & ICG

  20. WANs

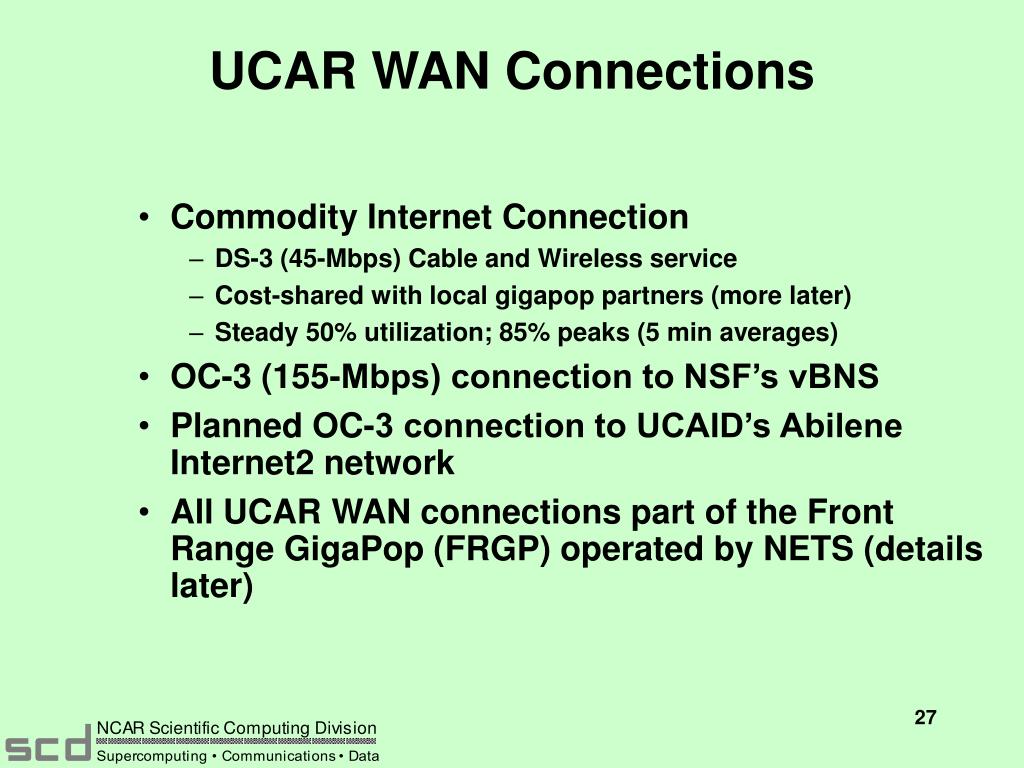

  21. UCAR WAN Connections • Commodity Internet Connection • DS-3 (45-Mbps) Cable and Wireless service • Cost-shared with local gigapop partners (more later) • Steady 50% utilization; 85% peaks (5 min averages) • OC-3 (155-Mbps) connection to NSF’s vBNS • Planned OC-3 connection to UCAID’s Abilene Internet2 network • All UCAR WAN connections part of the Front Range GigaPop (FRGP) operated by NETS (details later)

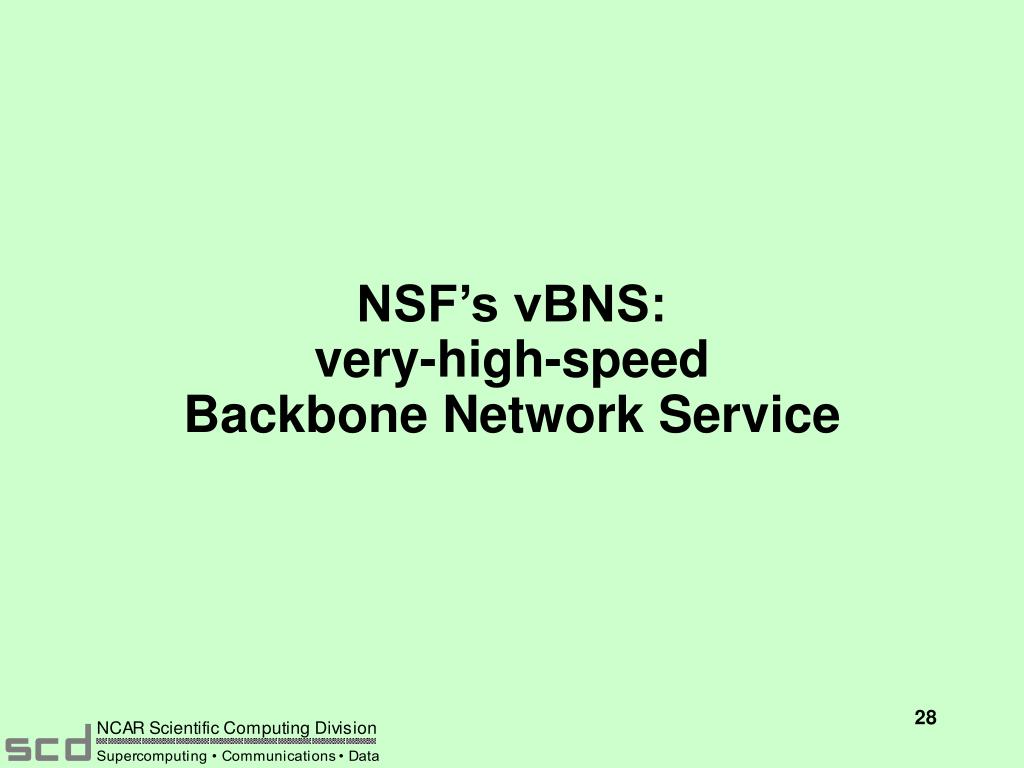

  22. NSF’s vBNS:very-high-speed Backbone Network Service

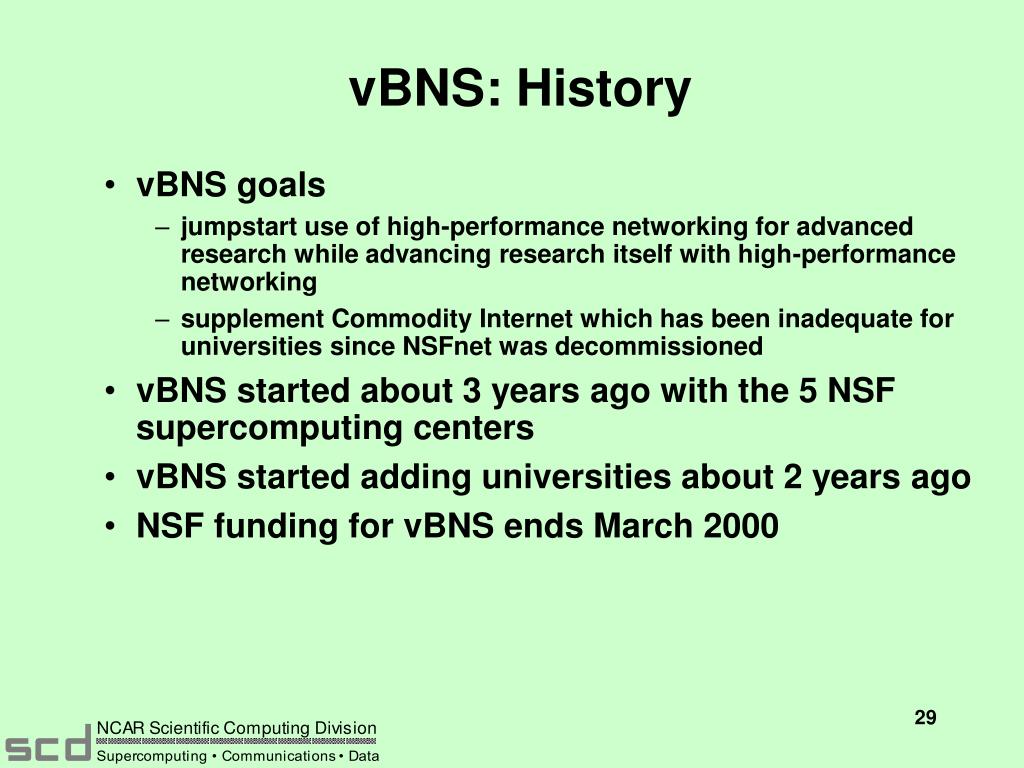

  23. vBNS: History • vBNS goals • jumpstart use of high-performance networking for advanced research while advancing research itself with high-performance networking • supplement Commodity Internet which has been inadequate for universities since NSFnet was decommissioned • vBNS started about 3 years ago with the 5 NSF supercomputing centers • vBNS started adding universities about 2 years ago • NSF funding for vBNS ends March 2000

  24. vBNS: The Network • Operated by MCI/Worldcom • ATM based network using mainly IP • OC-12 (622-Mbps) backbone • OC-12 (622-Mbps), OC-3 (155-Mbps) & DS-3 (45-Mbps) to institutions • 73 institutions currently connected • 131 institutions approved for connection to vBNS

  25. vBNS and NCAR • NCAR was an original vBNS node • 43 of 63 UCAR member-universities are approved for vBNS (at last check on 8/1998) • 28 UCAR members currently connected • Major benefit for UCAR and its members • greatly superior to the Commodity Internet • example: more UNIDATA data possible • example: terabyte data transfers possible

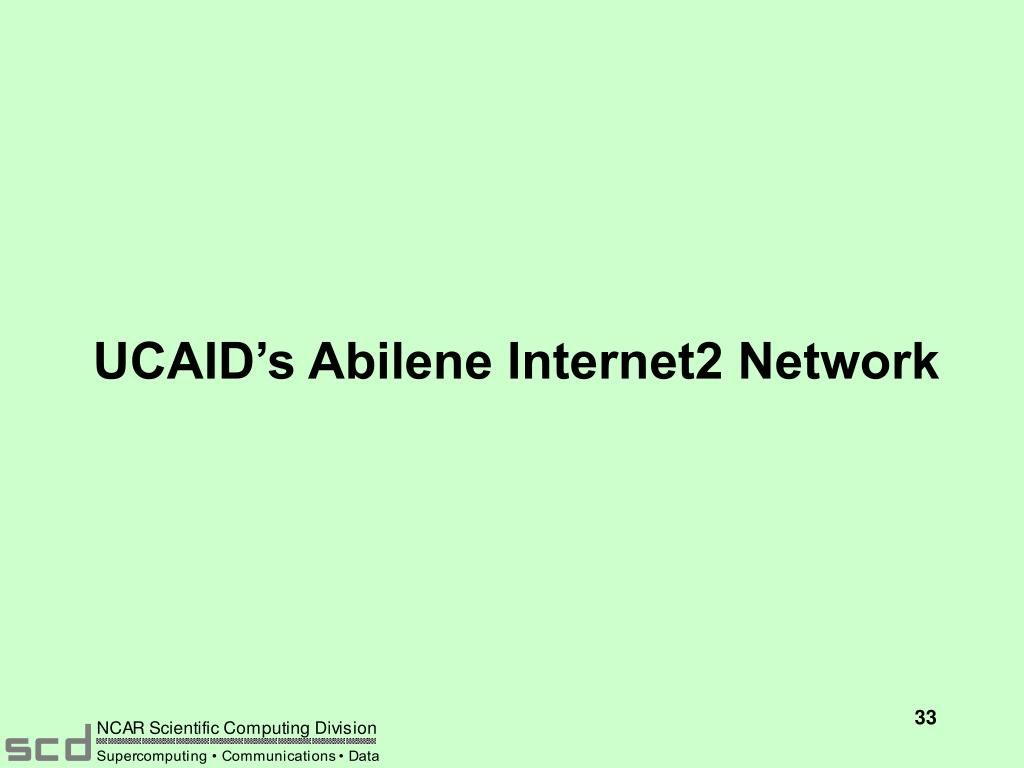

  26. UCAID’s Abilene Internet2 Network

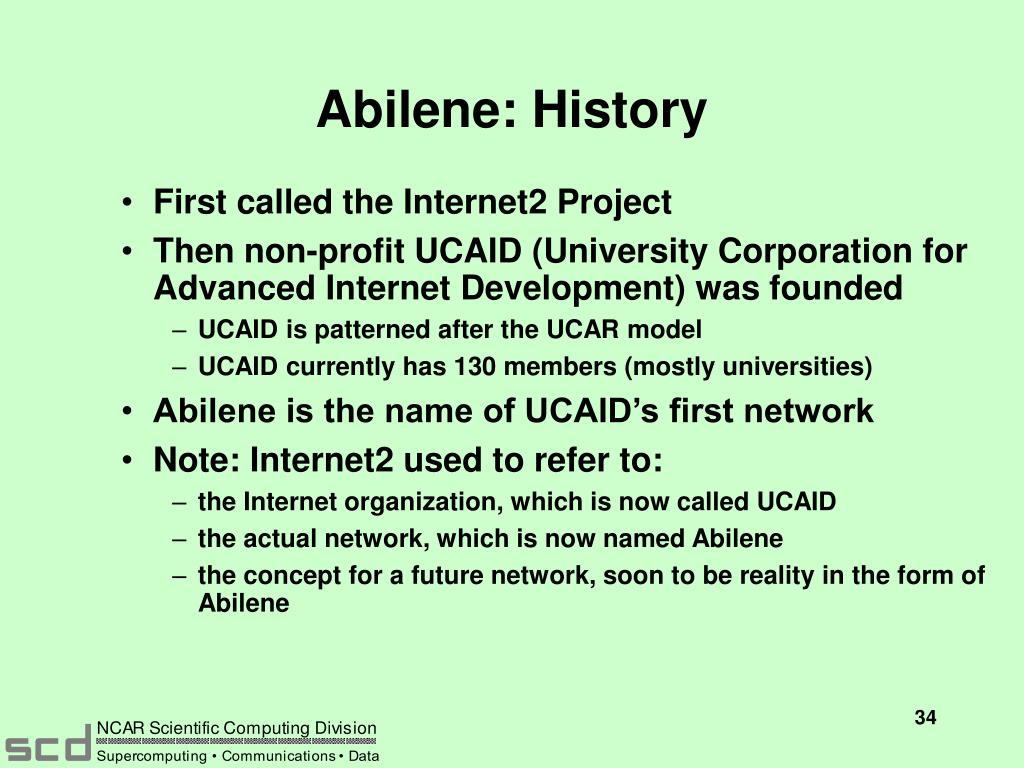

  27. Abilene: History • First called the Internet2 Project • Then non-profit UCAID (University Corporation for Advanced Internet Development) was founded • UCAID is patterned after the UCAR model • UCAID currently has 130 members (mostly universities) • Abilene is the name of UCAID’s first network • Note: Internet2 used to refer to: • the Internet organization, which is now called UCAID • the actual network, which is now named Abilene • the concept for a future network, soon to be reality in the form of Abilene

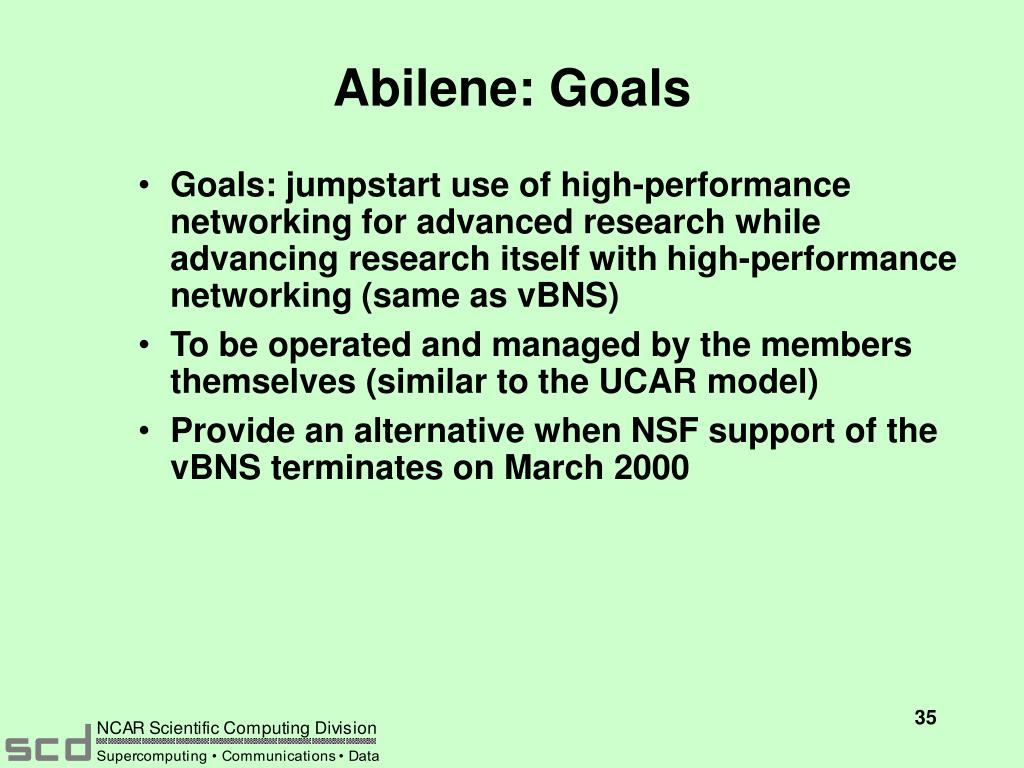

  28. Abilene: Goals • Goals: jumpstart use of high-performance networking for advanced research while advancing research itself with high-performance networking (same as vBNS) • To be operated and managed by the members themselves (similar to the UCAR model) • Provide an alternative when NSF support of the vBNS terminates on March 2000

  29. Abilene: The Basic Network • Uses Qwest OC48 (2.4Gbps) fiber optic backbone • grow to OC192 (9.6Gbps) fiber optic backbone • Qwest to donate .5 billion worth of fiber leases over 5 years • Hardware provided by Cisco Systems and Nortel (Northern Telecom) • Internet Protocol (IP) over SONET • no ATM layer • Uses 10 core router nodes at Qwest POPs • Denver is one of these

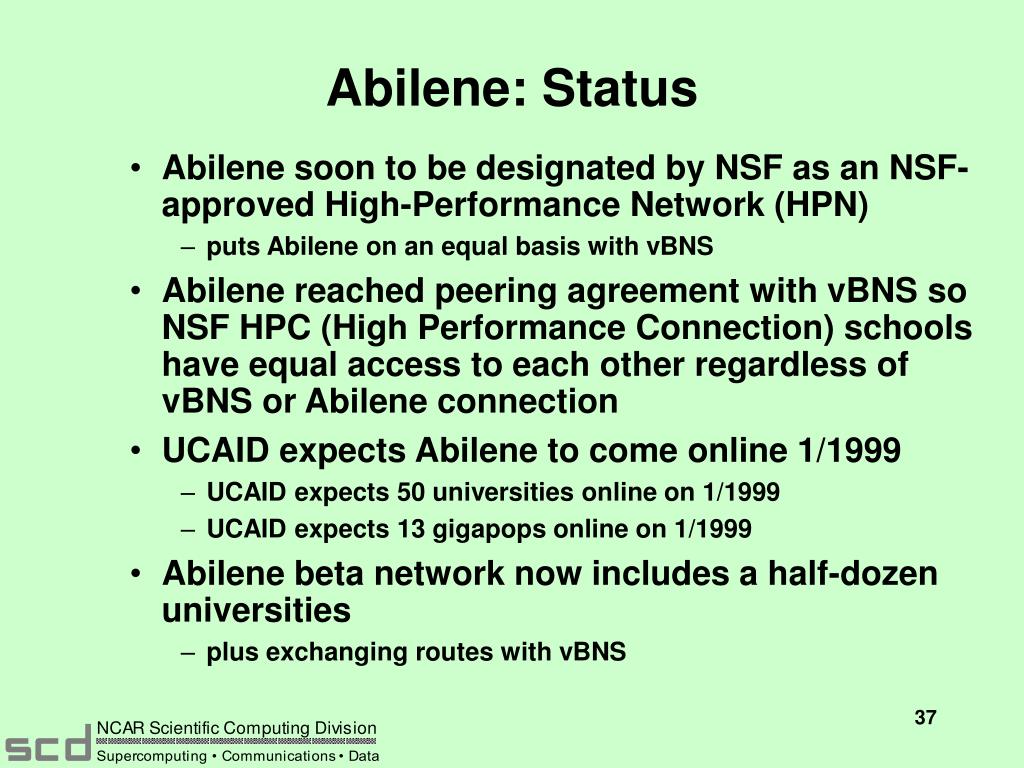

  30. Abilene: Status • Abilene soon to be designated by NSF as an NSF-approved High-Performance Network (HPN) • puts Abilene on an equal basis with vBNS • Abilene reached peering agreement with vBNS so NSF HPC (High Performance Connection) schools have equal access to each other regardless of vBNS or Abilene connection • UCAID expects Abilene to come online 1/1999 • UCAID expects 50 universities online on 1/1999 • UCAID expects 13 gigapops online on 1/1999 • Abilene beta network now includes a half-dozen universities • plus exchanging routes with vBNS

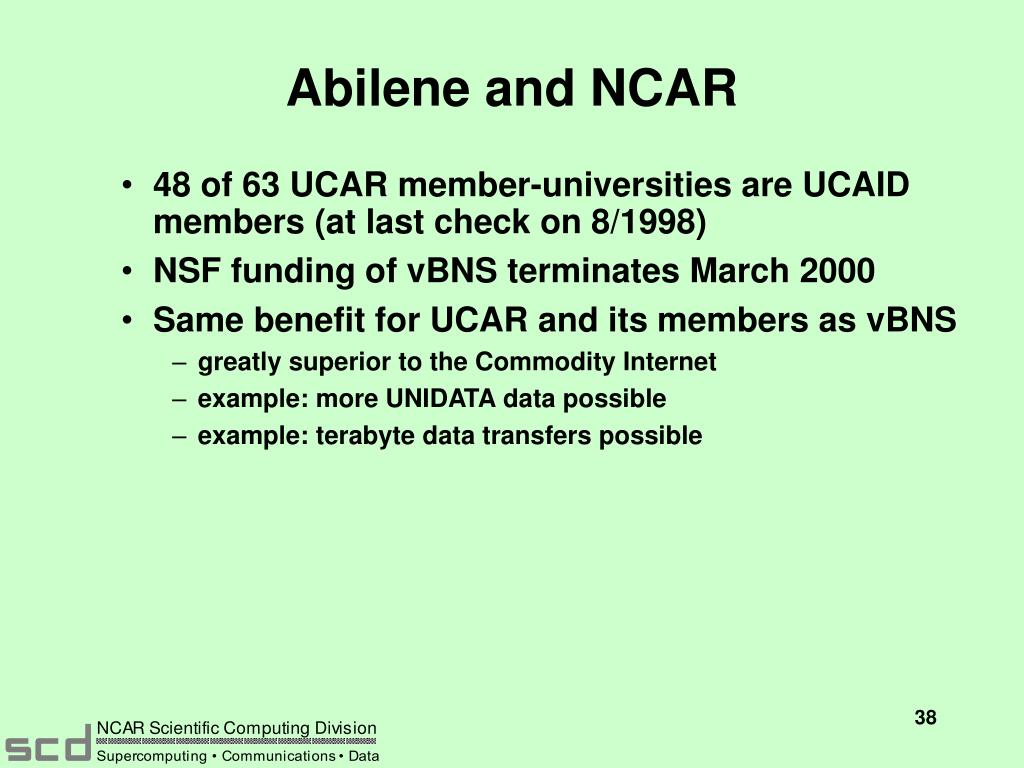

  31. Abilene and NCAR • 48 of 63 UCAR member-universities are UCAID members (at last check on 8/1998) • NSF funding of vBNS terminates March 2000 • Same benefit for UCAR and its members as vBNS • greatly superior to the Commodity Internet • example: more UNIDATA data possible • example: terabyte data transfers possible

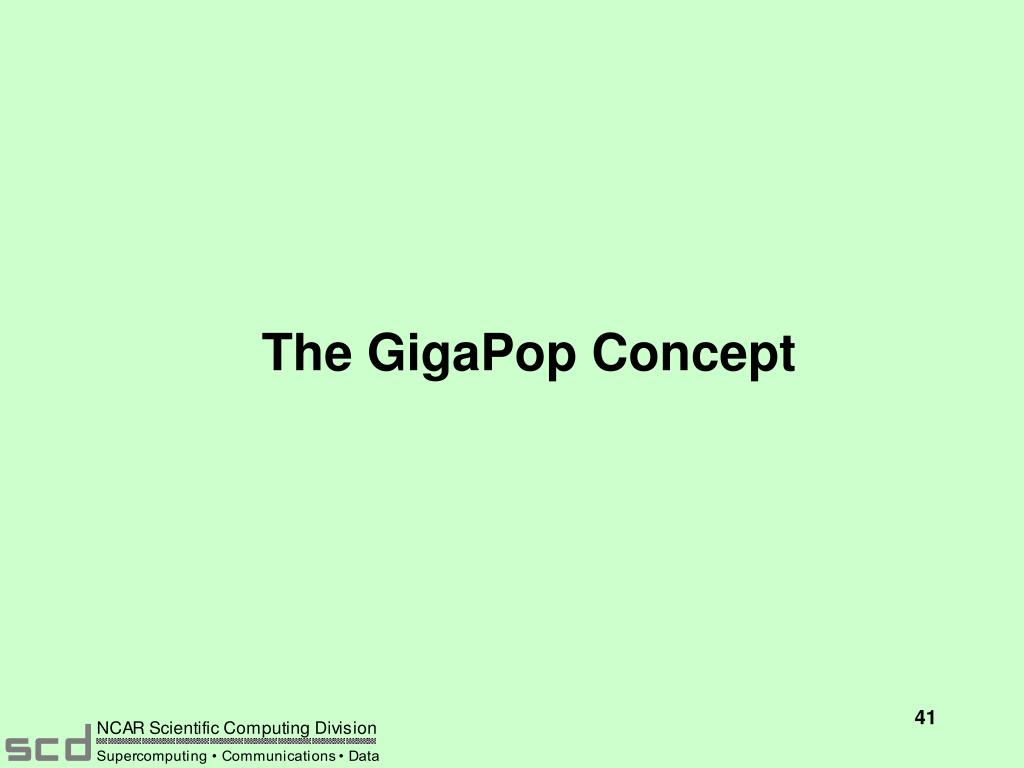

  32. The GigaPop Concept

  33. What Is A GigaPop? • Multiple sites agree to aggregate to a central location and share high-speed access from there, instead of each maintaining direct links to multiple networks • Share costs through sharing infrastructure • Share Commodity Internet expenses • Essentially statistical multiplexing of expensive high-speed resources • at any given time much more bandwidth is available to each institution than each could afford without sharing • Share engineering and management expertise • More clout with vendors

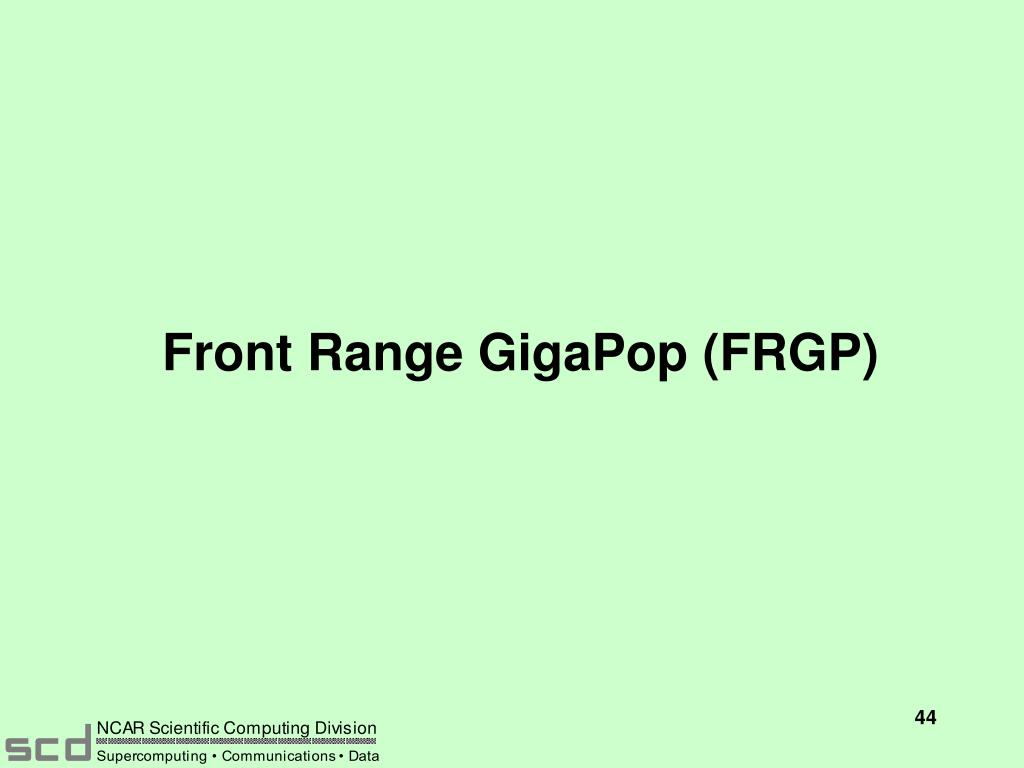

  34. Front Range GigaPop (FRGP)

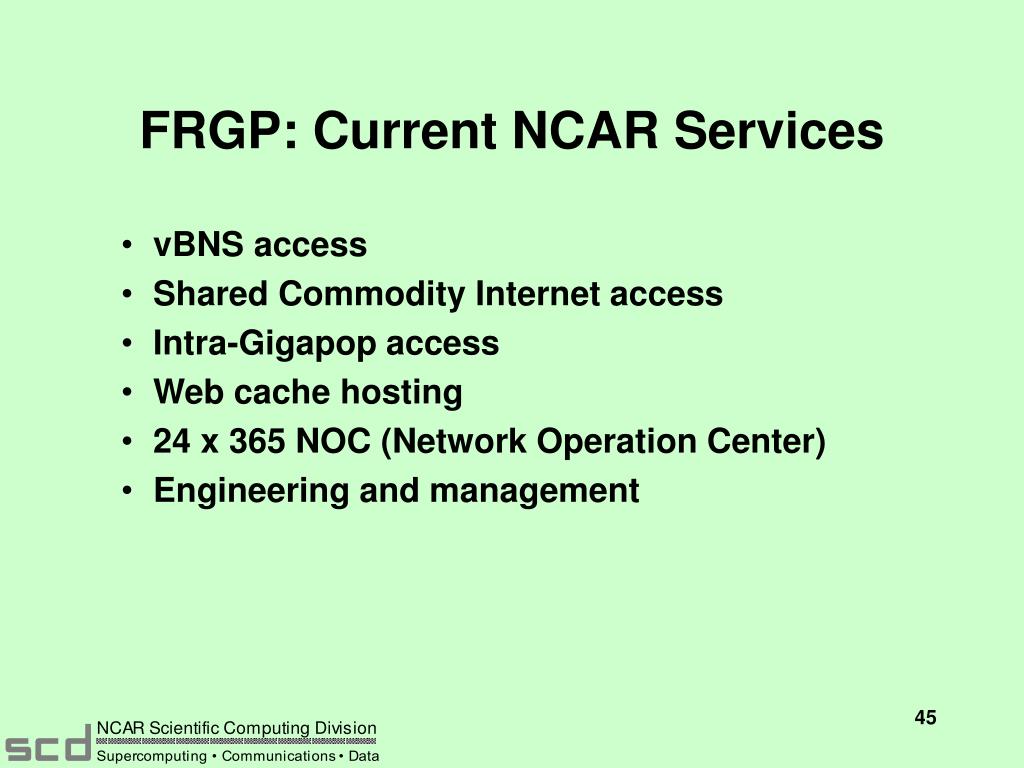

  35. FRGP: Current NCAR Services • vBNS access • Shared Commodity Internet access • Intra-Gigapop access • Web cache hosting • 24 x 365 NOC (Network Operation Center) • Engineering and management

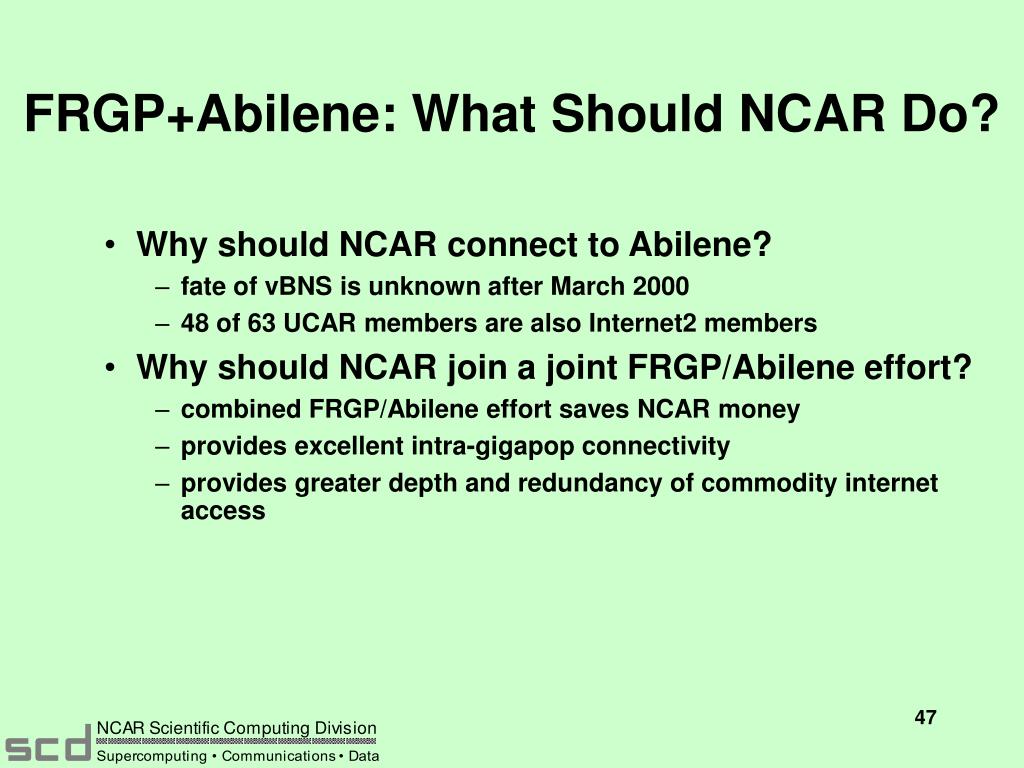

  36. FRGP+Abilene: What Should NCAR Do? • Why should NCAR connect to Abilene? • fate of vBNS is unknown after March 2000 • 48 of 63 UCAR members are also Internet2 members • Why should NCAR join a joint FRGP/Abilene effort? • combined FRGP/Abilene effort saves NCAR money • provides excellent intra-gigapop connectivity • provides greater depth and redundancy of commodity internet access

  37. FRGP: Why NCAR as GP Operator? • NCAR already has considerable gigapop operational experience • NCAR is already serving the FRGP members • Abilene connection is an incremental addition to existing gigapop • doesn’t require a completely new effort from scratch • NCAR already has a 24 x 365 NOC • NCAR has an existing networking staff to team with the new FRGP engineer • NCAR is university-neutral

  38. FRGP: Membership Types • “Full” members • both Commodity Internet + Abilene and/or vBNS access • Commodity-only members • just Commodity Internet access

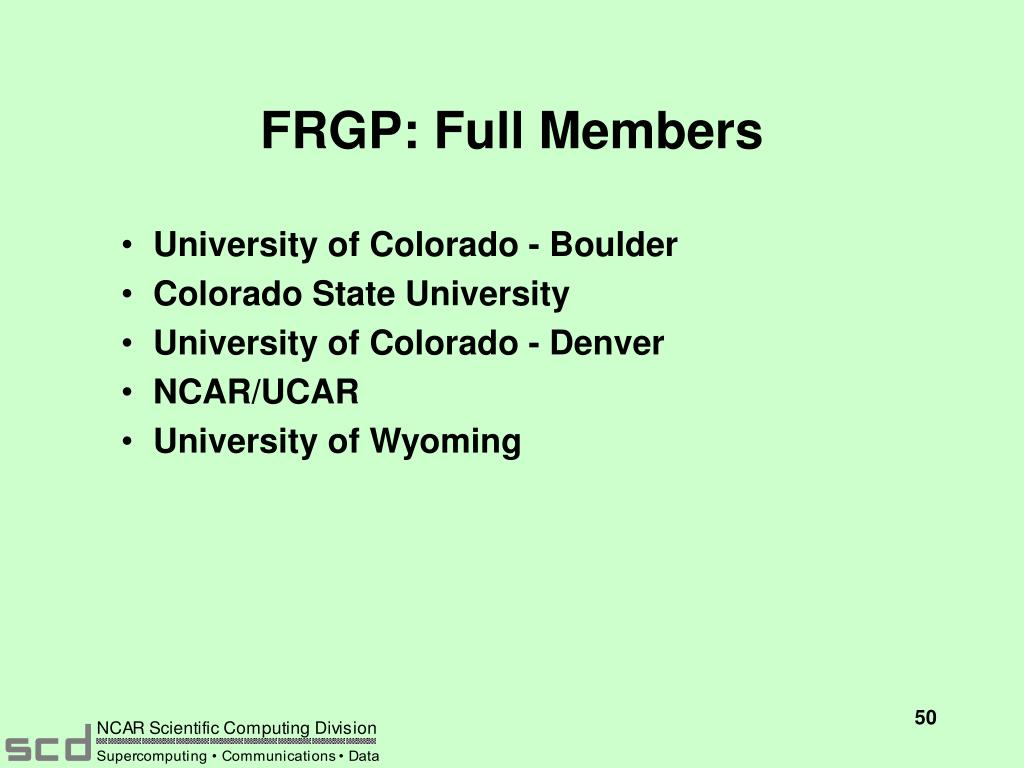

  39. FRGP: Full Members • University of Colorado - Boulder • Colorado State University • University of Colorado - Denver • NCAR/UCAR • University of Wyoming
