  1. Detail-Preserving Fluid Control N. Thűrey R. Keiser M. Pauly U. Rűde SCA 2006

  2. Abstract ◇ A new fluid control technique - Scale-dependent force control - Preserve small-scale fluid detail ◇ Control particles define local force fields - A physical simulation - A sequence of target shapes ◇ A multi-scale decomposition of the velocity field ◇ Small-scale detail is preserved

  3. Introduction ◇ Realism of fluids is important[CMT04] ◇ The fluid controlling for animation is also important[SY05b] ◇ Fine-scale detail such as small eddies or drops

  4. Introduction ◇ In previous method, control particles directly influence the fluid velocity field - It can cause noticeable smoothing effects ◇ To avoid this artificial viscosity, - Decompose the velocity field into coarse- and fine scale component - Only apply control forces to the low-frequency part - High-frequency components are largely unaffected - small-scale detail and turbulence are better preserved

  5. Introduction ◇ We achieve this decomposition by smoothing the velocity field using a low-pass filter ◇ Velocity control forces are computed with respect to the smoothed velocity field ◇ Scale-separated fluid control - Much better preserved - More dynamic and realistic looking simulations

  6. Related Work ◇ Our control paradigm is based on the concept of control particle, similar to [FF01] ◇ Control particles are independent of the underlying fluid model[FF01] A 3D Control Curve

  7. Related Work ◇ [REN04] present a method for the directable animation of photorealistic liquids using the particle levelset ◇ [TMPS03] presented an optimization technique to solve for the control parameters

  8. Related Work ◇ [FL04] proposed the idea of driving smoke toward target smoke density ◇ [HK04] derive potential fields from the initial distribution of smoke and target shape

  9. Related Work ◇ smoke[SY05a] and liquids[SY05b] matched the level set surface of the fluid with static or moving target shape

  10. Fluid Simulation Models ◇ We use two fluid simulation models to demonstrate our control method ◇ Smoothed Particle Hydrodynamics (SPH) ◇ The Lattice-Boltzmann Method (LBM)

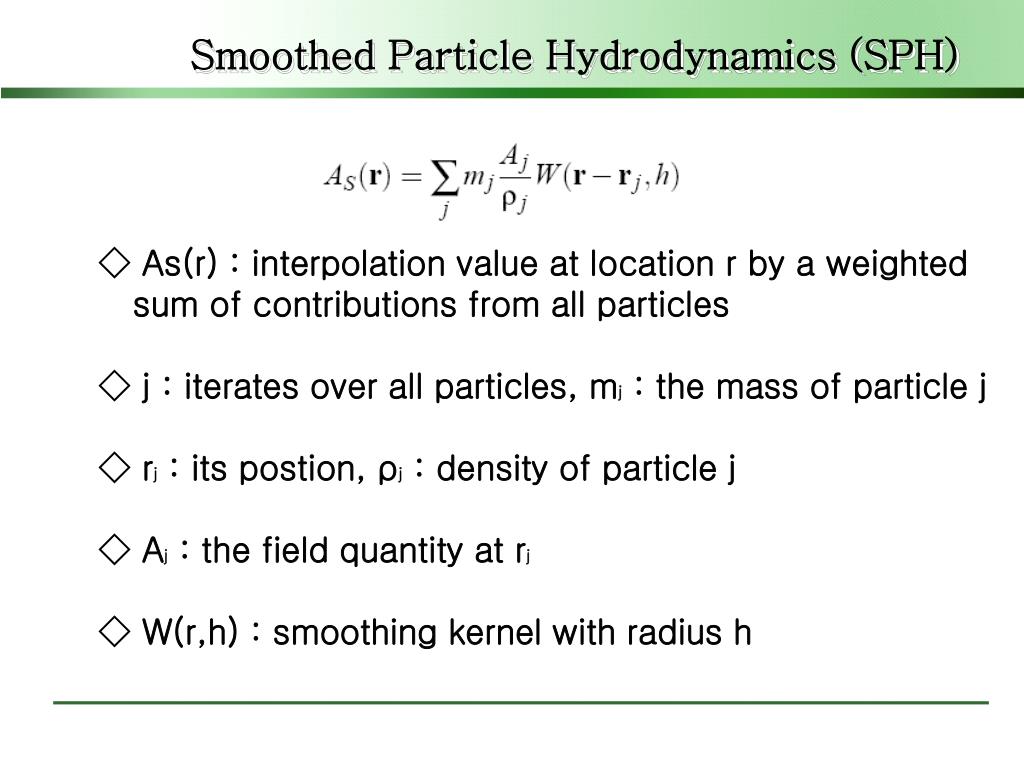

  11. Smoothed Particle Hydrodynamics (SPH) ◇ As(r) : interpolation value at location r by a weighted sum of contributions from all particles ◇ j : iterates over all particles, mj : the mass of particle j ◇ rj : its postion, ρj : density of particle j ◇ Aj : the field quantity at rj ◇ W(r,h) : smoothing kernel with radius h

  12. Smoothed Particle Hydrodynamics (SPH) ◇ Numerically solving the Navier-Stokes equations

  13. The Lattice-Boltzmann Method (LBM) ◇ A grid based method ◇ Each grid cell stores a set of distribution functions ◇ The common three-dimensional LBM model D3Q19

  14. The Lattice-Boltzmann Method (LBM) Streaming ◇ Streaming  Collision  Relaxation

  15. The Lattice-Boltzmann Method (LBM) ei : nineteen grid velocitys(0~18) wi : w0=1/3, w1..6=1/18,w7..18=1/36 : physical fluid viscosity

  16. Fluid Control ◇ Generating Control Particles ◇ Controlling fluid using attraction force and velocity force ◇ Detail-Preserving Control

  17. Generating Control Particles ◇ Motion given by precomputed function [FM97, FF01] ◇ Shape given by a Mesh [JSW05] ◇ Motion from another fluid simulation - using SPH, LBM - very coarse simulation - The simulation may even run in realtime to animator

  18. Control Forces ◇ Attraction force : Force that pulls fluid towards the control particles ◇ Velocity Force : modifying the velocity of the fluid according to the flow determined by the control particles ◇ Control Particle Variables - pi : position of control particle - vi : velocity of control particle - hi : influence radius (2.5times the average distance)

  19. Attraction Force ◇ This force is scaled down when the influence region of the control particle is already covered with fluid ◇ Scale factor for attraction force

  20. Attraction Force ◇ Attraction force on a fluid element e ◇ : global contant that defines the strength of the attraction force ◇ if is negative, it will result in a repulsive force

  21. Velocity Force ◇ Velocity Force on a fluid element e ◇ v(e) : the velocity of the fluid element e ◇ : a constant that defines the influence of the velocity force

  22. Total Force ◇ Total control force fc(e) = fa(e) + fv(e) ◇ The new total force per volume f(e) = fc(e) + ff(e) ◇ ff(e) : the fluid force from the physical fluid simulation

  23. Detail-Preserving Control ◇ The velocity force lead to an averaging of the fluid velocities◇ Undesirable artificial viscosity◇ We want the natural small-scale fluid motion

  24. Detail-Preserving Control

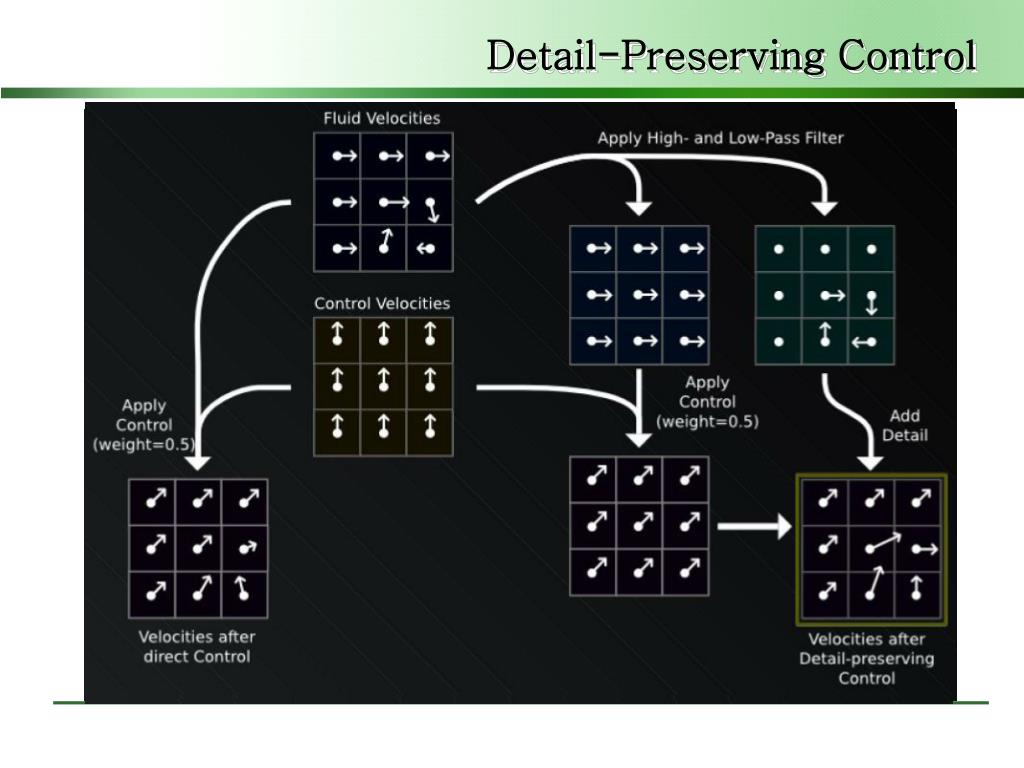

  25. Detail-Preserving Control

  26. Detail-Preserving Control ◇ Smoothed velocity field ◇ This smoothed version of the fluid velocity replaces V(e) in Equation 7

  27. Detail-Preserving Control ◇ is low pass filtered velocity ◇ is high pass filtered velocity ◇ vp is the interpolated velocity of the control particles at a fluid element e

  28. Results and Discussion ◇ We have implemented our control algorithm for both an SPH and an LBM fluid solver ◇ Within the SPH solver, the existing acceleration structures can be used to query fluid particles in the neighborhood of a control particle ◇ For the LBM solver, control particles are rasterized to the grid

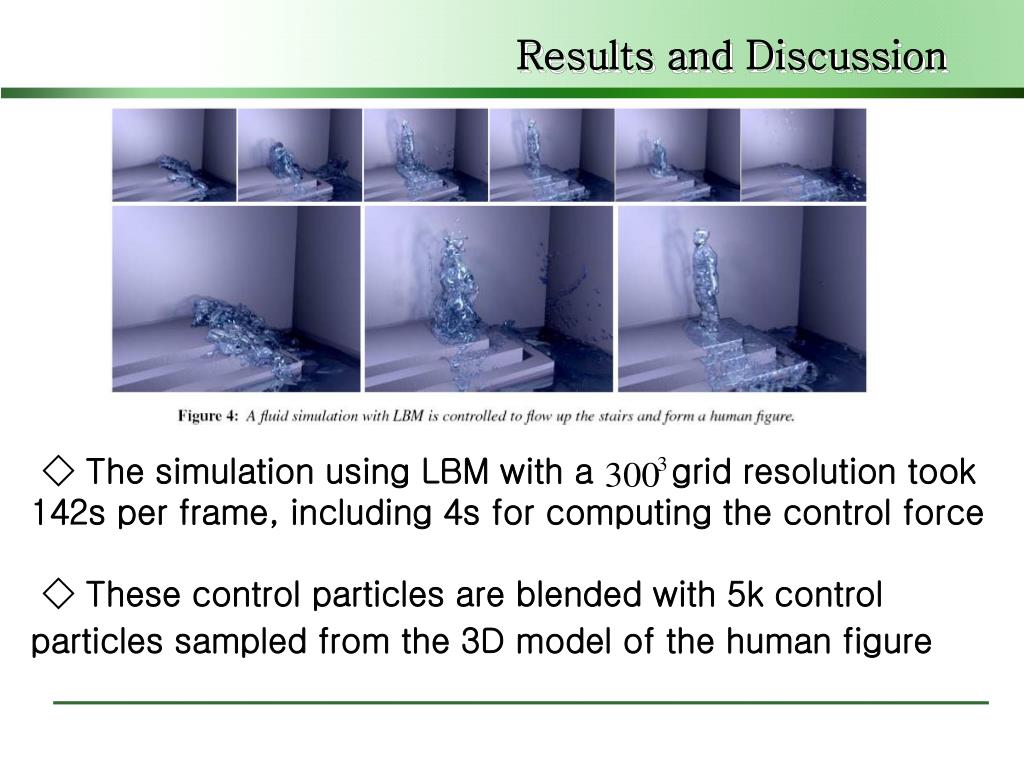

  29. Results and Discussion ◇ The simulation using LBM with a grid resolution took 142s per frame, including 4s for computing the control force ◇ These control particles are blended with 5k control particles sampled from the 3D model of the human figure

  30. Results and Discussion ◇ The control flow with detail-preservation retains small-scale fluid features ◇ The simulation was done using LBM with a 240*120*120 grid resolution which took 38s per frame on average ◇ The computation of the control forces took 2-4% of the total computation time

  31. Results and Discussion ◇ The mesh is only used to generate a sequence of control particles as described in Section 3.1 ◇ We used 266k particles for the SPH simulation which took 102s per frame including the computation of the control forces which took 14s

  32. Results and Discussion ◇ Our detail-preserving approach clearly reduces the artificial viscosity by the control forces ◇ The user can interactively adjust the parameters until the desired coarse-scale behavior of the fluid is obtained ◇ Our framework could also be used to control the deformation of elastic bodies

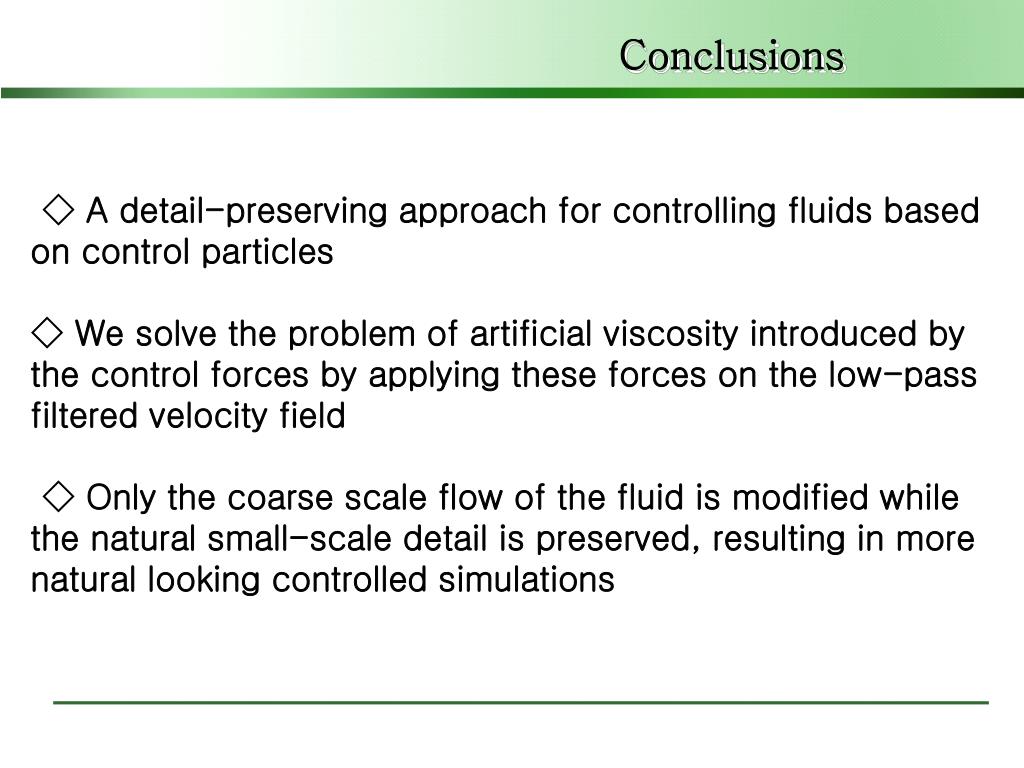

  33. Conclusions ◇ A detail-preserving approach for controlling fluids based on control particles◇ We solve the problem of artificial viscosity introduced by the control forces by applying these forces on the low-pass filtered velocity field ◇ Only the coarse scale flow of the fluid is modified while the natural small-scale detail is preserved, resulting in more natural looking controlled simulations

  34. References
