INTRODUCTION TO DIGITAL SIGNAL PROCESSING

niveditha avatar
niveditha
16 diapositives · 917 Views · Mar 18, 2013

INTRODUCTION TO DIGITAL SIGNAL PROCESSING. Dr. Hugh Blanton ENTC 4347. TOPICS. Impact of DSP Analog vs. digital: why, what & how Digital system example Sampling & aliasing ADCs: performance & choice Digital data formats. Limitations. Advantages.

#quantization (signal processing) #sampling frequency #digital signal processing #lattice #bilinear transform #autocorrelation #kaiser window #psola
INTRODUCTION TO DIGITAL SIGNAL PROCESSING - slide 1
01 / 16INTRODUCTION TO DIGITAL SIGNAL PROCESSING
1 / 17

Télécharger la présentation

INTRODUCTION TO DIGITAL SIGNAL PROCESSING
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. INTRODUCTION TODIGITAL SIGNAL PROCESSING Dr. Hugh Blanton ENTC 4347

  2. TOPICS • Impact of DSP • Analog vs. digital: why, what & how • Digital system example • Sampling & aliasing • ADCs: performance & choice • Digital data formats Dr. Blanton - ENTC 4347 - From analog to digital domain 2 / 30

  3. Limitations Advantages • A/D & signal processors speed: wide-band signals still difficult to treat (real-time systems). • Finite word-length effect. • Obsolescence (analog electronics has it, too!). • More flexible. • Often easier system upgrade. • Data easily stored. • Better control over accuracy requirements. • Reproducibility. Digital vs Analog Digital Signal Processing Dr. Blanton - ENTC 4347 - From analog to digital domain 3 / 30

  4. Impact of DSP on Modern Living Cellular/mobile telephony Speech and channel coding Voice and data processing Power management Multipath equaliztion Digital audio Stereo and surround sound Audio equalization and mixing Electronic music Medical electronics Critical/intensive care monitors Digital X-rays ECG analyzers Cardiac monitors Medical imaging Automotive Digital Audio Digital Radio Personal communication systems Active suspension Personal computer Sound cards Data storage and retrieval Error correction/concealment Multimedia Modems Dr. Blanton - ENTC 4347 - From analog to digital domain 4 / 30

  5. Analog Digital Discrete function Vk of discrete sampling variable tk, with k = integer: Vk = V(tk). Continuous function V of continuous variable t (time, space etc) : V(t). Uniform (periodic) sampling. Sampling frequency fS = 1/ tS Analog & digital signals Dr. Blanton - ENTC 4347 - From analog to digital domain 5 / 30

  6. Predicting a system’s output. • Implementing a certain processing task. • Studying a certain signal. Applications • General purpose processors (GPP), -controllers. • Digital Signal Processors (DSP). • Programmable logic ( PLD, FPGA ). Hardware Fast Faster real-time DSPing • Programming languages: Pascal, C / C++ ... • “High level” languages: Matlab, Mathcad, Mathematica… • Dedicated tools (ex: filter design s/w packages). Software DSP: aim & tools Dr. Blanton - ENTC 4347 - From analog to digital domain 6 / 30

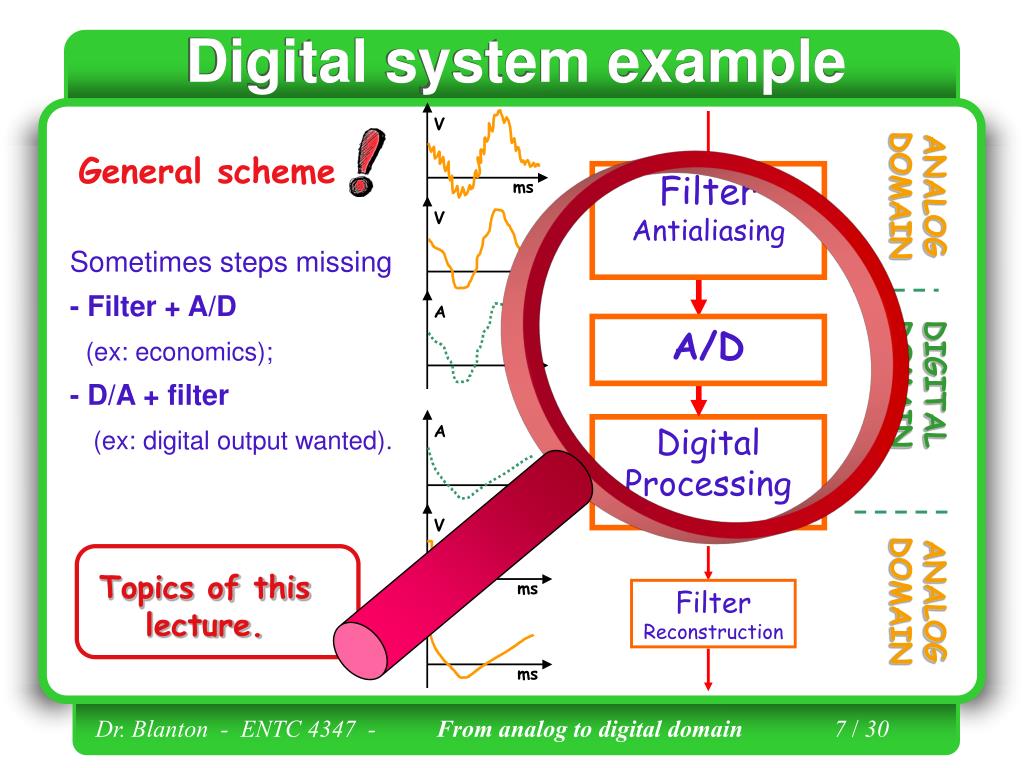

  7. General scheme ANALOG DOMAIN FilterAntialiasing FilterAntialiasing Sometimes steps missing - Filter + A/D (ex: economics); - D/A + filter (ex: digital output wanted). A/D A/D DIGITAL DOMAIN Digital Processing Digital Processing D/A ANALOG DOMAIN Topics of this lecture. FilterReconstruction Digital system example Dr. Blanton - ENTC 4347 - From analog to digital domain 7 / 30

  8. ANALOG INPUT Antialiasing Filter 1 2 3 A/D Digital Processing • Digital format. What to use for processing? See slide “DSPing aim & tools” DIGITAL OUTPUT Digital system implementation KEY DECISION POINTS: Analysis bandwidth, Dynamic range •Sampling rate. • Pass / stop bands. • No. of bits. Parameters. Dr. Blanton - ENTC 4347 - From analog to digital domain 8 / 30

  9. 1 * Ex: train wheels in a movie. 25 frames (=samples) per second. Train starts wheels ‘go’ clockwise. Train accelerates wheels ‘go’ counter-clockwise. *Sampling: independent variable (ex: time) continuous  discrete. Quantisation: dependent variable (ex: voltage) continuous  discrete. Here we’ll talk about uniform sampling. Sampling How fast must we sample a continuous signal to preserve its info content? Why? Frequency misidentification due to low sampling frequency. Dr. Blanton - ENTC 4347 - From analog to digital domain 9 / 30

  10. 1 __ s(t) = sin(2f0t) s(t) @ fS f0 = 1 Hz, fS = 3 Hz __ s1(t) = sin(8f0t) __ s2(t) = sin(14f0t) s(t) @ fS represents exactly all sine-waves sk(t) defined by: sk (t) = sin( 2 (f0 + k fS) t ) , k  Sampling - 2 Dr. Blanton - ENTC 4347 - From analog to digital domain 10 / 30

  11. 1 Example Condition on fS? F1 F2 F3 fS > 300 Hz F1=25 Hz, F2 = 150 Hz, F3 = 50 Hz fMAX The sampling theorem A signal s(t) with maximum frequency fMAX can be recovered if sampled at frequency fS > 2 fMAX . Theo* *Multiple proposers: Whittaker(s), Nyquist, Shannon, Kotel’nikov. Naming gets confusing ! Nyquist frequency (rate) fN = 2 fMAXor fMAXor fS,MINor fS,MIN/2 Dr. Blanton - ENTC 4347 - From analog to digital domain 11 / 30

  12. 1 Example Ear + brain act as frequency analyser: audio spectrum split into many narrow bands low-power sounds detected out of loud background. • Bandwidth: indicates rate of change of a signal. High bandwidth signal changes fast. BOOM ! minus 50 Hz ?? Frequency domain (hints) • Time & frequency: two complementary signal descriptions. Signals seen as “projected’ onto time or frequency domains. Warning: formal description makes use of “negative” frequencies ! Dr. Blanton - ENTC 4347 - From analog to digital domain 12 / 30

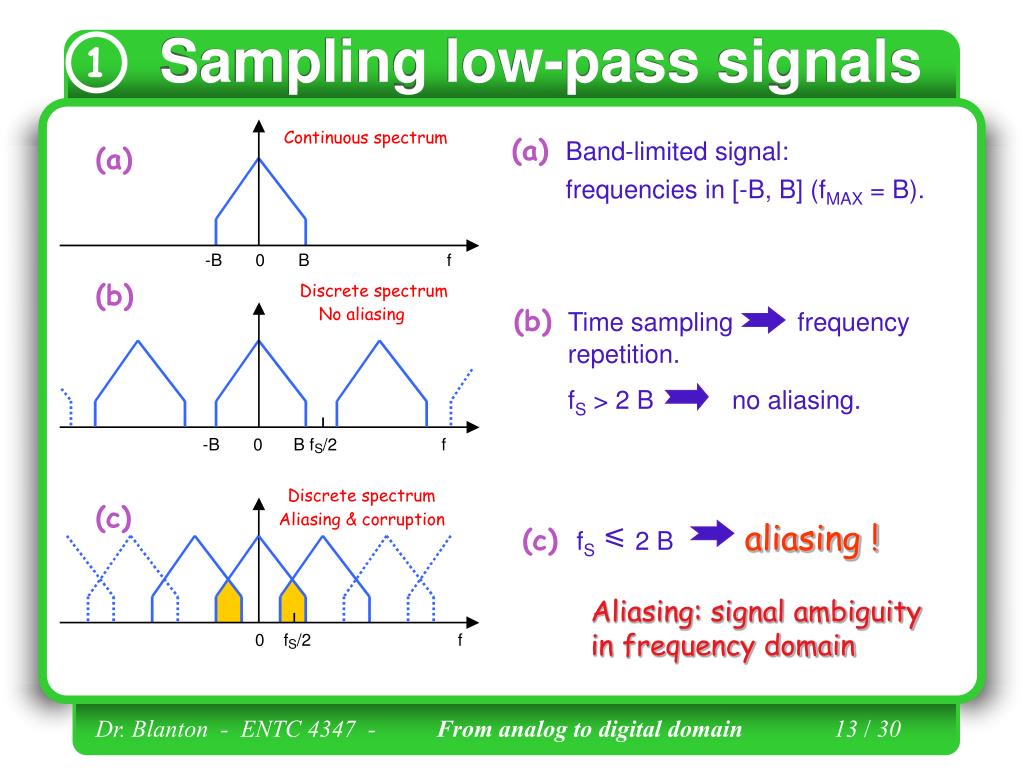

  13. 1 (a)Band-limited signal: frequencies in [-B, B] (fMAX = B). (a) (b) (b)Time sampling frequency repetition. fS > 2 B no aliasing. (c) (c)fS 2 B aliasing ! Aliasing: signal ambiguity in frequency domain Sampling low-pass signals Dr. Blanton - ENTC 4347 - From analog to digital domain 13 / 30

  14. 1 (a) (a),(b)Out-of-band noise can aliase into band of interest. Filter it before! (c)Antialiasing filter (b) • Passband: depends on bandwidth of interest. • Attenuation AMIN : depends on • ADC resolution ( number of bits N). • AMIN, dB ~ 6.02 N + 1.76 • Out-of-band noise magnitude. • Other parameters: ripple, stopband frequency... (c) Antialiasing filter Dr. Blanton - ENTC 4347 - From analog to digital domain 14 / 30

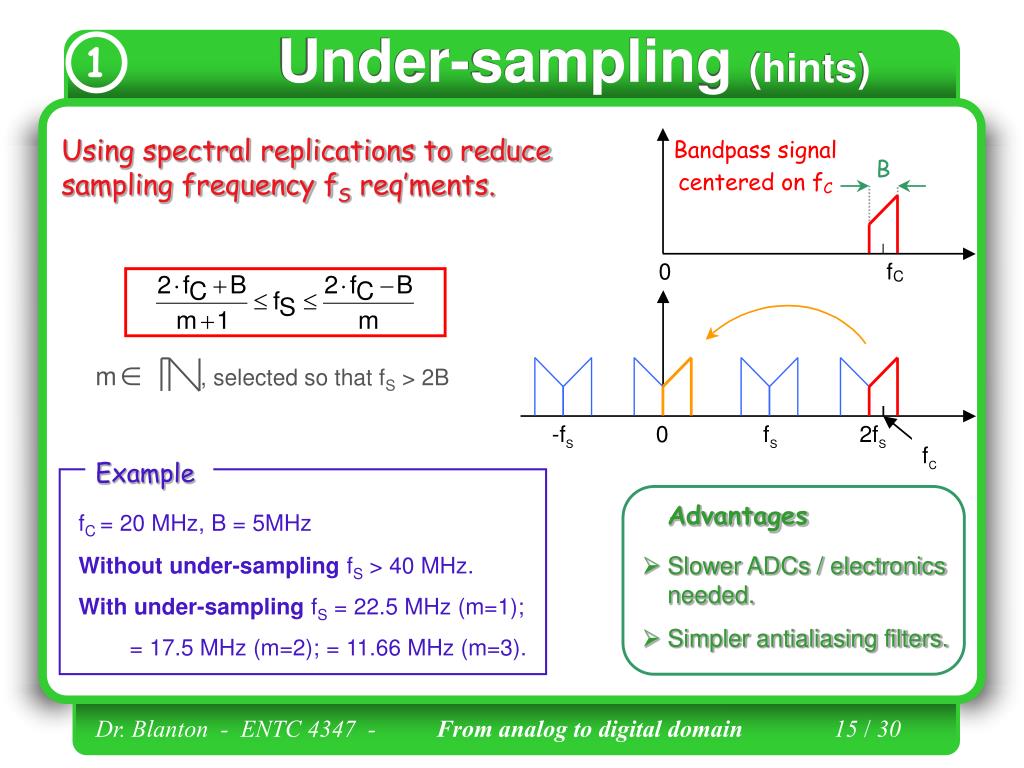

  15. 1 m , selected so that fS > 2B Example Advantages • Slower ADCs / electronics needed. • Simpler antialiasing filters. fC = 20 MHz, B = 5MHz Without under-sampling fS > 40 MHz. With under-sampling fS = 22.5 MHz (m=1); = 17.5 MHz (m=2); = 11.66 MHz (m=3). Under-sampling (hints) Using spectral replications to reduce sampling frequency fS req’ments. Dr. Blanton - ENTC 4347 - From analog to digital domain 15 / 30

  16. 1 Oversampling : sampling at frequencies fS >> 2 fMAX . Over-sampling & averaging may improve ADC resolution ( i.e. SNR, see ) fOS = over-sampling frequency, w = additional bits required. 2 fOS = 4w· fS Each additional bit implies over-sampling by a factor of four. Caveat • It works for: • white noise with amplitude sufficient to change the input signal randomly from sample to sample by at least LSB. • Input that can take all values between two ADC bits. Over-sampling (hints) Dr. Blanton - ENTC 4347 - From analog to digital domain 16 / 30
