Presentation Transcript

  1. MHC Polymorphism Ole Lund

  2. Objectives • What is HLA polymorphism? • What is it good for? • How does it make life difficult for vaccine design? • Definition of HLA supertypes • HLA class I • HLA class II

  3. MHC Class I pathway Figure by Eric A.J. Reits

  4. Expression of HLA is codominant Father Mother Kids

  5. Polymorphism and polygeny Two different properties make it difficult for pathogens to evade immune responses

  6. Human MHC (HLA) encoded on cromosome 6

  7. Heterozygous advantage

  8. The MHC gene region http://www.ncbi.nlm.nih.gov/mhc/MHC.fcgi?cmd=init&user_id=0&probe_id=0&source_id=0&locus_id=0&locus_group=0&proto_id=0&banner=1&kit_id=0&graphview=0

  9. Figure 5-13

  10. Human Leukocyte antigen (HLA=MHC in humans) polymorphism - alleles http://www.anthonynolan.com/HIG/index.html

  11. HLA variability http://rheumb.bham.ac.uk/teaching/immunology/tutorials/mhc%20polymorphism.jpg

  12. HLA polymorphism Figure by Thomas Blicher (blicher@cbs.dtu.dk

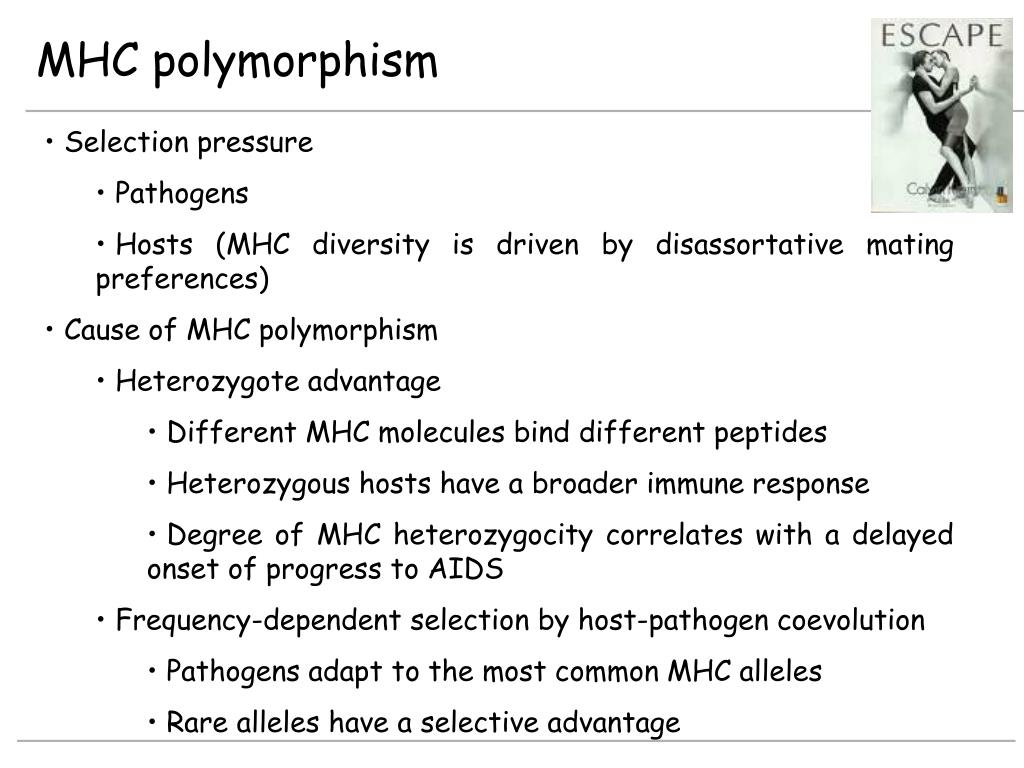

  13. MHC polymorphism • Selection pressure • Pathogens • Hosts (MHC diversity is driven by disassortative mating preferences) • Cause of MHC polymorphism • Heterozygote advantage • Different MHC molecules bind different peptides • Heterozygous hosts have a broader immune response • Degree of MHC heterozygocity correlates with a delayed onset of progress to AIDS • Frequency-dependent selection by host-pathogen coevolution • Pathogens adapt to the most common MHC alleles • Rare alleles have a selective advantage

  14. HLA Diversity. 2 x 3 HLA’s per person http://www.stanford.edu/dept/HPS/transplant/html/tt_1.html

  15. HLA polymorphism and vaccine design • Few human beings will share the same set of HLA alleles • Different persons will react to a pathogen infection in a non-similar manner • A CTL based vaccine must include epitopes specific for each HLA allele in a population • A CTL based vaccine must consist of ~800 HLA class I epitopes and ~400 class II epitopes

  16. Sets of MHC types • Solution • Select sets of a few HLA molecules that together have a broad distribution in the human population • Gulukota and DeLisi [1996] compiled lists with 3, 4, and 5 alleles which give the maximal coverage of different ethnic groups

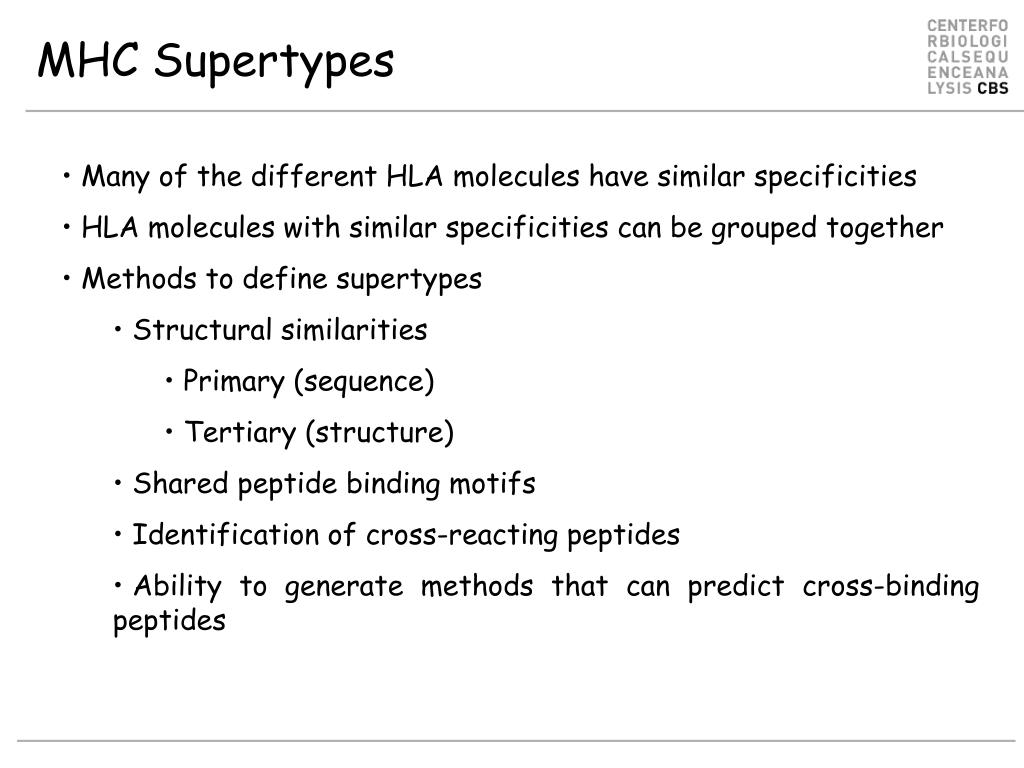

  17. MHC Supertypes • Many of the different HLA molecules have similar specificities • HLA molecules with similar specificities can be grouped together • Methods to define supertypes • Structural similarities • Primary (sequence) • Tertiary (structure) • Shared peptide binding motifs • Identification of cross-reacting peptides • Ability to generate methods that can predict cross-binding peptides

  18. HLA polymorphism - supertypes • Each HLA molecule within a supertype binds essentially the same peptides • Nine major HLA class I supertypes have been defined • HLA-A1, A2, A3, A24,B7, B27, B44, B58, B62 Sette et al, Immunogenetics (1999) 50:201-212

  19. HLA polymorphism - frequencies Supertypes Phenotype frequencies Caucasian Black Japanese Chinese Hispanic Average A2,A3, B7 83 % 86 % 88 % 88 % 86 % 86% +A1, A24, B44 100 % 98 % 100 % 100 % 99 % 99 % +B27, B58, B62 100 % 100 % 100 % 100 % 100 % 100 % Sette et al, Immunogenetics (1999) 50:201-212

  20. HLA clustering method • Extract data from SYFPEITHI and MHCpep databases • Construct amino acid frequency vectors for each HLA molecule • Calculate distance between HLA molecules • The distance dij between two HLA molecules (i, j) is calculated as the sum over each position in the two motifs of one minus the normalized vector products of the amino acid’s frequency vectors (= cosine to the angle between the vectors) [Lyngsø et al., 1999]: • The distance matrices were used as input to the program neighbor from the PHYLIP package (http://evolution.genetics.washington.edu/phylip.html) O Lund et al., Immunogenetics. 2004 55:797-810

  21. Logos of HLA-A alleles A2 supertype O Lund et al., Immunogenetics. 2004 55:797-810

  22. Clustering of HLA alleles O Lund et al., Immunogenetics. 2004 55:797-810

  23. Logos of HLA-B alleles O Lund et al., Immunogenetics. 2004 55:797-810

  24. O Lund et al., Immunogenetics. 2004 55:797-810

  25. Novel HLA supertypes • We suggest to • split some of the alleles in the A1 supertype into a new A26 supertype • split some of the alleles in the B27 supertype into a new B39 supertype. • the B8 alleles may define their own supertype O Lund et al., Immunogenetics. 2004 55:797-810

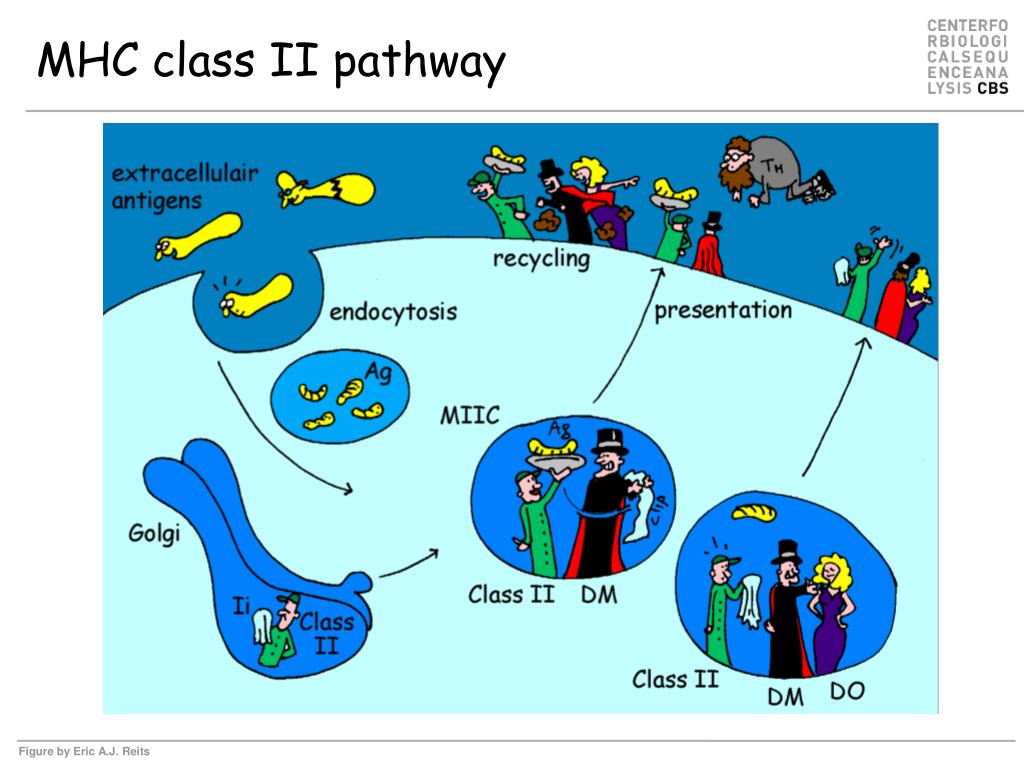

  26. MHC class II pathway Figure by Eric A.J. Reits

  27. Virtual matrices • HLA-DR molecules sharing the same pocket amino acid pattern, are assumed to have identical amino acid binding preferences.

  28. MHC Class II binding • Virtual matrices • TEPITOPE: Hammer, J., Current Opinion in Immunology 7, 263-269, 1995, • PROPRED: Singh H, Raghava GPBioinformatics 2001 Dec;17(12):1236-7 • Web interfacehttp://www.imtech.res.in/raghava/propred • Prediction Results

  29. MHC class II Supertypes • 5 alleles from the DQ locus (DQ1, DQ2, DQ3, DQ4, DQ5) cover 95% of most populations [Gulukota and DeLisi, 1996] • A number of HLA-DR types share overlapping peptide-binding repertoires [Southwood et al., 1998]

  30. Logos of HLA-DR alleles O Lund et al., Immunogenetics. 2004 55:797-810

  31. O Lund et al., Immunogenetics. 2004 55:797-810

  32. HLA class II supertypes • We suggest to • The specificities of the class II molecules can be clustered into nine classes, which only partly correspond to the serological classification O Lund et al., Immunogenetics. 2004 55:797-810

  33. Conclusions • The HLA polymorphism is enormous • Great for competing pathogen infections • Bad for vaccine design • Not all HLA’s are equally different • Allows definition of supertypes • Selecting one epitope from 6 supertypes gives close to 98%-100% population coverage
