  1. QS 9000/ISO 9002(KMA-QA QSCQ9092) OVER VIEW 2005 盈信機電工業(株) YOUNG-SHIN COMPONENTS CO.,LTD. #29-210, BONRI-RI,NONGONG-EUB,DALSUNG-GUN,TAEGU CITY,KOREA, 711-855 TEL:82-53--614-8841 http//www.yscomp.co.kr FAX:82-53-614-8842 E-mail: goblue@dreamwiz.com

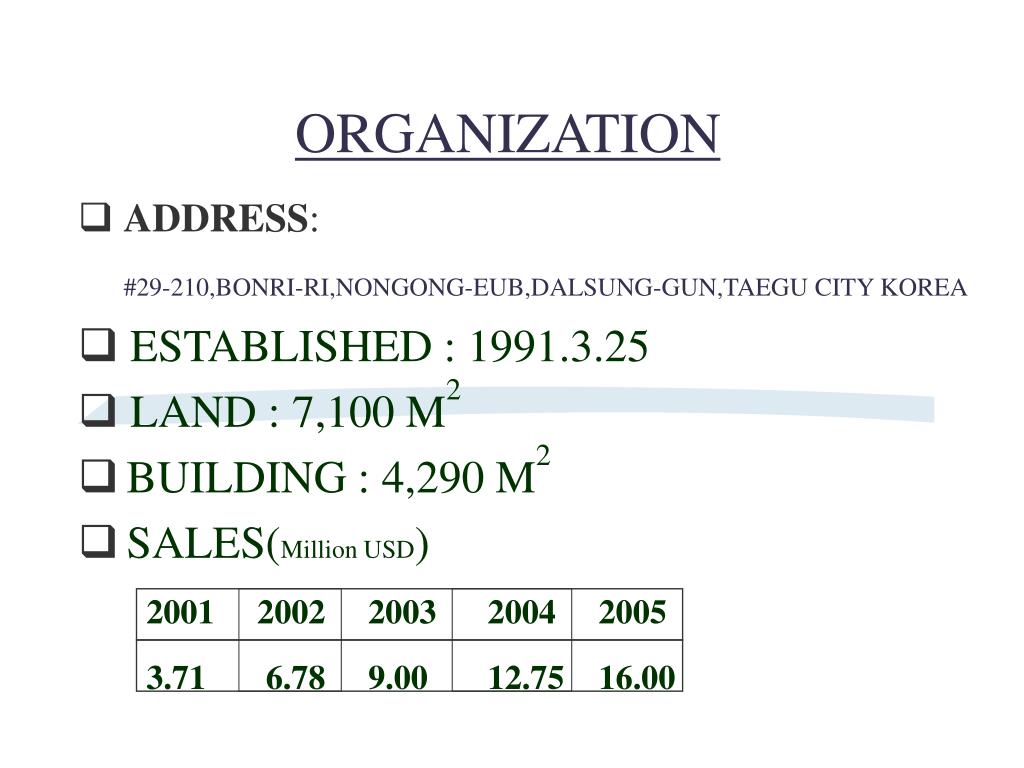

  2. ORGANIZATION ADDRESS: #29-210,BONRI-RI,NONGONG-EUB,DALSUNG-GUN,TAEGU CITY KOREA ESTABLISHED : 1991.3.25 LAND : 7,100 M2 BUILDING : 4,290 M2 SALES(Million USD) 2001 2002 2003 2004 2005 3.71 6.78 9.00 12.75 16.00

  3. PERSONNEL • EMPLOYEE 92 -------------------------------------------------------- FACTORY 60 OFFICE 20 Q.C 7 R & D 5 --------------------------------------------------------

  4. BACK GROUND • ‘91. 3 Company establishment and start to supply SP10 coil to KDAC • ‘94. 6 Designated as a technically advanced company by GOV. • ‘94. 12 Export Ignition coil for GENERAC (U.S.A) • ‘98. 1 Registered to ISO9002 quality system(KMA-QA-QSC804884) • ‘99. 12 Registered to QS 9000/ISO 9002 quality system (KMA-QA –QSCQ9092) • ‘01. 9 Export 6pole housing to Delphi US • ‘01. 10 Contract 7CVC coil & housing (2003 -2007) with Delphi US • ‘01. 10 Export IMP series clutch set to China (FMAC) • ‘02. 01 DBC 7 Solenoid Coil ASM(10478324/5) • ’02. 09 EVO Actuator & Fitting ASM. • ’03. 08 Nominate for 5CVC Clutch set development(DCH and Delphi-Brazil) • ’03. 08 Contract 7CVC coil & housing with DCH(Delphi Calsonic-Hungary plant) • ‘03. 12 Contract 6Pole Coil & Housing ASM. With DHTS-USA • ’04. 12 Contract 5CVC/6CVC, Epsilon Coil & Housing ASM. With Delphi-Europe

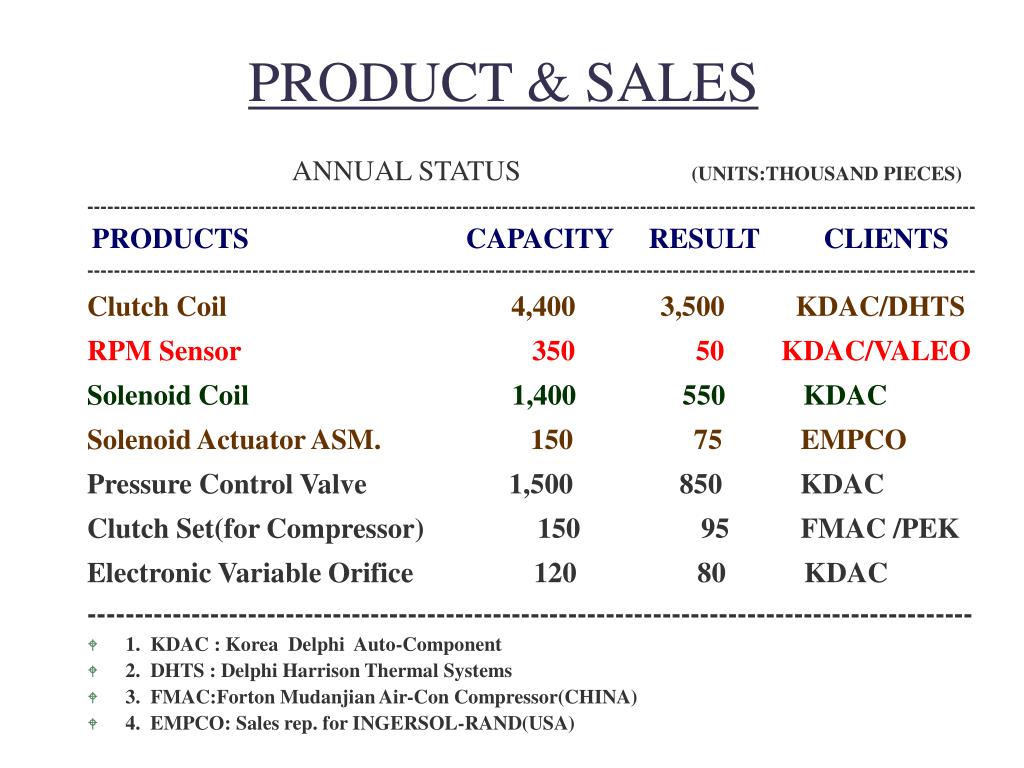

  5. PRODUCT & SALES ANNUAL STATUS(UNITS:THOUSAND PIECES) --------------------------------------------------------------------------------------------------------------------------------------- PRODUCTS CAPACITY RESULT CLIENTS --------------------------------------------------------------------------------------------------------------------------------------- Clutch Coil 4,400 3,500 KDAC/DHTS RPM Sensor 350 50 KDAC/VALEO Solenoid Coil 1,400 550 KDAC Solenoid Actuator ASM. 150 75 EMPCO Pressure Control Valve 1,500 850 KDAC Clutch Set(for Compressor) 150 95 FMAC /PEK Electronic Variable Orifice 120 80 KDAC ---------------------------------------------------------------------------------------------- • 1. KDAC : Korea Delphi Auto-Component • 2. DHTS : Delphi Harrison Thermal Systems • 3. FMAC:Forton Mudanjian Air-Con Compressor(CHINA) • 4. EMPCO: Sales rep. for INGERSOL-RAND(USA)

  6. PRODUCTS Clutch Coil Epoxy mold type:M100,SP15,4POLE,N6POLE BMC mold type:6POLE,7CVC Others:Staking(caulking),Plastic mold Solenoid & Actuator EVO Actuator,Fuel solenoid and Coil ASM(for ABS…) Magnetic Pick-up Sensor RPM sensor for distributor and ABS Pressure control Valve & Switch Valve for power steering pump(7.24~10.34 Mpa) EMS & ABS LEGR Coil asm. Complete Target date : May. 2005. For KDAC DBC 7 Coil asm. Complete Target date : Feb. 2005. For KDAC

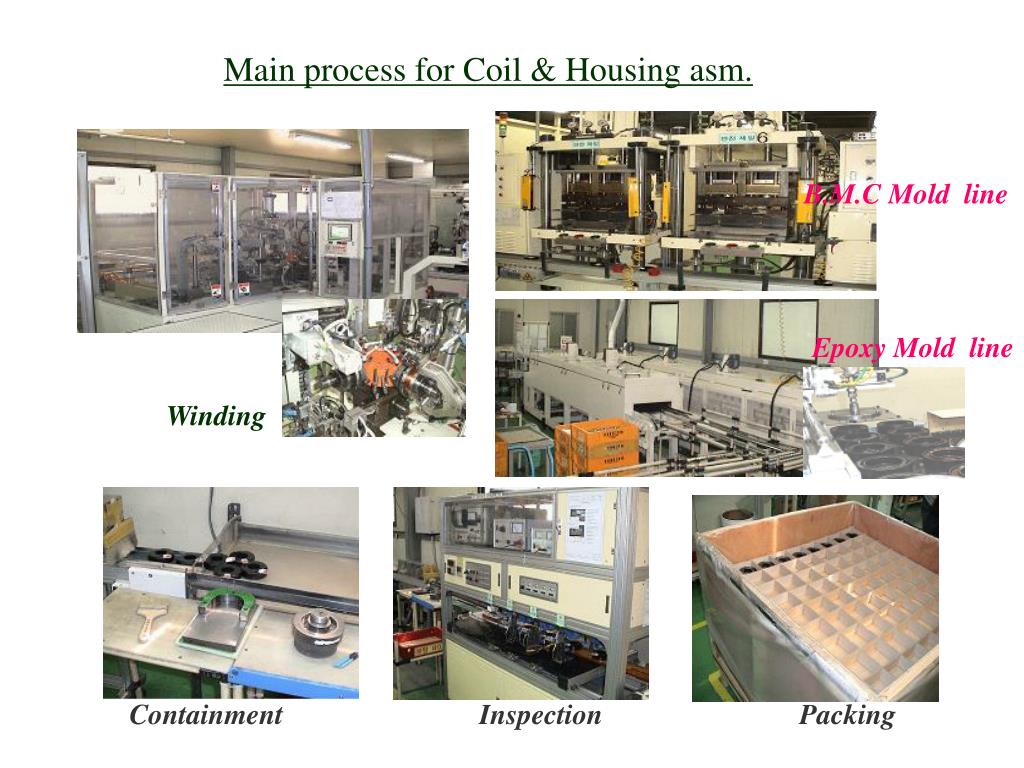

  7. Main process for Coil & Housing asm. B.M.C Mold line Epoxy Mold line Winding Containment Inspection Packing

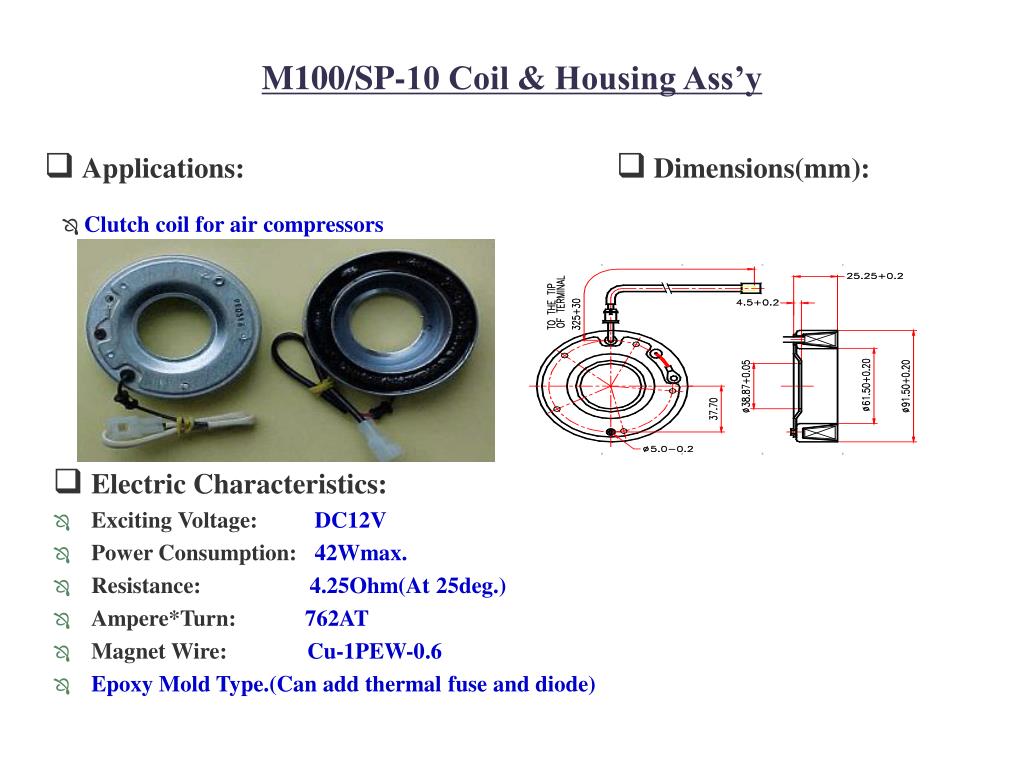

  8. M100/SP-10 Coil & Housing Ass’y • Applications: • Dimensions(mm): • Clutch coil for air compressors • Electric Characteristics: • Exciting Voltage: DC12V • Power Consumption: 42Wmax. • Resistance: 4.25Ohm(At 25deg.) • Ampere*Turn: 762AT • Magnet Wire: Cu-1PEW-0.6 • Epoxy Mold Type.(Can add thermal fuse and diode)

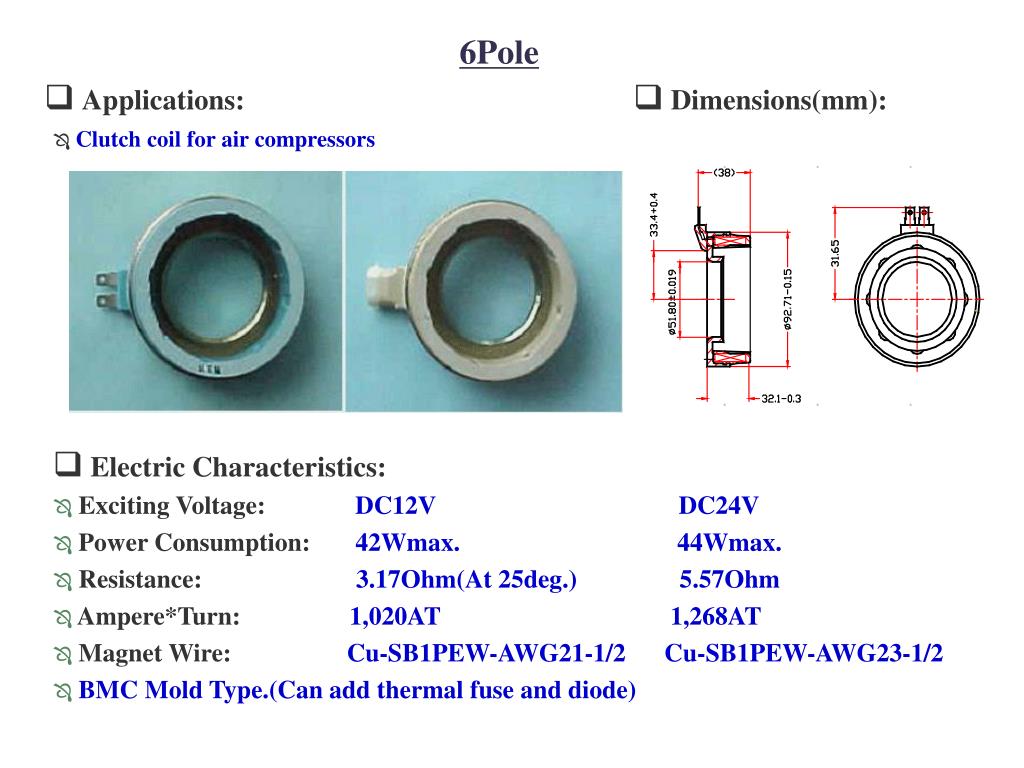

  9. 6Pole • Applications: • Dimensions(mm): • Clutch coil for air compressors • Electric Characteristics: • Exciting Voltage: DC12V DC24V • Power Consumption: 42Wmax. 44Wmax. • Resistance: 3.17Ohm(At 25deg.) 5.57Ohm • Ampere*Turn: 1,020AT 1,268AT • Magnet Wire: Cu-SB1PEW-AWG21-1/2 Cu-SB1PEW-AWG23-1/2 • BMC Mold Type.(Can add thermal fuse and diode)

  10. 7CVC Coil & Housing ASM. • Applications: • Dimensions(mm): • Clutch coil for air compressors • Electric Characteristics: • Exciting Voltage: DC12V DC12V(with Diode) • Power Consumption: 45Wmax. 45Wmax. • Resistance: 3.37Ohm(At 20 C.deg.) 3.37Ohm • Ampere*Turn: 1,018AT 1,018AT • Magnet Wire: Cu-Bonded-0.683 Cu-Bonded-0.683 • BMC Mold Type.(Can add thermal fuse)

  11. 5CVC Coil & Housing ASM. • Applications: • Dimensions(mm): • Clutch coil for air compressors • Electric Characteristics: • Exciting Voltage: DC12V • Power Consumption: 42Wmax. • Resistance: 3.55Ohm(At 20 C.deg.) • Ampere*Turn: 967AT • Magnet Wire: Cu-Bonded-0.65 • BMC Mold Type.(Can add thermal fuse)

  12. 6CVC Coil & Housing ASM. • Applications: • Dimensions(mm): • Clutch coil for air compressors • Electric Characteristics: • Exciting Voltage: DC12V (with Diode) • Power Consumption: 42Wmax. • Resistance: 3.55Ohm(At 20 C.deg.) • Ampere*Turn: 967AT • Magnet Wire: Cu-Bonded-0.65 • EpoxyMold Type.(Can add thermal fuse)

  13. New 6Pole • Applications: • Dimensions(mm): • Clutch coil for air compressors • Electric Characteristics: • Exciting Voltage: DC12V DC24V • Power Consumption: 42Wmax. 58Wmax. • Resistance: 3.62Ohm(At 25deg.) 10.3Ohm • Ampere*Turn: 1,104AT 1,194AT • Magnet Wire: Cu-1PEW-0.75 Cu-1PEW-0.55 • Epoxy Mold Type.(Can add thermal fuse and diode)

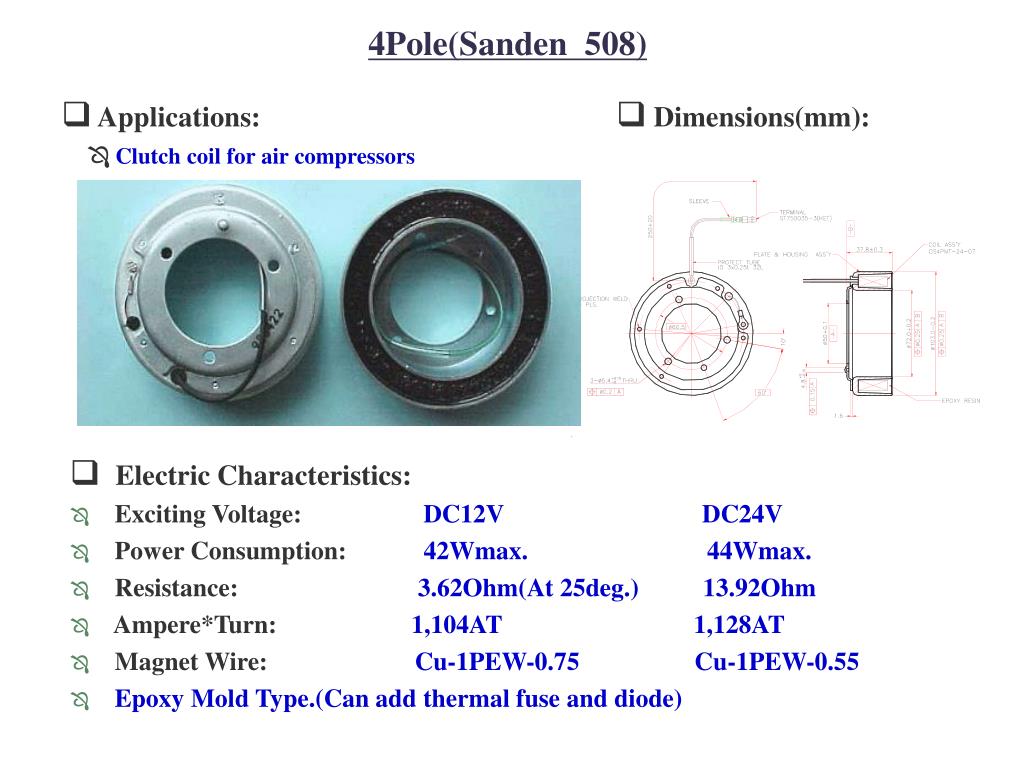

  14. 4Pole(Sanden 508) • Applications: • Dimensions(mm): • Clutch coil for air compressors • Electric Characteristics: • Exciting Voltage: DC12V DC24V • Power Consumption: 42Wmax. 44Wmax. • Resistance: 3.62Ohm(At 25deg.) 13.92Ohm • Ampere*Turn: 1,104AT 1,128AT • Magnet Wire: Cu-1PEW-0.75 Cu-1PEW-0.55 • Epoxy Mold Type.(Can add thermal fuse and diode)

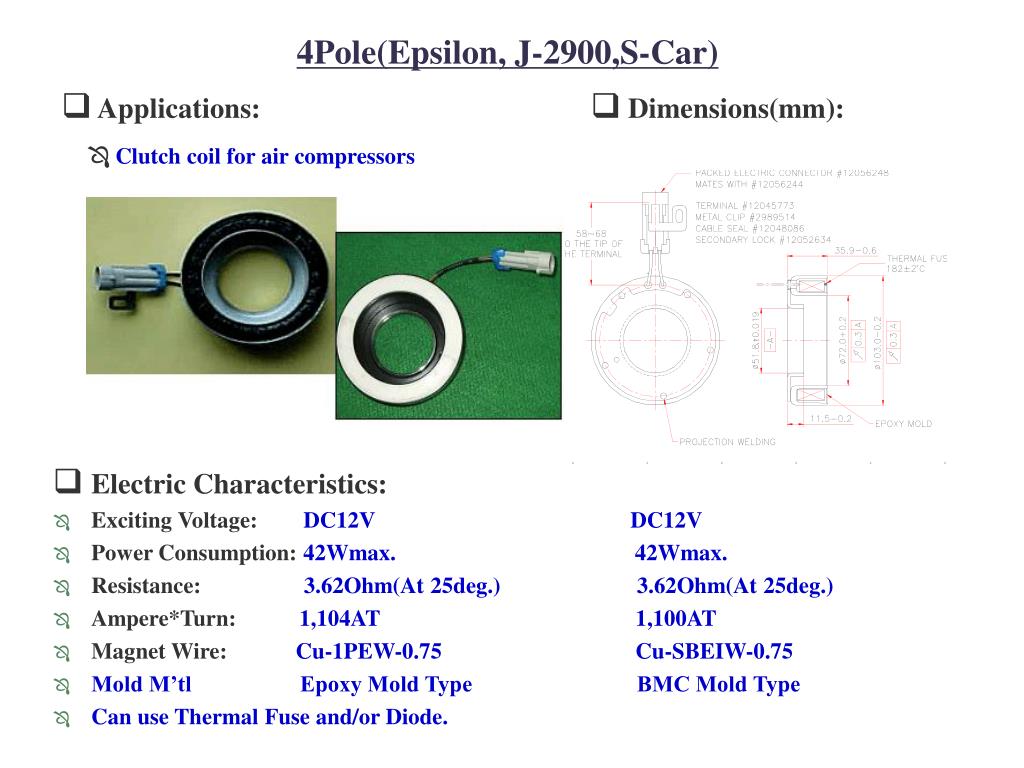

  15. 4Pole(Epsilon, J-2900,S-Car) • Applications: • Dimensions(mm): • Clutch coil for air compressors • Electric Characteristics: • Exciting Voltage: DC12V DC12V • Power Consumption: 42Wmax. 42Wmax. • Resistance: 3.62Ohm(At 25deg.) 3.62Ohm(At 25deg.) • Ampere*Turn: 1,104AT 1,100AT • Magnet Wire: Cu-1PEW-0.75 Cu-SBEIW-0.75 • Mold M’tl Epoxy Mold Type BMC Mold Type • Can use Thermal Fuse and/or Diode.

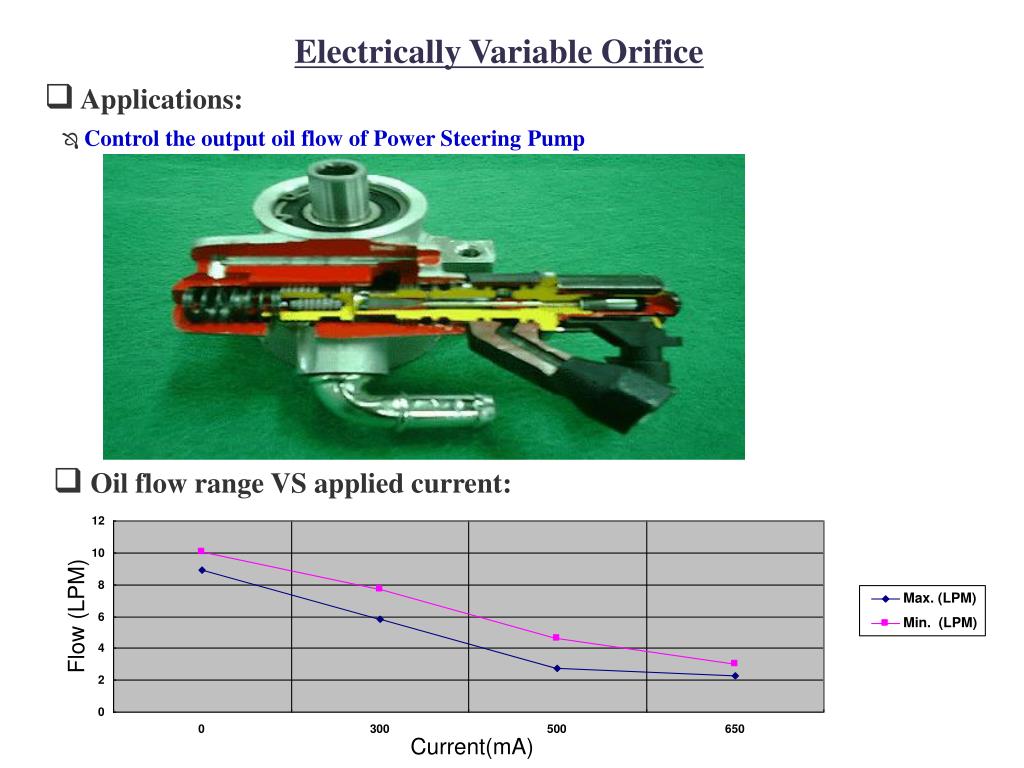

  16. Electrically Variable Orifice • Applications: • Control the output oil flow of Power Steering Pump • Oil flow range VS applied current:

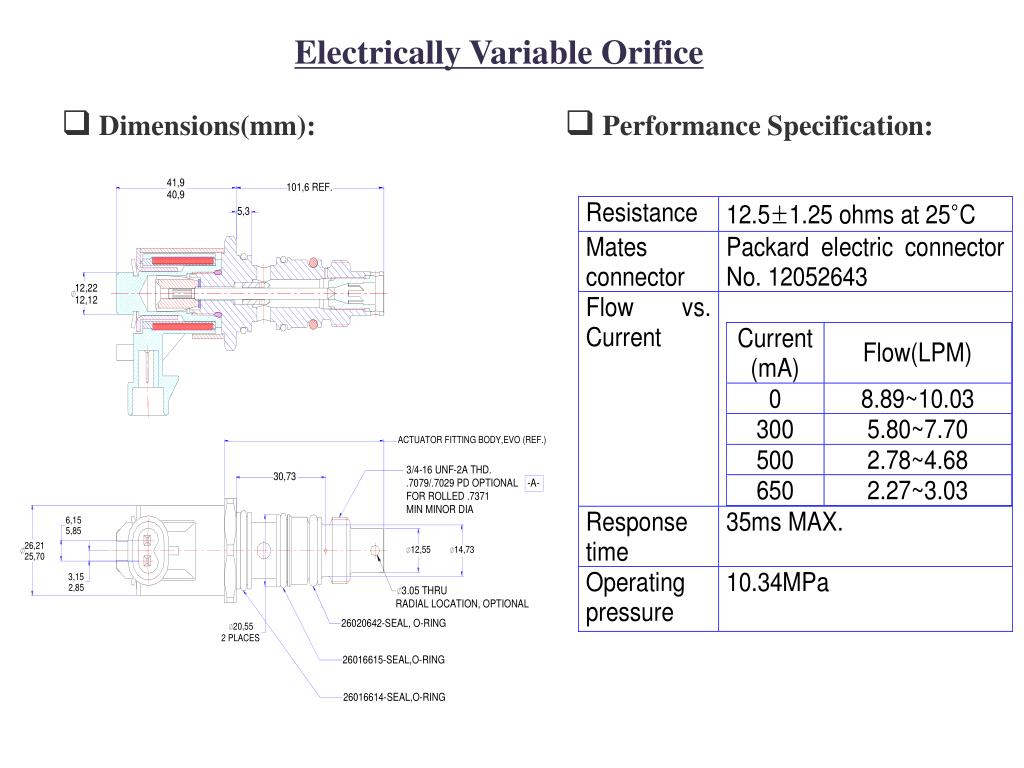

  17. Electrically Variable Orifice • Dimensions(mm): • Performance Specification:

  18. Pressure Control Valve/Switch • Applications: • Dimensions(mm): • Oil pressure control for power steering pump • Mechanical Characteristics: • Open Pressure:7.24~10.34Mpa

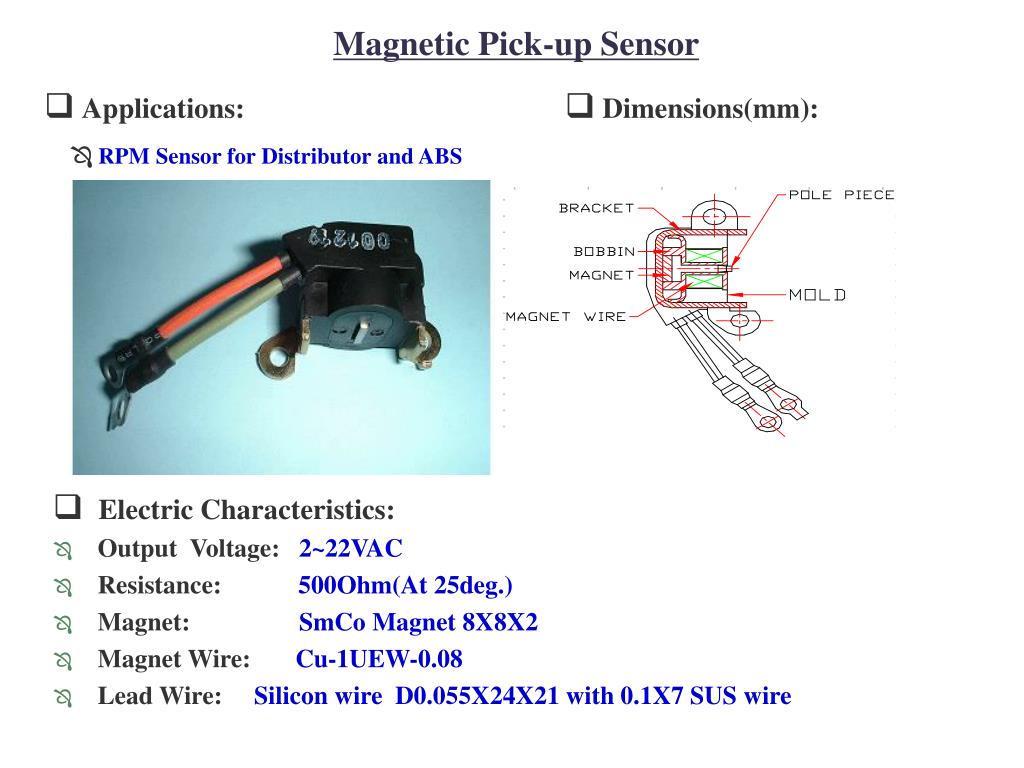

  19. Magnetic Pick-up Sensor • Applications: • Dimensions(mm): • RPM Sensor for Distributor and ABS • Electric Characteristics: • Output Voltage: 2~22VAC • Resistance: 500Ohm(At 25deg.) • Magnet: SmCo Magnet 8X8X2 • Magnet Wire: Cu-1UEW-0.08 • Lead Wire: Silicon wire D0.055X24X21 with 0.1X7 SUS wire

  20. DC Solenoid • Applications: • Dimensions(mm): • Cold carrier operating valve for Transicold • Electric Characteristics: • Exciting Voltage:12VDC • Resistance:2.65Ohm(At 25deg.) • Power Consumption:55Watt max. • Ampere *Turn:4,680AT • Diode application with connector

  21. DC Solenoids • Applications: • Dimensions(mm): • Control fuel supply of engine(pull & hold) • Applications: • Dimensions(mm): • For hydraulic valve(BMC molded)
