1. Prabhat Mishra, Nikil Dutt, Alex Nicolau Architectures and Compilers for Embedded Systems (ACES) Center for Embedded Computer Systems University of California, Irvine October 03, 2001

2. Outline • Motivation • Functional Abstraction • Contemporary example architectures • Design Space Exploration • Summary Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

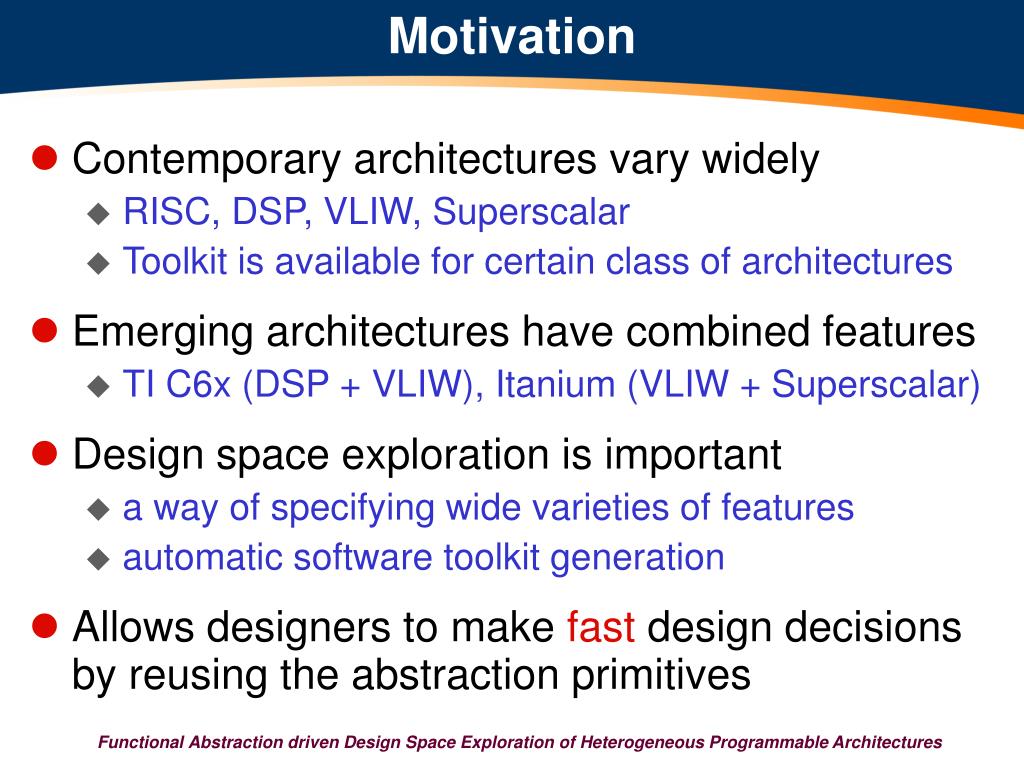

3. Motivation • Contemporary architectures vary widely • RISC, DSP, VLIW, Superscalar • Toolkit is available for certain class of architectures • Emerging architectures have combined features • TI C6x (DSP + VLIW), Itanium (VLIW + Superscalar) • Design space exploration is important • a way of specifying wide varieties of features • automatic software toolkit generation • Allows designers to make fast design decisions by reusing the abstraction primitives Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

4. Is Abstraction Possible ? • Similarities • Functional units, connected using ports, connections, and pipeline latches • Memory consists of SRAM, DRAM, caches .. • Differences • Same unit with different parameters • Same functionality in different unit • New architectural features • Defined generic functions, sub-functions and computational framework Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

5. The Flow Specification Architecture Specification (EXPRESSION ADL) Feedback Functional Abstraction Generic Simulation Models Compiler Simulator Obj Application Design Space Exploration Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

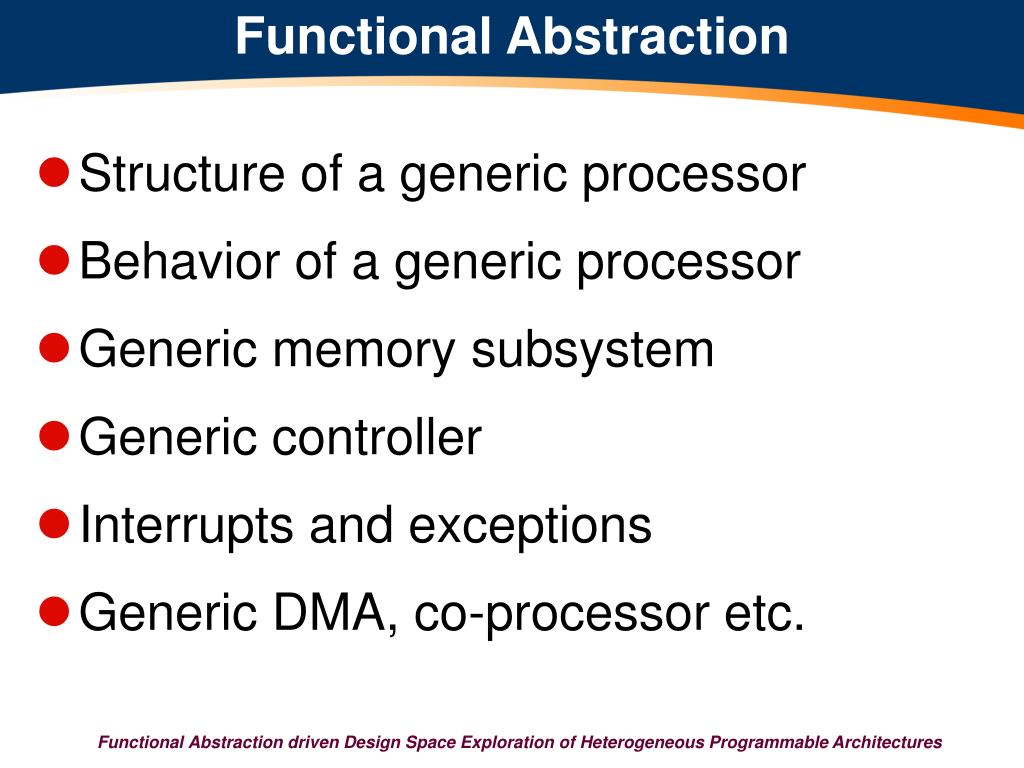

6. Functional Abstraction • Structure of a generic processor • Behavior of a generic processor • Generic memory subsystem • Generic controller • Interrupts and exceptions • Generic DMA, co-processor etc. Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

7. Generic Fetch Unit FetchUnit ( # read per cycle n, res_Station size, ........ ) { address = ReadPC() Instructions = ReadInstMemory(address, n) WriteToReservationStation(Instructions, n) outInst = ReadFromreservationStation(m) WriteLatch(decode_latch, outInst) pred = QueryPredictor(address) If pred { nextPC = QueryBTB(address) SetPC (nextPC) } else IncrementPC(x) } Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

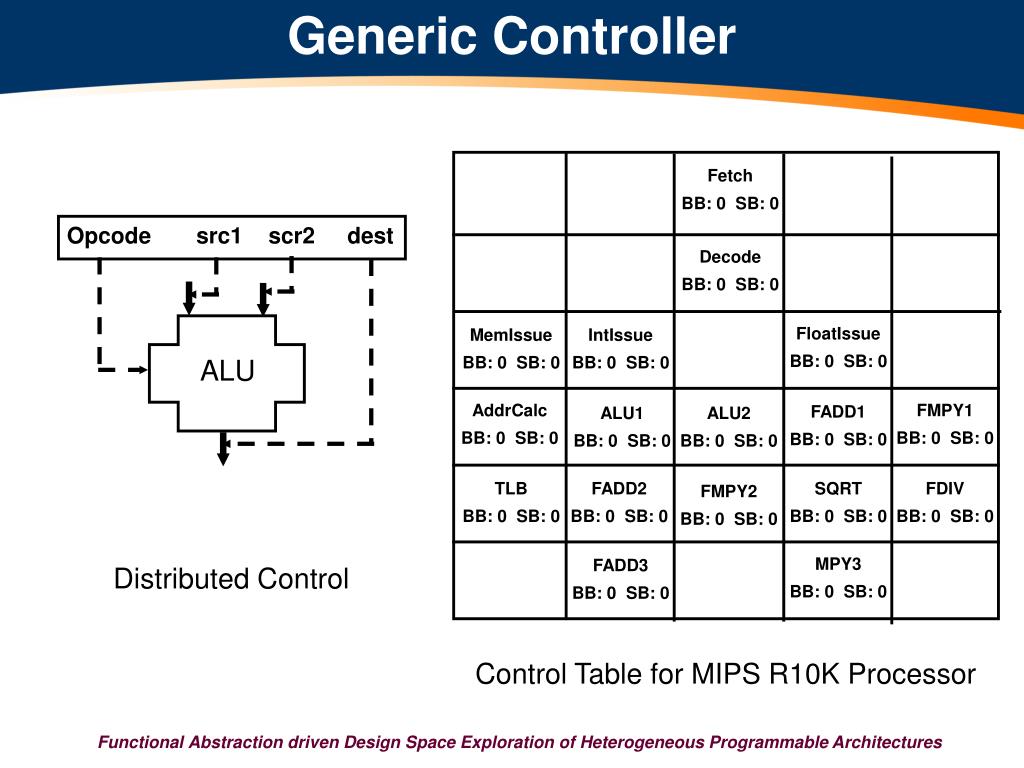

8. Generic Controller Fetch BB: 0 SB: 0 Opcode src1 scr2 dest Decode BB: 0 SB: 0 FloatIssue BB: 0 SB: 0 MemIssue BB: 0 SB: 0 IntIssue BB: 0 SB: 0 ALU AddrCalc BB: 0 SB: 0 FMPY1 BB: 0 SB: 0 FADD1 BB: 0 SB: 0 ALU1 BB: 0 SB: 0 ALU2 BB: 0 SB: 0 TLB BB: 0 SB: 0 FADD2 BB: 0 SB: 0 SQRT BB: 0 SB: 0 FDIV BB: 0 SB: 0 FMPY2 BB: 0 SB: 0 MPY3 BB: 0 SB: 0 FADD3 BB: 0 SB: 0 Distributed Control Control Table for MIPS R10K Processor Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

9. Contemporary Example Architectures • MIPS R10K Architecture • Dynamic, superscalar microprocessor implements 64-bit MIPS-4 instruction set • Fetch/execute speculatively beyond branches • out-of-order execution, in-order completion • TI C6x Architecture • Hybrid 8-way VLIW DSP • Novel memory subsystem: cache hierarchy, configurable SRAM, partitioned register file • Captured and generated toolkit for DLX, TI C6x, MIPS R10K, and PowerPC architectures Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

10. Design Space Exploration • Exploration varying processor features • MIPS R10K with in-order completion • 27% perf. improvement using out-of-order completion for multimedia & DSP benchmarks • The complete experiment took one week • Co-processor based exploration • TI C6x, functional unit is used for vector multiply • 22% performance improvement using coprocessor for DSPStone benchmarks • The complete experiment took one week • Memory subsystem exploration Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

11. Design Space Exploration Co-processor based Exploration using TI C6x Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

12. Design Space Exploration Exploration varying MIPS R10K processor features Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

13. Summary • Design Space Exploration (DSE) of heterogeneous architectures is necessary • Functional abstraction based DSE • Defined necessary functional abstractions • Captures wide varieties of architectures • Reduction of exploration time by an order of magnitude • Ongoing work • Generating synthesized hardware • Automatic property checking during DSE Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures

14. Thank you! Functional Abstraction driven Design Space Exploration of Heterogeneous Programmable Architectures
