  1. Gigabit Ethernet Networks - Design, Implementation and Management Compaq’s Models 5411/22 Gigabit Ethernet Switches Leading the Way to Gigabit Computing

  2. What We Will Cover • Gigabit Switching 101 • Designing a Gigabit Network • Gigabit Tools - Switches • “Watch-out-4’s” - Compaq Difference • Cables • VLANS • NICs - Servers

  3. Carrying Your Network World on Your Shoulders Getting “On Top” of Your Network! Gigabit Computing - “Gaining Control of Your Network”

  4. Three Levels of Gigabit Switching • Layer Two Switch • Layer Three Router • Quality of Service Network Device

  5. The Basic Problem 100BaseT Backbone 10/100 Switch Ports 10/100 Switch Ports

  6. Routers are “Network Traffic Cops”

  7. Guaranteeing Levels of Service • Quality of Service • Level 4 (application level) • Minimum/maximum bandwidth levels • Class of Service • 1-8 classes • Priority levels • Type of Service • IP header precedence bits

  8. Gigabit Networking Concepts

  9. Implementation Strategy - Existing Network WAN Internet RAS Corporate Router (Backbone) Department Level 100Mb/s switched Workgroup Level 10Mb/s switched Desktop Level 10Mb/s shared Backbone : 800Mb/s Aggr. Finance Engineering Sales Marketing 10Mb/s Links 100Mb/s Links 4xFE Bonded Links 1000Mb/s Links

  10. Implementation Strategy - LAN Router Replacement WAN Internet RAS Router 5422 Department Level 100Mb/s switched Workgroup Level 10Mb/s switched Desktop Level 10Mb/s shared Backbone : 3.2Gb/s Aggr. • Reduced routing latency • Increase backbone performance • Provided resiliency Finance Engineering Sales Marketing 10Mb/s Links 100Mb/s Links 4xFE Bonded Links 1000Mb/s Links

  11. Implementation Strategy - Upgrade Backbone WAN Internet RAS 5422 Router 5411 Department Level 1000Mb/s switched Workgroup Level 100Mb/s switched Desktop Level 10Mb/s switched Backbone : 8Gb/s Aggr. • Increase backbone performance • Moved switches downward in the infra-structure • Lost resiliency Finance Engineering Sales Marketing 10Mb/s Links 100Mb/s Links 4xFE Bonded Links 1000Mb/s Links

  12. Compaq 5226 Ethernet Switch 24 10BaseT & 2 100Base-TX Gigabit Switch 16 100Base-TX & 2 1000Base-SX PC Workstations 24 per Workgroup Switch Centralized File Servers Backbone Upgrade Switched 10BaseT to the Desktop Switched Full Duplex 100Base-TX Uplink Redundant 100Base-TX Uplink using Spanning Tree Switched Full Duplex Load Sharing 1000Base-SX Link Legend East Coast Accounting Firm

  13. 5422 Enterprise Switch 16x10/100Base-TX ports Auto-negotiate duplex/speed 6x1000Base-SX Ports 17.5Gb/s Backplane 12M pps L3 forwarding 128K L2 MAC addresses 32K L3 routes Port bonding/hunt groups 3 Year Limited Warranty Product Features • 5411 Enterprise Switch • 8x10/100Base-TX ports • Auto-negotiate duplex/speed • 3xGBIC 1000Base-SX/LX Ports + 1xDual-PHY port • 8.5Gb/s Backplane • 6M pps L3 forwarding • 128K L2 MAC addresses • 32K L3 routes • Port bonding/hunt groups • 3 Year Limited Warranty End-to-End Wire Speed Routing

  14. Product Features • Virtual LANsfor Application-oriented policy boundaries: • 256 Port based VLANs • Span multiple switches • 802.1d Spanning Tree • Per VLAN • 64 Instances • 802.1p Type of Service • 802.1q VLAN Tagging • Quality of Service(QoS) for • differentiated traffic handling by: • Traffic Groups (e.g., TCP session, port, etc) • Profile (e.g., Max/Min bandwidth, Max Delay, etc) Network/System Management CIM/CNMS Integration SNMP manageable Web-server agent RMON groups 1,2,3&9 Application Sensitive Policy-Based QoS

  15. Basic Parts of QoS Queuing • Defining a Flow, Any combination of: • Source Address • Destination Address • Input Port • Output Port • Application ( email, video, etc) • Each Flow has its own Que • Group the Ques to the appropriate Class • 2-8 QoS Classes • QoS on TCP/IP • Use RSVP or Policy based • Implement through Network Manager

  16. Network - Computer Management CIM CNMS WbEM

  17. Management • CNMS Management • Product Management Modules for CNMS • Graphical Representation in Web and Windows Versions • SNMP Statistics and RMON Monitoring • Single Click Access to Web Configuration Utility • Basic Configuration Tool • VLAN • QoS • Telnet available to access Command Line Interface • Complete Configuration of the Device • Cisco comparable CLI • Ordinox Management • HP Openview, SunNet Manager, NetView, ManageWise

  18. Models 5411/22 CNMS Management

  19. Models 5411/22 Web Server Configuration

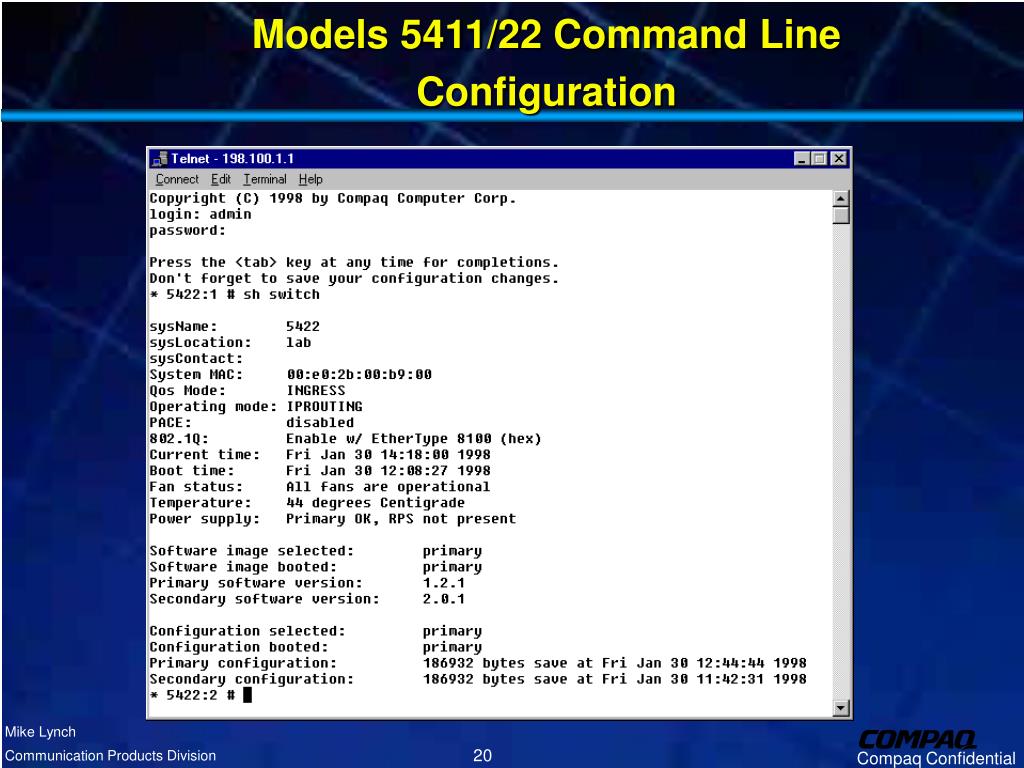

  20. Models 5411/22 Command Line Configuration

  21. Compaq’s Gigabit Computing Strategy Provide all of the Gigabit Ethernet computing components to ensure that customers have a proven solution: • NetworkComputing & Applications • Leadership Applications (e.g., SAP, BAAN, PeopleSoft, Oracle) • Leadership Servers, Workstations, Desktops • + Networking • Leadership Gigabit Ethernet Switches/NICs/Fiber Channel Storage • + Management • Leadership End-to-End Quality of Service (QoS) • Leadership CIM/CNMS • = • Compaq’s Leadership Gigabit • Computing Strategy

  22. Compaq - The Gigabit Computing Leader 3. Applications Solutions - SAP, BaaN, PeopleSoft, etc. - Scientific modeling - Workstation applications 1. Gigabit technology - LAN focus solutions - End to end Network products - Wire speed switch/routing Providing Integrated Gigabit Solutions 4. Server & System Optimization - 64 bit 66mhz PCI bus - Network Interface Cards - Integration with cluster technologies (load balancing) - Web based net mgmt. Integrated with servers 2. Highly available network solutions - Trunking - Dual homing port - Hot swap PCI - Redundant power

  23. PCI 1056 Mbps Gigabit Ethernet 1000 Mbps EISA 264 Mbps Fast Ethernet 100 Mbps ISA 32 Mbps Ethernet 10 Mbps Bus Bandwidth vs Communications Bandwidth Faster Processors/Bus Architecture FasterCommunications Beget

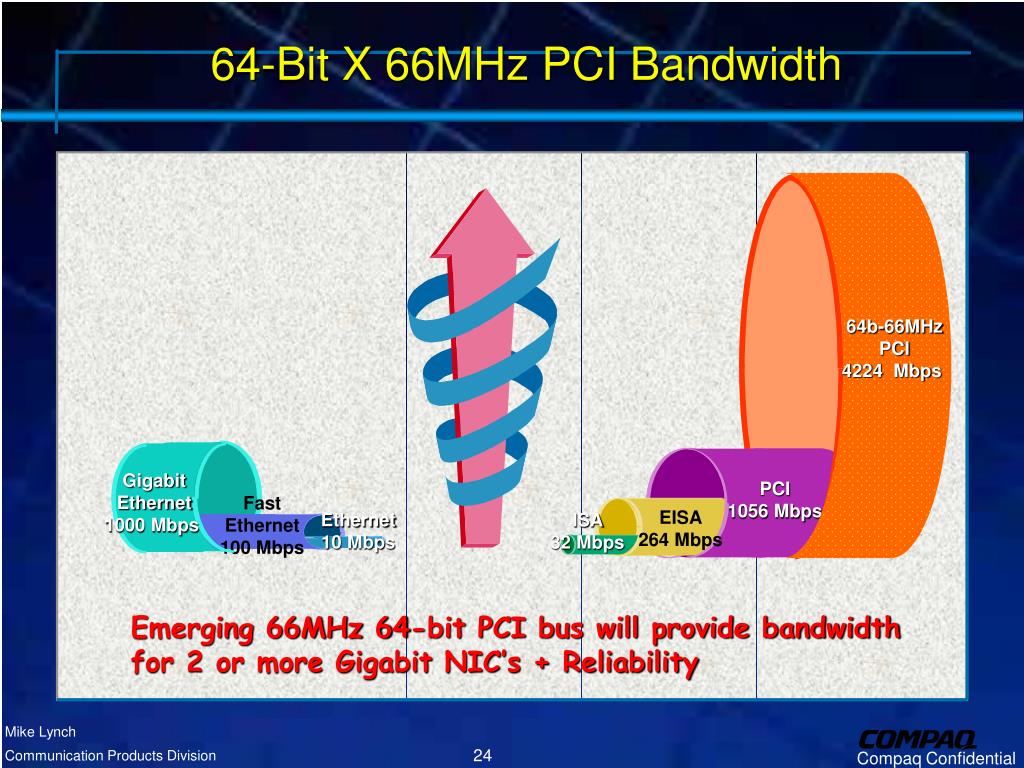

  24. 64-Bit X 66MHz PCI Bandwidth 64b-66MHz PCI 4224 Mbps Gigabit Ethernet 1000 Mbps PCI 1056 Mbps Fast Ethernet 100 Mbps EISA 264 Mbps Ethernet 10 Mbps ISA 32 Mbps Emerging 66MHz 64-bit PCI bus will provide bandwidth for 2 or more Gigabit NIC’s + Reliability

  25. Servers Servers Shared Storage Server Cluster Cluster: Interconnected computers work collectively as a single systemPurpose: High availability and/or performance scalability • Single System Image • Shared Storage • Cluster Node Communication

  26. ServerNet? ServerNet is a ... • Bi-directional • Point-to-point • Packetized • “Switch” based • Light weight • Reliable • Message passing Hardware Interconnect, with a... Optimized H/W design, with a highly efficient S/W structure - a true “System” Architecture Software Interconnect

  27. Cluster types HIGH -END MID- Range LOW -END Fast- Ethernet Fast & Gigabit- Ethernet Gigabit- Ethernet Storage - Sharing Fast & Gigabit- Ethernet Gigabit- Ethernet Gigabit- Ethernet High Availability Fast & Gigabit- Ethernet Gigabit- Ethernet Server- Net Application-sharing

  28. Gigabit for Next Generation Servers • Need for higher bus bandwidth • Emerging 64-bit PCI bus has bandwidth of 4 Gb/s • Need for high availability & performance, redundancy • Automatic fail-over, load-sharing, multi-headed NICs emerging with new Gigabit products

  29. System leadership • Compaq knows systems better, how they connect, and their applications : • Server bus technology : • PCI , Hot-Plug PCI, PCI v.2 • SAP, BAAN, SIEBEL WINTEL platform Leadership: • SAP 50% marketshare50% • Internet/ Intranet initiatives

  30. EthernetOne Happy Family Speed (Mb/s) Bit Times (ns) Slot Time (bt) Inter-frame Gap (us) PCS Encoding Packet Extension Burst Limit (bits) Cabling Category 3,4,5 Category 5 Fiber Optic 10BASE-T 10 100 512 9.6 NA NA NA Yes Yes 10Base-FL 100BASE-X 100 10 512 .96 4/5 NA NA No Yes 100Base-FX 1000BASE-X 1000 1 4096 .096 8/10 Yes 65,536 No Pending Yes

  31. Gigabit Ethernet - Media • 1000Base-SX • Primary cabling used for Gigabit Ethernet • Intra-building • 1000Base-LX • Long haul cabling for campus networks • Eventually up to 80Km or more • 1000Base-CX • Switch to switch cabling • Not anticipated to be used much • Many vendors will not offer this • 1000Base-TX • Standards due near end of 1998

  32. Gigabit Ethernet Media Fiber Optic Cable Copper Cable 1000BASE-SX (850 nm) 1000BASE-LX (1300 nm) 1000BASE-CX Multimode Fiber Single Mode Fiber Balanced / Shielded Cable Multimode Fiber Half Duplex (62.5 u) 260m (50 u) 320m (62.5 u) 320m (50 u) 320m (10 u) 320m 25m Full Duplex (62.5 u) 260m (50 u) 550m (62.5 u) 440m (50 u) 550m (10 u) 3000m 100m

  33. Gigabit EthernetMedia • GBIC Connectors • “Gigabit Inter Connect” • Standardized removable module • Available from many vendors • GBIC modules • Allows user to selectively change from SX to LX ports • Three types • 1000Base-SX • 1000Base-LX • 1000Base-CX (only if customer demand is present)

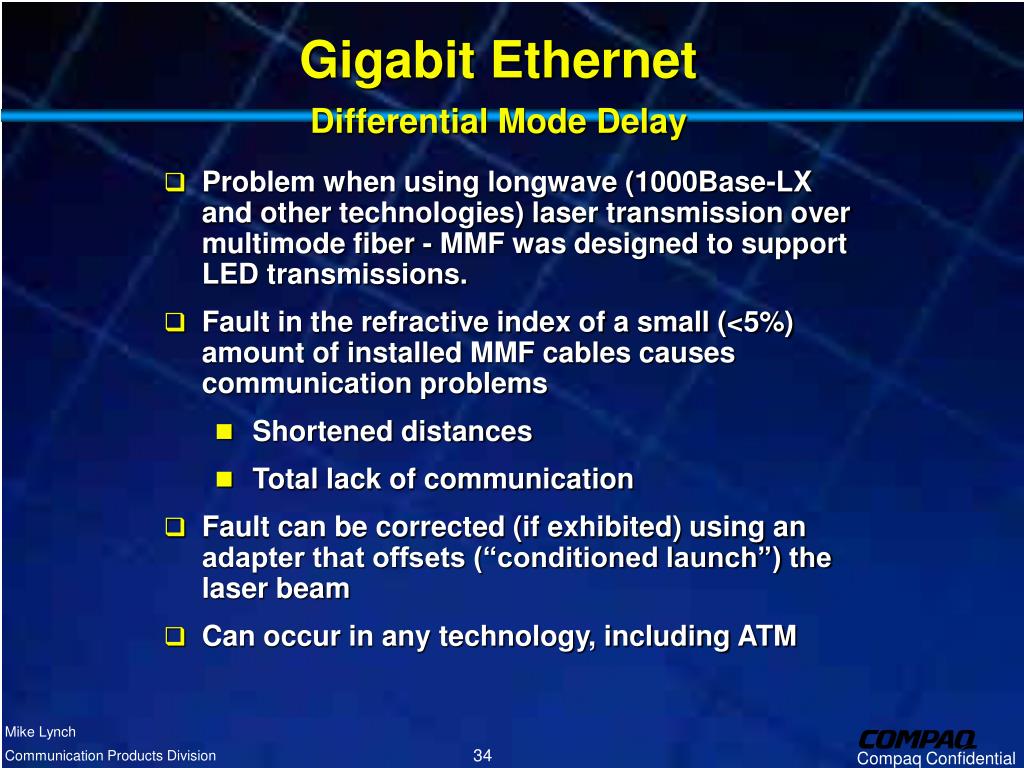

  34. Gigabit Ethernet Differential Mode Delay • Problem when using longwave (1000Base-LX and other technologies) laser transmission over multimode fiber - MMF was designed to support LED transmissions. • Fault in the refractive index of a small (<5%) amount of installed MMF cables causes communication problems • Shortened distances • Total lack of communication • Fault can be corrected (if exhibited) using an adapter that offsets (“conditioned launch”) the laser beam • Can occur in any technology, including ATM

  35. Differential Mode Delay

  36. Differential Mode Delay

  37. Cable Activities • Get the records of all your cables • Newer Cable is generally better • Standards are “worst case”

  38. The Cable-Sensing Backhoe

  39. Server-NIC Integration

  40. 10/100TX PCI UTP 169845-001 10/100TX PCI Intel 317600-B21 Evolving to Gigabit Compaq ProLiant 1600 Server Netelligent 2016 Compaq Prolinea Workstations

  41. Compaq ProLiant 1600 Server 2 - 10/100TX PCI UTP 169845-001 Redundant 10/100TX PCI Intel 317600-B21 Netelligent 2016 Compaq Prolinea Workstations Evolving to Gigabit

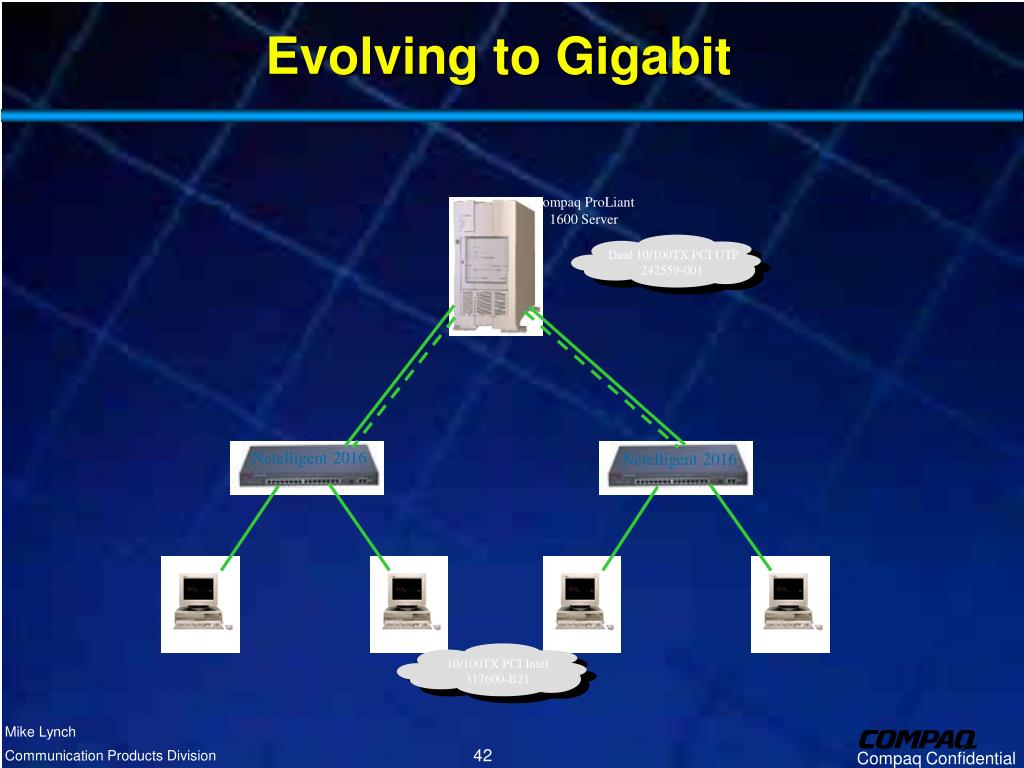

  42. Compaq ProLiant 1600 Server Dual 10/100TX PCI UTP 242559-001 Netelligent 2016 10/100TX PCI Intel 317600-B21 Netelligent 2016 Evolving to Gigabit

  43. Compaq ProLiant 3000 Server 2 - Dual 10/100TX PCI UTP 242559-001 Netelligent 5226 Netelligent 5226 Netelligent 2016 Netelligent 2016 Evolving to Gigabit

  44. Compaq ProLiant 5500 Server Compaq ProLiant 3000 Server Compaq ProLiant 1600 Server 100 Shared Netelligent 5708TX Netelligent 2824 Netelligent 5226A Netelligent 5226A 10 Shared Netelligent 2724 Netelligent 2016 Netelligent 2016 10 Switched Evolving to Gigabit

  45. Compaq ProLiant 5500 Server Compaq ProLiant 3000 Server Router Compaq ProLiant 1600 Server Netelligent 5708TX 100 Shared Netelligent 5708TX Netelligent 5226A Netelligent 2824 100 Switched Netelligent 5226A Netelligent 5226A Netelligent 2724 10 Switched 10 Shared Netelligent 2016 Netelligent 2016 Evolving to Gigabit

  46. Compaq ProLiant 5500 Server Compaq ProLiant 3000 Server Compaq 5411 Compaq ProLiant 1600 Server Netelligent 5708TX 100 Shared Netelligent 5708TX Netelligent 5226A Netelligent 2824 100 Switched Netelligent 5226A Netelligent 5226A Netelligent 2724 10 Switched 10 Shared Netelligent 2016 Netelligent 2016 Evolving to Gigabit

  47. Compaq ProLiant 5500 Server Compaq ProLiant 5500 Server Compaq 5411 Compaq 5411 100 Switched Netelligent 2016 Netelligent 2624 Netelligent 5226 10 Switched 100 Shared 10 Switched Evolving to Gigabit

  48. Compaq 64-bit NT5.0 Server Compaq ProLiant 5500 Server Netelligent 5708TX Compaq 5411 Compaq 5411 Gigabit Tape Backup GigabitWorkstation Evolving to Gigabit

  49. Compaq 64-Bit NT5.0 Server Compaq 64-Bit NT5.0 Server Compaq 32-Bit NT4.0 Server Compaq 5411 Compaq 5411 Compaq 5411 Evolving to Gigabit

  50. Compaq Solutions for Network-Centric Computing Networked Systems for the Next Millenium
