  1. Reverse Osmosis Human PoweredProducing Potable Water for Developing Countries Dustin Drakeand Michael Solley Florida Atlantic University Department of Ocean and Mechanical Engineering

  2. Global Water Crisis • One billion people do not have access to clean drinking water. • 3.6 million people die each year from water-related diseases. • 98% of water-related deaths occur in the developing world. • A person can only live for a few days without water.

  3. Reverse Osmosis • Two liquids of different concentrations separated by semi-permeable membrane • Less saturated naturally flows into more saturated • Pressure is applied to reverse this process and is known as reverse osmosis or RO • Dirty water flows through membrane thereby filtering it • dirty water  clean water

  4. Reverse Osmosis Advantages: Disadvantages: • Finest filtration method • Filters chemicals, bacteria, viruses • No chemicals needed • Relatively simple process • High pressure requirement • Slow production rate • Uses lots of water to produce • Pretreatment needed 

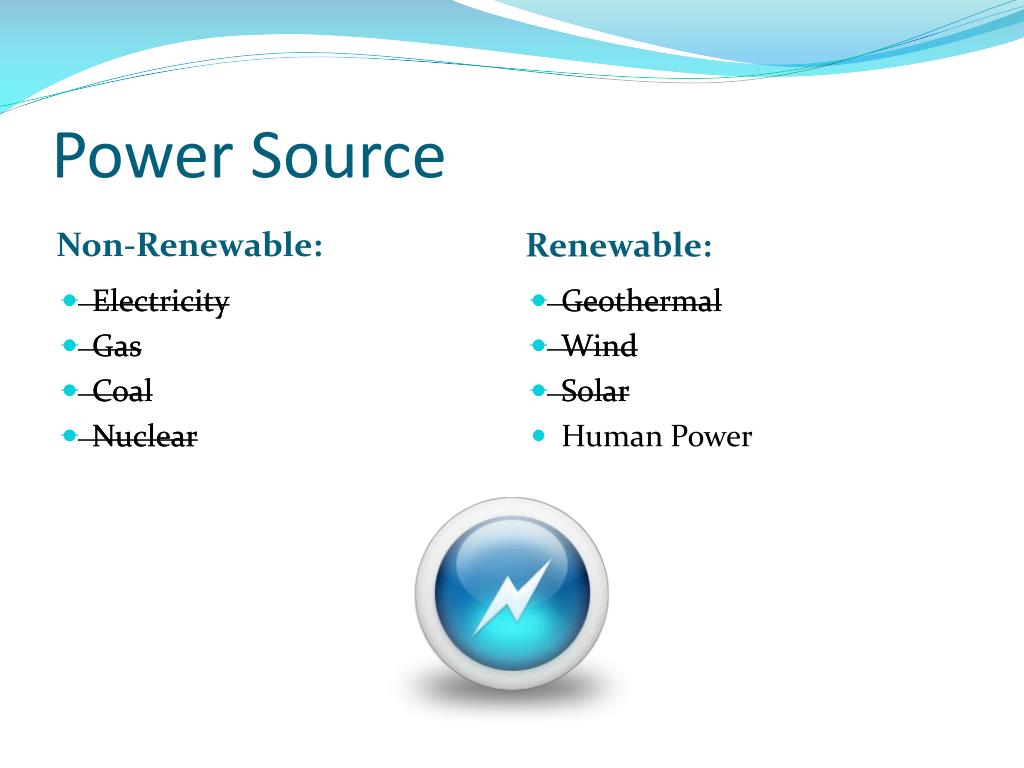

  5. Power Source Non-Renewable: Renewable: • Electricity • Gas • Coal • Nuclear • Geothermal • Wind • Solar • Human Power • Electricity • Gas • Coal • Nuclear • Geothermal • Wind • Solar

  6. Design… • Bicycle driven reverse osmosis system

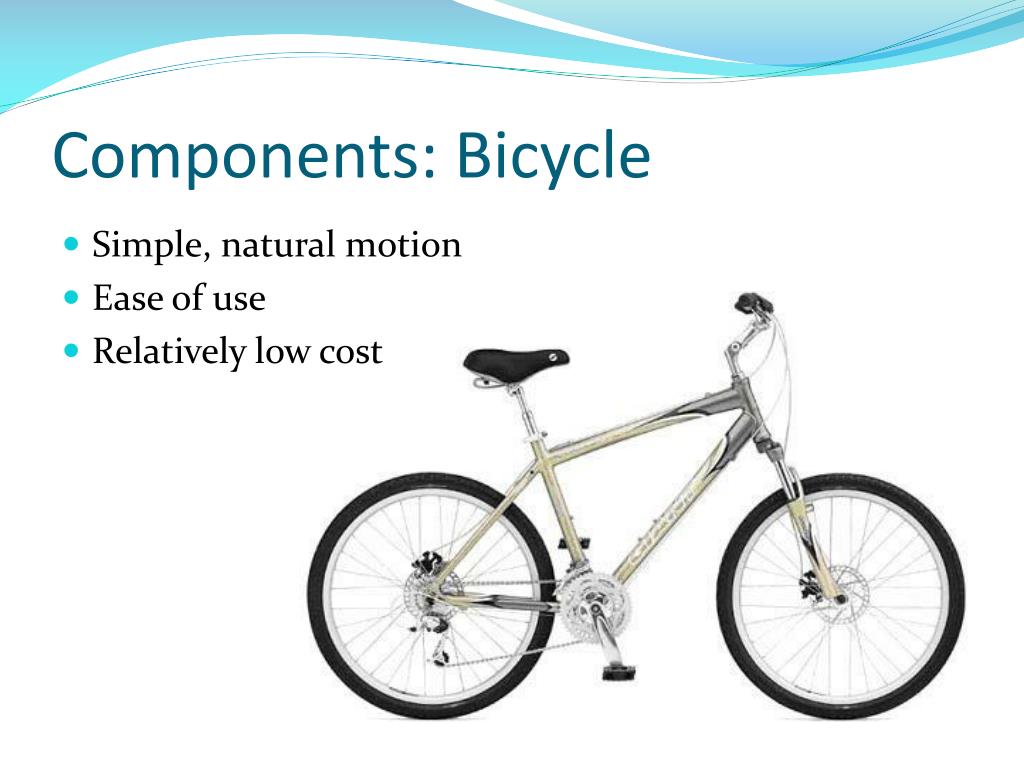

  7. Components: Bicycle • Simple, natural motion • Ease of use • Relatively low cost

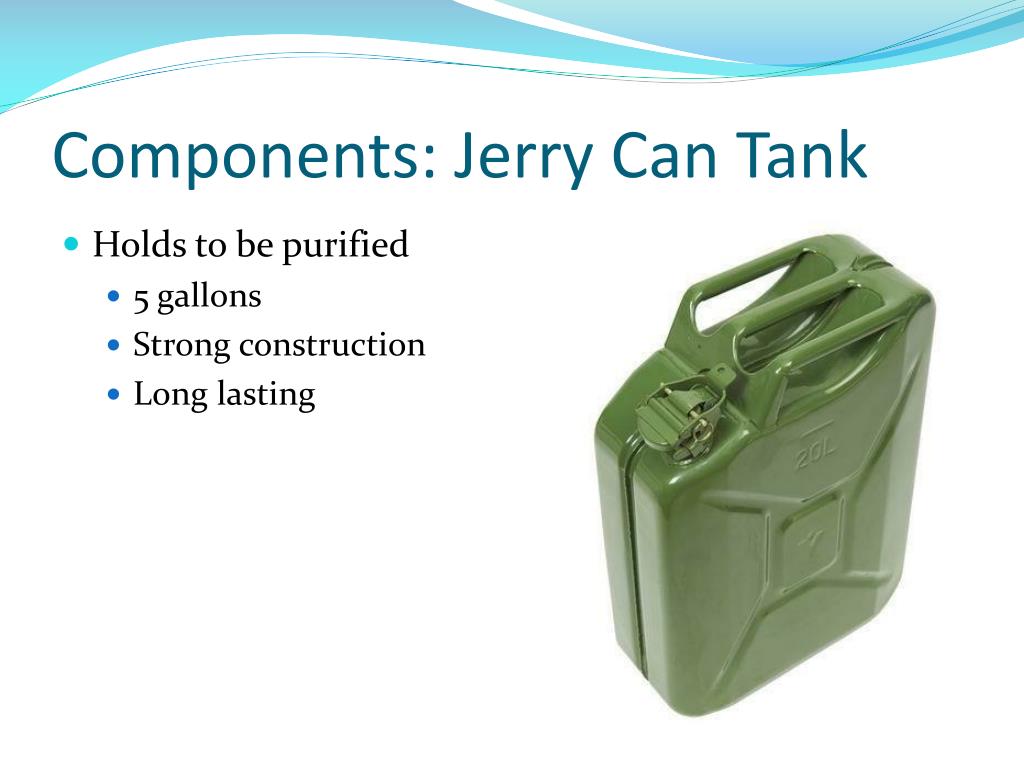

  8. Components: Jerry Can Tank • Holds to be purified • 5 gallons • Strong construction • Long lasting

  9. Components: Hand Air Pump • Applies pressure to tank • Simple • Low cost • Easy to fix/replace

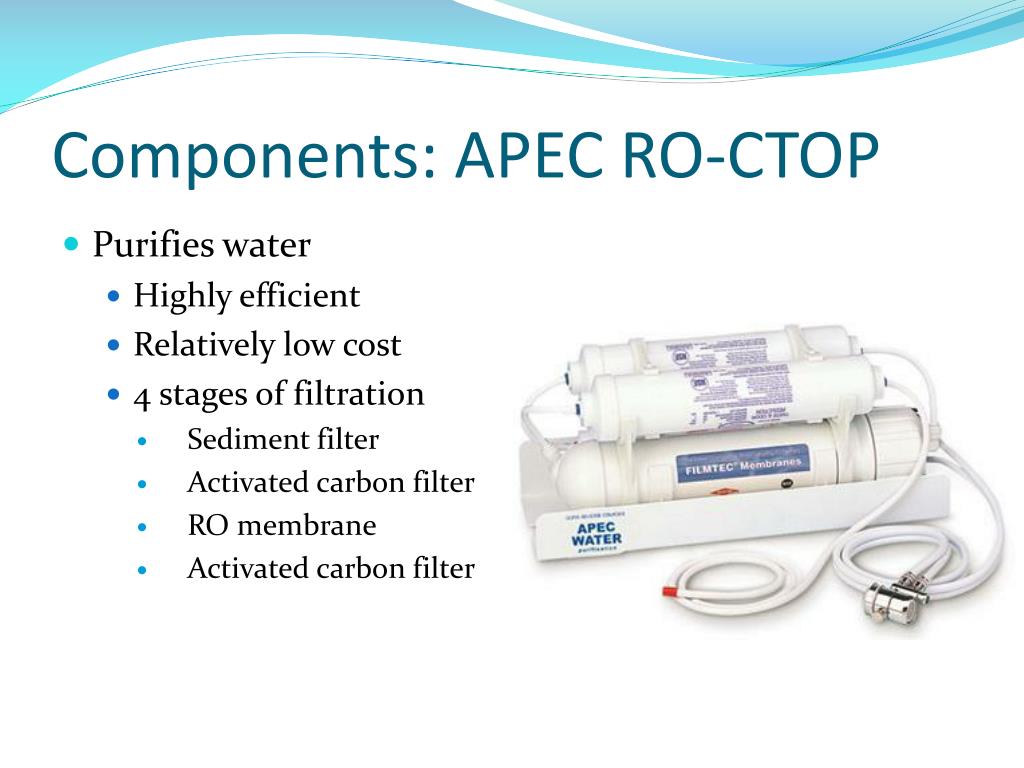

  10. Components: APEC RO-CTOP • Purifies water • Highly efficient • Relatively low cost • 4 stages of filtration • Sediment filter • Activated carbon filter • RO membrane • Activated carbon filter

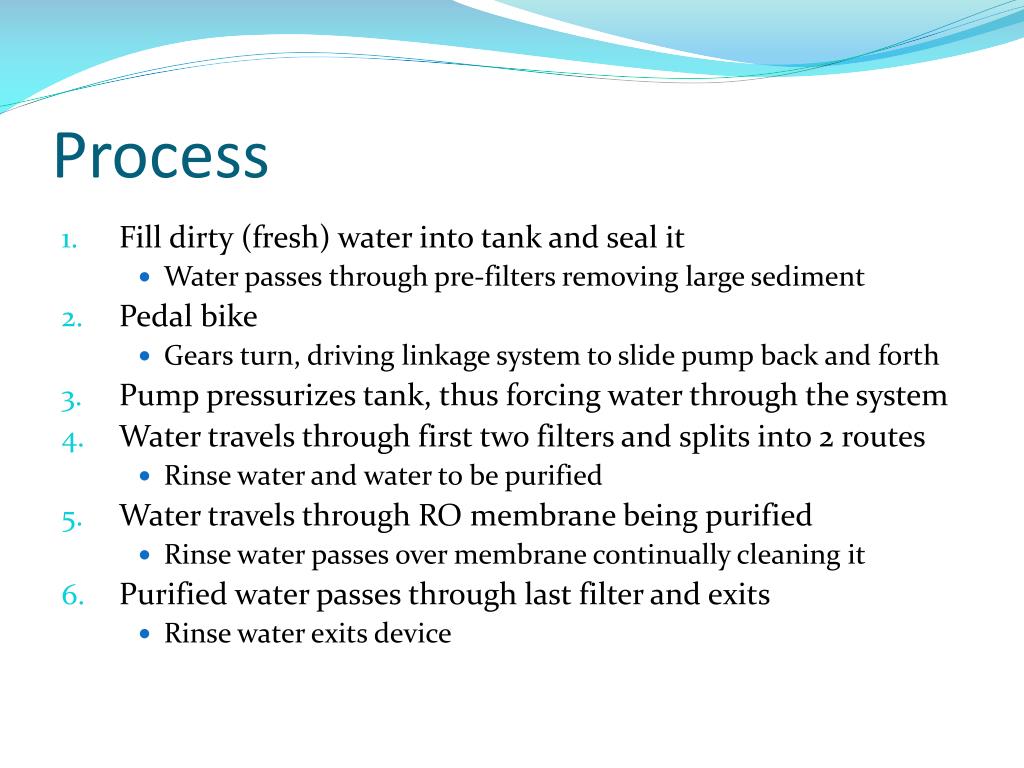

  11. Process • Fill dirty (fresh) water into tank and seal it • Water passes through pre-filters removing large sediment • Pedal bike • Gears turn, driving linkage system to slide pump back and forth • Pump pressurizes tank, thus forcing water through the system • Water travels through first two filters and splits into 2 routes • Rinse water and water to be purified • Water travels through RO membrane being purified • Rinse water passes over membrane continually cleaning it • Purified water passes through last filter and exits • Rinse water exits device

  12. Numerical Analysis • Power requirement: P = Q*p (P: Power, Q: volumetric flow rate, p: pressure) • p = 100 psi • Q = 19 gal/hr • P = 0.019 HP

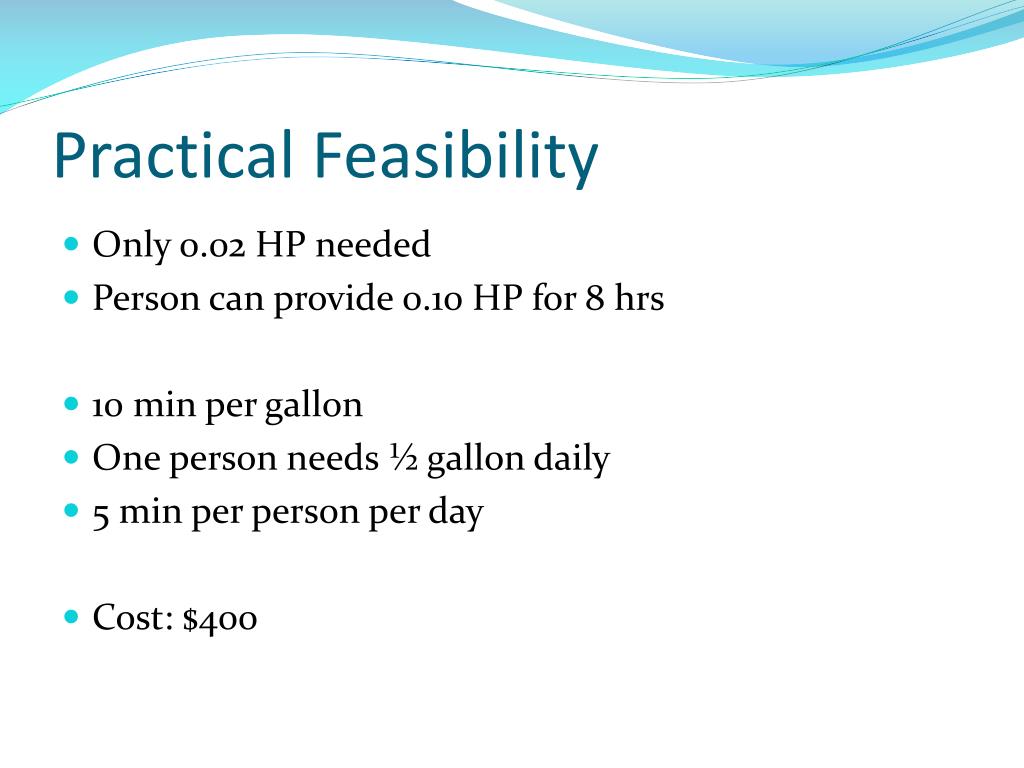

  13. Practical Feasibility • Only 0.02 HP needed • Person can provide 0.10 HP for 8 hrs • 10 min per gallon • One person needs ½ gallon daily • 5 min per person per day • Cost: $400

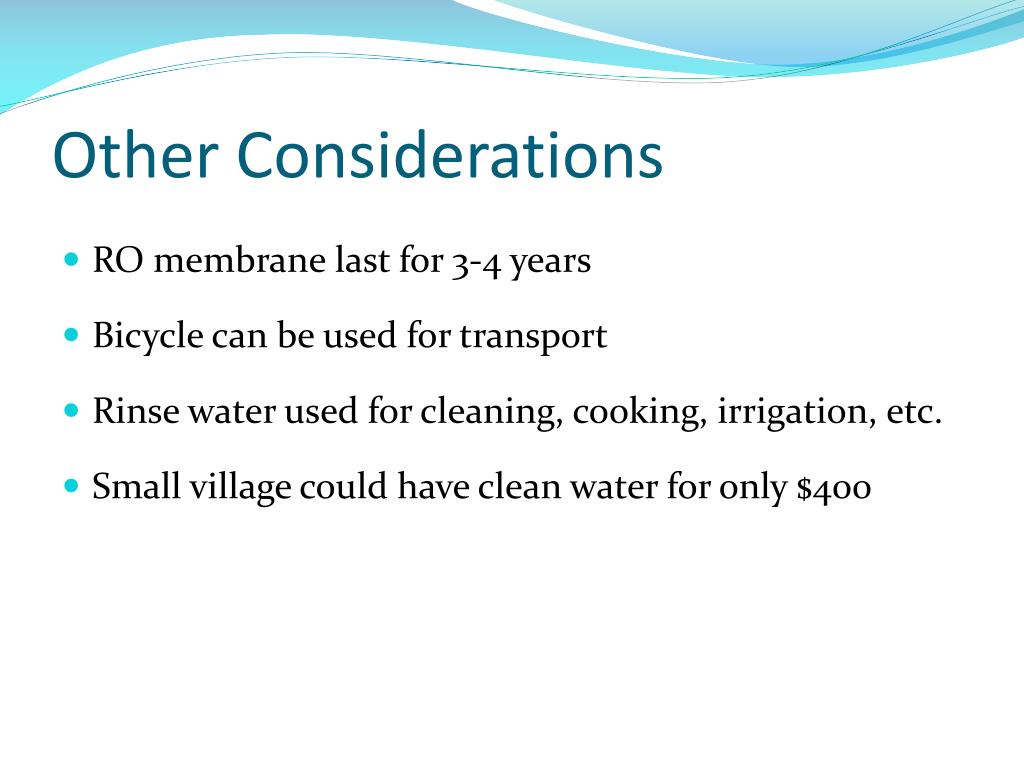

  14. Other Considerations • RO membrane last for 3-4 years • Bicycle can be used for transport • Rinse water used for cleaning, cooking, irrigation, etc. • Small village could have clean water for only $400

  15. Conclusion • Viable • Efficient • Economical • Effective
