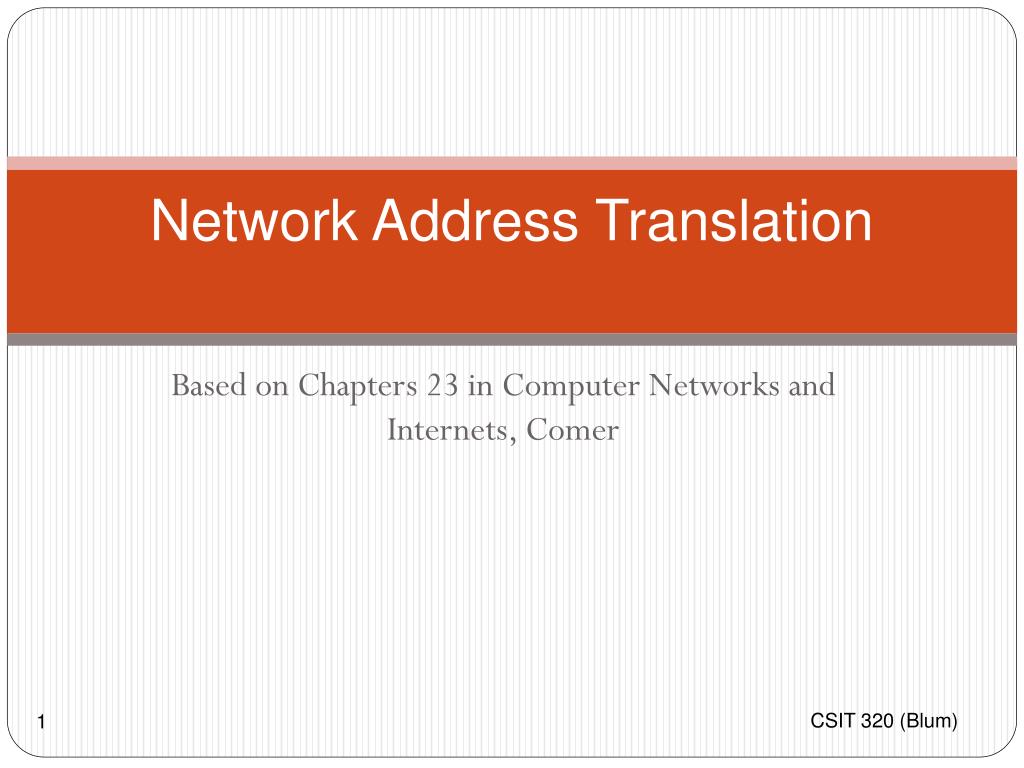

1. Network Address Translation Based on Chapters 23 in Computer Networks and Internets, Comer

2. Network Address Translation • NAT (Network Address Translation) is a scheme for a network to use one set of addresses internally but to have the outside world see a different set of addresses, possibly only one address. • It can be used as a security measure since it hides internal addresses from the outside world. • It can be used to expand one’s address space. One can use non-routable addresses, and different networks can use the same internal addresses provided their external address is unique.

3. NAT: Figure 26.4

4. NAT Tables • The translator understands the local addresses and the external address. It maintains a table of what internal addresses (computers) are communicating with which external addresses.

6. Dilemma • But what if two internal addresses are communicating with the same external address? • How would the translator know which internal address to deliver a message to?

7. Solution (NAPT) • Recall that beyond IP addresses there is an additional part of the addressing scheme – the ports. The translator can associate different internal addresses with its different ports. Then it can distinguish differ incoming messages by which port they come in on. • This is known as Network Address and Port Translation (NAPT).

8. NAPT Table (Figure 26.4)

9. Another Dilemma • Associating internal addresses with ports is fine for sessions initiated by the internal machines, but what if the outside wants to initiate? • The outside world will know the internal computers not by IP addresses but by domain names. Therefore this can be resolved by having the local DNS and NAT servers coordinate.
