  1. YUSEND Communication System Design Update ENG 4000 - February 4, 2009

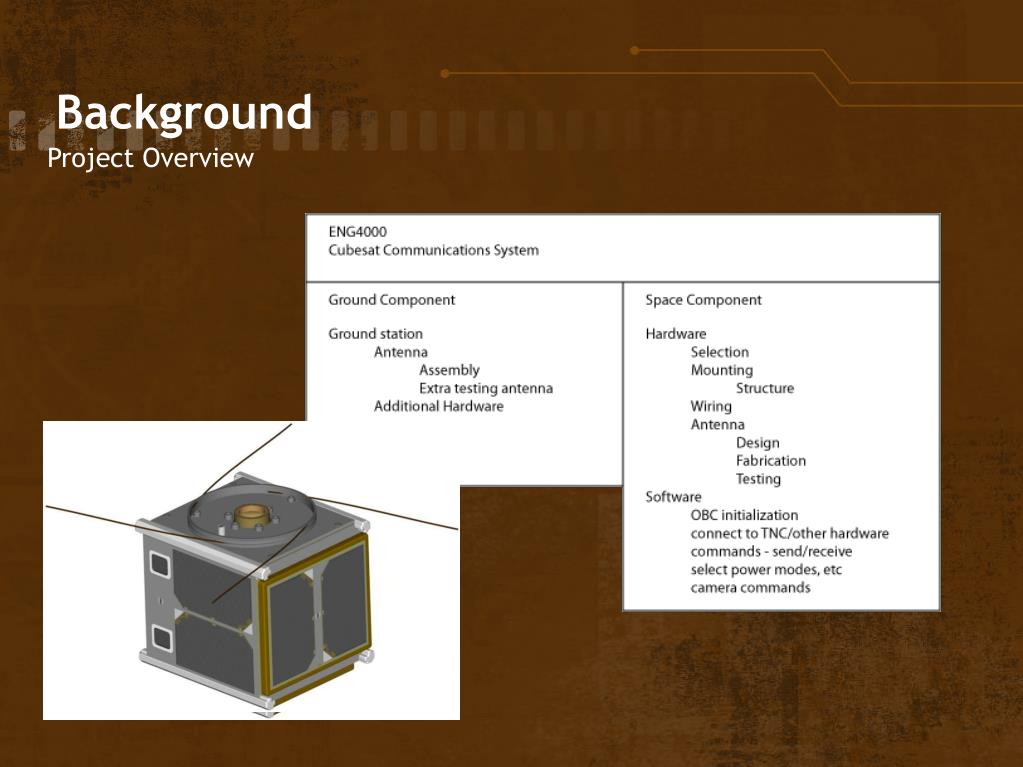

  2. Background Project Overview

  3. Ground Station Progress Update Functionality • Received first signals • 2m and 70cm bands • Motor control • Azimuth and elevation pointing

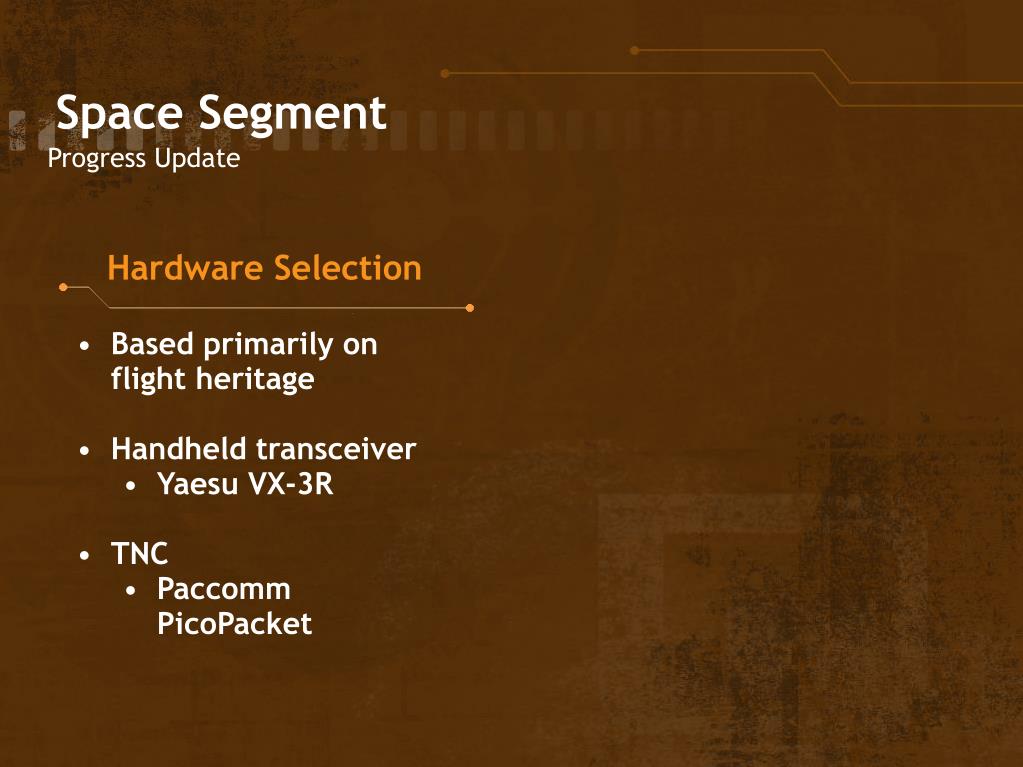

  4. Space Segment Progress Update Hardware Selection • Based primarily on flight heritage • Handheld transceiver • Yaesu VX-3R • TNC • Paccomm PicoPacket

  5. Space Segment Progress Update On-Board Computer • Successfully connected to camera • Able to issue commands Future work

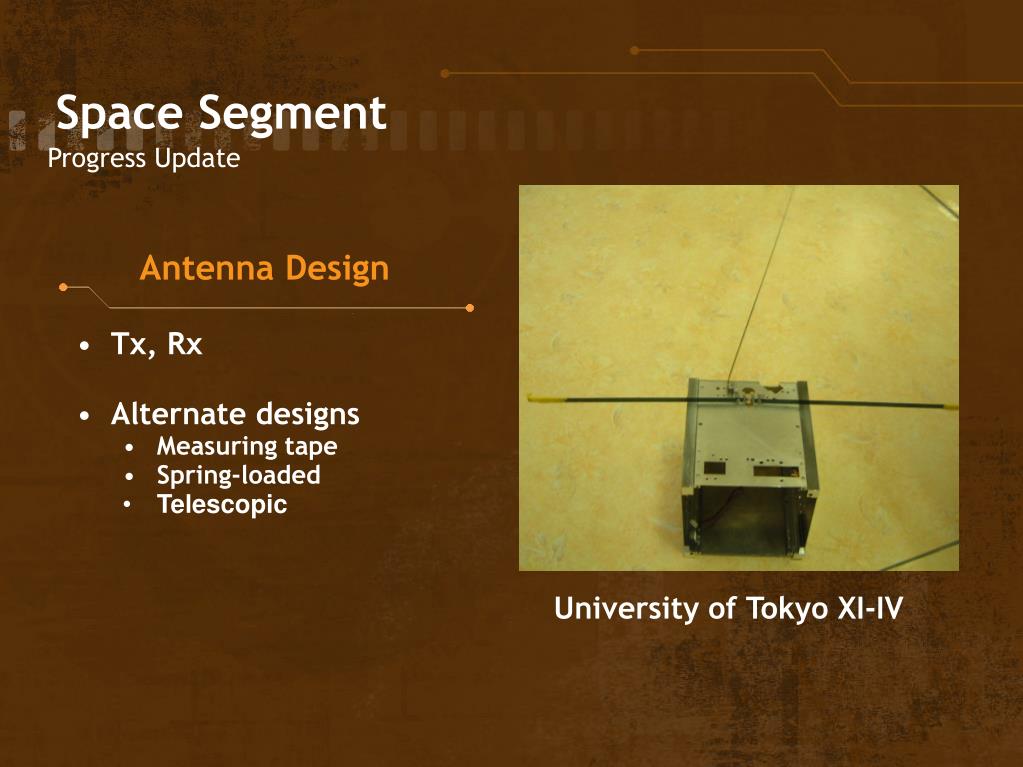

  6. Space Segment Progress Update Antenna Design • Tx, Rx • Alternate designs • Measuring tape • Spring-loaded • Telescopic • University of Tokyo XI-IV

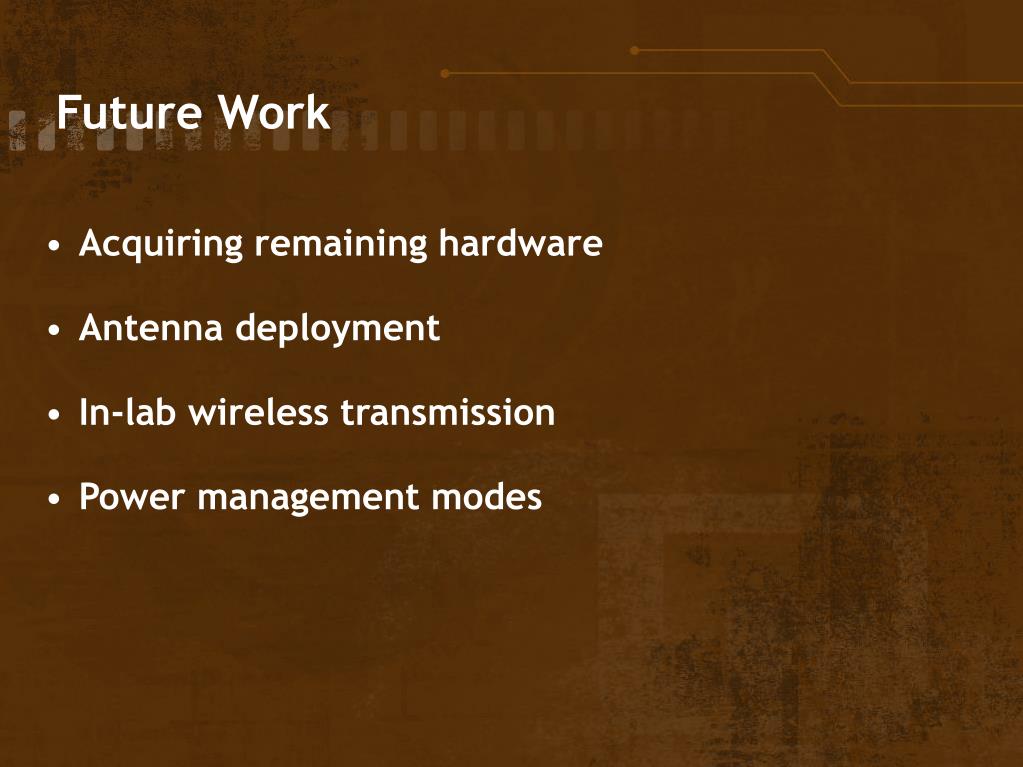

  7. Future Work • Acquiring remaining hardware • Antenna deployment • In-lab wireless transmission • Power management modes

  8. Future Work • Acquiring remaining hardware • Antenna deployment • In-lab wireless transmission • Power management modes
