  1. WWW.PROVISION-ISR.COM

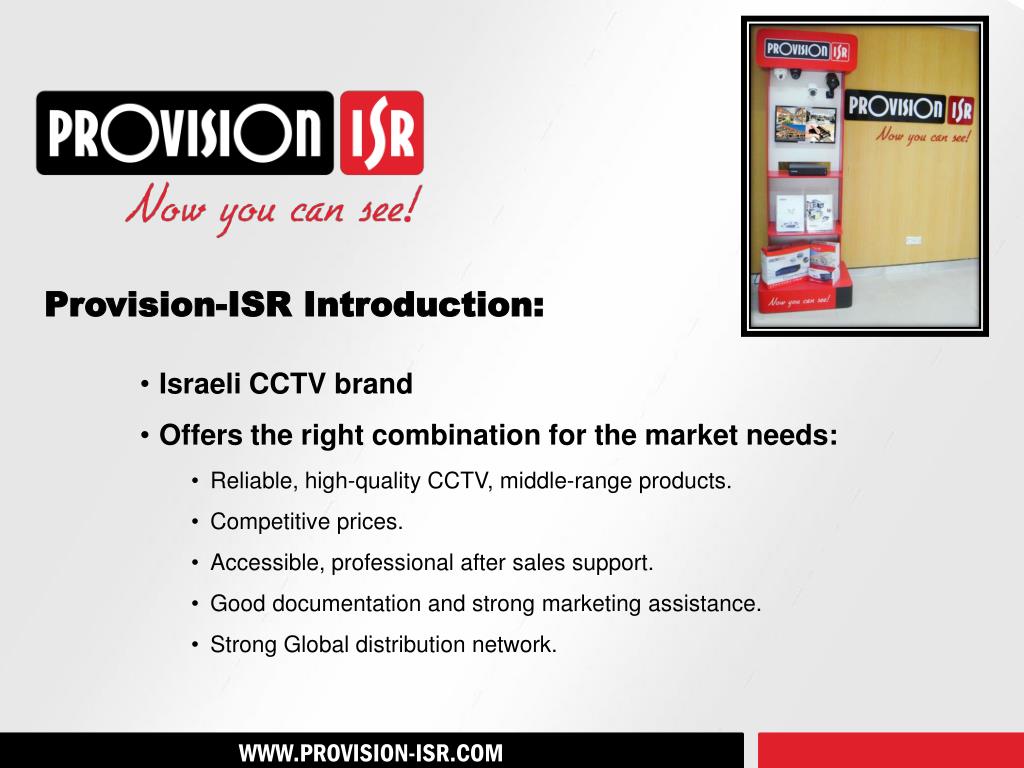

  2. Provision-ISR Introduction: • Israeli CCTV brand • Offers the right combination for the market needs: • Reliable, high-quality CCTV, middle-range products. • Competitive prices. • Accessible, professional after sales support. • Good documentation and strong marketing assistance. • Strong Global distribution network. WWW.PROVISION-ISR.COM

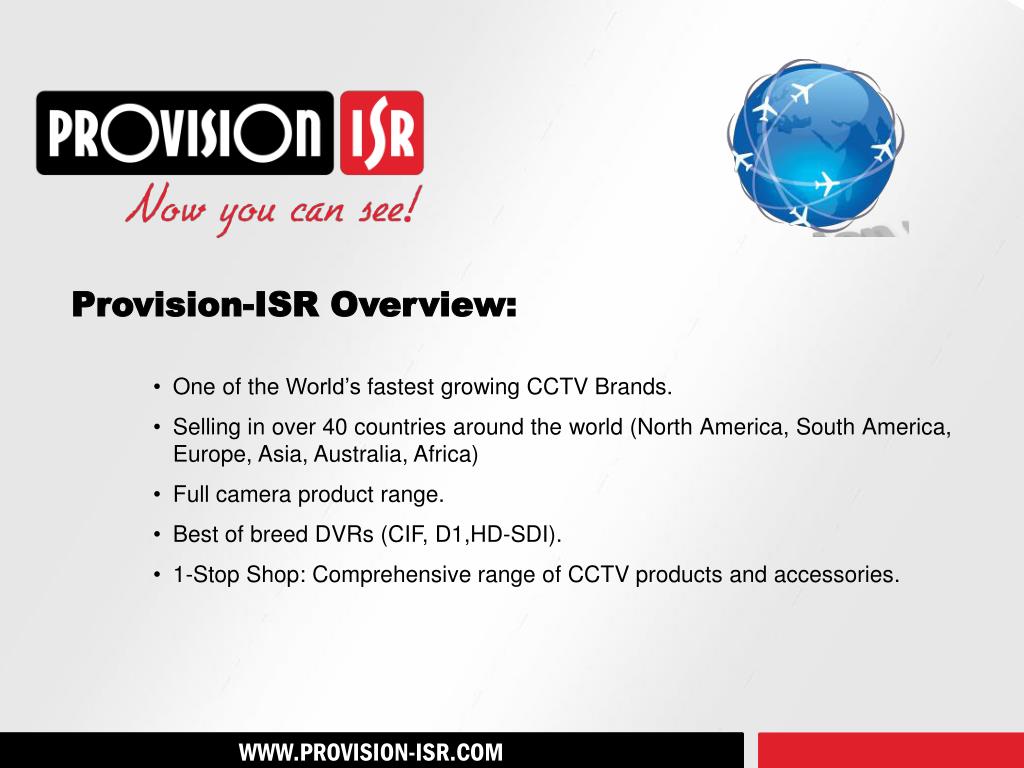

  3. Provision-ISR Overview: • One of the World’s fastest growing CCTV Brands. • Selling in over 40 countries around the world (North America, South America, Europe, Asia, Australia, Africa) • Full camera product range. • Best of breed DVRs (CIF, D1,HD-SDI). • 1-Stop Shop: Comprehensive range of CCTV products and accessories. WWW.PROVISION-ISR.COM

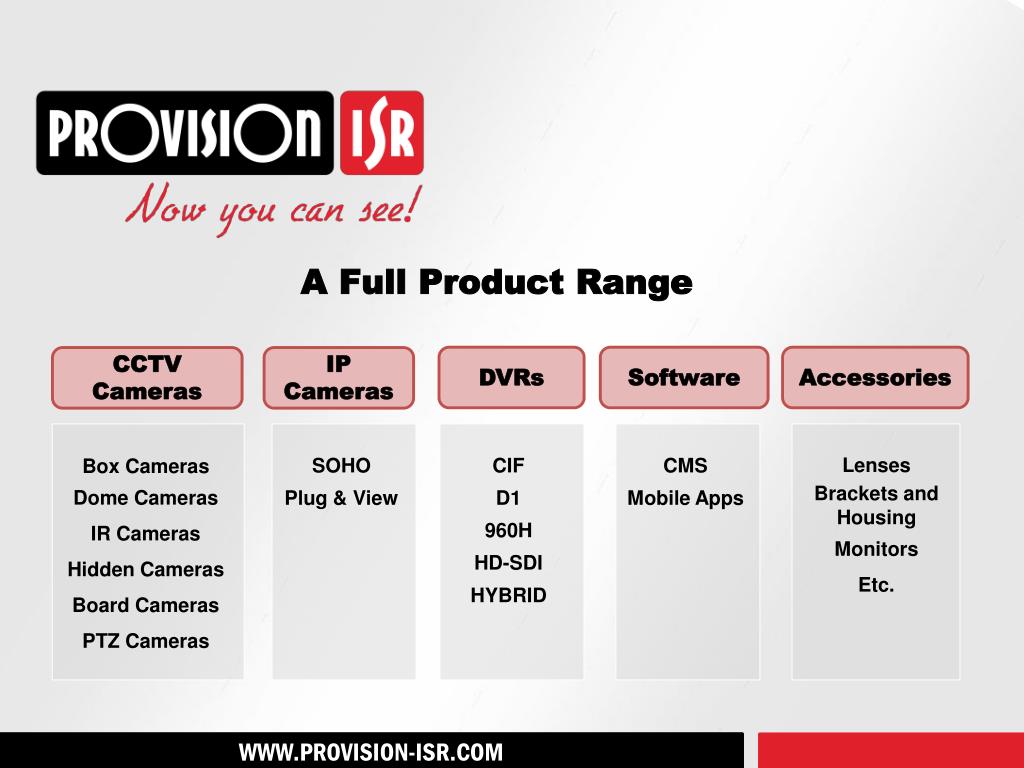

  4. A Full Product Range DVRs Software Accessories CCTV Cameras IP Cameras Lenses Brackets and Housing Monitors Etc. SOHO Plug & View CIF D1 960H HD-SDI HYBRID CMS Mobile Apps Box Cameras Dome Cameras IR Cameras Hidden Cameras Board Cameras PTZ Cameras WWW.PROVISION-ISR.COM

  5. WWW.PROVISION-ISR.COM

  6. World Of CCTV HD-SDI NVR 720P 760H 960H CCD D1 DVR CMOS DSP Digital TVL IP NVR 1080P

  7. Market Summarize Table

  8. IP CCTV

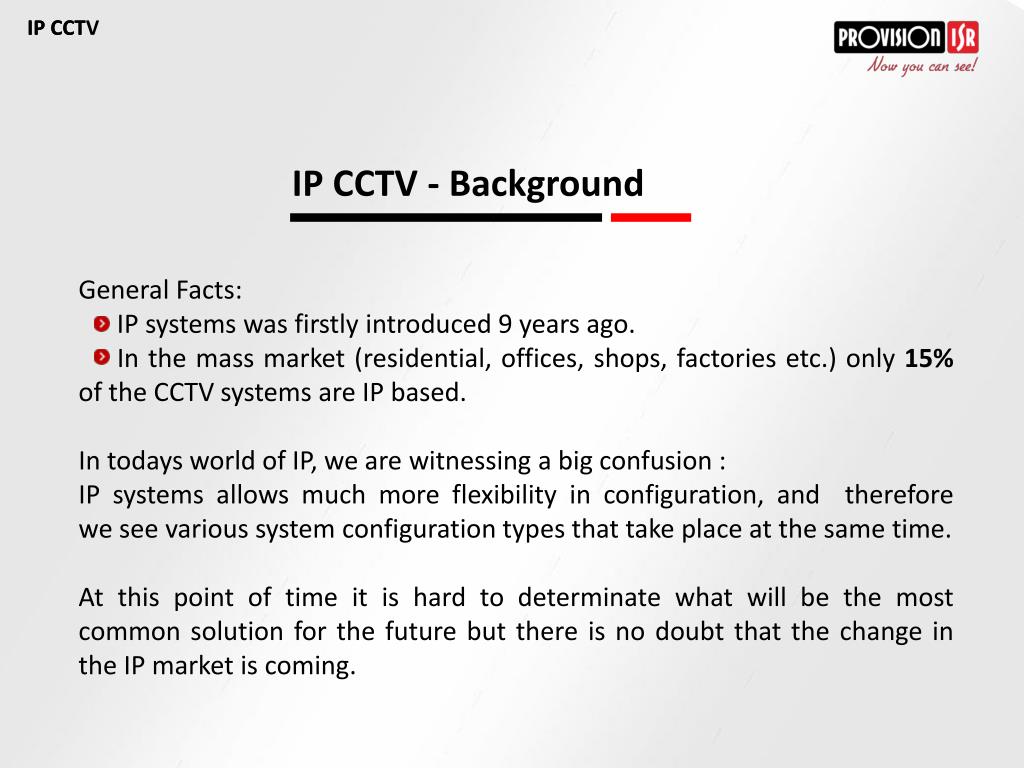

  9. IP CCTV IP CCT IP CCTV - Background General Facts: IP systems was firstly introduced 9 years ago. In the mass market (residential, offices, shops, factories etc.) only 15%of the CCTV systems are IP based. In todays world of IP, we are witnessing a big confusion : IP systems allows much more flexibility in configuration, and therefore we see various system configuration types that take place at the same time. At this point of time it is hard to determinate what will be the most common solution for the future but there is no doubt that the change in the IP market is coming.

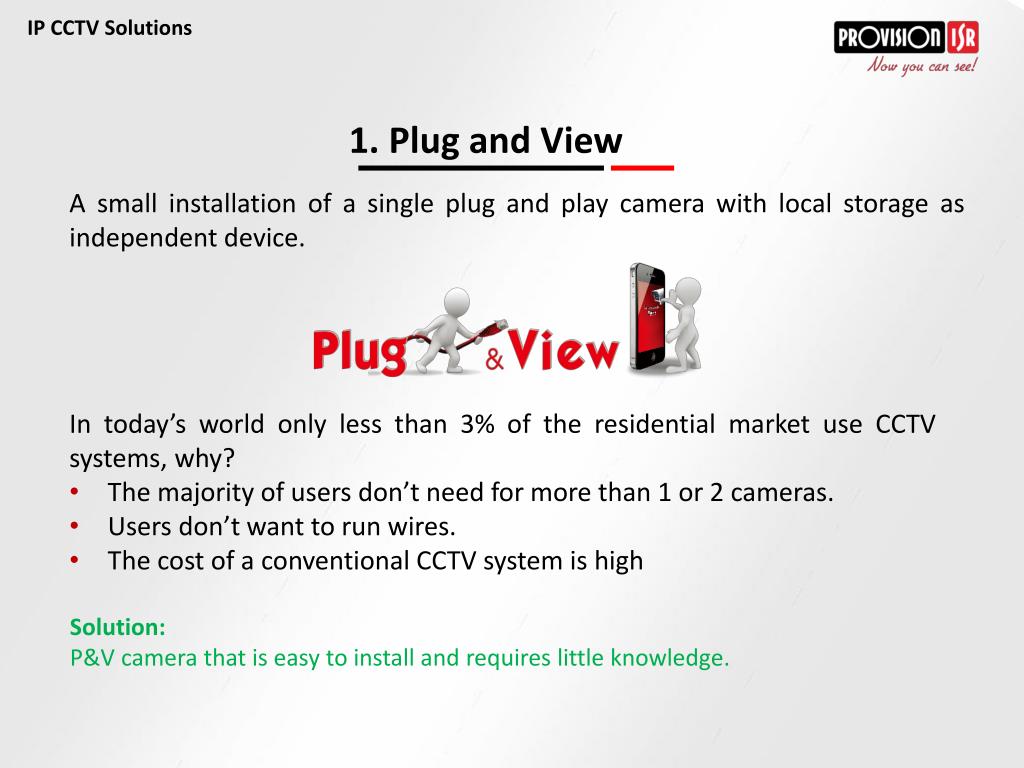

  10. IP CCTV Solutions 1. Plug and View A small installation of a single plug and play camera with local storage as independent device. • In today’s world only less than 3% of the residential market use CCTV systems, why? • The majority of users don’t need for more than 1 or 2 cameras. • Users don’t want to run wires. • The cost of a conventional CCTV system is high Solution: P&V camera that is easy to install and requires little knowledge.

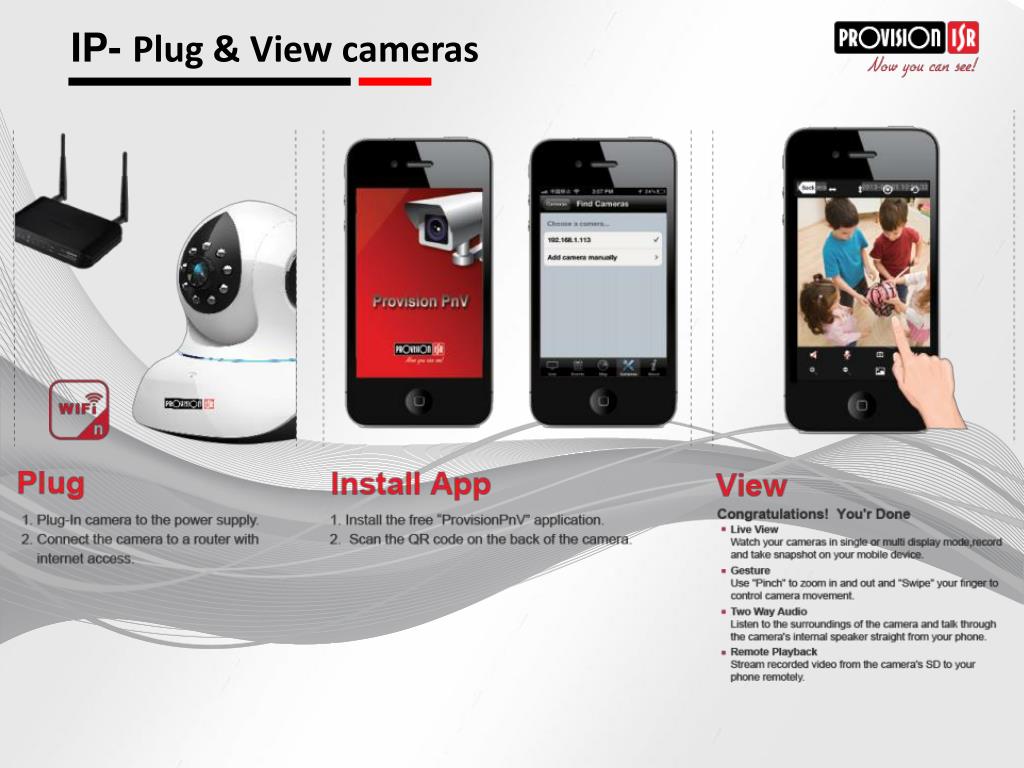

  11. IP- Plug & View cameras

  12. IP- Plug & View cameras PT-737 1 Mega-Pixel camera Day & night vision Wide angle- 3.6mm lens Alarm I/O 2 Way Audio with Built-in Speaker/Microphone Local recording on Micro SD Wireless support (802.11b/g/n） Motion detection iPhone/iPad/Android viewer app iOS/Android Mobile App: - Live view - Gesture Control - Remote playback - Local Snapshot/video recording - Multi channel view

  13. IP- Plug & View cameras F-717 1 Mega-Pixel camera Day & night vision Wide angle- 3.6mm lens 2 Way Audio Local recording on Micro SD Wireless support (802.11b/g/n） Motion detection iPhone/iPad/Android viewer app iOS/Android Mobile App: - Live view - - Remote playback - Local Snapshot/video recording - Multi channel view

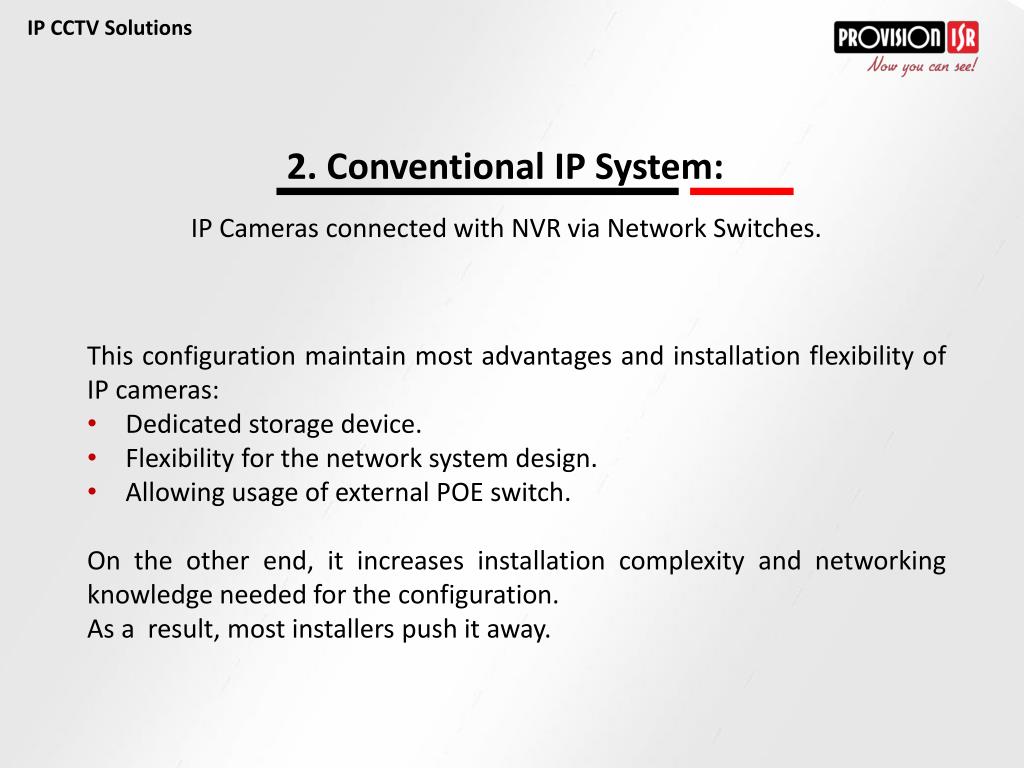

  14. IP CCTV Solutions 2. Conventional IP System: IP Cameras connected with NVR via Network Switches. • This configuration maintain most advantages and installation flexibility of IP cameras: • Dedicated storage device. • Flexibility for the network system design. • Allowing usage of external POE switch. • On the other end, it increases installation complexity and networking knowledge needed for the configuration. • As a result, most installers push it away.

  15. IP- Over view Conventional IP System Switch NVR Switch Router

  16. IP- NVRs Conventional NVRs 4CH NVR-4100 4 CH 720P REAL-TIME NVR (1080P - 4CH HALF REAL-TIME) 4 ch Via network HDMI Alarm 4in/1out 1 audio output HDD- up to 1 X3TB 100Mbps Ethernet 8CH NVR-8200 8 CH 720P REAL-TIME NVR (1080P - 8CH HALF REAL-TIME) 8 ch Via network HDMI Alarm 8in/1out 1 audio output HDD- up to 1 X3TB 100Mbps Ethernet 8CH NVR-8200(1U) 8 CH 720P REAL-TIME NVR (1080P - 8CH HALF REAL-TIME/ 4CH REAL-TIME) 8 ch Via network HDMI Alarm 8in/1out 1 audio output HDD- up to 2 X3TB 1000Mbps Ethernet

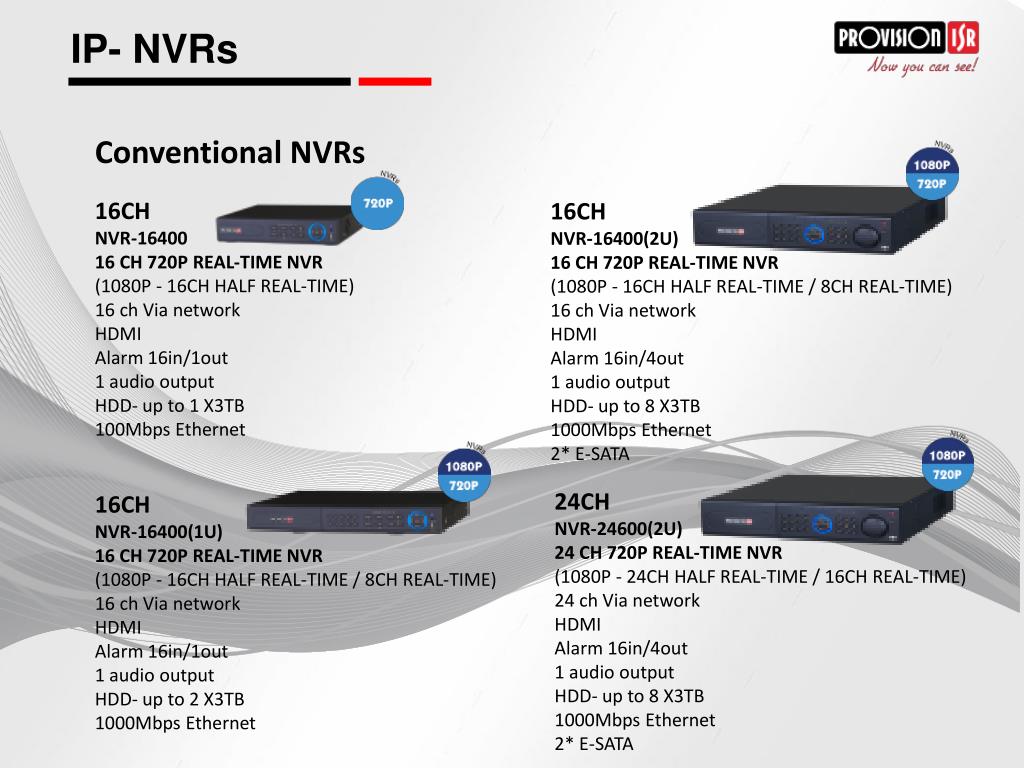

  17. IP- NVRs Conventional NVRs 16CH NVR-16400 16 CH 720P REAL-TIME NVR (1080P - 16CH HALF REAL-TIME) 16 ch Via network HDMI Alarm 16in/1out 1 audio output HDD- up to 1 X3TB 100Mbps Ethernet 16CH NVR-16400(1U) 16 CH 720P REAL-TIME NVR (1080P - 16CH HALF REAL-TIME/ 8CH REAL-TIME) 16 ch Via network HDMI Alarm 16in/1out 1 audio output HDD- up to 2 X3TB 1000Mbps Ethernet 16CH NVR-16400(2U) 16 CH 720P REAL-TIME NVR (1080P - 16CH HALF REAL-TIME/ 8CH REAL-TIME) 16 ch Via network HDMI Alarm 16in/4out 1 audio output HDD- up to 8 X3TB 1000Mbps Ethernet 2* E-SATA 24CH NVR-24600(2U) 24 CH 720P REAL-TIME NVR (1080P - 24CH HALF REAL-TIME / 16CH REAL-TIME) 24 ch Via network HDMI Alarm 16in/4out 1 audio output HDD- up to 8 X3TB 1000Mbps Ethernet 2* E-SATA

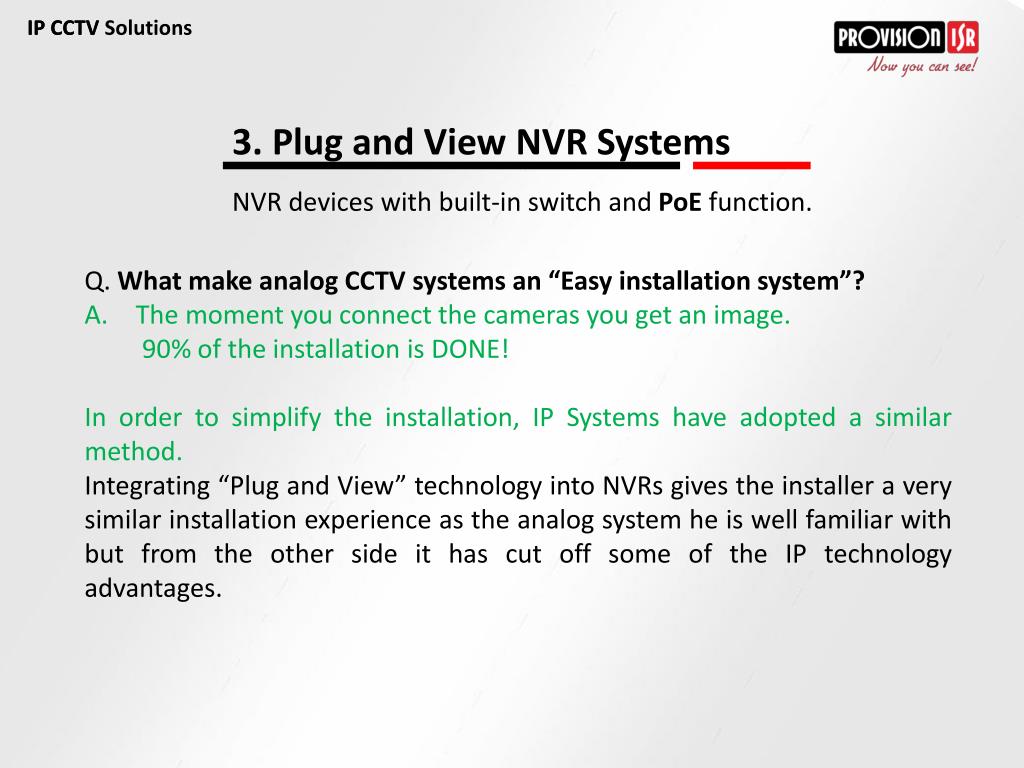

  18. IP CCTV IP CCTV Solutions 3. Plug and View NVR Systems NVR devices with built-in switch and PoE function. Q. What make analog CCTV systems an “Easy installation system”? The moment you connect the cameras you get an image. 90% of the installation is DONE! In order to simplify the installation, IP Systems have adopted a similar method. Integrating “Plug and View” technology into NVRs gives the installer a very similar installation experience as the analog system he is well familiar with but from the other side it has cut off some of the IP technology advantages.

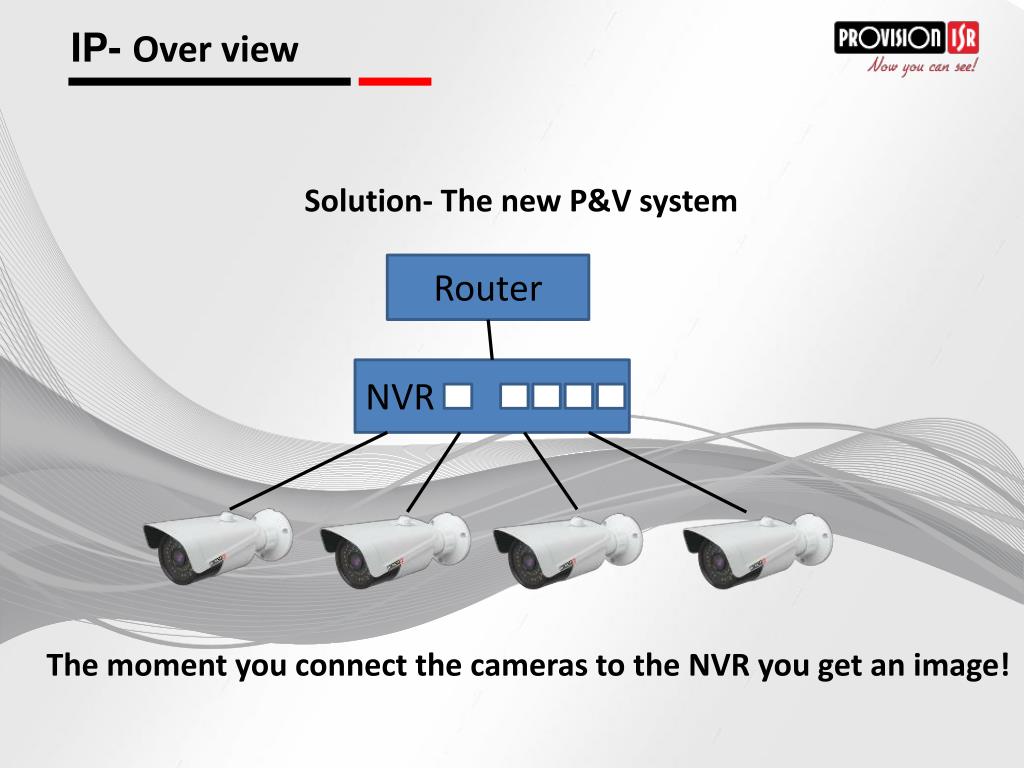

  19. IP- Over view Solution- The new P&V system Router NVR The moment you connect the cameras to the NVR you get an image!

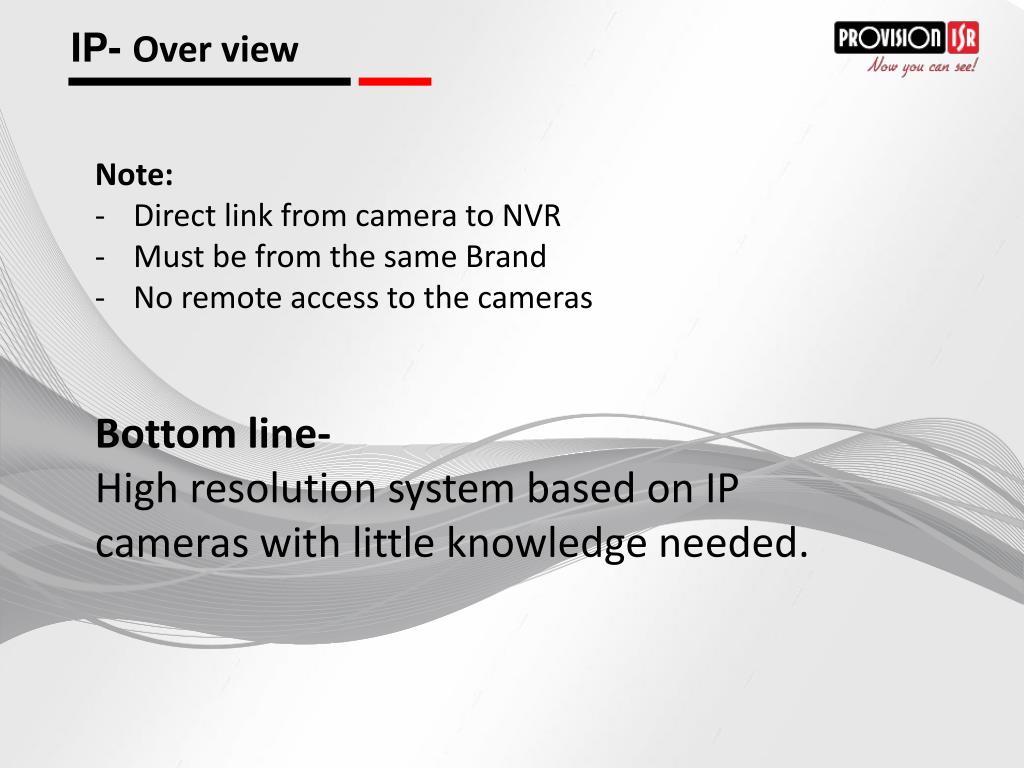

  20. IP- Over view • Note: • Direct link from camera to NVR • Must be from the same Brand • No remote access to the cameras Bottom line- High resolution system based on IP cameras with little knowledge needed.

  21. IP- NVRs P&V NVRs 8CH NVR-8200P(1U) 8 CH 720P REAL-TIME PLUG & VIEW NVR (1080P - 8CH HALF REAL-TIME / 4CH REAL-TIME) 8 POE ports HDMI Alarm 8in/1out 1 audio output HDD- up to 2 X3TB 1000Mbps Ethernet 4CH NVR-4100P 4 CH 720P REAL-TIME PLUG & VIEW NVR (1080P - 4CH HALF REAL-TIME)  4 POE ports HDMI Alarm 4in/1out 1 audio output HDD- up to 1 X3TB 100Mbps Ethernet 16CH NVR-16400(2U) 16 CH 720P REAL-TIME PLUG & VIEW NVR (1080P - 16CH HALF REAL-TIME / 8CH REAL-TIME 16 POE ports HDMI Alarm 16in/4out 1 audio output HDD- up to 8 X3TB 1000Mbps Ethernet 2* E-SATA

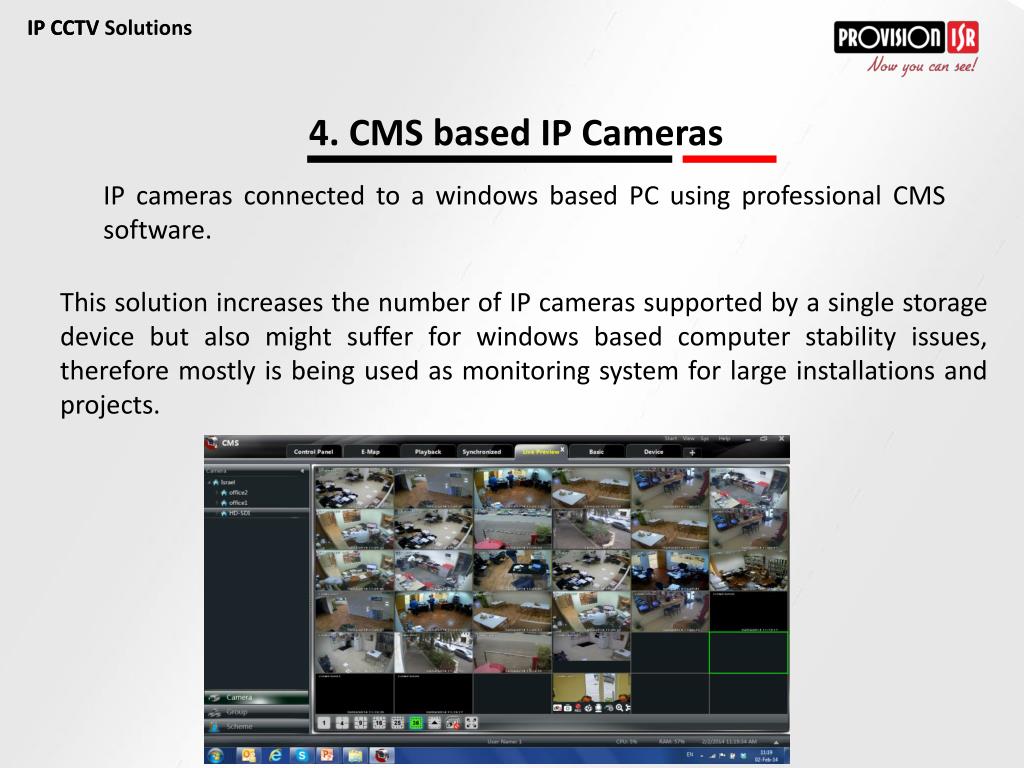

  22. IP CCTV IP CCTV Solutions 4. CMS based IP Cameras IP cameras connected to a windows based PC using professional CMS software. This solution increases the number of IP cameras supported by a single storage device but also might suffer for windows based computer stability issues, therefore mostly is being used as monitoring system for large installations and projects.

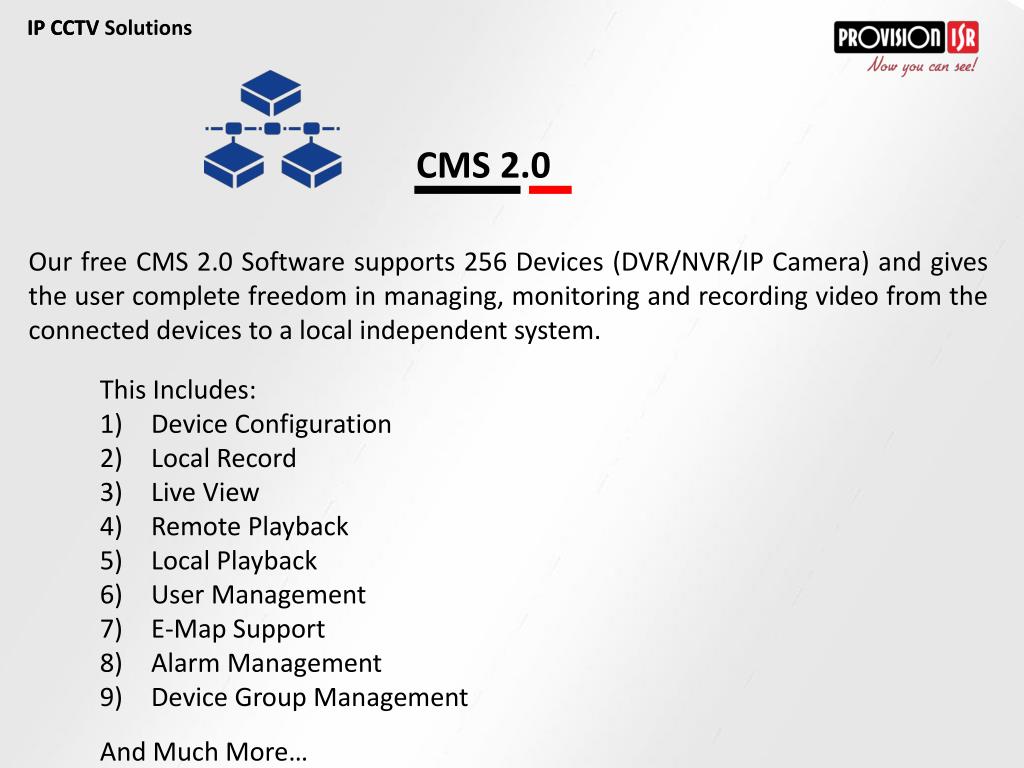

  23. IP CCTV IP CCTV Solutions CMS 2.0 Our free CMS 2.0 Software supports 256 Devices (DVR/NVR/IP Camera) and gives the user complete freedom in managing, monitoring and recording video from the connected devices to a local independent system. This Includes: Device Configuration Local Record Live View Remote Playback Local Playback User Management E-Map Support Alarm Management Device Group Management And Much More…

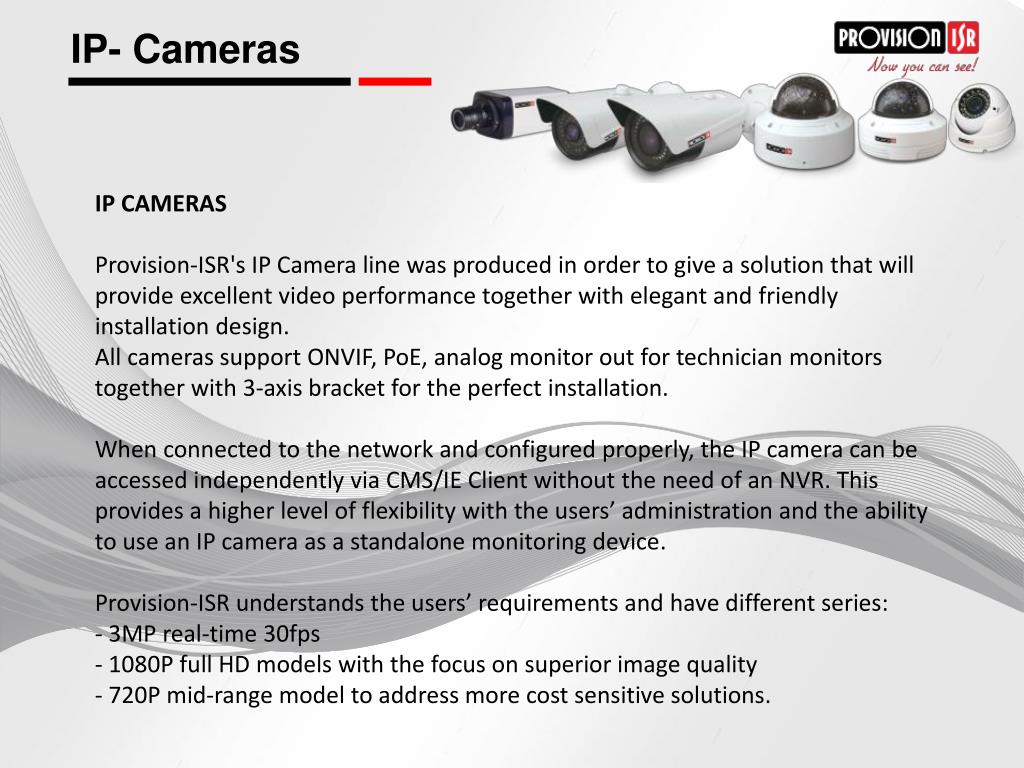

  24. IP- Cameras IP CAMERAS Provision-ISR's IP Camera line was produced in order to give a solution that will provide excellent video performance together with elegant and friendly installation design. All cameras support ONVIF, PoE, analog monitor out for technician monitors together with 3-axis bracket for the perfect installation. When connected to the network and configured properly, the IP camera can be accessed independently via CMS/IE Client without the need of an NVR. This provides a higher level of flexibility with the users’ administration and the ability to use an IP camera as a standalone monitoring device. Provision-ISR understands the users’ requirements and have different series: - 3MP real-time 30fps - 1080P full HD models with the focus on superior image quality - 720P mid-range model to address more cost sensitive solutions.

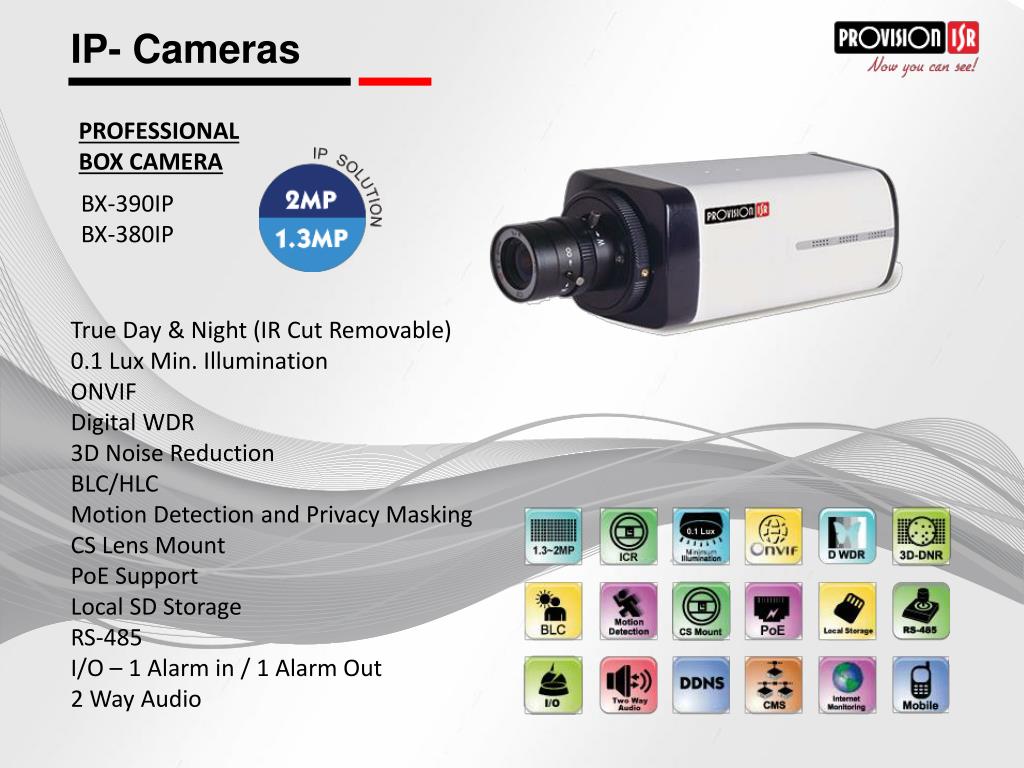

  25. IP- Cameras PROFESSIONAL BOX CAMERA BX-390IP BX-380IP True Day & Night (IR Cut Removable) 0.1 Lux Min. Illumination ONVIF Digital WDR 3D Noise Reduction BLC/HLC Motion Detection and Privacy Masking CS Lens Mount PoE Support Local SD Storage RS-485 I/O – 1 Alarm in / 1 Alarm Out 2 Way Audio

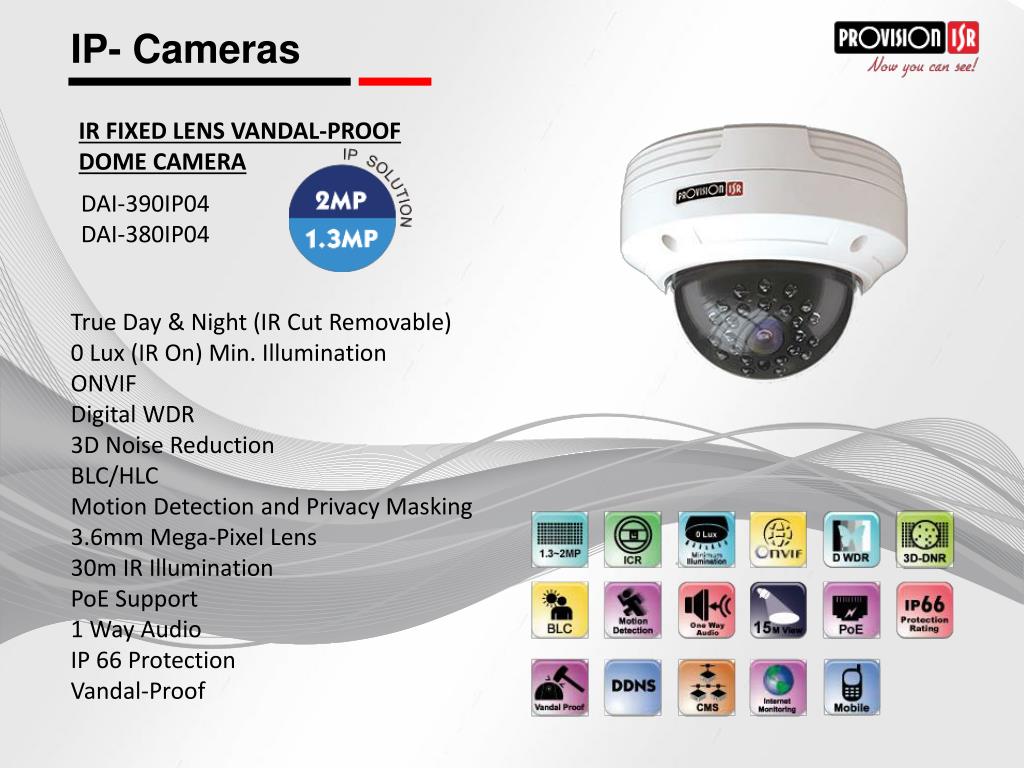

  26. IP- Cameras IR FIXED LENS VANDAL-PROOF DOME CAMERA DAI-390IP04 DAI-380IP04 True Day & Night (IR Cut Removable) 0 Lux (IR On) Min. Illumination ONVIF Digital WDR 3D Noise Reduction BLC/HLC Motion Detection and Privacy Masking 3.6mm Mega-Pixel Lens 30m IR Illumination PoE Support 1 Way Audio IP 66 Protection Vandal-Proof

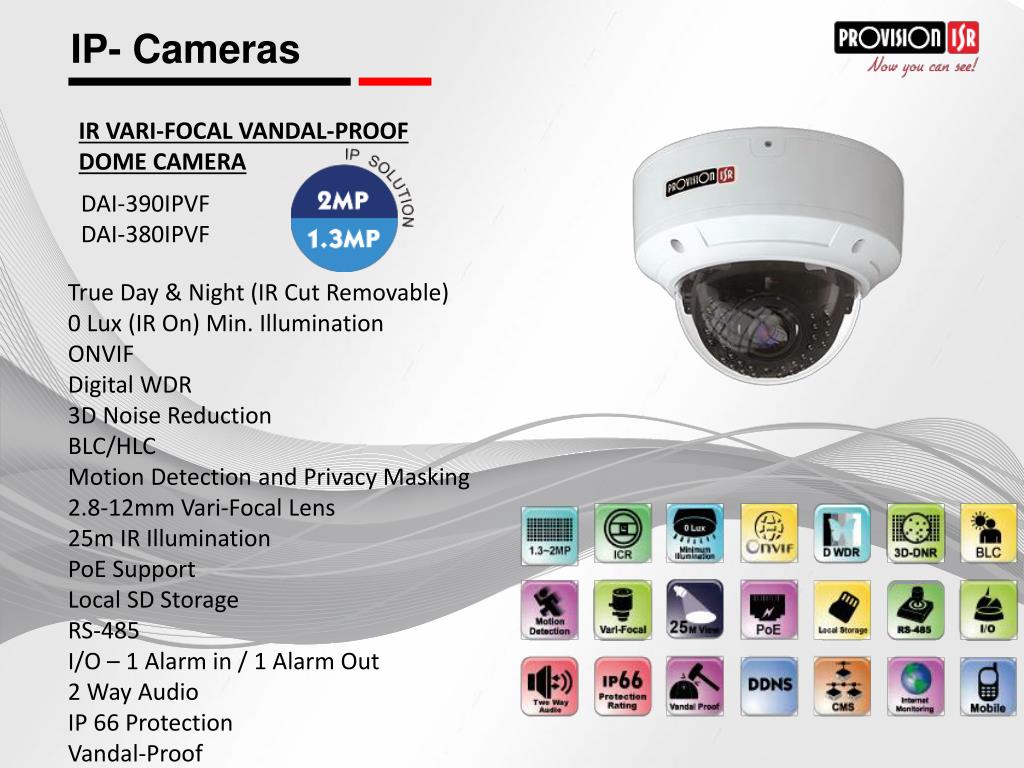

  27. IP- Cameras IR VARI-FOCAL VANDAL-PROOF DOME CAMERA DAI-390IPVF DAI-380IPVF True Day & Night (IR Cut Removable) 0 Lux (IR On) Min. Illumination ONVIF Digital WDR 3D Noise Reduction BLC/HLC Motion Detection and Privacy Masking 2.8-12mm Vari-Focal Lens 25m IR Illumination PoESupport Local SD Storage RS-485 I/O – 1 Alarm in / 1 Alarm Out 2 Way Audio IP 66 Protection Vandal-Proof

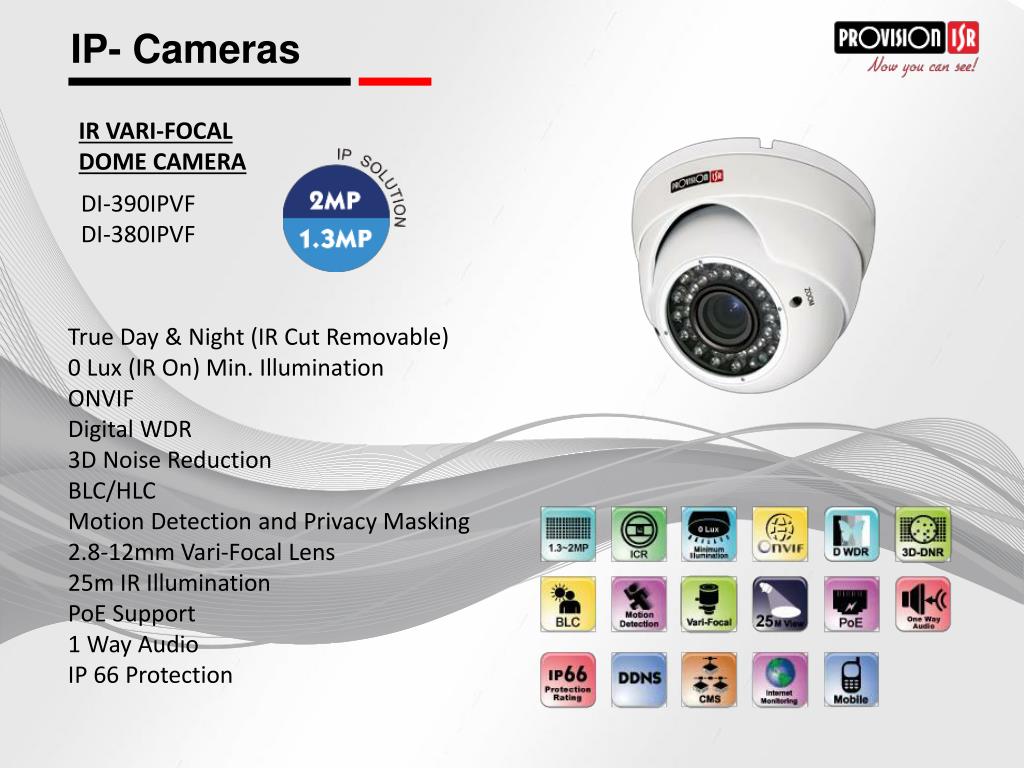

  28. IP- Cameras IR VARI-FOCAL DOME CAMERA DI-390IPVF DI-380IPVF True Day & Night (IR Cut Removable) 0 Lux (IR On) Min. Illumination ONVIF Digital WDR 3D Noise Reduction BLC/HLC Motion Detection and Privacy Masking 2.8-12mm Vari-Focal Lens 25m IR Illumination PoESupport 1 Way Audio IP 66 Protection

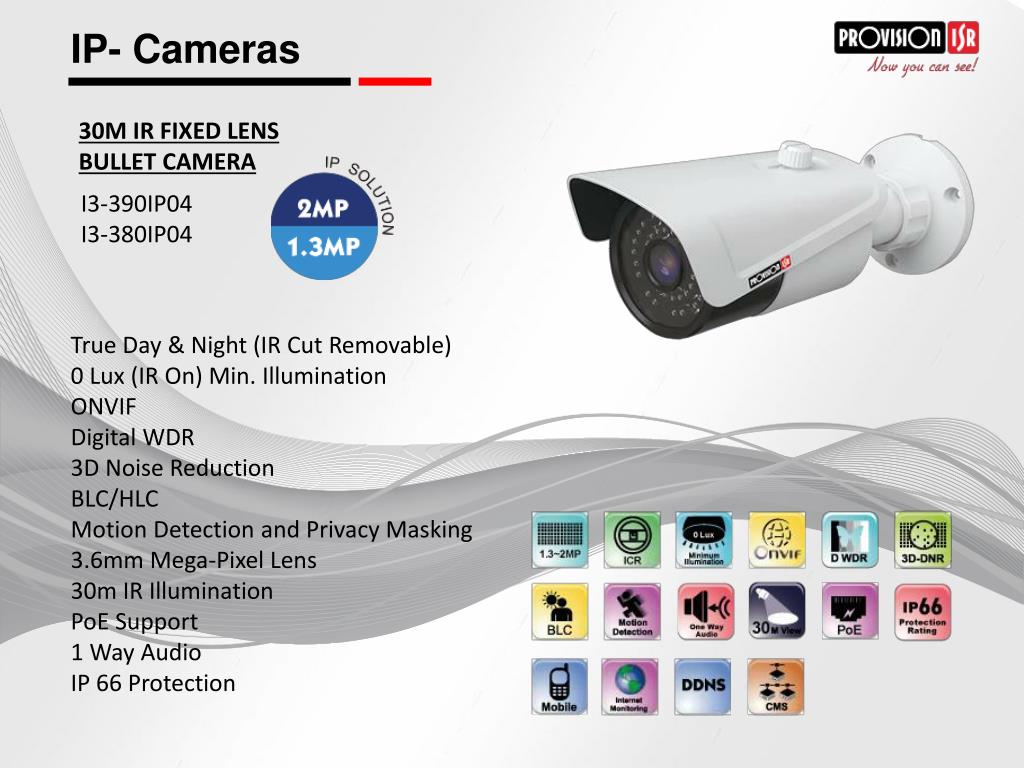

  29. IP- Cameras 30M IR FIXED LENS BULLET CAMERA I3-390IP04 I3-380IP04 True Day & Night (IR Cut Removable) 0 Lux (IR On) Min. Illumination ONVIF Digital WDR 3D Noise Reduction BLC/HLC Motion Detection and Privacy Masking 3.6mm Mega-Pixel Lens 30m IR Illumination PoE Support 1 Way Audio IP 66 Protection

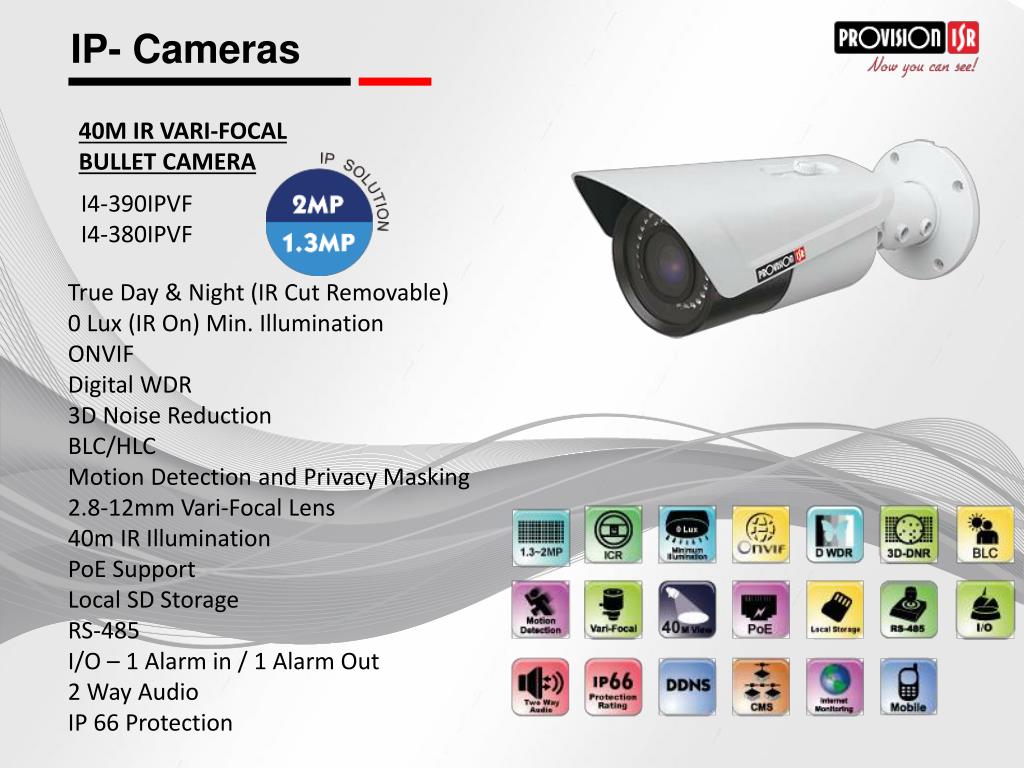

  30. IP- Cameras 40M IR VARI-FOCAL BULLET CAMERA I4-390IPVF I4-380IPVF True Day & Night (IR Cut Removable) 0 Lux (IR On) Min. Illumination ONVIF Digital WDR 3D Noise Reduction BLC/HLC Motion Detection and Privacy Masking 2.8-12mm Vari-Focal Lens 40m IR Illumination PoESupport Local SD Storage RS-485 I/O – 1 Alarm in / 1 Alarm Out 2 Way Audio IP 66 Protection

  31. IP CCTV Solutions Coming next • Available from November a full range 720P economic Series for 200€ (list price) • Available from November a series of 3MP cameras at real time 30fps for 450€ (list price) • Available from November a series of 3MP cameras at half real time for 380€ (list price) • 32ch NVR real-time 1080P

  32. Thank You
