  1. How we measure forests David W. MacFarlane Dept. of Forestry MSU

  2. Why measure the forest? • We want to know the current status of the forest. • Size of trees, density and area covered by forests • Species Composition = Biodiversity • Value of forest products (wood and non-wood) • Age, health and vigor of trees • Etc.. • How is the forest changing over time?

  3. Basic tree measurements • dbh = stem diameter at breast height ? 4.5 ft. (1.3 m) Digital caliper slope

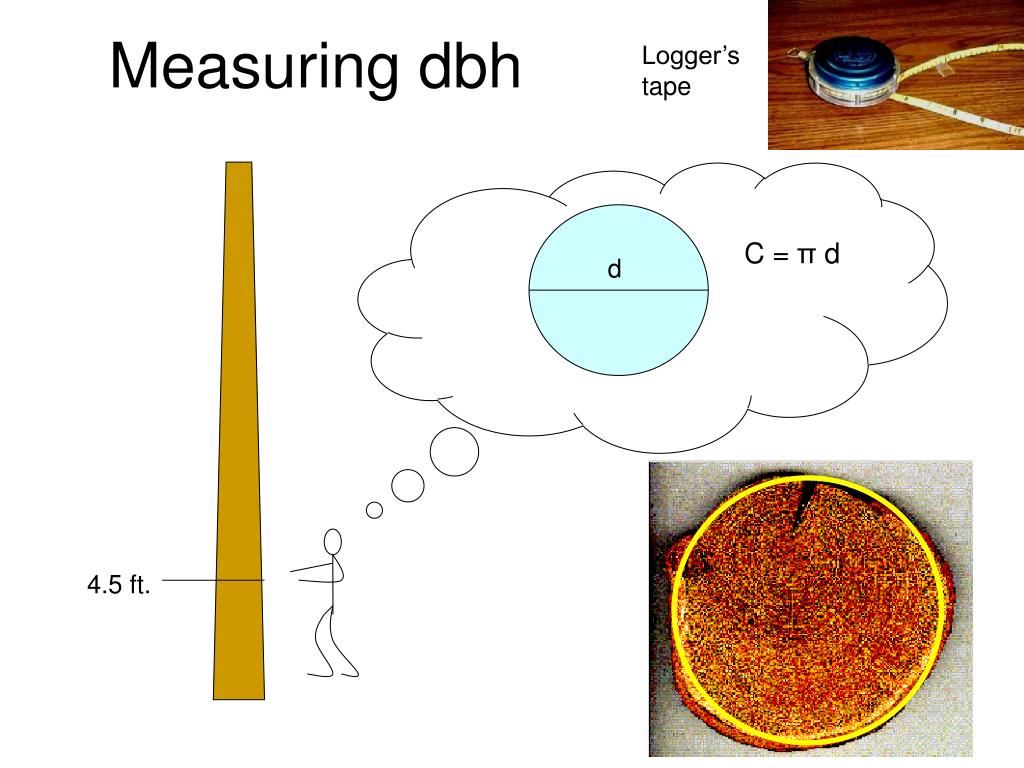

  4. Measuring dbh Logger’s tape C = π d d 4.5 ft.

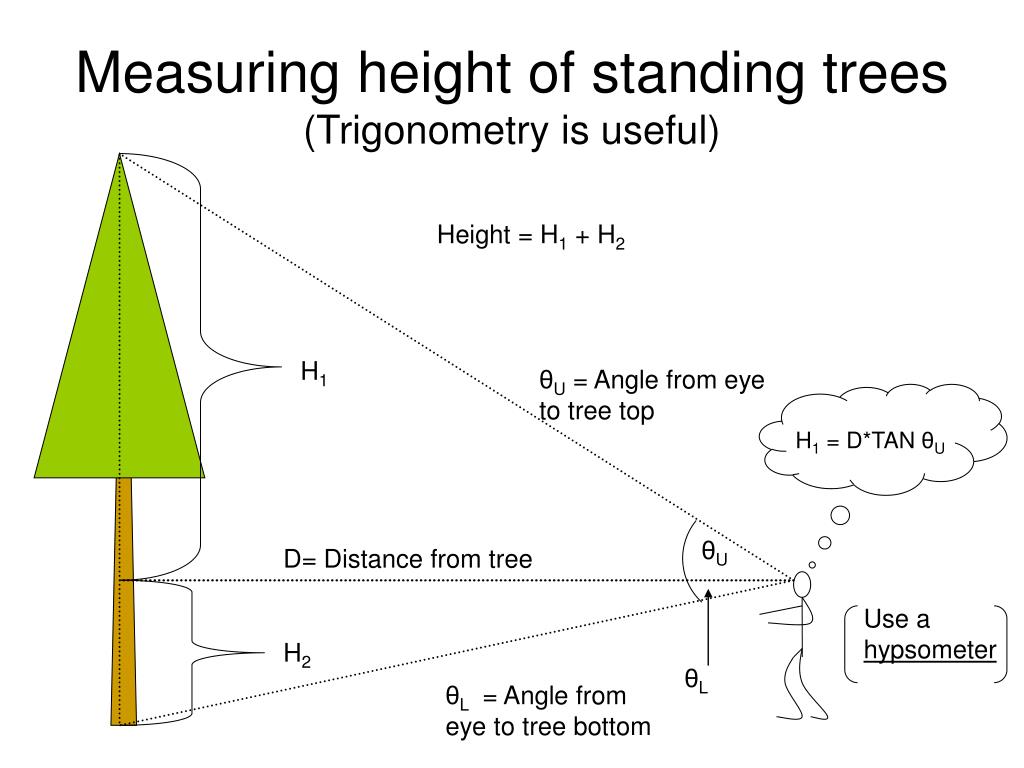

  5. Measuring height of standing trees(Trigonometry is useful) Height = H1 + H2 H1 θU = Angle from eye to tree top H1 = D*TAN θU θU D= Distance from tree Use a hypsometer H2 θL θL = Angle from eye to tree bottom

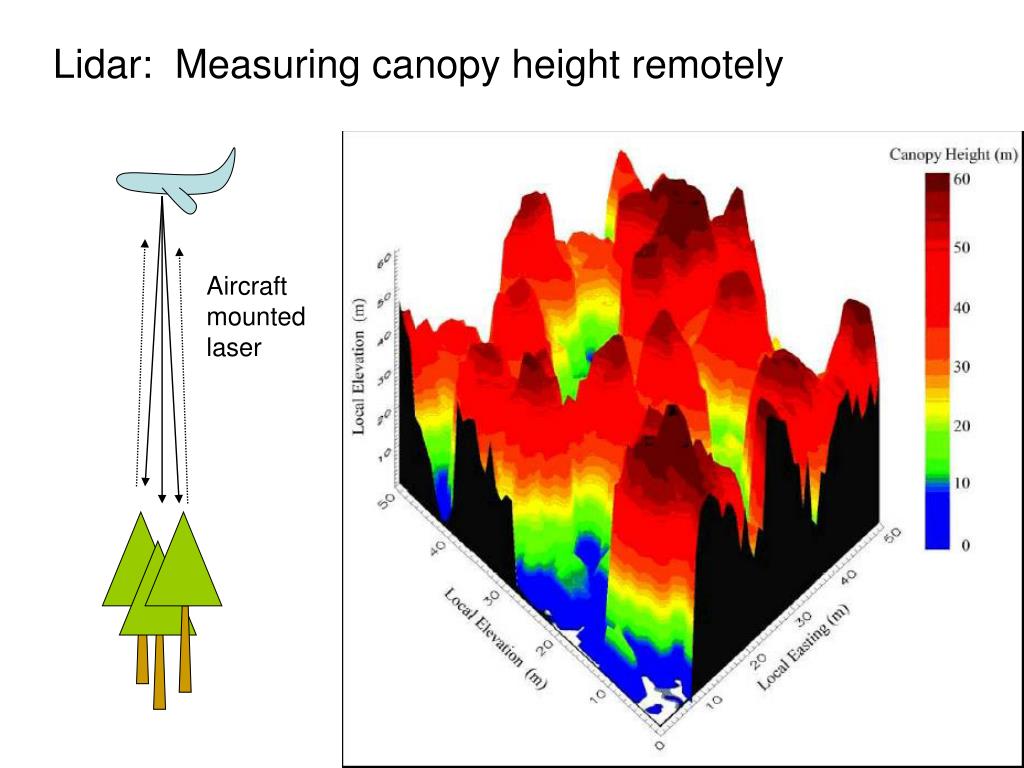

  6. Lidar: Measuring canopy height remotely Aircraft mounted laser

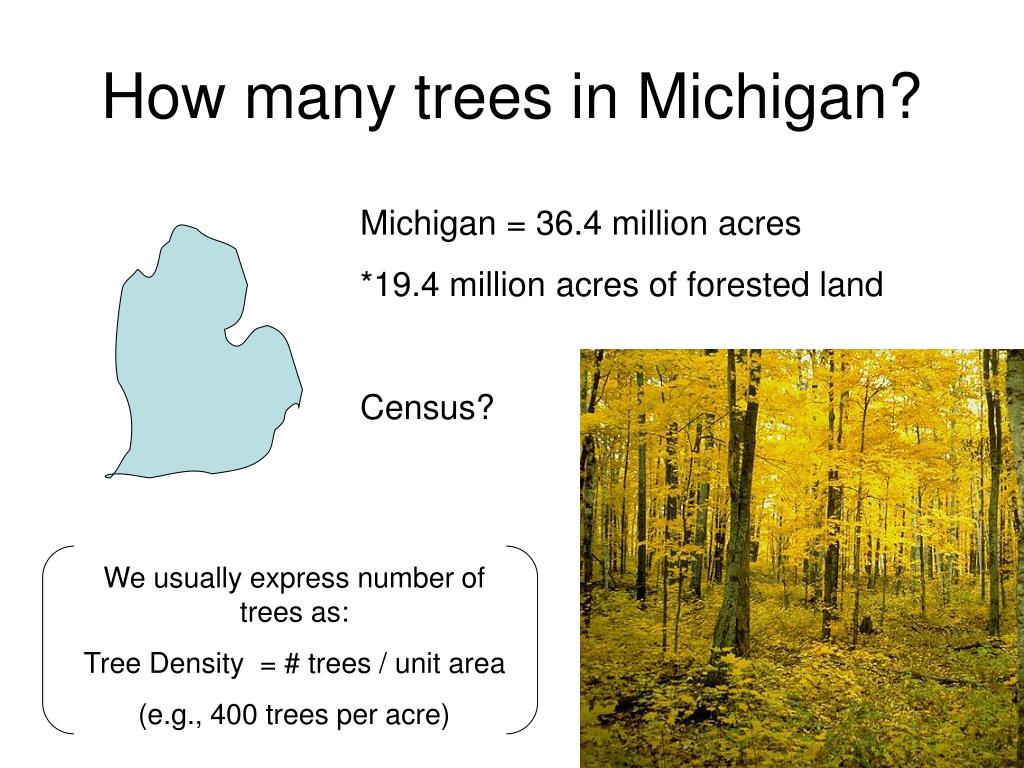

  7. How many trees in Michigan? Michigan = 36.4 million acres *19.4 million acres of forested land Census? We usually express number of trees as: Tree Density = # trees / unit area (e.g., 400 trees per acre)

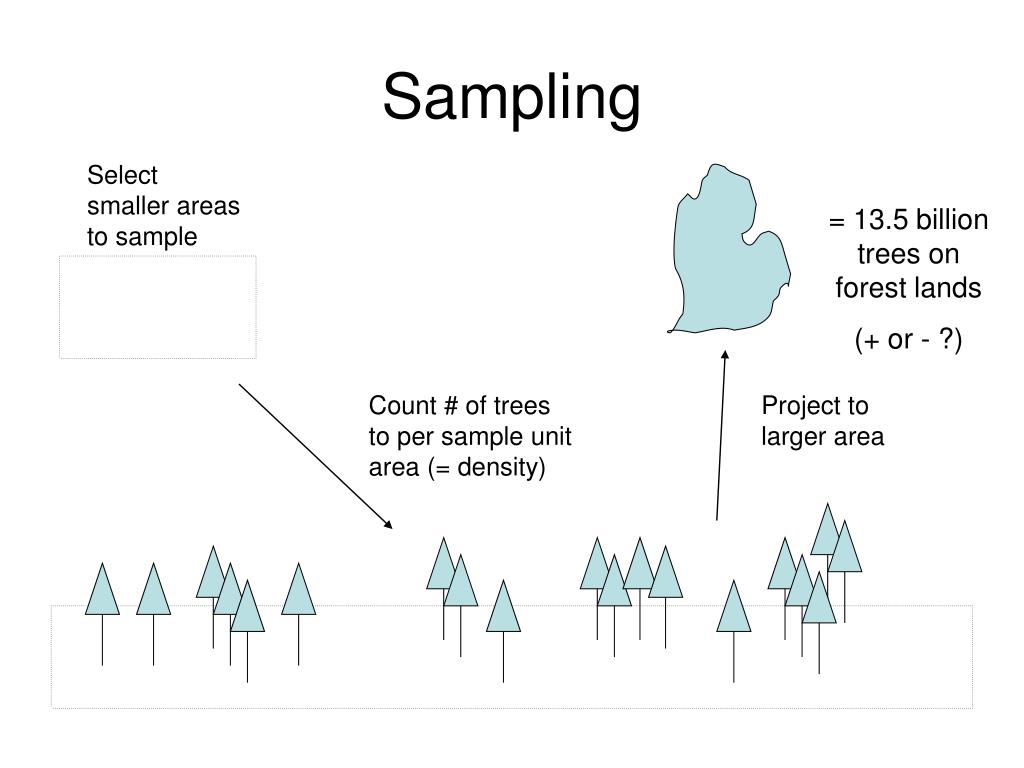

  8. Sampling Select smaller areas to sample = 13.5 billion trees on forest lands (+ or - ?) Count # of trees to per sample unit area (= density) Project to larger area

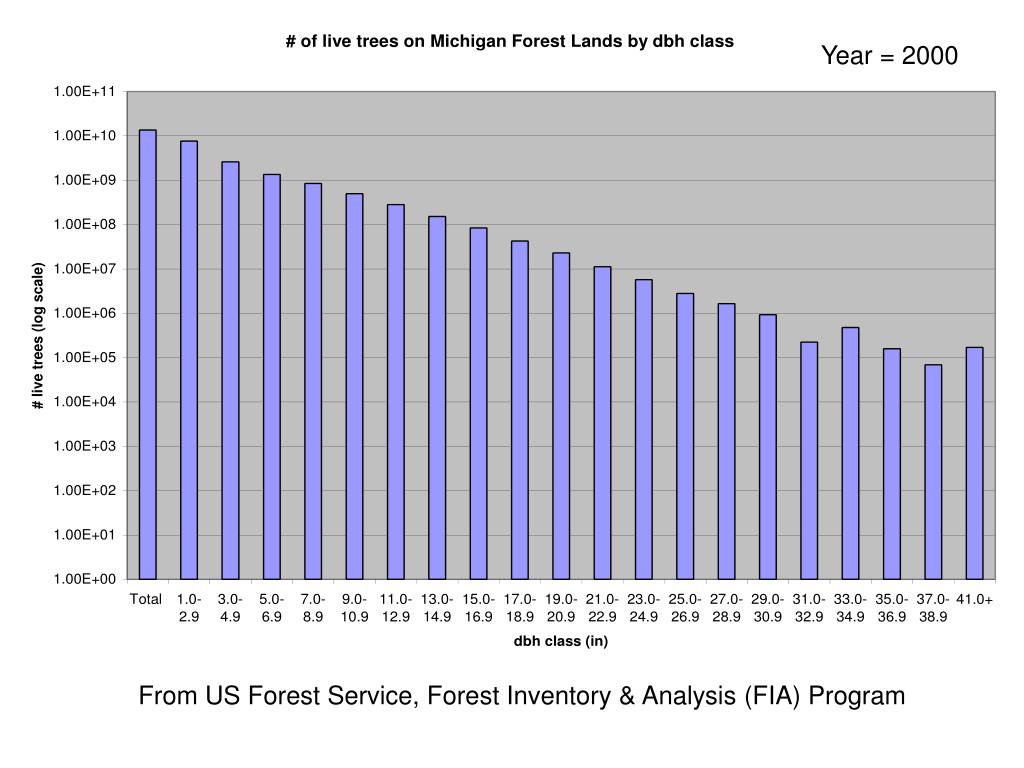

  9. Year = 2000 From US Forest Service, Forest Inventory & Analysis (FIA) Program

  10. On Michigan Forest Lands in 2000 dbh = 2” 7.6 billion trees dbh = 6” 1.4 billion trees

  11. What kind of tree is it? • Problem 1: How can we identify tree species? Take: FOR 204 Forest Vegetation! Reproduced from National Arbor Day Foundation

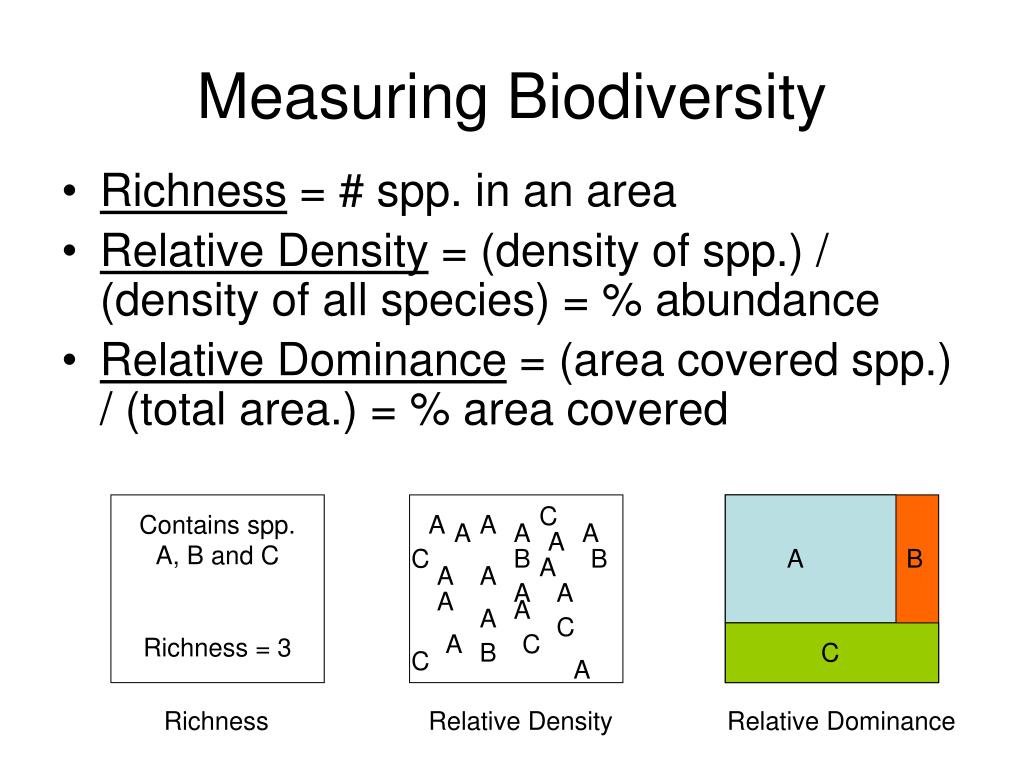

  12. Measuring Biodiversity • Richness = # spp. in an area • Relative Density = (density of spp.) / (density of all species) = % abundance • Relative Dominance = (area covered spp.) / (total area.) = % area covered C Contains spp. A, B and C Richness = 3 A A A A A A C B B A B A A A A A A A A C A C B C C A Richness Relative Density Relative Dominance

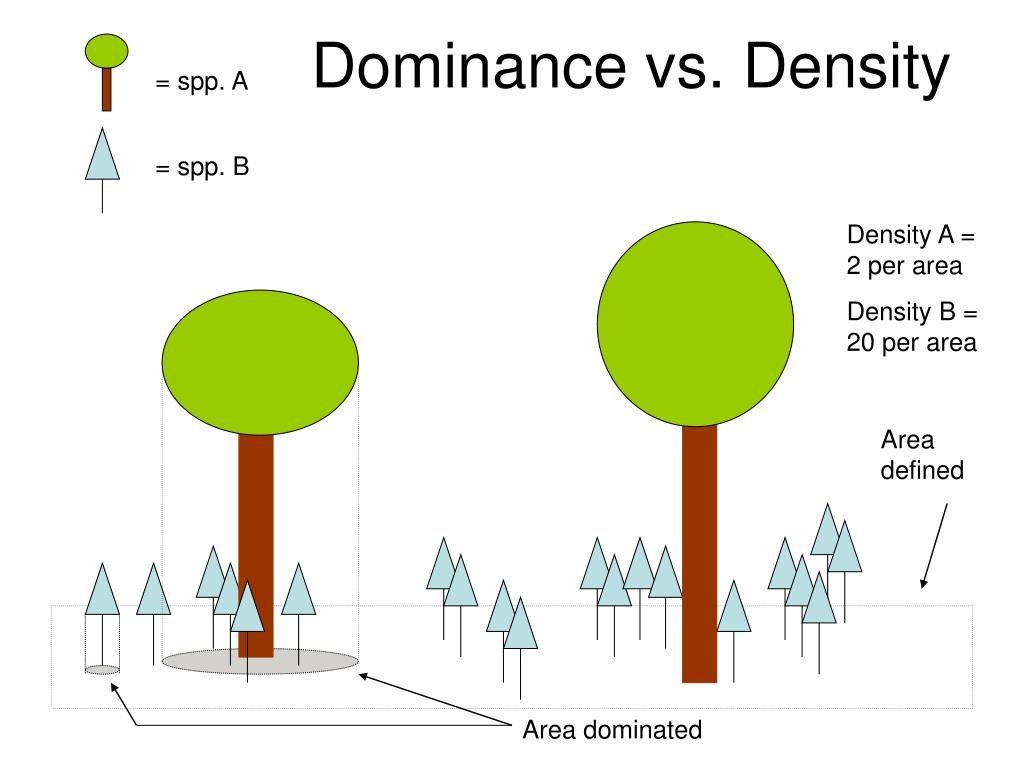

  13. Dominance vs. Density = spp. A = spp. B Density A = 2 per area Density B = 20 per area Area defined Area dominated

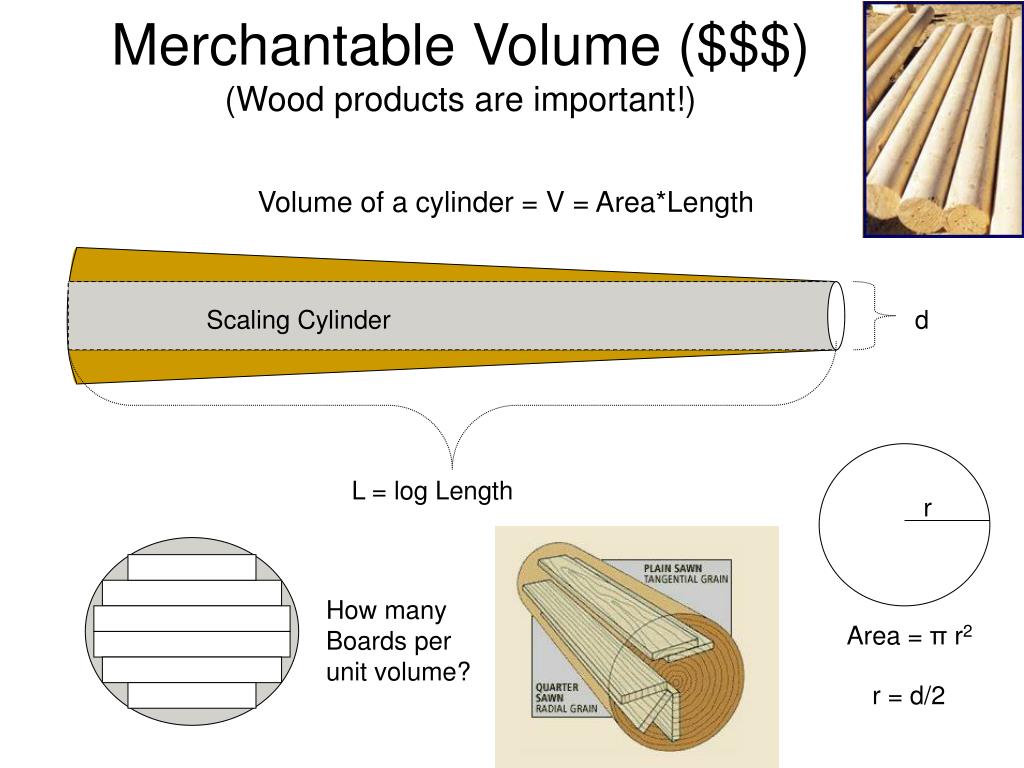

  14. Merchantable Volume ($$$)(Wood products are important!) Volume of a cylinder = V = Area*Length Scaling Cylinder d L = log Length r How many Boards per unit volume? Area = π r2 r = d/2

  15. 78 Billion Board feet on forested lands in MI, in 2000

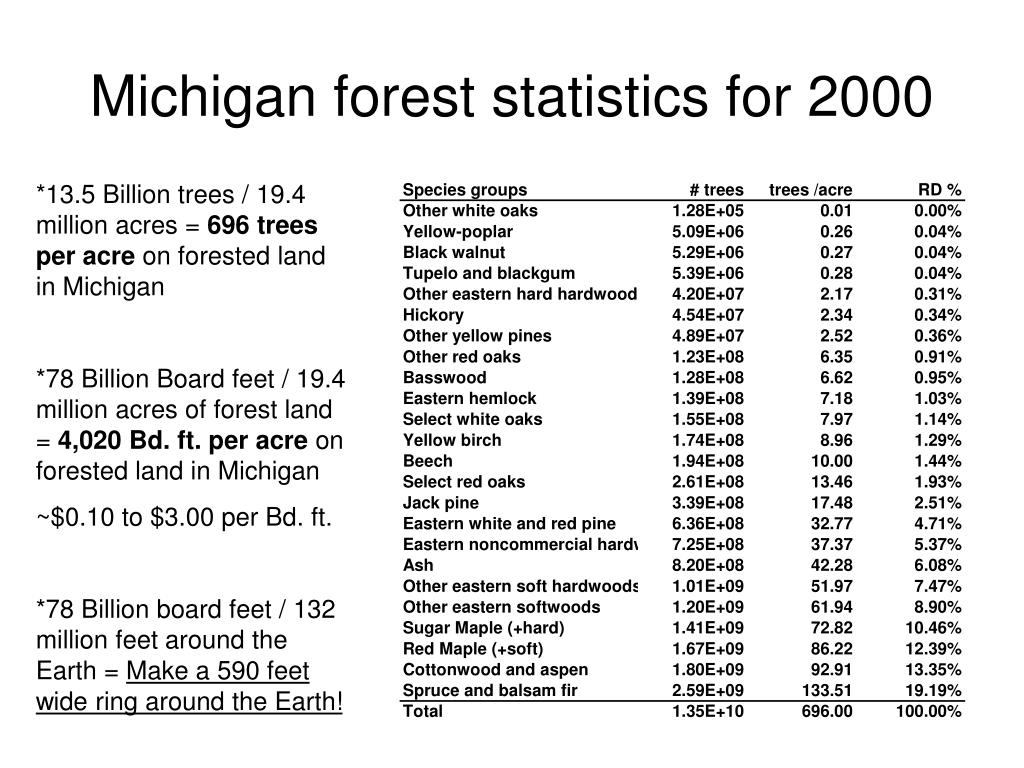

  16. Michigan forest statistics for 2000 *13.5 Billion trees / 19.4 million acres = 696 trees per acre on forested land in Michigan *78 Billion Board feet / 19.4 million acres of forest land = 4,020 Bd. ft. per acre on forested land in Michigan ~$0.10 to $3.00 per Bd. ft. *78 Billion board feet / 132 million feet around the Earth = Make a 590 feet wide ring around the Earth!

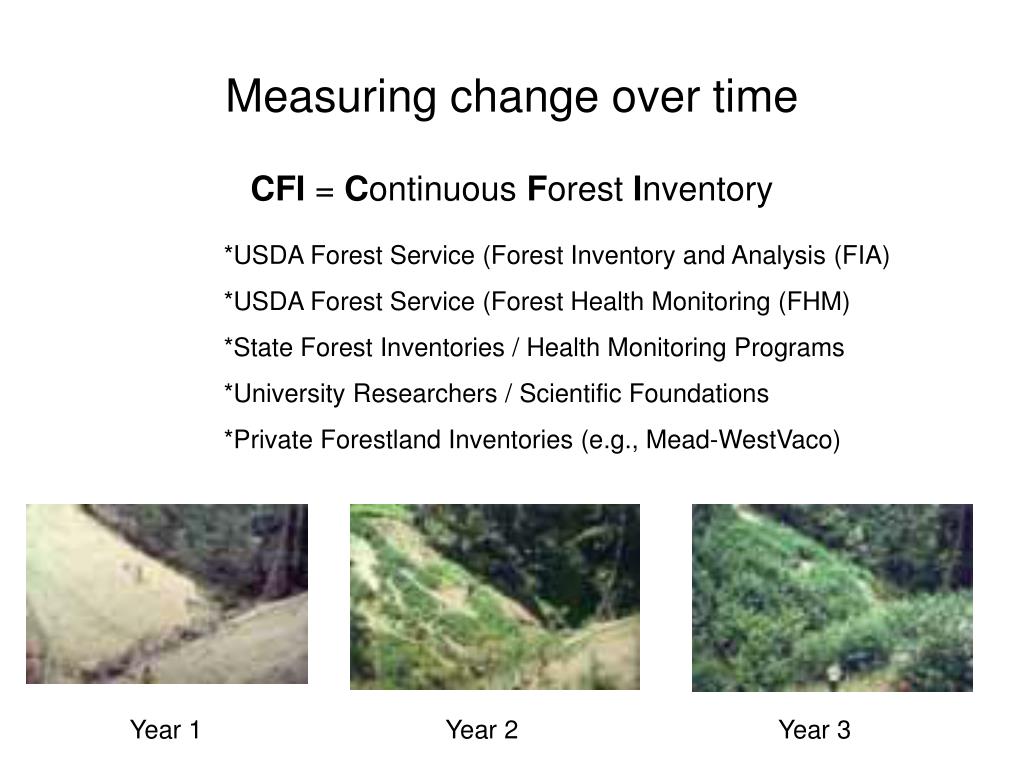

  17. Measuring change over time CFI = Continuous Forest Inventory *USDA Forest Service (Forest Inventory and Analysis (FIA) *USDA Forest Service (Forest Health Monitoring (FHM) *State Forest Inventories / Health Monitoring Programs *University Researchers / Scientific Foundations *Private Forestland Inventories (e.g., Mead-WestVaco) Year 1 Year 2 Year 3

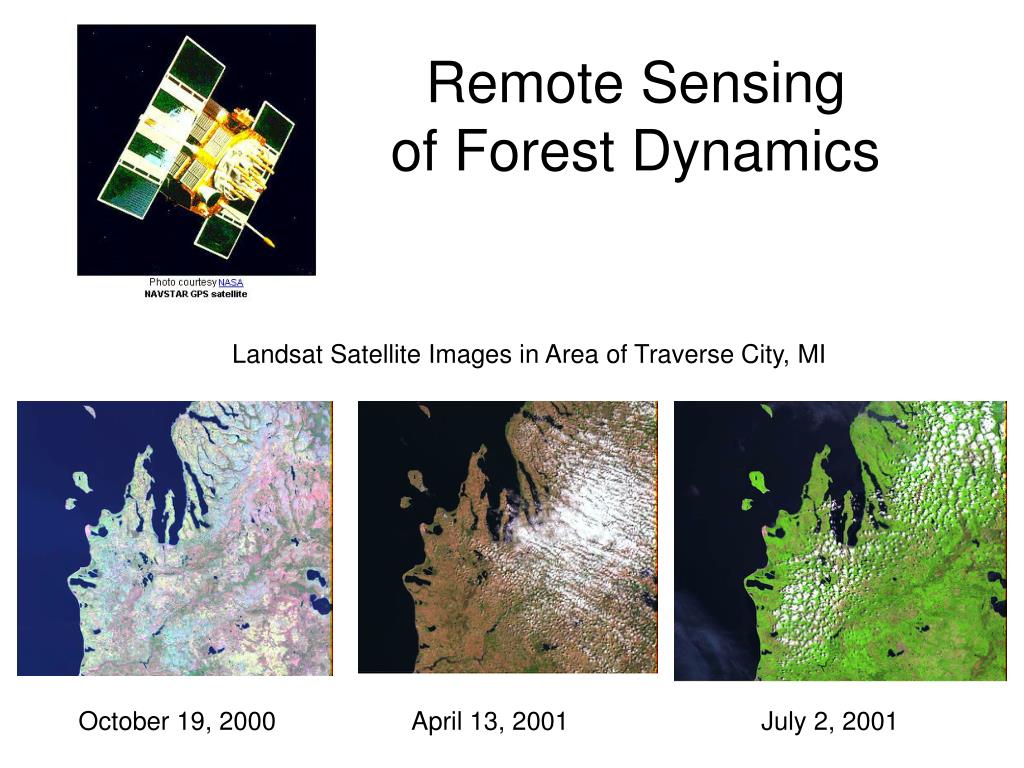

  18. Remote Sensing of Forest Dynamics Landsat Satellite Images in Area of Traverse City, MI October 19, 2000 April 13, 2001 July 2, 2001
