  1. Secure Deletion

  2. What is Secure Deletion • The permanent removal of data from disk • When data is gone, it’s gone for good • “Emptying the trash” is not good enough • Simply frees blocks for later allocation • Data exist intact and readable • Even after reallocation, data may be recovered using more expensive forensic techniques • Magnetic Force Microscopy

  3. Need For Secure Deletion • Important feature for security conscious users • Informational records are becoming entirely electronic • Legislation - over 4000 new laws • Records that go out of audit scope should do so forever (Sarbanes-Oxley) • Patients may wish to redact portions of their medical record (HIPAA Privacy Rule) • When a disk is subpoenaed, old, irrelevant or sensitive data should be inaccessible

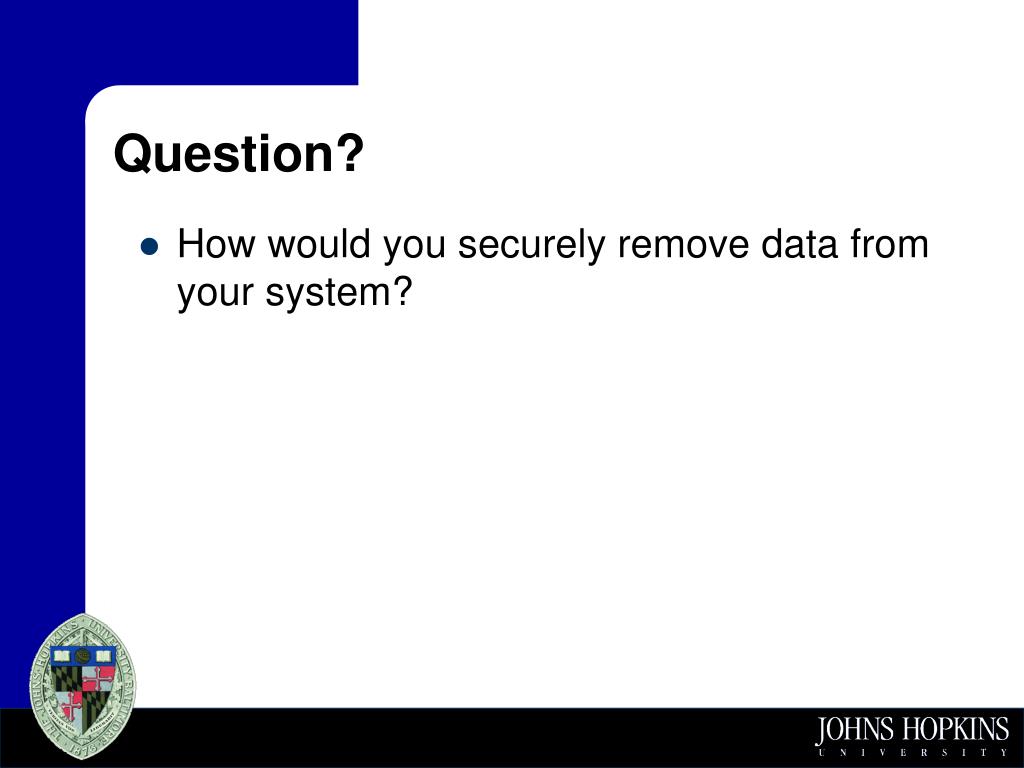

  4. Question? • How would you securely remove data from your system?

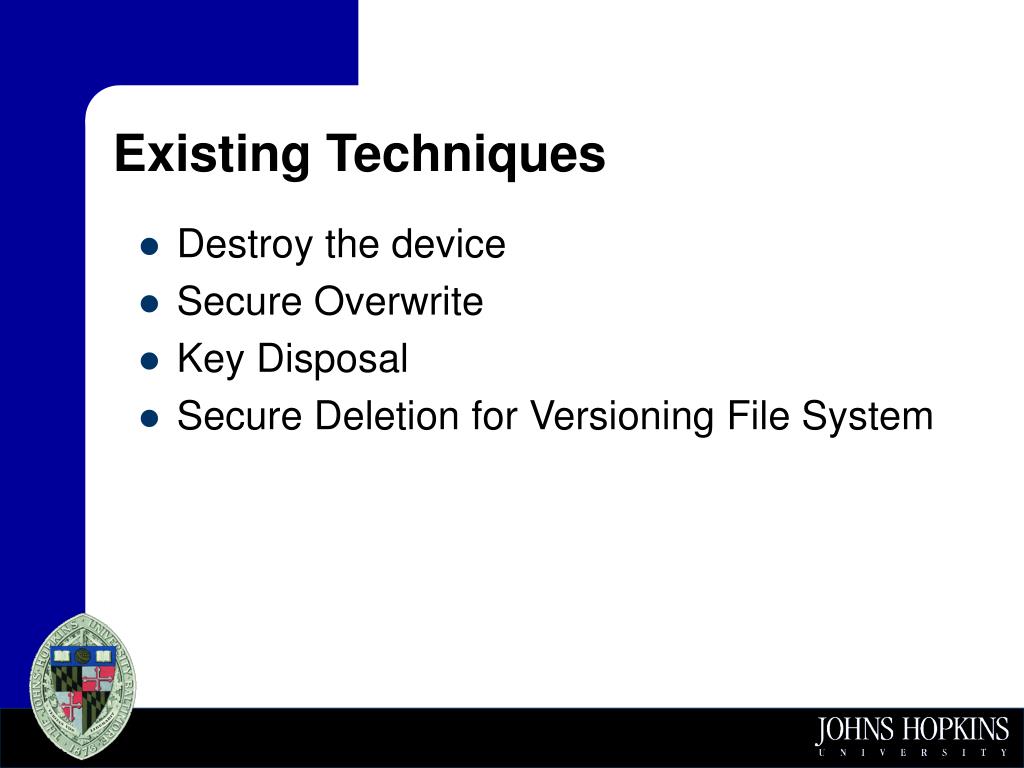

  5. Existing Techniques • Destroy the device • Secure Overwrite • Key Disposal • Secure Deletion for Versioning File System

  6. Secure Overwrite • Idea introduced by Peter Gutmann • 36 synchronous passes over contiguous data • Each pass is a particular pattern of 1s and 0s designed to degauss the magnetic media • Takes into account standard ECCs and other bit reordering techniques • Problem: very slow, large files may each take minutes to delete

  7. Other Variants • Zeroing the data with one pass (not enough) • 3 passes of random data (may be enough) • DOD specifies only 7 passes • NIST released its secure deletion recommendation, identifying four grades: • Disposal (throw non-confidential disks away) • Clearing (Protection against simple keyboard attacks) • Purging (Protection against laboratory attacks) • Destroying

  8. Key Disposal • Idea introduced by Dan Boneh • Encrypt data with a key • When you want to delete data, simply “throw away” the key • Destroy device keys reside on • Secure overwrite keys • Problems: A key per file may be too course grained. A key per block is a huge amount of keys to manage

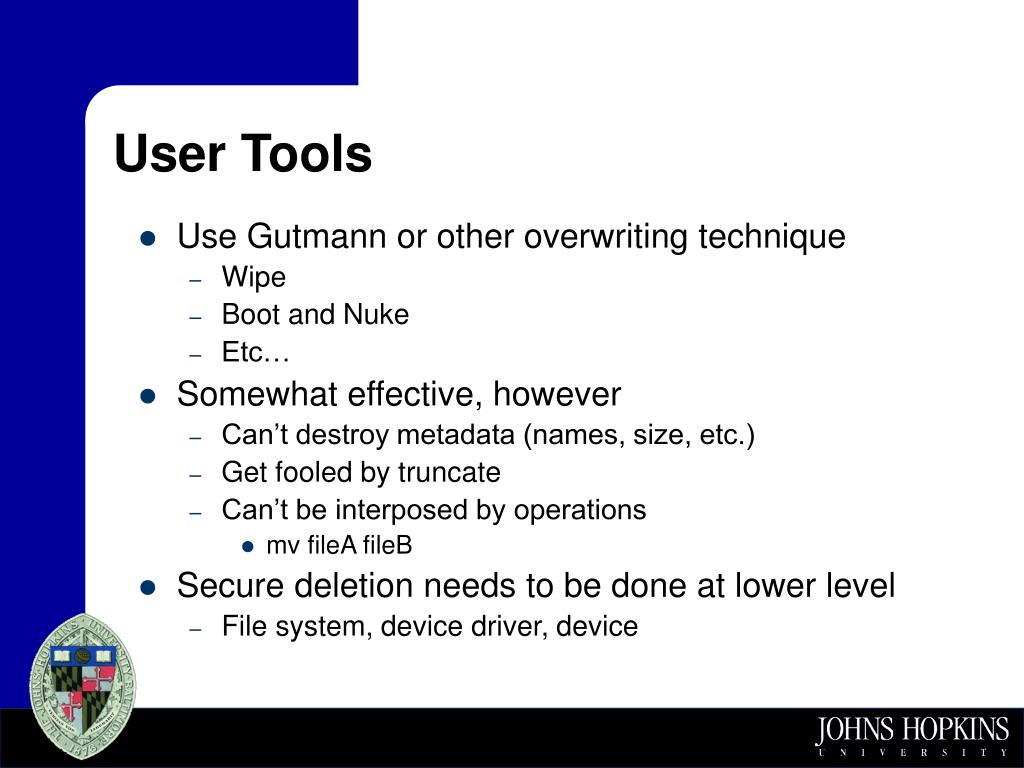

  9. User Tools • Use Gutmann or other overwriting technique • Wipe • Boot and Nuke • Etc… • Somewhat effective, however • Can’t destroy metadata (names, size, etc.) • Get fooled by truncate • Can’t be interposed by operations • mv fileA fileB • Secure deletion needs to be done at lower level • File system, device driver, device

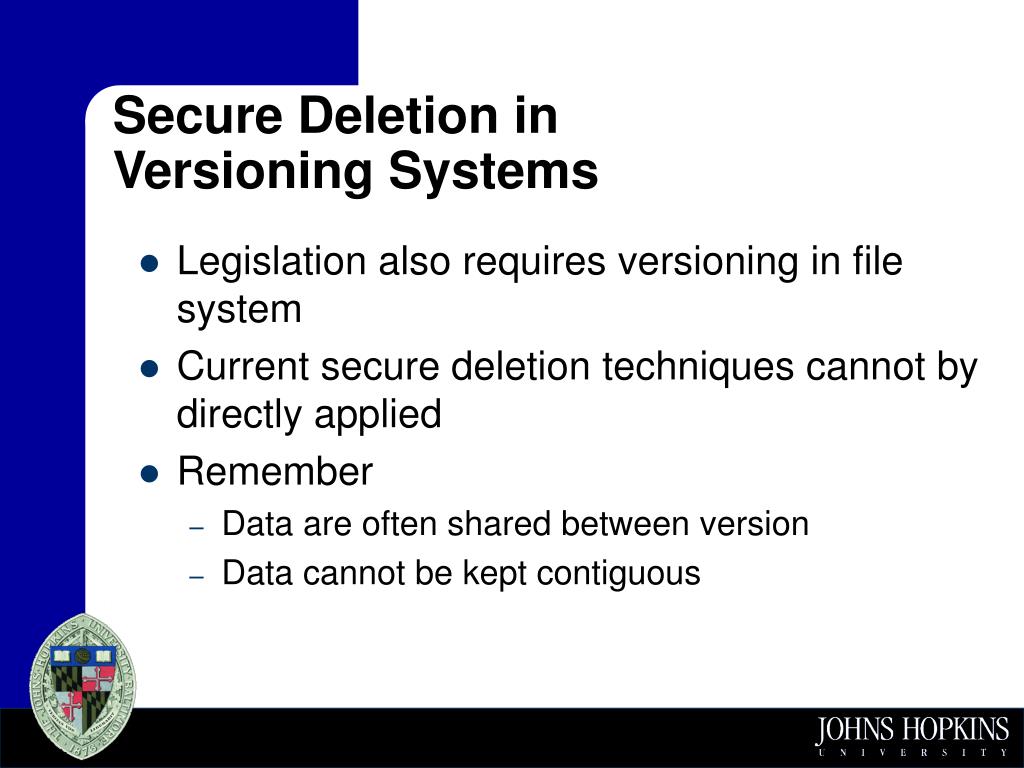

  10. Secure Deletion in Versioning Systems • Legislation also requires versioning in file system • Current secure deletion techniques cannot by directly applied • Remember • Data are often shared between version • Data cannot be kept contiguous

  11. Problems with Secure Deletion • Key Disposal: Block sharing hinders key management • Could never discard a version-key • Fine-grained deletion requires a key per block, and results in an explosion of keys • Secure Overwriting: Naively overwriting a shared block will erase it from subsequent versions • Secure overwriting has performance concerns • Identifying shared block dependencies before committing to a deletion • Overwriting is very slow • Data to be removed should be contiguous

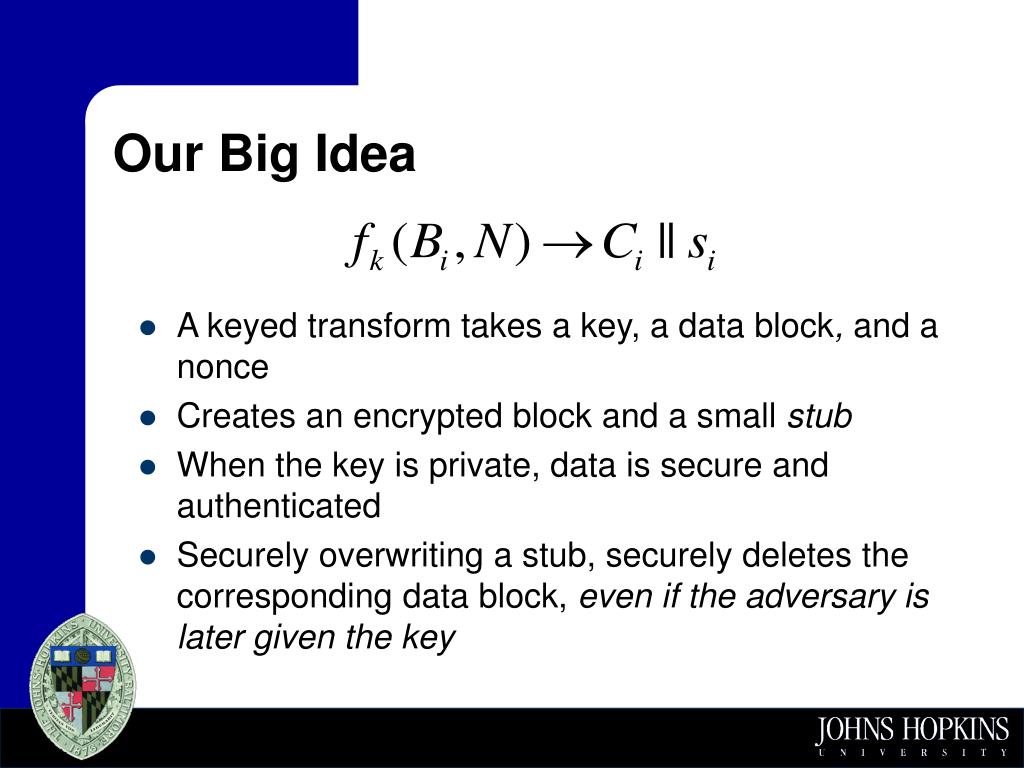

  12. Our Big Idea • A keyed transform takes a key, a data block, and a nonce • Creates an encrypted block and a small stub • When the key is private, data is secure and authenticated • Securely overwriting a stub, securely deletes the corresponding data block, even if the adversary is later given the key

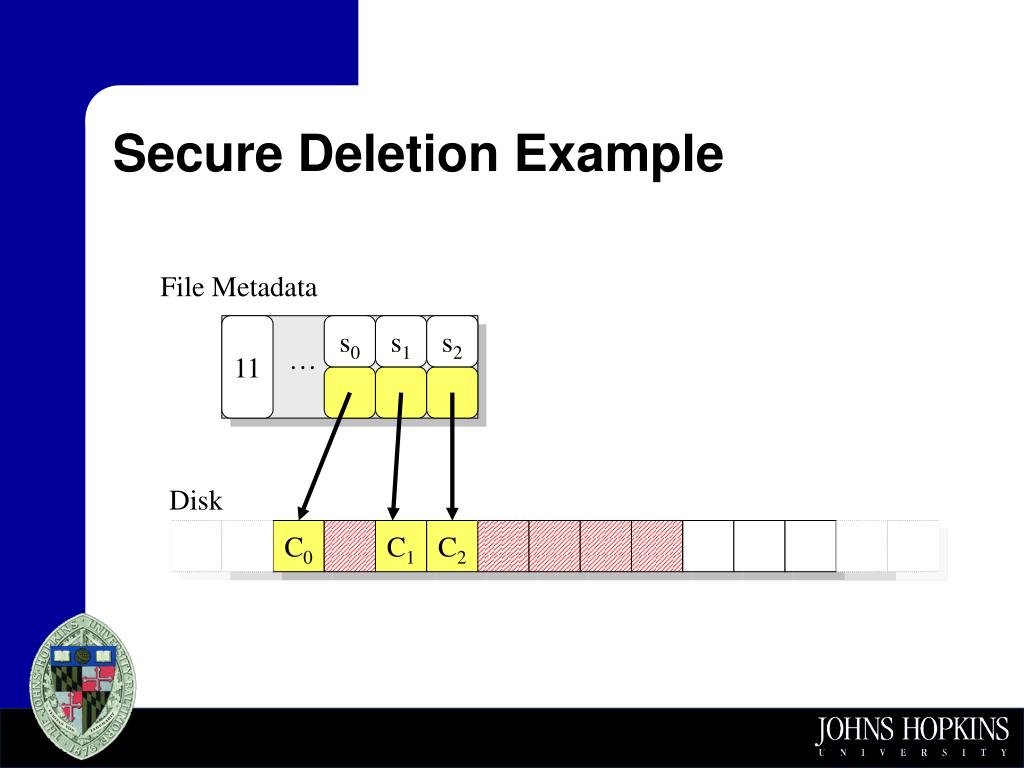

  13. Secure Deletion Example File Metadata 11 s0 s1 s2 … Disk C0 C1 C2

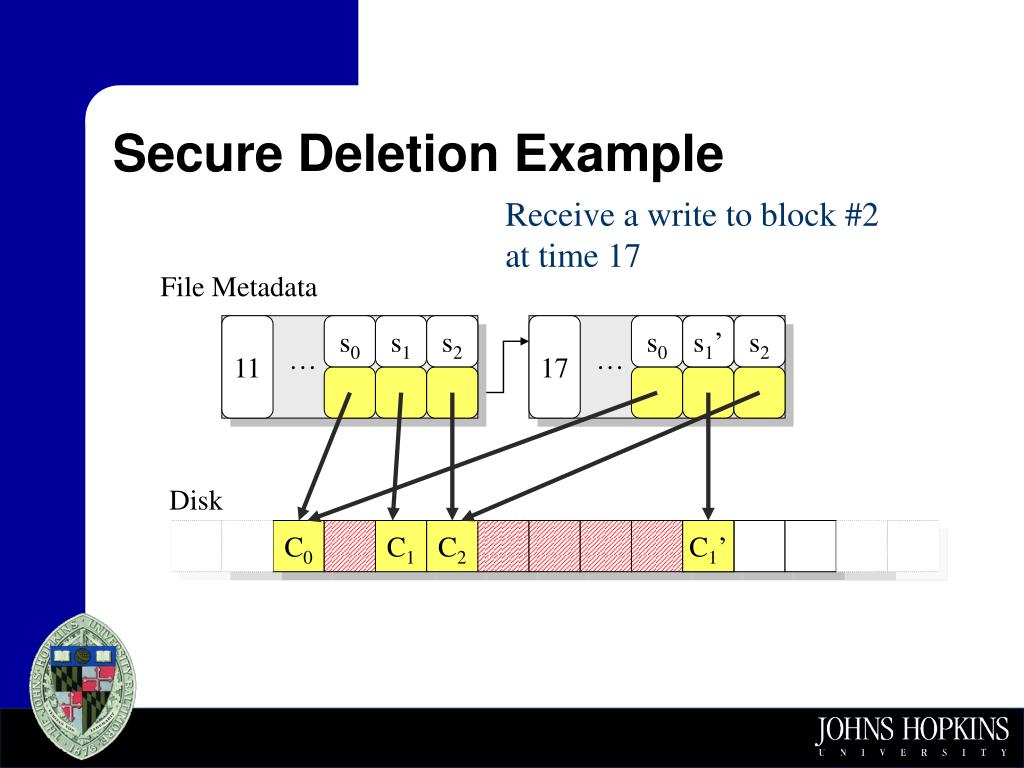

  14. 17 s0 s1 s1’ s2 … C1’ Secure Deletion Example Receive a write to block #2 at time 17 File Metadata 11 s0 s1 s2 … Disk C0 C1 C2

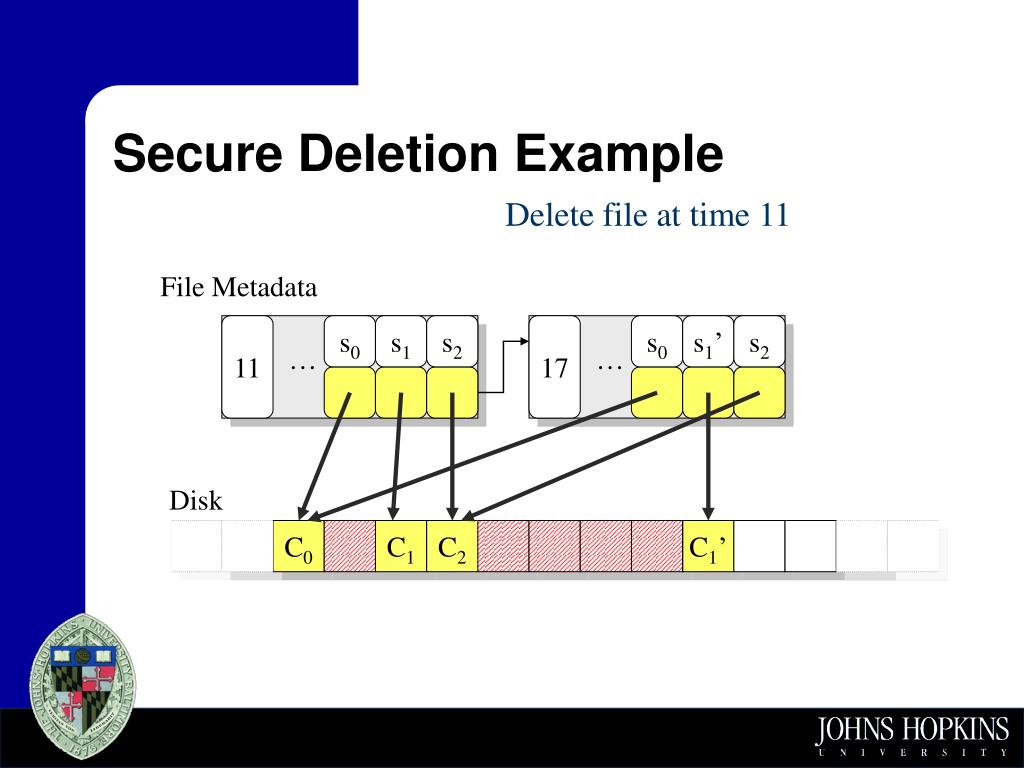

  15. Secure Deletion Example Delete file at time 11 File Metadata 11 s0 s1 s2 17 s0 s1’ s2 … … Disk C0 C1 C2 C1’

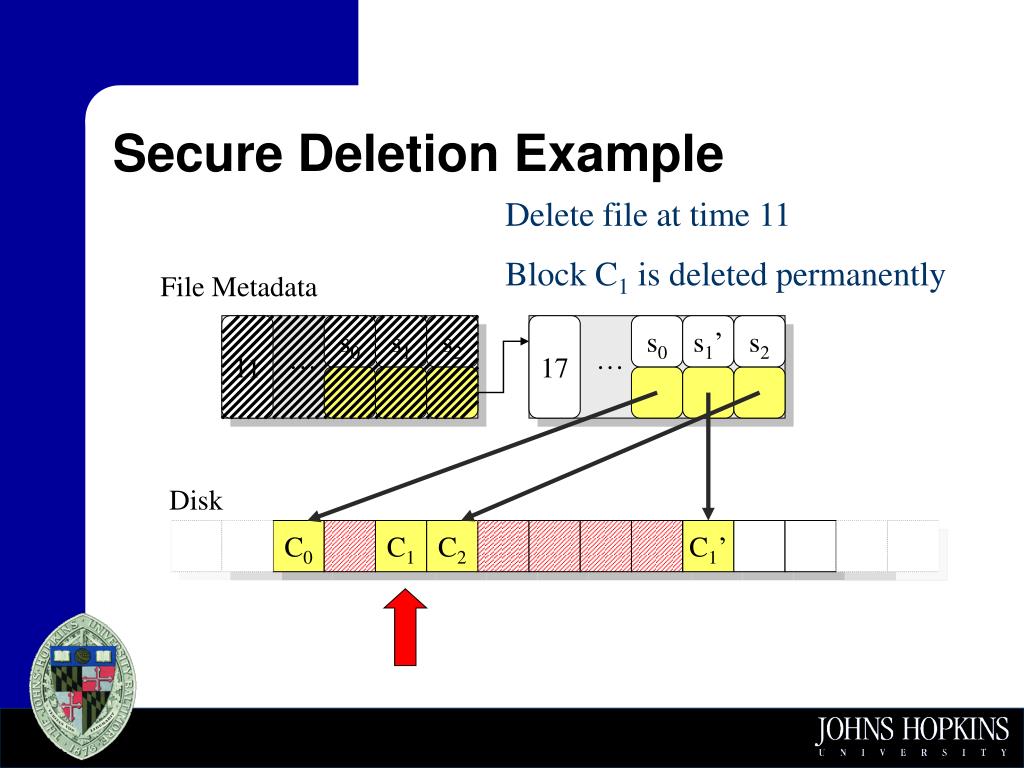

  16. Secure Deletion Example Delete file at time 11 Block C1 is deleted permanently File Metadata 11 s0 s1 s2 17 s0 s1’ s2 … … Disk C0 C1 C2 C1’

  17. Features of Our Design • The stubs are not secret and reveal nothing about the data or the key • Stubs for a version are stored together. • Overwriting 4K of stubs erases 1MB of (non-contiguous) data.

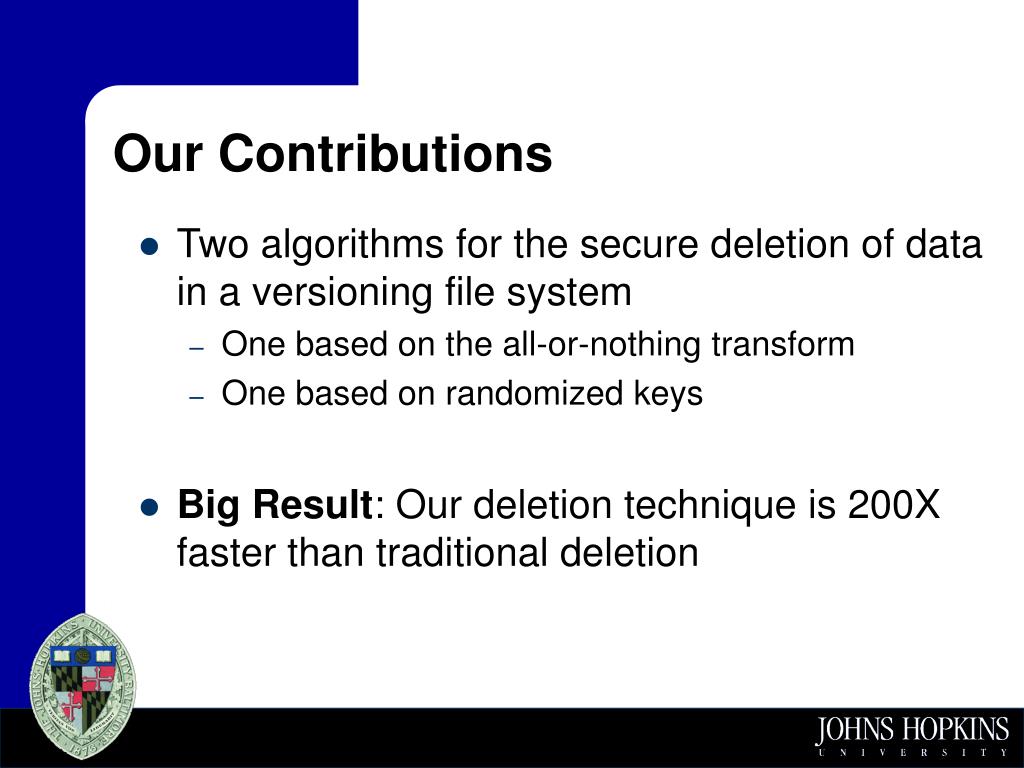

  18. Our Contributions • Two algorithms for the secure deletion of data in a versioning file system • One based on the all-or-nothing transform • One based on randomized keys • Big Result: Our deletion technique is 200X faster than traditional deletion

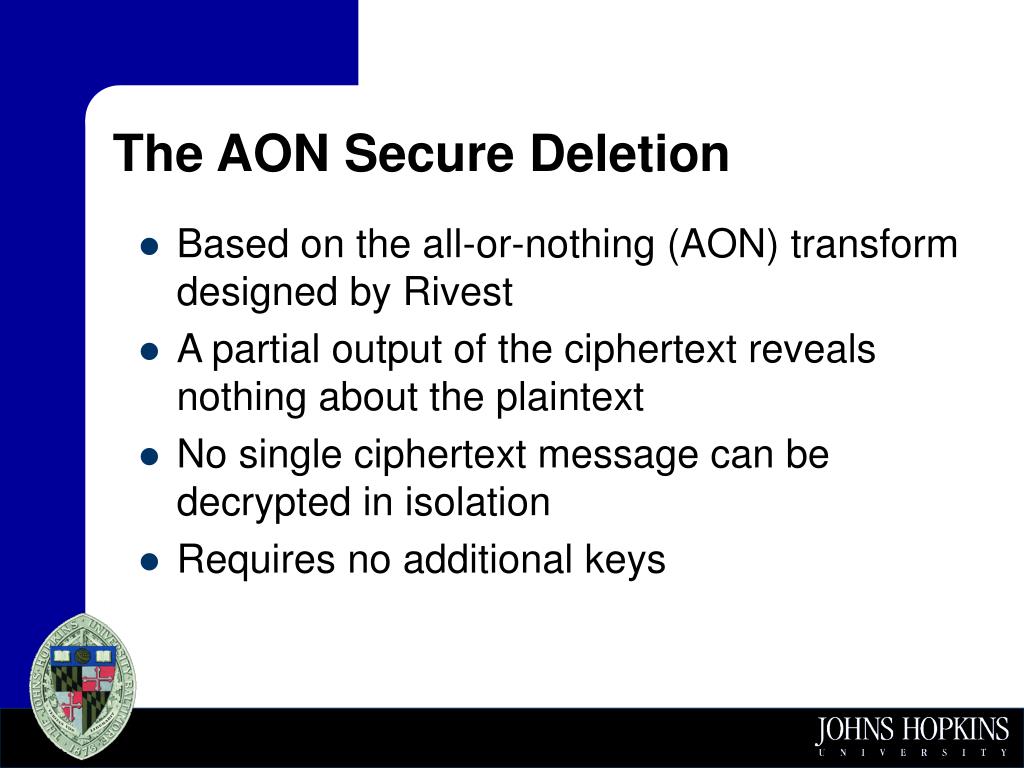

  19. The AON Secure Deletion • Based on the all-or-nothing (AON) transform designed by Rivest • A partial output of the ciphertext reveals nothing about the plaintext • No single ciphertext message can be decrypted in isolation • Requires no additional keys

  20. AON Secure Deletion • Overwriting any small subset of the ciphertext block deletes the entire block • The encryption creates a message expansion that is bound to the same AON properties • The expansion becomes the stub and can be securely overwritten to erase the entire data block

  21. Random Key Secure Deletion • Encryption must employ randomization to avoid such a text guessing attack • Each data block is encrypted with a randomly generated key • Each random key is encrypted with the user’s key, and serves as the stub • Like AON, uses authenticated encryption and does not need extra keys • Random key secure deletion draws upon the Boneh key disposal and lock-boxes in Plutus [Kallahalla03]

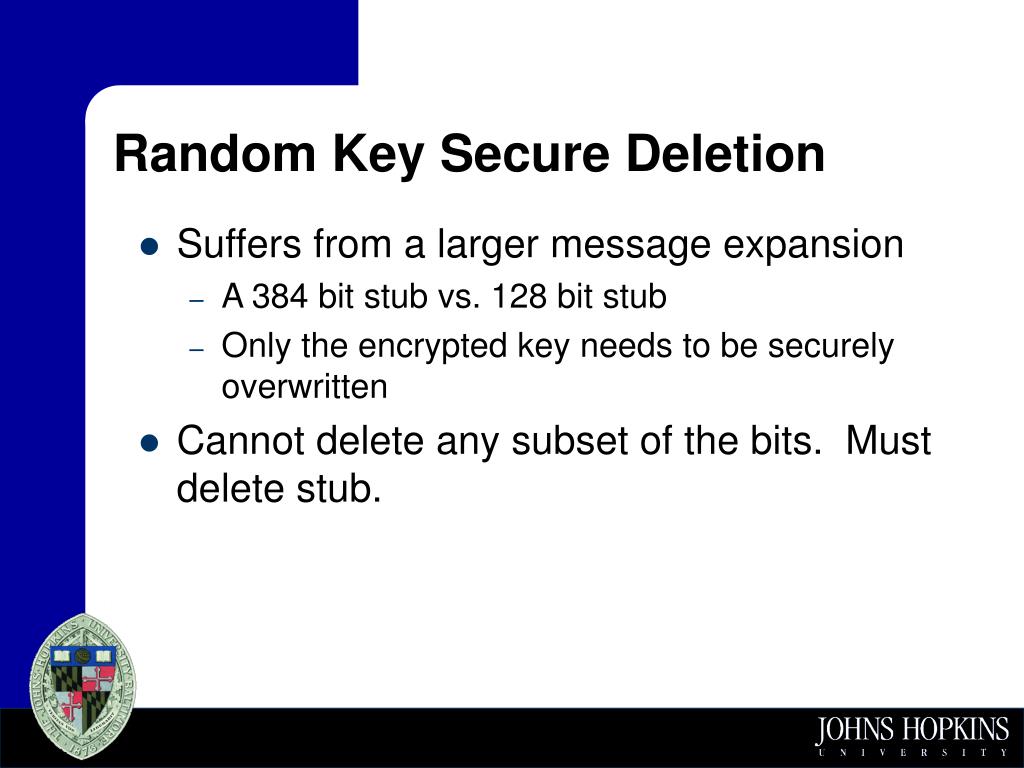

  22. Random Key Secure Deletion • Suffers from a larger message expansion • A 384 bit stub vs. 128 bit stub • Only the encrypted key needs to be securely overwritten • Cannot delete any subset of the bits. Must delete stub.

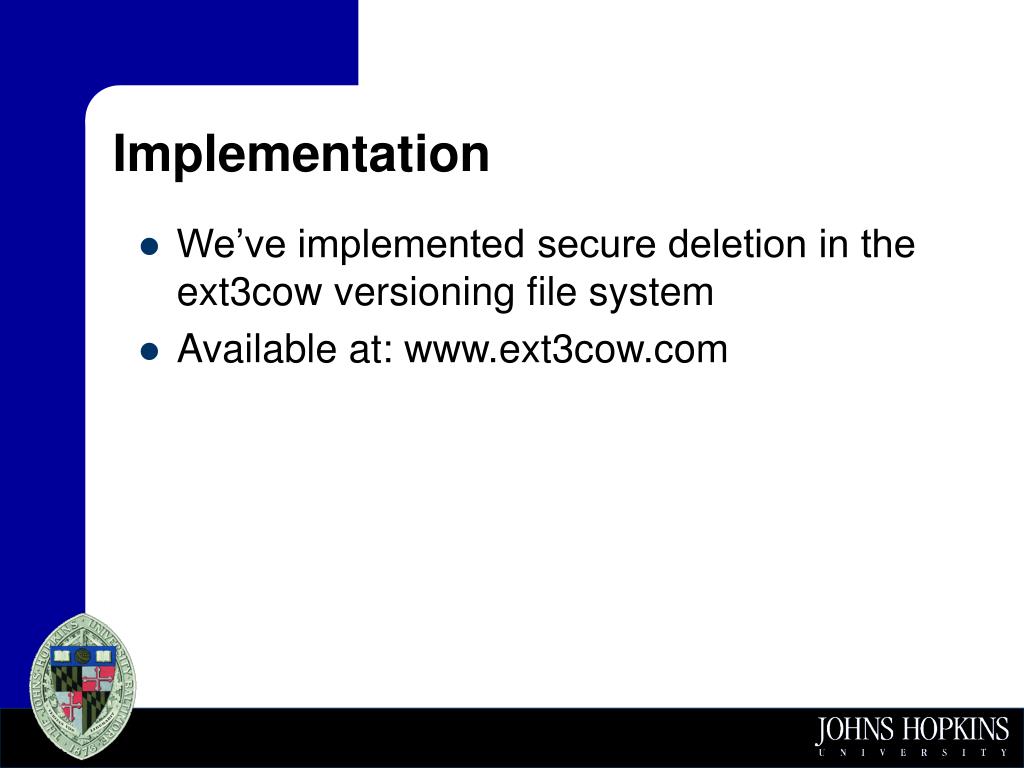

  23. Implementation • We’ve implemented secure deletion in the ext3cow versioning file system • Available at: www.ext3cow.com

  24. AON Encryption Input: Data Block d1,…dm, Block ID id, Counter x, Encryption key K, MAC key M Output: Ciphertext Block x1,…xm, Stub x0

  25. Random Key Encryption Input: Data Block d1,…dn, Block ID id, Counter x, Encryption key K, MAC key M Output: Ciphertext Block c1,…cn, Stub x0, Authentication t, c1,…cm

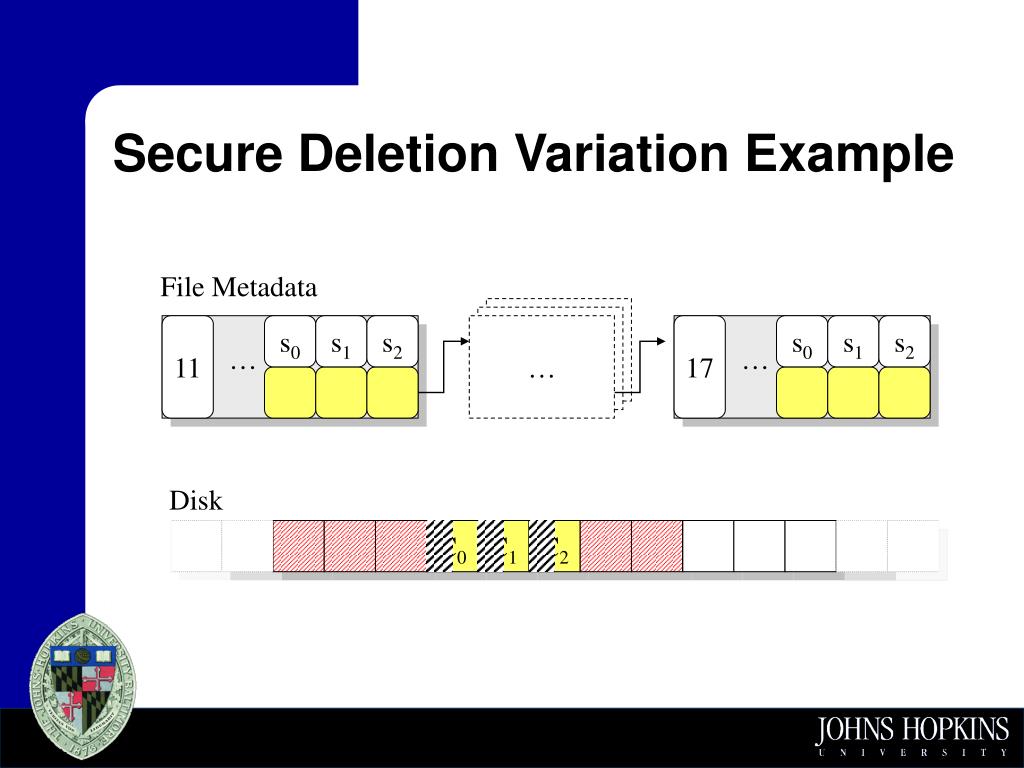

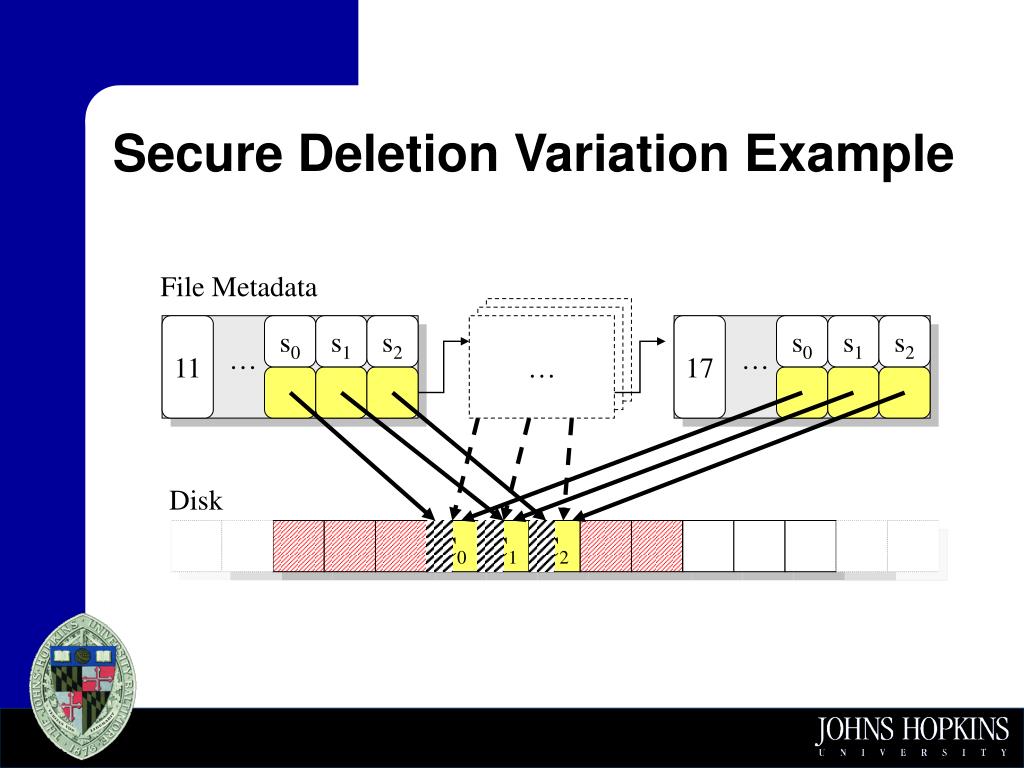

  26. Secure Deletion Variation Example File Metadata … … 11 s0 s1 s2 … 17 s0 s1 s2 … … Disk C0 C1 C2

  27. Secure Deletion Variation Example File Metadata … … 11 s0 s1 s2 … 17 s0 s1 s2 … … Disk C0 C1 C2

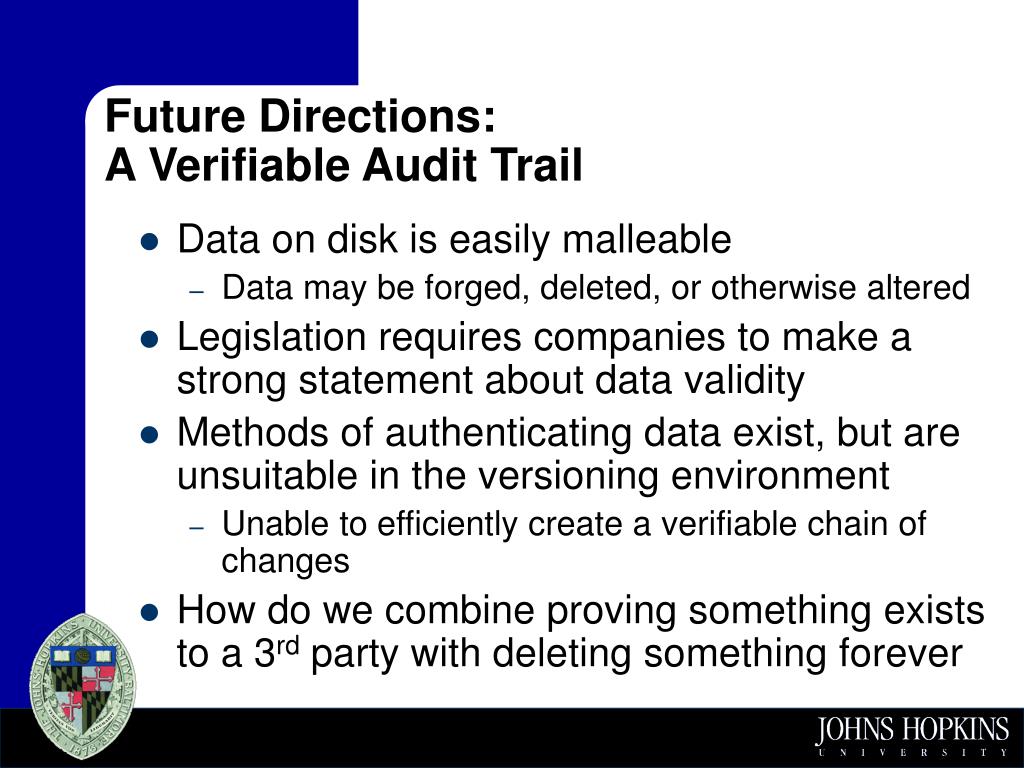

  28. Future Directions:A Verifiable Audit Trail • Data on disk is easily malleable • Data may be forged, deleted, or otherwise altered • Legislation requires companies to make a strong statement about data validity • Methods of authenticating data exist, but are unsuitable in the versioning environment • Unable to efficiently create a verifiable chain of changes • How do we combine proving something exists to a 3rd party with deleting something forever

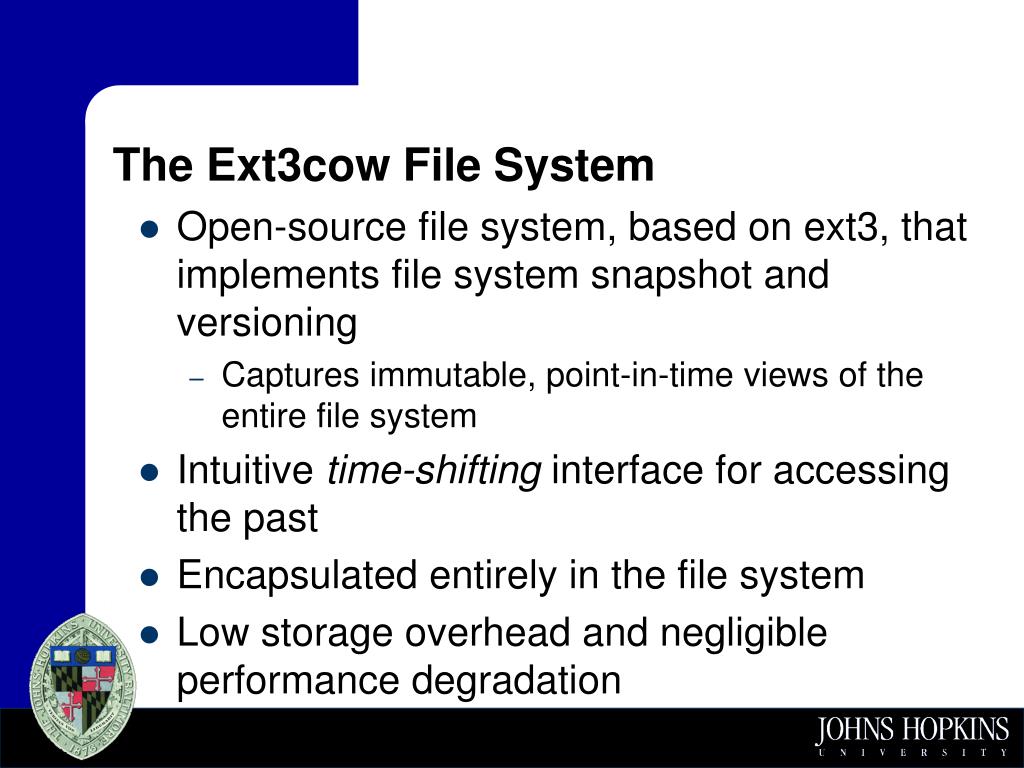

  29. The Ext3cow File System • Open-source file system, based on ext3, that implements file system snapshot and versioning • Captures immutable, point-in-time views of the entire file system • Intuitive time-shifting interface for accessing the past • Encapsulated entirely in the file system • Low storage overhead and negligible performance degradation

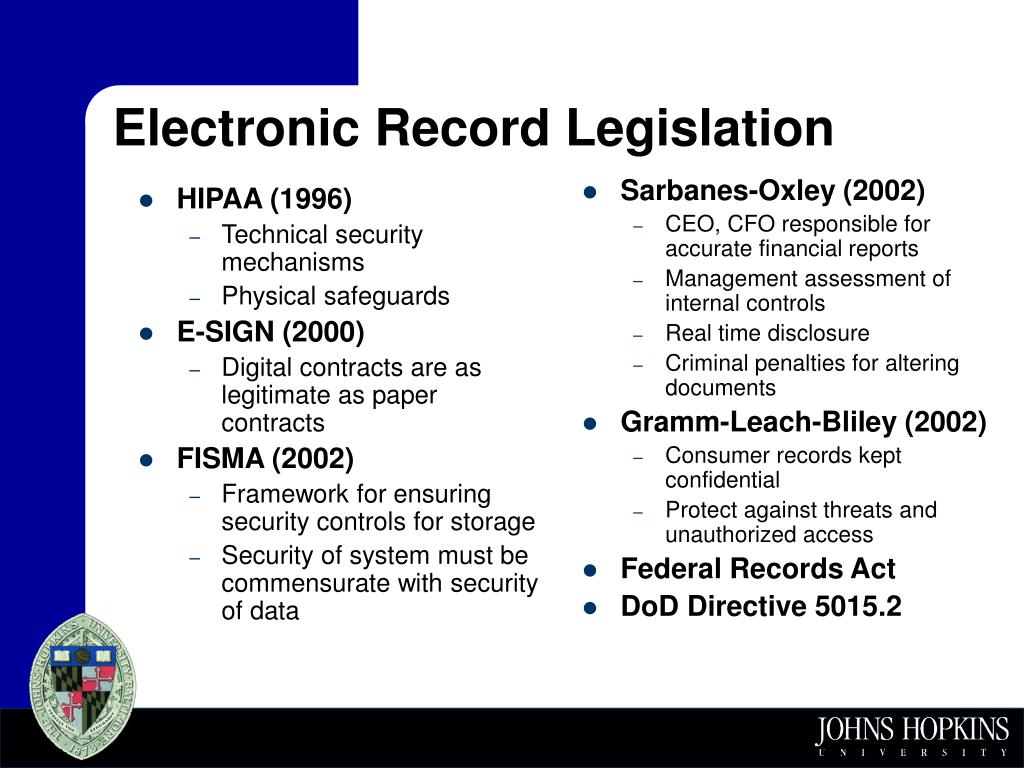

  30. HIPAA (1996) Technical security mechanisms Physical safeguards E-SIGN (2000) Digital contracts are as legitimate as paper contracts FISMA (2002) Framework for ensuring security controls for storage Security of system must be commensurate with security of data Sarbanes-Oxley (2002) CEO, CFO responsible for accurate financial reports Management assessment of internal controls Real time disclosure Criminal penalties for altering documents Gramm-Leach-Bliley (2002) Consumer records kept confidential Protect against threats and unauthorized access Federal Records Act DoD Directive 5015.2 Electronic Record Legislation

  31. Ext3cow Related Work • Enumerated Versions • Cedar, VMS, TOPS • No meaningful way to access old versions • File System Snapshot • FFS, LFS, Spiralog • Snapshot used for recovery • No access to past versions • WAFL • Discrete access to versions • Time-oriented interface • Elephant • No stable inodes • VFS implementation

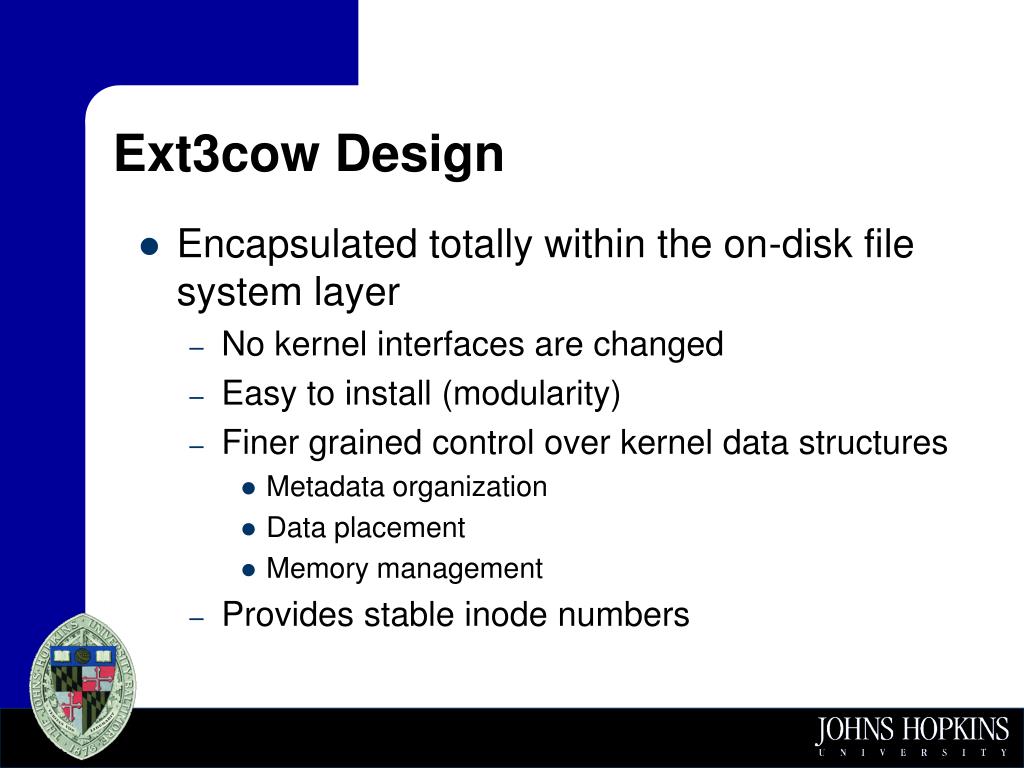

  32. Ext3cow Design • Encapsulated totally within the on-disk file system layer • No kernel interfaces are changed • Easy to install (modularity) • Finer grained control over kernel data structures • Metadata organization • Data placement • Memory management • Provides stable inode numbers

  33. Time-shifting Interface • Versions are accessed through a time-shifting interface • Time-shifting provides a continuous view of time • Past looks like a logically complete backup • Past is accessed via the ‘@’ token • cat filename@TIME • cd directory@TIME

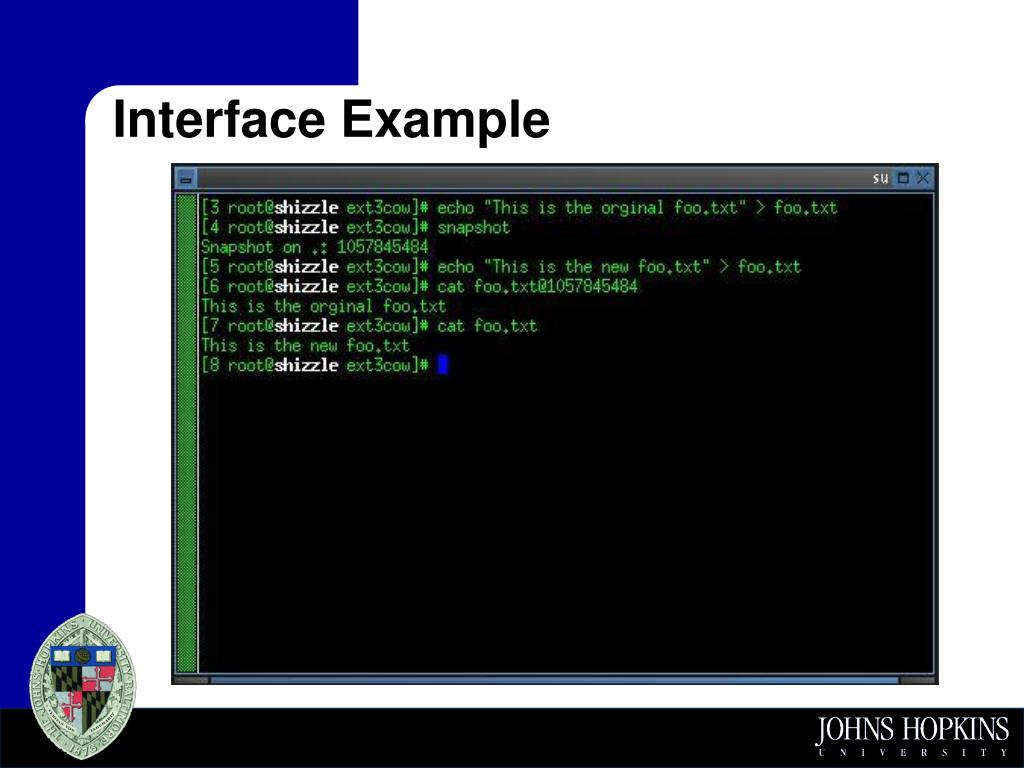

  34. Interface Example
