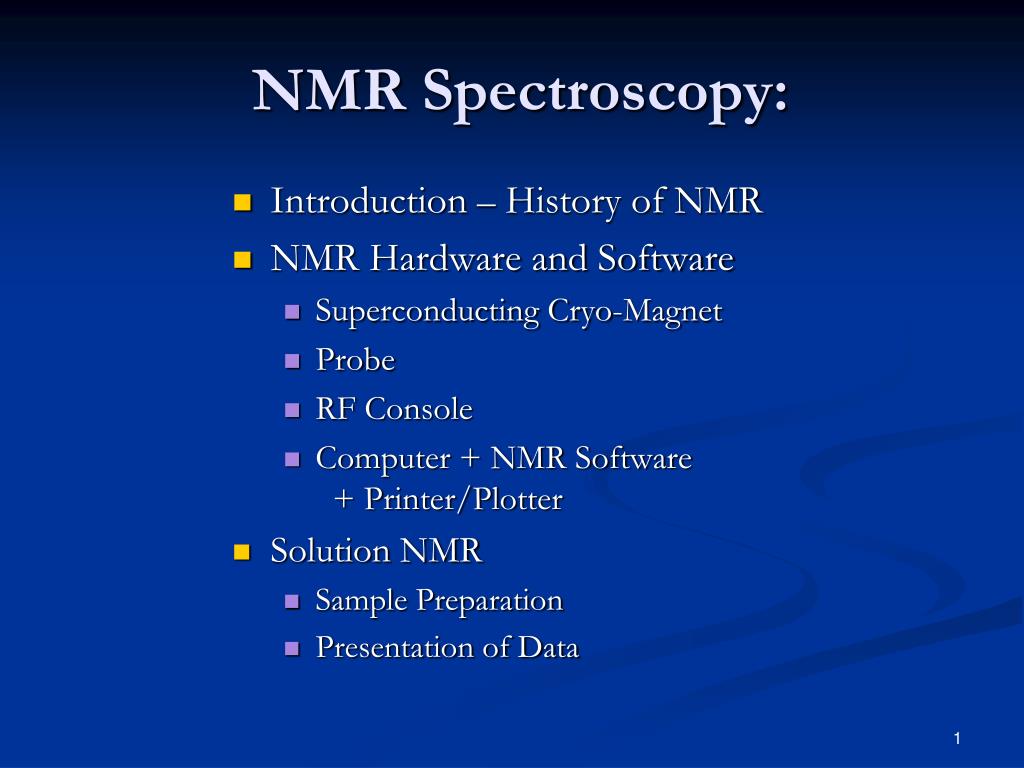

  1. NMR Spectroscopy: • Introduction – History of NMR • NMR Hardware and Software • Superconducting Cryo-Magnet • Probe • RF Console • Computer + NMR Software + Printer/Plotter • Solution NMR • Sample Preparation • Presentation of Data

  2. Important NMR Milestones • 1938 - NMR in molecular beams Rabi (Columbia University) • 1946 - NMR of Liquids and Solids Purcell, Torrey, Pound (Harvard) Bloch, Hansen, Packard (CalTech) • 1952 - First commercial NMR spectrometer • 1962 - First Superconducting Magnet for NMR • 1968 - First Pulse Fourier Transform NMR • 1969 - First Concept of MRI Scanners • 1971 - First 2D NMR Experiment – COSY (Jean Jeener) • 1985 - Protein Structures • 2009 - First Gigahertz NMR Spectrometer

  3. NMR Nobel Prize Winners • 1944 Isador Rabi • 1952 Felix Bloch & Edwin Purcell • 1991 Richard Ernst • 2002 Kurt Wüthrich • 2003 Paul Lauterbur & Sir Peter Mansfield From: Bruker SpinReport, Vol 153

  4. Laukien Prize Winners 1999 Konstantin Pervushin, Roland Riek, Gerhard Wider, and Kurt Wüthrich; TROSY 2000 LucioFrydman; Quadrupolar MQMAS 2001 Peter Boesiger, KlaasPrüßmann, Markus Weiger; Sensitivity-encoded magnetic resonance imaging 2002 Ad Bax, AkselBothner-By and James Prestegard; Residual dipolar couplings of weakly aligned molecules in solution 2003 Jacob Schaefer; REDOR Technique for Solid State NMR 2004 Lewis E. Kay, NMR of Biological Macromolecules 2005 Stephan Grzesiek, J couplings across hydrogen bonds 2006 Thomas Szyperski, Eriks Kupce, Ray Freeman, and Rafael Bruschweiler; Acceleration of Multi-dimensional NMR by novel procedures for scanning data space and efficiently processing results to obtain a conventional spectral representation 2007 Robert G. Griffin; High-field dynamic nuclear polarization (DNP) for sensitivity enhancement in solid-state MAS NMR 2008 Malcom H. Levitt; Optimized pulses and pulse sequences to enhance the power of liquid & solid state NMR 2009 Daniel P. Weitekamp; PASADENA and BOOMERANG significantly improve NMR force detection by circumventing the problems of inhomogeneous magnetic fields 2010 Paul T. Callahan; Contributions to the study of polymeric and heterogeneous materials by advanced NMR exchange, diffusion and relaxation techniques, and for his innovative q-space-diffusion-related developments that were relevant in the context of the development of diffusion-tensor imaging. 2011 Daniel Rugar, John Mamin, and John Sidles; Magnetic Resonance Force Microscopy (MRFM). 2012 KlaesGolman and Jan HenrikArdenkjaer-Larsen: Dissolution-DNP NMR

  5. Varian Prize Winners 2012 Ray Freeman and Weston A. Anderson Nuclear Magnetic Double Resonance 2011 Gareth Alun Morris, The University of Manchester, UK INEPT 2010 Martin Karplus, Harvard University, Cambridge, Massachusetts Karplus equations 2009 Albert W. Overhauser, Purdue University, West Lafayette, IN NOE & Dynamic Polarization 2008 Alexander Pines, UC Berkeley, and Lawrence Berkeley National Laboratory Cross Polarization 2007 Alfred G. Redfield, Brandeis University, Waltham, Massachusetts Spin Dynamics 2006 John S. Waugh, MIT, Cambridge, Massachusetts Average Hamiltonian Theory (AHT) 2005 Nicolaas Bloembergen, University of Arizona, Tucson, Arizona Nuclear Magnetic Relaxation 2004 Erwin L. Hahn, Professor Emeritus, University of California, Berkeley Spin Echoes 2002 Jean Jeener, UniversiteLibre de Bruxelles, Belgium Two-dimensional NMR

  6. NMR Spectroscopy • NUCLEAR • MAGNETIC • RESONANCE

  7. Superconducting Cryo-Magnet

  8. Superconducting Cryo-Magnet superconducting wire

  9. NMR Magnet Safety • NMR magnets are always charged! • NMR magnets may interfere with medical devices (i.e. pacemakers, insulin pumps) • NMR magnets will erase credit cards, ID cards, floppy disks, hard disks (some mp3 players). • NMR magnets and RF consoles may interfere with electronic and mechanical devices and may damage them (cell phones, pagers, watches, I-pods, etc.) • NMR magnets will attract ferromagnetic objects of any size (i.e. paper clips, coins, keys, pens, scissors, screw drivers, wrenches, metallic chairs, gas cylinders, etc.) and spectrometer and people may sustain severe damage or injury, if handled carelessly. • NMR magnets contain Cryogens (liquid Helium and Nitrogen) • Cryogens can cause severe burns if handled improperly (use eye protection and gloves during refills). • Cryogens evaporate and may cause asphyxiation if a lab is not properly ventilated. • During a magnet quench up to 100 liters of liquid Helium are vaporized in a matter of minutes (2600 cu ft, 70,000 liters gas) and may cause asphyxiation, even if the lab is well ventilated. If a magnet quenches, leave the lab immediately. Don’t panic, helium gas will rise to the ceiling and escape through cracks. • During a refill the refill rubber tubing may shatter. Frozen rubber cuts like glass!!

  10. NMR Magnet Safety • NMR magnets are always charged! • NMR magnets contain Cryogens (liquid Helium and Nitrogen)

  11. NMR Console with Computer

  12. RF Signal Generator Decoupler (1H): Amplifier Frequency Generator Transmitter: Amplifier Frequency Generator Frequency Generators and Signal Amplifiers are required for each RF channel. Our spectrometers have 2 channels, modern spectrometers can have up to 8 channels.

  13. NMR Probes Magic angle(54.7°) Solids Liquids Solids Liquids

  14. NMR Signal Generation Spectrometer: RF Generation: 90° 180 ° Pulse (Sequences): RD ττDE AQ Receiver: FT

  15. NMR Samples • Types of NMR sample holders • Sample preparation • Spectrum quality

  16. Types of NMR Sample Holders Solution NMR Sample Tube Spinners Solid State Sample Rotors NMR Sample Tubes with Caps

  17. NMR Sample Preparation Tubes and Caps: • NMR tubes are a standard length (7 and 9 inch). When chipped (and reduced in length) they should not be reused as an unbalanced tube will not spin. • Always clean the tubes thoroughly after use. First use the solvent you were using to recover your previous sample, then rinse several times with acetone and finally dry the sample tube laying flat on a layer of kimwipes or placed upside-down on a kimwipe in a beaker or Erlenmeyer flask. Choose the container so the tubes stand vertically. Don’t heat the tubes above 50 °C, as the glass might warp. Always store unused, clean tubes uncapped and laying on a flat surface. • Tube caps are disposable and replacements can be easily obtained in bags of 100 ($5) or 1000 ($40 at www.wilmad.com). Degassing Samples: • NMR spectra recorded using degassed solvents usually benefit from reduced half-height line-width and thus better S/N. (O2 gas is paramagnetic!) • There are several ways of degassing your sample: • the best is the freeze-pump-thaw technique, • placing the sample in a ultrasonic bath works moderately well, • bubbling nitrogen through or over the sample less well.

  18. NMR Sample Preparation Quantity: • For proton NMR spectra of small organic compounds (up to MW=500) anything between 1 and 20 mg of sample will be fine. Concentrated solutions can be viscous and may result in broad signals. Very dilute samples could be masked by impurities and solvent peaks. • Carbon-13 is present at approximately 1.1 % natural abundance. It is intrinsically less sensitive than protons (approx. six thousand times). Please provide as much sample as possible, 50 - 100 mg (or more) is fine. Preparing two samples - one dilute sample for proton NMR and one concentrated sample for carbon NMR is a useful, but unnecessary practice. • Solvent height (volume) should be uniform, 5 cm or 2 inches equal 0.5 ml. The ends of the sample distort the field homogeneity, shimming on each sample corrects this effect and takes just a minute or so. However, vastly different solvent heights (volumes) prevent complete correction and require many minutes shimming to achieve acceptable homogeneity. • Samples prepared with too much solvent waste both time and money, and provide poorer S/N. However, If you have limited amounts of sample (less than 1 mg), using less solvent is permissible. Minimum height: 1 cm, however, this requires special positioning of the sample tube and very intensive shimming.

  19. NMR Sample Preparation • Use clean + dry NMR tubes and caps (tubes can be re-used, caps should not!) • 0.5 ml deuterated solvent (i.e. CDCl ,C D , acetone-d ,etc.) • substrate requirements for routine spectra: 10 mg for proton NMR 100 mg for carbon-13 NMR • min. filling height of tube: 2 inches (5 cm) • Cleaning of tubes: 1. rinse with solvent you were using 2. rinse with acetone 3. dry in (vacuum-)oven at low temperature 5 mm 3 6 6 6

  20. NMR Sample Preparation Clean clear solution Suspension or opaque solution Concentration gradient Two phases Not enough solvent Precipitate GOOD! B a d S a m p l e s !

  21. NMR Sample Preparation Shimming improves the magnetic field homogeneity If the magnetic field is not uniform within the sample, molecules in different positions will experience different field strengths. This will produce broad, distorted, or additional signals.

  22. … are the result of: • Homogeneity of magnetic field • Sample preparation • Choice of solvent • Data acquisition parameters • Processing procedures Good and bad NMR Spectra

  23. Good spectrum ppm ppm

  24. Good spectrum ppm Peakpicking Integrals ppm ppm scale

  25. Good spectrum ppm ppm

  26. Bad spectrum ?

  27. Bad spectrum ! No units specified for axis and peak picking Signal/Noise ratio bad

  28. Bad spectrum ?

  29. Bad spectrum ! Tall signals are cut off

  30. Bad spectrum ?

  31. Bad spectrum ! Signals too small (only allowed when trying to compare signal intensities between different spectra)

  32. Bad spectrum ?

  33. Bad spectrum ! Broad signals Possible reasons: poor shimmingviscous samplesample too concentratedsuspended particles in sample excessive line broadening may have been used during processing

  34. Bad spectrum ?

  35. Bad spectrum ! Signals are distorted (automatic phase correction is often insufficient) Excessive peak picking (low p.p. threshold,also due to improper phasing)

  36. Bad spectrum ?

  37. Bad spectrum ? Areas without signals should be excluded. (If you want to print all your spectra with a default range, i.e. 0-10 ppm, don’t forget to print detailed expansions.)

  38. Lab Assignments Instrument:600 300 100 1. 3x2 hrs x x x Comprehensive 1H NMR and Indirect 13C Observation 25% 2. 2x2 hrs x x Pulse Width Calibration and B1 100 mg 3. 2x2 hrs x x Rare spin NMR (13C, 17O, 29Si) 80% 4. 3 hrs x Decoupling 1H from 13C and B2 100 mg 5. 2 hrs x Spin Echo and Spin/Spin Relaxation, 13C - T2 100 mg 6. 2 hrs x x Spin/Lattice Relaxation, 13C - T1 100 mg 7. 3 hrs x x Nuclear Overhauser Effect 10 mg 8. 2 hrs x Polarization Transfer and DEPT 10 mg 9. 3 hrs d x 13C CP/MAS in Solids (sample provided) 10. 2 hrs x HETCOR (1H/13C HSQC) 10 mg 11. 2 hrs x 1H COSY / NOESY 25 mg Use your own samples, if possible. Familiarize yourselves with the procedures for each experiment, before you come to the lab. Print the manuals. http://nmr.binghamton.edu

  39. In all assignments you are expected to report on the following information: • Signal-to-noise ratio • Chemical shifts and method of reference in relation to structure • J coupling (homo and heteronuclear) in relation to structure • Peak intensity and area in relation to concentration and structure/dynamics/relaxation • Effect of B0 / lab magnetic field strength, Larmor frequency and gyromagnetic ratio • Effect of B0 inhomogeneity • Pulse width and tip angle • Magnitude of B1 and B2 fields / rf field strengths used • Effect of B1 and B2 inhomogeneity • Effects of O1 and O2 / frequency offsets • Effects of sample spinning and location of spinning sidebands • Method of decoupling if used as well as effectiveness • Solvent and temperature used • Pulse sequence and instrument control programming • All critical instrument or data processing parameters • Vector and spin diagrams, as needed. • Note any experimental or instrumental anomalies The spectrometer manual to be used in this course can be downloaded from: http://www.chem.binghamton.edu/staff/schulte/CHEM585f/Chem585f-Bruker.doc

  40. A letter in the New Scientist of 17 April 1999, signed by Terry McStea, Whitburn, Tyne and Wear: Your article on MRI (This Week, 3 April, p 7) reminded me of a story, probably untrue, related by a doctor friend. MRI used to be known in hospitals as nuclear magnetic resonance, or NMR. Unfortunately, patients who arrived at the hospital asking for "an NMR" often received a treatment that they were not expecting. Hence the change to MRI.
