Bearing noise (anti-friction bearing)

norah avatar
1 diapositives · 1.7K Views · Aug 08, 2014

Essential influencing variables on rolling bearing noise. Bearing noise direct after installation (without regreasing) damaged bearing (e.g. motor transportation/storage, coupling/bulley assembly, bearing assembly, bearing manufacturing)

Bearing noise (anti-friction bearing) - slide 1
01 / 1Bearing noise (anti-friction bearing)
1 / 17

Télécharger la présentation

Bearing noise (anti-friction bearing)
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

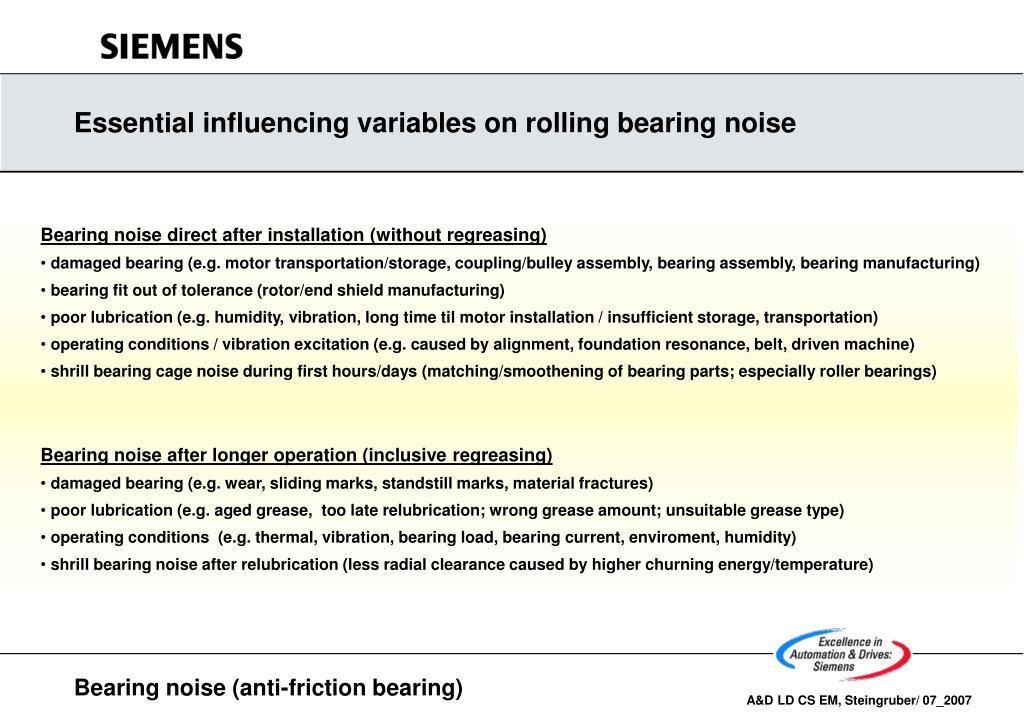

  1. Essential influencing variables on rolling bearing noise • Bearing noise direct after installation (without regreasing) • damaged bearing (e.g. motor transportation/storage, coupling/bulley assembly, bearing assembly, bearing manufacturing) • bearing fit out of tolerance (rotor/end shield manufacturing) • poor lubrication (e.g. humidity, vibration, long time til motor installation / insufficient storage, transportation) • operating conditions / vibration excitation (e.g. caused by alignment, foundation resonance, belt, driven machine) • shrill bearing cage noise during first hours/days (matching/smoothening of bearing parts; especially roller bearings) • Bearing noise after longer operation (inclusive regreasing) • damaged bearing (e.g. wear, sliding marks, standstill marks, material fractures) • poor lubrication (e.g. aged grease, too late relubrication; wrong grease amount; unsuitable grease type) • operating conditions (e.g. thermal, vibration, bearing load, bearing current, enviroment, humidity) • shrill bearing noise after relubrication (less radial clearance caused by higher churning energy/temperature) Bearing noise (anti-friction bearing)
