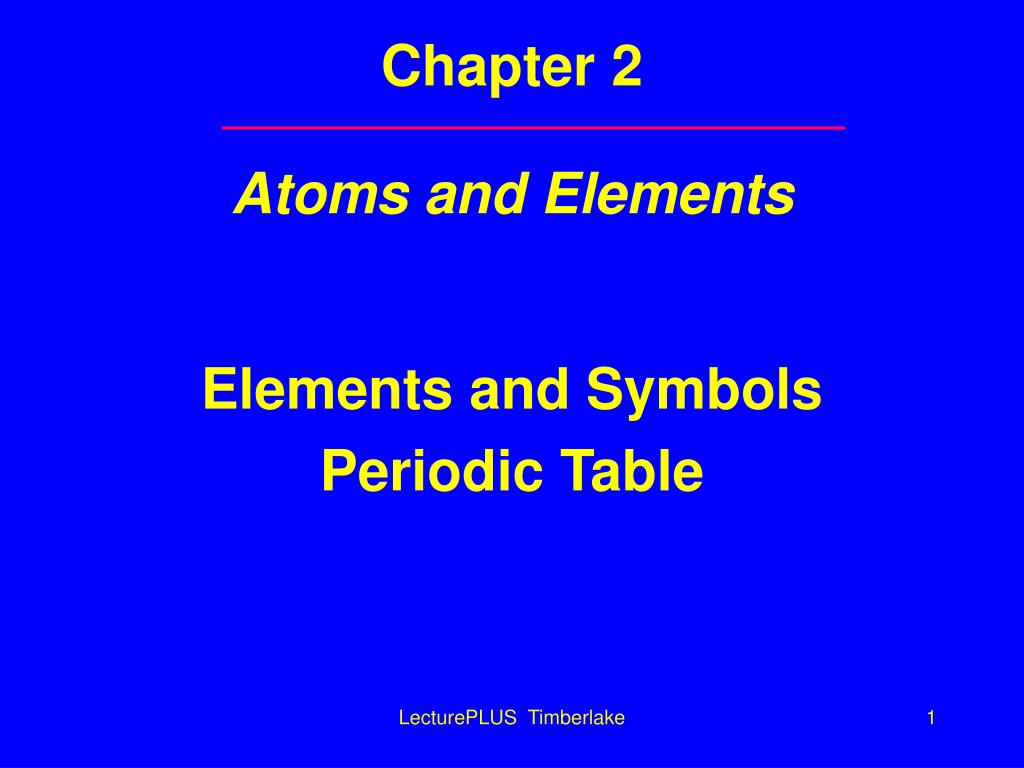

  1. Chapter 2Atoms and Elements Elements and Symbols Periodic Table LecturePLUS Timberlake

  2. Elements • Pure substances that cannot be separated into different substances by ordinary processes • Are the building blocks of matter • 112 elements known today Examples: carbon gold calcium LecturePLUS Timberlake

  3. Symbols of Elements • Use 1 or 2 letter abbreviations • Capitalize the first letter only Examples: C carbon Co cobalt N nitrogen Ca calcium F fluorine Br bromine O oxygen Mg magnesium LecturePLUS Timberlake

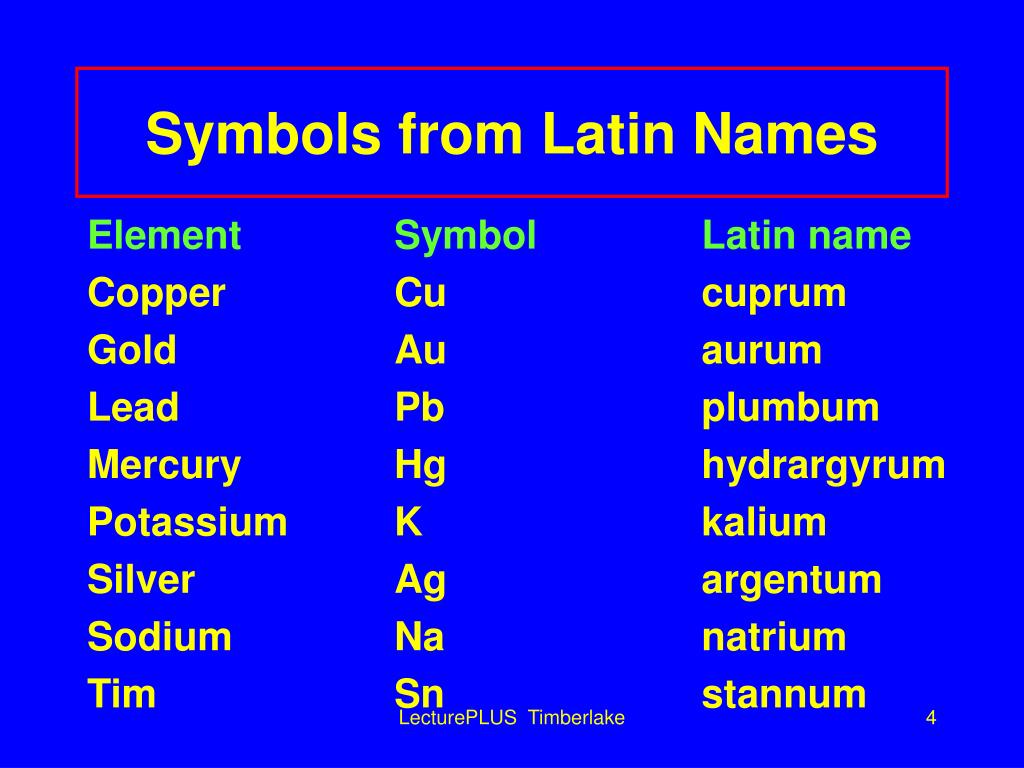

  4. Symbols from Latin Names Element Symbol Latin name Copper Cu cuprum Gold Au aurum Lead Pb plumbum Mercury Hg hydrargyrum Potassium K kalium Silver Ag argentum Sodium Na natrium Tim Sn stannum LecturePLUS Timberlake

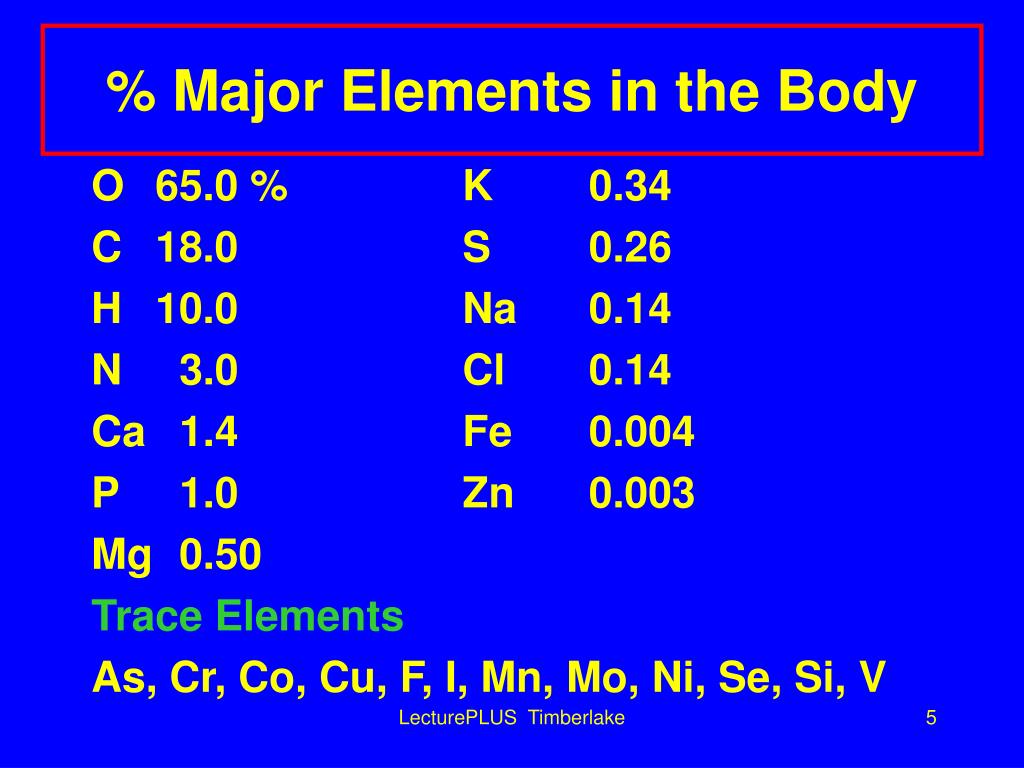

  5. % Major Elements in the Body O 65.0 % K 0.34 C 18.0 S 0.26 H 10.0 Na 0.14 N 3.0 Cl 0.14 Ca 1.4 Fe 0.004 P 1.0 Zn 0.003 Mg 0.50 Trace Elements As, Cr, Co, Cu, F, I, Mn, Mo, Ni, Se, Si, V LecturePLUS Timberlake

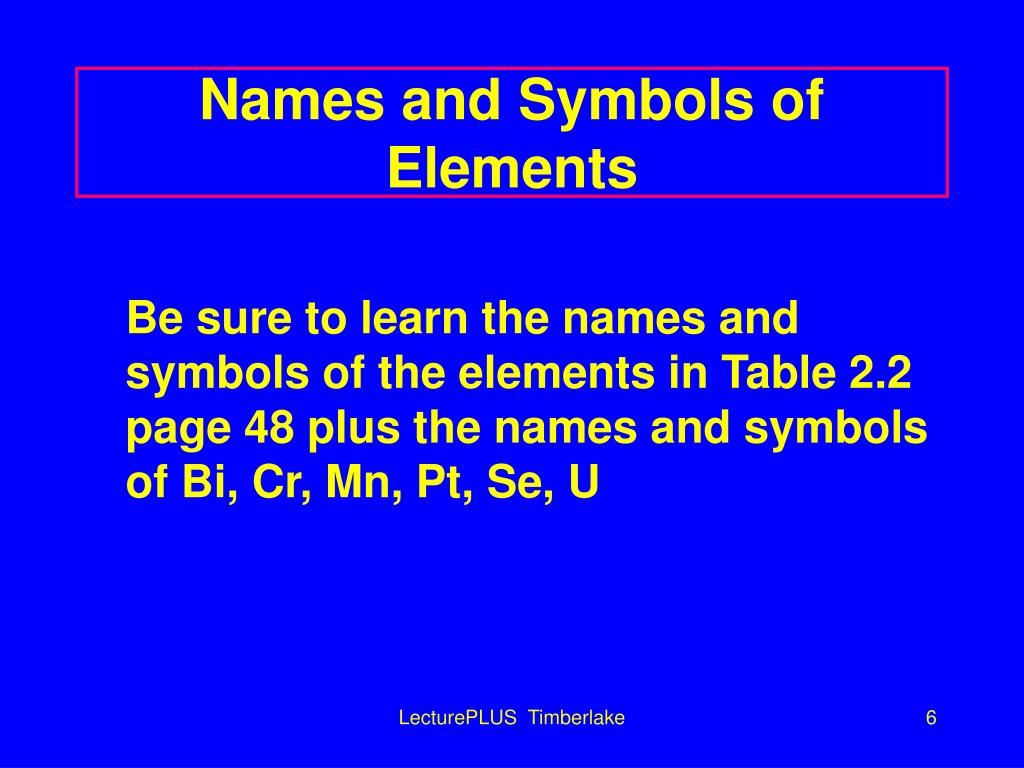

  6. Names and Symbols of Elements Be sure to learn the names and symbols of the elements in Table 2.2 page 48 plus the names and symbols of Bi, Cr, Mn, Pt, Se, U LecturePLUS Timberlake

  7. Learning Check E1 Select the correct symbol for each: A. Calcium 1) C 2) Ca 3) CA B. Sulfur 1) S 2) Sl 3) Su C. Iron 1) Ir 2) FE 3) Fe LecturePLUS Timberlake

  8. Solution E1 Select the correct symbol for each: A. Calcium 2) Ca B. Sulfur 1) S C. Iron 3) Fe LecturePLUS Timberlake

  9. Learning Check E2 Select the correct name for each: A. N 1) neon 2) nitrogen 3) nickel B. P 1) potassium 2) phogiston 3) phosphorus C. Ag 1) silver 2) agean 3) gold LecturePLUS Timberlake

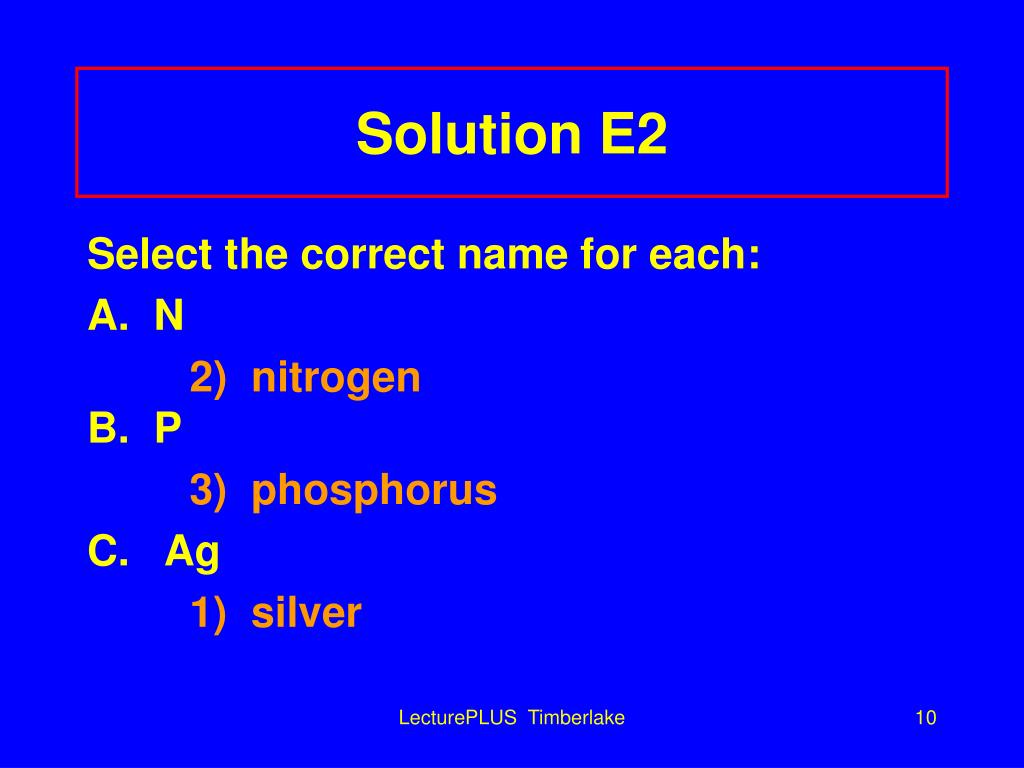

  10. Solution E2 Select the correct name for each: A. N 2) nitrogen B. P 3) phosphorus C. Ag 1) silver LecturePLUS Timberlake

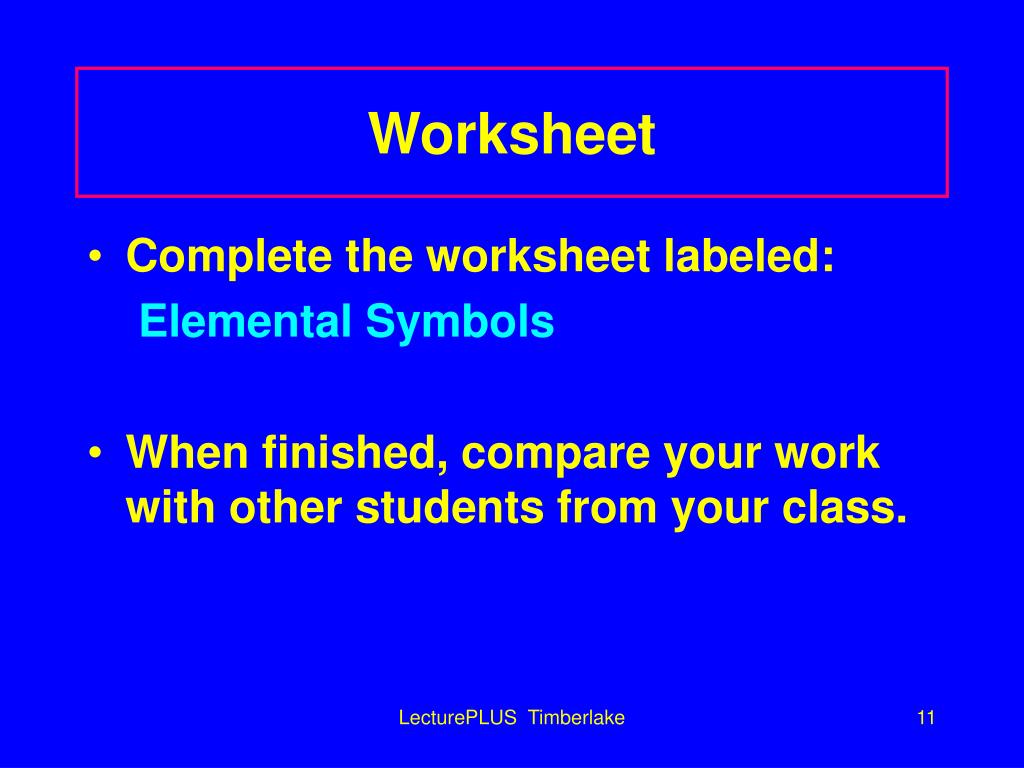

  11. Worksheet • Complete the worksheet labeled: Elemental Symbols • When finished, compare your work with other students from your class. LecturePLUS Timberlake

  12. Periodic Table The periodic table is an arrangement of the elements according to similarities in their chemical and physical properties. LecturePLUS Timberlake

  13. Physical Properties The characteristics of a substance that can be observed without changing the substance. • Color • Size • Shape • Density • Freezing and Boiling Points • Odor LecturePLUS Timberlake

  14. Groups of Elements • Vertical columns on the periodic table • Similar physical properties • Similar chemical properties LecturePLUS Timberlake

  15. Groups on the Periodic Table 1 2 3 4 5 6 7 8 LecturePLUS Timberlake

  16. Representative Groups • Group 1 Alkali Metals • Group 2 Alkaline Earth Metals • Group 7 Halogens • Group 8 Noble Gases LecturePLUS Timberlake

  17. Location of Some Groups 1 2 3 4 5 6 7 8 A l m k e a t l a i l s A l k a l i n e H a l o g e n s I G n a e s r e t s LecturePLUS Timberlake

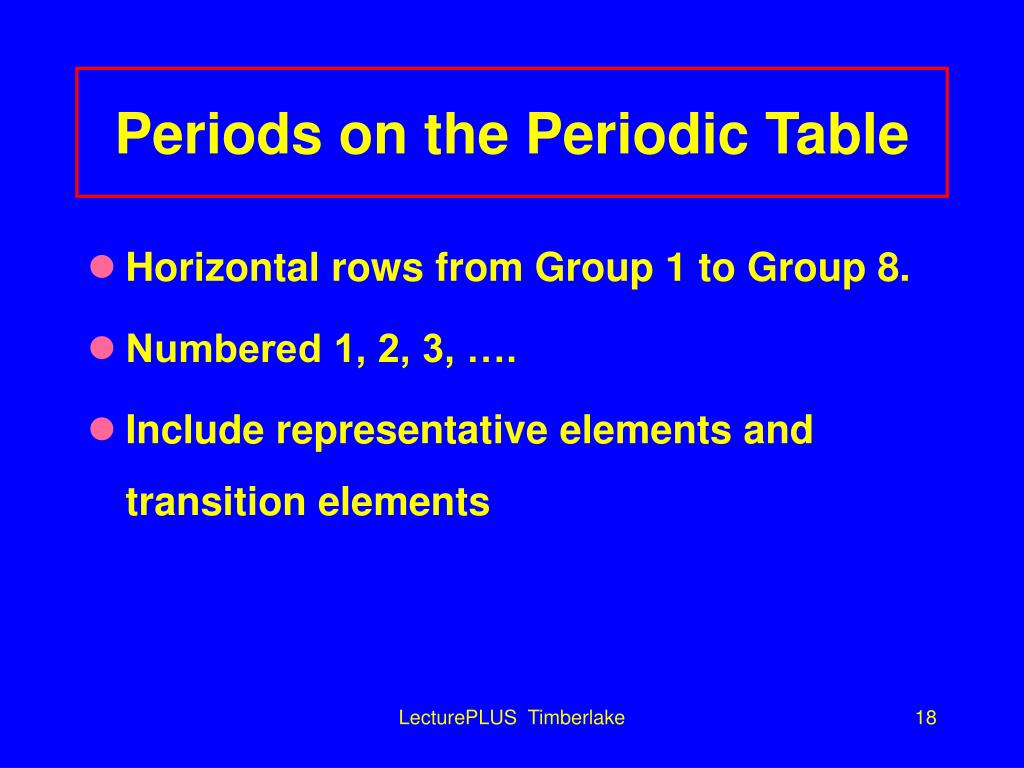

  18. Periods on the Periodic Table • Horizontal rows from Group 1 to Group 8. • Numbered 1, 2, 3, …. • Include representative elements and transition elements LecturePLUS Timberlake

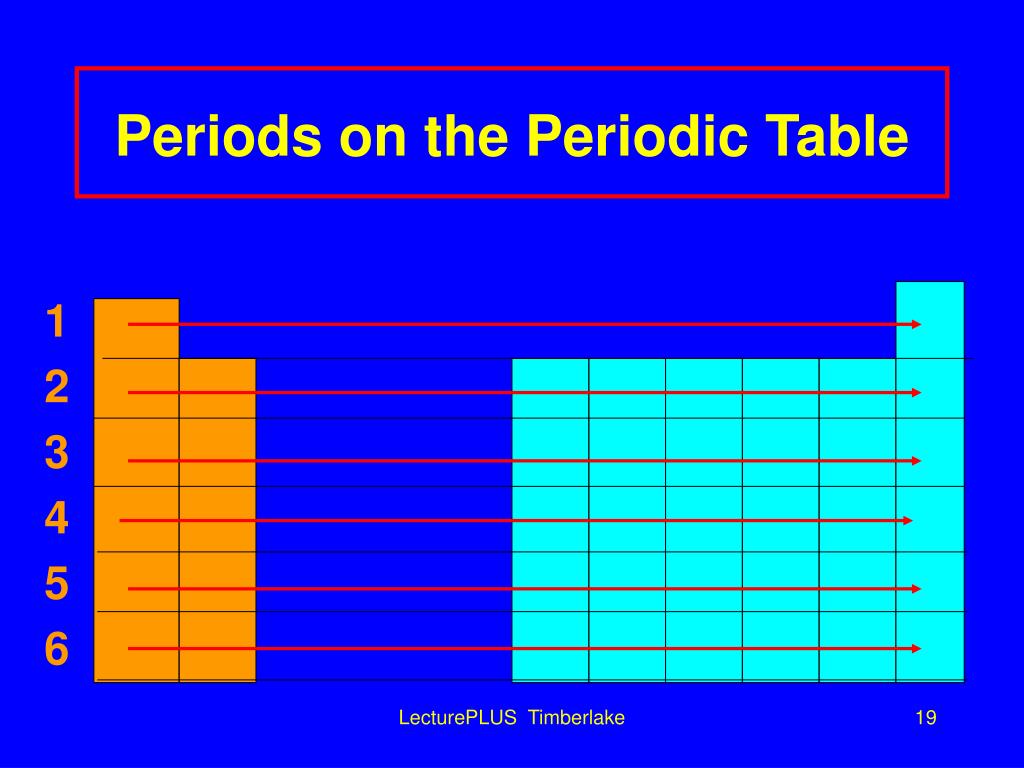

  19. Periods on the Periodic Table 1 2 3 4 5 6 LecturePLUS Timberlake

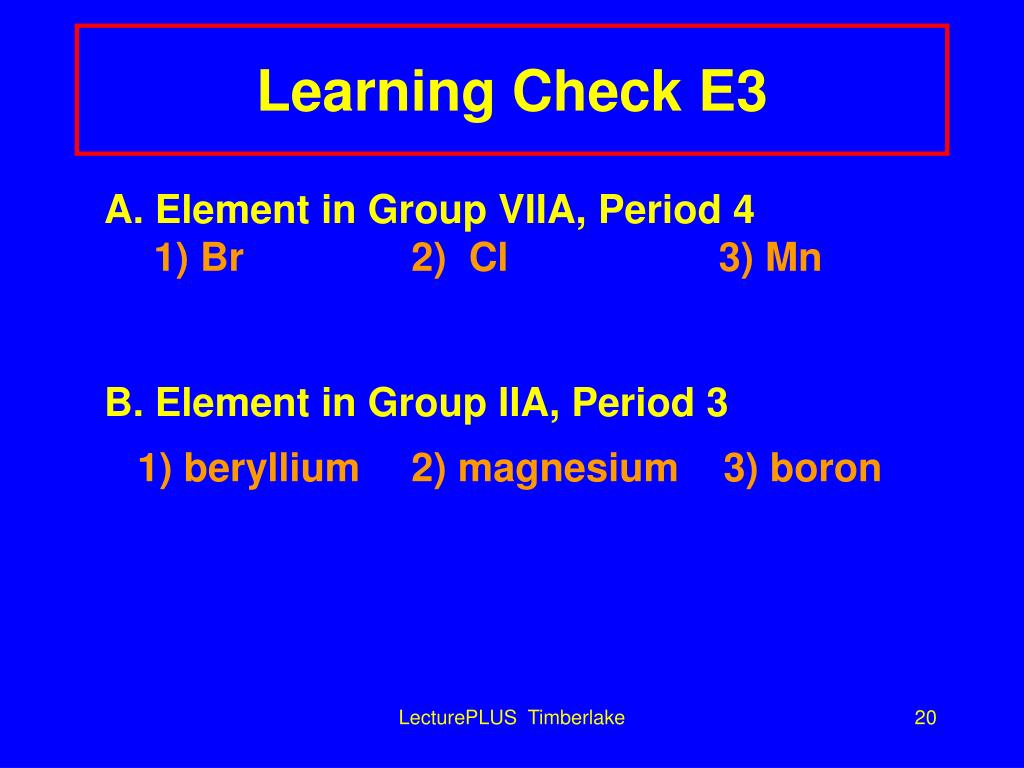

  20. Learning Check E3 A. Element in Group VIIA, Period 4 1) Br 2) Cl 3) Mn B. Element in Group IIA, Period 3 1) beryllium 2) magnesium 3) boron LecturePLUS Timberlake

  21. Solution E3 A. Element in Group 7A, period 4 1) Br B. Element in Group 2A, Period 3 2) magnesium LecturePLUS Timberlake

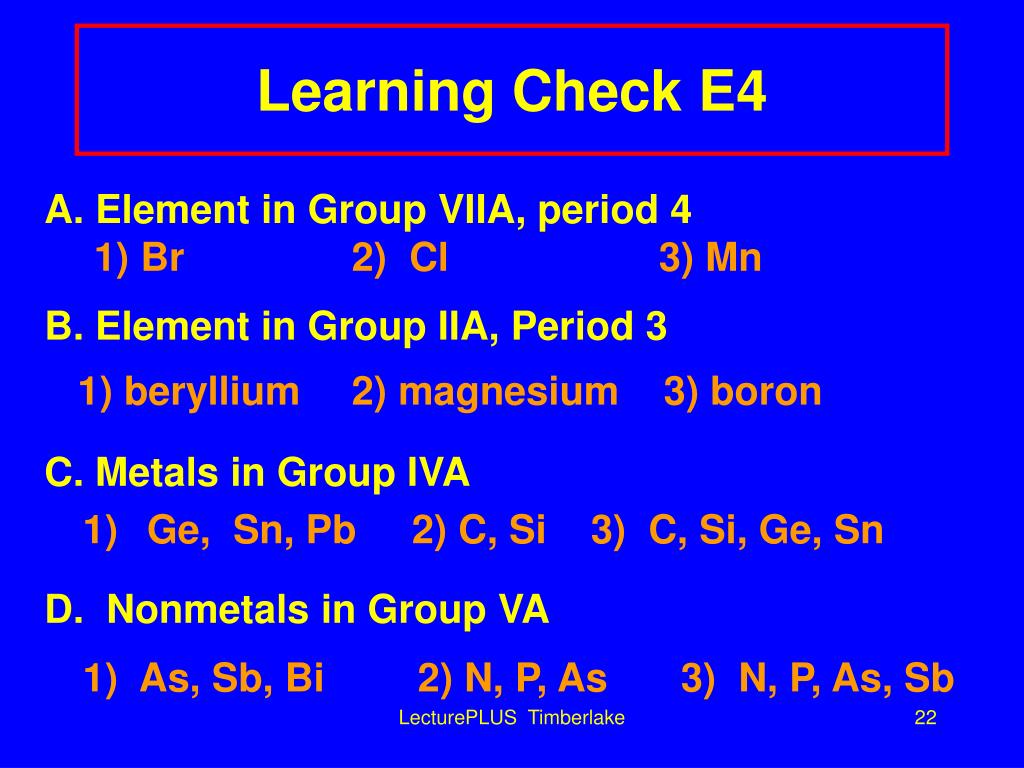

  22. Learning Check E4 A. Element in Group VIIA, period 4 1) Br 2) Cl 3) Mn B. Element in Group IIA, Period 3 1) beryllium 2) magnesium 3) boron C. Metals in Group IVA 1) Ge, Sn, Pb 2) C, Si 3) C, Si, Ge, Sn D. Nonmetals in Group VA 1) As, Sb, Bi 2) N, P, As 3) N, P, As, Sb LecturePLUS Timberlake

  23. Solution E4 A. Element in Group VIIA, period 4 1) Br B. Element in Group IIA, Period 3 2) magnesium C. Metals in Group IVA 1) Ge, Sn, Pb D. Nonmetals in Group VA 2) N, P, As LecturePLUS Timberlake

  24. Metals and Nonmetals Metals • Located to the left of the heavy line • Shiny, ductile • Good conductors of heat and electricity Nonmetals • Located to the right of the heavy line • Dull and brittle • Poor conductors, good insulators LecturePLUS Timberlake

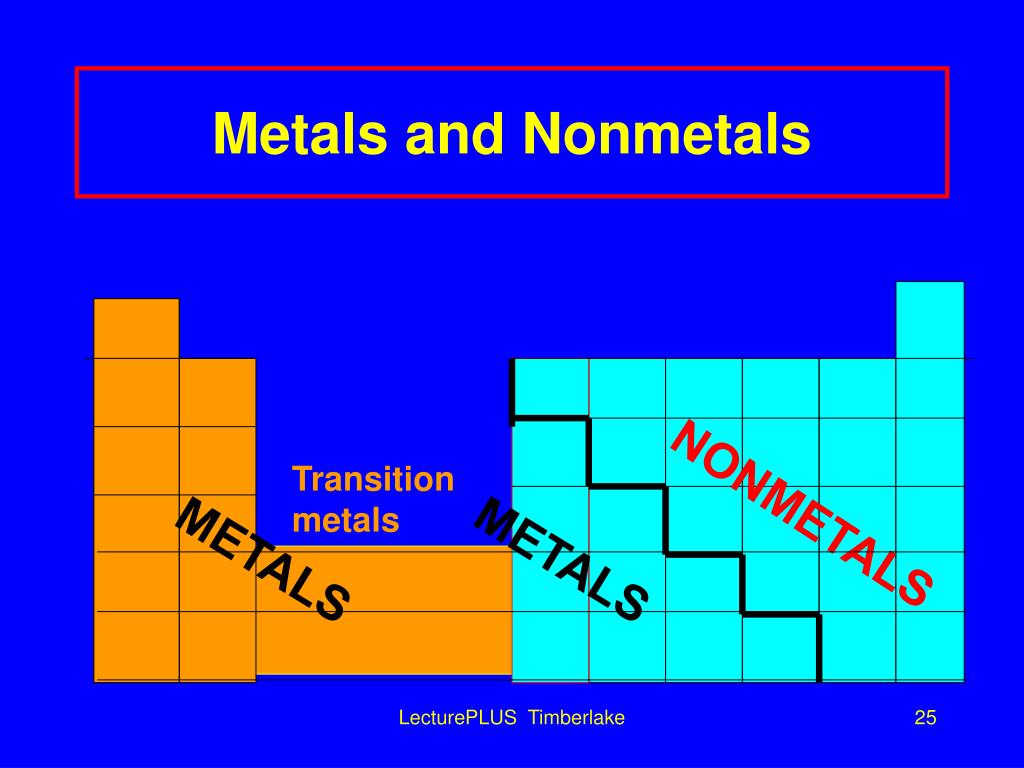

  25. Metals and Nonmetals Transition metals NONMETALS METALS METALS LecturePLUS Timberlake

  26. Learning Check E5 Specify metal (1) or nonmetal (2) for each: A. sulfur ____ B. chlorine ____ C. sodium ____ D. iron ____ E. carbon ____ F. silver ____ LecturePLUS Timberlake

  27. Solution E5 Specify metal (1) or nonmetal (2) for each: A. sulfur __2__ B. chlorine __2__ C. sodium __1__ D. iron __1__ E. carbon __2__ F. silver __1__ LecturePLUS Timberlake

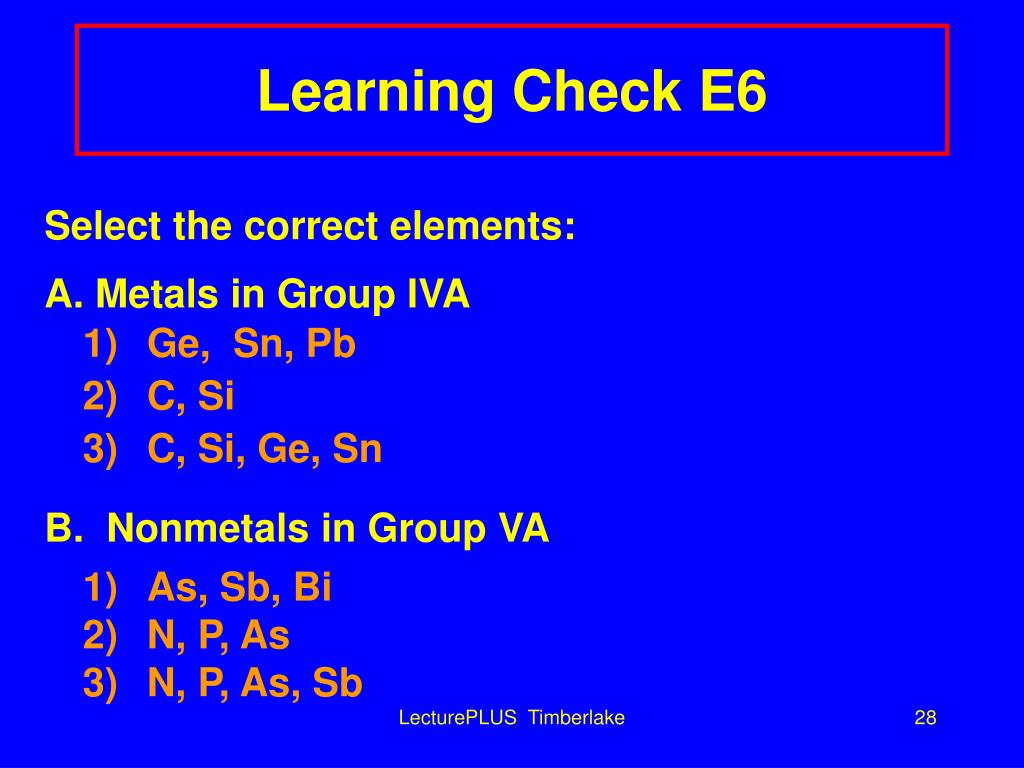

  28. Learning Check E6 Select the correct elements: A. Metals in Group IVA 1) Ge, Sn, Pb 2) C, Si 3) C, Si, Ge, Sn B. Nonmetals in Group VA 1) As, Sb, Bi 2) N, P, As 3) N, P, As, Sb LecturePLUS Timberlake

  29. Solution E6 A. Metals in Group 4A 1) Ge, Sn, Pb B. Nonmetals in Group 5A 2) N, P, As LecturePLUS Timberlake
