Presentation Transcript

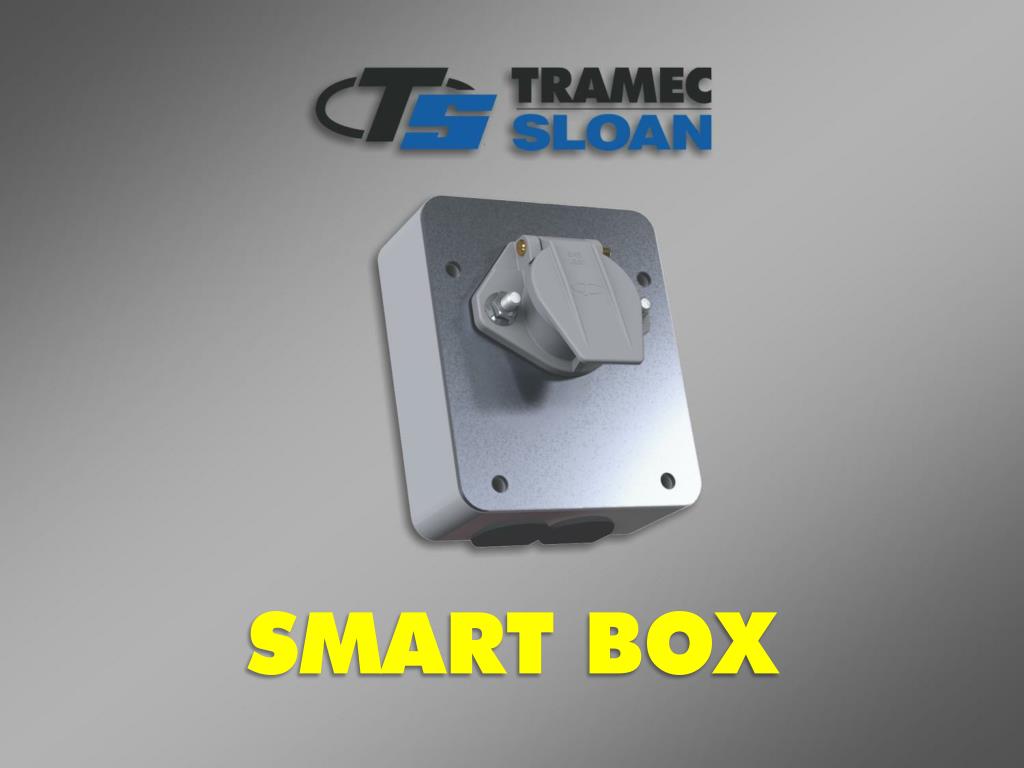

  1. SMART BOX

  2. Connectors Evolved From 4-Pin to the SAE J560 7-Pin

  3. Stacking Studs Wire Connections Evolved Circuit Breakers Direct to Pin

  4. Ever More Devices Created Today’s “Spaghetti Ball” of Wire

  5. Today’s Solution: The SMART BOX

  6. SMART BOX Patented • Standard Mounting Bolt Layout • Two Cable Entry Grommets • Wiring On Studs In The Box • Remains Stationary

  7. SMART BOX • Wiring Remains Undisturbed • All Wiring Is Enclosed • Reinforced Nylon Housing • Anodized Aluminum Cover

  8. SMART BOX Simply Plug In the Receptacle and Secure with Two Nuts

  9. Plated Brass Terminals Stainless Gripper Spring

  10. Available in Auxiliary (ISO) & Primary Versions

  11. As a Dual Box with Auxiliary (ISO) & Primary Receptacles

  12. Available With Circuit Breakers

  13. ... and a Jumbo Version for Junction Box Use

  14. … Or the SMART Way? This Way ...

  15. SMART BOX Fleet Friendly
