  1. Final Jeopardy Final Jeopardy “types”

  2. Final Jeopardy Triple-shortest/strongest—single longest/weakest—double in between • Categorize the bond strengths and lengths of double, triple and single bonds.

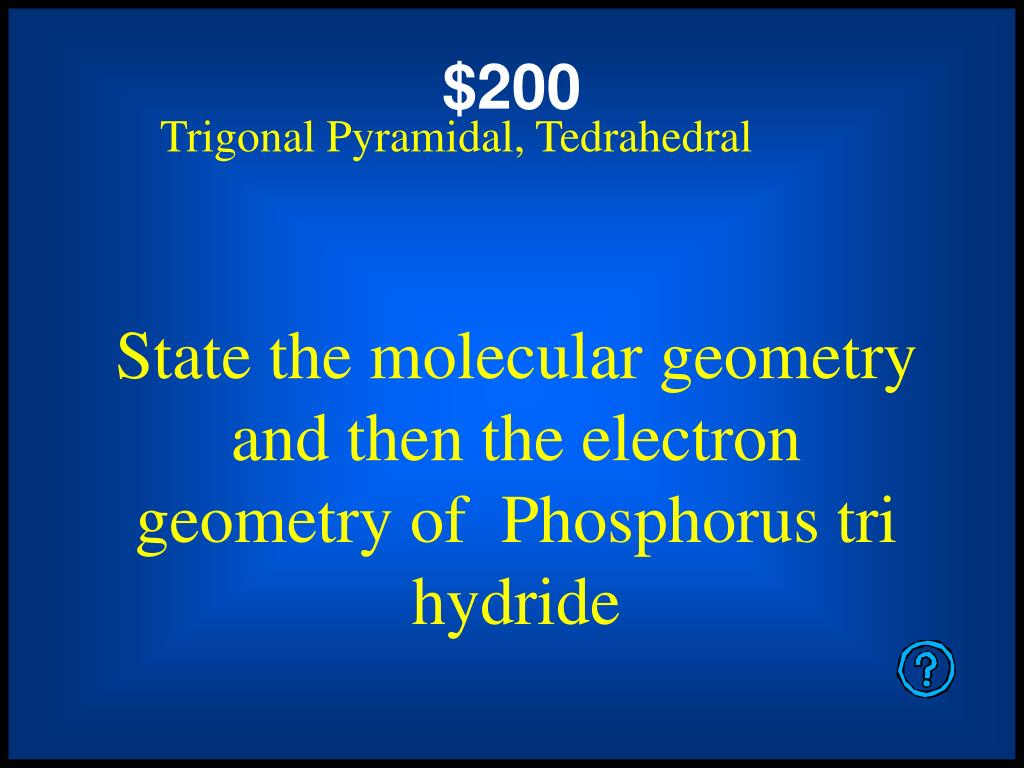

  3. $200 Trigonal Pyramidal, Tedrahedral State the molecular geometry and then the electron geometry of Phosphorus tri hydride

  4. $400 2-2-0, linear, sp What is the “count” and shape and hybridizaton of CO2 below

  5. $600 B—4-2-2—bent-- sp3 Which is correct below? What is the “count”, hybridization, and shape?

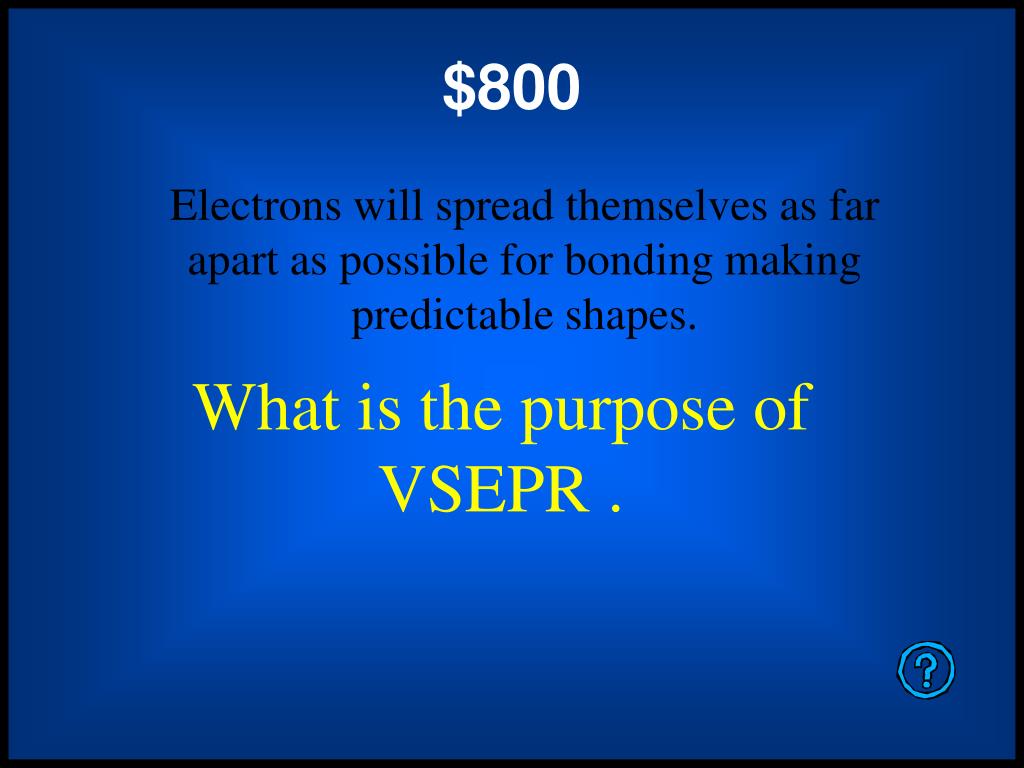

  6. $800 Electrons will spread themselves as far apart as possible for bonding making predictable shapes. What is the purpose of VSEPR .

  7. $1000 3-3-0--- sp2---trigonal planar What is the “count”, hybridization, and shape?

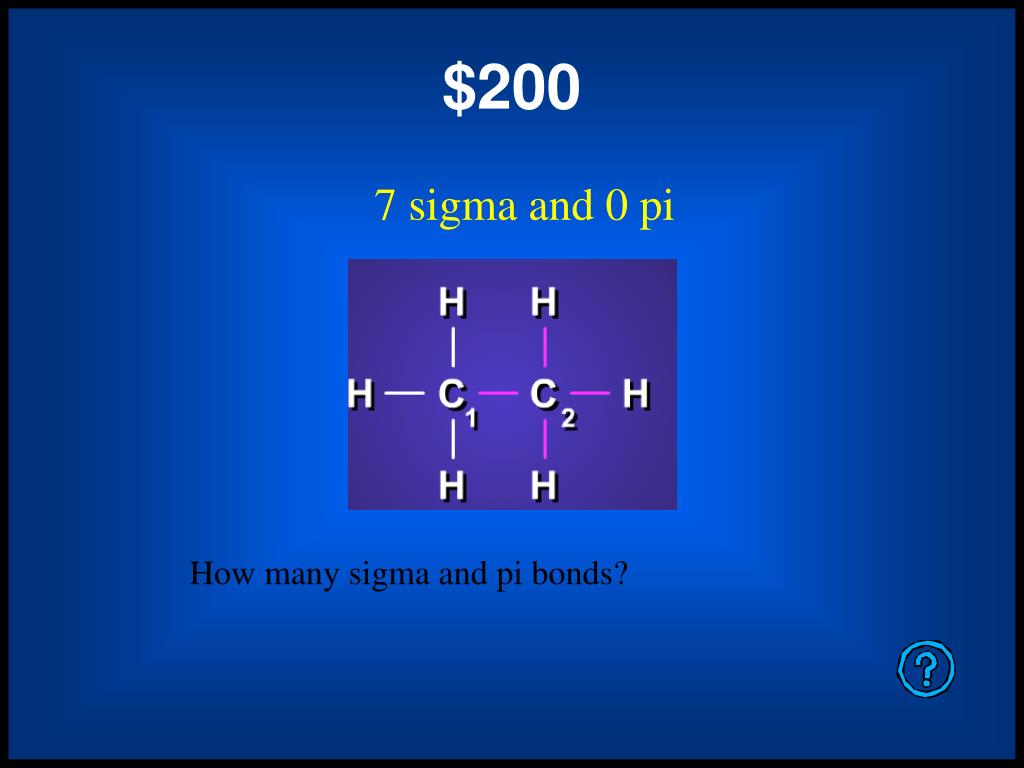

  8. $200 7 sigma and 0 pi How many sigma and pi bonds?

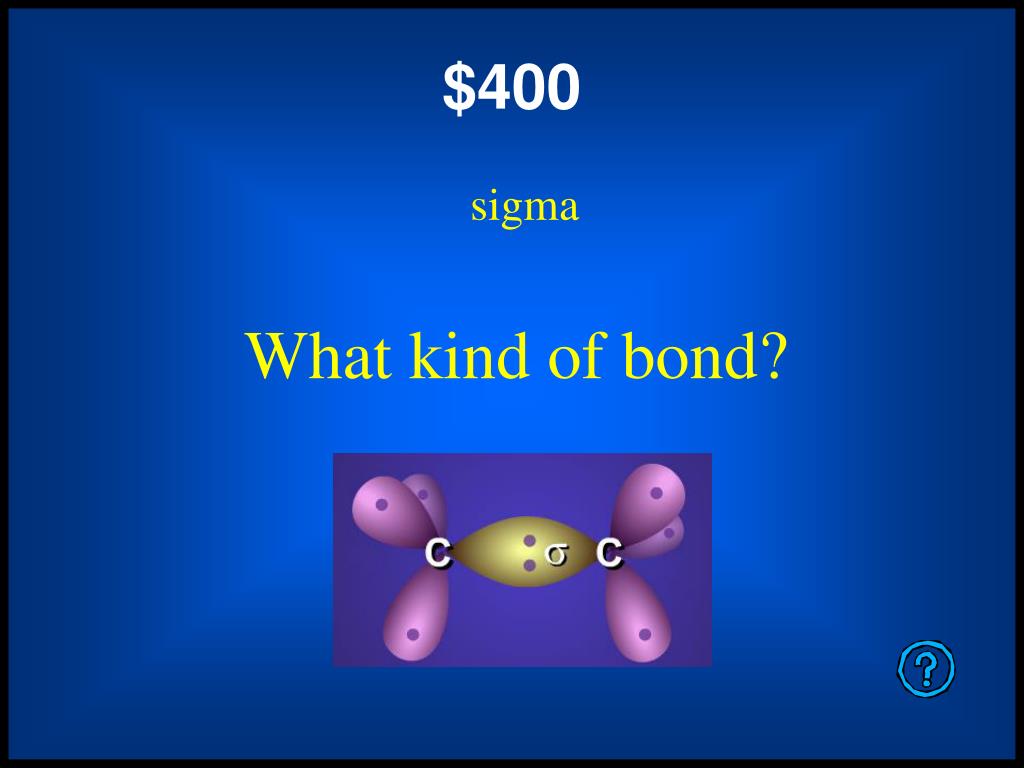

  9. $400 sigma What kind of bond?

  10. $600 Double and Triple Which type of bonds cannot “spin”?

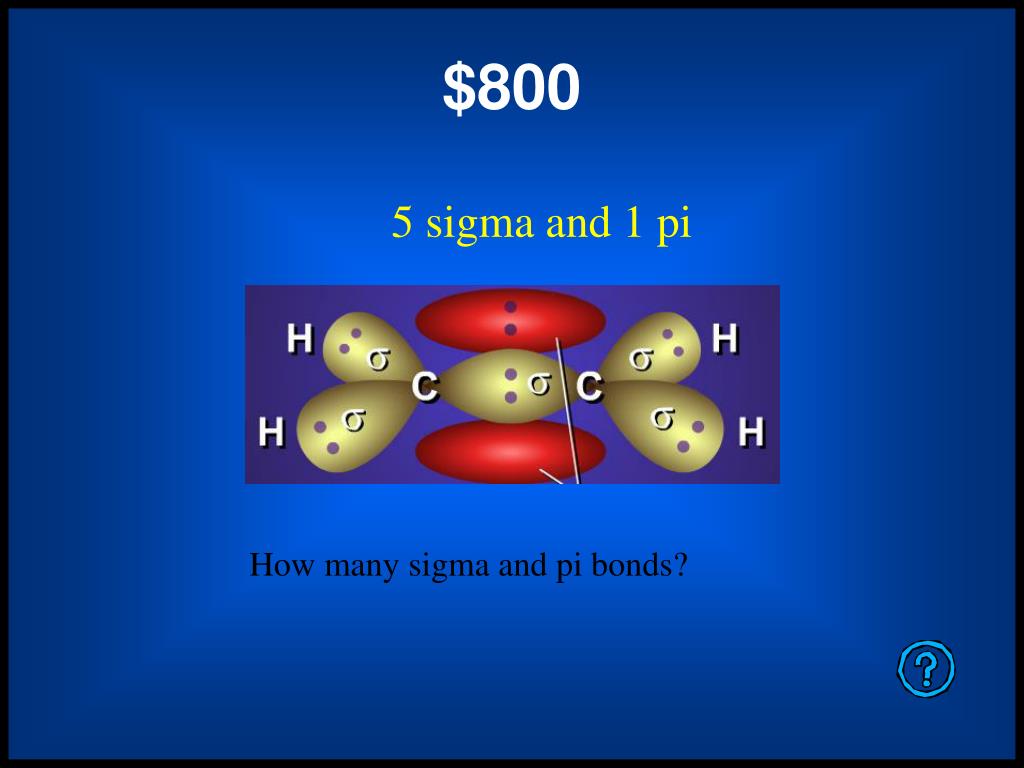

  11. $800 5 sigma and 1 pi question How many sigma and pi bonds?

  12. $1000 3 sigma and 2 pi question How many sigma and pi bonds?

  13. $200 MG = shape of molecules EG=includes unpaired set of electrons. What is the main difference between molecular and electron geometry

  14. $400 Pz In a double bond, which orbital is labeled as the pi orbital.

  15. $600 3 bonds- 1 sigma, 2 pi Describe a triple bond in terms of pi and sigma.

  16. $800 H-C=C-H Draw 2 carbons with a triple bond, show hydrogens

  17. $1000 • Using an arrow diagram, show the bonding atoms of C and then show them hybridized.

  18. $200 220 and linear What is the “count” and molecular shape of BeCl2

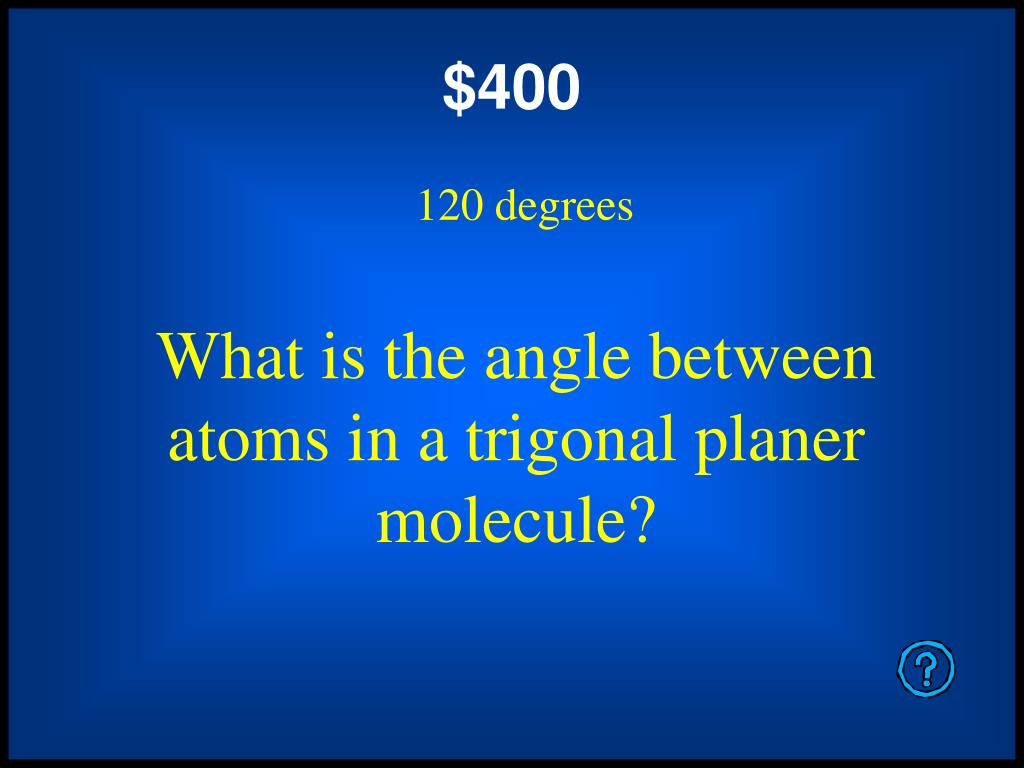

  19. $400 120 degrees What is the angle between atoms in a trigonal planer molecule?

  20. $600 2 bonded and 2 unbonded How many bonded and unbonded pairs of electrons in water?

  21. $800 Valence Pair Electron Pair Repulsion (theory) What do the letters VSEPR stand for?

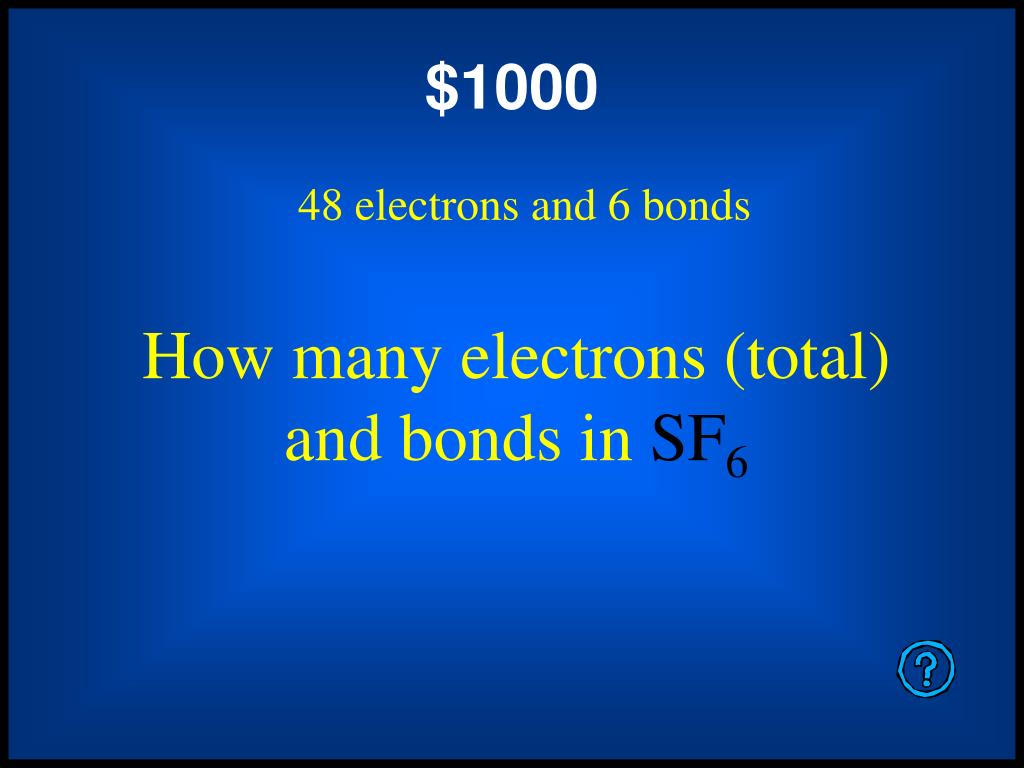

  22. $1000 48 electrons and 6 bonds How many electrons (total) and bonds in SF6

  23. $200 Ethyne, acetylene Give two names for this compound

  24. $400 Single bond, covalent, because of overlapping orbitals. Define: Sigma Bond

  25. $600 5-2-3 What is the “count” for this molecule?

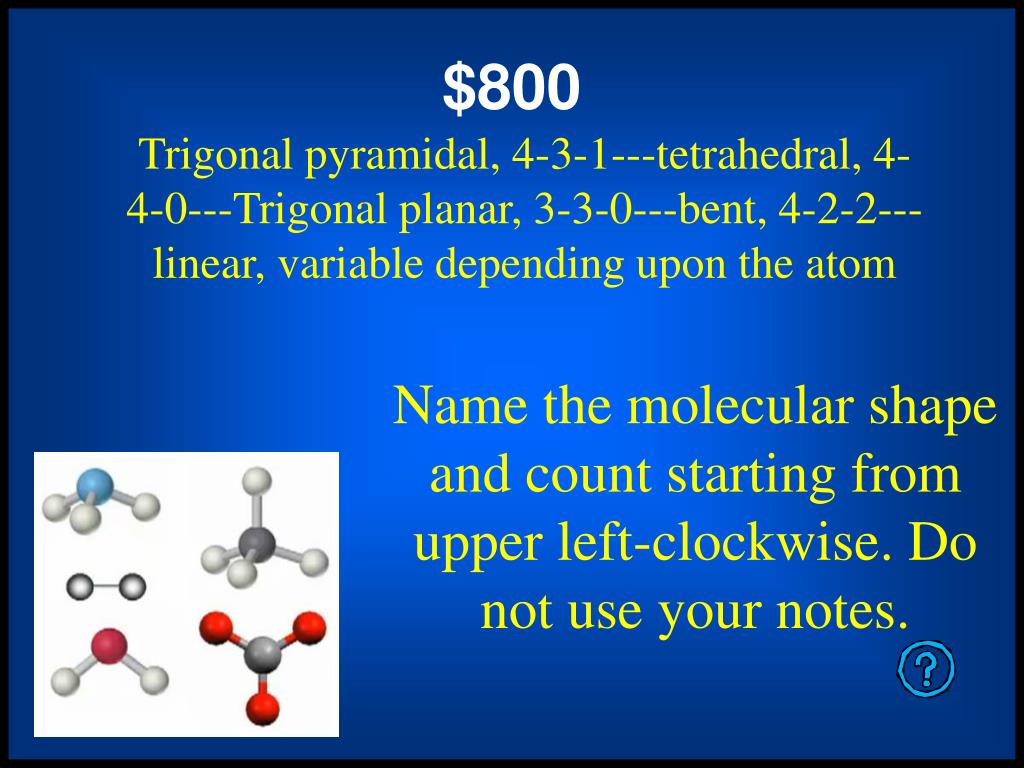

  26. $800 Trigonal pyramidal, 4-3-1---tetrahedral, 4-4-0---Trigonal planar, 3-3-0---bent, 4-2-2---linear, variable depending upon the atom Name the molecular shape and count starting from upper left-clockwise. Do not use your notes.

  27. $1000 no resonance Finish this diagram and does it do resonance?

  28. $200 Shielding, farther down from top of table Why can Xe make bonds with F?

  29. $400 NOFClBrI Name the Boot elements

  30. $600

  31. $800 Dalton, Thompson, Rutherford and Bohr…Schrödinger, and Heisenberg, Name the 1st five scientists in “The Atom Song”

  32. $1000 1s2 2s2 2p6 3s2 3p2 and[Ne] 3s2 3p2 Long and short electron configuration for silicon.

  33. Daily Double sp3 What is the hybridization of PCl3

  34. The Jeopardy champion!
