Performance Evaluation: Single vs. Multi-threaded Boggle Word Searching

This study, conducted by Yves Wouters and Pieter-Jan Huyghe, examines the performance of single-threaded versus multi-threaded algorithms for Boggle word searching. Using a search tree and backtracking methodology, we measured the computational efficiency with various CPU configurations. The results showed improvements in speed with multi-threaded execution on multiple cores, exhibiting a significant speedup. We also delved into accuracy measurements, and the impact of threading methodologies. The findings illuminate the advantages and challenges associated with parallel processing in solving Boggle.

odeda
Télécharger la présentation

Performance Evaluation: Single vs. Multi-threaded Boggle Word Searching

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

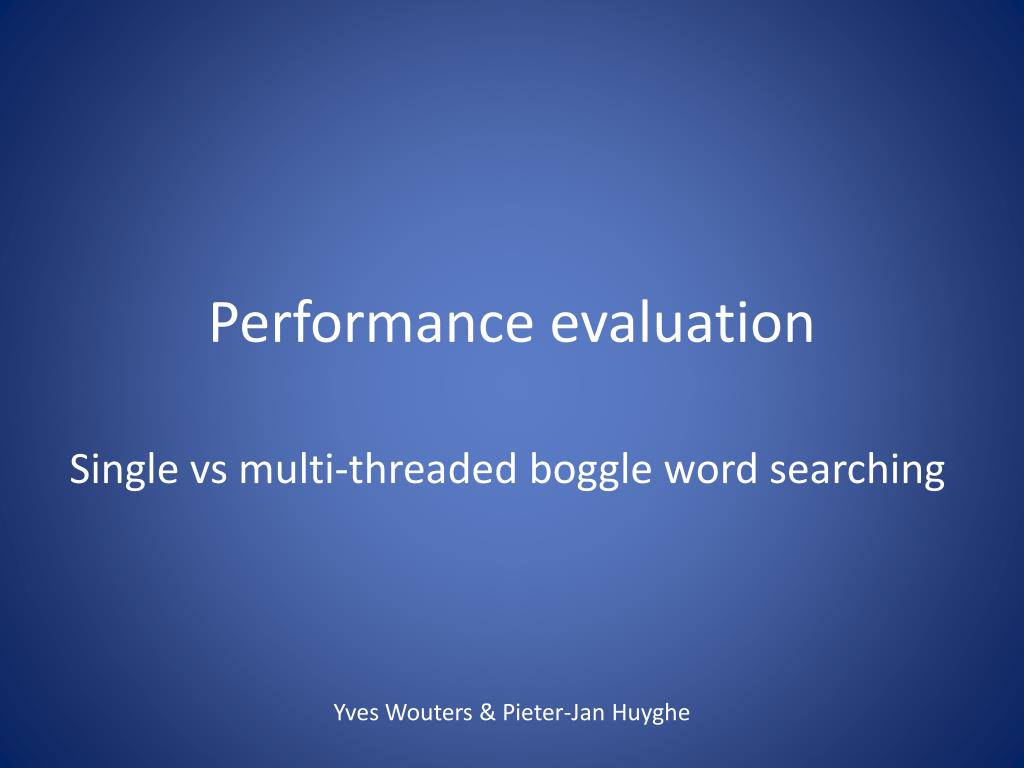

  1. Performance evaluation Single vs multi-threaded boggle word searching Yves Wouters & Pieter-Jan Huyghe

  2. Boggle? Wat is boggle Het algoritme: search tree & backtracking

  3. Boggle? Wat is boggle Het algoritme: search tree & backtracking

  4. Performantiemeten • Meten hoe snel de berekeningvolbracht is. • Strevennaarnauwkeurigheid…hoe?

  5. Nauwkeurigheid? • Gemiddeldenberekenen • Eigen timer • Ahv kernel32.dll • (#cycle end - #cycle start)/MHz cpu = tijdsduur • Dusindien de CPU 1 GHz snel is, dan kun je meten tot op 1 nano sec nauwkeurig.

  6. Single threaded vs Multi threaded • Run op 1 core, 2.2GHz • Specs boggleveld: 450 chars • Tijdsduursinglethreaded: 269ms, 100 loops. • Tijdsduur multithreaded: 296ms, 100 loops.

  7. Single threaded vs Multi threaded • Run op 2 cores, 2.4GHz • Specs boggleveld: 450 chars • Tijdsduursinglethreaded: 183ms (blauw) • Tijdsduur multithreaded: 134ms (oranje)

  8. Single threaded vs Multi threaded • Run op 8 cores, 2.8GHz • Specs boggleveld: 450 chars • Tijdsduursinglethreaded: 146.2ms (blauw) • Tijdsduur multithreaded (4): 60.4 (oranje)

  9. Speedup: Single vs multithreaded • 1 core  0.90 • 2 cores  1.36 • 4 cores  2.42

  10. Verdere tests • Run met 4 threads, methodiek test • Threadpool: 55.84ms • Parallel Task Library: 60.66ms • Eigen threading: 100.11ms

  11. Verdere tests • Events vs Locking • Events: 286,9ms • Locking 279,9ms • Verschil is marginaal

  12. Verdere tests First come first served principe, sommige threads krijgendus weinig tot geen CPU tijd.
