  1. OPERATIONS RESEARCH AND HIGH ENERGY PHYSICS Alberto De Min Politecnico di Milano and INFN CHEP06 Mumbai, India 13-17 February 2006

  2. INTRODUCTION • Operations Research (OR) is the discipline of applying advanced analytical methods to help make better decisions • Applications concern an uncountable number of fields: from economics to finance, from logistics to supply chain management, from social sciences to politics, from engineering to physics • The aim of this talk is to illustrate possible applications to high energy physics and review the existingmathematicaltools, restricting the scope to linear and mixed-integer programming applications CHEP06 Mumbai, India 13-17 February 2006

  3. LAYOUT • Basics of operations research Two practical examples: Resource optimization, Set covering Linear programming: • Simplex method • Interior-point method Mixed-integer programming • Applications to high energy physics Two pattern recognition examples: • Vertex tracking • Muon tracking Other detector issues (calibration, alignment, design, logistics) • Mathematical libraries Commercial software packages Open source packages • Conclusions CHEP06 Mumbai, India 13-17 February 2006

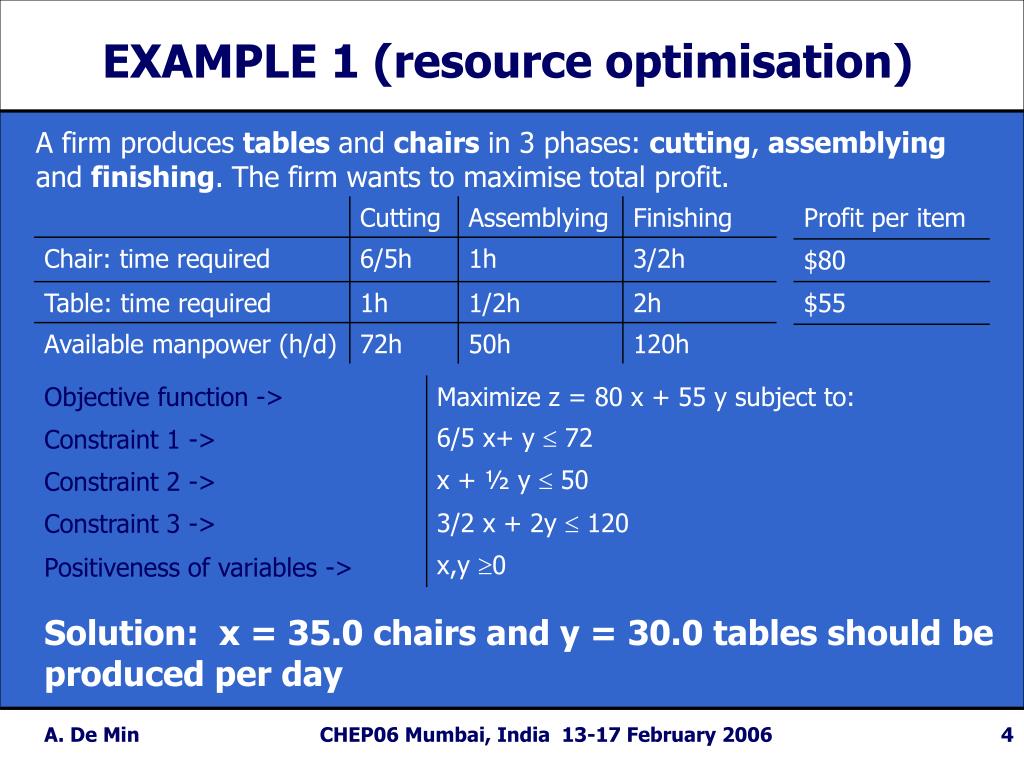

  4. EXAMPLE 1 (resource optimisation) • A firm produces tables and chairs in 3 phases: cutting, assemblying and finishing. The firm wants to maximise total profit. Solution: x = 35.0 chairs and y = 30.0 tables should be produced per day CHEP06 Mumbai, India 13-17 February 2006

  5. C A B B C A A B B A A C C A EXAMPLE 2 (set covering) • An airline needs to cover its flights with crew (based in city A). • Build all possible flight sequences (rotations) leaving and returning to A • Choose the subset of rotations (j) covering all flights (i) with minimum cost (Cj) • Solution is a set of integer (binary) values for xj • xj = 0.5 cannot be approximated to 0 (no covering) or 1 (no optimum) CHEP06 Mumbai, India 13-17 February 2006

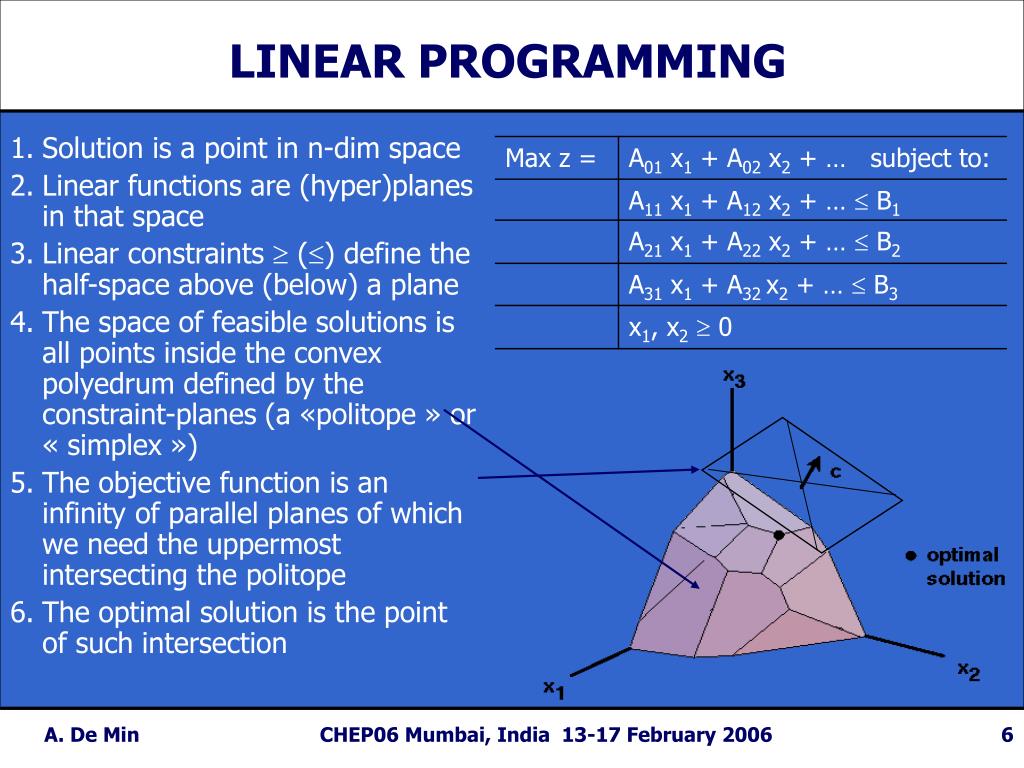

  6. LINEAR PROGRAMMING • Solution is a point in n-dim space • Linear functions are (hyper)planes in that space • Linear constraints  () define the half-space above (below) a plane • The space of feasible solutions is all points inside the convex polyedrum defined by the constraint-planes (a «politope » or « simplex ») • The objective function is an infinity of parallel planes of which we need the uppermost intersecting the politope • The optimal solution is the point of such intersection CHEP06 Mumbai, India 13-17 February 2006

  7. THE SIMPLEX METHOD • The optimal solution cannot be an internal point (as it would always be possible to find a « more optimal » point nearby!) • The optimal solution needs to be on a corner (or an edge if degenerate) • Only the (few) corners need to be analysed to reach optimality • The objective function determines the direction to a better corner • A complex minimization task has been reduced to an easy combinatorial problem • The discovery of the simplex method in 1947 gave Dantzig the Nobel Price • This is an « external point method » CHEP06 Mumbai, India 13-17 February 2006

  8. INTERIOR POINT METHODS • Take the politope of feasible solutions • Build an ellipsoid contained in the politope • Find the tangence point A with the objective plane • Build a new ellipsoid centered in A contained in the politope • Repeat until size of ellipsoid is small enough • Easy when matrix of coefficients is sparse (many zeros!) • It works also for non-linear cases • For some problems faster than the simplex • Developed in the last few decades • This is an « internal point method » Objective function A B CHEP06 Mumbai, India 13-17 February 2006

  9. Xi= 1.3 Xi= 1 Xi= 2 (MIXED) INTEGER PROGRAMMING • Suppose some variables should be integer but non-integer values are found at optimum • Store corresponding value of objective function (OF) as a lower bound (LB) on the solution • Take one such variables, say Xi=1.3, and branch into two separate problems (nodes or trees) imposing the additional constraints Xi= 1 or Xi=2 • Solve the corresponding LP problem for each node: • If the solution is infeasible or OF is larger than UB -> prune the node • If in the solution all required variables are integer -> : • If no upper bound (UB) exists on the solution -> store the corresponding OF as an initial upper bound (UB) • If the OF is smaller than an already existing UB -> update the upper bound • If the OF is larger than an already existing UB -> prune the node • If in the solution some required variables are still non-integer -> branch further the problem • Continue until all required variables are integer. This method is called «branch & bound », alternative methods are: « branch & cut », « branch & price », « implicit enumeration », etc. CHEP06 Mumbai, India 13-17 February 2006

  10. TPC 1 2 VDET 3 4 HEP APPLICATIONS: EXAMPLE 1 • Global VDET pattern recognition for ALEPH, P.Rensing, CHEP95 • Extrapolating tracks from TPC to the silicon vertex detector (VDET), featuring two double-sided lawyers (4 readout layers), presents ambiguities in hit assignment process. How to assign VDET hits to tracks optimally? • Minimize z = ijklm Cijklm xijklm, with xijklm=0,1 • subject to: (1 configuration per track) (1 or 2 tracks per hit, depending on hit signal amplitude) Cijklm = 2 + 11NNon associated + 4N1 dimension (i=0 means no assigned track; j,k,l,m=0 means no hit in VDET layer 1,2,3,4) CHEP06 Mumbai, India 13-17 February 2006

  11. HEP APPLICATIONS: EXAMPLE 2 • Linear pattern recognition algorithm for the CMS barrel muon detector, • A. De Min, CMS Note, Feb 2006, being submitted to CMS • In CMS  tracks are straight lines in a noisy environment. • Linear programming can be used to remove outliers: • Pi =(Xi,Zi) should be associated to straight line x=mz+q if |Xi-mZi+q|  i (i is the « resolution » of Pi) • This is not a linear constraint! But it can be linearized: • Best (linear) fit is min i (i / i ) subject to: • provided that only points with i  i are considered (pattern recognition) • Try combining pattern recognition and fit in a single problem by adding the new integer (binary) variables i = {0,1} and new constraints CHEP06 Mumbai, India 13-17 February 2006

  12. HEP APPLICATIONS: EXAMPLE 2 • The problem can be formulated as follows (M is a big, fixed number): (i=0)  (i i) hit Piin the fit (i=1)  (i i) hit Pi out of the fit The solution will provide a fast, unbiased pattern recognition and a stable (linear) fit in one go! It also provides the list of included points (i=0) and their residuals i CHEP06 Mumbai, India 13-17 February 2006

  13. OTHER HEP APPLICATIONS • Apart from pattern recognition problems, LP may be useful in several other applications related to HEP. A few examples: • Detector design (ex. to optimize cabling network in order to minimize the material in front of the calorimeters) • Detector construction (ex. optimal assembly schedule, optimal use of resources, supply chain management and spare parts procurement) • Detector alignment (ex. tracker subparts alignment with charged tracks) • Detector calibration (ex. optimal shower clustering in test-beams for calorimeter) • Data analysis (ex. optimal association of calorimeter showers to charged tracks) • Logistics in HEP laboratories (ex. shift roster of minimum cost, optimal test-beam period allocation) CHEP06 Mumbai, India 13-17 February 2006

  14. AVAILABLE LIBRARIES • Two kinds of packages: • Modeling systems: • Designed to help people formulate LP problems and analyze their solutions. • In practice they are modeling languages. • Output is in standard format to feed any LP solver. • Not of interest here, more dedicated to consultants who need to quickly apply LP techniques to solve very different problems. • An old but still widely used standard format is the MPS format (originally from IBM). Essentially a matrixdescription convention. • LP solvers: • Algorithmic codes devoted to finding optimal solutions to specific linear problems. • A code takes as input a the LP numerical coefficients in standard format and produces as output a compact listing of optimal solution values. • LP solvers are available as commercial packages and as open source CHEP06 Mumbai, India 13-17 February 2006

  15. AVAILABLE LIBRARIES • Most used commercial packages: • ILOG/CPLEX:Simplex,Interior,Integer (www.ilog.com) • Xpress-MP: Simplex,Interior,Integer (www.dashoptimization.com) • IBM/OSL: Simplex,Interior,Integer (www.optimize.com) • In general rather sophisticated and expensive, but special agreements possible for research use. Some versions are parallelizable for GRID platforms. • Best open source packages: • COIN-OR (COmputational INfrastructure for Operations Research): Simplex,Integer.Originally from IBM and now available under Common Public Licence (www.coin-or.org) • GLPK (GNU Linear Programming Kit): Simplex,Interior,Integer. Available under the GNU General Public Licence (www.gnu.org/software/glpk/glpk.html) • Lp_solve: Simplex,Integer. Available, under the GNU Lesser Public Licence (www.coin-or.org) • Not as performing as commercial codes, but free and available in source code. See licence for permitted uses. • For additional information see also: • http://www-unix.mcs.anl.gov/otc/Guide/faq/linear-programming-faq.html CHEP06 Mumbai, India 13-17 February 2006

  16. CONCLUSIONS • A wide class of problems encountered in HEP can be formulated similarly to problems related to other fields of human activities, normally covered by Operations Research • It is advisable that the HEP community is kept informed of the latest OR achievements for what concerns both mathematical algoritms and software packages and has quick access to all available tools • Limited to (mixed-integer) linear programming, this talk has provided a brief overview of the existing tools and of their possible applications to HEP CHEP06 Mumbai, India 13-17 February 2006
