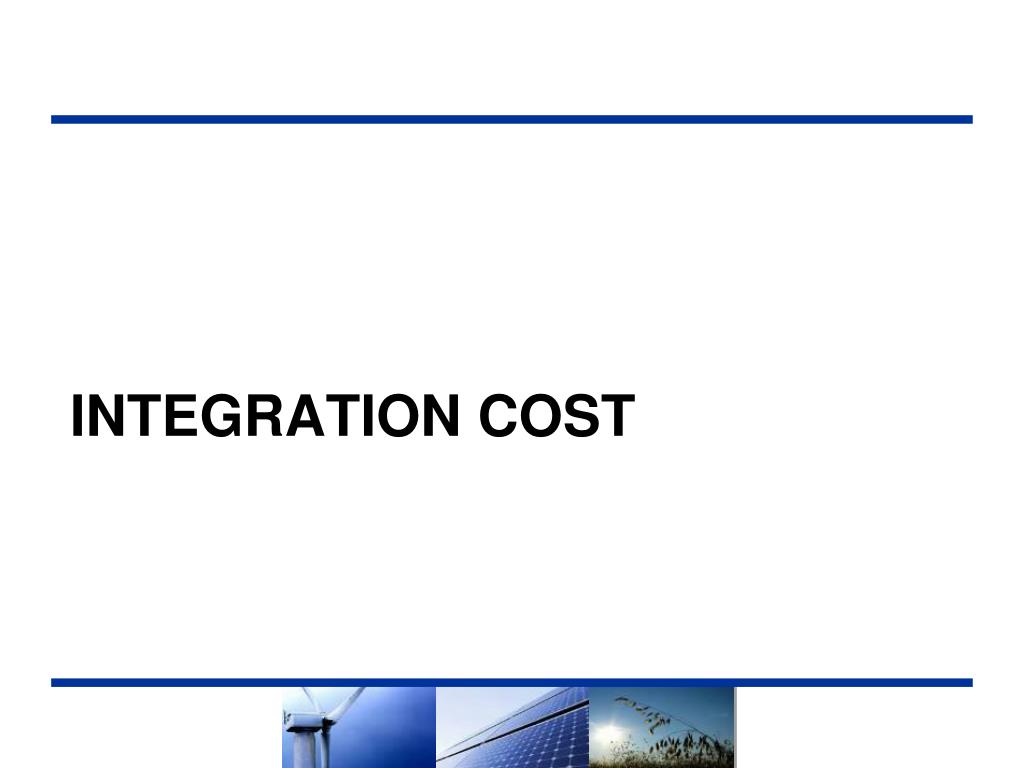

  1. Integration Cost

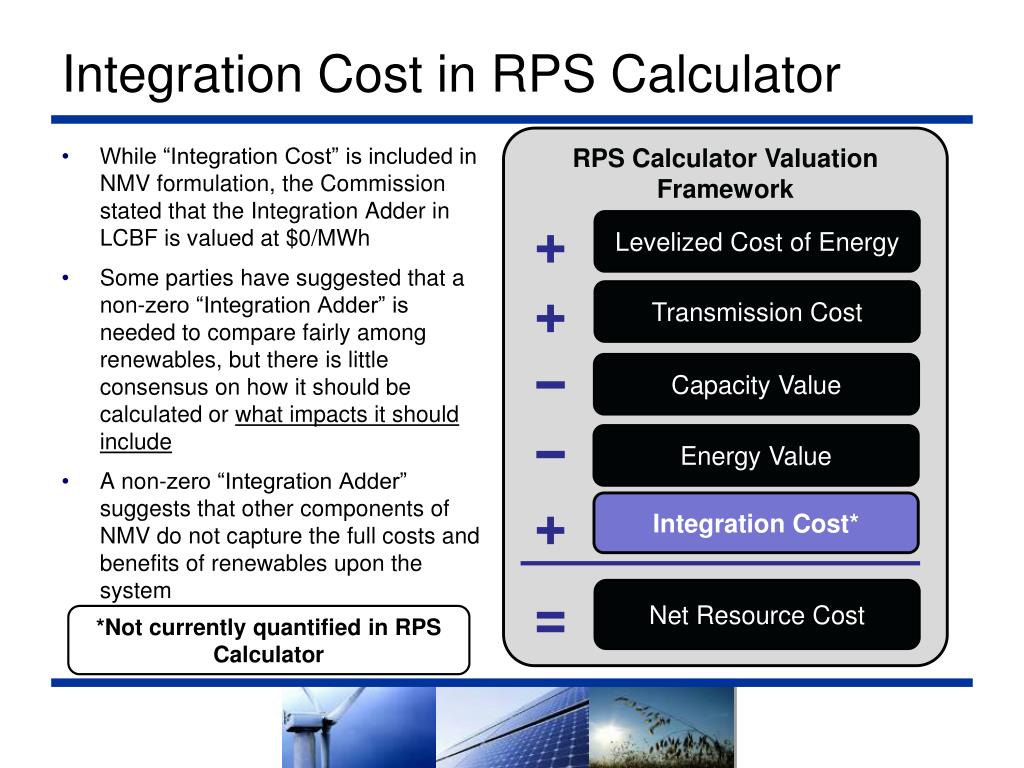

  2. Integration Cost in RPS Calculator RPS Calculator Valuation Framework • While “Integration Cost” is included in NMV formulation, the Commission stated that the Integration Adder in LCBF is valued at $0/MWh • Some parties have suggested that a non-zero “Integration Adder” is needed to compare fairly among renewables, but there is little consensus on how it should be calculated or what impacts it should include • A non-zero “Integration Adder” suggests that other components of NMV do not capture the full costs and benefits of renewables upon the system + Levelized Cost of Energy + Transmission Cost − Capacity Value − Energy Value + Integration Cost* = Net Resource Cost *Not currently quantified in RPS Calculator

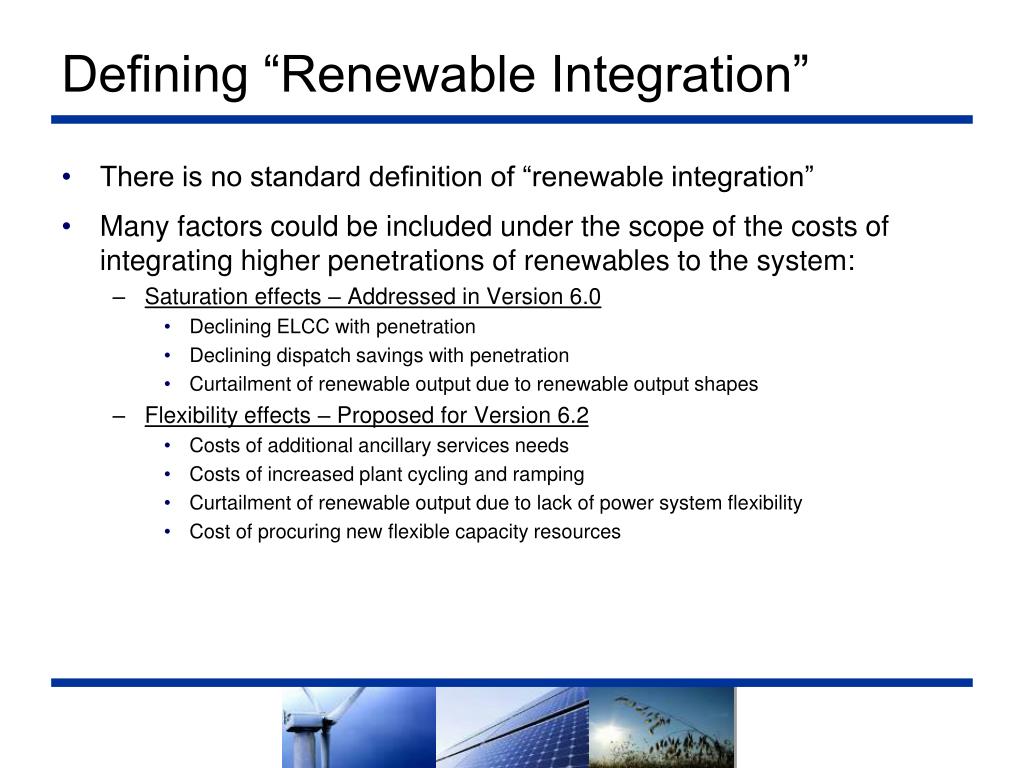

  3. Defining “Renewable Integration” • There is no standard definition of “renewable integration” • Many factors could be included under the scope of the costs of integrating higher penetrations of renewables to the system: • Saturation effects – Addressed in Version 6.0 • Declining ELCC with penetration • Declining dispatch savings with penetration • Curtailment of renewable output due to renewable output shapes • Flexibility effects – Proposed for Version 6.2 • Costs of additional ancillary services needs • Costs of increased plant cycling and ramping • Curtailment of renewable output due to lack of power system flexibility • Cost of procuring new flexible capacity resources

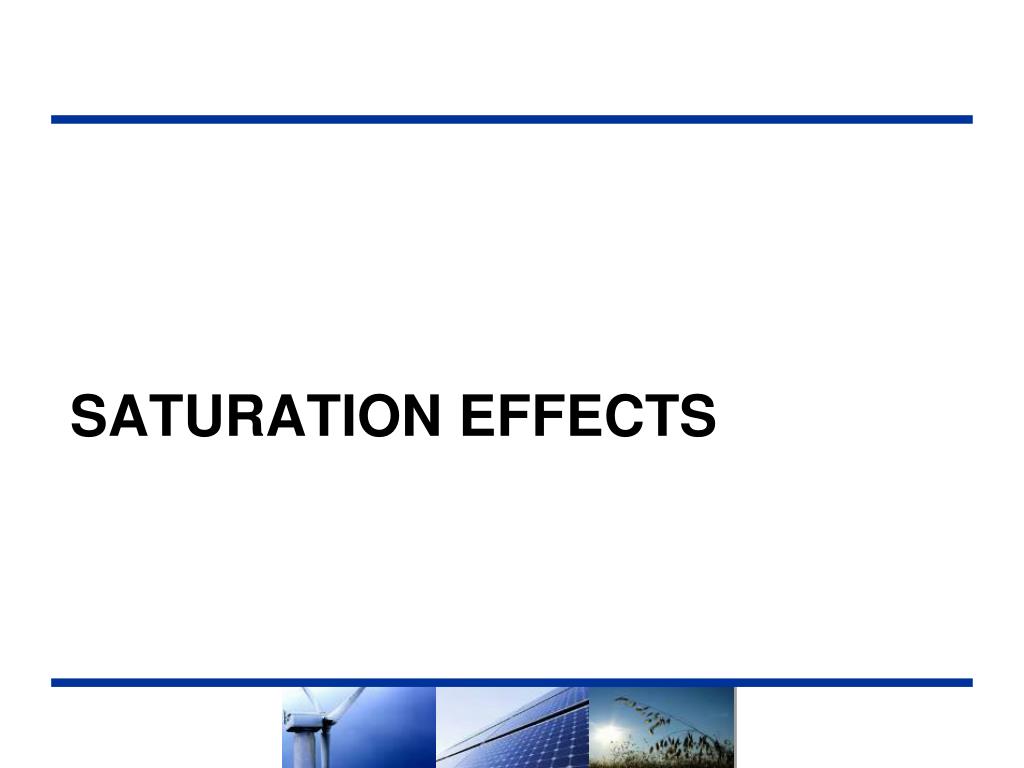

  4. Saturation Effects

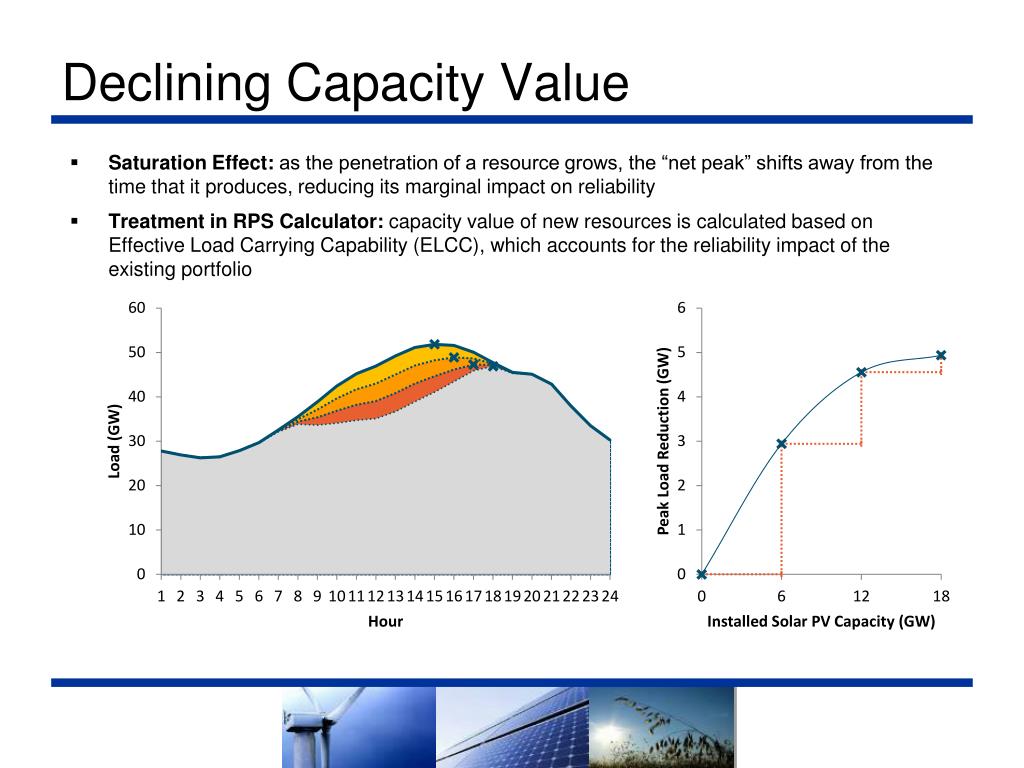

  5. Declining Capacity Value • Saturation Effect: as the penetration of a resource grows, the “net peak” shifts away from the time that it produces, reducing its marginal impact on reliability • Treatment in RPS Calculator: capacity value of new resources is calculated based on Effective Load Carrying Capability (ELCC), which accounts for the reliability impact of the existing portfolio

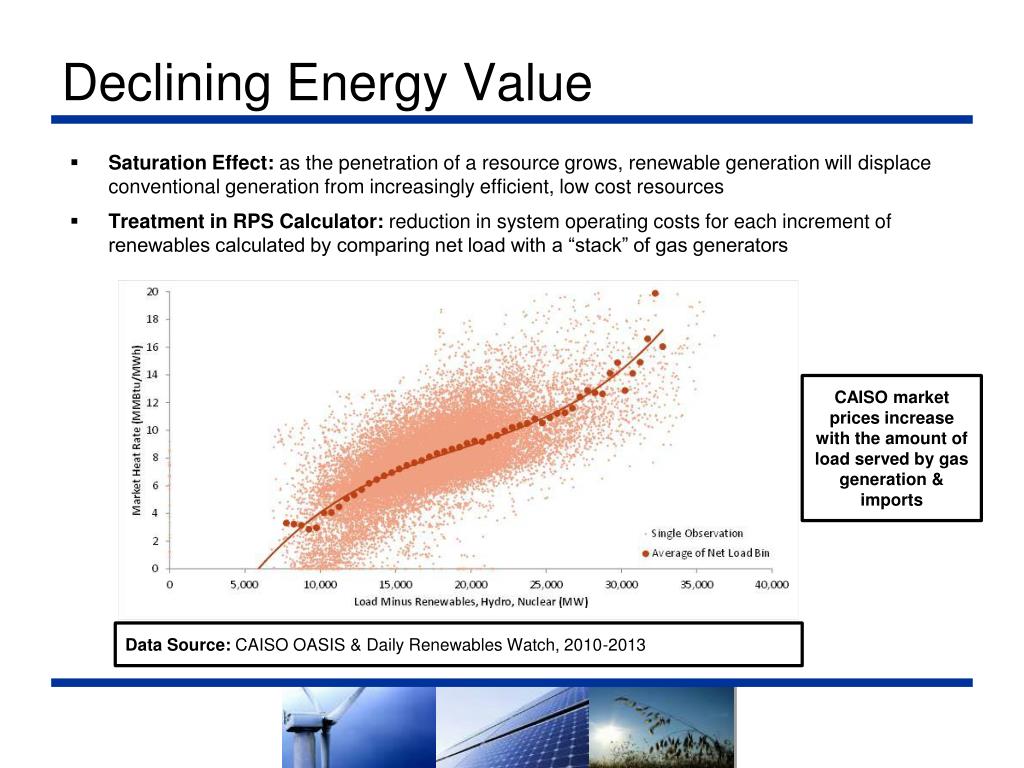

  6. Declining Energy Value • Saturation Effect: as the penetration of a resource grows, renewable generation will displace conventional generation from increasingly efficient, low cost resources • Treatment in RPS Calculator: reduction in system operating costs for each increment of renewables calculated by comparing net load with a “stack” of gas generators CAISO market prices increase with the amount of load served by gas generation & imports Data Source: CAISO OASIS & Daily Renewables Watch, 2010-2013

  7. Increasing Overgeneration • Saturation Effect: as the penetration of a resource grows, curtailment of renewables occurs when total must-run production exceeds load plus export capability. This could occur even if generators were highly flexible. • Treatment in RPS Calculator: marginal curtailment for each renewable resource type approximated by comparing net load in each month-hour with an assumed minimum level of thermal generation, assuming no ramping or start constraints. 33% RPS 40% RPS 50% RPS

  8. Saturation Effects in RPS Calculator • Version 6.0 accounts for the major impacts of saturation on resource value • Declining energy value, declining capacity value, overgeneration • The marginal value of each resource type decreases as more is added to portfolio • Declining returns with scale encourages portfolio diversity • Additional functionality to account for impacts such as flexibility needs is planned for Version 6.1.

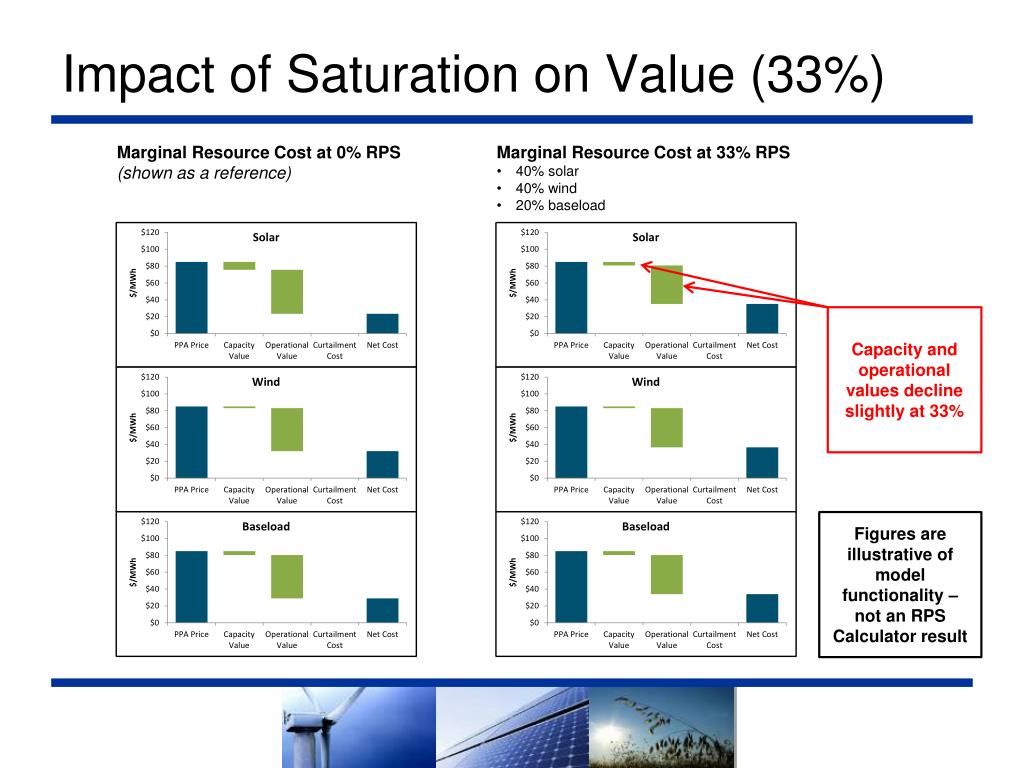

  9. Impact of Saturation on Value (33%) Marginal Resource Cost at 0% RPS (shown as a reference) Marginal Resource Cost at 33% RPS • 40% solar • 40% wind • 20% baseload Capacity and operational values decline slightly at 33% Figures are illustrative of model functionality – not an RPS Calculator result

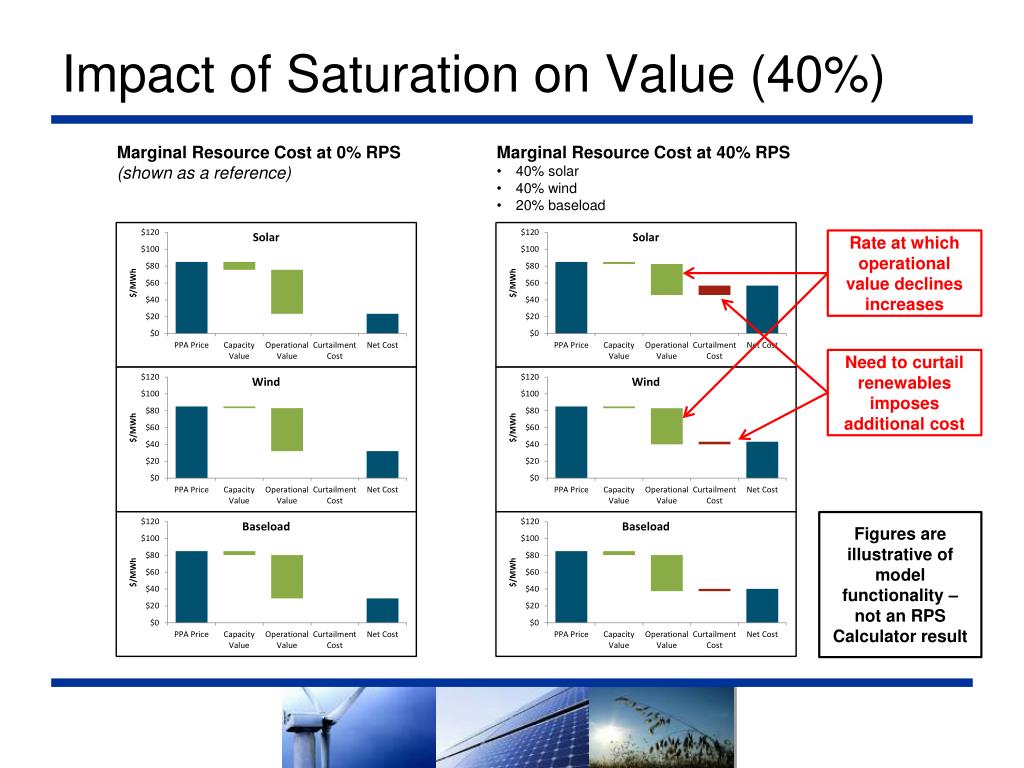

  10. Impact of Saturation on Value (40%) Marginal Resource Cost at 0% RPS (shown as a reference) Marginal Resource Cost at 40% RPS • 40% solar • 40% wind • 20% baseload Rate at which operational value declines increases Need to curtail renewables imposes additional cost Figures are illustrative of model functionality – not an RPS Calculator result

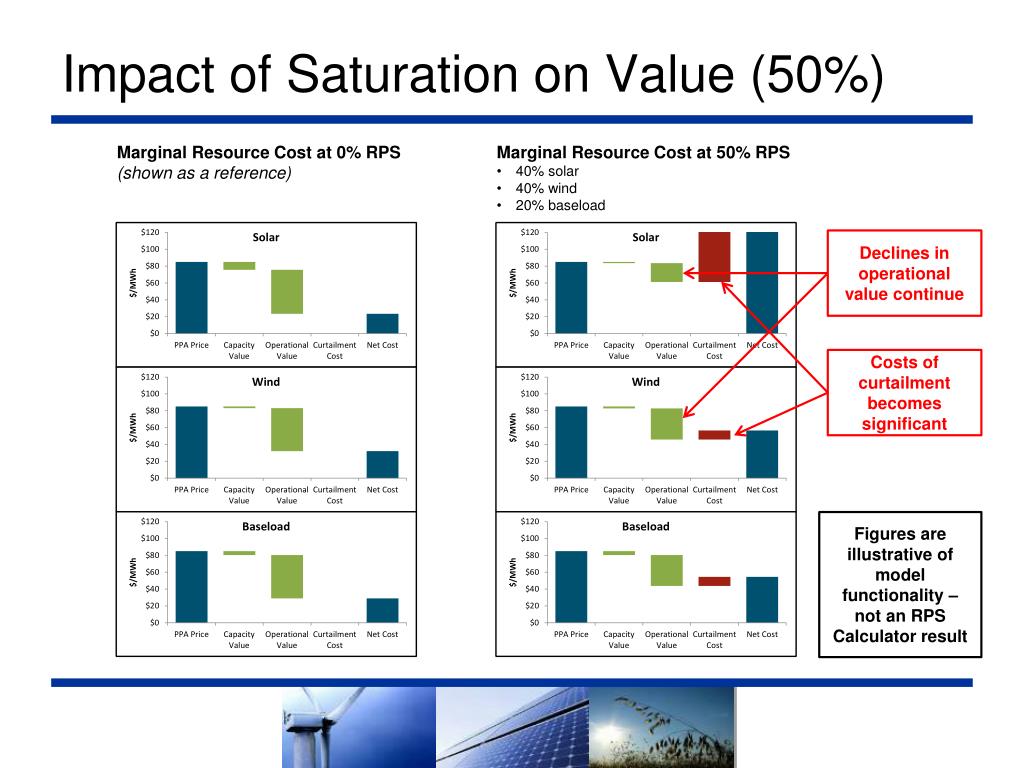

  11. Impact of Saturation on Value (50%) Marginal Resource Cost at 0% RPS (shown as a reference) Marginal Resource Cost at 50% RPS • 40% solar • 40% wind • 20% baseload Declines in operational value continue Costs of curtailment becomes significant Figures are illustrative of model functionality – not an RPS Calculator result

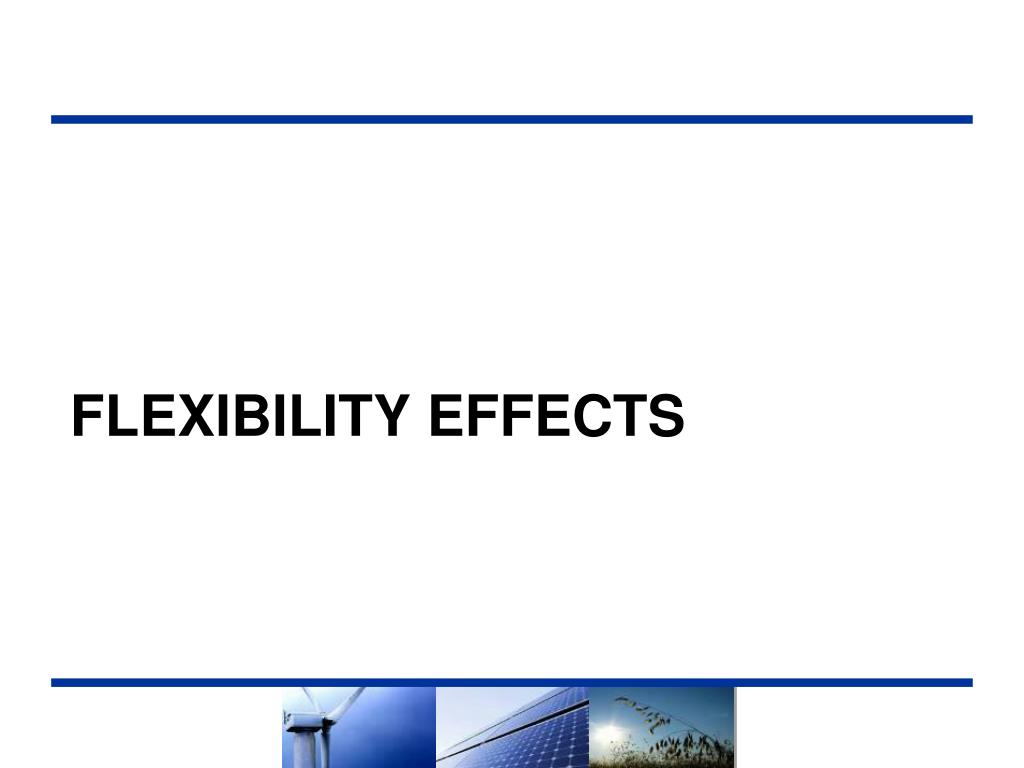

  12. Flexibility Effects

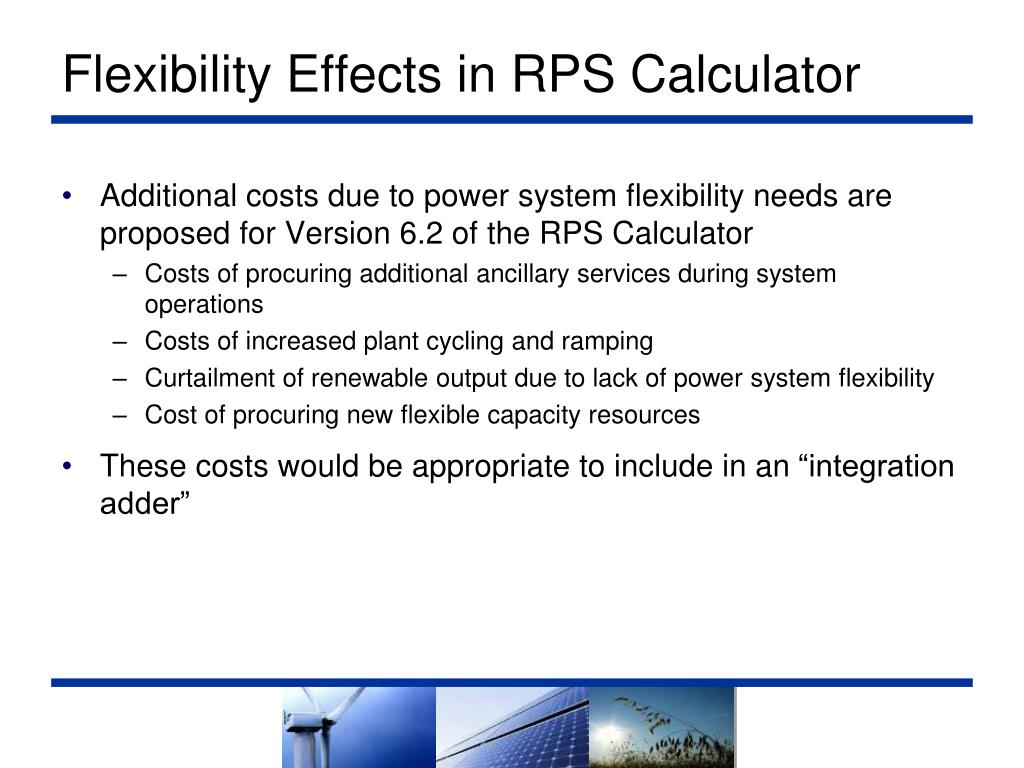

  13. Flexibility Effects in RPS Calculator • Additional costs due to power system flexibility needs are proposed for Version 6.2 of the RPS Calculator • Costs of procuring additional ancillary services during system operations • Costs of increased plant cycling and ramping • Curtailment of renewable output due to lack of power system flexibility • Cost of procuring new flexible capacity resources • These costs would be appropriate to include in an “integration adder”

  14. Potential Methodologies
