Muon & PID Summary

Muon & PID Summary. R. Wilson – CSU: Particle ID Software Infrastructure Embedding PID in the overall LCD/JAS s/w infrastructure? Fast Simulation/Reconstruction : dE/dx tool; code checks; muon fast simulation. Cross subsystem PID. A. Maciel – NIU: Simulation Software Development

ofira
Télécharger la présentation

Muon & PID Summary

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Muon & PID Summary R. Wilson – CSU: Particle ID Software Infrastructure • Embedding PID in the overall LCD/JAS s/w infrastructure? • Fast Simulation/Reconstruction : dE/dx tool; code checks; muon fast simulation. • Cross subsystem PID. A. Maciel – NIU: Simulation Software Development • Extension of generalized and universal simulation framework – new worldwide effort. • Planar muon detector example with 45o strips. Big advance! u vs. v for 2 tracks

  2. Muon & PID Summary (cont.) C. Milstene – NIU: Muon ID Software Development • Resurrection of m code. • Verification of M. Piccolo’s muon ID for single particles and b-b events. G. Fisk – Fermilab: Scintillator Muon Detector Prototype Planes: Description • General description of scintillator strip layout. M. Wayne – UND: Fiber Connections & Routing • Discussion of fiber associated with bringing the WLS light out of the scintillator strips and onto a multi-anode photomultiplier.

  3. Muon & PID Summary (cont.) P. Karchin – WSU: MAPMT Readout and Calibration Issues • Test results on Hamamatsu M-16 multi-anode PMT. Calibration ideas. R. Wilson – CSU Geiger Photodiode Array Readout Test • Description of tests performed on prototype APD (avalanche photo-diode). M. Piccolo – INFN RPC Prototype Design Issues • First test results for new glass RPCs. • Rate capability studies • Test Beam at Frascati Plateau curve

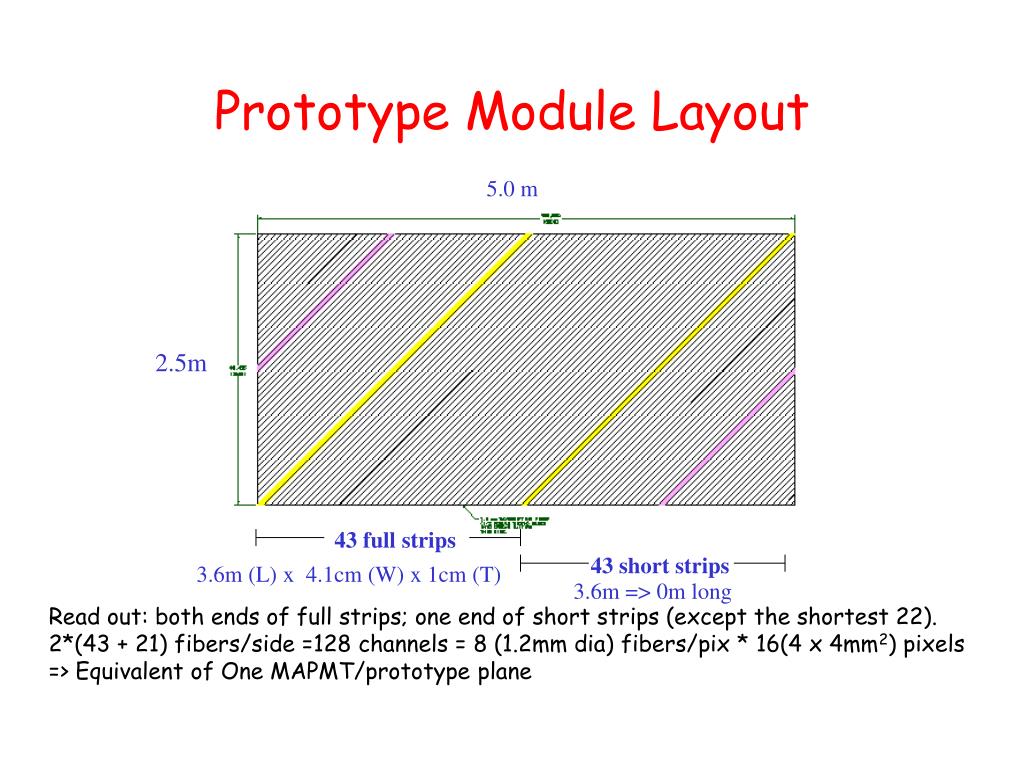

  4. Prototype Module Layout 5.0 m 2.5m 43 full strips 43 short strips 3.6m (L) x 4.1cm (W) x 1cm (T) 3.6m => 0m long Read out: both ends of full strips; one end of short strips (except the shortest 22). 2*(43 + 21) fibers/side =128 channels = 8 (1.2mm dia) fibers/pix * 16(4 x 4mm2) pixels => Equivalent of One MAPMT/prototype plane
