  1. CP-IS Client Overview Author: Mat Barrow, Spine2 Functional Lead Date: 3rd Dec 2013

  2. Background • CP-IS Client based on a similar NHS client (DBS):Files are just dropped into/picked from a folder which is specified during installation • Batch handling and Spine messaging managed within client to minimise complexity and reduce LA system processing and network load • Local logging for errors/exceptions in addition to file-level response messages • Simple to install (see later slides)

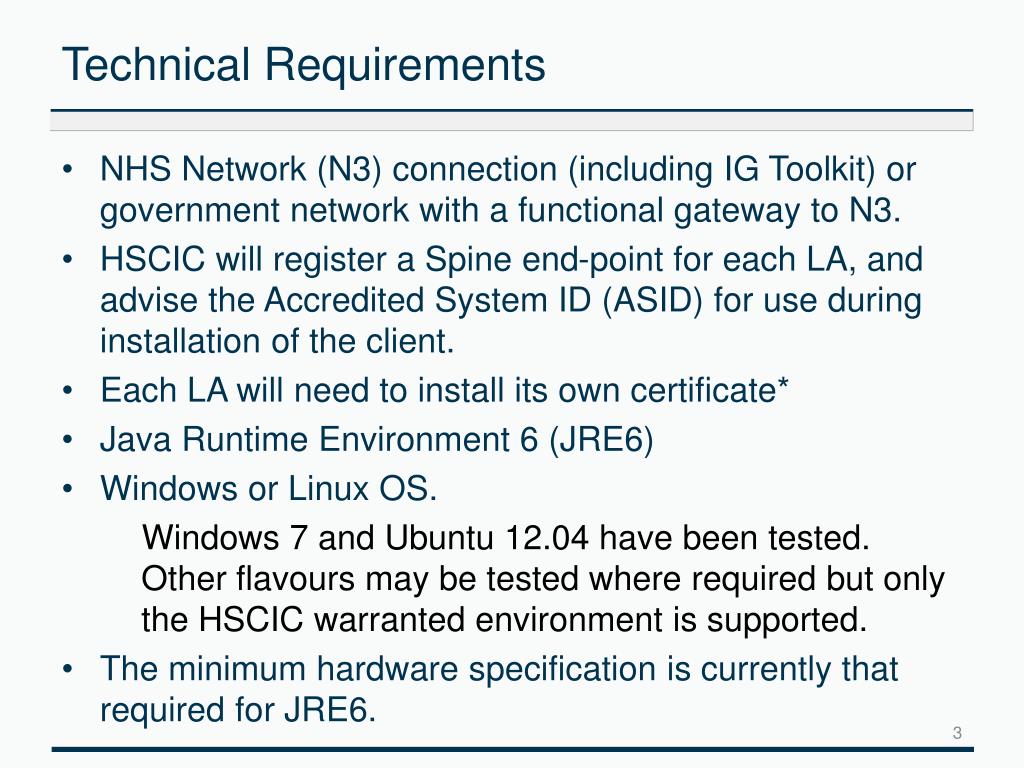

  3. Technical Requirements • NHS Network (N3) connection (including IG Toolkit) or government network with a functional gateway to N3. • HSCIC will register a Spine end-point for each LA, and advise the Accredited System ID (ASID) for use during installation of the client. • Each LA will need to install its own certificate* • Java Runtime Environment 6 (JRE6) • Windows or Linux OS. Windows 7 and Ubuntu 12.04 have been tested.Other flavours may be tested where required but only the HSCIC warranted environment is supported. • The minimum hardware specification is currently that required for JRE6.

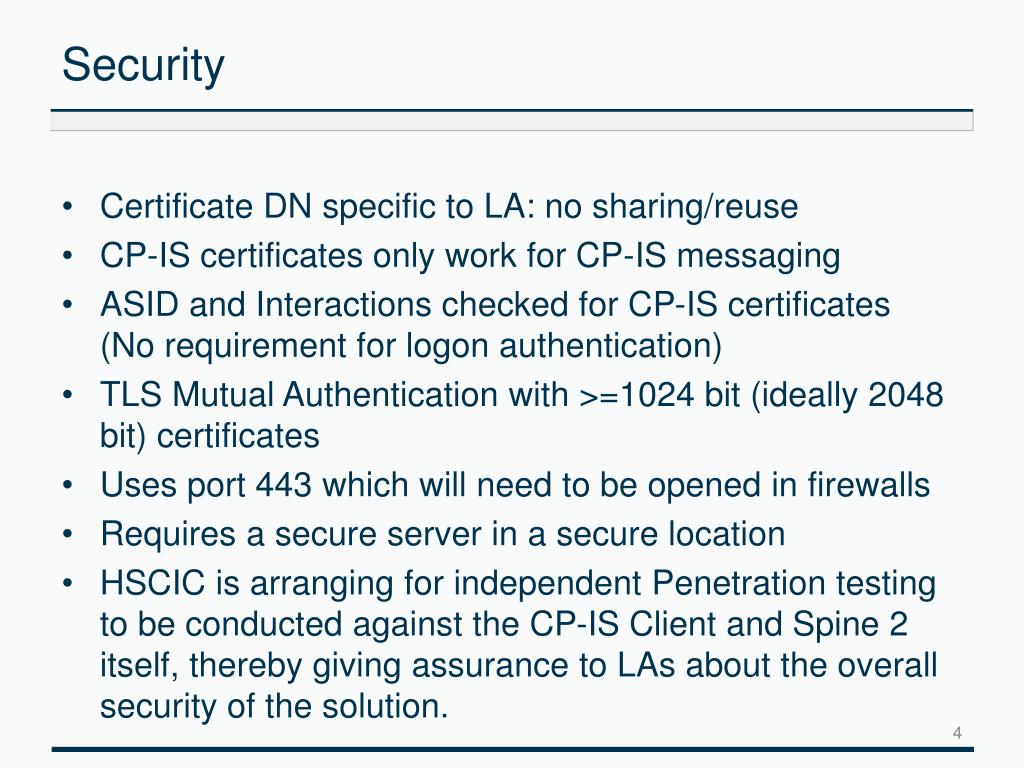

  4. Security • Certificate DN specific to LA: no sharing/reuse • CP-IS certificates only work for CP-IS messaging • ASID and Interactions checked for CP-IS certificates(No requirement for logon authentication) • TLS Mutual Authentication with >=1024 bit (ideally 2048 bit) certificates • Uses port 443 which will need to be opened in firewalls • Requires a secure server in a secure location • HSCIC is arranging for independent Penetration testing to be conducted against the CP-IS Client and Spine 2 itself, thereby giving assurance to LAs about the overall security of the solution.

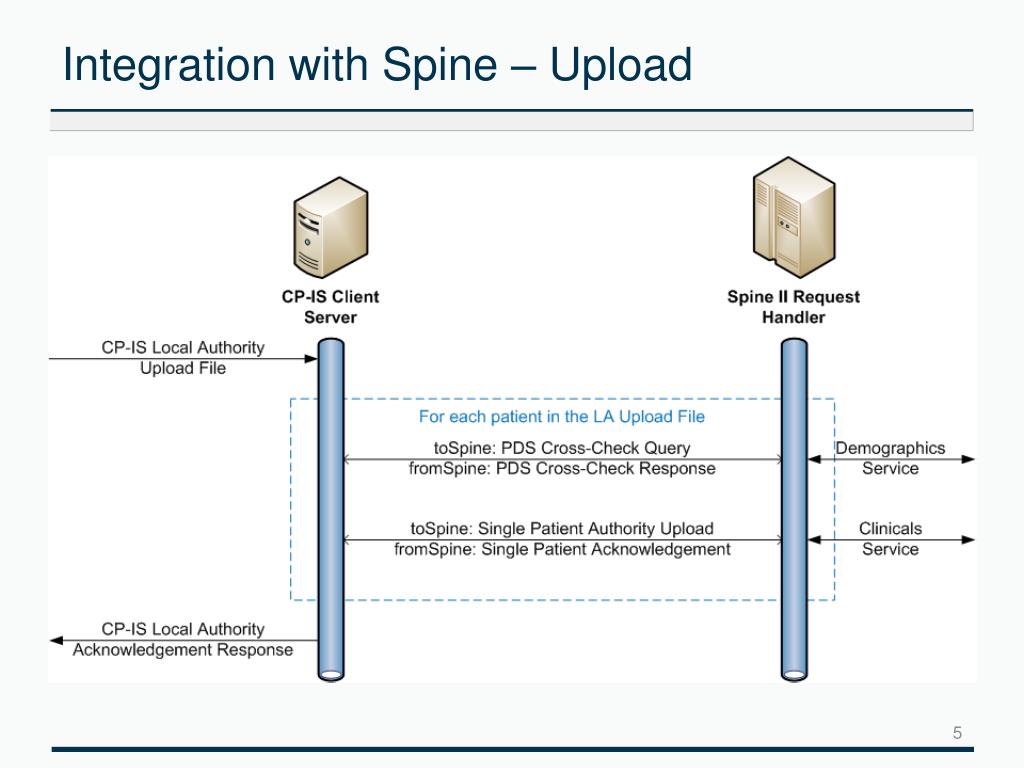

  5. Integration with Spine – Upload

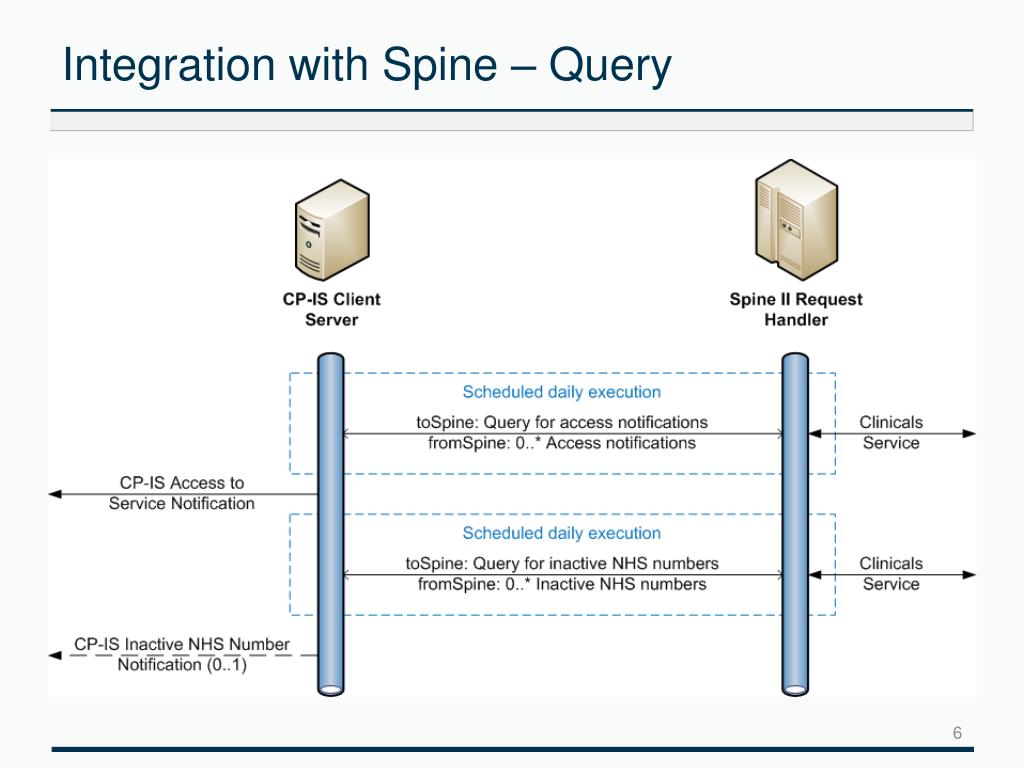

  6. Integration with Spine – Query

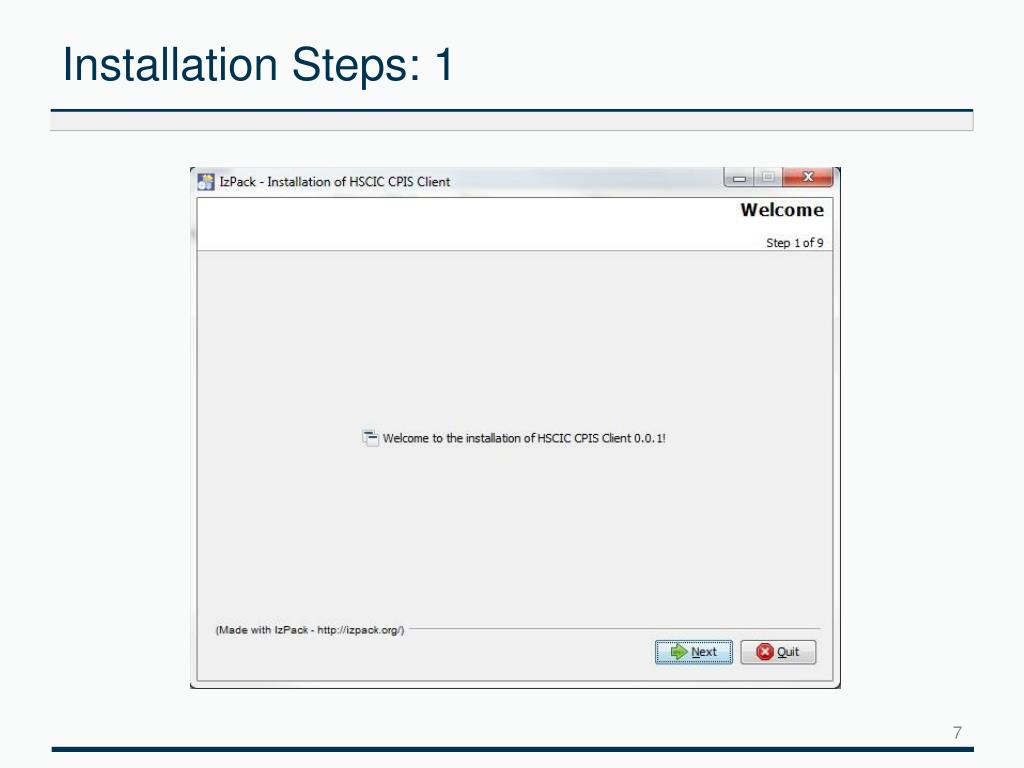

  7. Installation Steps: 1

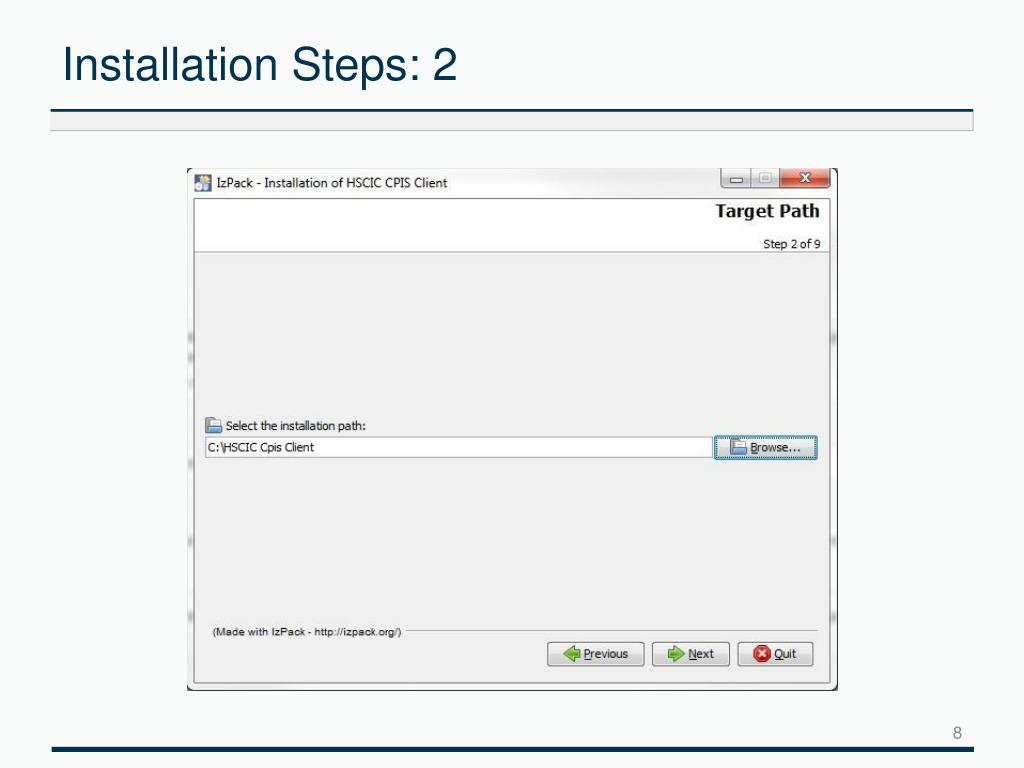

  8. Installation Steps: 2

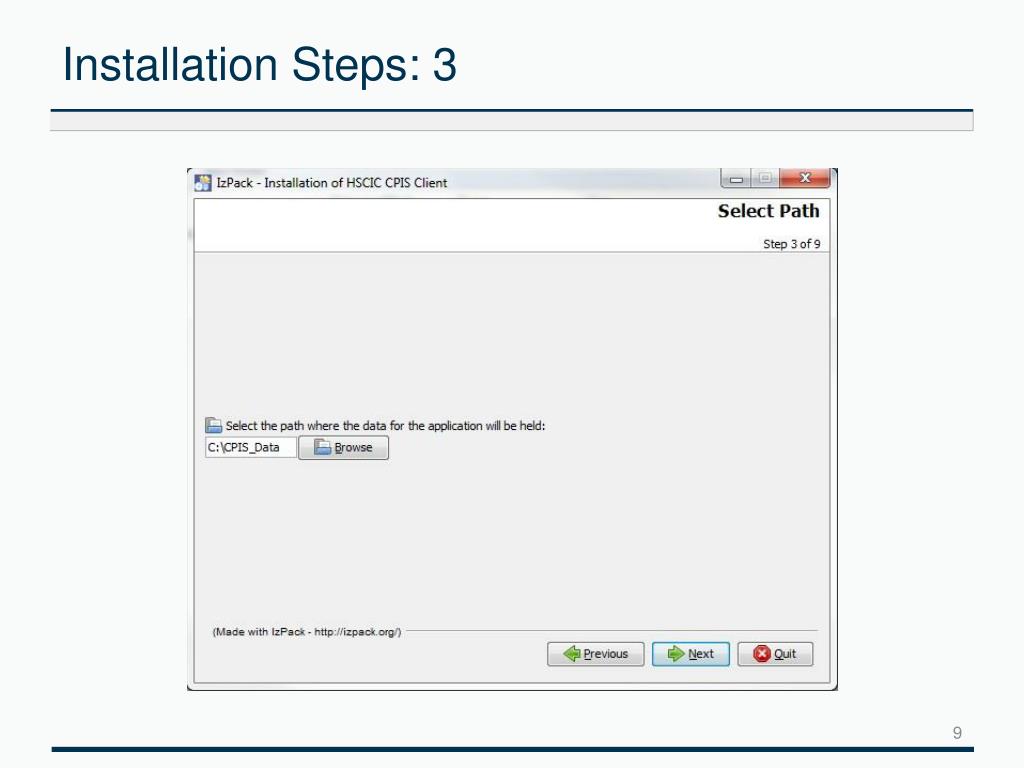

  9. Installation Steps: 3

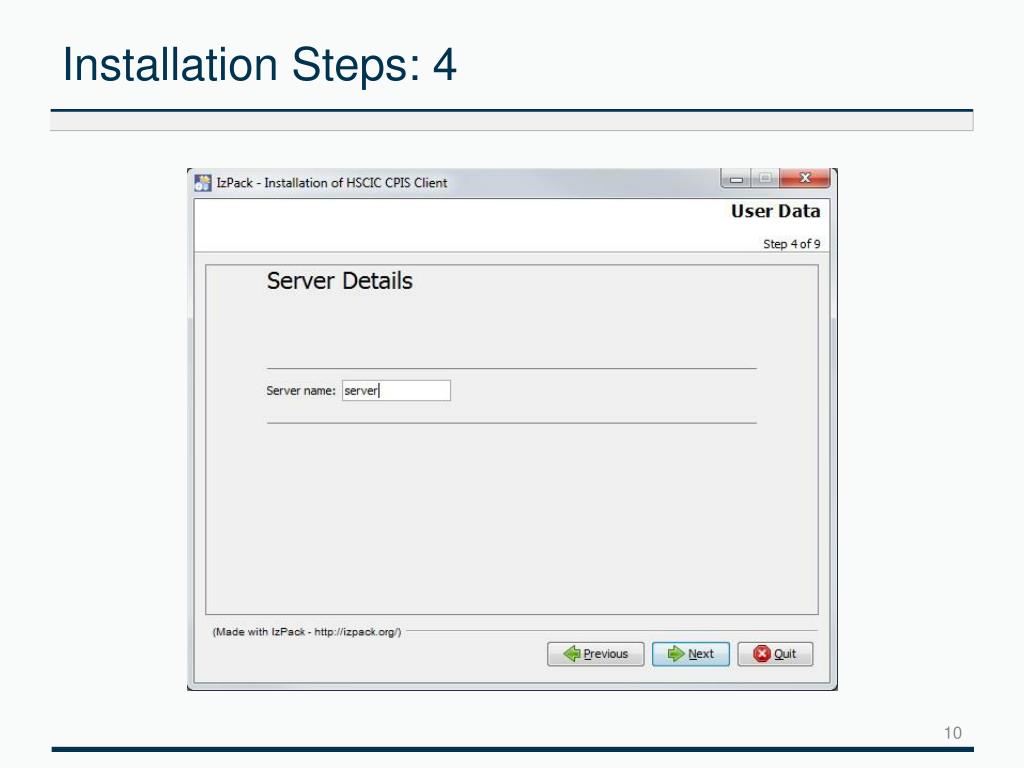

  10. Installation Steps: 4

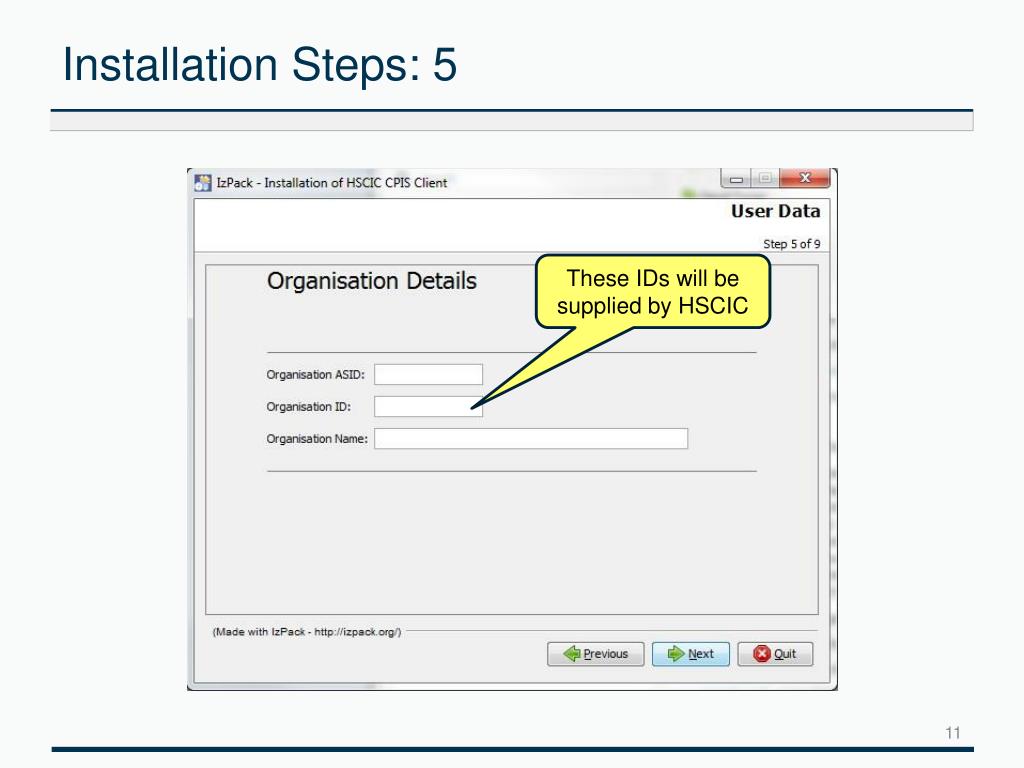

  11. Installation Steps: 5 These IDs will be supplied by HSCIC

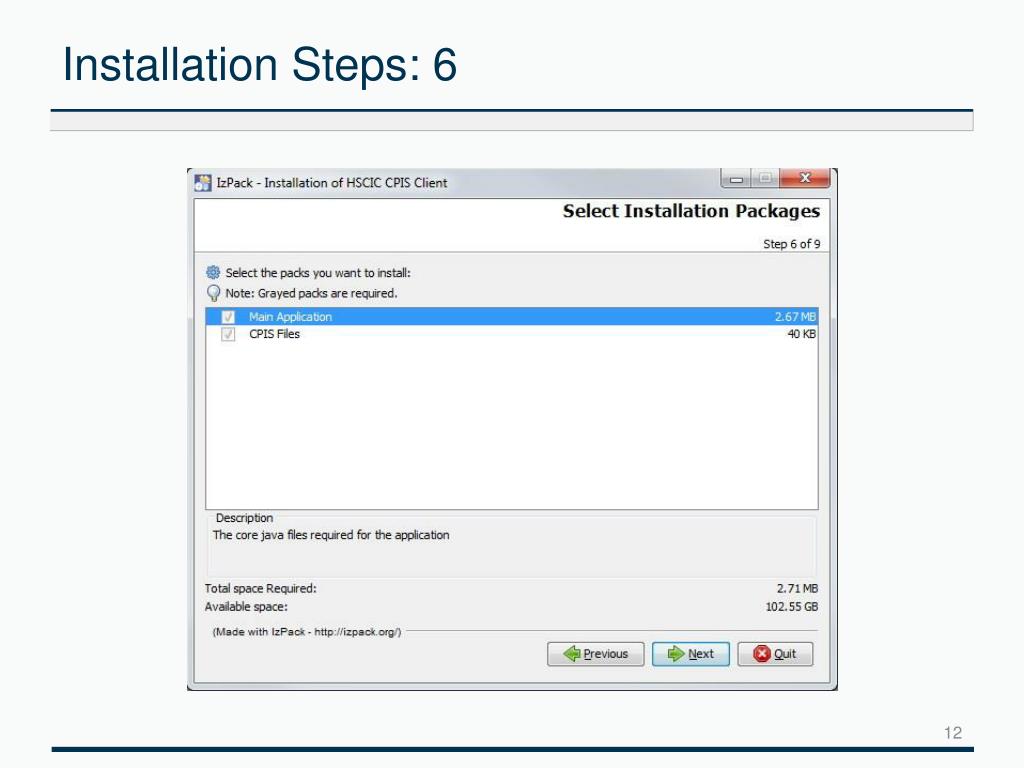

  12. Installation Steps: 6

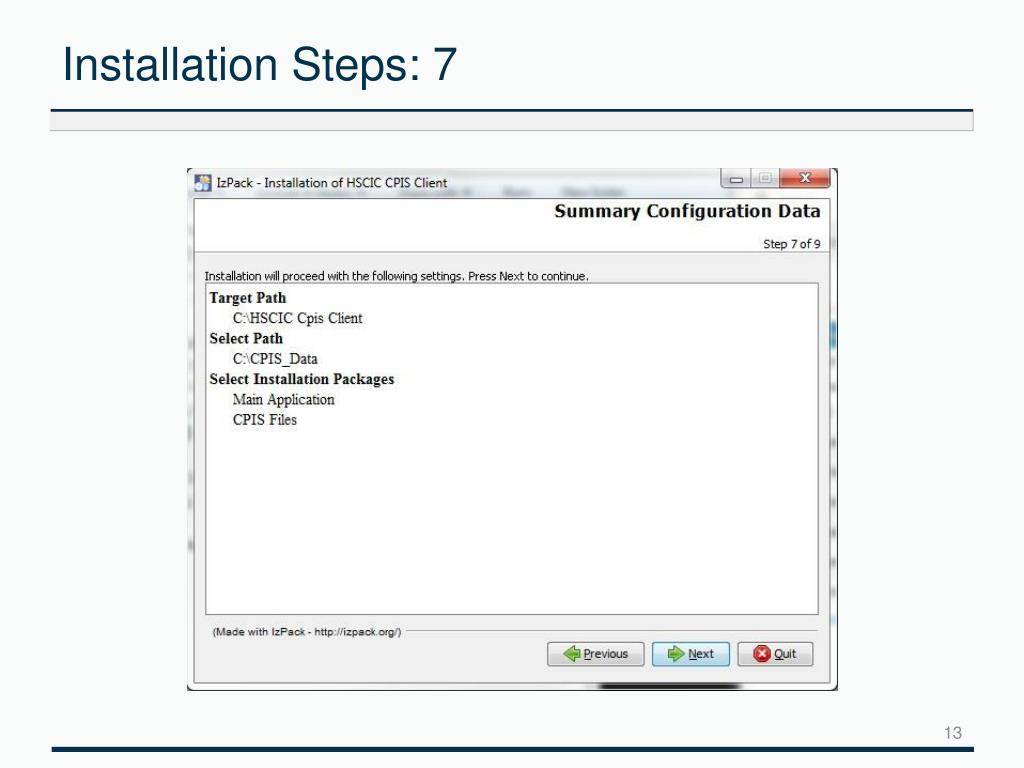

  13. Installation Steps: 7

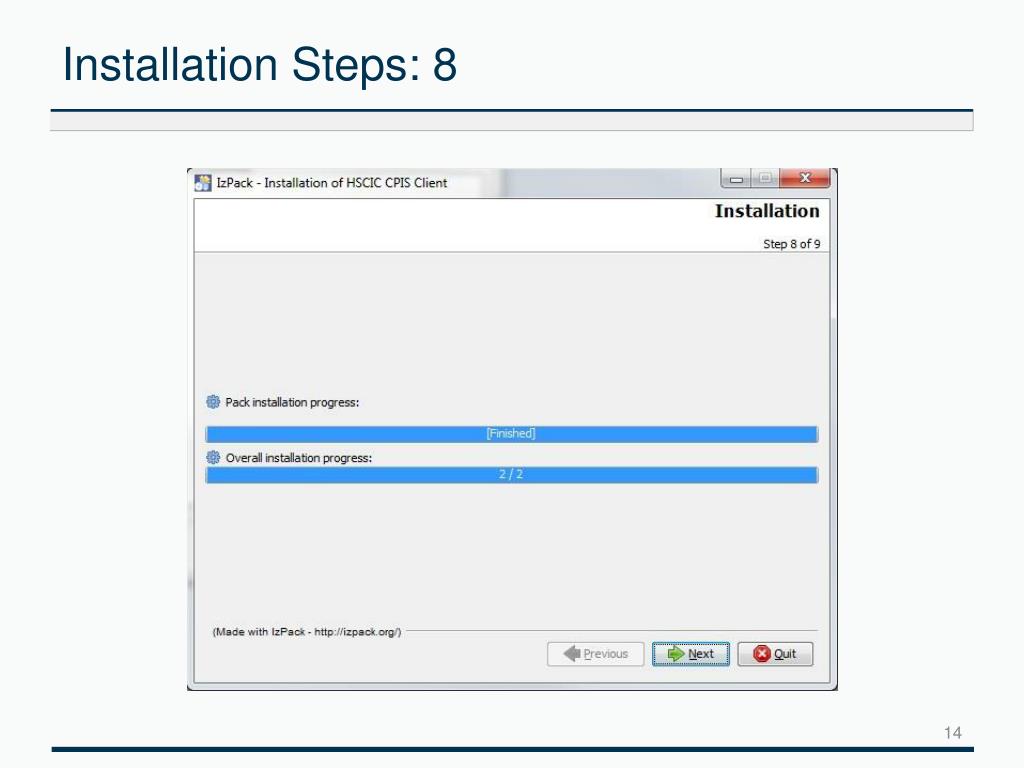

  14. Installation Steps: 8

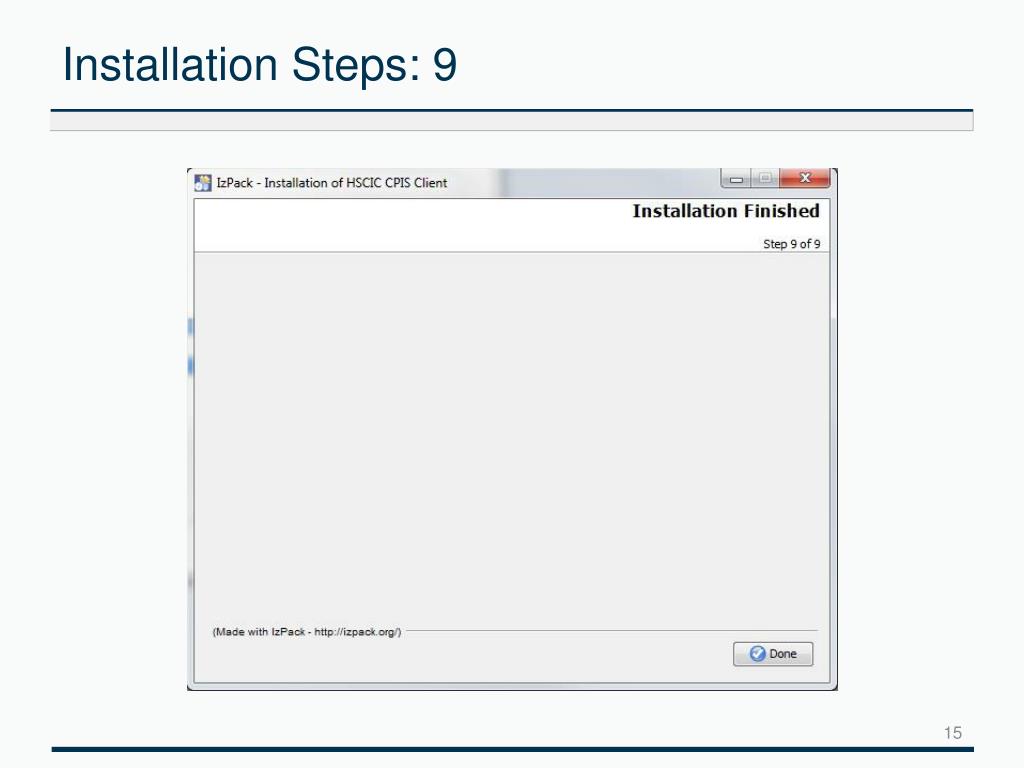

  15. Installation Steps: 9
