  1. RP Series Rotational Head Punch

  2. Optional Equipment • Indexable Multi-Tool • Automatic Sheet Clamps (RP6) • Work Chute (RP6) • Tool Holders • CAD/CAM Nesting Software • Wheel Programming Software Standard Equipment Capacities • Siemens 840DsI CNC Control • Remote Diagnostic via Ethernet • Network via Ethernet • Automatic Clamp Positioning (RP9) • Automatic Tool Lubrication • Alignment Tool • USB Port • Auto Sheet X Axis Repositioning • Oil Cooler • Brush Table • Work Chute (RP9) • 49” x 78” x 22/33 Tons

  3. Features Indexable Multi-Tools Rotational Head 3,6,8 and station indexable multi-tools reduce tool changes and increase flexibility. Programmable to .02° with no upper and lower mechanical connections, RP provides perfect alignment of the upper and lower tool. Even defects or worn tools can be offset. The full 360° programmable head achieves 40 revolutions per minute. A harmonic zero-backlash gear driven system provides accurate positioning and control.

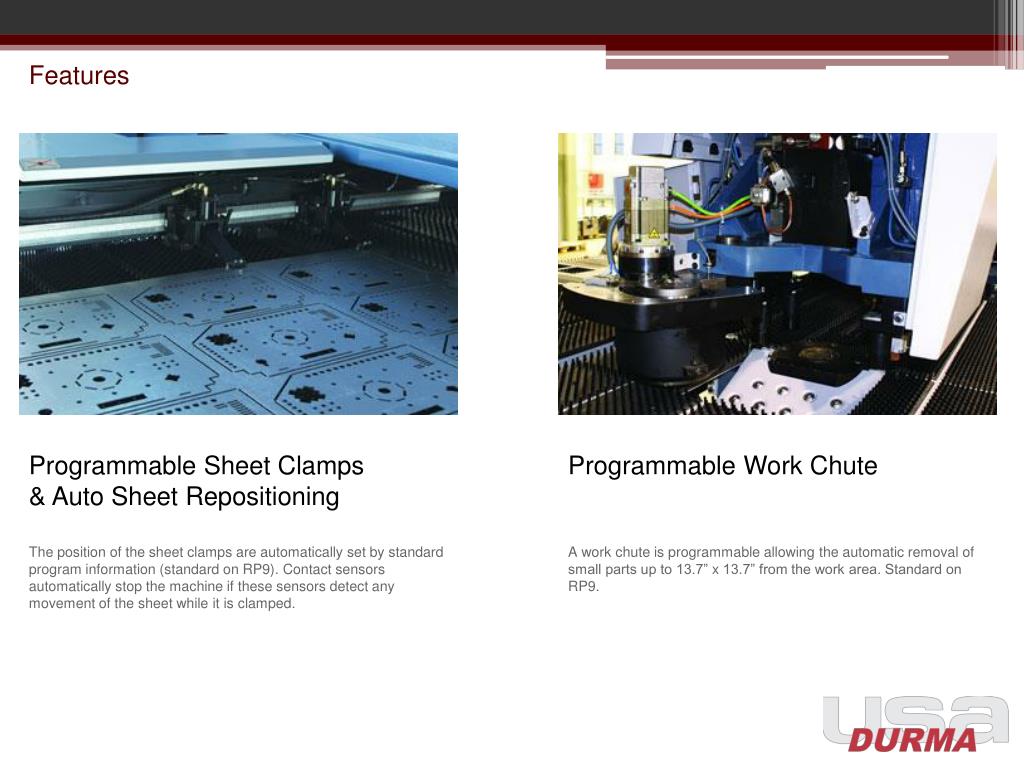

  4. Features Programmable Sheet Clamps & Auto Sheet Repositioning Programmable Work Chute The position of the sheet clamps are automatically set by standard program information (standard on RP9). Contact sensors automatically stop the machine if these sensors detect any movement of the sheet while it is clamped. A work chute is programmable allowing the automatic removal of small parts up to 13.7” x 13.7” from the work area. Standard on RP9.

  5. Control Unit Siemens 840Dsi Series Control • Durma has chosen the very powerful Siemens Dsi CNC Control, which has been specially designed for punching. Several additional features are: • Movable Control Cabinet • Ethernet and Network Communications Connections • UPS Electrical Component Surge Protection System • Internal Diagnostics with Graphic Visualization • Online Help Messages • Telediagnostics via Modem (optional) • Automatic Optimization of Sheet Speed according to Sheet Mass • Graphic Programming at Machine Control • Sheet Layout and Automatic Calculation of Sheet Layout • Removable Software Key (office or machine programming)

  6. Software CAD/CAM Nesting Software • Available as an option to increase productivity. Several features include: • Automatic Contour Check and Correction • Automatic Punching • Supports Wire-Joints and Micro-Joints • Allows Predefined Shapes Placement • Full Common Cut Support • Turret Setup Customization • Sheet Reposition and Transformation • Auto-Indexing • Offers Special Tools Support • Automatic and Manual Clamp Avoidance

  7. Learn More Videos CNC Rotational Punch Datasheets View Online Printer-Friendly Version

  8. Durma Aims for Continuous Development DURMA’s large investment in machining centers and production equipment, as well as its ISO-certified factories totaling 1,350,000 square feet and 1,000 employees, make one of the world’s largest, efficient and most contemporary facilities in the world. In order to offer customer solutions and further develop patents, the DURMA Research and Development center opened in 2010. Fifty engineers were added over the last two years. Designed and engineered with modern technology, DURMA products are equipped with high quality and proven readily available components. Established in 1956, DURMA has vast experience in building and supplying quality products. With over 60,000 machines delivered worldwide, DURMA has earned the reputation as a supplier of innovative, “value oriented” solutions. Your partner today, tomorrow and forever.
