1. Alexander A. ShvartsmanUniversity of Connecticut, USA FRIDA 2014, Vienna, Austria Specifying, Reasoning About, Optimizing, and Implementing Atomic Data Services for Dynamic Distributed Systems

2. “Three R’s” (Lesen, Schreiben, Rechnen) • Reading, ’Riting, and ’Rithmetic • Underlay much of human intellectual activity • Venerable foundation of computing technology • With networking, communicationbecame a major activity • Email – electronic counterpart of postal service • Yet, it is natural to deal with reading, writing, and computing • In the Web, a browser app may load (i.e., read) a page, perform computation, and save(i.e., write) the results • In distributed databases we retrieve and store data, and rarely talk about sending and receiving data • Arguably, it is also easier to develop distributed algorithms with readable/writeable objects, than to use message passing

3. Sharing Memory in a Networked System • Let’s place a shareable object at a node in a network • Not fault-tolerant – single point of failure • Not efficient – performance bottleneck • Not very available, does not provide longevity, etc…

4. Sharing Memory in a Networked System • So we replicate – we’d have to anyway, since redundancy is the only means for providing fault-tolerance

5. Sharing Memory in a Networked System • With replication come challenges: • How to preserve consistency while managing replicas? • What kind of consistency? • How to provide it? • How to use it? a a b

6. Sharing Memory in Networked Systems • Let’s place a shareable object at a node in a network • Not fault-tolerant – single point of failure • Not efficient – performance bottleneck • Not very available, does not provide longevity, etc… • So we replicate – we’d have to anyway, since redundancy is the only means for providing fault-tolerance • With replication come challenges: • How to preserve consistency while managing replicas? • What kind of consistency? • How to provide it? • How to use it?

7. Consistency • Easiest for users: a single copy view • Sequence of operations; a read sees all previous writes • Captured by atomicity [Lamport]/ linearizability[Herlihy Wing] • Not cheap to implement even without general updates • Cheapest to implement: a read sees a subset of prior writes • Not the most natural semantic for the users • Additional complications in dynamic systems • Ever-changing sets of replicas and participants • Crashes never stop, timing variations persist • Evolving topology, ultimately mobility

8. Atomicity / Linearizability[Lamport / Herlihy Wing ] • “Shrink” the interval of each operation to a serialization point so that the behavior of the object is consistent with its sequential type write(8) Time read(0) read(8) read(8) write(8) Time read(8) read(0) write(8) Time read(8) read(0)

9. More Atomicity Examples • Valid (atomic) executions: • Invalid executions: write(8) write(8) ack( ) Time Time read( ) ret(0) read( ) read( ) ret(0) ret(8) write(8) ack( ) write(8) Time Time read( ) ret(0) read( ) ret(0) read( ) ret(8) read( ) ret(0)

10. Consistency Polemics • Parallel / distributed systems • Performance • Speed-up • Distributed theory focus • Fault-tolerance • Consistency • User: Yes, • mine is wrong… • But it is fast! Yes, mine is slow… But it is correct! I wish they reconciled…

11. Using Majorities/Quorums for Consistency • Consistency of replicated data: using intersecting sets • Starting with Gifford (79) and Thomas (79) • Upfal and Wigderson (85) • Majority sets of readers and writers to emulate shared memory in a synchronous distributed setting • Vitanyi and Awerbuch (86) • MW/MR registers using matrices of SW/SR registers where rows and columns are readand written • Attiya, Bar-Noy, and Dolev (91/95) • Atomic SW/MR objects in message passing systems, majorities of processors, minority may crash • Two-phase protocol (ABD)

12. Quorum Systems and Examples 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 • Quorum system Qover P, • a set of processor ids: • Q = {Q1, Q2, … } • Qi P • Qi Qj ≠Ø for alli, j B A C Majorities [Thomas79,Gifford79] Lemma: The join ofquorum system Qa over Pa and system Qbover Pb ,Qa⋈Qb ,is a quorum system over PaUPb . Matrix Quorums: Processor ids arranged in a matrix. A quorum: Row U Column

13. Main Idea: (Logical) Timestamps and Quorums • An object is represented as a pair (value, timestamp) • A write records (new-value, new-timestamp) in a quorum • A read obtains (value, timestamp) pairs from a quorum, then returns the value with the largest timestamp read(vmax) write(v1) (v1,t1) (vmax,tmax) Time write read

14. “Readers Must Write” • If operations are concurrent and a reader simply returns the latest value, then atomicity can be violated: • Solution: If readers first help the writer to record the value in a quorum, then it is safe to return the latest value Read returns v1 Read returns v0 v0 v0 v0 v1 v0 v0 Write(v1) . . . (happened to be slow)

15. Lastly: “Writers Must Read” I assume you’re being facetious, Josef, I distinctly yelled ‘second’ before you did! • Writers can “read” before writing (and riding) to obtain the latest timestamp in order to compute a new timestamp

16. The ABD Algorithm [Attiya Bar-NoyDolev]

17. The Complete Algorithm [Attiya Bar-NoyDolev] • Read and write uses identical two-phase communication patterns: • Get phase queries and obtains values from a quorum, • Put phase propagates values to a quorum. • The only difference is in what is sent out in the Put phase. • Replica hosts respond to Get and Put requests

18. New Frontiers: DynamicAtomic Memory • Goal: Develop and analyze algorithms to solve problems of coherent data sharing in dynamic distributed environments • “Dynamic” encompasses • Changing sets of participants: nodes come and go as they please • Wide range of failures • Asynchrony, timing variations • Crashes, message loss, weak delivery guarantees • Changes in network topology • Processor mobility

19. Approach: Dynamic Quorums [Lynch Shvartsman] • Objects are replicated at several network locations • To accommodate small, transient changes: • Use quorum configurations: members, quorums • Maintains atomicity during “normal operation” • Allows concurrency • To handle larger, more permanent changes: • Reconfigure • Maintains atomicity across configuration changes • Any configuration can be installed at any time • Reconfigure concurrently with reads/writes -- no heavy-handed view change

20. Algorithmic Ideas • Reconfigurable quorum systems • Quorums maintain consistency during modest and transient changes • Reconfigurations accommodate more drastic and permanent changes • Read/write operations are frequent • Use quorum access and allow concurrency • Isolate from reconfiguration • Reconfigurations are infrequent • Use consensus to impose total order (Paxos) • Optimistic dissemination without formal installation • Conservative garbage collection of obsolete config-s

21. Related Other Approaches • Using consensus to agree on each operation [Lamport] • Performance overhead for each reads and write op • Termination of operations depends on consensus • Use group communication service [Birman 87] with TO bcast[Amir, Dolev, Melliar-Smith, Moser 94], [Keidar, Dolev 96] • View change delays reads/writes • One change may trigger view formation • DynaStore: Reconfiguration without consensus[Aguilera, Keidar, Malkhi, Shraer 11] • Initial quorum system, incremental adds/removes • Changes yield DAGs of possibilities • Reads/writes use ABD-like phases, traverse DAGs • Assuming finite reconfigurations guarantees termination

22. GCS: Group Communication Services (a Detour) • Pioneering work of Ken Birman & Co. made GCSs one of the most important distributed system building blocks • GCS: group membership + multicast communication • Isis, Transis, Consul, Ensemble, Totem, Horus, Newtop, Relacs … • Commercial variants of Birman’s Isis used in • French air traffic control system • Stock exchange on Wall Street • Swiss Electronic Bourse • GCSs for years defied sufficiently formal specification that would both • Detail the utility of the services and • Enable compelling reasoning about correctness

23. View-Synchrony [Fekete Lynch Shvartsman 01] • Anew, simple formal specification for a partitionable view-oriented group communication service. • To demonstrate the value of our specification, we used it to construct an algorithm for an ordered-broadcast application that reconciles information derived from different views. • Atomic memory is now easily obtained • Our algorithm is based on algorithms of Amir, Dolev, Keidar, Melliar-Smith and Moser. • Our specification has a simple implementation, based on the membership algorithm of Cristian and Schmuck.

24. View-Synchrony [Fekete Lynch Shvartsman 01] • We proved the correctness and analyzed the performance and fault-tolerance of the algorithm • Our work on GCS was (we believe) the first successful formal specification + rigorous proofs • Safety: Invariants and simulation • Conditional performance analysis • MylaArcher @ NRL checked several invariants using PVS – invaluable contribution to perfecting the proofs • Despite perhaps only modest algorithmic advances the paper was/is highly cited -- the value is in the proofs!

25. Our Ground-Up Approach: RAMBO • Reconfigurable Atomic Memory for Basic Objects[Lynch, Shvartsman 02], [Gilbert, Lynch, Shvartsman 10] • For small, transient changes, use quorum configurations • Maintain atomicity and allow concurrency, a la ABD • For larger, permanent changes, reconfigure: • Dynamically install anyquorum system • Guarantee atomicity across configurations • Guarantees: • Linearizability in all cases • Good latency in common cases • High availability • Everything proceeds concurrently • Use low-level gossip communication

26. Methodology • Specify algorithm • Interacting state machines • Using non-deterministic “gossip” • Show correctness/safety for • arbitrary patterns of asynchrony • assuming arbitrary crash-failures and message loss • Analyze performance for a subset of timed executions • Bounded message delay, 0-time local processing • Some “gossip” becomes deliberate, some periodic • Non-failure of certain quorums for certain periods • Reason about operation latency • Of course none of this impacts safety

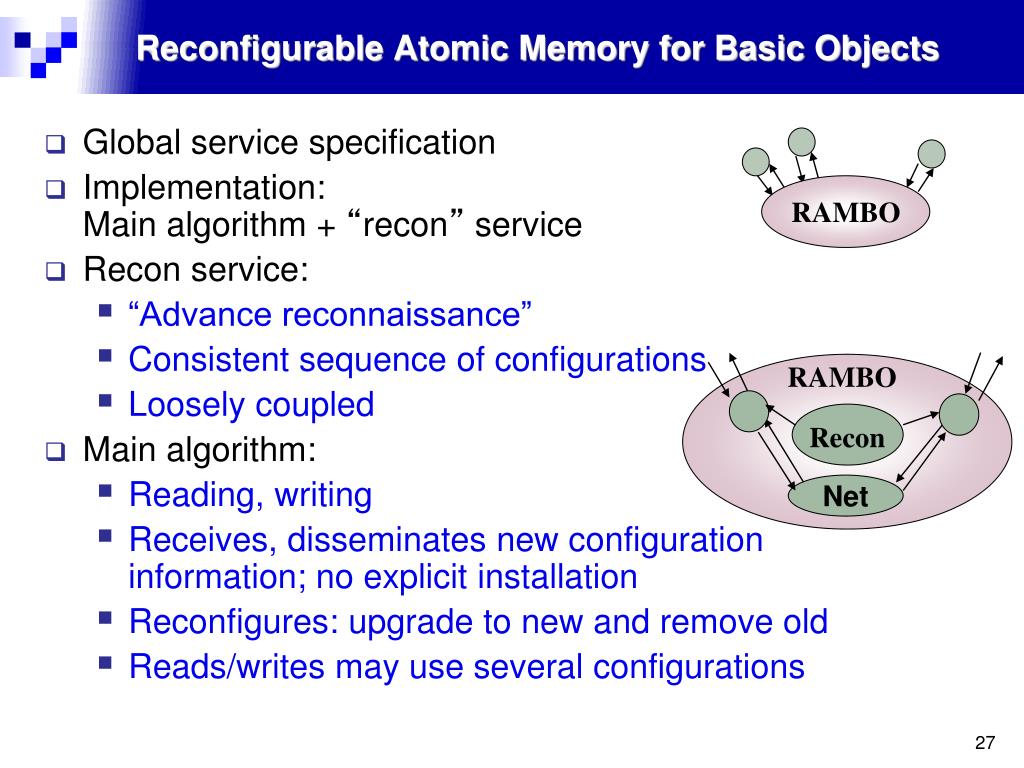

27. RAMBO Recon Net RAMBO Reconfigurable Atomic Memory for Basic Objects • Global service specification • Implementation: Main algorithm + “recon” service • Recon service: • “Advance reconnaissance” • Consistent sequence of configurations • Loosely coupled • Main algorithm: • Reading, writing • Receives, disseminates new configuration information; no explicit installation • Reconfigures: upgrade to new and remove old • Reads/writes may use several configurations

28. Architectural View Application RAMBO Node i Node j Joineri Joinerj Recon R/Wj R/Wi Communication Network

29. High-Level Functions • Joiner • Introduces new participants to the system • Reader-Writer • Routine read and write operations • Two-phased algorithm using all “known” configurations • Using tags • Recon • Chooses new next configuration, e.g., using Paxos • Informs members of the previous configuration • Configuration upgrade (“packaged” with Reader-Writer) • Identify and remove obsolete configurations(garbage collection)

30. Configurations and Reconfiguration • Configuration: quorum system • Collection of subsets of replica host idswhere any two subsets intersect • Or collection of read-quorums and write-quorums, where any read-quorum intersects with any write-quorum • Reconfiguration process involves two decoupled steps • Recon: Emitting a new configuration, then, at some later time • Garbage-collecting obsolete configurations while“upgrading” to the latest (locally) known configuration • No constraints on the membership of distinct quorum systems Q1 Q2 Q3 …

31. Implementation of Recon Recon Consensus Net • Uses distributed consensus to determine new configurations 1,2,3,… • Note: when the universeof configurations isfinite and known, then consensus is not neededeven with unboundedreconfiguration[GeoQuorums] • Members of old configuration may propose a new config. • Proposals reconciled using consensus • Consensus is a fairly heavy mechanism, but it is • Used only for reconfigurations, which are infrequent • Does not delay Read/Write operations

32. Configurations and Config Maps • Configuration c • members(c) -- set of members of configuration c • read-quorums(c), write-quorums(c) -- sets of quorums • Configuration map cm • mapping from naturals to configurations • cm(k) is configuration k • Can bedefined (c), undefined (), garbage-collected (±) ... ± ± c c c  c  ... c  GC’d Defined Mixed Undefined

33. Configuration Upgrade [Gilbert, Lynch, S 10] • Reconfigure to last configuration in a contiguous segment • Phase 1: • Informs write-quorum of cj … ck-1 about ck • Collects (value,tag) from read-quorums of cj … ck-1 • Phase 2: • Propagates latest (value, tag) to a write-quorum of ck • Garbage-collect: Set cmap(j…k -1) to ± • Constant-time upgrade regardless of the number of obsolete configurations (conditioned on failures) • Maintains good read/write latency during system instability or frequent reconfigurations . . . . . . . . . ± cj . . . ck 

34. Configuration Map Changes (Local View) . . . c0           TIME . . . c0 c1          . . . c0 c1 c2    ck     . . . ± c1 c2    ck     . . . ± ± c2    ck     . . . ± ± ± c3   ck     . . . . . . ± ± ± ± ± c c c  c 

35. On to Reads and Writes: Values and Tags • Each value v has an associated tag t (logical timestamp) • Tag is made up of the sequence-processor pair • Reads: • a set of value-tag pairs is obtained • the result is the value with the maximum tag • Writes: • a set of value-tag pairs is obtained • new-value is propagated with a new-tag that is a lexicographic increment of tag :new-tag := tag.seq+ 1, pid

36. Dynamic Reader-Writer and Recon R/Wi R/Wj Recon Net • The work is split between Reader-Writer and Recon • Recon emits consistent configurations • Reader-Writer processes run two-phase quorum-based algorithm, with all “active” configurations • Background “gossip” builds fixed-points • If Recon emits new configuration, Reader-Writer continues reads/writes in progress, until fixed-point is reached

37. Processing Reads and Writes • Reads and Writes perform Query and Propagation phases using known configurations, stored in op.cmap. • Query: Gets “fresh”value, tag, and cmapinformation from read-quorums • Propagation: Gives latest (value,tag) to write-quorums • Both phases: Extend op.cmap with newly-discovered configurations that now must also be involved. • Each phase ends with a fixed point, involving all the configurations currently in op.cmap Read or Write Query Phase Propagation Phase Start Query End Query Start Prop End Prop

38. Methodology … … Net • Algorithms are presented formally, using interacting state machine models: Input/Output automata) • service specifications • algorithm descriptions • models for applications • Safety: rigorous proof of correctness (atomicity) for arbitrary patterns of asynchrony and change • Conditional performance analysis • E.g., when message latency < d, quorum configurations are “viable”, then read and write operations take time between 4d and 8d, under reasonable “steady-state” assumptions.

39. Input Output Automata (IOA) • Input Output Automata [Lynch & Tuttle] • A language and formalism based on simple mathematical foundation • Elegant, suitable for analysis, well documented • Supports composition, abstraction • Model system components as a collection of interacting state machines • Allows rigorous reasoning about system properties • Widely used in research – hundreds of algorithms

40. Example Spec’n: Asynchronous Lossy Channel Internal lose(m) Output recvj,i(m) Input sendi,j(m) Channeli,j

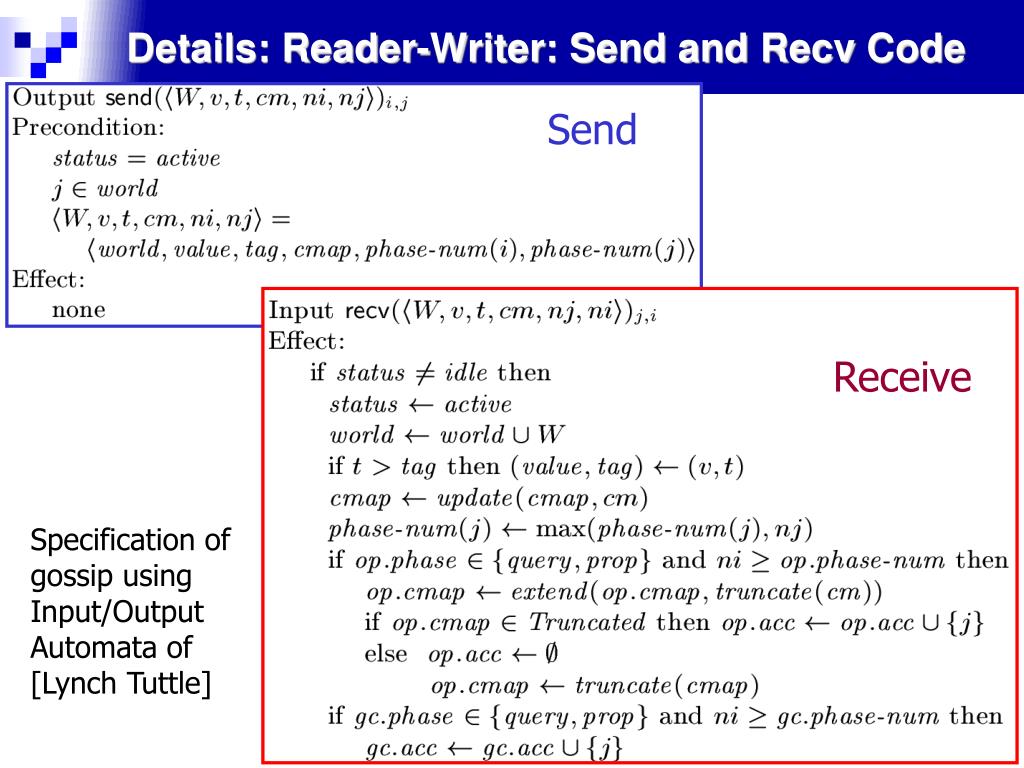

41. Details: Reader-Writer: Send and Recv Code Send Receive Specification of gossip using Input/Output Automata of [Lynch Tuttle]

42. Details: Reader-Writer Fixed Points Phase 1 fixed point Phase 2 fixed point Specification of fixed points using Input/Output Automata

43. Showing Read/Write Atomicity • We show atomicity using a partial order • For be any sequence of reads and writes • Let  be an irreflexive PO of all op-s in  • To prove atomicity show that satisfies: • For any operation , finitely many op-s  • If  precedes , then not • If  is a write then either  or  • Any read returns value written by last write, per (or init value if no such writes) [Lynch, Lemma 13.16] • Rigorous proof that in RAMBO the max-tag of reads and new-tag of writes, lexi-ordered, provide such a PO

44. Some Latency Analysis Details • Restrict attention to a subset of timed executions • Reminder: Read and write operations are not affected by Recon delays or non-termination • Configuration upgrade (garbage collection) takes 4d • If reconfigurations are “rare” -- operations take 4d • If configurations are in “steady state” -- operations take 8d • Logarithmic time “catch-up” after a bursty period of “bad timing behavior” • A recovering node joins quickly after a long absence

45. Implementation • Experimental system implementations [Musial 07] • Platform for refinement, optimization, tuning • Observe of algorithms in a local area setting • Cluster with 16+/- Linux machines & fast switch • Developed by manually translating the Input/Output Automata specification to Java code • Precise rules are followed to mitigate error introduction during translation • Rigorous proofs [Georgiou, Musial, Sh., Sonderegger 07, 11] • Next steps: • Specification in Tempo[Lynch Michel S 08] (Timed IOA) • Code generation ([Georgiou Lynch MavrommatisTauber 09])

46. Optimizations – Rigorously Proved • Parallel upgrade [Gilbert Lynch S 10] • Improving communication efficiency [Georgiou, Musial, S 06] • Explicit “leave” service • Incremental gossip for long-lived data • Improving liveness & gossip efficiency [Gramoli, Musial, S 05] • Non-deterministic heuristic for prodding slow operations • Constrained gossip patterns • Providing complete shared memory [Georgiou, Musial, S 05] • Domain-oriented Rambo • Optimizing performance for groups of related objects

47. Optimization and Development Methodology Atomicity properties Abstract Rambo Proof Simulation Manual derivation [Musial07] or semi-automated code generation [Georgiou + 09,10] [Lynch, S 02] [Gilbert, L, S 10] Rambo with graceful departures Simulation Running System [Georgiou, Musial, S 04, 06] Long-Lived Rambo Derivation

48. Forward Simulation • Let C (low-level, concrete) and A (high-level, abstract) be two systems.The goal is to show that “C implements A” by “trace inclusion” • An execution is a finite or infinite alternating sequence s0a1s1a2s2… of states and actions, where s0 is a start state • A trace is obtained by removing all states and internal actions • Forward simulation  from C to A •  states(C) x states(A) • If s  start(C) then (s)  start(A) • If (s,a,s’)  transitions(C), then there exists an execution fragment  = (s),…, (s’) such that trace(a) = trace() Theorem: If there exists a simulation relation from C to A, thentraces(C)  traces(A). • This implies that any safety property of A is also satisfied by C

49. Simulation (or Abstraction) Function F(s) F(s') F F s s' • Simulation function Fmaps each state of specification C(concrete) to a state of specification A (abstract) • Fis required to satisfy the following two conditions 1. If s is an initial state of Cthen F(s) is an initial state of A 2. If s and F(s) are reachable states of Cand Arespectively, and (s, p, s') is a step of C, then there is a step p’ofAfrom F(s) to F(s'), having the same traceA:C: p’ p

50. Optimization: Improving performance • Long-Lived RAMBO: Graceful Leave + Incremental Gossip • Rigorous proof of correctness by simulation • Performance study • [Georgiou, Musial, Shvartsman 06]
