  1. Clockless Computing Montek Singh Thu, Sep 20, 2007

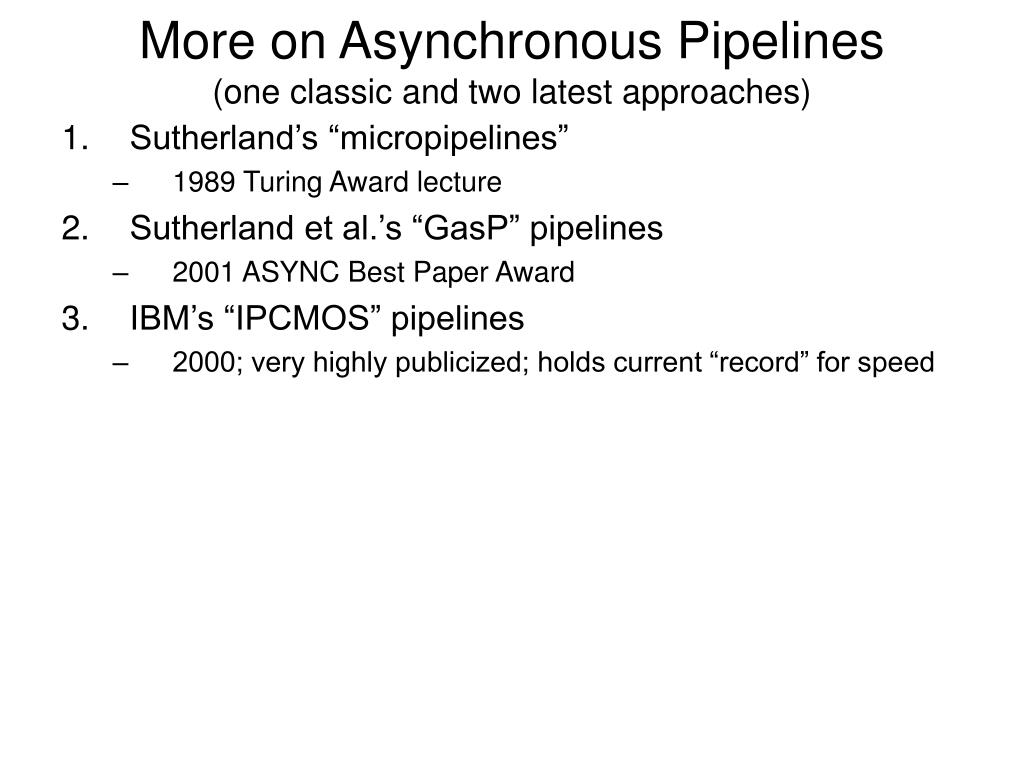

  2. More on Asynchronous Pipelines(one classic and two latest approaches) • Sutherland’s “micropipelines” • 1989 Turing Award lecture • Sutherland et al.’s “GasP” pipelines • 2001 ASYNC Best Paper Award • IBM’s “IPCMOS” pipelines • 2000; very highly publicized; holds current “record” for speed

  3. Sutherland’s Micropipelines (1989) • Basic FIFO (no logic)

  4. Sutherland’s Micropipelines (1989) • Pipeline with logic • Also: more robust construction

  5. Sutherland’s Micropipelines (1989) • Details of the storage elements: • “capture-pass” latches

  6. GasP PipelinesSutherland & Fairbanks [2001] • A “minimal” control circuit for pipelines • Very highly regarded; “cool” • But… fairly low-level design • Transistor level • Stringent (2-sided) timing requirements

  7. ackin ackout stagecontrol reqin reqout En (latchenable) datainputs dataoutputs latch GasP: A Pipeline Stage

  8. GasP: Controller Details

  9. IPCMOS (IBM 2000) • “Interlocked Pipelined CMOS” • Really fast: 3.3GHz in 0.18 • Even faster (4.5GHz) for extreme corner cases • Bragging rights! • But … very low-level design • Transistor-level design • Stringent (2-sided) timing constraints • Not clear if it really should be that fast…! • Technology-independent comparison: unsure if faster than GasP

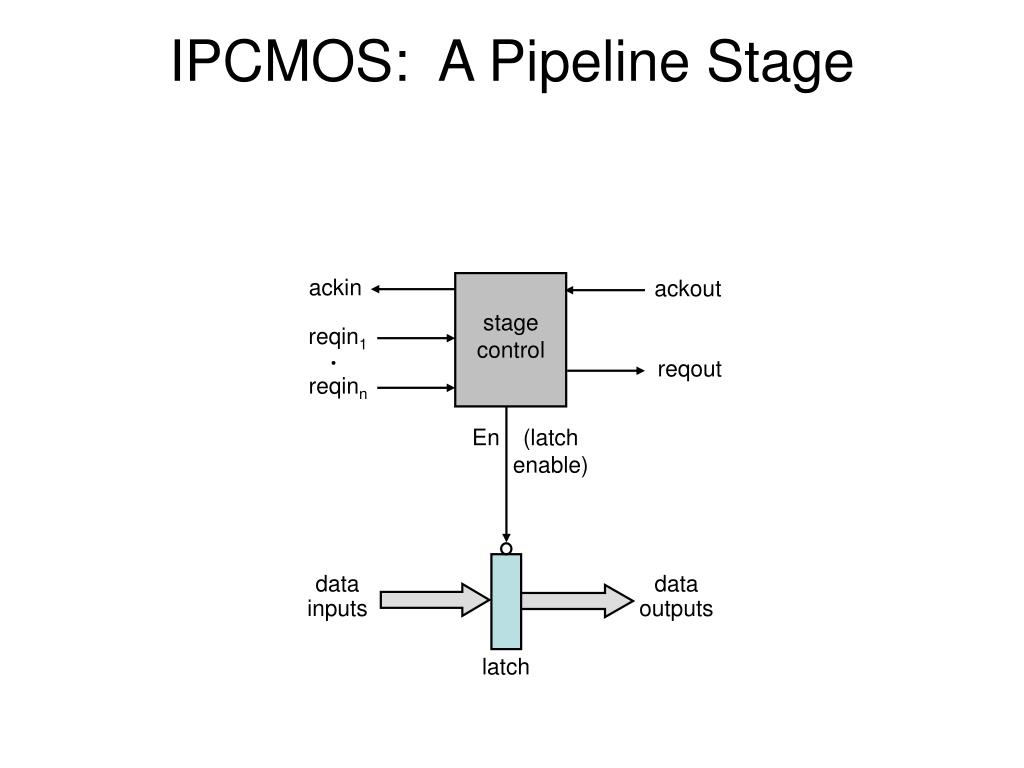

  10. ackin ackout stagecontrol reqin1 reqinn reqout En (latchenable) datainputs dataoutputs latch IPCMOS: A Pipeline Stage

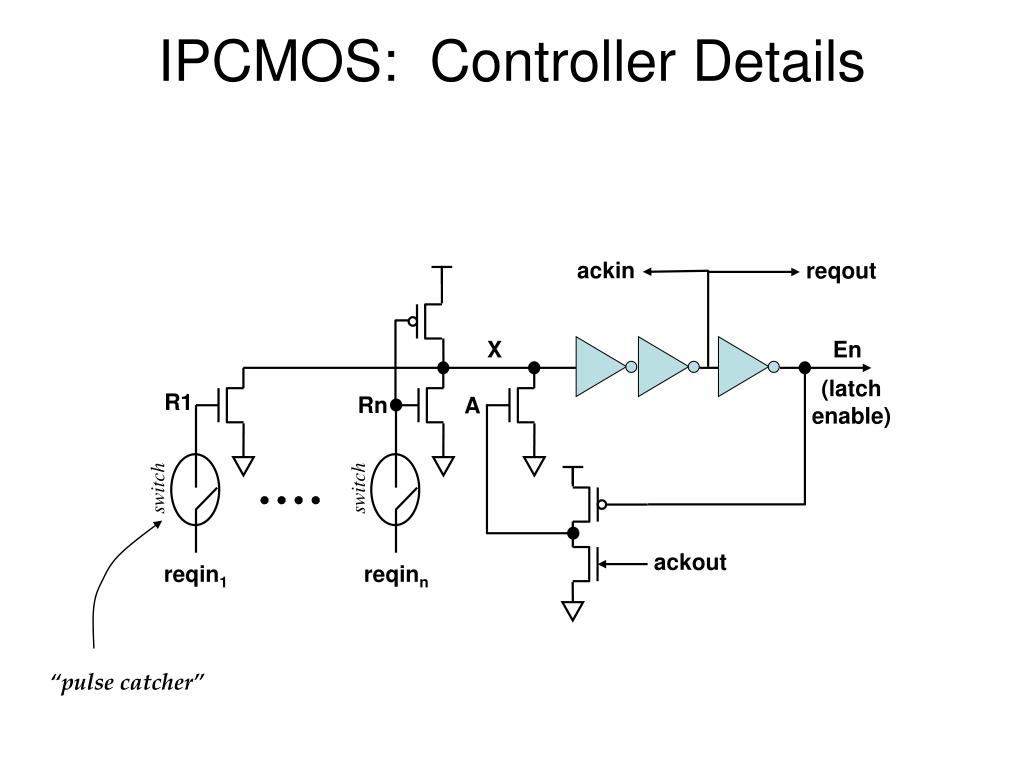

  11. IPCMOS: Controller Details ackin reqout X En (latchenable) R1 Rn A switch switch ackout reqin1 reqinn “pulse catcher”

  12. En Ri reqini (inputrequest) (conditionedrequest) Y reqout switch(“pulse catcher”) IPCMOS: Pulse Catcher
