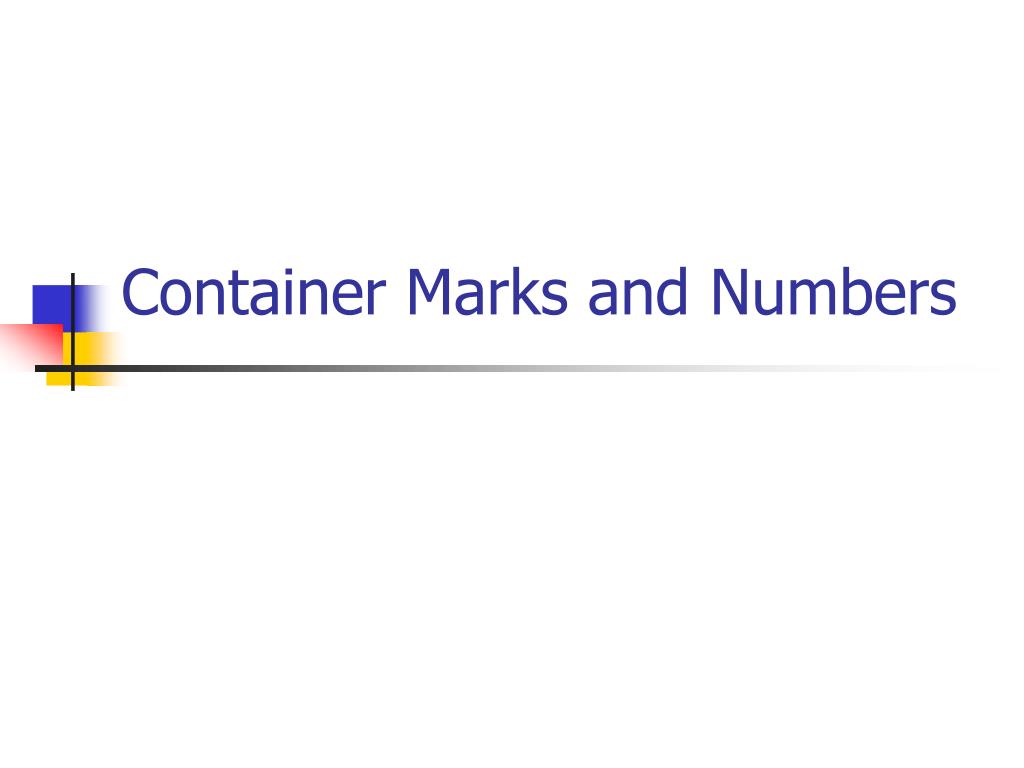

  1. Container Marks and Numbers

  2. Objectives • Explain why International identification needed. • Name and recognise the container identifications • Calculate the check digit • Recognise the size type codes

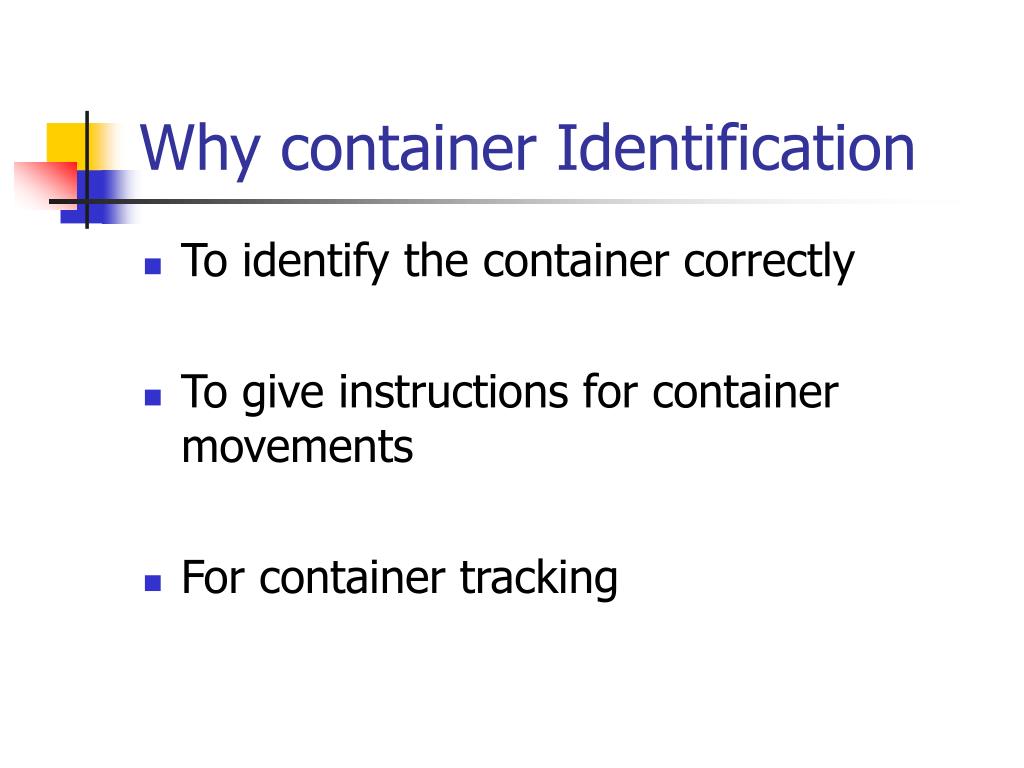

  3. Why container Identification • To identify the container correctly • To give instructions for container movements • For container tracking

  4. Why Operational Container Marks • Container dimensions and type • Container safe capacity • Safe stacking features • Characteristics of contents • Customs seal

  5. ISO Marking

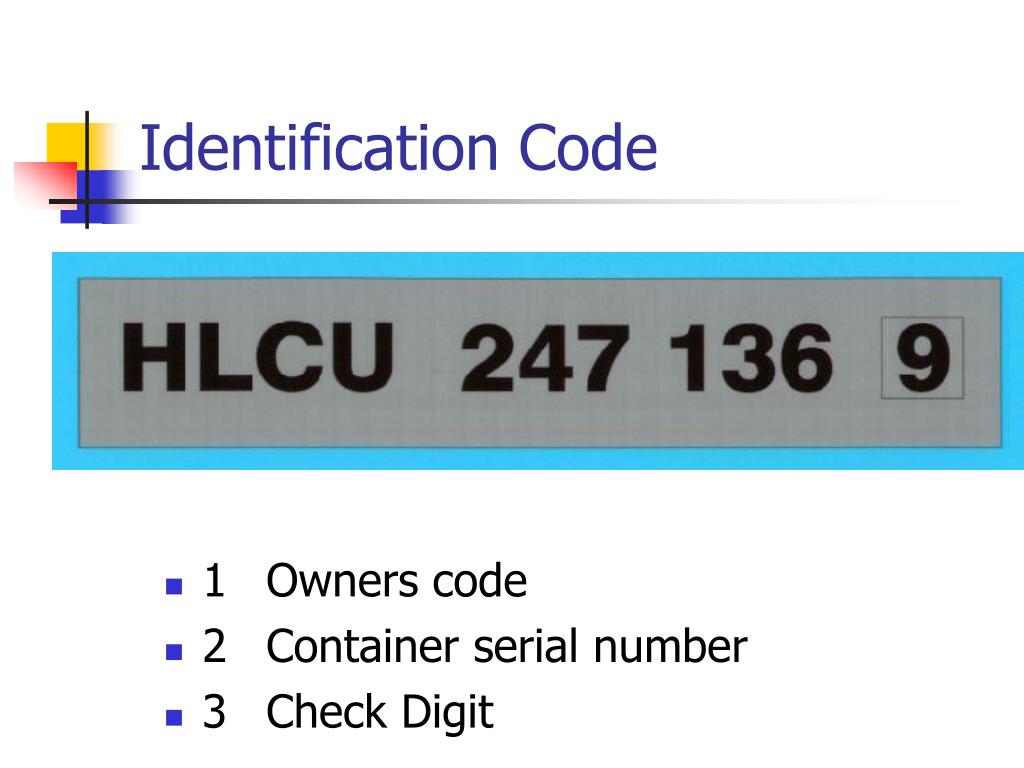

  6. Identification Code • 1 Owners code • 2 Container serial number • 3 Check Digit

  7. International Container Bureau (BIC, Paris ) • 4th letter always U • First three letters gives ID of shipping of leasing company.

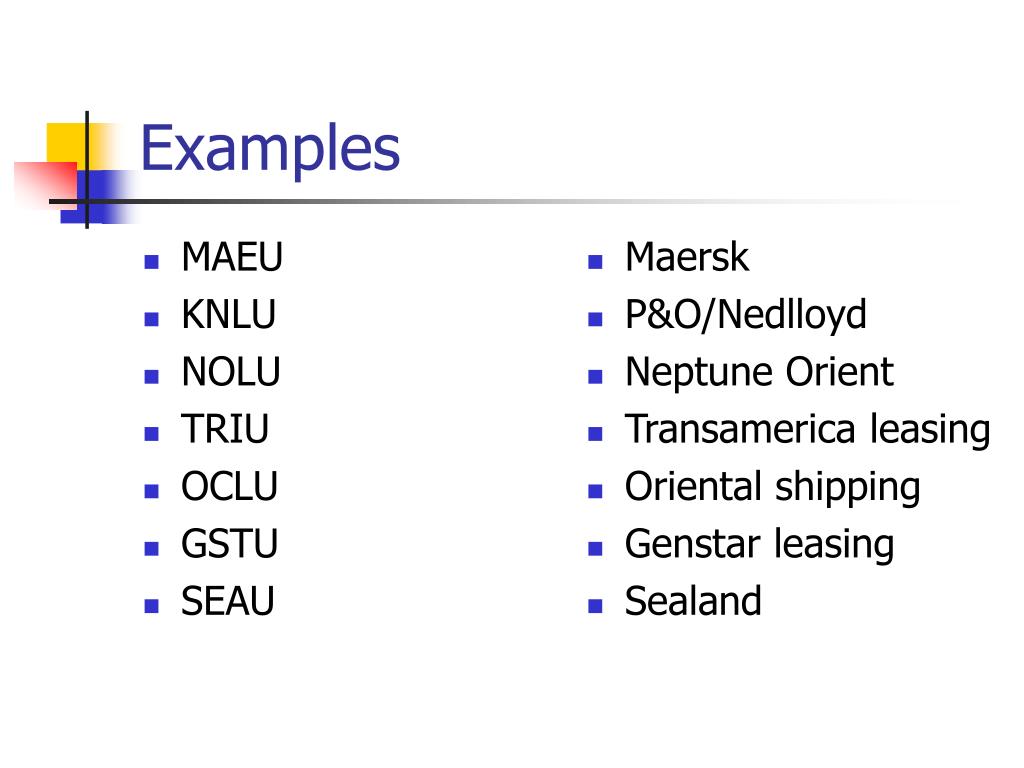

  8. MAEU KNLU NOLU TRIU OCLU GSTU SEAU Maersk P&O/Nedlloyd Neptune Orient Transamerica leasing Oriental shipping Genstar leasing Sealand Examples

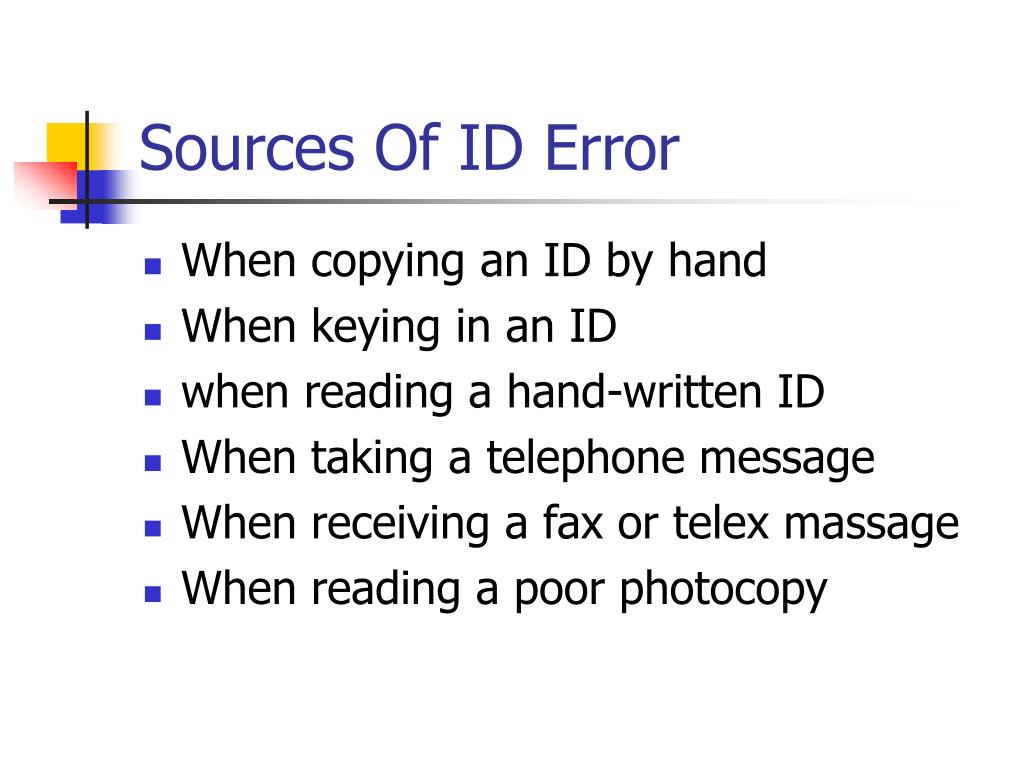

  9. Sources Of ID Error • When copying an ID by hand • When keying in an ID • when reading a hand-written ID • When taking a telephone message • When receiving a fax or telex massage • When reading a poor photocopy

  10. Serial Numbers • Together with the owner code you buy a series of serial numbers at the BIC.

  11. Check Digit • The owner code together with the serial number gives a check digit which make the ID code unique.

  12. Calculate a Check Digit

  13. Please Check the Following Check Digits

  14. Country Size Type Code Optional

  15. DE Country code; before 1984 three letters • 22 Size code • 00 Type code

  16. Example Country Code • Japan JP JXX • Brazil BR BRX • Korea KP ROK

  17. Mandatory Maximum gross weight Tare weight Optional Payload ( Net weight ) Cubic capacity (Cube ) Operational Marks

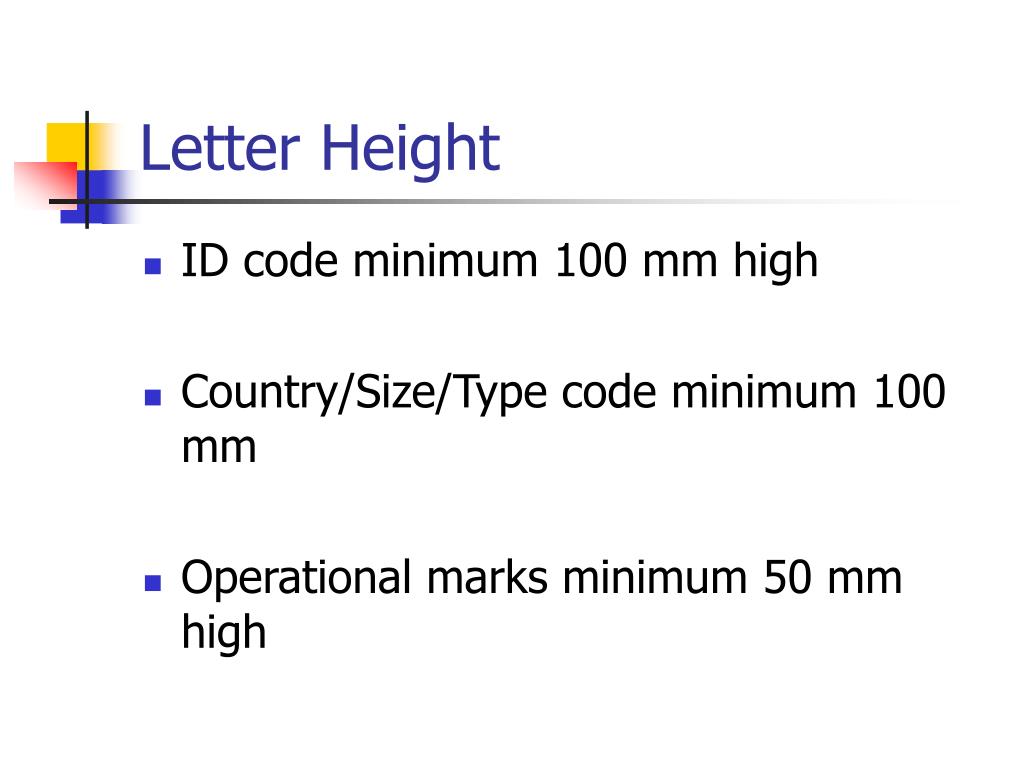

  18. Letter Height • ID code minimum 100 mm high • Country/Size/Type code minimum 100 mm • Operational marks minimum 50 mm high

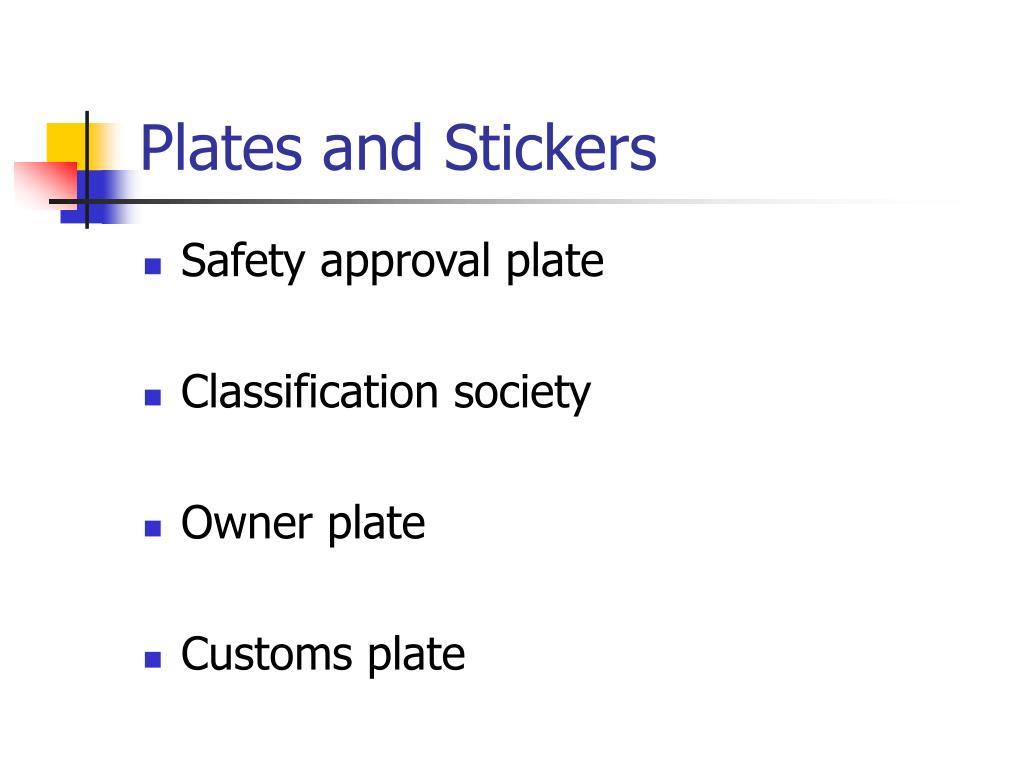

  19. Plates and Stickers • Safety approval plate • Classification society • Owner plate • Customs plate

  20. CSC Approval Plate

  21. Owners Code

  22. Customs Plate
