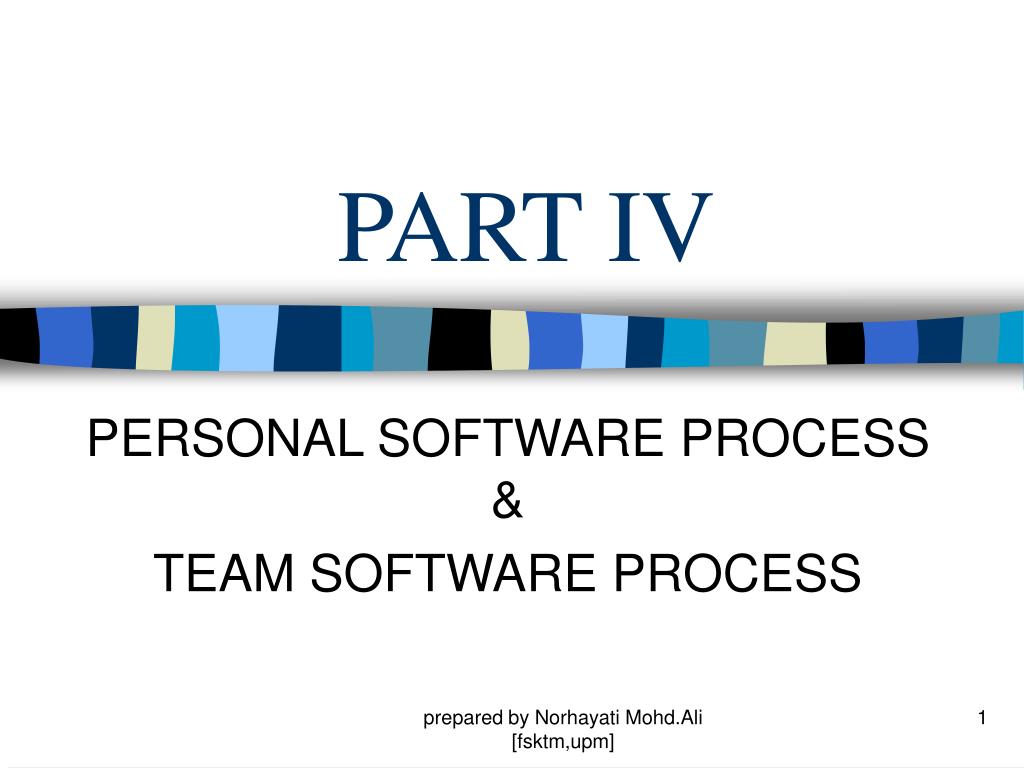

  1. PART IV PERSONAL SOFTWARE PROCESS & TEAM SOFTWARE PROCESS prepared by Norhayati Mohd.Ali [fsktm,upm]

  2. CHP 10 : Personal Software Process (PSP) • Objective : • To introduces concepts and principles of PSP • To understand the PSP process levels prepared by Norhayati Mohd.Ali [fsktm,upm]

  3. CHP 10 : Personal Software Process (PSP) • Introduction to PSP • The rationale behind PSP Improvement • Steps lead to PSP • Principles behind PSP • The PSP process levels • Summary prepared by Norhayati Mohd.Ali [fsktm,upm]

  4. Introduction to PSP • PSP is a defined and measured sw process designed to be used by an individual software engineer • Developed by Watts Humphrey • Based on process improvement principles • The focus of PSP is on improving the individual engineer tasks in sw dev. activities prepared by Norhayati Mohd.Ali [fsktm,upm]

  5. Introduction to PSP • A self-improvement process designed to help you • to control, • to manage and • to improve the way you work as a software engineer • The PSP is a structural framework of forms, guidelines and procedures for developing software. • Properly used, it provides historical data needed to make and meet development commitments and it makes routine elements of your work more predictable and more efficient. prepared by Norhayati Mohd.Ali [fsktm,upm]

  6. Introduction to PSP • The Personal Software Process can be adapted to individual circumstances. • Through Personal Software Process principles, it is possible to define, measure and analyse your own process. • With experience it is possible to improve (i.e. enhance) your processes to take advantage of new technology, tools and methods. • Overall goal of Personal Software Process Understanding your own performance as a software engineer and determining how to improveyour performance prepared by Norhayati Mohd.Ali [fsktm,upm]

  7. Introduction to PSP • It relates problems to industrial software development to issues of professional discipline and describes how an individual can use disciplined methods to improve their performance as a software engineer. • Basically the Personal Software Process is a self-improvement programme prepared by Norhayati Mohd.Ali [fsktm,upm]

  8. Software professionals will better understand what they do if they define, measure and track their work They will then have a defined process structure and measurable criteria for evaluating and learning from their own and others’ experiences Based on this knowledge and experience, they can select those methods and practices that best suit their particular tasks and abilities By using a customised set of orderly, consistently practical and high quality personal practices they will be more effective members of development teams and projects The Rationale behind Personal Software Process Improvement prepared by Norhayati Mohd.Ali [fsktm,upm]

  9. 4 Main Steps lead to the personal software process • Identify those large-scale s/w methods and practices that can be used by individuals • Define the subset of these that can be applied while working on small projects ie developing small programs • Structure the methods and practices so they can be gradually introduced • Provide exercise suitable for practicing these methods in an educational/professional development setting prepared by Norhayati Mohd.Ali [fsktm,upm]

  10. 5 Principles behind the Personal Software Process • A defined and structure process can improve working efficiency • Defined personal process should fit the individual’s skills and preferences • For professionals to be comfortable with a defined process, they should be involved in its definitions • As professional’s skills and abilities evolve, so should their processes • Continuous process improvement is enhanced by rapid and explicit feedback prepared by Norhayati Mohd.Ali [fsktm,upm]

  11. Evolution of Personal Software Process Improvement Baseline Personal Process PSP 0 Current Process - Basic record keeping PSP 0.1 Coding standard, process improvement proposal, basic measures Personal Project Management / Planning PSP 1 estimating, test report PSP 1.0 task and schedule planning Personal Quality management PSP 2 code & design reviews PSP 2.1 design templates Cyclic Personal process PSP 3 Cyclic development iterative incremental development prepared by Norhayati Mohd.Ali [fsktm,upm]

  12. PSP Process Levels • The baseline personal process PSP0 and PSP0.1 • The personal project management / planning process  PSP1 and PSP1.1 • The personal quality management PSP2 and PSP2.1 • The cyclic personal process PSP3 prepared by Norhayati Mohd.Ali [fsktm,upm]

  13. The Baseline Personal process – PSP0 and PSP0.1 • Provides introduction to the PSP • Establishes an initial base of historical size, time, and defect data • PSP0 introduces basic process measurement and planning • Development time, defects, and program size are measured and recorded on provided forms prepared by Norhayati Mohd.Ali [fsktm,upm]

  14. The Baseline Personal process – PSP0 and PSP0.1 • PSP0PSP0.1 by adding a coding std, size measurement,and process improvement proposal(PIP) • PSP0.1 introduces PIP • PIP  form that provides a structured way to record process problems, experiences and improvement suggestions prepared by Norhayati Mohd.Ali [fsktm,upm]

  15. Steps in the Baseline PSP prepared by Norhayati Mohd.Ali [fsktm,upm]

  16. The Personal Project Management– PSP1 and PSP1.1 • Focus on personal project mgt techniques • Introducing size and effort estimating, schedule planning, and schedule tracking methods • PSP1 adds planning steps to PSP0 • The initial increment adds test report, and size and resource estimation prepared by Norhayati Mohd.Ali [fsktm,upm]

  17. The Personal Project Management– PSP1 and PSP1.1 • PSP1.1 introduces task and schedule planning • Help you to understand relation between the size of the programs you develop and the time you take to develop them • Help you to make commitments you can meet • To give you an orderly plan for doing the work • To give you a framework for determining the status of yr work prepared by Norhayati Mohd.Ali [fsktm,upm]

  18. The Personal Quality Management– PSP2 and PSP2.1 • Add quality mgt methods to the PSP : personal design and code reviews, a design notation, design templates, design verification techniques, and measures for managing process and product quality • Goal  to find and remove all defects before the first compile • To manage yr defect, you must know how many you make prepared by Norhayati Mohd.Ali [fsktm,upm]

  19. The Personal Quality Management– PSP2 and PSP2.1 • PSP2 adds review technique to PSP1 to help you find defects early when they are least expensive to fix • Do this by gathering and analyzing the defects found in compile and test for yr earlier programs. • With these data you can establish review checklists and make yr own process quality assessments prepared by Norhayati Mohd.Ali [fsktm,upm]

  20. The Personal Quality Management– PSP2 and PSP2.1 • PSP2.1 addresses the design process • PSP does not tell you how to design but rather how to complete a design • Establish design completeness criteria and examines various design verification and consistency techniques prepared by Norhayati Mohd.Ali [fsktm,upm]

  21. The Cyclic Personal Process – PSP3 • Addresses the need to efficiently scale the PSP up to larger projects without sacrificing quality or productivity • Introducing a cyclic development strategy where large programs are decomposed into parts for development and then integrated • This strategy ensures that engineers are working at their maximum productivity and product quality levels, with only incremental, not exponential, increases in overhead for larger projects prepared by Norhayati Mohd.Ali [fsktm,upm]

  22. The Cyclic Personal Process – PSP3 • Using PSP3, engineers decompose their project into a series of PSP2.1 cycles, then integrate and test the output of each cycle • Because the programs they produce with PSP2.1 are of high quality, integration and test costs are minimized prepared by Norhayati Mohd.Ali [fsktm,upm]

  23. Summary • Successful introduction of the PSP requires sponsorship and participation by all management levels • An effective strategy is to first involve key executives and managers, then to begin training engineers in the PSP, implementing on a project-by-project basis • Anyone who is well versed in the Personal Software Process has the basis for carrying out Process Improvement in a software development team and in an organizational context. • PSP is not a magic answer to all your SE problems prepared by Norhayati Mohd.Ali [fsktm,upm]

  24. reference • TECHNICAL REPORT CMU/SEI-97-TR-001 ESC-TR-97-001 prepared by Norhayati Mohd.Ali [fsktm,upm]
