  1. Why Monitor? • Provide information for regulators • Verify critical environmental conditions to maximize yield and quality • Monitor and capture data of product quality • Alert personnel of significant changes or problems in these critical measurements • Generate reports and summaries for external customers to meet contract goals

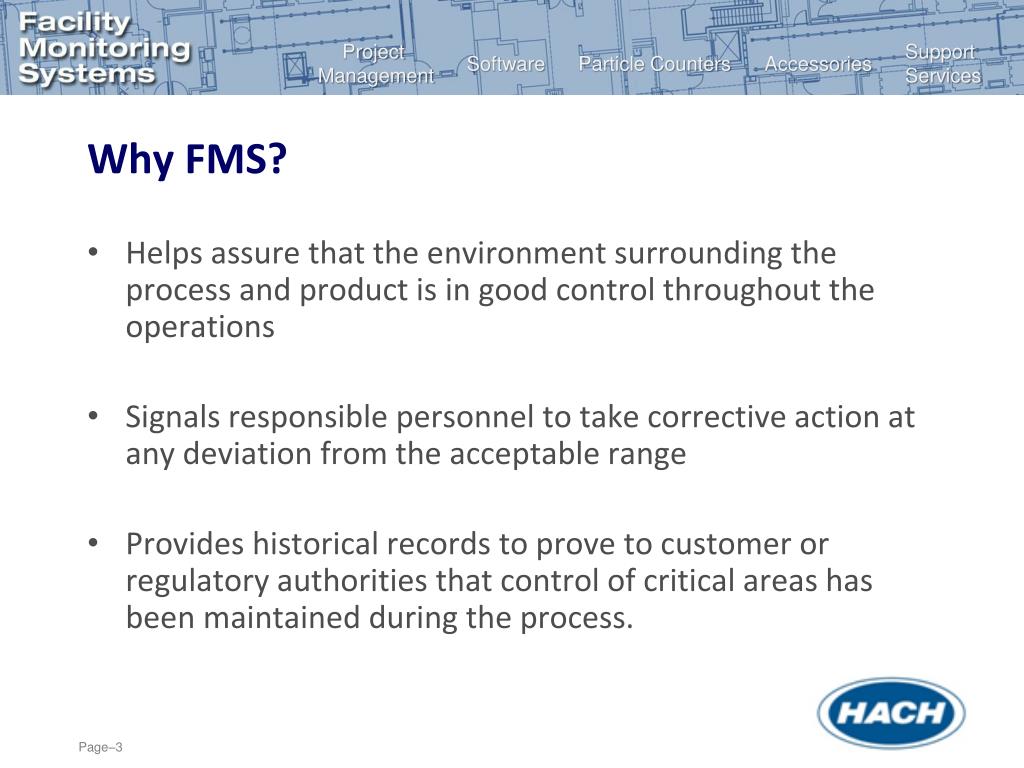

  2. Why FMS? • Helps assure that the environment surrounding the process and product is in good control throughout the operations • Signals responsible personnel to take corrective action at any deviation from the acceptable range • Provides historical records to prove to customer or regulatory authorities that control of critical areas has been maintained during the process.

  3. Hach FMS Solutions • Project Management Software Particle Counters Accessories Service and Support

  4. Project Management systematic process system design industry guidelines global professional dedicated team

  5. Project Management • Systematic process of steps • Assess, specify, implement, commission, support • Process tailored to meet specific situation • System design • Get what you need—project scope, layout and functional specifications defined • Based on industry guidelines • ISO, GMP, GAMP • Global professional, dedicated team • Local support • Software integrators, system engineers, calibration/test technicians

  6. FMS Pharmaceutical Installations • Over 250 sites worldwide including:

  7. Software • Met One FMS Online Met One Lite

  8. Software • Glue for your FMS—holds system together • Range of solutions • Reliable quality code • Application-specific • Compatible with instrumentation • Air particle counters • Alarm indicators • Environmental sensors • Analog inputs • Digital inputs/outputs • Turn data into useful information

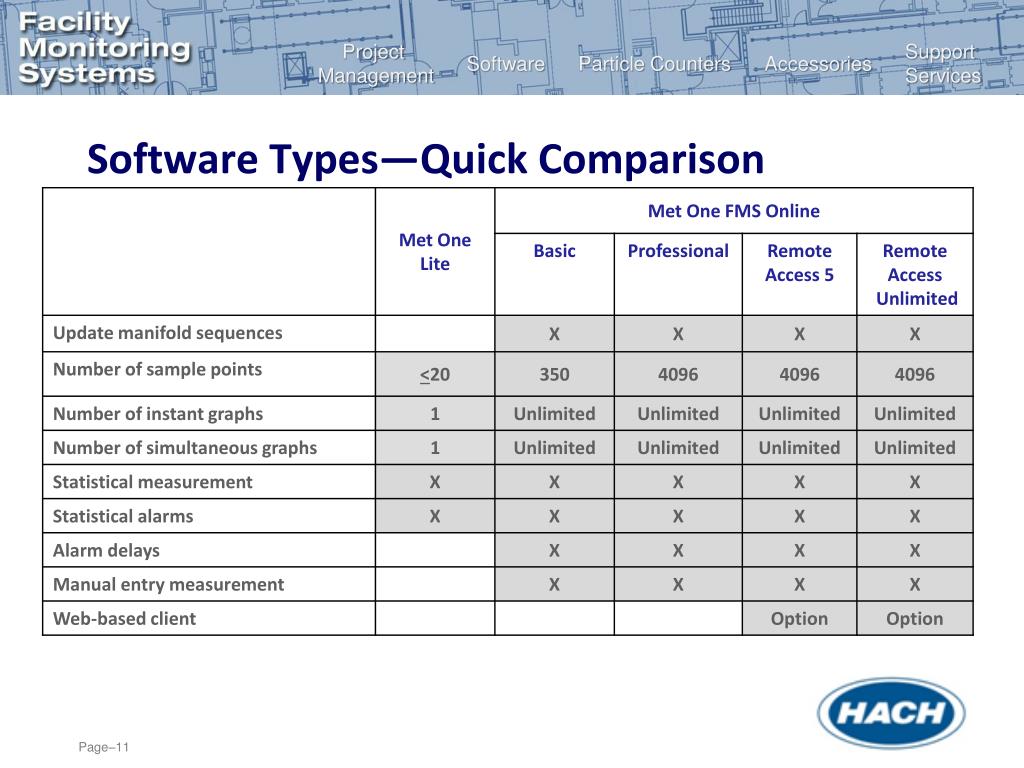

  9. Software Types—Quick Comparison

  10. Software Types—Quick Comparison

  11. Met One FMS Online Benefits • Validation/Documentation Support Tools • Saves time and money • Reduce validation time by 50 % to 60% • Each node can have a unique operator view • Operator can focus on his area or task • Rapid communication of system status • Batch driven data collection • Data capture, display, retrieval and reporting based on user assigned IDs

  12. Met One FMS Online Benefits • Customized operator view • Operator can quickly understand if parameters are within limits • Provides opportunity for a cohesive FMS system • Accepts measurements from many sources • Focused information can be sent to different departments • Transform data into meaningful information • Trend analysis • Preparation of historical reports • Automatic batch report generation

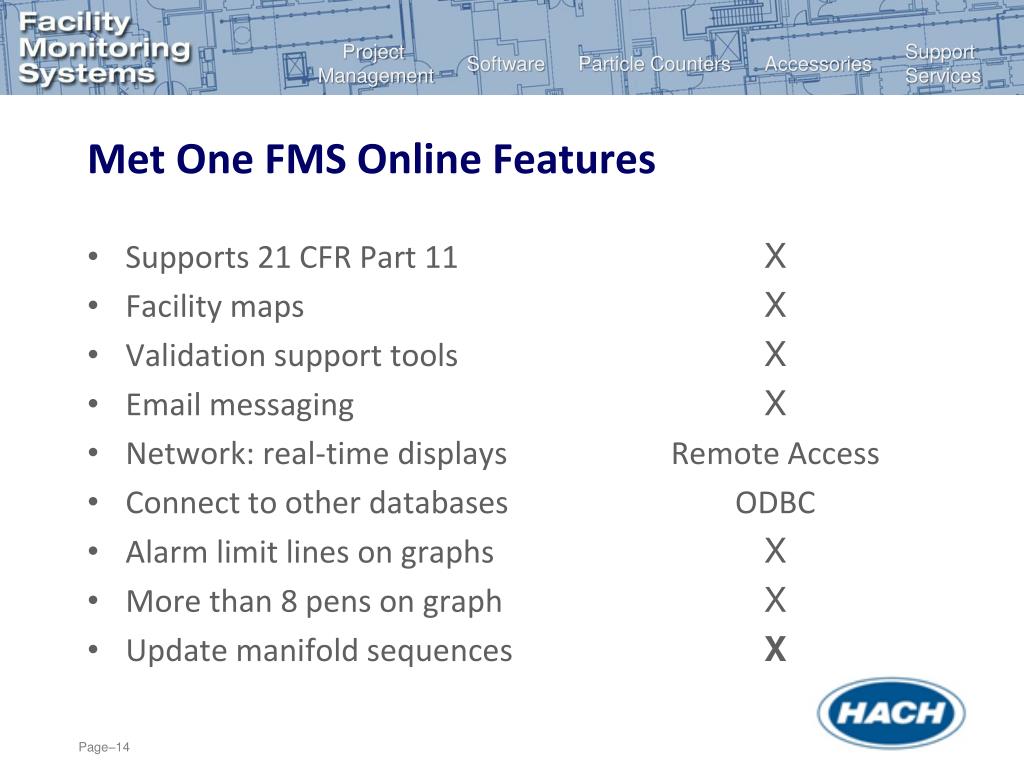

  13. Met One FMS Online Features • Supports 21 CFR Part 11 X • Facility maps X • Validation support tools X • Email messaging X • Network: real-time displays Remote Access • Connect to other databases ODBC • Alarm limit lines on graphs X • More than 8 pens on graph X • Update manifold sequencesX

  14. 21 CFR Part 11 and Validation • Access and Security • Audit Trail of Changes • Data Availability • Revision Controls • Digital Signatures • Data Security • System Validation Tools • IQ/OQ • Document Generator • Validation Test Log

  15. Create Custom User Displays • Facility maps • Unlimited number • Create diagram or import from existing drawings • Equipment diagrams or photos • JPG, GIF or other formats • Help operator visualize sensor position

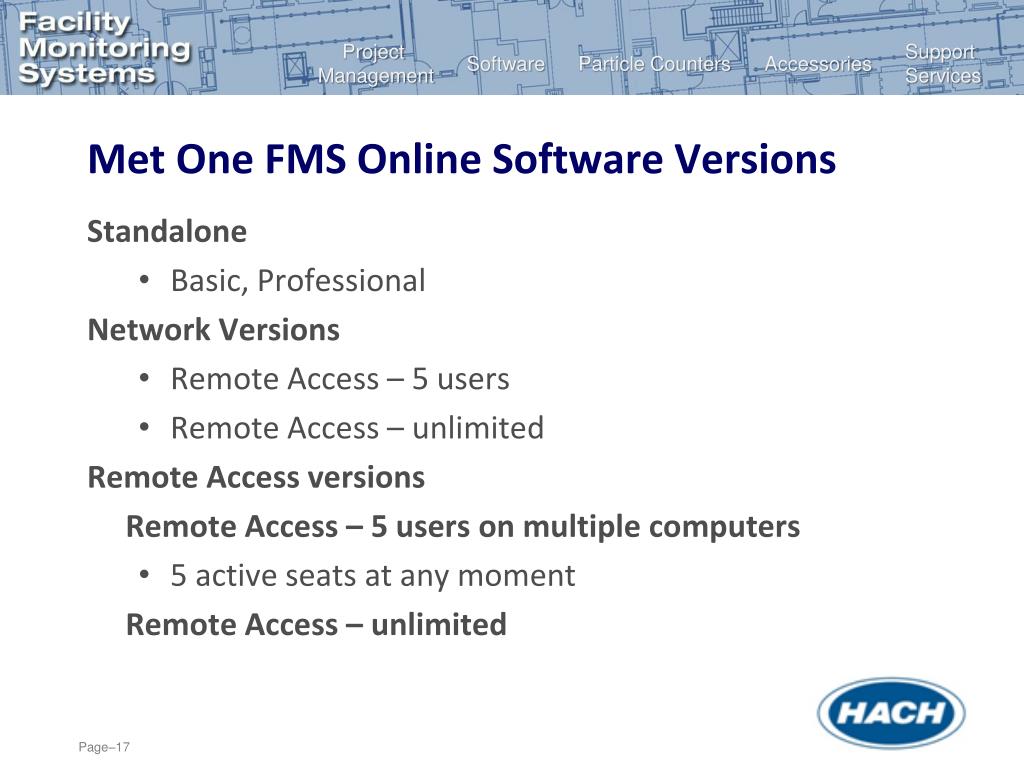

  16. Met One FMS Online Software Versions • Standalone • Basic, Professional • Network Versions • Remote Access – 5 users • Remote Access – unlimited • Remote Access versions • Remote Access – 5 users on multiple computers • 5 active seats at any moment • Remote Access – unlimited

  17. Sample Configuration Diagrams • Simple networked system • Networked system with Ethernet Counters • Met One FMS Online Remote Access • Met One FMS Online Standalone via local network or • remote • Met One FMS Online Standalone

  18. Met One FMS Online Options • Met One FMS Online Alert • Multiple recipients for each alarm message • Modem dial out—pagers and voice messaging • Voice messages—PA systems or computer • Met One FMS Online Recall • Historical reporting to another computer(s) • License required for each computer • Historical information; not "real-time”

  19. Met One FMS Lite • Features and Benefits • Configure a compliant monitoring system in minutes utilizing an easy-to-use wizard. • Monitors up to 20 locations on a single screen • Provide secure operations using Windows user names and passwords • Includes system validation documents • Reporting and data export • Supports alarm panels • Supports digital IO and analog environmental sensors (RH/Temp, Delta P)

  20. Met One FMS Lite • System Description • Continuous measurement of particle counts • Remote start/stop of particle counters • Alarm output to indicator devices • Audit trail recording • Secure user interface • Trend views of live and historical data • Tabular reports of historical data • 21 CFR part 11 compliant

  21. Particle Counters remote particle counters sequential particle counters portable particle counters

  22. Why use a Particle Counter ? • FDA cGMP or EU GMP compliance • Particle monitoring is required • Verify results of changes in cleanroom design • Addition or reduction of ceiling filters • Changes to shields or walls around equipment • Test for extent and nature of particles generated • Monitor operator as stoppers are added • Check conveyor belts for shedding

  23. Factors Determining Sampling Points • Size of cleanroom • Critical nature of the process • Nature of the airflow (turbulent or unidirectional) • Industry norms • Regulatory guidelines / requirements

  24. Cleanroom Standards

  25. Airborne Particle Counters • Types • Remotes 6000 / 7000 • Portables 3400 / 3411 • Sequential 2432 (with 3400) ISO 21501 compliant

  26. Remote Counters Address… • Transient events occur in the best designed cleanrooms • Lack of confidence in control of environment • Manual methods inefficient—Operator must be in the right place at the right time • Continuous sampling improves likelihood of recording transient events

  27. Benefits of Remote Counters • Detect transient events using continuous sampling • Mount close to sample point for optimum results • Operate 24/7/365 • Optimize disinfection and minimize outgassing • Place in critical areas without compromising the environment

  28. Long Life Laser Technology • 10+ years average lifespan • Longer laser life = lower cost of ownership • 3 years standard and up to 5 year extended warranty

  29. Portable and Sequential Counters • Increased frequency of sampling compared to manual methods • Enhanced quality and quantity of particle data • Sequential monitoring samples several locations with one central counter • Trend cleanliness levels for QA or external customers • Designed for 24/7/365 operation

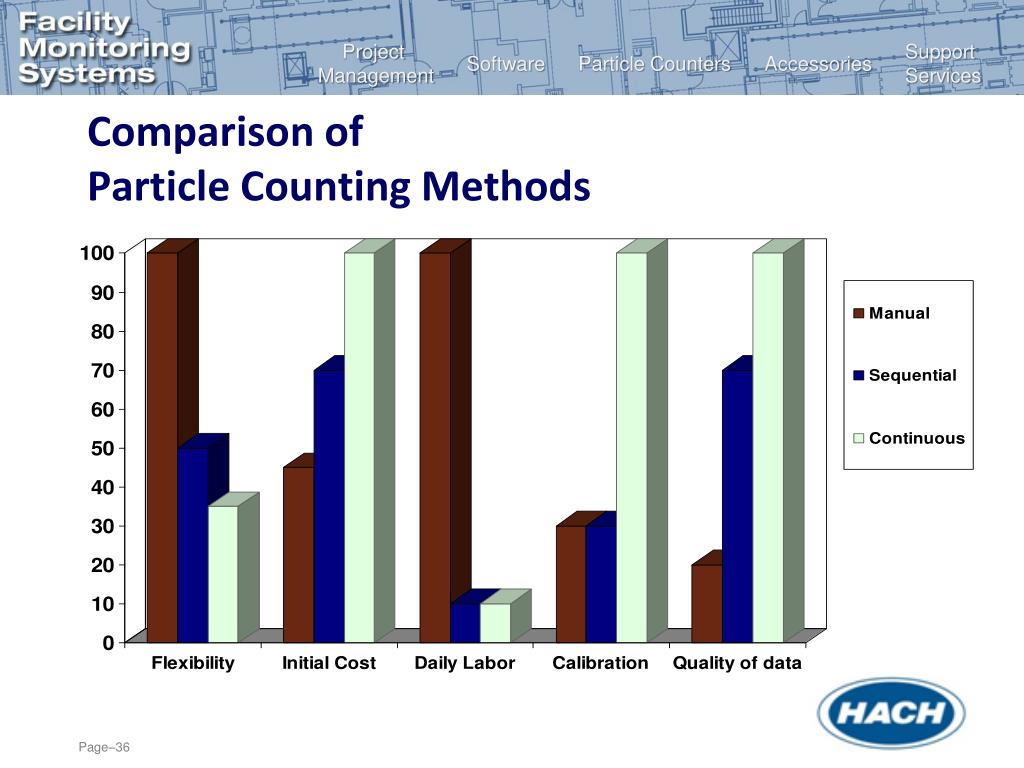

  30. Comparison of Particle Counting Methods

  31. Accessories sampling probes environmental sensors I/O systems power and vacuum wall plates communications analog inputs and outputs

  32. Accessories • One source for complete system monitoring • Complete connectivity between FMS sensors and alarms • Environmental control • Optimum sampling • Communication links • Flexibility of configuration • Mounting options to permanently or temporarily place in awkward areas

  33. Types of Accessories • Environmental sensors • Temperature • Relative humidity • Differential pressure • Air velocity • Sampling probes • Isokinetic • Various materials • Mounting options

  34. Types of Accessories • Communications • Protocol converters • Example: USB to RS-485, Ethernet to RS-485 • Analog inputs and control outputs • Analog inputs • Digital inputs • Alarm indicators

  35. Types of Accessories • I/O Systems • Programmable Logic Controller (PLC) • PD I/O modules • Wall plates and junction boxes • Connection to power, vacuum and other utilities • Power and vacuum • Power supplies • Vacuum pumps

  36. Support Services full service agreement validation maintenance/calibration audits/data analysis training support

  37. Support Services • Full Service Agreement (FSA) • Repair, maintenance, calibration and validation • Total confidence in the performance of your instruments • Significantly reduce instrument downtime, labor and stocking of needless spare and consumable parts. • Maintenance/calibration contract • Eliminate the hassle of performing your own regular maintenance • Extend the operational life of your system • Validation • Meet regulations and expand resources • IQ/OQ documentation

  38. Support Services • Audits/data analysis • Improve your processes and procedures • Enhance information flow • Optimize your operations; save time and money • Training • Refresh learning and expand knowledge to keep up with current practices • Support • Prompt, effective response to questions and service needs

  39. FMS Summary • Met One offers… • The experience needed to manage your project • The data collection and management systems you require • “Best in class” particle counters • A wide spectrum of accessory items • A global support team for long term, expert service
