  1. Lessons Learned From Cardiovascular Risk Models: Experience from the Framingham Study Lisa M. Sullivan Boston University Statistics and Consulting Unit-Framingham Heart Study May 20, 2004

  2. Outline • Framingham Experience in Risk Prediction • Guidelines for Developing Risk Prediction Models • Example-NCEP ATP III • Packaging Risk Models for Clinical Use • Problems/Issues • Next Steps

  3. Framingham Experience in Risk Prediction • Risk functions (HRAFs) are multivariable models • Predict likelihood that an individual will have an event (e.g., coronary heart disease) over a specified period of time (e.g., the next 10 years) • Impact of individual and combinations of readily available risk factors

  4. Framingham History • Modeling started in 1960’s with discriminant function analysis and logistic regression analysis -Truett J, Cornfield J, Kannel WB. A Multivariate analysis of the risk of coronary heart disease in Framingham. J Chronic Dis 1967; 20:511-524.      -Cornfield J, Gordon T, Smith W. Quantal response curves for experimentally uncontrolled variables. Bull of Intl Stat Inst 1961; 28: part 3.    -Walker S, Duncan D. Estimation of the probability of an event as a function of several independent variables. Biometrika 1967;54:167-179.

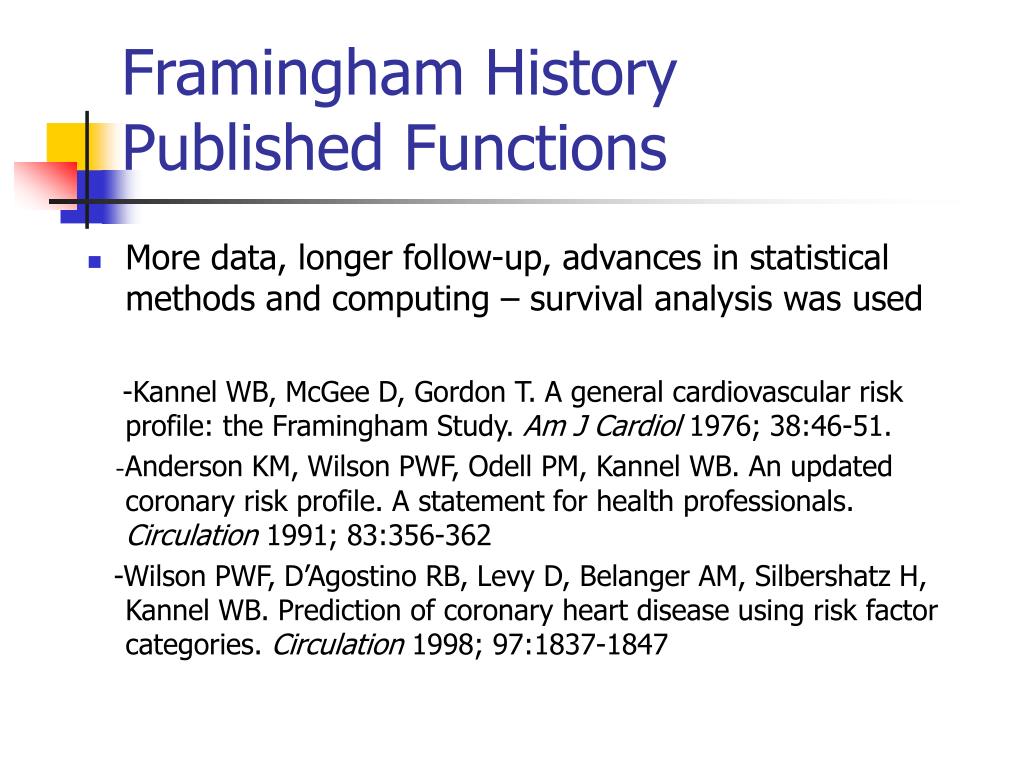

  5. Framingham History Published Functions • More data, longer follow-up, advances in statistical methods and computing – survival analysis was used -Kannel WB, McGee D, Gordon T. A general cardiovascular risk profile: the Framingham Study. Am J Cardiol 1976; 38:46-51. -Anderson KM, Wilson PWF, Odell PM, Kannel WB. An updated coronary risk profile. A statement for health professionals. Circulation 1991; 83:356-362 -Wilson PWF, D’Agostino RB, Levy D, Belanger AM, Silbershatz H, Kannel WB. Prediction of coronary heart disease using risk factor categories. Circulation 1998; 97:1837-1847

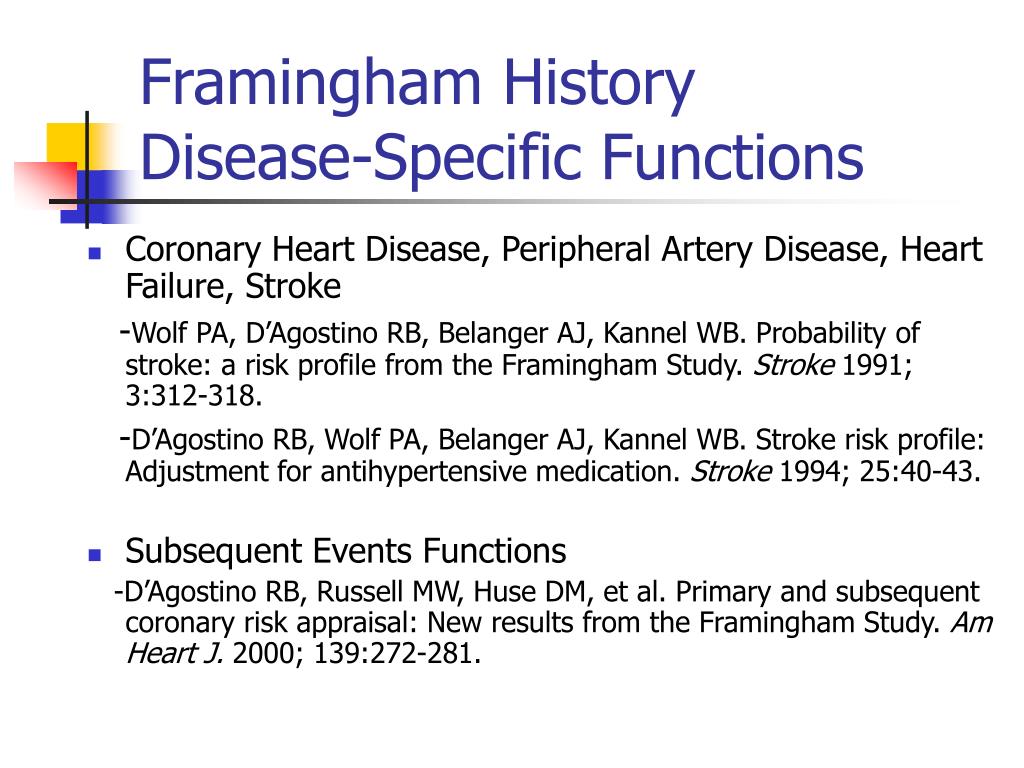

  6. Framingham HistoryDisease-Specific Functions • Coronary Heart Disease, Peripheral Artery Disease, Heart Failure, Stroke -Wolf PA, D’Agostino RB, Belanger AJ, Kannel WB. Probability of stroke: a risk profile from the Framingham Study. Stroke 1991; 3:312-318. -D’Agostino RB, Wolf PA, Belanger AJ, Kannel WB. Stroke risk profile: Adjustment for antihypertensive medication. Stroke 1994; 25:40-43. • Subsequent Events Functions -D’Agostino RB, Russell MW, Huse DM, et al. Primary and subsequent coronary risk appraisal: New results from the Framingham Study. Am Heart J. 2000; 139:272-281.

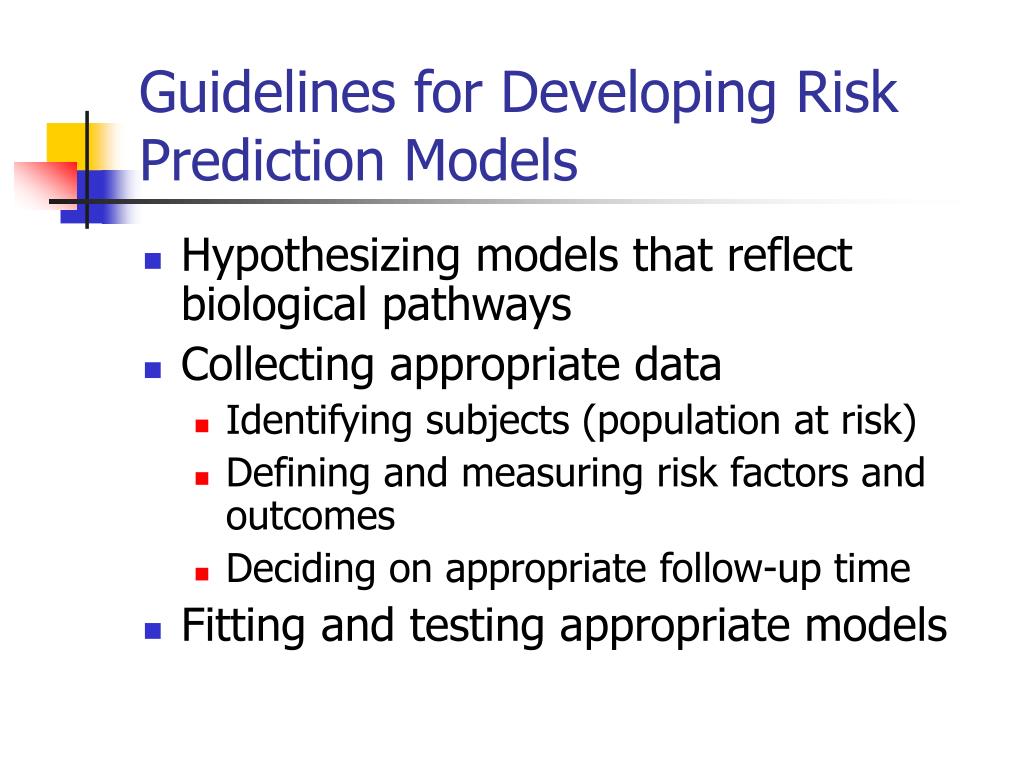

  7. Guidelines for Developing Risk Prediction Models • Hypothesizing models that reflect biological pathways • Collecting appropriate data • Identifying subjects (population at risk) • Defining and measuring risk factors and outcomes • Deciding on appropriate follow-up time • Fitting and testing appropriate models

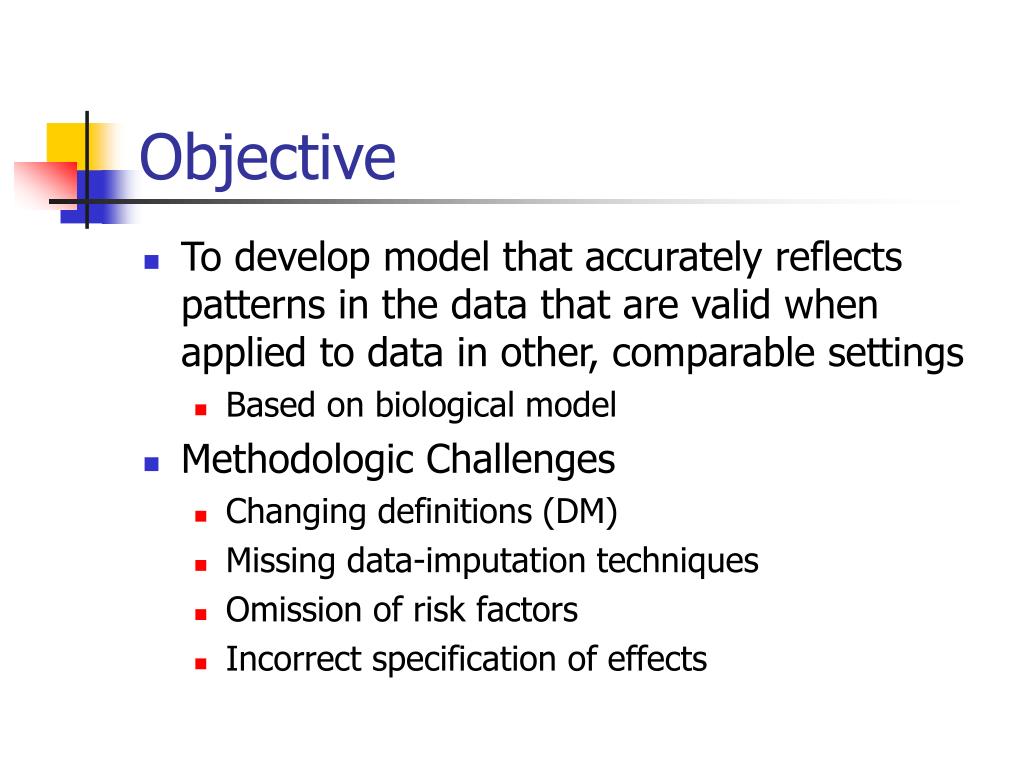

  8. Objective • To develop model that accurately reflects patterns in the data that are valid when applied to data in other, comparable settings • Based on biological model • Methodologic Challenges • Changing definitions (DM) • Missing data-imputation techniques • Omission of risk factors • Incorrect specification of effects

  9. Predictive Accuracy/UtilityComponents of Accuracy • Calibration - how closely predicted probabilities agree numerically with actual outcomes (bias) • Discrimination - ability of a predictive model to separate those who develop event from those who do not (ordering) • Relationship • Poor discrimination – can’t recalibrate to correct • Good discrimination – can recalibrate without losing discrimination

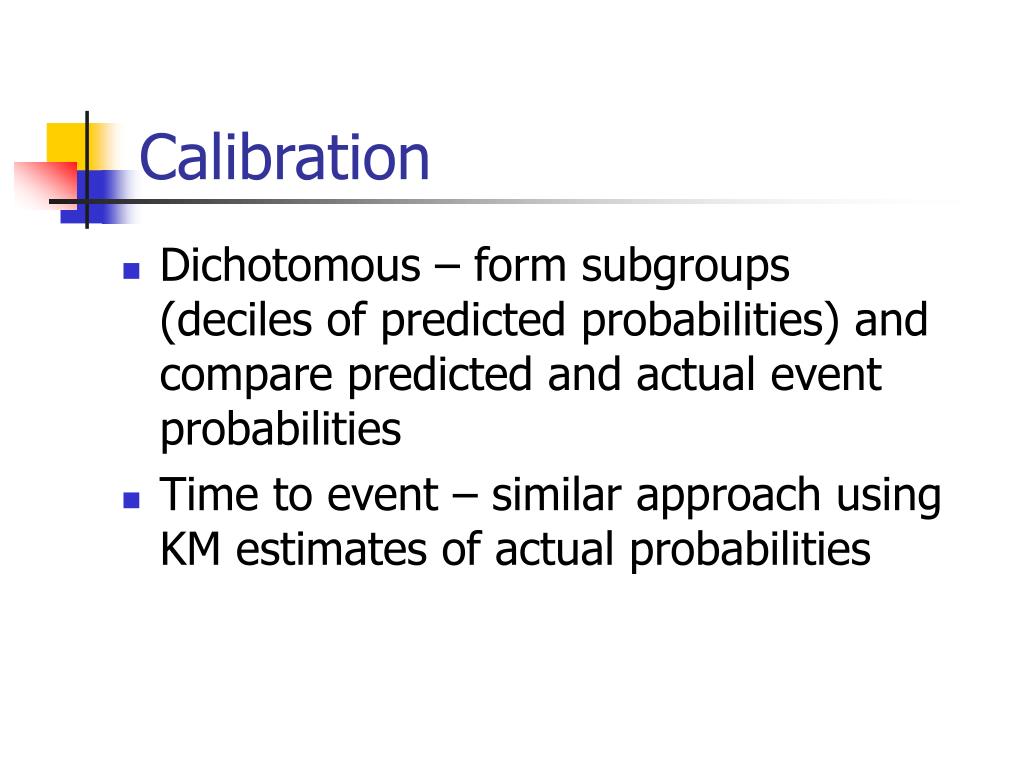

  10. Calibration • Dichotomous – form subgroups (deciles of predicted probabilities) and compare predicted and actual event probabilities • Time to event – similar approach using KM estimates of actual probabilities

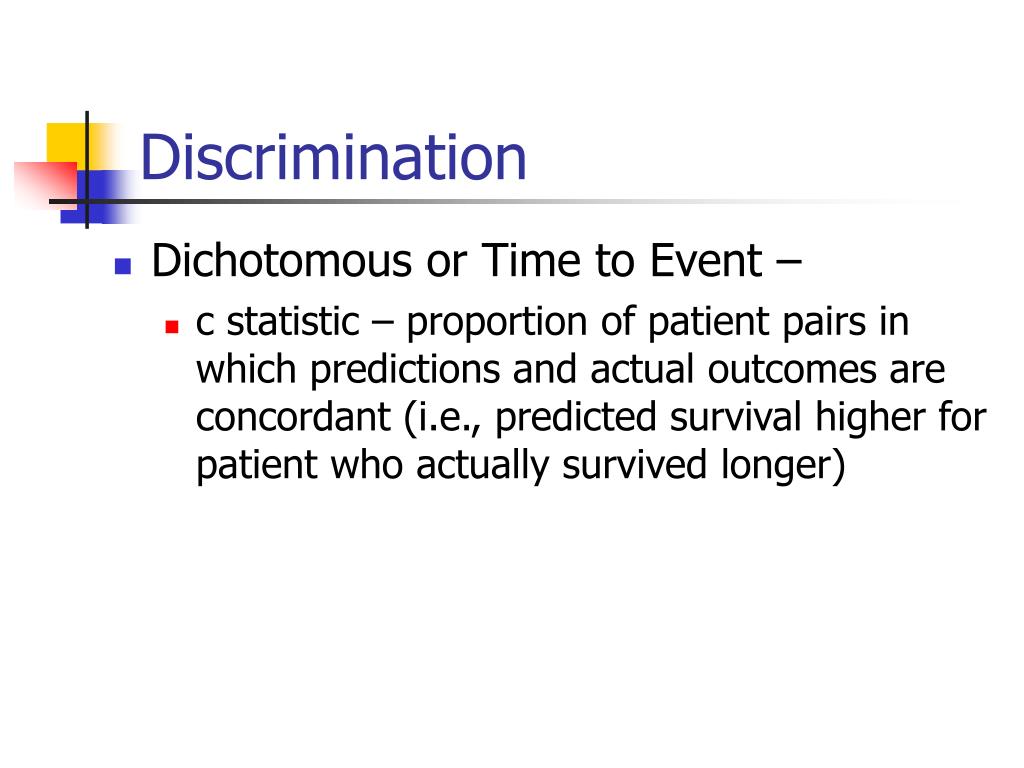

  11. Discrimination • Dichotomous or Time to Event – • c statistic – proportion of patient pairs in which predictions and actual outcomes are concordant (i.e., predicted survival higher for patient who actually survived longer)

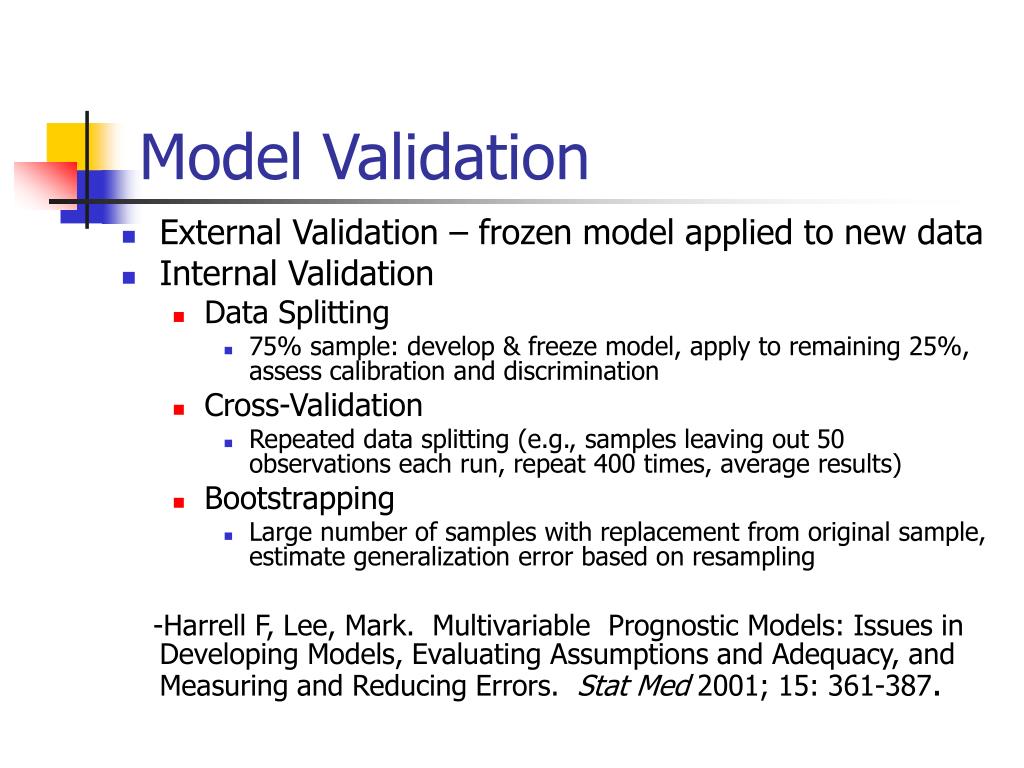

  12. Model Validation • External Validation – frozen model applied to new data • Internal Validation • Data Splitting • 75% sample: develop & freeze model, apply to remaining 25%, assess calibration and discrimination • Cross-Validation • Repeated data splitting (e.g., samples leaving out 50 observations each run, repeat 400 times, average results) • Bootstrapping • Large number of samples with replacement from original sample, estimate generalization error based on resampling -Harrell F, Lee, Mark. Multivariable Prognostic Models: Issues in Developing Models, Evaluating Assumptions and Adequacy, and Measuring and Reducing Errors. Stat Med 2001; 15: 361-387.

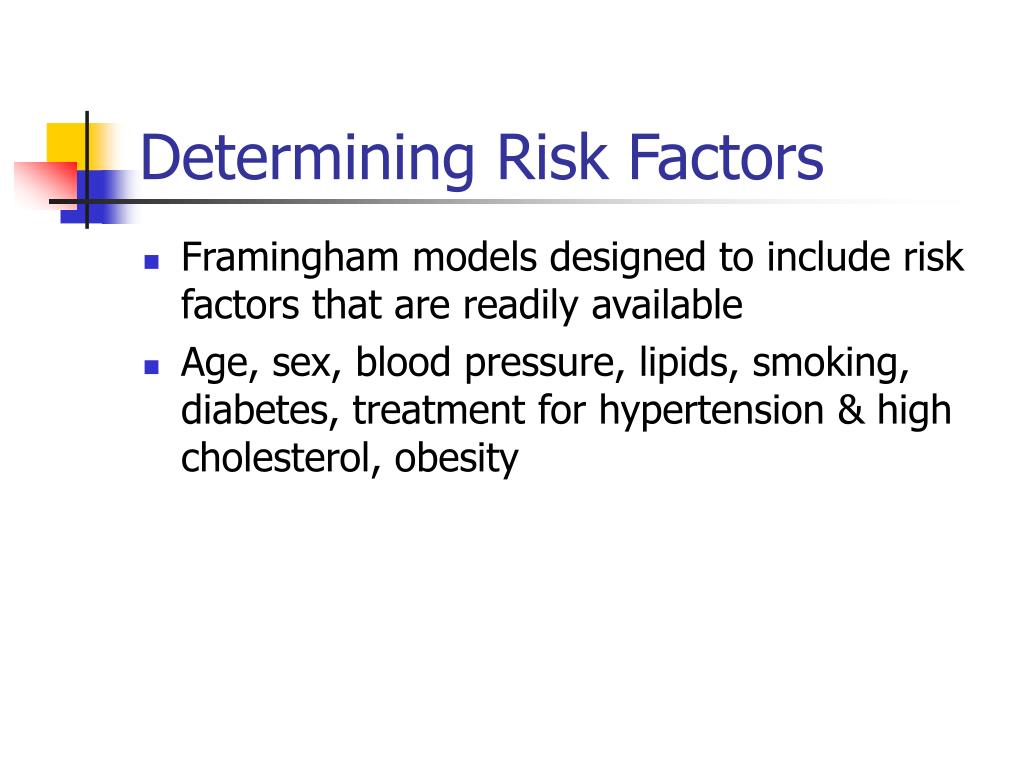

  13. Determining Risk Factors • Framingham models designed to include risk factors that are readily available • Age, sex, blood pressure, lipids, smoking, diabetes, treatment for hypertension & high cholesterol, obesity

  14. Risk Factors (continued) • Certain risk factors are important for specific events (e.g., Stroke: BP and LVH (-Lipids), CHD: BP, Lipids, Smoking, Diabetes) • Different effects of risk factors in Men Vs Women • Some risk factors have diminishing effect in older persons • Specification of risk factors (e.g., Total Chol & HDL Vs Ratio Total/HDL, Raw Scores Vs Ln) • Diabetes important – BMI? • Treatment (Is SBP=120 same as SBP=120 on Rx?)

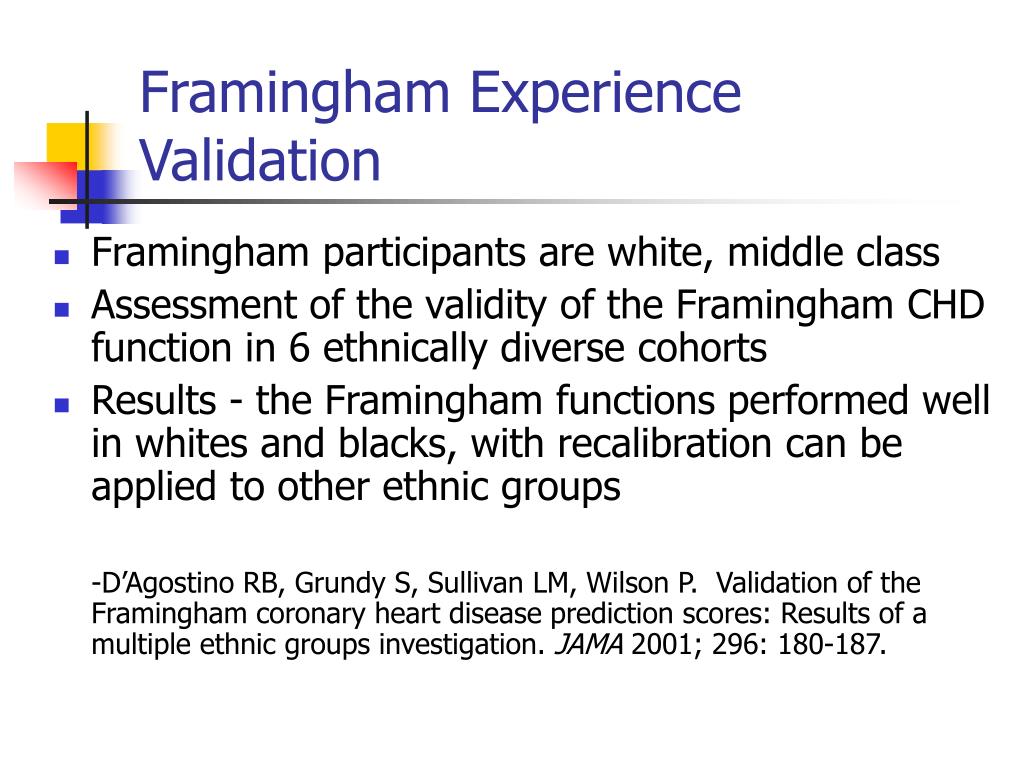

  15. Framingham ExperienceValidation • Framingham participants are white, middle class • Assessment of the validity of the Framingham CHD function in 6 ethnically diverse cohorts • Results - the Framingham functions performed well in whites and blacks, with recalibration can be applied to other ethnic groups -D’Agostino RB, Grundy S, Sullivan LM, Wilson P. Validation of the Framingham coronary heart disease prediction scores: Results of a multiple ethnic groups investigation. JAMA 2001; 296: 180-187.

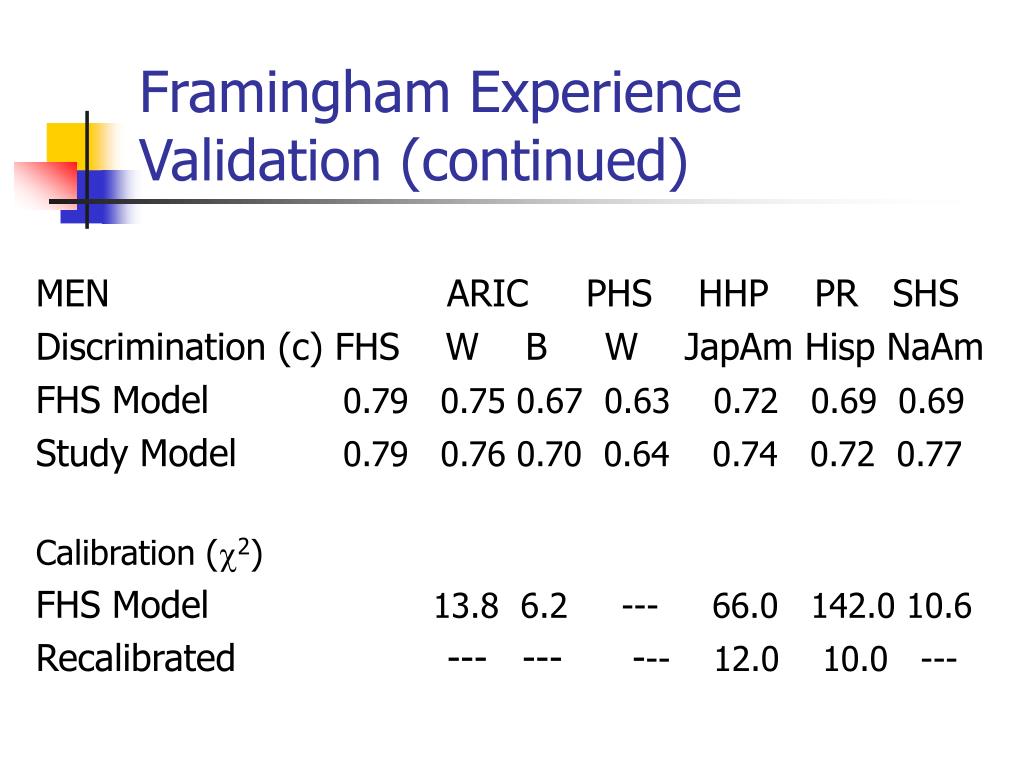

  16. Framingham ExperienceValidation (continued) MEN ARIC PHS HHP PR SHS Discrimination (c) FHS W B W JapAm Hisp NaAm FHS Model 0.79 0.75 0.67 0.63 0.72 0.69 0.69 Study Model 0.79 0.76 0.70 0.64 0.74 0.72 0.77 Calibration (c2) FHS Model 13.8 6.2 --- 66.0 142.0 10.6 Recalibrated --- --- --- 12.0 10.0 ---

  17. Recalibration • Cox model • Where bi are the regression coefficients, Xi are individual’s values on the risk factors, Mi are the FHS means of the risk factors, S0(t) is the FHS survival at the means of the risk factors • Recalibration: Replace FHS means Mi and FHS S0(t) by study’s means and survival

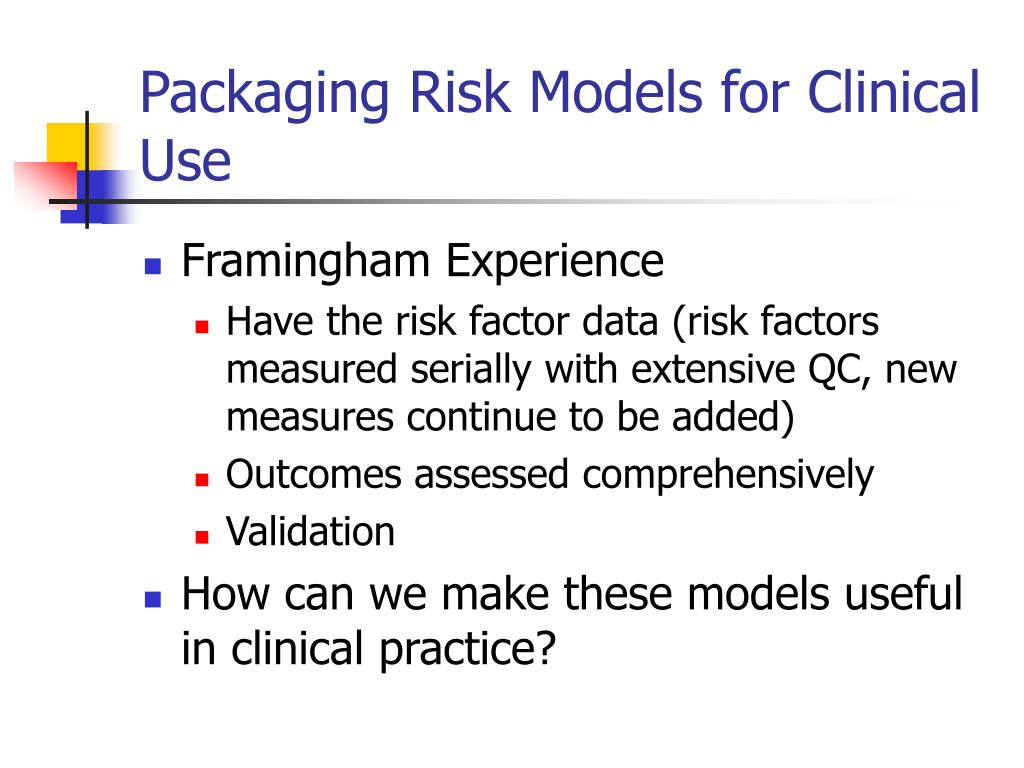

  18. Packaging Risk Models for Clinical Use • Framingham Experience • Have the risk factor data (risk factors measured serially with extensive QC, new measures continue to be added) • Outcomes assessed comprehensively • Validation • How can we make these models useful in clinical practice?

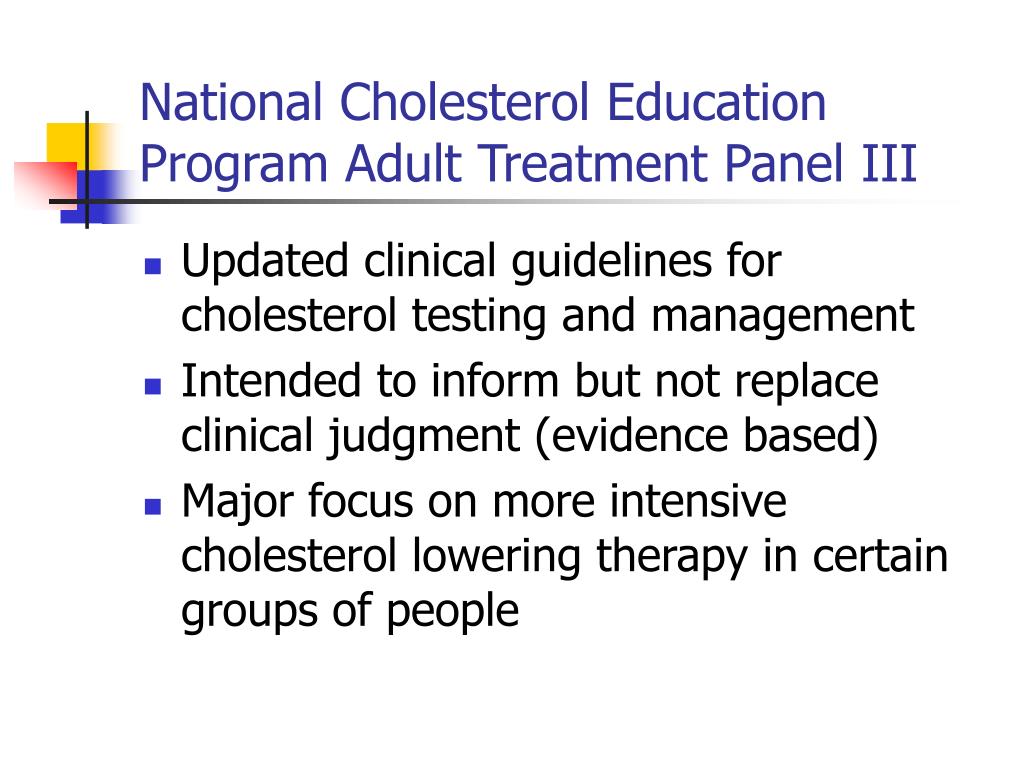

  19. National Cholesterol Education Program Adult Treatment Panel III • Updated clinical guidelines for cholesterol testing and management • Intended to inform but not replace clinical judgment (evidence based) • Major focus on more intensive cholesterol lowering therapy in certain groups of people

  20. NCEP ATP III - Treatment • Intensive treatment for persons with CHD • Focus on multiple risk factors using Framingham functions for 10 year absolute CHD risk • Match intensity of treatment to absolute CHD risk • If risk estimate > 20% aggressive treatment • If risk estimate 10-20% moderated treatment Executive Summary JAMA 2001; 285(19): 2486-2497.

  21. New Framingham Functions for NCEP ATP III • Outcome is Hard CHD (MI, coronary death) • Population at Risk: • Persons free of CHD, IC and Diabetes • Age 30-79 years of age

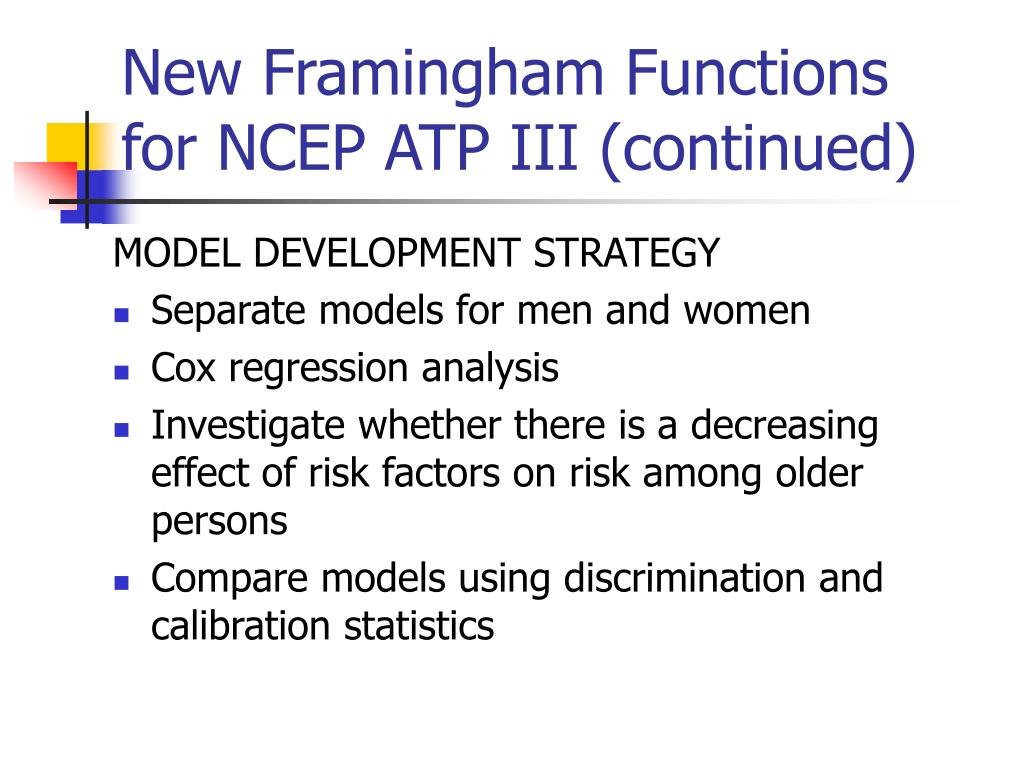

  22. New Framingham Functions for NCEP ATP III (continued) MODEL DEVELOPMENT STRATEGY • Separate models for men and women • Cox regression analysis • Investigate whether there is a decreasing effect of risk factors on risk among older persons • Compare models using discrimination and calibration statistics

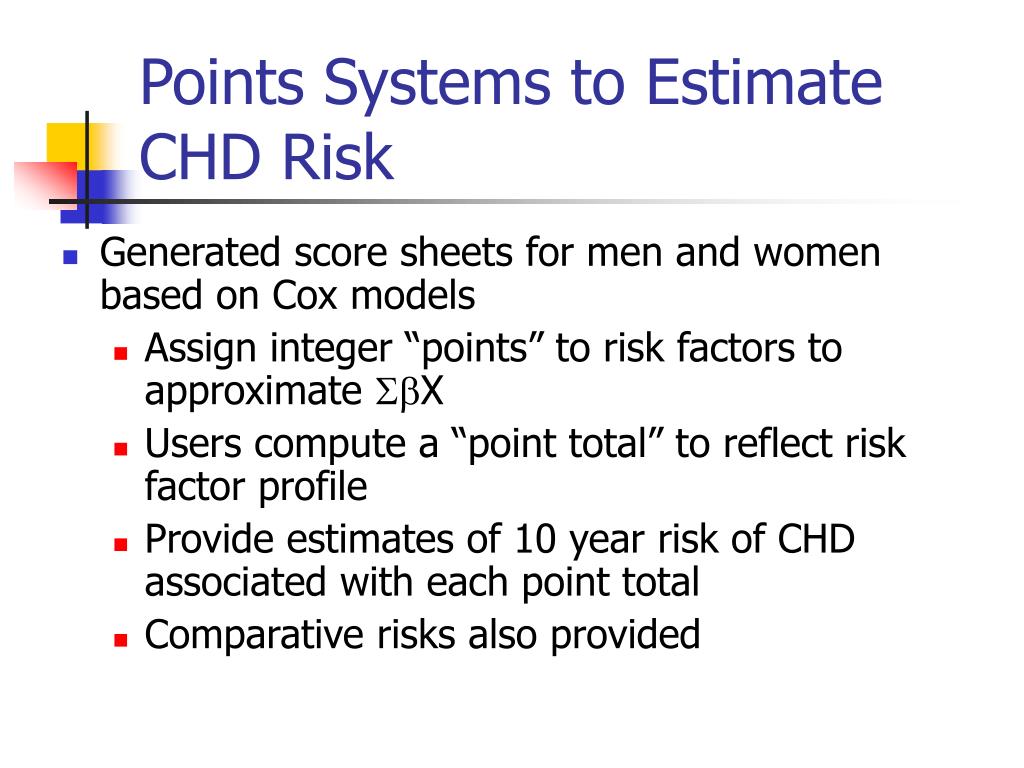

  23. Points Systems to Estimate CHD Risk • Generated score sheets for men and women based on Cox models • Assign integer “points” to risk factors to approximate SbX • Users compute a “point total” to reflect risk factor profile • Provide estimates of 10 year risk of CHD associated with each point total • Comparative risks also provided

  24. ATP III Score Sheets: Men Age 30-34 35-39 40-44 45-49 50-54 55-59 60-64 65-69 70-74 75-79 -9 -4 0 3 6 8 10 11 12 13 Age Total Cholesterol 30-39 40-49 50-59 60-69 70-79 <160 0 0 0 0 0 160-199 4 3 2 1 0 200-239 7 5 3 1 0 240-279 9 6 4 2 1 > 280 11 8 5 3 1 Age Smoking 30-39 40-49 50-59 60-69 70-79 No 0 0 0 0 0 Yes 8 5 3 1 1

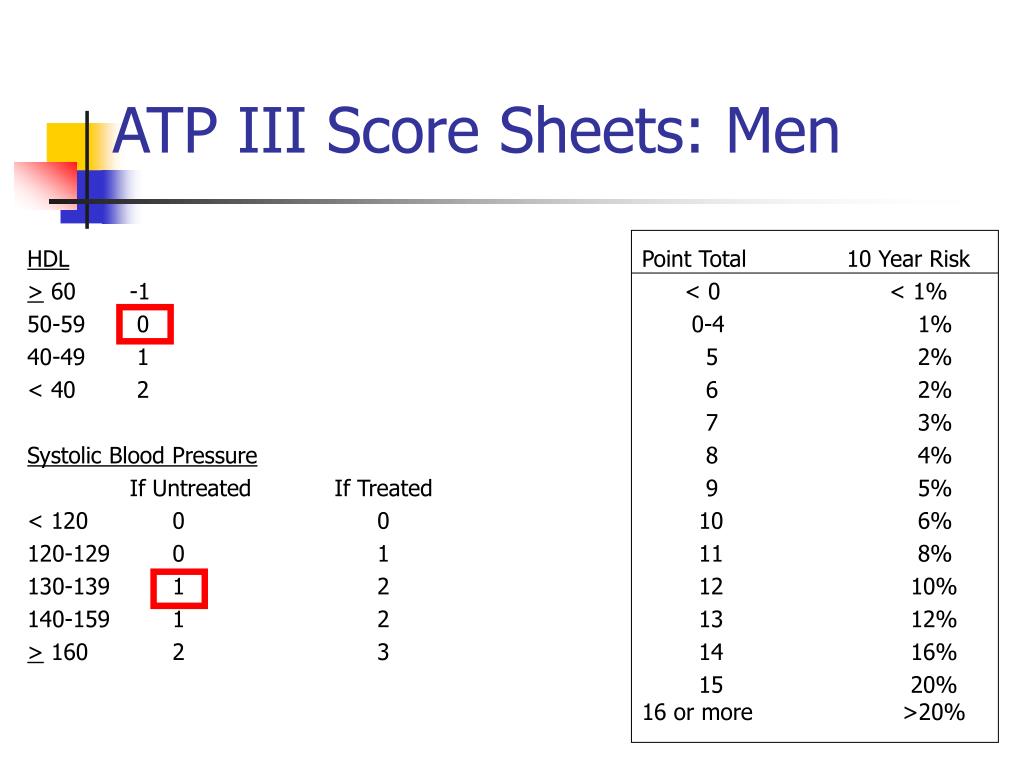

  25. ATP III Score Sheets: Men HDL Point Total 10 Year Risk > 60 -1 < 0 < 1% 50-59 0 0-4 1% 40-49 1 5 2% < 40 2 6 2% 7 3% Systolic Blood Pressure 8 4% If Untreated If Treated 9 5% < 120 0 0 10 6% 120-129 0 1 11 8% 130-139 1 2 12 10% 140-159 1 2 13 12% > 160 2 3 14 16% 15 20% 16 or more >20%

  26. ATP III Comparative Risks: Men Age Group Lowest (TC<160,HDL>60, Low (TC 160-199, HDL 50-59 Optimal BP,No Trt , Non-Smk) Normal BP, No Trt, Non-Smk) 30-34 0% 0% 35-39 0% 1% 40-44 0% 1% 45-49 1% 2% 50-54 2% 4% 55-59 3% 6% 60-64 5% 8% 65-69 7% 10% 70-74 9% 13% 75-59 12% 16%

  27. Example Risk Factor Profile Risk Factors Points Age 65 11 Total Cholesterol 200 1 HDL 50 0 SBP 130 1 No Treatment for Htn 0 Non-Smoker 0 TOTAL 13 , Risk =12% Comparative Risks: Lowest = 7%, Low = 10%

  28. Score Sheets • Provide accurate estimates of CHD risk • Widely disseminated • Simple to use

  29. Algorithm for Generating Point Systems • Estimate multivariable model • Organize risk factors into categories • Select a referent category for each risk factor (0 points, healthier <0, sicker >0 points) • Determine the referent risk factor profile • Determine constant = 1 point (constant=increase in risk associated with 5 year increase in age)

  30. Algorithm for Generating Point Systems • Determine points for each risk factor category: Points = bi(risk factor category-referent category)/constant • Determine risks associated with point totals • Dependent on model used • “Add back” referent category • Interaction effects -Sullivan LM, Massaro JM, D’Agostino RB. TUTORIAL IN BIOSTATISTICS: Presentation of multivariate data for clinical use: The Framingham Study risk score functions. Stat Med 2004; 23(10): 1631-1660.

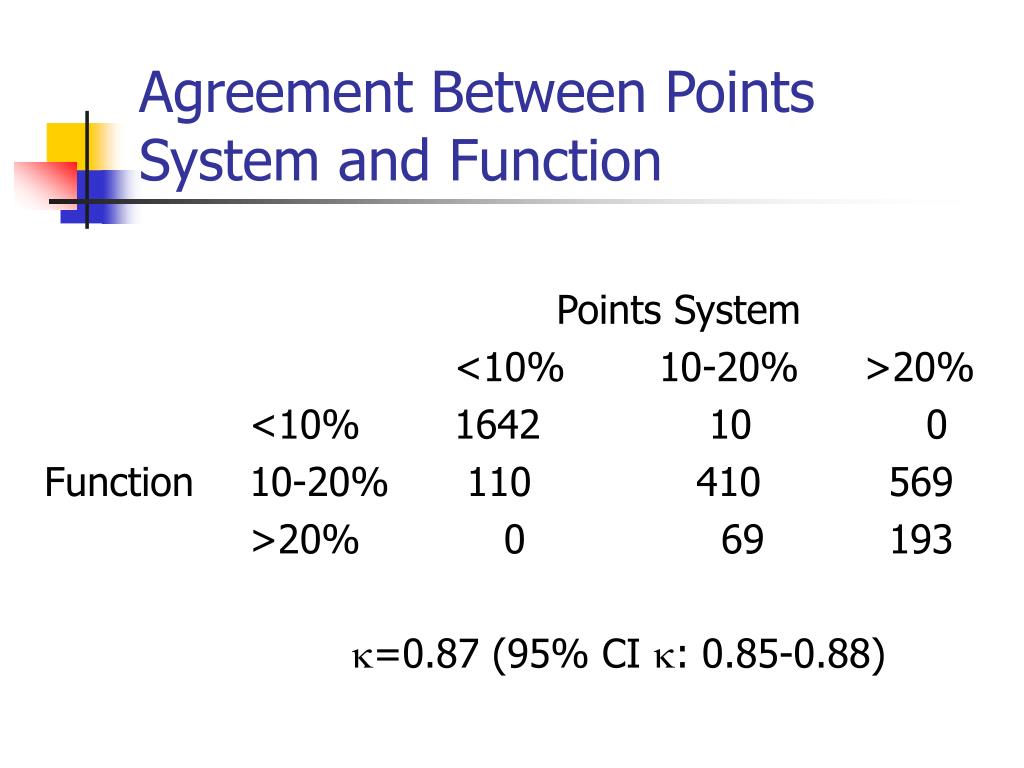

  31. Agreement Between Points System and Function Points System <10% 10-20% >20% <10% 1642 10 0 Function 10-20% 110 410 569 >20% 0 69 193 k=0.87 (95% CI k: 0.85-0.88)

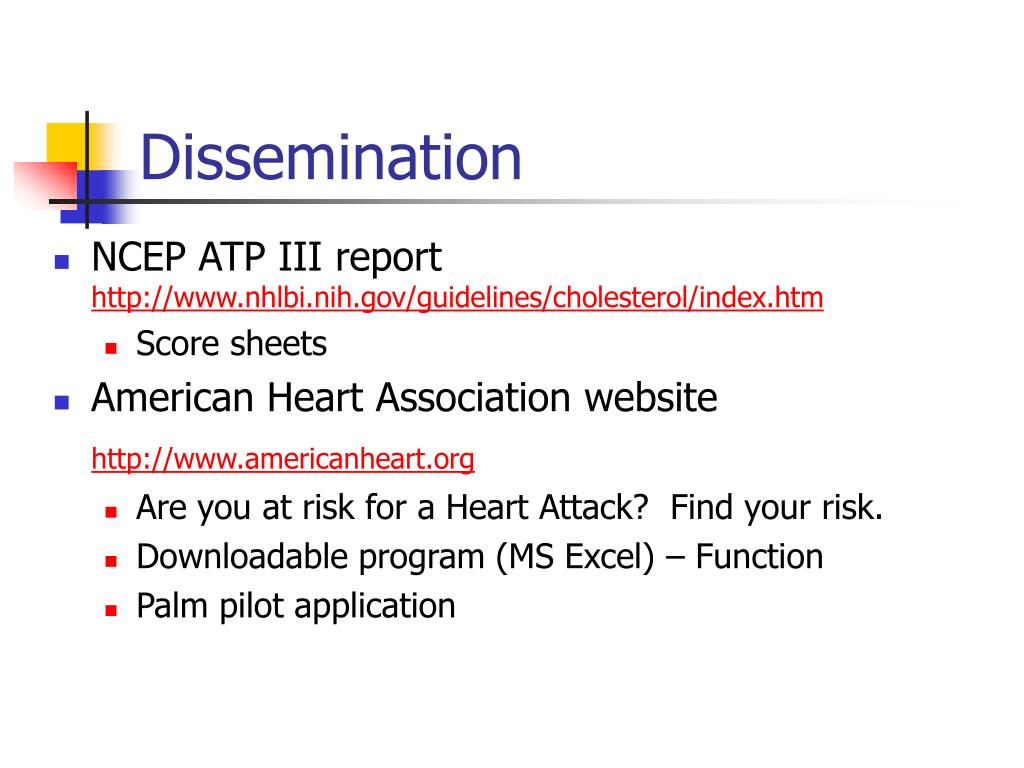

  32. Dissemination • NCEP ATP III report http://www.nhlbi.nih.gov/guidelines/cholesterol/index.htm • Score sheets • American Heart Association website http://www.americanheart.org • Are you at risk for a Heart Attack? Find your risk. • Downloadable program (MS Excel) – Function • Palm pilot application

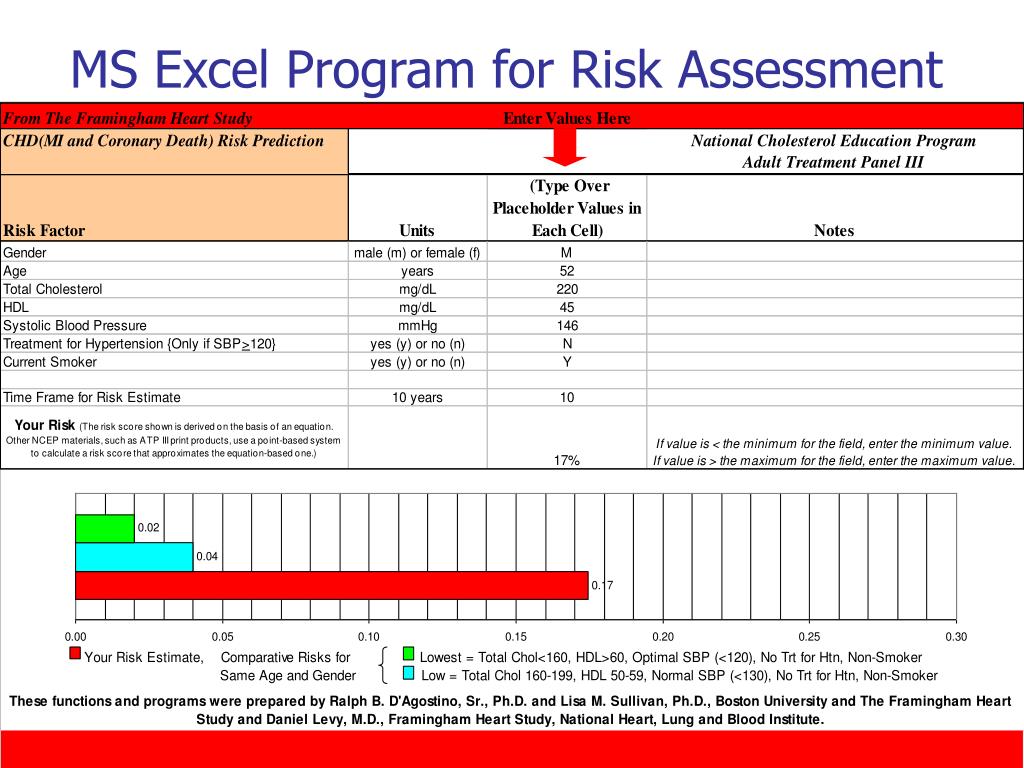

  33. MS Excel Program for Risk Assessment

  34. Summary • Framingham has been a leader in the development and dissemination of multivariable models to estimate CHD risk • Points system makes complex models useful in practice • Patients can also assess CHD risk over time

  35. Problems/Issues • “Points” system Vs. Function • Comparing Functions • Population at risk • Outcome (CHD, HCHD, Coronary Death) • Risk Factors • Parameterization of Risk Factors (categories, continuous)

  36. Next Steps • Adding novel risk factors (e.g., CRP, Nutrition, Family History) • Statistical Significance Vs. Improving Prediction • Measurement Issues (missing/incomplete data) • CI around risk estimates • How to add CI to guidelines? • Treatment depends on absolute risk < 10%, 10-20%, >20% • Continuing validation work
