Compressor part sr. no. Example:

Compressor part sr. no. Example:. Comp. model name. Part Serial No. Sticker. 11 digit part sr. no. sticker pasted on comp. is also available on base of ODU below service valve fixing area. Both sr. no. are same as shown in pic. Use 3 zero at end to make it 14 digits.

oral
Télécharger la présentation

Compressor part sr. no. Example:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

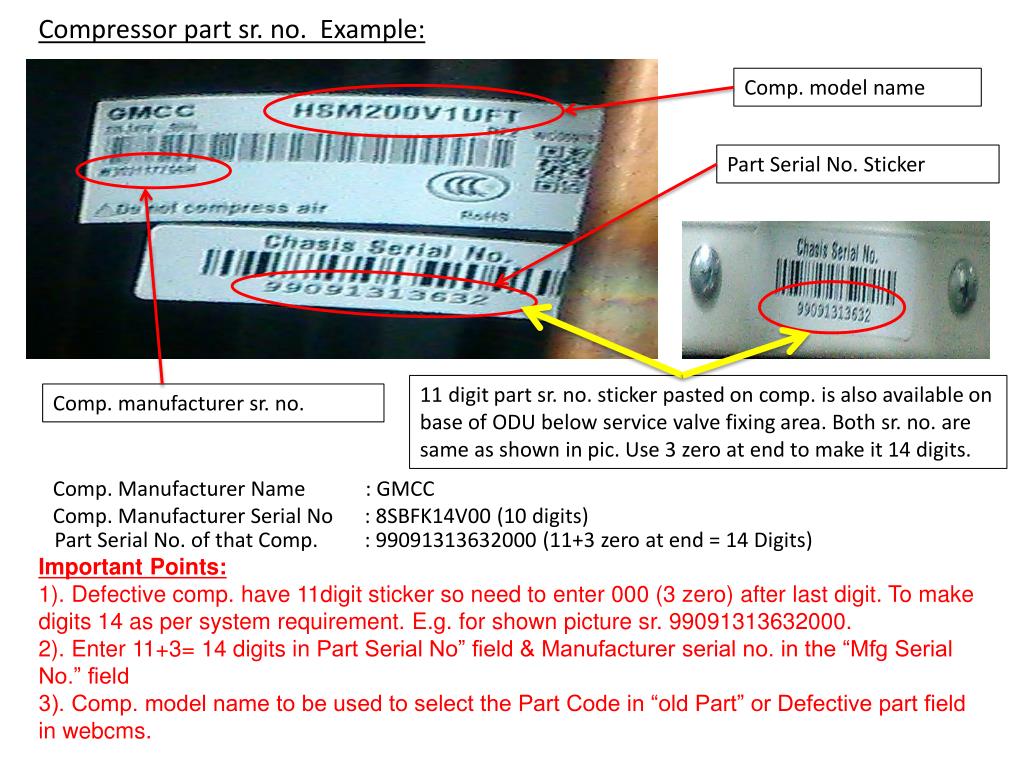

  1. Compressor part sr. no. Example: Comp. model name Part Serial No. Sticker 11 digit part sr. no. sticker pasted on comp. is also available on base of ODU below service valve fixing area. Both sr. no. are same as shown in pic. Use 3 zero at end to make it 14 digits. Comp. manufacturer sr. no. Comp. Manufacturer Name : GMCC Comp.Manufacturer Serial No : 8SBFK14V00 (10 digits) Part Serial No. of that Comp. : 99091313632000(11+3 zero at end = 14 Digits) Important Points: 1). Defective comp.have 11digit sticker so need to enter 000 (3 zero) after last digit. To make digits 14 as per system requirement. E.g. for shown picture sr. 99091313632000. • 2). Enter 11+3= 14 digits inPart Serial No” field & Manufacturer serial no. in the “Mfg Serial No.” field 3). Comp. model name to be used to select the Part Code in “old Part” or Defective part field in webcms.
