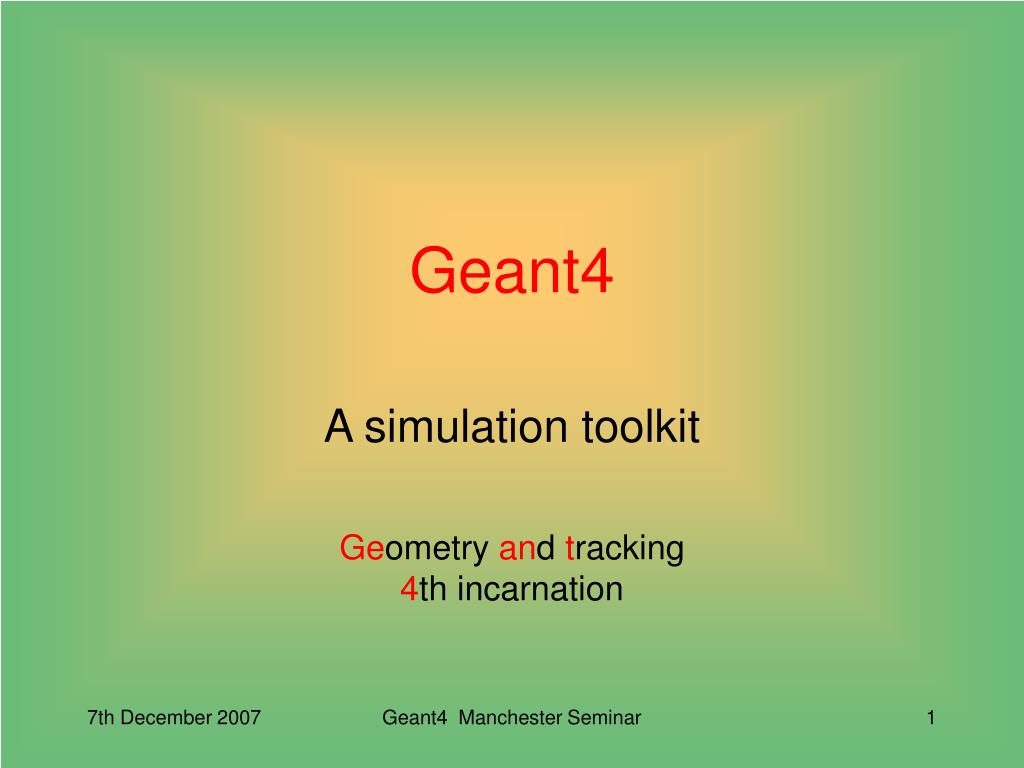

  1. Geant4 A simulation toolkit Geometry and tracking4th incarnation Geant4 Manchester Seminar

  2. Synopsis • Overview • Introduction • Toolkit • Main program • Detector construction • Physics list • Generator • Analysis • Guiding Geant4 • User actions • Commands • CPU performance • Physics performance • Some applications • Publications • Future • Demonstrations Geant4 Manchester Seminar

  3. Introduction — 1 • Started from two studies done independently at CERN and KEK in 1993 • Became RD44, sponsored by the CERN Detector Research and Development Committee, in 1994 • GEANT3’s Fortran-based technology was limiting development • Mandate: modern (object oriented) techniques • Early decision to use C++ • 100 scientists/engineers, global Geant4 Manchester Seminar

  4. Introduction — 2 • After 4 years R &D, first version December 1998 • Geant4 Collaboration formed January 1999 • Continue development • Provide maintenance • New Collaboration Agreement 2006 • Open software licence • 10 institutes (including PPARC) • 85 members (25 FTEs) • Technical Forum for users (HEP, Space, Medicine, Nuclear Physics,…) Geant4 Manchester Seminar

  5. Toolkit • Make your own application • Open • Extendable • Versatile • Toolkit++ • Huge range of physics • Many geometrical shapes • Many examples • Web-based documentation and code browsing Geant4 Manchester Seminar

  6. Main program int main(int argc,char** argv) { G4RunManager * runManager = new G4RunManager; runManager->SetUserInitialization(new MyDetector); runManager->SetUserInitialization(new MyPhysics); runManager->SetUserAction(new MyGenerator); runManager->Initialize(); runManager->BeamOn(10); delete runManager; return 0; } MyDetector, MyPhysics and MyGenerator are “mandatory” classes, i.e., instances are required by the run manager. The above will track 10 events — but will keep things to itself!!! (See later for how to get information out!!) Geant4 Manchester Seminar

  7. Detector Construction — 1 class MyDetector: public G4VUserDetectorConstruction { public: G4VPhysicalVolume* Construct(); }; G4VPhysicalVolume* MyDetector::Construct() { G4Material* Ar = new G4Material("ArgonGas",18,39.95*g/mole,1.782*mg/cm3); G4Material* Pb = new G4Material("Lead",82,207.19*g/mole,11.35*g/cm3); G4VSolid* world = new G4Box(“World”,10*m,10*m,10*m); G4LogicalVolume* world_log = new G4LogicalVolume(world,Ar,“World”,0,0,0); G4VPhysicalVolume* world_phys = new G4PVPlacement(G4Transform3D(),world_log,“World”,0,false,0); G4VSolid* detector = new G4Box(“Detector”,5*m,5*m,5*m); G4LogicalVolume* det_log = new G4LogicalVolume(detector,Pb,“Detector”,0,0,0); new G4PVPlacement(G4Transform3D(),det_log,“Detector”,world_log,false,0); … return world_phys; } Geant4 Manchester Seminar

  8. Detector construction — 2 • Materials can be built from isotopes • Hierarchy of volumes • Each physical volume, except “world”, has a logical mother • Replicas — repetitive placements • Parametrisations • Size, placement and material have functional dependence on copy number • Boolean solids — union, intersection, subtraction • Sensitive detectors • Volumes that hold an instance of a class with a method that is messaged when a track enters • Magnetic field • Visualisation attributes — visibility, colour, etc. Geant4 Manchester Seminar

  9. Detector construction — 3 • Optical properties • Track optical photons in scintillators, etc. • Parallel worlds • Shower parametrisation • “scoring” (energy deposition, dose, etc.) • “event biasing” (variance reduction, weighting, importance sampling, etc.) Geant4 Manchester Seminar

  10. Physics list — 1 • class MyPhysics: public G4VUserPhysicsList {public: void ConstructParticle(); void ConstructProcess(); void SetCuts();}; • Each particle has a process manager • 100’s of particles pre-defined • Define ions as required • Thus, each particle has a set of many processes • At rest (capture, decay) • Along step (ionisation, bremsstrahlung,…) • Post step (interaction, decay, multiple scattering) • They must be carefully ordered Geant4 Manchester Seminar

  11. Physics list — 2 • Cuts apply to em processes with infra-red divergences • Cut is in range (distance) (different to GEANT3) • Converted internally to energy for each material • Processes have sub-processes for different energy ranges • Many choices of process • Low energy or standard electromagnetic • Many alternative hadronic models • All particles have the transportation process • User responsibility, but “best guess” examples of physics lists are provided (some are 1000’s lines) Geant4 Manchester Seminar

  12. Generator • class MyGenerator: public G4VUserPrimaryGeneratorAction { void GeneratePrimaries(G4Event*);}; • Examples provided • Particle gun • Event generator, e.g., phythia • Read from file • General particle source, command (script) driven • Can specify decay point and decay channel Geant4 Manchester Seminar

  13. Analysis • Information available • At each step (UserSteppingAction) (not advised) • Your sensitive detector • Scorer • Create hits (and digis) • View, pick, write to file • Graph, histogram • AIDA interface to HBOOK, OpenScientist, JAS,… Geant4 Manchester Seminar

  14. Guiding Geant4 • User actions (callbacks) • Commands (scripts) • Python interface Geant4 Manchester Seminar

  15. User actions • User actions (callbacks) • G4UserRunAction: begin and end of run • G4UserEventAction: begin and end of event • G4UserStackingAction: track-stacking selection • G4UserTrackingAction: before or after each track • G4UserSteppingAction: actions for each step • Declare instances to the run manager, e.g: • runManager->SetUserAction(new MyTrackingAction);where MyTrackingAction is a sub-class of G4UserTrackingAction implementing methods Pre or PostUserTrackingAction, e.g., to abort the event if some condition prevails Geant4 Manchester Seminar

  16. Stacking action • Distinctive and key feature of Geant4 • Used to control the order of tracking • Pick out tracks potentially important for a trigger, e.g., muons, for early tracking • Abort event early if will not trigger • avoid unnecessary em showering • huge time saving • Postpone tracks to next event (event pile-up) Geant4 Manchester Seminar

  17. Commands • Instantiate a session (in main program) • session = new G4UIterminal();session->SessionStart();delete session; • Motif window and tcsh terminal also available • GAG (Geant4 Adaptive GUI) (Java based) • Typically, command line or script replaces C++ code • /run/initialize/run/beamOn 10 • Large number of commands available Geant4 Manchester Seminar

  18. Visualisation • G4VisManager* visManager = new G4VisExecutive;visManager->initialise();…delete visManager; • Interface to multifarious graphics systems • OpenGL • OpenInventor • DAWN • HepRep • Ray Tracer (uses Geant4’s own tracking) • Command driven • Brilliant!!! Geant4 Manchester Seminar

  19. Geant4 Manchester Seminar

  20. CPU performance • About same as GEANT3 under comparable circumstances • Many more optimisation tools • Geometry “voxelisation” • Track stacking and event abort mechanisms • Parallel geometries for event biasing and hit scoring Geant4 Manchester Seminar

  21. Physics performance • Under continual review • Good em physics • 1 keV - 100 TeV (standard) • 250 eV - 100 GeV (low energy) with large database of atomic levels • Hadronic physics: 21 models! • CHIPS, Bertini, parameter-driven,… • Large database of nuclear levels • Physics reference manual Geant4 Manchester Seminar

  22. Some applications • Space • Medicine • Particle physics • … • See recent workshop, Lisbon 2006 • See timetable and presentations therein Geant4 Manchester Seminar

  23. 5º 5º Mars surface simulation GEANT4 and set-up Geant4 Manchester Seminar

  24. Geant4 Manchester Seminar

  25. Particle Therapy Geant4 Manchester Seminar

  26. Proton therapy doses Geant4 Manchester Seminar

  27. Pierre Auger Fluorescence Detector Geant4 Manchester Seminar

  28. Geant4 Manchester Seminar

  29. Publications • Geant4 — a simulation toolkit, Nuclear Instruments and Methods in Physics ResearchA 506 (2003) 250-303 • Geant4 Development and Applications, IEEE Transactions on Nuclear Science53 No. 1 (2006) 270-278. • Numerous specialist papers • See web page, geant4.cern.ch Geant4 Manchester Seminar

  30. Summary • Open, extendable toolkit • Excellent physics processes • Still being developed and refined • Compare well with other codes • Wealth of geometrical shapes • Versatile user actions and commands • Many examples provided Geant4 Manchester Seminar

  31. Future • Paper on the Visualisation System • Article in Nuclear Physics News • The 12th Geant4 Workshop, 13th-19th September 2007, organised by us, held at Hebden House Conference Centre, Hebden Bridge • Possibility of Special Interest Group meetings here (in Manchester) or Hebden Bridge. • Join us Geant4 Manchester Seminar

  32. Demonstrations • N02: Target + chambers + field • N04: Pythia event, muon trigger • N03 with QGSP: Pb-LiqAr calorimeter • Making a movie • Sections and cutaways • Display by time Geant4 Manchester Seminar
