Graphic design Interface

1. Graphic design Interface

2. Graphic Design Interface is the system used to perform drawing and other related graphics operations for the Microsoft Windows family of operating systems. GDI Namespaces GDI is defined in the Drawing namespace and its five sub namespaces. All drawing code resides in System.Drawing.DLL assembly. These are System.Drawing, System.Drawing.Printing, System.Drawing.Imaging, System.Drawing.Drawing2D System.Drawing.Text System.Drawing.Design

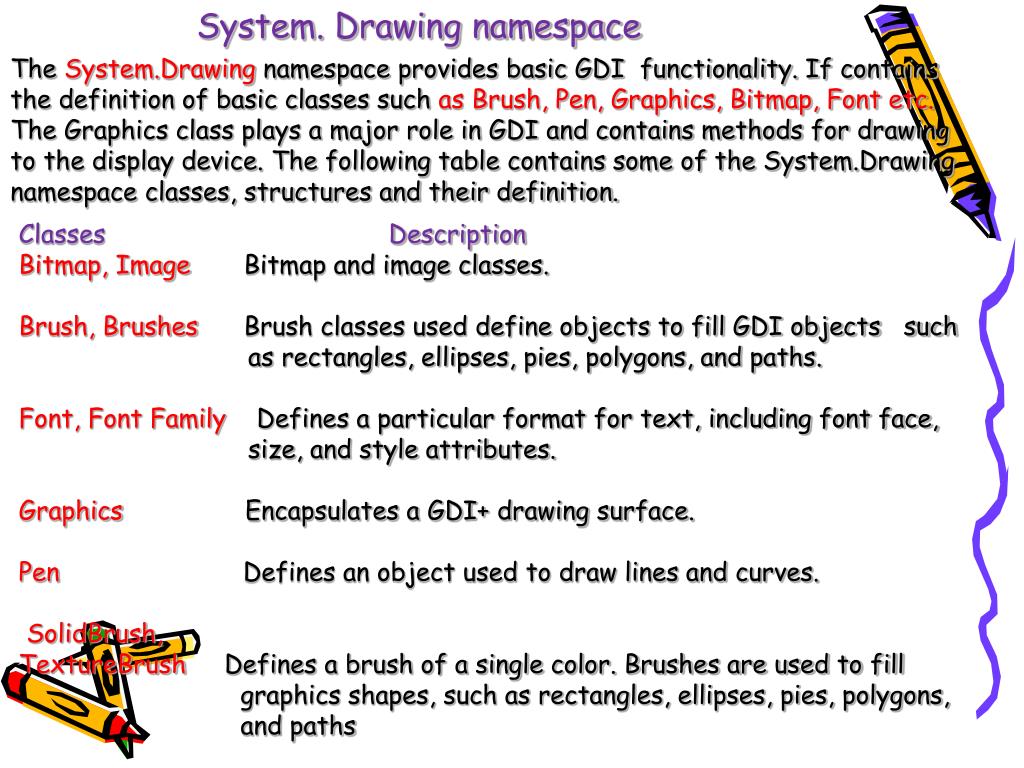

3. System. Drawing namespace The System.Drawing namespace provides basic GDI functionality. If contains the definition of basic classes such as Brush, Pen, Graphics, Bitmap, Font etc. The Graphics class plays a major role in GDI and contains methods for drawing to the display device. The following table contains some of the System.Drawing namespace classes, structures and their definition. Classes Description Bitmap, Image Bitmap and image classes. Brush, Brushes Brush classes used define objects to fill GDI objects such as rectangles, ellipses, pies, polygons, and paths. Font, Font Family Defines a particular format for text, including font face, size, and style attributes. Graphics Encapsulates a GDI+ drawing surface. Pen Defines an object used to draw lines and curves. SolidBrush, TextureBrush Defines a brush of a single color. Brushes are used to fill graphics shapes, such as rectangles, ellipses, pies, polygons, and paths

4. The Graphics Class There're different of ways to get a graphics object in your application. One of these by using the form's paint event as follow Now you've the Graphics object. Now you can do any thing you want. The Graphics class has methods to drawing graphics objects such as fonts, pens, lines, path and polygons, images and ellipse and so on. Some of the graphics class members are described in the following table

6. The Pen Class A pen draws a line of specified width and style. You always use Pen constructor to create a pen. The constructor initializes a new instance of the Pen class. You can initialize it with a color or brush.

7. Joins Suppose we have multiple lines that are joined to indicate a shape. The point at which two lines are joined can be rendered with three distinct styles. The Pen class defines how lines are joined. To do so, it provides the LineJoin property. EX:- mypen.LineJoin = Drawing2D.LineJoin.Round

8. The Point Structure Represents a 2D x- and y-coordinates. Point takes x, y values as a number To Create point object we use the following example EX:- Dim pt1 As New Point(50, 50) Dim pt2 As New Point(300, 50) e.Graphics.DrawLine( Pens.Orange, pt1, pt2) To Create array of points we use the following example of drawing triangle If picture box Size equal to (450,450) EX:- Dim pn as new pen(color.red,8) Dim pnt() As Point = {New Point(225, 25), New Point(425, 425), New Point(25, 425), New Point(225, 25) } pn.LineJoin = Drawing2D.LineJoin.Bevel e.graphics.DrawLines (pn, pnt) 225,25 Drawlines:- draw multiple lines 425,425 25,425

9. Drawing Basic Shapes • rectangle:- Represents a rectangle with integer values. A rectangle represents two point pair – left, top and width, height. Hint:-size(250,250) , width=200 ,height=100 EX:- Dim g As Graphics = e.Graphics Dim pn As New Pen (Color.Red, 12) pn.LineJoin = Drawing2D.LineJoin.Bevel g.DrawRectangle(pn, 25 , 75, 200, 100) Hint:- the same example can be solve using rectangle instance as: EX:- Dim g As Graphics = e.Graphics Dim pn As New Pen(Color.Red, 12) Dim rect As New Rectangle(25, 75, 200, 100) pn.LineJoin = Drawing2D.LineJoin.Bevel g.DrawRectangle(pn, rect) 25, 75 Drawrectangle:- draw rectangular area 225, 175

10. 2. Ellipse:- An ellipse is simply a circle or oval bound inside a Rectangle structure. To draw an ellipse, you can use the DrawEllipse method of the Graphics class. This method requires a Pen object and some semblance of a rectangle definition Hint:-size(300,300) EX:- Dim g As Graphics = e.Graphics Dim pn1 As New Pen(Color.Red, 5) Dim pn2 As New Pen(Color.DarkBlue, 5) Dim pn3 As New Pen(Color.Yellow, 5) pn3.DashStyle = DashStyle.DashDotDot g.DrawEllipse(pn1, 50, 100, 200, 100) g.DrawEllipse(pn2, 100, 50, 100, 200) g.DrawEllipse(pn3, 50, 50, 200, 200) DrawEllipse:-draw circle or oval shape HW:-رسم الحلقات الاولمبية للعلم الاولمبي الرياضي

11. 3. Polygons:-A polygon is a closed plane, or object, represented by at least three lines (segments). To draw polygons with the namespace, we simply play connect-the-dots. We first create the dots using the Point structure. These dots are actually a series of coordinates through which we will draw lines. To connect the dots, we use the DrawPolygon method of the Graphics class. We indicate the order in which to connect the points of the polygons by their order in our Point array. Draw the following shape with picture box size (400,400) Dim g As Graphics = e.Graphics Dim pn As New Pen(Color.DarkMagenta, 5) Dim mypoint() As Point = {New Point(150, 100), New Point(250, 100), New Point(300, 150), New Point(300, 250), New Point(250,300), New Point(150,300), New Point(100,250), New Point(100,150)} g.DrawPolygon(pn, mypoint) Drawpolygon:-connect dots by lines to draw shape

12. 4. curves:- A curve is an array of points defining the perimeter of a conic section. curves can be used for such things as connecting points on a graph A.Drawcurve method:-Draw curved line passes through an array of points PictureBox1.BackColor = Color.Aquamarine Dim graph As Graphics = e.Graphics Dim pn As New Pen(Color.Blue, 6) Dim mypoint() As Point = {New Point(100, 100), New Point(300, 100), New Point(300, 300)} graph.DrawCurve(pn, mypoint) B.Drawclosedcurve method:-Draw close curve using an array of points. The above example with close curve method. graph.DrawClosedCurve(pn, mypoint)

13. 5. Arcs:To draw a curved shape can use the DrawArc() method. This method accepts four parameters. The firs parameter is the pen object. Second parameter is the rectangle object that determines the boundaries of arc shapes. The third and fourth parameters are start angle and end angle respectively. EX:- 'Create pen objects Dim p As New Pen(Color.Green, 10) Dim p1 As New Pen(Color.Yellow, 10) Dim p2 As New Pen(Color.Red, 10) 'Create rectangle objects Dim rt As New Rectangle(100, 150, 80, 100) Dim rt1 As New Rectangle(130, 120, 120, 120) Dim rt2 As New Rectangle(160, 100, 150, 150) 'Draw arc e.Graphics.DrawArc(p, rt, 0, -90) e.Graphics.DrawArc(p1, rt1, 0, -90) e.Graphics.DrawArc(p2, rt2, 0, -90)

14. Filling Shapes:- we've dealt with the outline of a shape. Now we will focus on the interior, or fill area, of a shape. GDI+ gives us the concept of a brush to indicate how a shape is filled. Brushes are useful when blending colors for a desired effect like a fade or indicating a shape's texture like sand, stone, or brick. Brushes can be a single solid color, a blend of colors, a texture, a bitmap, or a hatched pattern. To create brush objects in our code, we use a derivative of theBrush class. Brush is an abstract base class. Classes that derive from Brush are as follows: SolidBrush, TextureBrush, RectangleGradientBrush, LinearGradientBrush, and HatchBrush SolidBrush class :- it provides a single-colored brush with which to fill shapes. It has one constructor and one property, Color. Of course, this property is of the type Color structure. The following is an example of how to create a SolidBrush object Dim myBrush as New SolidBrush (Color.Red) • Dim brsh as new solidBrush(color. BlanchedAlmond) • e.Graphics.FillEllipse(brsh,100, 100, 200, 200) • 2. e.Graphics.FillEllipse(Brushes.BlanchedAlmond,100, 100, 200, 200)

15. LinearGradientBrush:- In Windows 9x and above, you've undoubtedly seen how you can blend two colors across the title bar of a window from within the "Display Settings" control panel. Well, the LinearGradientBrush class allows us to do just that; we can blend two colors across a given shape.To do so, we first create an instance of the class based on two colors and a blend style. Blend styles are defined by the LinearGradientMode enumeration. We then use a fill method of the Graphics object to paint our shape with the blended style. EX:- Dim rect As New Rectangle (100, 100, 200, 200) Dim brsh As New LinearGradientBrush (rect, Color.Blue, Color.Bisque, LinearGradientMode.Vertical) e.Graphics.FillEllipse(brsh, rect) LinearGradientMode

16. TextureBrush:- To create custom fill effects, you use the Texture Brush class. Custom fills are useful when you want to apply your own design to the interior of a shape. Using the TextureBrush class and bitmap images, you can create endless fill patterns.The bitmap is defined inside of an ImageList control (imageList1). When we create the texturebrush object, we set the WrapMode parameter to specific mode. Clamp Tile TileFlipX TileFlipXY TileFlipY EX:- Dim rect As New Rectangle(100, 100, 200, 200) Dim brsh As New TextureBrush(ImageList1(). Images.Item(0), WrapMode.TileFlipY) e.Graphics.FillEllipse(brsh, rect)

17. HatchBrush:- the HatchBrush class allows us to create numerous predefined fill patterns, including brick. We create a HatchBrush by passing in a hatch style, using theHatchStyle enumeration, and a foreground and background color to be used by the hatch style. EX:- Dim rect As New Rectangle(100, 100, 200, 200) Dim brsh As New HatchBrush( HatchStyle.Horizontal, Color.Blue, Color.Yellow) e.Graphics.FillEllipse(brsh, rect) HatchStyle members

18. HatchStyle members

19. HatchStyle members

20. HatchStyle members

21. Drawstring method Draws the specified text string with the specified fontandbrush objectsat destination point in the screen. parameters of the drawstring method :- • Creates a text string to draw. • Defines the font with kind, size and style. • Creates a brush to draw with. • Creates a point for the upper-left corner at • which to draw the text. PictureBox1.BackColor = Color.Aqua Dim graph As Graphics = e.Graphics Dim drawString As String = "Sample Text" Dim drawFont As New Font("Arial", 16,FontStyle.Underline) Dim drawBrush As New SolidBrush(Color.DarkMagenta) Dim x As Single = 225 Dim y As Single = 125 Dim drawFormat As New StringFormat() drawFormat.FormatFlags = StringFormatFlags.DirectionVertical DrawString(drawString, drawFont, drawBrush, x, y, drawFormat) HW:-draw watch figure

22. Stringformat: text string layout information such as alignment and orientation StringFormatFlags: Specifies the orientation information for text strings EX2:- Dim g As Graphics = e.Graphics Dim st As String = "FATEMA" Dim fnt As New Font("Georgia", 100, FontStyle.Bold) Dim rect As New Rectangle(0, 0, 100, 100) Dim brh As New LinearGradientBrush(rect, Color.Red, Color.Aqua, LinearGradientMode.Vertical) g.DrawString(st, fnt, brh, 100, 50) EX3:- Dim g As Graphics = e.Graphics Dim st As String = "FATEMA" Dim fnt As New Font("Georgia", 100, FontStyle.Bold) Dim rect As New Rectangle(0, 0, 100, 100) Dim im As Image = Image.FromFile("d:\cc.bmp") Dim brh As New TextureBrush(im, WrapMode.Tile, rect) g.DrawString(st, fnt, brh, 100, 50)

23. EX3:- Dim g As Graphics = e.Graphics Dim st() As String = {"1", "2", "3", "4", "5", "6", "7", "8", "9", "10", "11", "12"} Dim fnt As New Font("Arial", 10, FontStyle.Bold) Dim th, dth, x, y, xc, yc, r1, r2 As Single th = -60 * Math.PI / 180 dth = 30 * Math.PI / 180 xc = PictureBox1.Size.Width / 2 yc = PictureBox1.Size.Height / 2 r1 = PictureBox1.Size.Width - (xc + 20) r2 = PictureBox1.Size.Height - (yc + 20) For i = 0 To 11 x = xc + r1 * Math.Cos(th) y = yc + r2 * Math.Sin(th) g.DrawString(st(i), fnt, Brushes.Blue, x, y) th = th + dth Next

24. Create Bitmap image Draws the specified Image object at the specified location and with the original size EX:- ‘Create Bitmap Dim bmp As Bitmap = Bitmap.FromFile("d:\as5.bmp") ' Draw Bitmap Dim g As Graphics = e.Graphics g.DrawImage(bmp, 10, 10) bitmap format is used to manipulate images at the pixel level EX:-Dim newimage As New Bitmap(60, 60) For i = 0 To 59 Dim j As Integer For j = 0 To 59 newImage.SetPixel(i, j, Color.Red) Next j Next i e.Graphics.DrawImage(newimage, 100, 100) SetPixel:Sets the color of the specified pixel in this Bitmap

25. Draw a single pixel dot There is no PlotPixel function in GDI+ that allows you to draw directly on the GDI Graphics surface. To draw a dot of a specific color on your screen use the following :- 1. Create a 1x1 bitmap image. 2. Set its only pixel to the colour you desire using Bitmap.SetPixel 3. use Graphics.DrawImage(…)to draw the dot in the correct place EX1:dim bm As New Bitmap(1, 1) bm.SetPixel(0, 0, Color.Red) e.Graphics.DrawImage(bm, 100, 100) EX2:Dim g As Graphics = e.Graphics Dim img As New Bitmap(1, 1) img.SetPixel(0, 0, Color.Blue) For i = 0 to 100 g.DrawImage(img, i + 100, 100) next
