Camp Gopher

Camp Gopher. Note: Barricades do not reduce required IBD or PTR distances. They would stop high speed low angle fragments but they would not reduce or eliminate lobbed fragments. For Training Purposes Only. Gopher Chapel. Main Post Road. 1250 ft. 750 ft. The ‘Vill’. 1250 ft. 1. 5.

orde
Télécharger la présentation

Camp Gopher

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

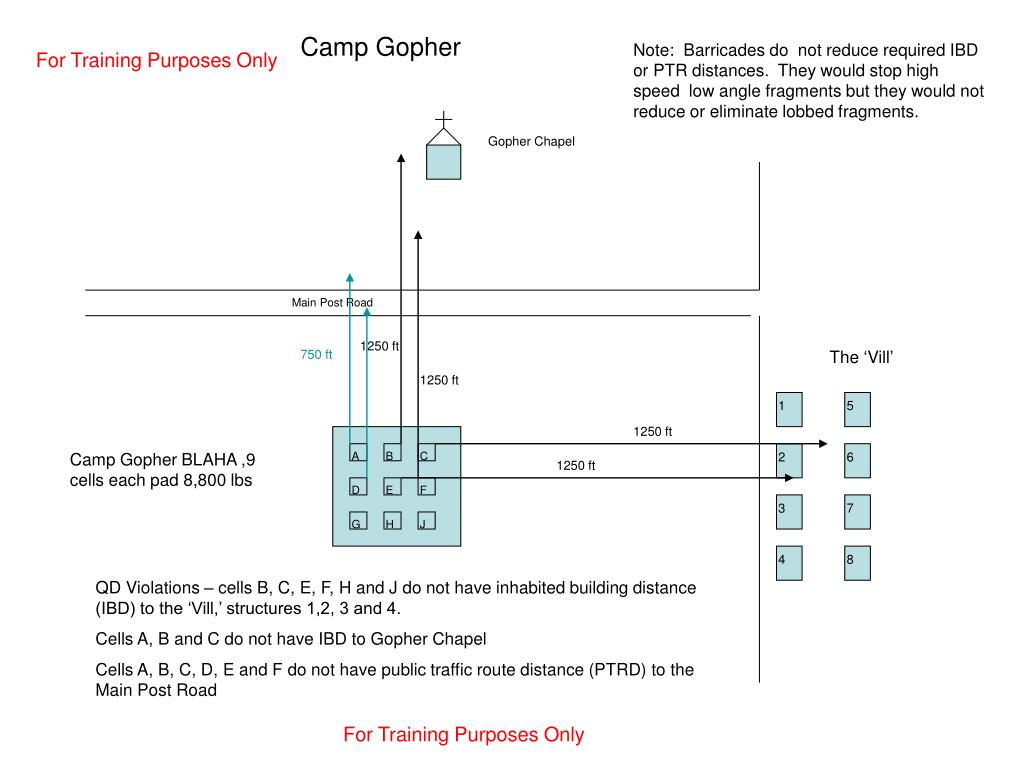

  1. Camp Gopher Note: Barricades do not reduce required IBD or PTR distances. They would stop high speed low angle fragments but they would not reduce or eliminate lobbed fragments. For Training Purposes Only Gopher Chapel Main Post Road 1250 ft 750 ft The ‘Vill’ 1250 ft 1 5 1250 ft Camp Gopher BLAHA ,9 cells each pad 8,800 lbs A B C 2 6 1250 ft D E F 3 7 G H J 4 8 QD Violations – cells B, C, E, F, H and J do not have inhabited building distance (IBD) to the ‘Vill,’ structures 1,2, 3 and 4. Cells A, B and C do not have IBD to Gopher Chapel Cells A, B, C, D, E and F do not have public traffic route distance (PTRD) to the Main Post Road For Training Purposes Only
