  1. SECTION 11.1 DEVELOPING ENTERPRISE APPLICATIONS

  2. DEVLOPING SOFTWARE • Software that is built correctly can transform as the organization and its business transforms • Software that effectively meets employee needs will help an organization become more productive and enhance decision making • Software that does not meet employee needs may have a damaging effect on productivity and can even cause a business to fail

  3. DEVELOPING SOFTWARE • As organizations’ reliance on software grows, so do the business-related consequences of software successes and failures including: • Increase or decrease revenue • Repair or damage to brand reputation • Prevent or incur liabilities • Increase or decrease productivity

  4. THE SYSTEMS DEVELOPMENT LIFE CYCLE (SDLC) • Systems development life cycle (SDLC) – the overall process for developing information systems from planning and analysis through implementation and maintenance

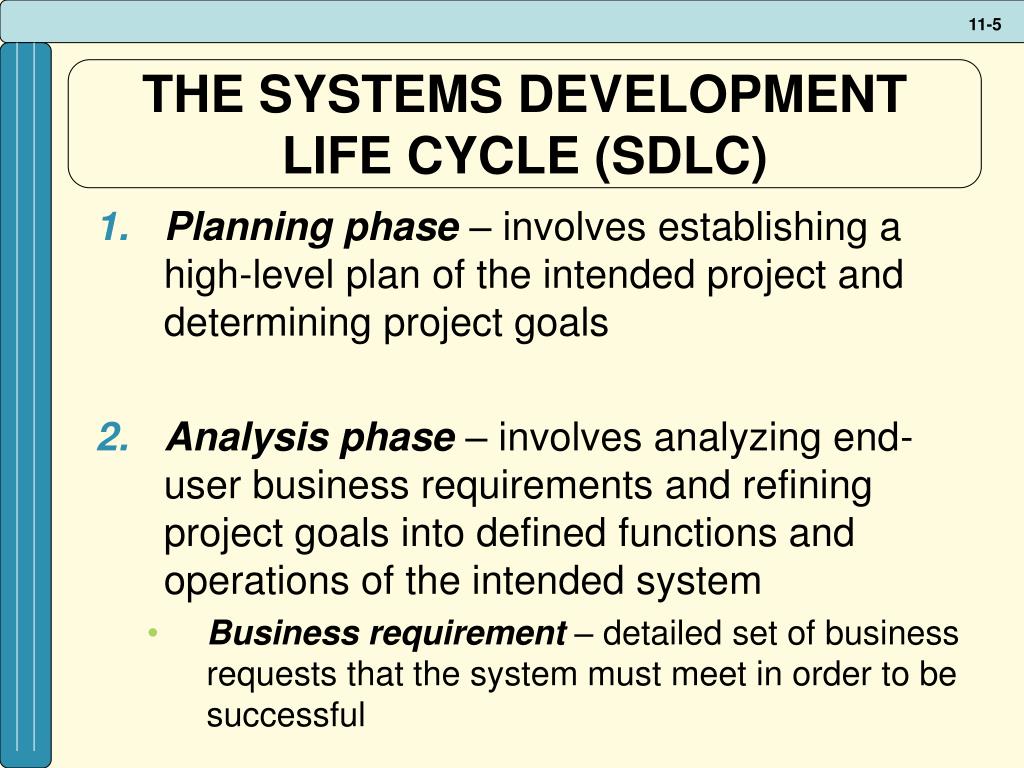

  5. THE SYSTEMS DEVELOPMENT LIFE CYCLE (SDLC) • Planning phase – involves establishing a high-level plan of the intended project and determining project goals • Analysis phase – involves analyzing end-user business requirements and refining project goals into defined functions and operations of the intended system • Business requirement – detailed set of business requests that the system must meet in order to be successful

  6. THE SYSTEMS DEVELOPMENT LIFE CYCLE (SDLC)) • Design phase – involves describing the desired features and operations of the system including screen layouts, business rules, process diagrams, pseudo code, and other documentation • Development phase – involves taking all of the detailed design documents from the design phase and transforming them into the actual system

  7. THE SYSTEMS DEVELOPMENT LIFE CYCLE (SDLC) • Testing phase – involves bringing all the project pieces together into a special testing environment to test for errors, bugs, and interoperability and verify that the system meets all of the business requirements defined in the analysis phase • Implementation phase – involves placing the system into production so users can begin to perform actual business operations with the system

  8. THE SYSTEMS DEVELOPMENT LIFE CYCLE (SDLC) • Maintenance phase – involves performing changes, corrections, additions, and upgrades to ensure the system continues to meet the business goals

  9. SOFTWARE DEVELOPMENT METHODOLOGIES • There are a number of different software development methodologies including: • Waterfall • Rapid application development (RAD) • Extreme programming • Agile

  10. Waterfall Methodology • Waterfall methodology – a sequential, activity-based process in which each phase in the SDLC is performed sequentially from planning through implementation and maintenance

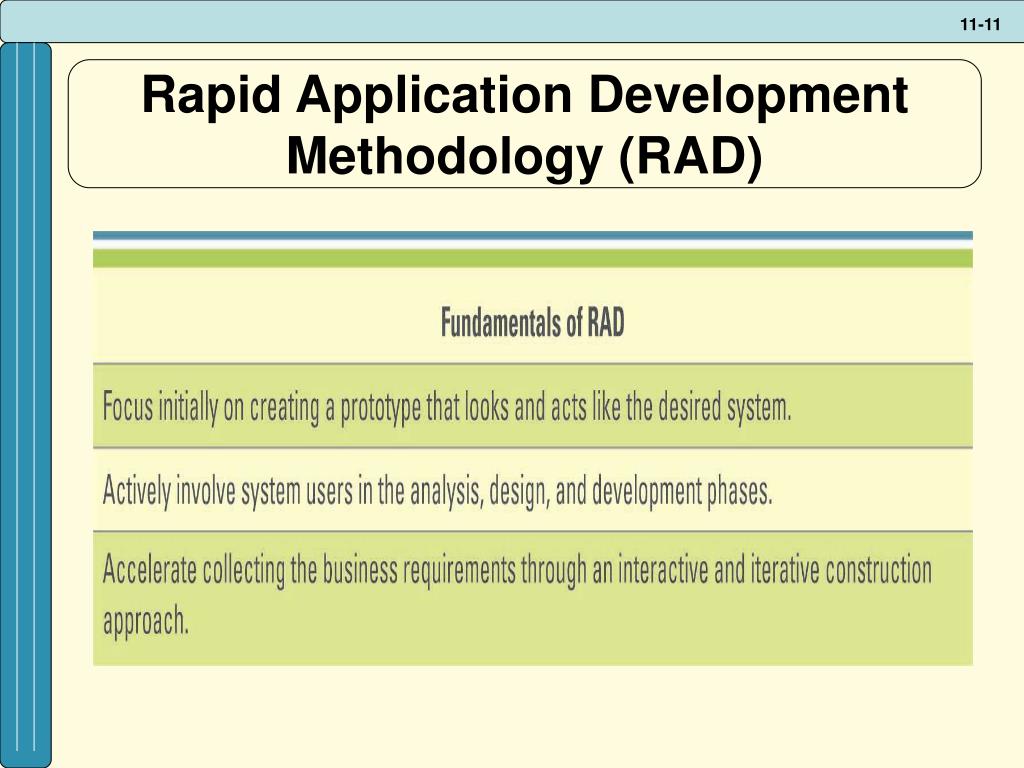

  11. Rapid Application Development Methodology (RAD)

  12. Extreme Programming Methodology • Extreme programming (XP) methodology – breaks a project into tiny phases, and developers cannot continue on to the next phase until the first phase is complete

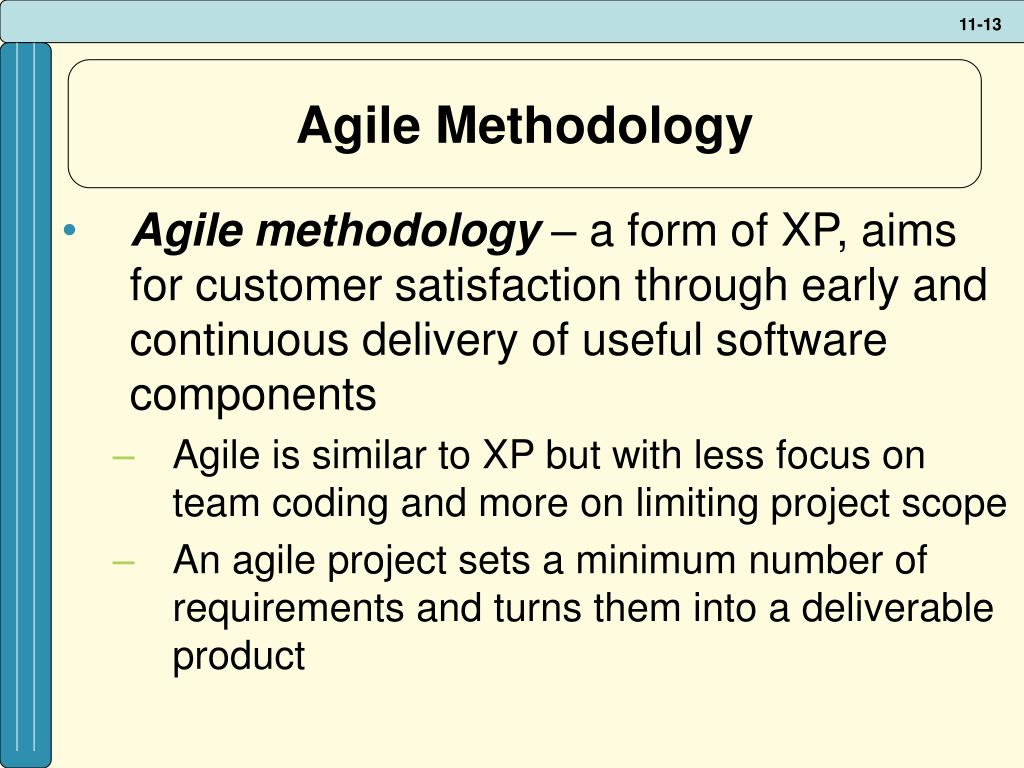

  13. Agile Methodology • Agile methodology – a form of XP, aims for customer satisfaction through early and continuous delivery of useful software components • Agile is similar to XP but with less focus on team coding and more on limiting project scope • An agile project sets a minimum number of requirements and turns them into a deliverable product

  14. DEVELOPING SUCCESSFUL SOFTWARE • Primary principles for successful agile software development include: • Slash the budget • If it doesn’t work, kill it • Keep requirements to a minimum • Test and deliver frequently • Assign non-IT executives to software projects

  15. SECTION 11.2 THE SYSTEMS DEVELOPMENT LIFE CYCLE (SDLC)

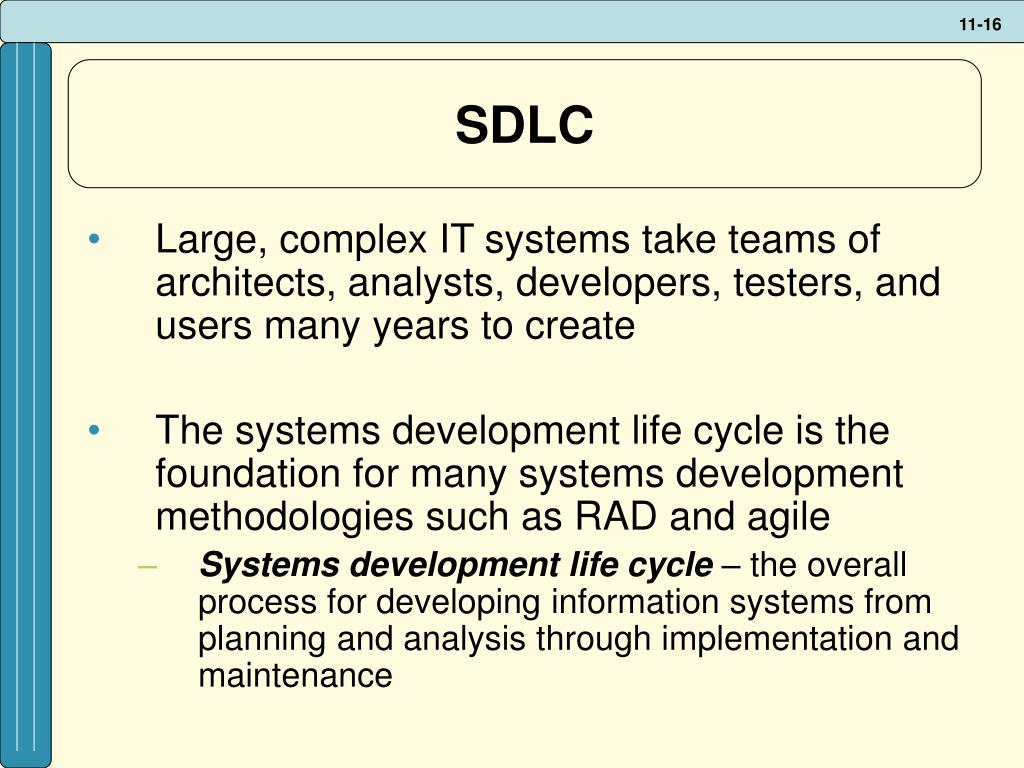

  16. SDLC • Large, complex IT systems take teams of architects, analysts, developers, testers, and users many years to create • The systems development life cycle is the foundation for many systems development methodologies such as RAD and agile • Systems development life cycle – the overall process for developing information systems from planning and analysis through implementation and maintenance

  17. SDLC

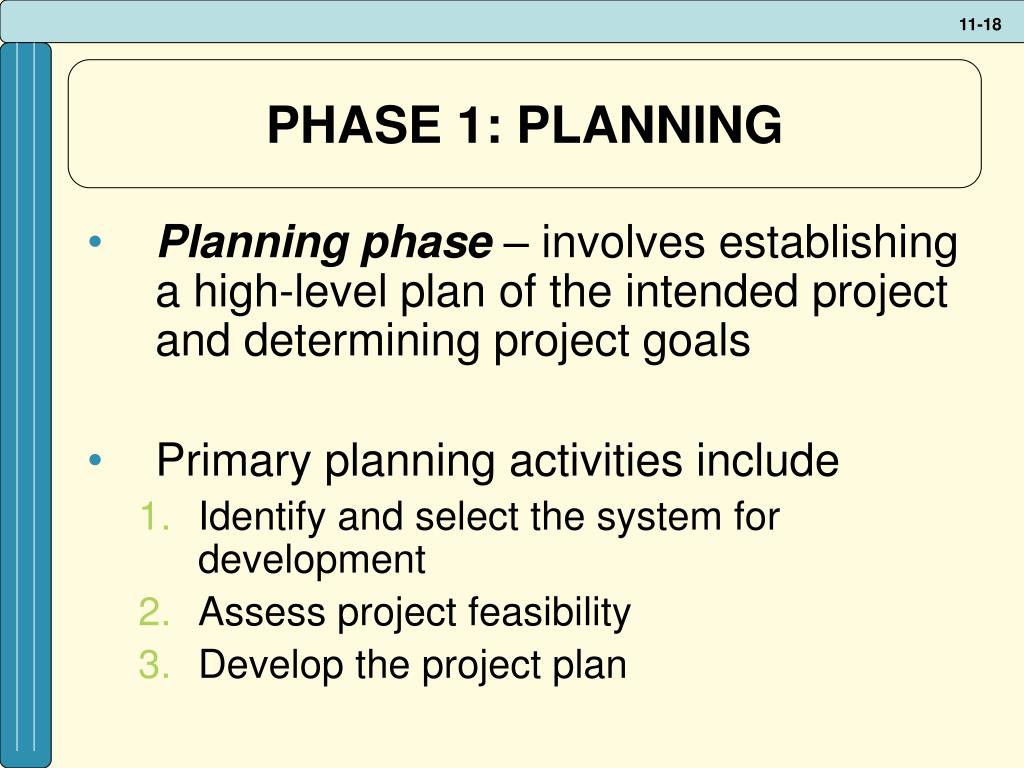

  18. PHASE 1: PLANNING • Planning phase – involves establishing a high-level plan of the intended project and determining project goals • Primary planning activities include • Identify and select the system for development • Assess project feasibility • Develop the project plan

  19. Identify and Select the System for Development • Organizations use different forms of evaluation criteria to determine which systems to develop • Critical success factor (CSF) – a factor that is critical to an organization’s success

  20. Assess Project Feasibility • Feasibility study – determines if the proposed solution is feasible and achievable from a financial, technical, and organizational standpoint • Different types of feasibility studies • Economic feasibility study • Operational feasibility study • Technical feasibility study • Schedule feasibility study • Legal and contractual feasibility study

  21. Develop the Project Plan • Developing the project plan is a difficult and important activity • The project plan is the guiding force behind on-time delivery of a complete and successful system • Continuous updating of the project plan must be performed during every subsequent phase during the SDLC

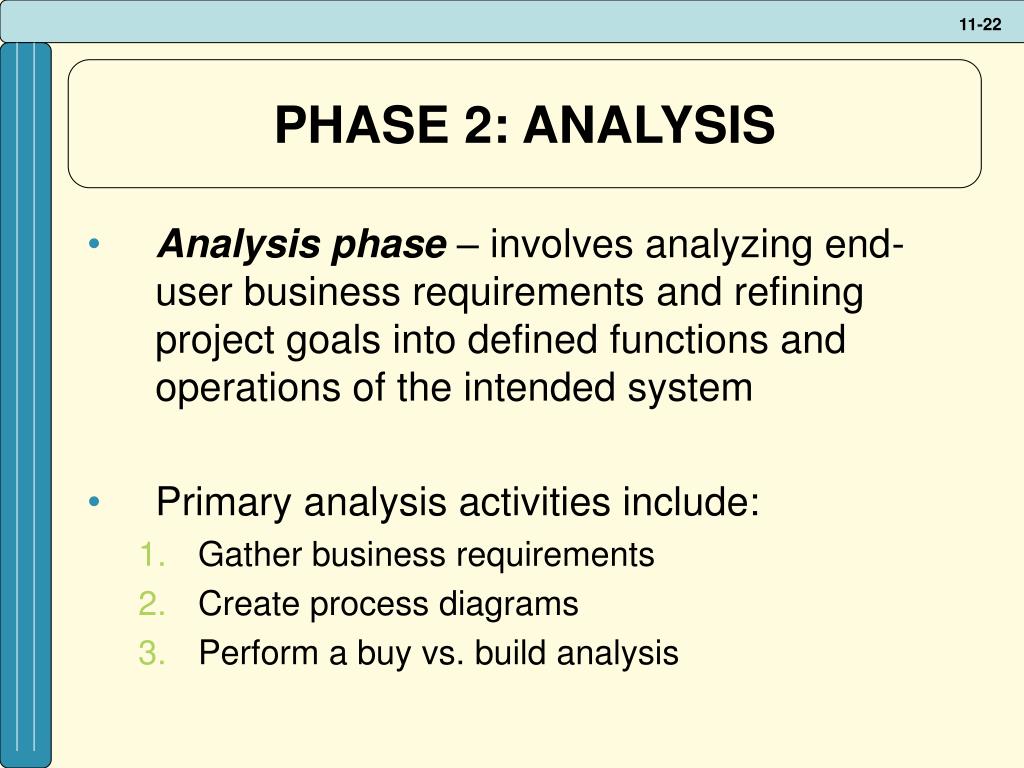

  22. PHASE 2: ANALYSIS • Analysis phase – involves analyzing end-user business requirements and refining project goals into defined functions and operations of the intended system • Primary analysis activities include: • Gather business requirements • Create process diagrams • Perform a buy vs. build analysis

  23. Gather Business Requirements • Business requirements – the detailed set of business requests that the system must meet in order to be successful • Different ways to gather business requirements • Joint application development (JAD) session – where employees meet to define or review the business requirements for the system • Interviews • Questionnaires • Observations • Review business documents

  24. Gather Business Requirements • The system users review the requirements definition document and determine if they will sign-off on the business requirements • Requirements definition document – contains the final set of business requirements, prioritized in order of business importance • Sign-off – the system users’ actual signatures indicating they approve all of the business requirements

  25. Create Process Diagrams • Process modeling – graphically representing the processes that capture, manipulate, store, and distribute information between a system and its environment • Common process modeling diagrams include • Data flow diagram (DFD) – illustrates the movement of information between external entities and the processes and data stores within the system • Computer-aided software engineering (CASE) tools –automate systems analysis, design, and development

  26. Create Process Diagrams • Sample data flow diagram

  27. Perform a Buy vs. Build Analysis • An organization faces two primary choices when deciding to develop an information system • Buy the information system from a vendor • Commercial off-the shelf (COTS) – software package or solution that is purchased to support one or more business functions and information systems • SCM, CRM, and ERP solutions are typically COTS • Build the information system itself

  28. Perform a Buy vs. Build Analysis • Organizations must consider the following when making a buy vs. build decision: • Are there any currently available products that fit the needs? • Are there features that are not available and important enough to warrant the expense of in-house development? • Can the organization customize or modify an existing COTS to fit its needs? • Is there a justification to purchase or develop based on the acquisition cost?

  29. Perform a Buy vs. Build Analysis • Three key factors an organization should also consider when contemplating the buy vs. build decision • Time to market • Availability of corporate resources • Corporate core competencies

  30. PHASE 3: DESIGN • Design phase – involves describing the desired features and operations of the system including screen layouts, business rules, process diagrams, pseudo code, and other documentation • Primary design activities include: • Design the IT infrastructure • Design system models

  31. Design the IT Infrastructure • Sample IT infrastructure

  32. Design System Models • Sample entity relationship diagram (ERD)

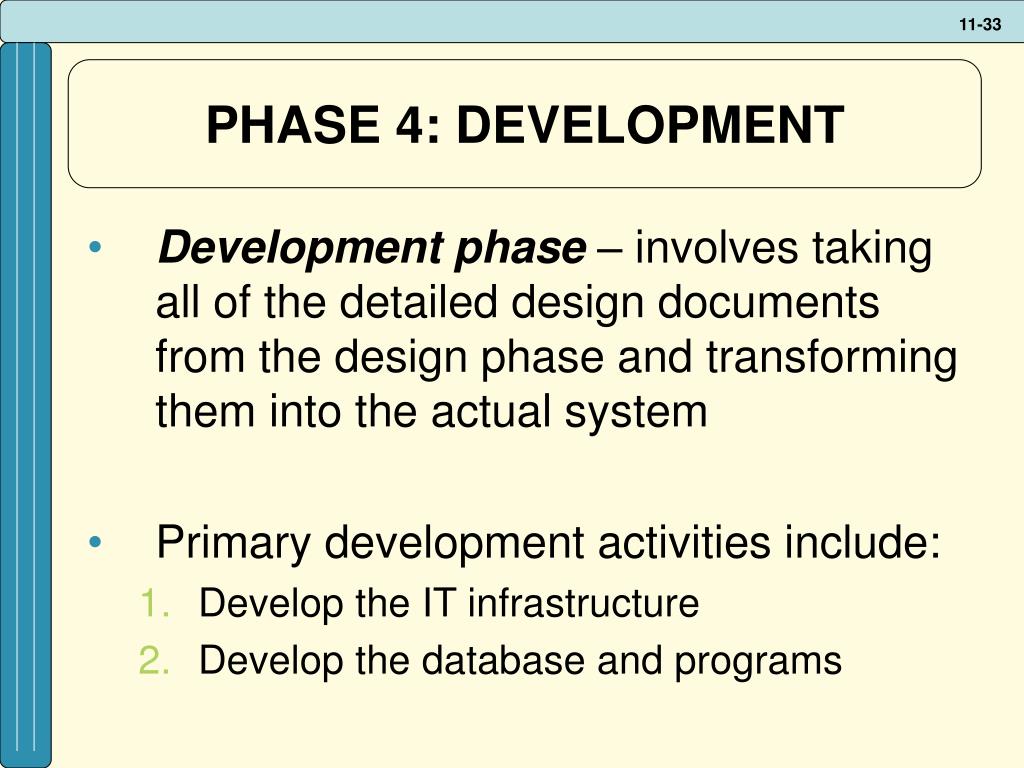

  33. PHASE 4: DEVELOPMENT • Development phase – involves taking all of the detailed design documents from the design phase and transforming them into the actual system • Primary development activities include: • Develop the IT infrastructure • Develop the database and programs

  34. PHASE 5: TESTING • Testing phase – involves bringing all the project pieces together into a special testing environment to test for errors, bugs, and interoperability, in order to verify that the system meets all the business requirements defined in the analysis phase • Primary testing activities include: • Write the test conditions • Perform the system testing

  35. Write the Test Conditions • Test condition – the detailed steps the system must perform along with the expected results of each step

  36. PHASE 6: IMPLEMENTATION • Implementation phase – involves placing the system into production so users can begin to perform actual business operations with the system • Primary implementation activities include: • Write detailed user documentation • Determine implementation method • Provide training for the system users

  37. Write Detailed User Documentation • System users require user documentation that highlights how to use the system • User documentation – highlights how to use the system

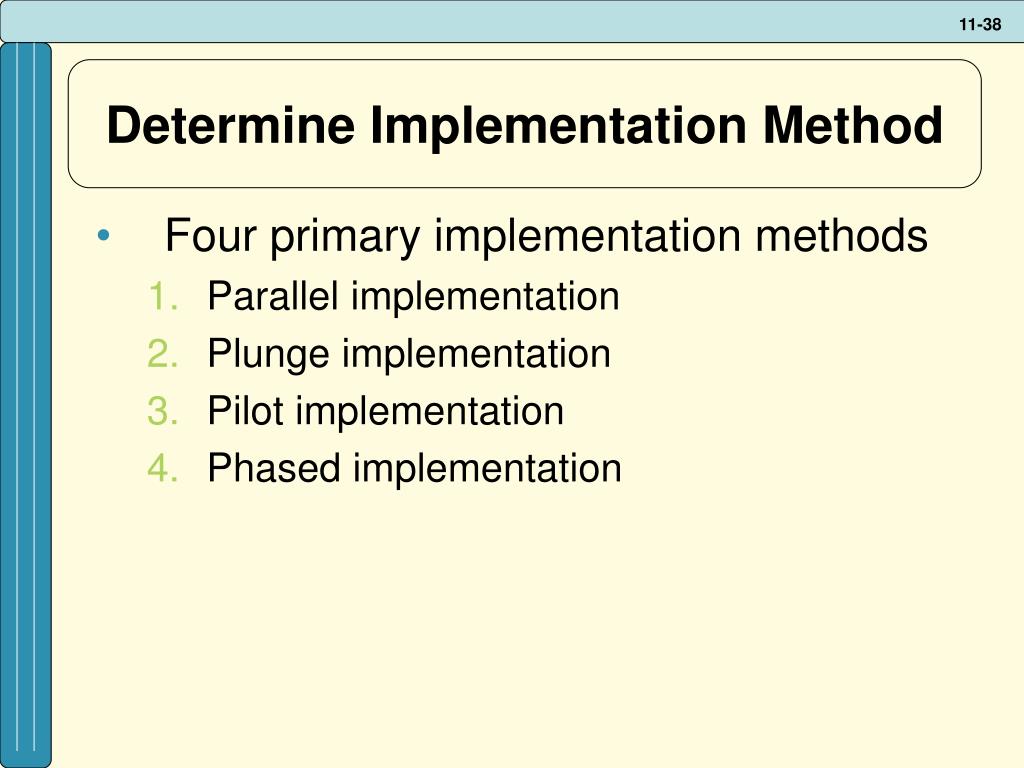

  38. Determine Implementation Method • Four primary implementation methods • Parallel implementation • Plunge implementation • Pilot implementation • Phased implementation

  39. Provide Training for the System Users • Organizations must provide training for system users • Two most popular types of training include: • Online training – runs over the Internet or off a CD-ROM • Workshop training – set in a classroom-type environment and led by an instructor

  40. PHASE 7: MAINTENANCE • Maintenance phase – involves performing changes, corrections, additions, and upgrades to ensure the system continues to meet the business goals • Primary maintenance activities include: • Build a help desk to support the system users • Perform system maintenance • Provide an environment to support system changes

  41. Build a Help Desk to Support the System Users • Internal system users have a phone number for the help desk they call whenever they have issues or questions about the system • Help desk – a group of people who respond to internal system user questions • Providing a help desk is an excellent way to provide comprehensive support for new system users

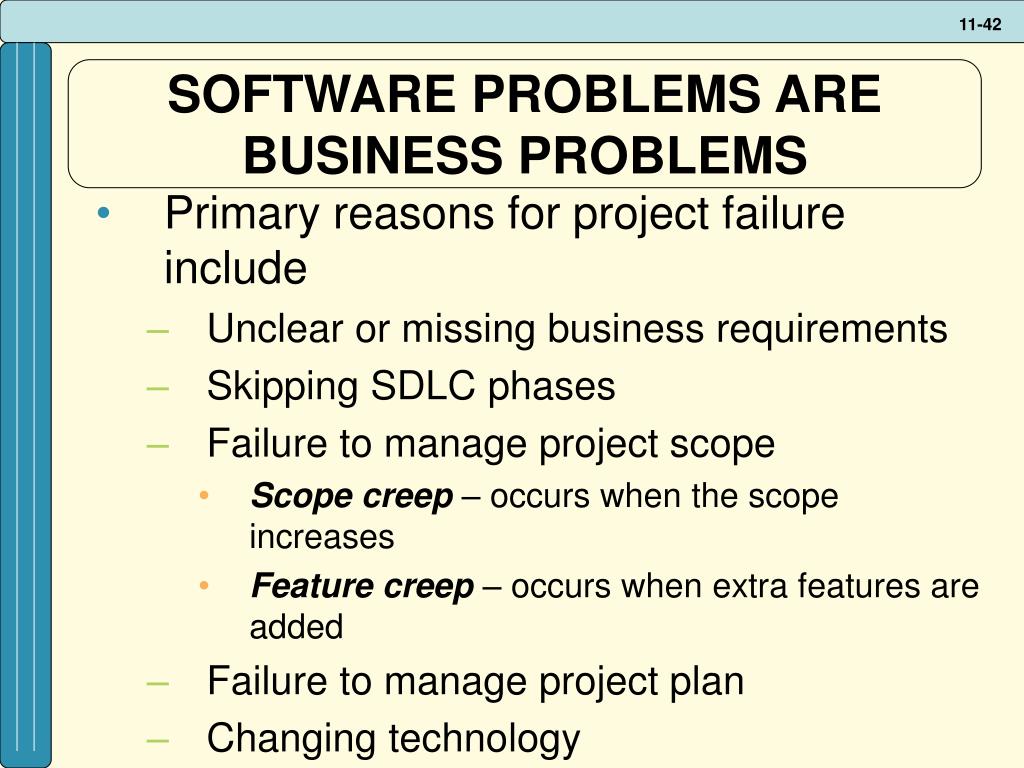

  42. SOFTWARE PROBLEMS ARE BUSINESS PROBLEMS • Primary reasons for project failure include • Unclear or missing business requirements • Skipping SDLC phases • Failure to manage project scope • Scope creep – occurs when the scope increases • Feature creep – occurs when extra features are added • Failure to manage project plan • Changing technology

  43. SOFTWARE PROBLEMS ARE BUSINESS PROBLEMS • Find errors early: the later in the SDLC an error is found - the more expensive it is to fix
