  1. Exploratory Analysis of Survey Data Lisa Cannon Luke Peterson

  2. Presentation Outline • Density Estimation • Nonparametric kernel density estimates • Properties of kernel density estimators • Other methods • Graphical Displays • NHANES data

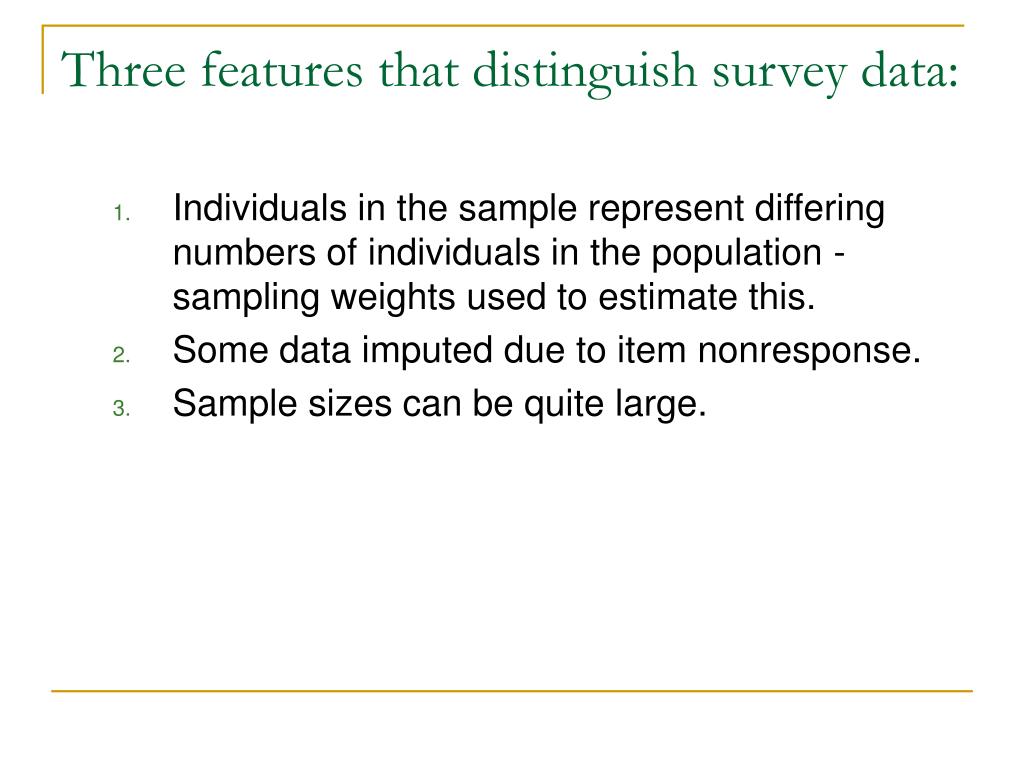

  3. Three features that distinguish survey data: • Individuals in the sample represent differing numbers of individuals in the population - sampling weights used to estimate this. • Some data imputed due to item nonresponse. • Sample sizes can be quite large.

  4. The Need for Nonparametric Methods • We often study point estimation that assumes iid random variables. • Stratification may result in violation of identically distributed random variables • Clustering may result in violation of independence • Methods we discuss use asymptotic properties that allow nonparametric methods for estimating shape of a distribution

  5. Kernel Density Estimates • Bellhouse and Stafford (1999) looked at kernel density estimation for • The whole data set • Binned data (groups the data after it is smoothed) • Smoothing binned data (smooths the data after it is grouped) • Asymptotic integrated MSE for model-based and design-based derived.

  6. Why Binning? • To simplify estimation of large samples • The shape of the data can be distorted by binning • Smoothing helps to recover lost structure

  7. Design-Based and Model-Based • Different ways to handle the asymptotics • Model-based: N finite population units are a sample of identically distributed units from infinite super-population • Design Based: A nested sequence of N finite populations, where the distribution function of these populations converges as • Weights do not affect bias, but the estimation of variance is inflated by the value for the design effect

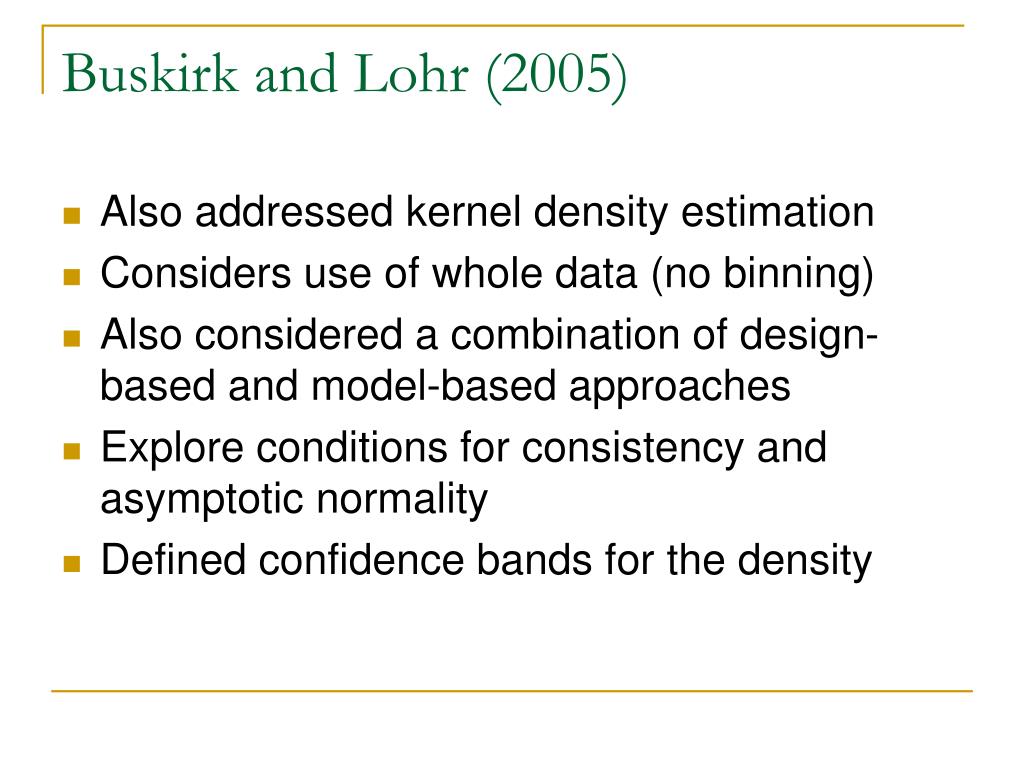

  8. Buskirk and Lohr (2005) • Also addressed kernel density estimation • Considers use of whole data (no binning) • Also considered a combination of design-based and model-based approaches • Explore conditions for consistency and asymptotic normality • Defined confidence bands for the density

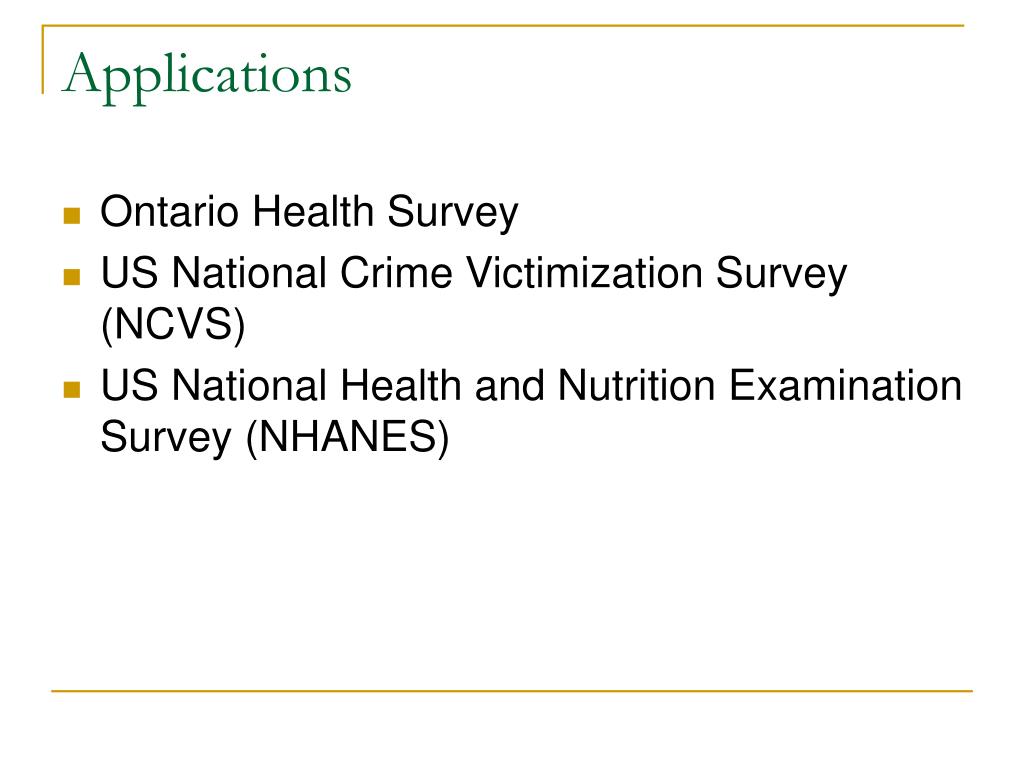

  9. Applications • Ontario Health Survey • US National Crime Victimization Survey (NCVS) • US National Health and Nutrition Examination Survey (NHANES)

  10. Other Methods • Bellhouse, Stafford (2001)– Polynomial regression methods • Bellhouse, Chipman, Stafford (2004)– Additive models for survey data via penalized least squares method • Korn et al. (1997) – Smoothing the empirical cumulative distribution function • Graubard, Korn (2002)– Variance estimation • Many others

  11. Plotting Survey Data • Common difficulties with plotting survey data: • Dealing with sampling weights • Plotting a large number of observations can be difficult to interpret • See Korn and Graubard (1998).

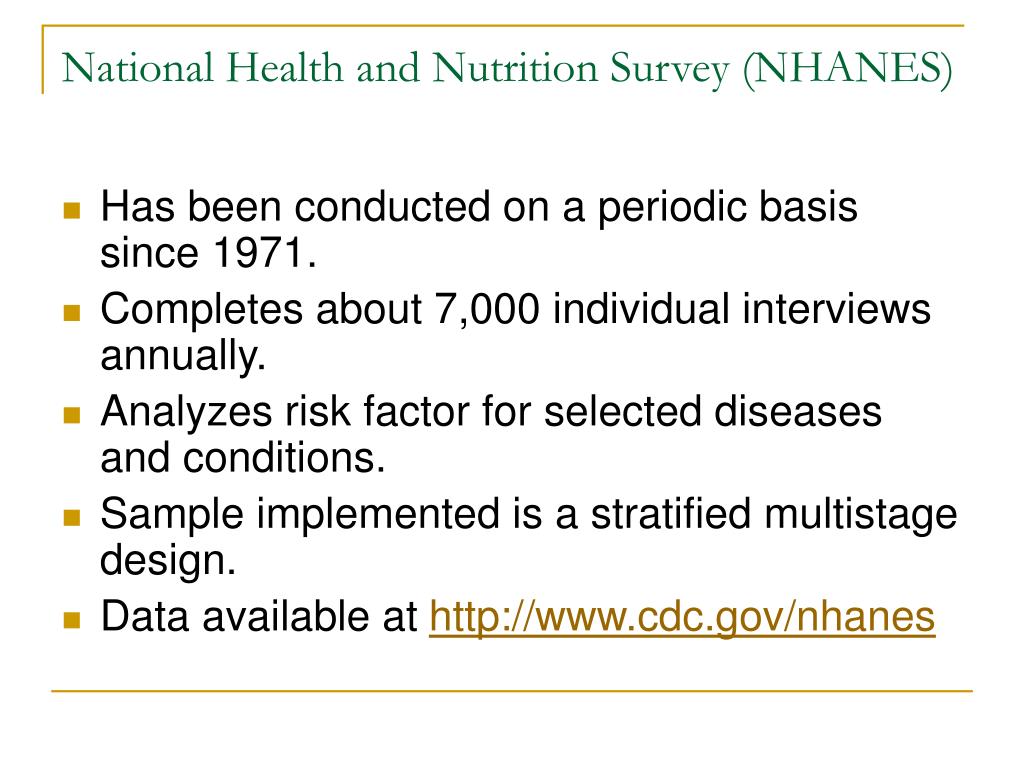

  12. National Health and Nutrition Survey (NHANES) • Has been conducted on a periodic basis since 1971. • Completes about 7,000 individual interviews annually. • Analyzes risk factor for selected diseases and conditions. • Sample implemented is a stratified multistage design. • Data available at http://www.cdc.gov/nhanes

  13. Glycohemoglobin Level (Ghb) • A blood test that measures the amount of glucose bound to hemoglobin. • Normally, about 4% to 6%. • People with diabetes have more glycohemoglobin than normal. • The test indicates how well diabetes has been controlled in the 2 to 3 months before the test. • Source: http://my.webmd.com

  14. Histograms • Histograms provide a nice summary of the distribution of large data sets. • Suppose that we would like to assess the distribution of glycohemoglobin levels. • Sampling weights must be considered before plotting a histogram.

  15. SAS Code: Account for Weights proc univariate data=explore.glyco noprint; var glyco; freq weight; histogram / nrows=2 cfill=red midpoints=3 to 15 by 0.5 cgrid=grayDD; run; • The variable weight indicates the number of population units the sample unit represents.

  16. Histograms – Effect of Sampling Weights

  17. Boxplots • Boxplots indicate location of important summary statistics along with distribution. • See Figures 7.8 and 7.10 in Lohr. • The boxplot procedure in SAS will not accept any arguments to account for weights. • The survey library in R will.

  18. Graphs for Regression – Bubble Plots • Scatterplots are inadequate for survey data as they fail to account for sampling weights. • Bubble plots incorporate the weights by making the area of each circle proportional to the number of population observations at those coordinates (See Lohr, Chapter 11). • The ordinary least squares regression line is then replaced by a weighted least squares line. • See Figure 11.5 in Lohr

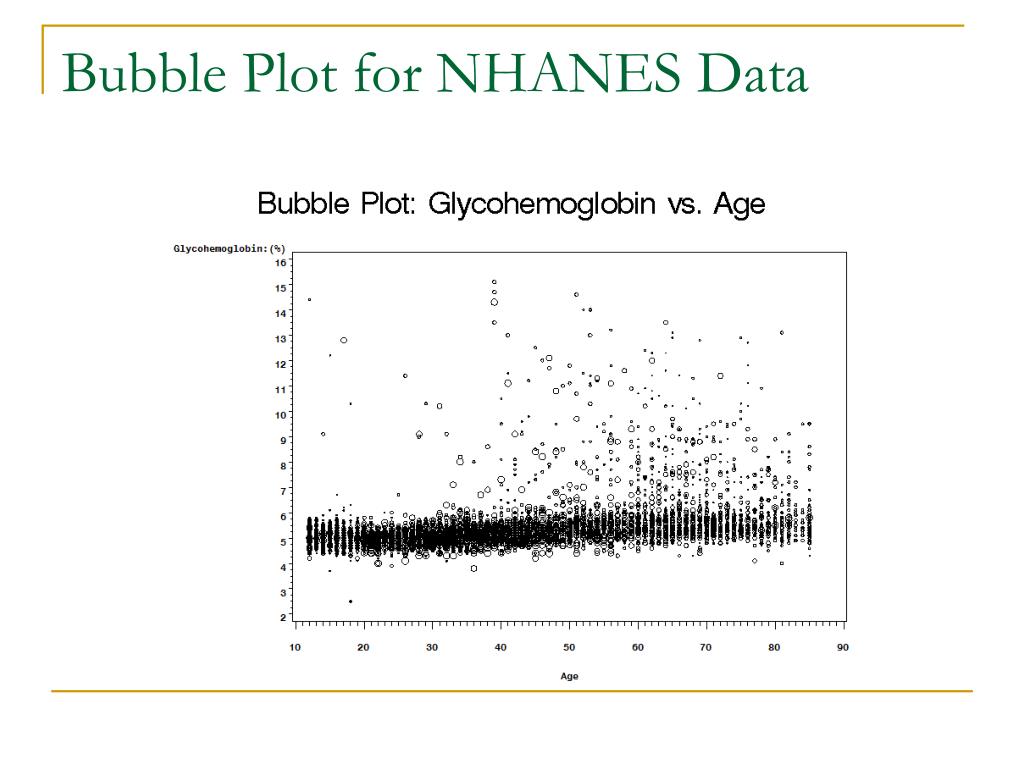

  19. Bubble Plot for NHANES Data

  20. Dealing with Large Samples • Bubble plots are hard to interpret for large data sets due to overlapping bubbles. • Potential solutions: • Create a “sampled scatterplot” in which we sample from the original data where probability of selection is proportional to sample weights. • “Jitter” the data by adding some random noise to the values before plotting. • These and others discussed in Korn and Graubard (1998).

  21. SAS Code: Plotting a representative subsample proc surveyselect data=explore.glyco out=plotdata method=pps sampsize=300 seed=3452; size weight; run; symbol1 v=circle i=r c=black ci=green w=2; proc gplot data=plotdata; plot glyco*age; run;

  22. Subsample: Glycohemoglobin vs. Age

  23. Plotting Recommendations • For univariate displays, adjust for the sampling weights. • For scatterplots, sampling weights can be accounted for by using bubble plots. • If the sample is large, a subsampling procedure that incorporates the weights might be more appropriate.

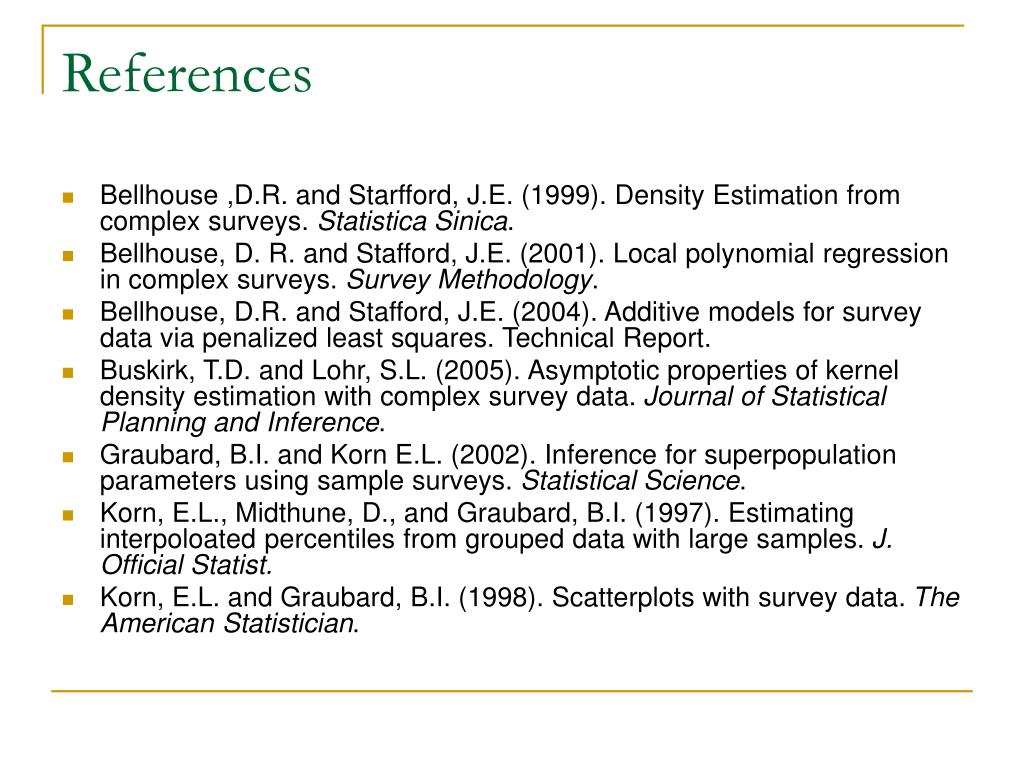

  24. References • Bellhouse ,D.R. and Starfford, J.E. (1999). Density Estimation from complex surveys. Statistica Sinica. • Bellhouse, D. R. and Stafford, J.E. (2001). Local polynomial regression in complex surveys. Survey Methodology. • Bellhouse, D.R. and Stafford, J.E. (2004). Additive models for survey data via penalized least squares. Technical Report. • Buskirk, T.D. and Lohr, S.L. (2005). Asymptotic properties of kernel density estimation with complex survey data. Journal of Statistical Planning and Inference. • Graubard, B.I. and Korn E.L. (2002). Inference for superpopulation parameters using sample surveys. Statistical Science. • Korn, E.L., Midthune, D., and Graubard, B.I. (1997). Estimating interpoloated percentiles from grouped data with large samples. J. Official Statist. • Korn, E.L. and Graubard, B.I. (1998). Scatterplots with survey data. The American Statistician.
