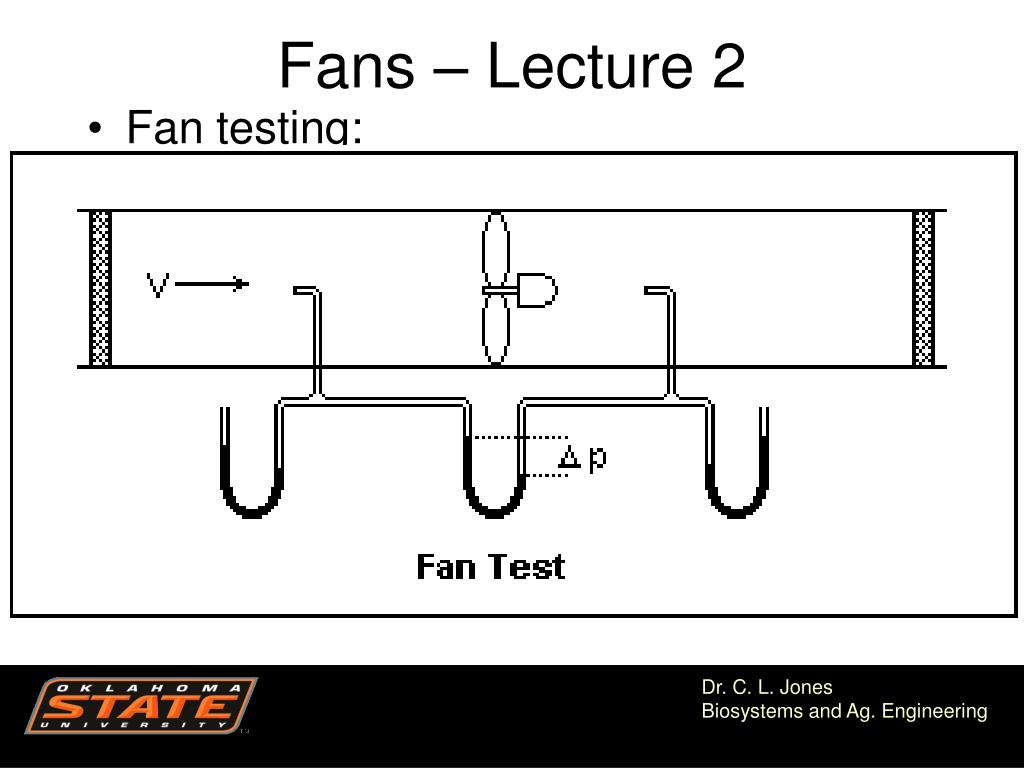

  1. Fans – Lecture 2 • Fan testing: Dr. C. L. Jones Biosystems and Ag. Engineering

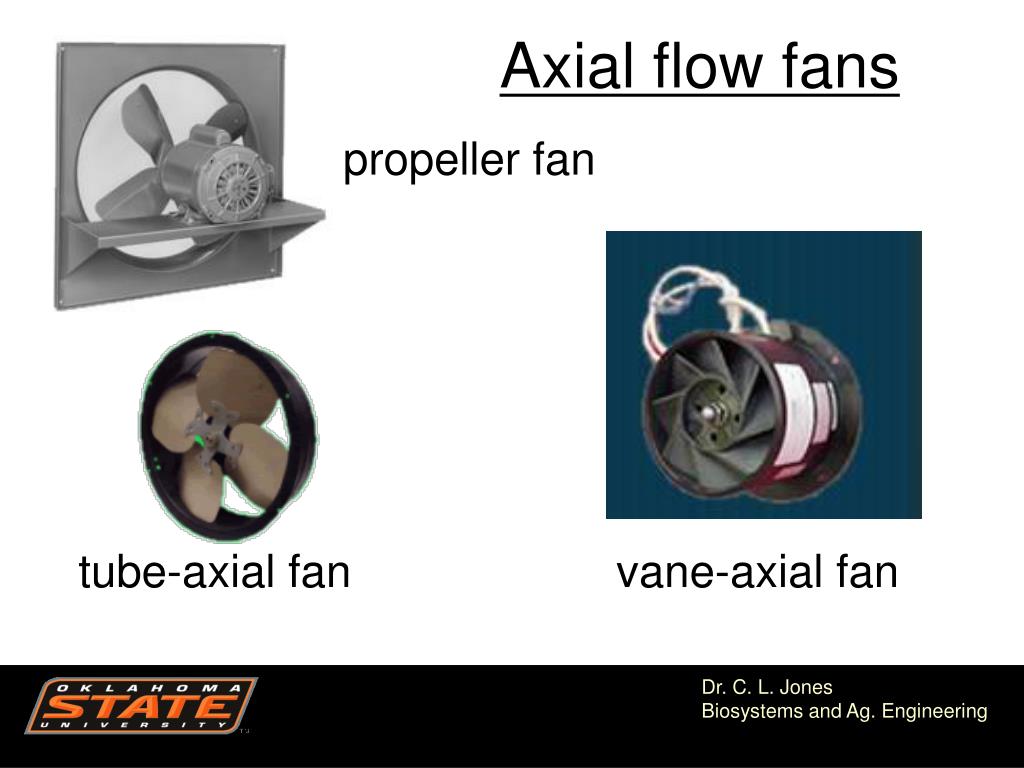

  2. Axial flow fans propeller fan tube-axial fan vane-axial fan Dr. C. L. Jones Biosystems and Ag. Engineering

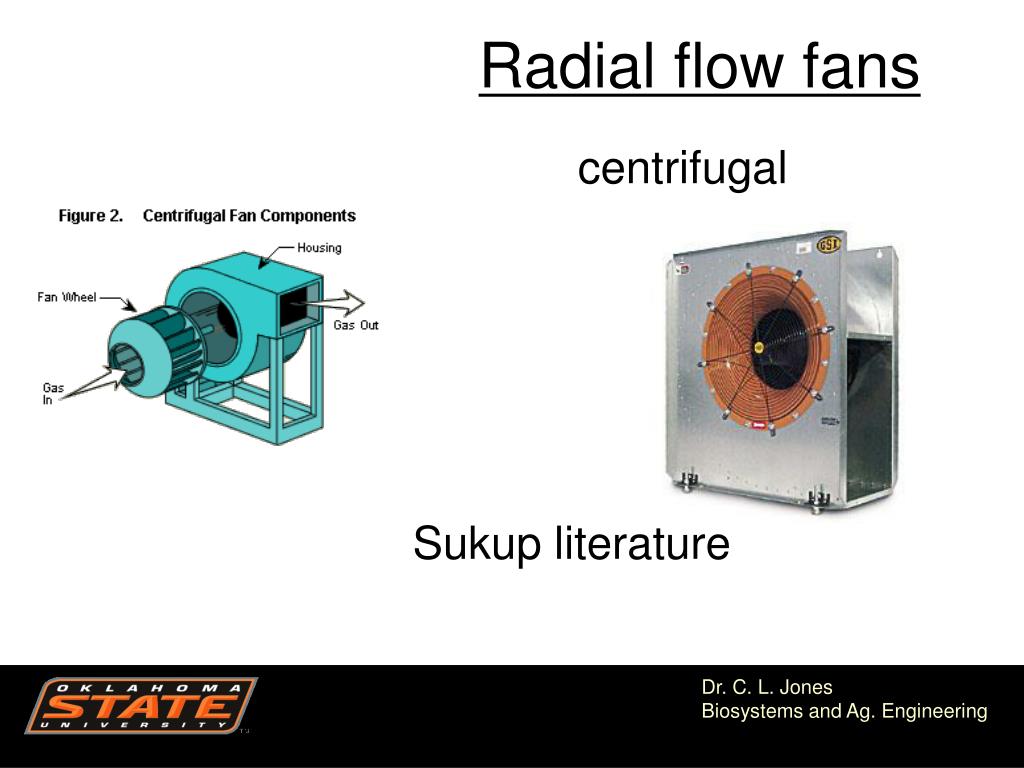

  3. Radial flow fans centrifugal Sukup literature Dr. C. L. Jones Biosystems and Ag. Engineering

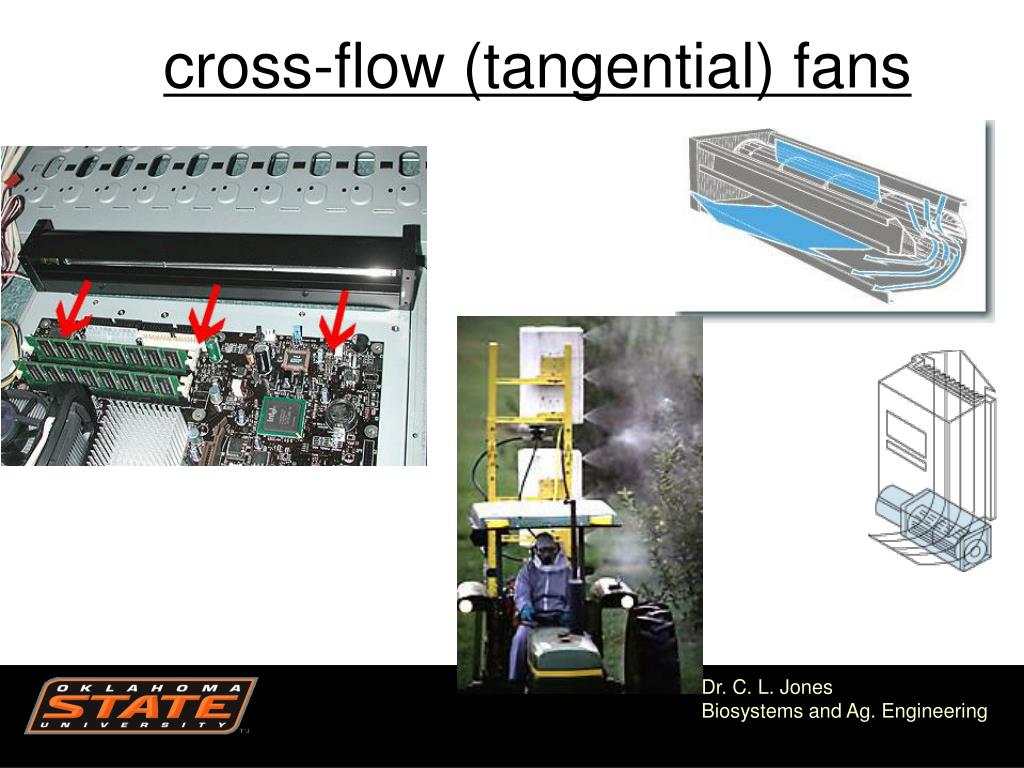

  4. cross-flow (tangential) fans Dr. C. L. Jones Biosystems and Ag. Engineering

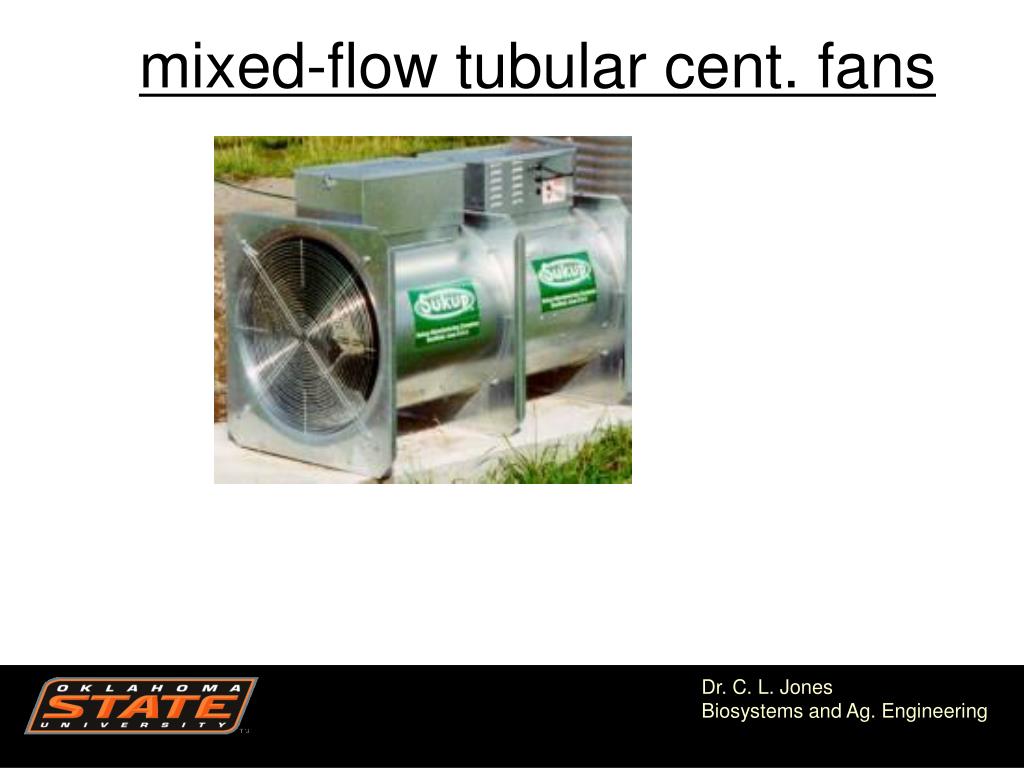

  5. mixed-flow tubular cent. fans Dr. C. L. Jones Biosystems and Ag. Engineering

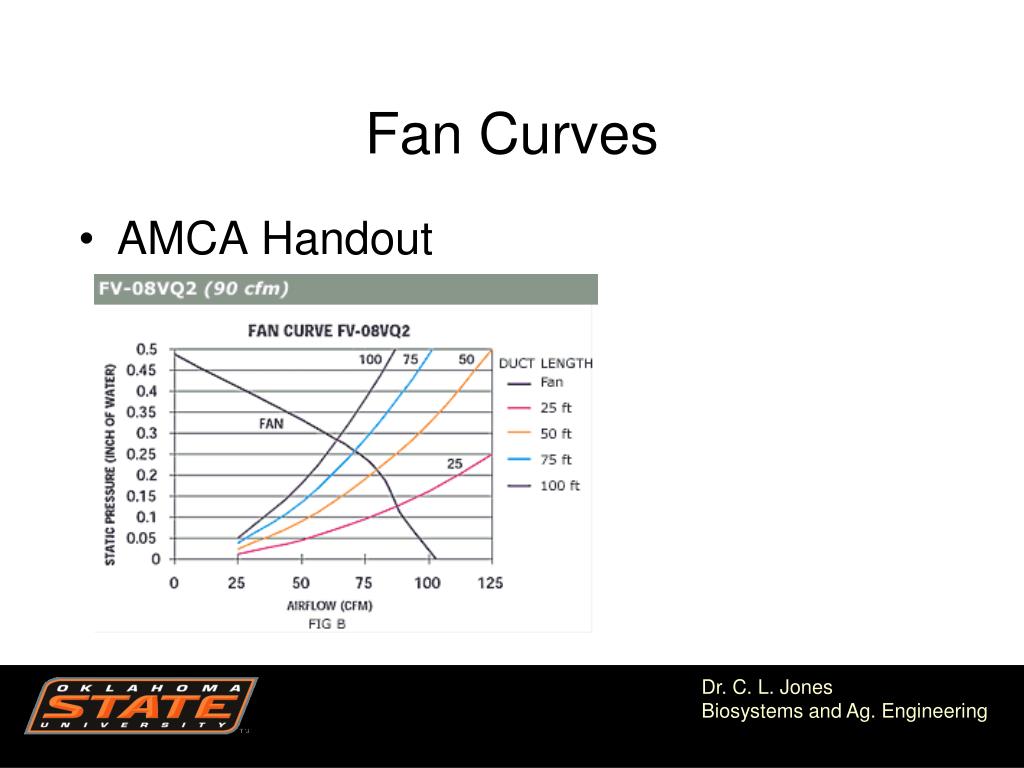

  6. Fan Curves • AMCA Handout Dr. C. L. Jones Biosystems and Ag. Engineering

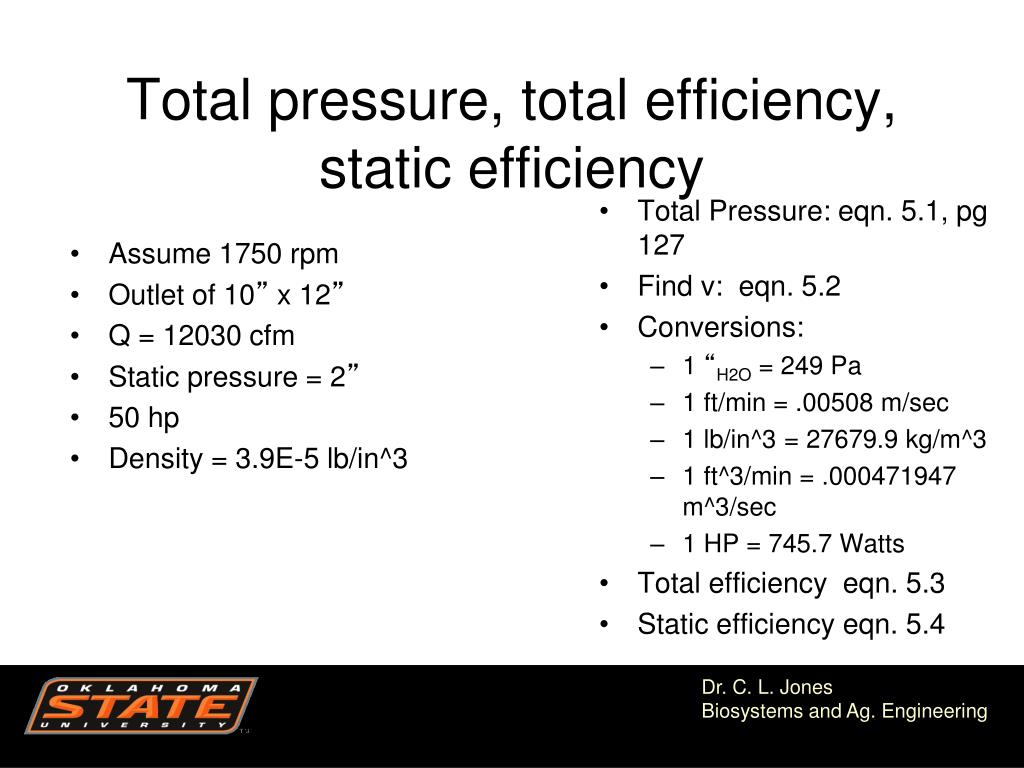

  7. Total pressure, total efficiency, static efficiency • Total Pressure: eqn. 5.1, pg 127 • Find v: eqn. 5.2 • Conversions: • 1 “H2O = 249 Pa • 1 ft/min = .00508 m/sec • 1 lb/in^3 = 27679.9 kg/m^3 • 1 ft^3/min = .000471947 m^3/sec • 1 HP = 745.7 Watts • Total efficiency eqn. 5.3 • Static efficiency eqn. 5.4 • Assume 1750 rpm • Outlet of 10” x 12” • Q = 12030 cfm • Static pressure = 2” • 50 hp • Density = 3.9E-5 lb/in^3 Dr. C. L. Jones Biosystems and Ag. Engineering
