Hand and Wrist Arthritis

Hand and Wrist Arthritis. Hand to Shoulder Care Mapleton Hill Orthopaedics, P.C. www.danielmastermd-handtoshoulder.com. Daniel Master, M.D. Mapleton Hill Orthopaedics, P.C. 975 North Street, Suite 201 Boulder, CO 80304 Ph: 303-440-7941. Overview. Thumb arthritis Finger arthritis

orien
Télécharger la présentation

Hand and Wrist Arthritis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

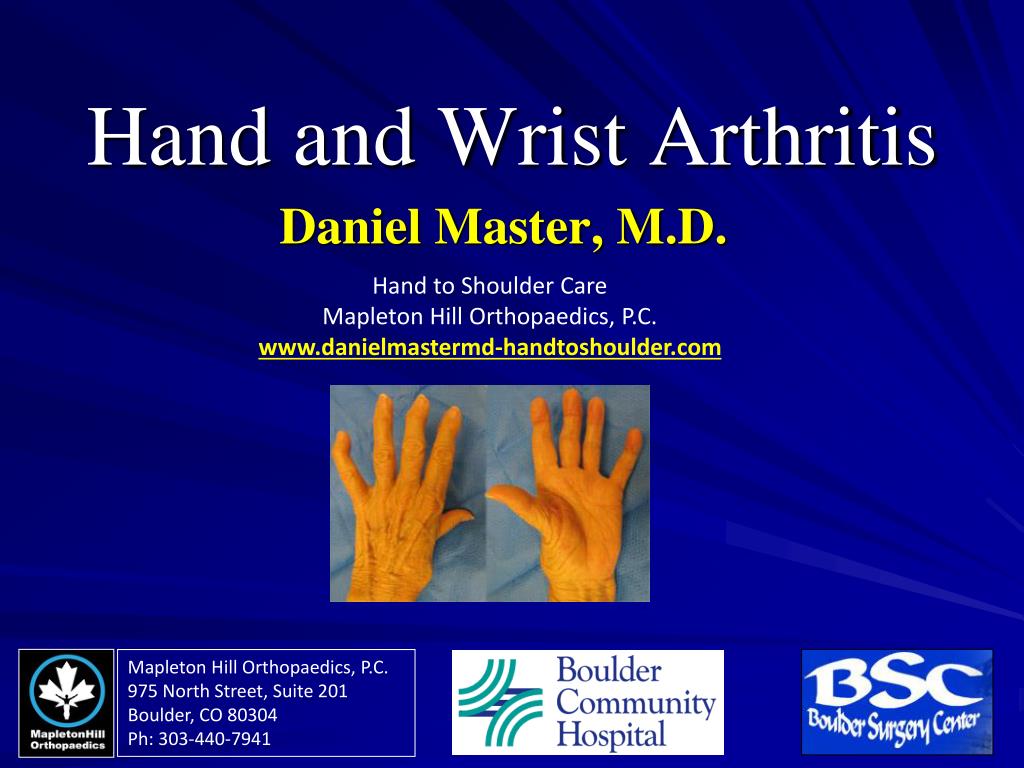

  1. Hand and Wrist Arthritis Hand to Shoulder Care Mapleton Hill Orthopaedics, P.C. www.danielmastermd-handtoshoulder.com Daniel Master, M.D. Mapleton Hill Orthopaedics, P.C. 975 North Street, Suite 201 Boulder, CO 80304 Ph: 303-440-7941

  2. Overview • Thumb arthritis • Finger arthritis • Wrist arthritis • Ulnar impaction • SLAC wrist • SNAC wrist

  3. Thumb Arthritis Thumb arthritis can affect the: • IP joint • MCP joint • CMC joint

  4. Thumb CMC Arthritis Causes • Repetitive key pinch • Post-traumatic

  5. Thumb CMC Arthritis Signs and symptoms • Pain at base of thumb • Decreased ROM • Adducted thumb • “Shoulder” sign • Compensatory MCP hyperextension

  6. Thumb CMC Treatment Conservative treatments • NSAIDs • Thumb splinting • Hand therapy • Injections

  7. 114 patients • 3-4 weeks of continuous splinting • 76% of patients with early disease had improvement • 54% of patients with more advanced disease had improvement

  8. The effectiveness of a manual therapy and exercise protocol in patients with thumb carpometacarpal osteoarthritis: a randomized controlled trial.Villafane JH, Cleland JA, Fernandez-de-Las-Penas C.J Orthop Sports Phys Ther. 2013 Apr;43(4):204-13. • 60 patients with thumb arthritis • Randomly assigned to four weeks of: • Therapy program (joint mobilization, neural mobilization, exercise) • Sham intervention • Follow-up at 1,2, and 3 months • Therapy group had less pain overall but no change in pressure pain threshold or pinch/grip strength

  9. 60 patients with thumb arthritis • Randomly divided into three groups: • Placebo • Steroid • Hylan • Follow-up at 2,4,12, and 26 weeks • Nostatistically significant differencesbetween groups • Trend towards improvement with Hylan

  10. Thumb CMC Surgery • CMC interposition arthroplasty • Conventional techniques (LRTI, HTA) • Modern techniques (Tightrope suspensionplasty)

  11. CMC Interposition Arthroplasty Step 1 (common to all) • Trapeziectomy Step 2 (varies) • Suspension and interposition through a wide variety of techniques

  12. CMC Arthroplasty Conventional Tightrope Suspensionplasty Implanted suture device for suspension 10 days in a cast • Temporary wire for suspension And/or • Reliance on tendon healing • 6 weeks in a cast

  13. 21 patients followed for over 2 years • Comparable results to other techniques • BUT able to come out of cast after 10 days • No major complications

  14. Finger Arthritis Finger arthritis can affect the: • DIP joint • PIP joint • MCP joint

  15. Finger Arthritis Conservative treatments • Splinting • NSAIDs • Injections

  16. PIP Arthritis Surgical treatments • PIP joint arthroplasty • Silastic • Pyrocarbon • PIP joint fusion

  17. PIP Joint Arthroplasty Silastic • Constrained • single component • Can have ligamentous insufficiency • Inflammatory arthritis • Gold standard for PIP joint Pyrocarbon • Unconstrained • two separate components • Must have competent ligaments

  18. PIP Joint Fusion • Single cannulated compression screw OR • Plate-screw construct

  19. MCP Arthritis MCP joint arthroplasty • Silastic – constrained • Pyrocarbon - unconstrained

  20. MCP Joint Arthroplasty Silastic • Constrained • Can have ligamentous insufficiency • Inflammatory arthritis • Excellent long-term track record Pyrocarbon • Unconstrained • Must have competent ligaments • May allow for slightly better ROM in the MCP

  21. Wrist Arthritis Potential causes • Age-related degenerative changes • Anatomic variations • Unrecognized injury to • Ligament • Bone

  22. Anatomic Variations • Ulnar positive variance • i.e. the ulna bone is too long • Increased pressure along the ulnar wrist • Ulnar impaction syndrome • Ulnar-sided wrist arthritis • Degenerative TFCC injury

  23. Ulnar Impaction Syndrome Conservative treatments • Casting for 4 weeks • NSAIDs • Corticosteroid injections • Activity modification

  24. The rate of triangular fibrocartilage injuries requiring surgical intervention.Park MJ, Jagadish A, Yao J.Orthopedics. 2010 Nov 2;33(11):806. • 84 patients with ulnar-sided wrist pain • All patients treated with short-arm casting for 4 weeks • 57%of patients did not require surgery • 43% required surgery

  25. Ulnar Impaction Syndrome Surgical treatments • Arthroscopic TFCC debridement or repair • Lunate chondroplasty • Feldon wafer procedure • Ulnar shortening osteotomy (USO) • Salvage operations

  26. TFCC Debridement or Repair • 2mm incisions • Small joint camera for visualization • Shaver for debridement • Suture device for peripheral repairs

  27. Lunate Chondroplasty • Puncture subchondral plate of lunate • Promote fibrocartilage formation • Biologic joint resurfacing

  28. Feldon Wafer Procedure • Arthroscopic or open excision of distal ulnar head • Decreased pressure on ulnar wrist

  29. Ulnar Shortening Osteotomy • Surgical osteotomy of ulna • Remove a wafer of bone • Compress with plate and screws • Excellent long-term results

  30. Salvage Operations • Distal ulna resection (Darrach resection) • Hemi-resection arthroplasty (Bower’s arthroplasty) • Distal radio-ulnar joint fusion (Sauve-Kapandji procedure)

  31. Wrist Injury Ligament injury • Scapholunate interosseous ligament (SLIL) • Holds scaphoid and lunate together Bone injury • Scaphoid fracture • Crucial for normal wrist biomechanics

  32. Wrist Injury • Ligament or bone injury • If recognized  repair early • If unrecognized  SLAC or SNAC arthritis Stage II Stage IV Stage I Stage III

  33. SLAC and SNAC Wrist Conservative treatments • Splinting • NSAIDs • Corticosteroid injection

  34. SLAC and SNAC Wrist Surgical treatments • PIN neurectomy • Proximal row carpectomy (PRC) • Scaphoid excision and four-corner fusion

  35. PIN Neurectomy • Resection of a nerve on the top of the wrist which only innervates the joint capsule • Therefore, no sensory deficit from resection • Can provide pain relief without a major operation

  36. PIN Neurectomy • Dorsal approach • Resect 1cm segment of nerve

  37. Proximal Row Carpectomy • Excise the proximal row • Capitate then articulates with radius • Excellent pain relief without the need for bony healing

  38. Four Corner Fusion • Excise the scaphoid only • Fuse the following four bones: • Lunate • Triquetrum • Capitate • Hamate • All load now transmitted across the radio-lunate joint

  39. Four-Corner Fusion • Excise scaphoid • Fuse capito-lunate and triquetro-hamate joints

  40. Total Wrist Arthroplasty Indications • End-stage rheumatoid arthritis • Low-demand patient (lifetime restriction on weight bearing)

  41. Total Wrist Arthoplasty • Fuse and resurface the proximal carpal row • Resurface distal radius

  42. Total Wrist Fusion Indications • End-stage arthritis • High demand patients • Once healed, no limitations on weight-bearing

  43. Total Wrist Fusion • Dorsal approach • Fusion of radio-carpal and mid-carpal joints • Dorsal spanning plate application
