  1. Application of Geospatial technology in MGNREGS

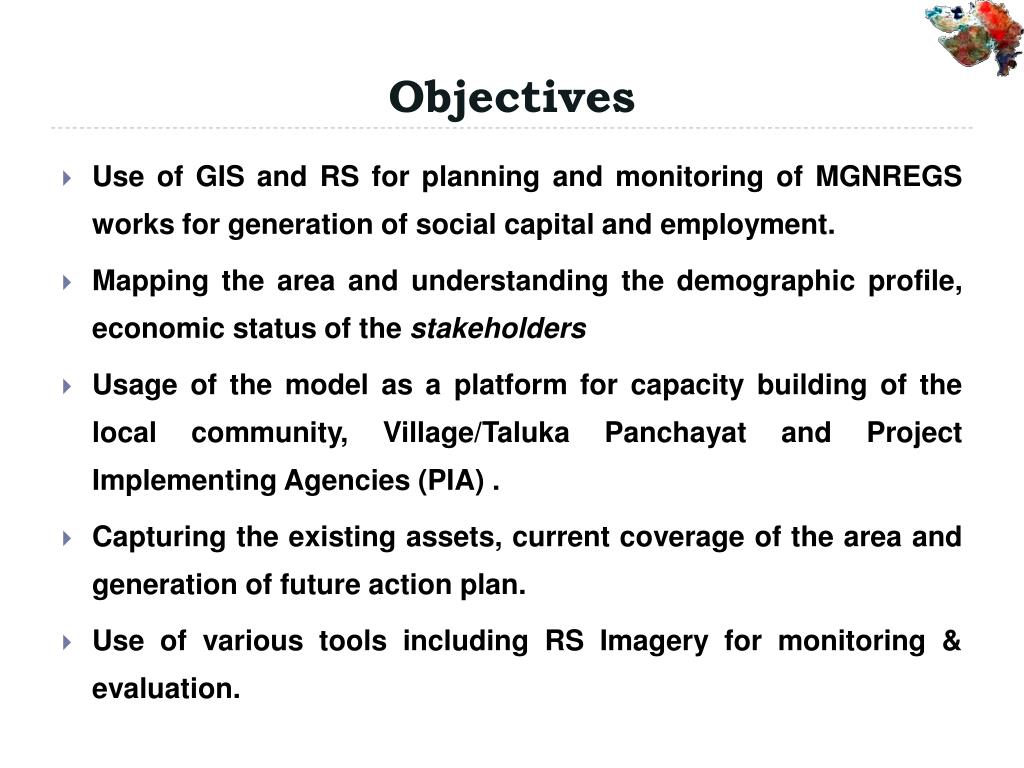

  2. Objectives • Use of GIS and RS for planning and monitoring of MGNREGS works for generation of social capital and employment. • Mapping the area and understanding the demographic profile, economic status of the stakeholders • Usage of the model as a platform for capacity building of the local community, Village/TalukaPanchayat and Project Implementing Agencies (PIA) . • Capturing the existing assets, current coverage of the area and generation of future action plan. • Use of various tools including RS Imagery for monitoring & evaluation.

  3. Scope Mapping of the Project Area Development of Action Plan Monitoring and Evaluation Incorporation of asset inventory & socio-economic details

  4. Convergence of Geospatial Technologies GIS RS ICT GPS e-Gram Total Turnkey Solutions Courtesy: NRSA/ISRO

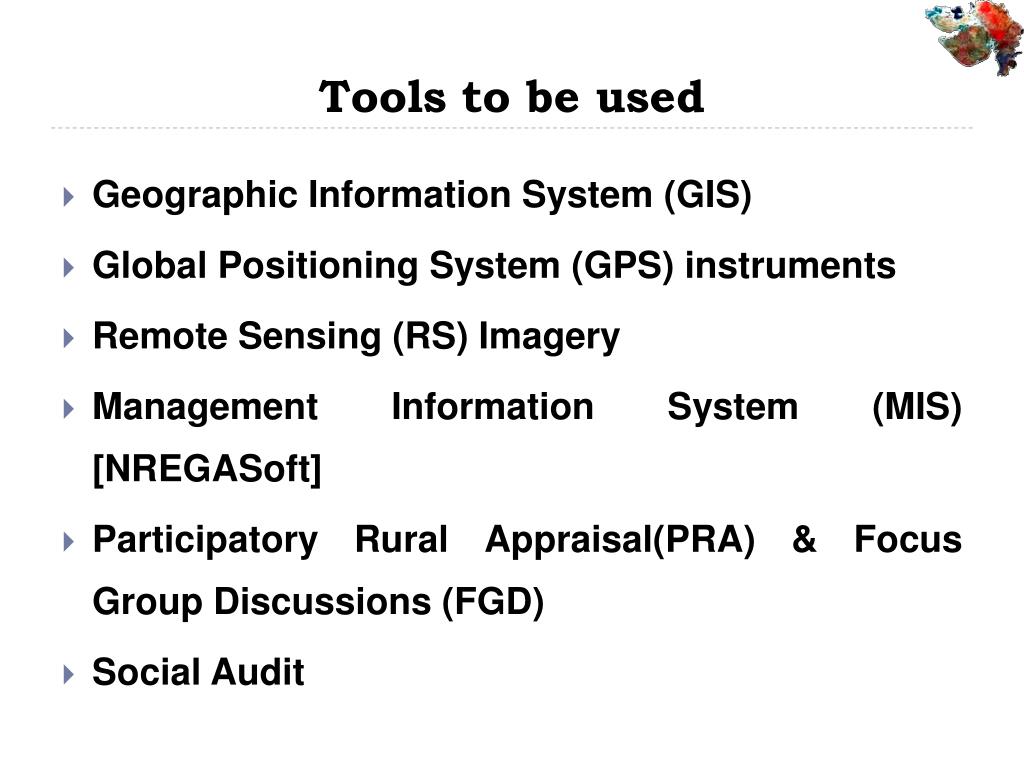

  5. Tools to be used • Geographic Information System (GIS) • Global Positioning System (GPS) instruments • Remote Sensing (RS) Imagery • Management Information System (MIS) [NREGASoft] • Participatory Rural Appraisal(PRA) & Focus Group Discussions (FGD) • Social Audit

  6. Availability of GIS Spatial Layers

  7. Availability of GIS Spatial Layers • Datasets Integrated in GIS • Different Types of Maps can be generated

  8. Soil Slope BPL details Various GIS Spatial Layers Asset details Cadastral Map Drainage SC/ST population

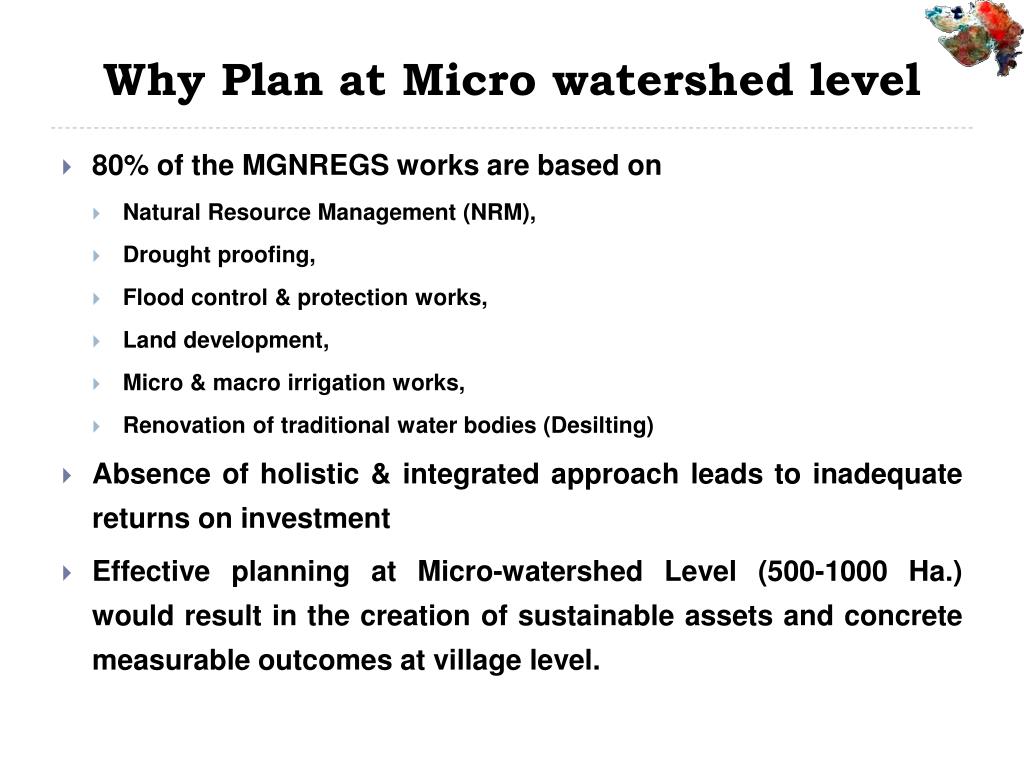

  9. Why Plan at Micro watershed level • 80% of the MGNREGS works are based on • Natural Resource Management (NRM), • Drought proofing, • Flood control & protection works, • Land development, • Micro & macro irrigation works, • Renovation of traditional water bodies (Desilting) • Absence of holistic & integrated approach leads to inadequate returns on investment • Effective planning at Micro-watershed Level (500-1000 Ha.) would result in the creation of sustainable assets and concrete measurable outcomes at village level.

  10. Selected Taluka Selected District Vadodara District Vadodara Taluka Fajalpur Village, Vadodara Taluka, Vadodara District Selected Village Survey nos. transferred on the plots Plot boundaries on Satellite image GIS for Planning From Macro to Micro

  11. GIS Framework Demographic Data MGNREGA-MIS GIS Spatial Layers Socio-Economic profile of Stakeholder Physical Infrastructure & Assets PRA exercise Monitoring and Impact Assessment using Web based GIS Annual Action Plan

  12. GIS based planning & monitoring for MGNREGS A CASE STUDY

  13. Study Area Patan Dist. Sidhpur Taluka Nagavasan Village (5H3B7d1b ) Sidhpur Taluka Patan Dist. Gujarat State 230 57’26.17” N and 720 26’1.76” E to 230 55’1.45” N and 720 78’37.08” E.

  14. About Study area • Low rainfall area (700 mm) • Prone to excessive soil erosion due to ravines and sparse vegetative cover leads to inadequate recharge of ground water and siltation of water harvesting structures. • Low agriculture & milk productivity • Biotic pressure on Gauchar and community land because of non-production of fodder on private land

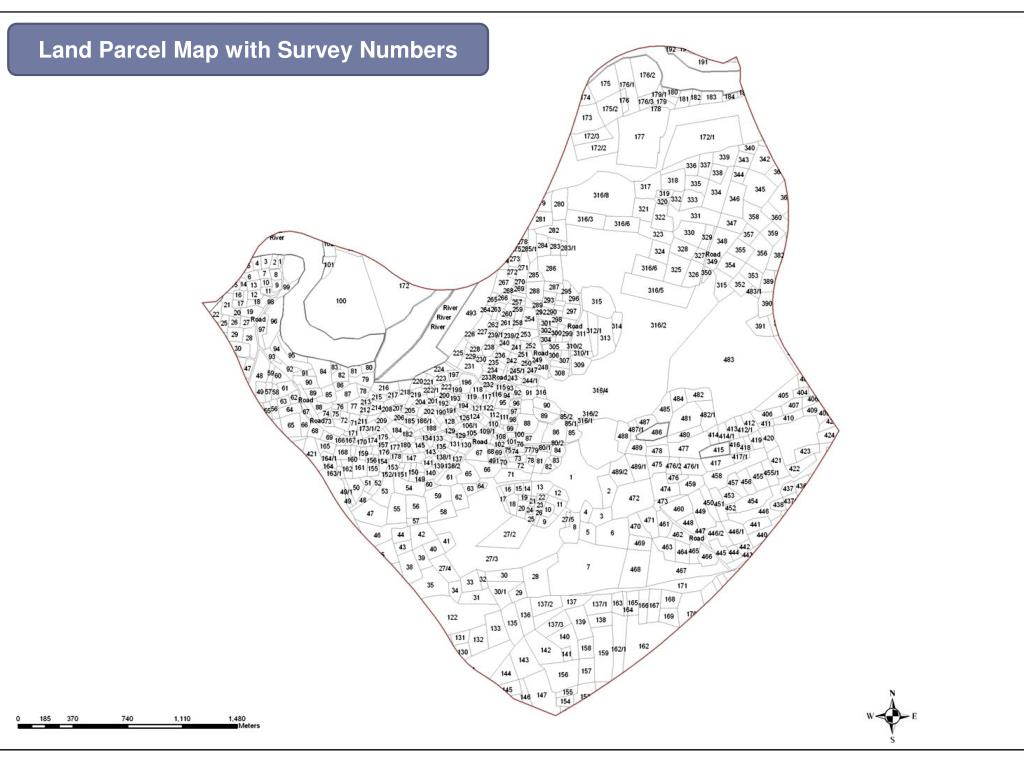

  15. Land Parcel Map with Survey Numbers

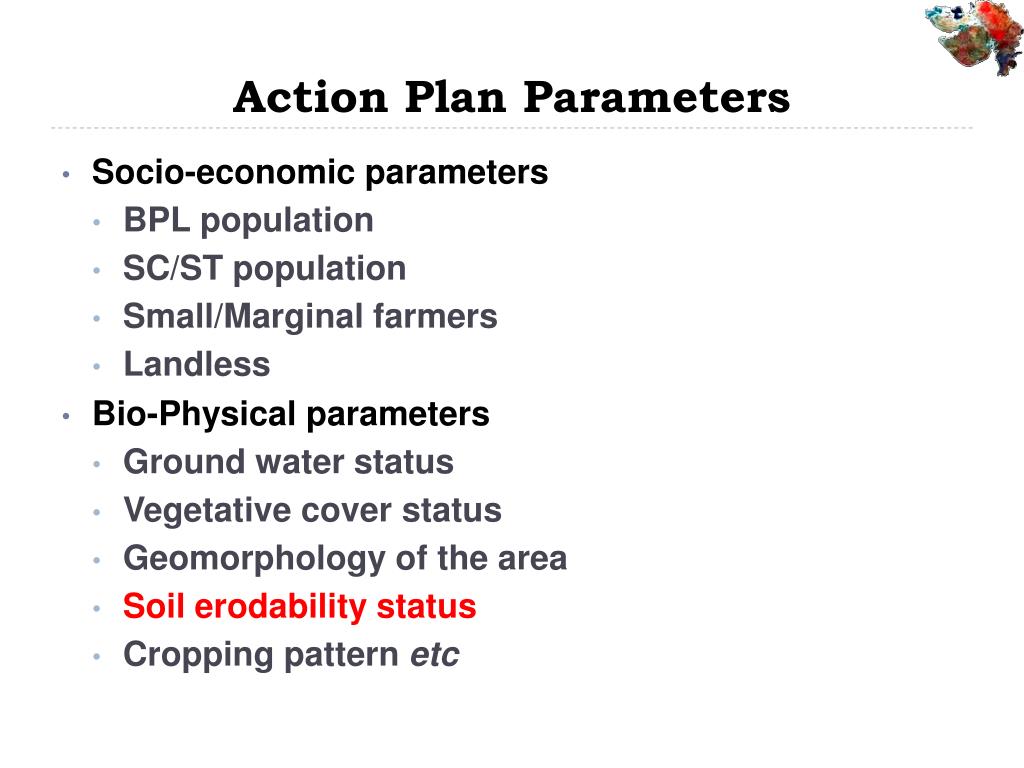

  16. Action Plan Parameters • Socio-economic parameters • BPL population • SC/ST population • Small/Marginal farmers • Landless • Bio-Physical parameters • Ground water status • Vegetative cover status • Geomorphology of the area • Soil erodability status • Cropping pattern etc

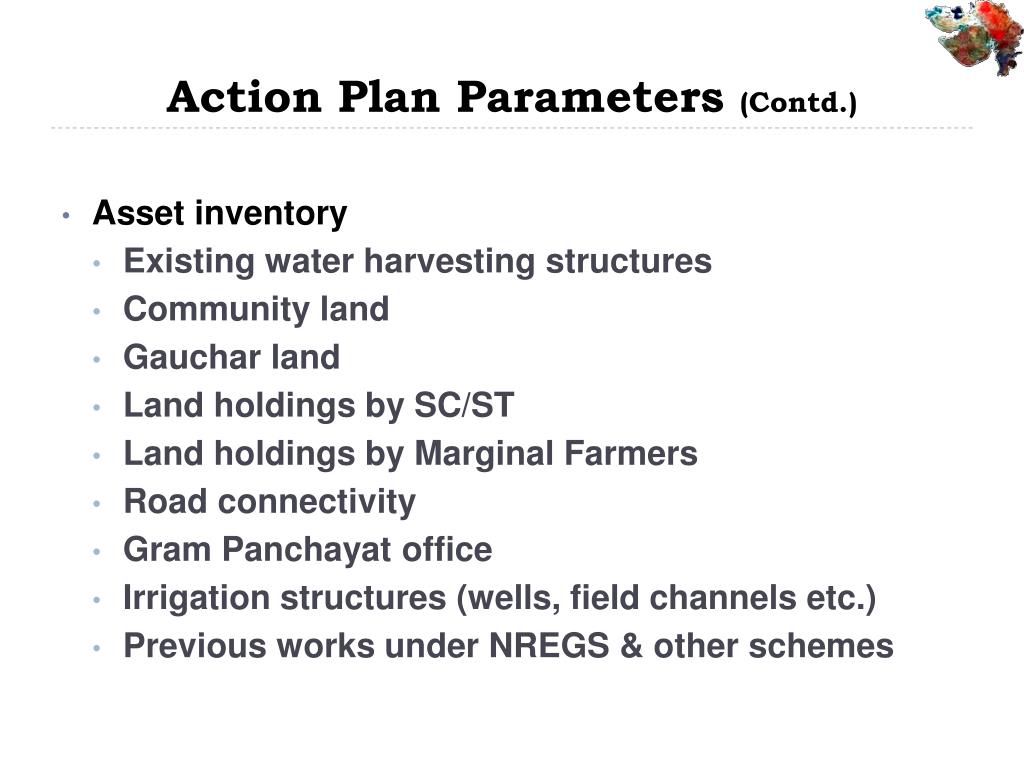

  17. Action Plan Parameters (Contd.) • Asset inventory • Existing water harvesting structures • Community land • Gauchar land • Land holdings by SC/ST • Land holdings by Marginal Farmers • Road connectivity • Gram Panchayat office • Irrigation structures (wells, field channels etc.) • Previous works under NREGS & other schemes

  18. Measuring Soil Erodibility • A sustainable model which decreases soil erosion, silting and degradation of present water harvesting structures • Use of Soil erosion equation for identifying various parameter • Universal Soil Loss Equation (USLE) Soil Loss = RKLSCP Soil erosion was estimated using Universal soil Loss Equation (USLE) (Wischemier, W.H and Smith, D.D, 1978).

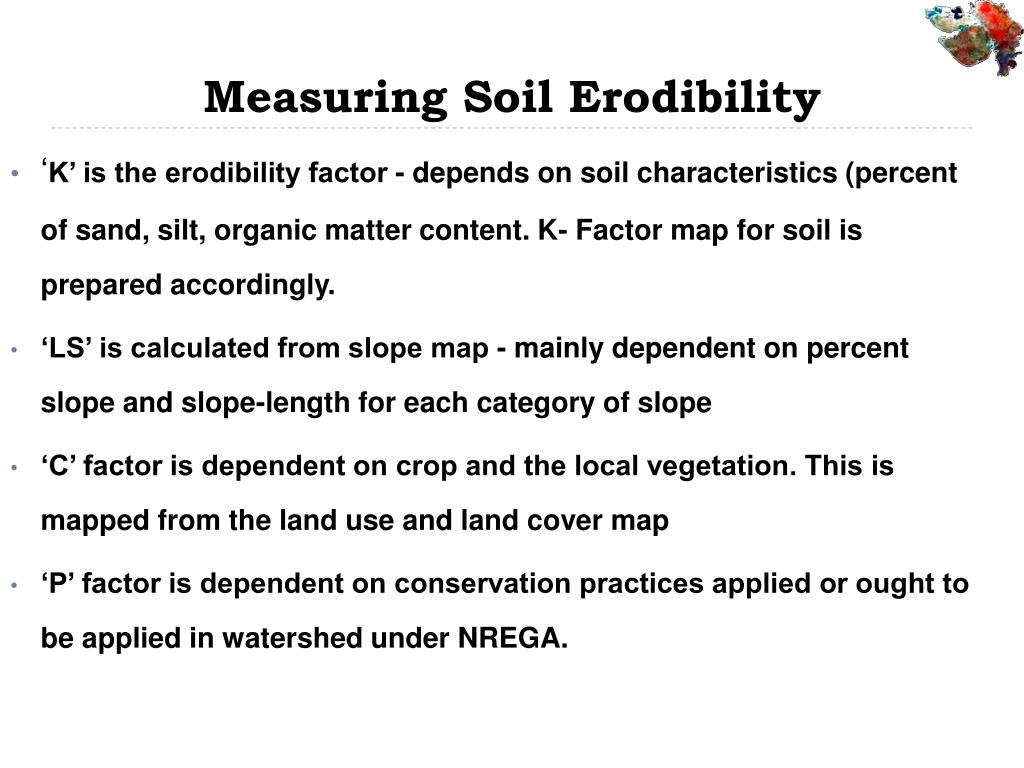

  19. Measuring Soil Erodibility • ‘K’ is the erodibility factor - depends on soil characteristics (percent of sand, silt, organic matter content. K- Factor map for soil is prepared accordingly. • ‘LS’ is calculated from slope map - mainly dependent on percent slope and slope-length for each category of slope • ‘C’ factor is dependent on crop and the local vegetation. This is mapped from the land use and land cover map • ‘P’ factor is dependent on conservation practices applied or ought to be applied in watershed under NREGA.

  20. Baseline Survey Details Parameters Mapping Village Profile Asset Inventory

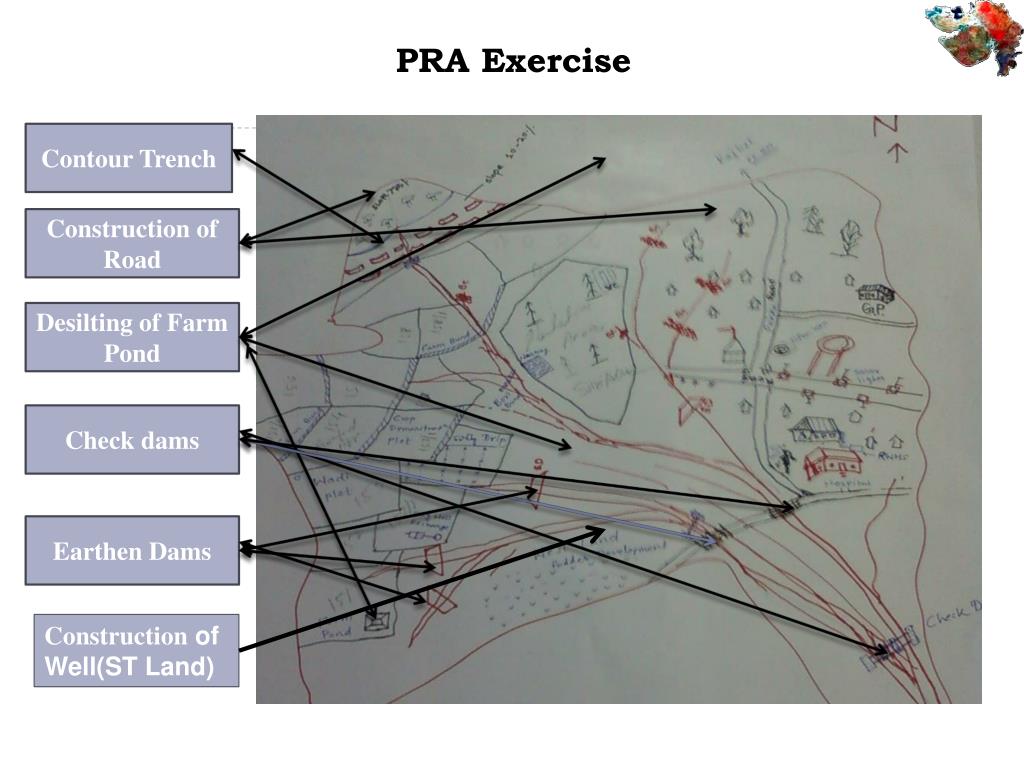

  21. PRA Exercise Contour Trench Construction of Road Desilting of Farm Pond Check dams Earthen Dams Construction of Well(ST Land)

  22. Man-Day Calculation* * as per the NREGA Schedule of Rates (SOR) – Rs. 44.93 per m3

  23. MGNREGS ANNUAL ACTION PLAN STAGGERED CONTOUR TRENCH Man-day required = 4918 Expense (Rs.)=491780.4 ST Land Construction of Well Community Land (CPR) Pits excavation for plantation Man-day Required = 357 Expense(Rs.) = 35693.74 Gamtal Repairing and formation of new Bori-bund Man-day Required =280 Expense(Rs.) = 28000 Desilting the check dams Man-day Required = 400 Expense(Rs.) = 40000 Construction of Seva Kendra

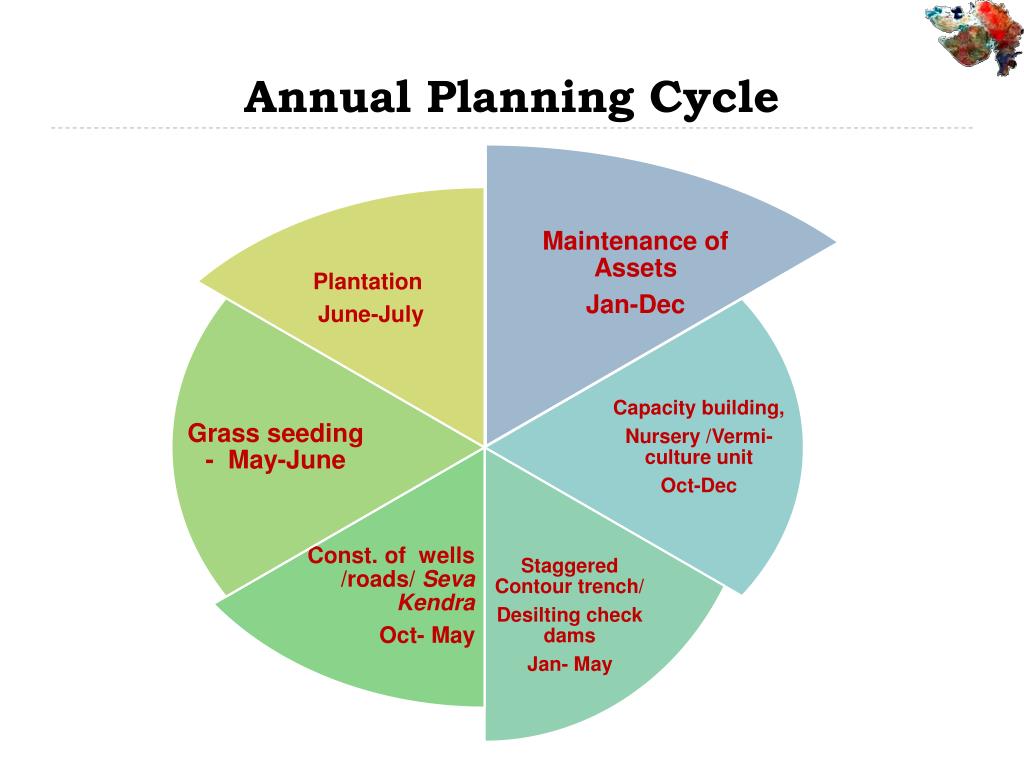

  24. Annual Planning Cycle

  25. Monitoring & Impact Assessment System • Creation of Web based GIS monitoring system at village level using e-Gram facilities with following database. • Type of assets • Use of GPS coordinates for asset created • Land parcel survey numbers. • The volume of work • Cost incurred. • Availability of Labour.

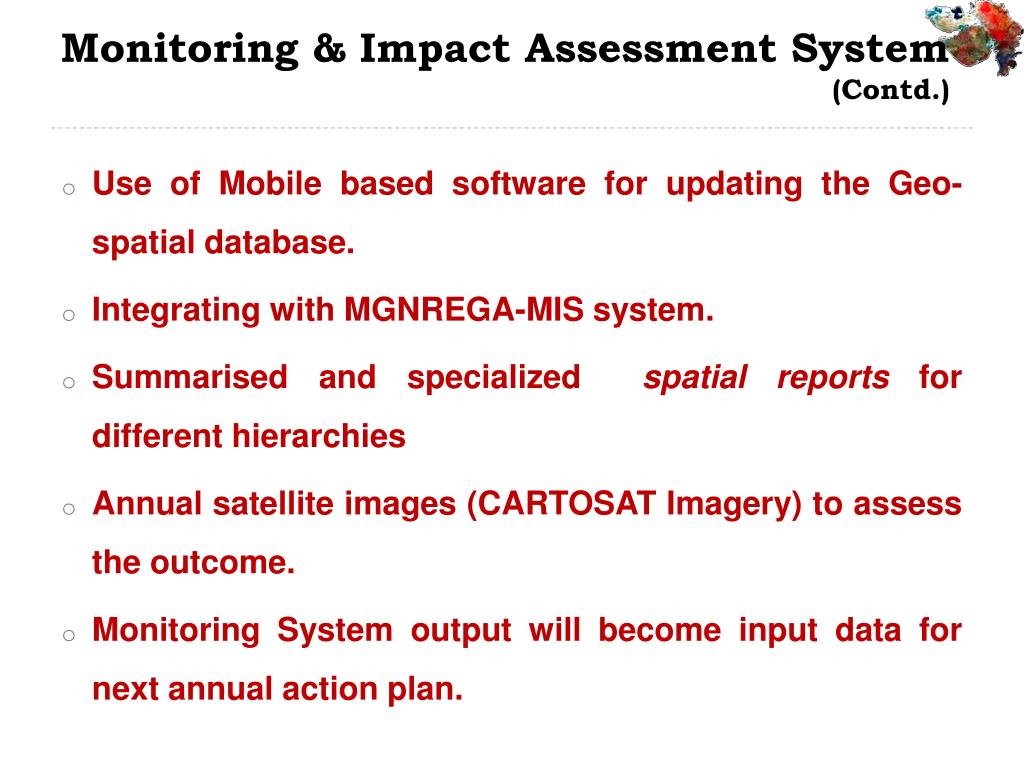

  26. Monitoring & Impact Assessment System (Contd.) • Use of Mobile based software for updating the Geo-spatial database. • Integrating with MGNREGA-MIS system. • Summarised and specialized spatial reports for different hierarchies • Annual satellite images (CARTOSAT Imagery) to assess the outcome. • Monitoring System output will become input data for next annual action plan.

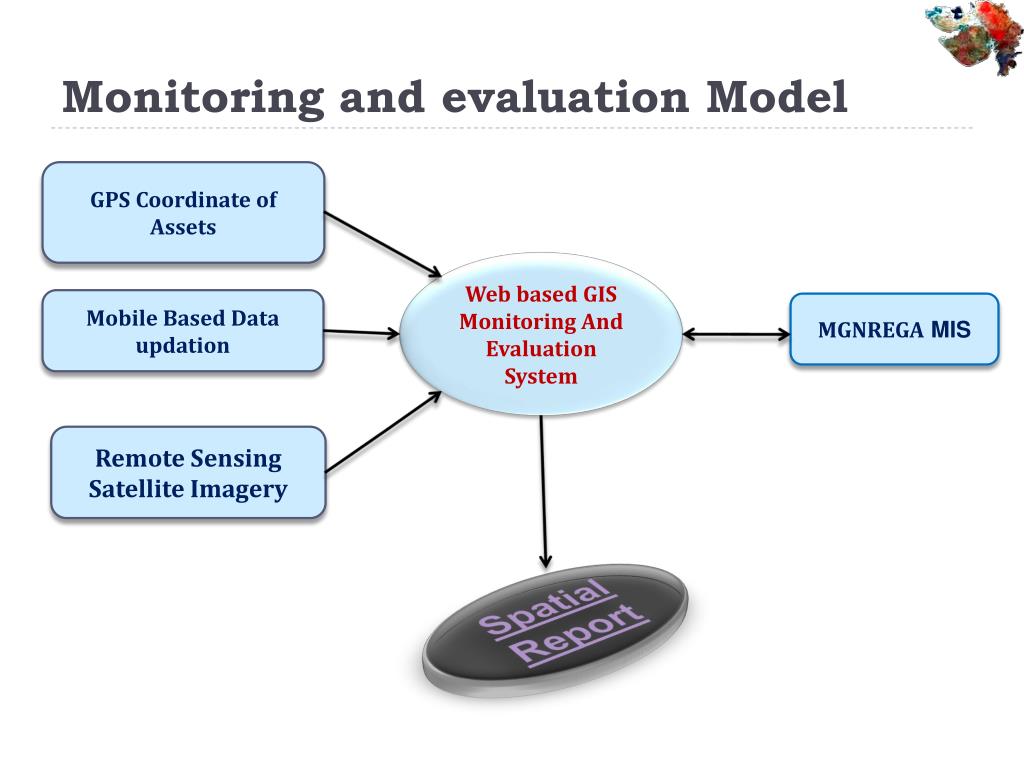

  27. Monitoring and evaluation Model GPS Coordinate of Assets Web based GIS Monitoring And Evaluation System Mobile Based Data updation MGNREGA MIS Remote Sensing Satellite Imagery Spatial Report

  28. Functional Structure State GIS Unit Professional Team(5 Members) District GIS Unit One Technical Expert Taluka GIS Unit Technical Assistant ,NREGS

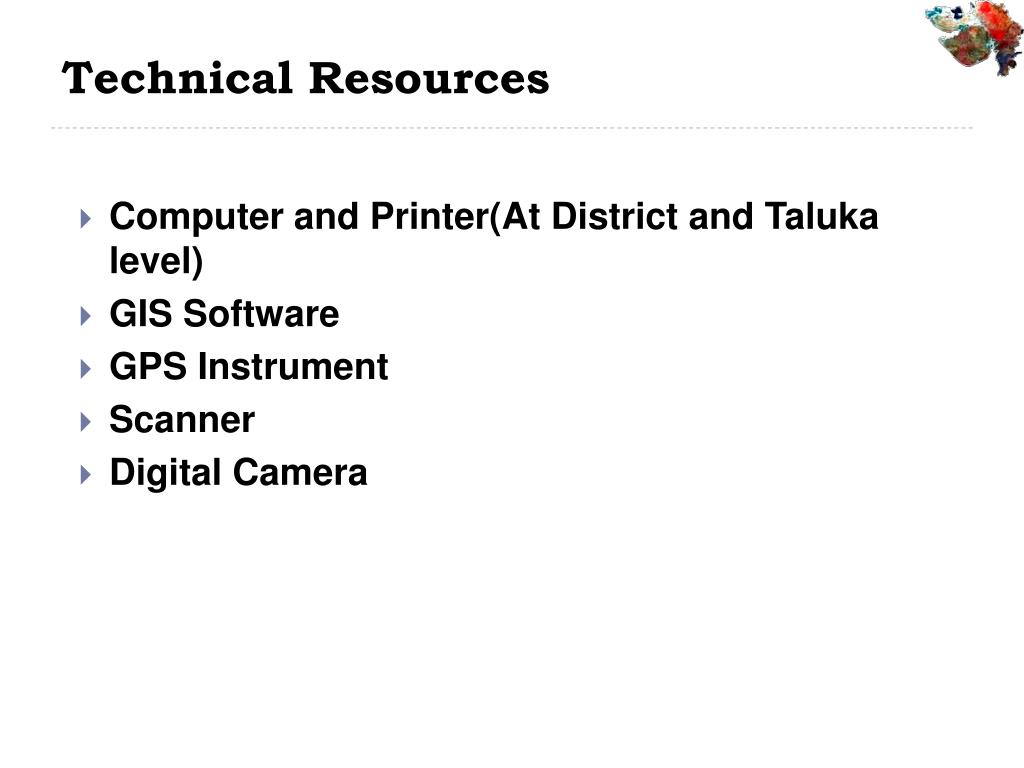

  29. Technical Resources • Computer and Printer(At District and Taluka level) • GIS Software • GPS Instrument • Scanner • Digital Camera

  30. Financial Implications • State Level GIS Unit – Rs. 5 crore (Initial) and Rs. 1 Crore Recurring Cost Per annum. • District Level GIS Unit – Rs. 25 Lakh (Intial) and Rs. 5 Lakh Recurring Cost Per annum • Taluka Level GIS Unit - Rs. 5 Lakh and Rs. 1 Lakh Recurring Cost Per annum

  31. Capacity Building at village level • Capacity building of Village & Taluka level panchayat employees regarding the use of various GIS map and GPS instruments. • Technical assistance to field engineers/Talati-cum-Mantri for better data collection. • Exposure visit of different stakeholders to best managed projects

  32. Conclusion • Geographic Information system (GIS) has a vital role as a Decision Support System. • Decentralization of MGNREGS activities and creation & management of asset inventory requires a proper scientific tool. • The scope of GIS as an Information System acts as a solution for reliable, real-time and authentic information.

  33. Thank You

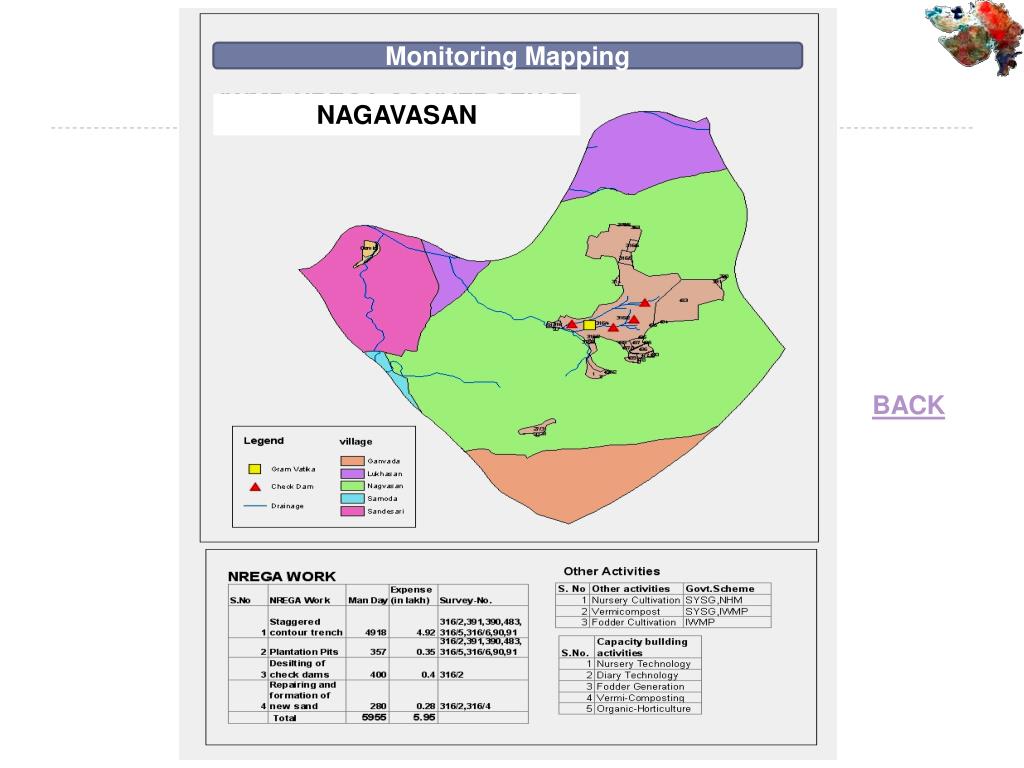

  34. Monitoring Mapping NAGAVASAN BACK
