  1. Conceptual Design versus Logical Design

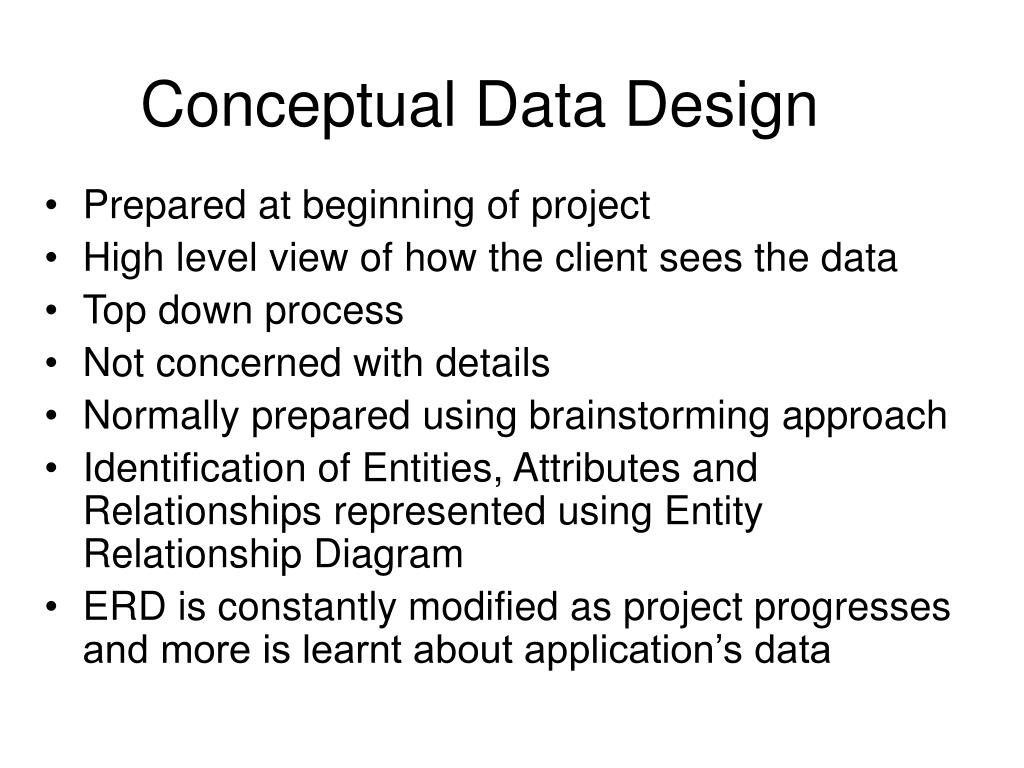

  2. Conceptual Data Design • Prepared at beginning of project • High level view of how the client sees the data • Top down process • Not concerned with details • Normally prepared using brainstorming approach • Identification of Entities, Attributes and Relationships represented using Entity Relationship Diagram • ERD is constantly modified as project progresses and more is learnt about application’s data

  3. Logical Data Design • Detailed representation of application’s data • Bottom-up process • Purpose of logical data design is to represent application data in the form of related 2-dimensional relations which will correspond to the tables created in a relational database • Details obtained by analysing representative samples of application’s user views or prototyping user views

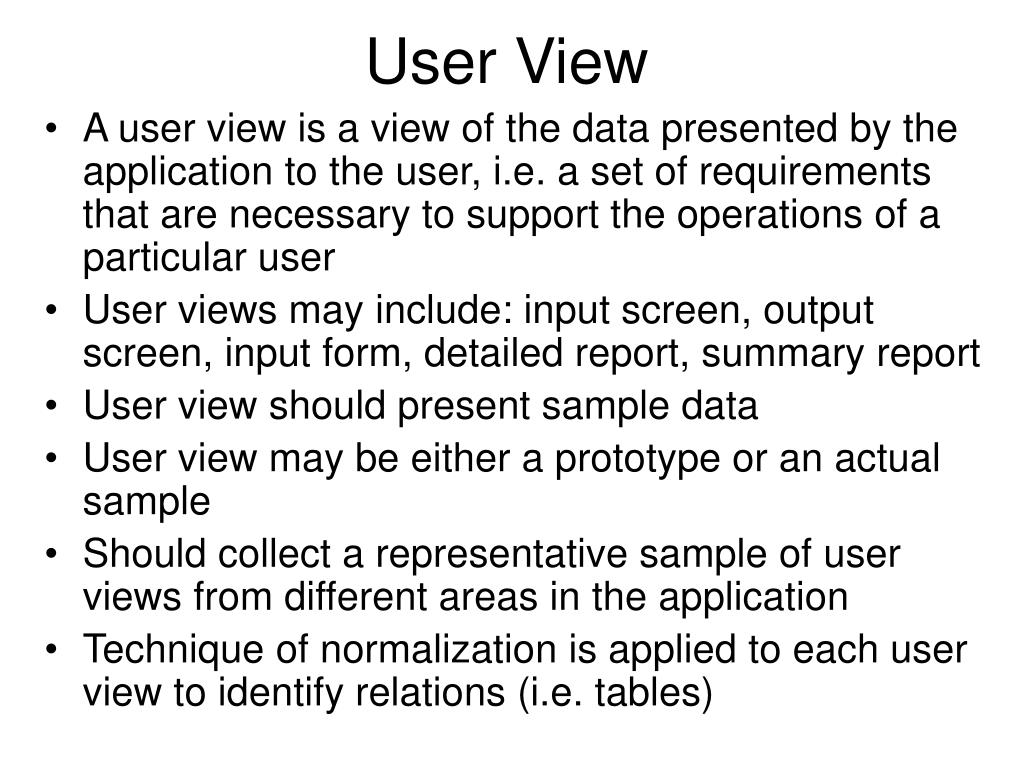

  4. User View • A user view is a view of the data presented by the application to the user, i.e. a set of requirements that are necessary to support the operations of a particular user • User views may include: input screen, output screen, input form, detailed report, summary report • User view should present sample data • User view may be either a prototype or an actual sample • Should collect a representative sample of user views from different areas in the application • Technique of normalization is applied to each user view to identify relations (i.e. tables)
