  1. 3100B Theory of Operation and Controls

  2. 3100B Theory of Operation and Controls • Approved for sale outside the • US in 1998 for patients • weighing > 35 kg failing CMV • Approved September 24, 2001 • by the FDA for sale in the US

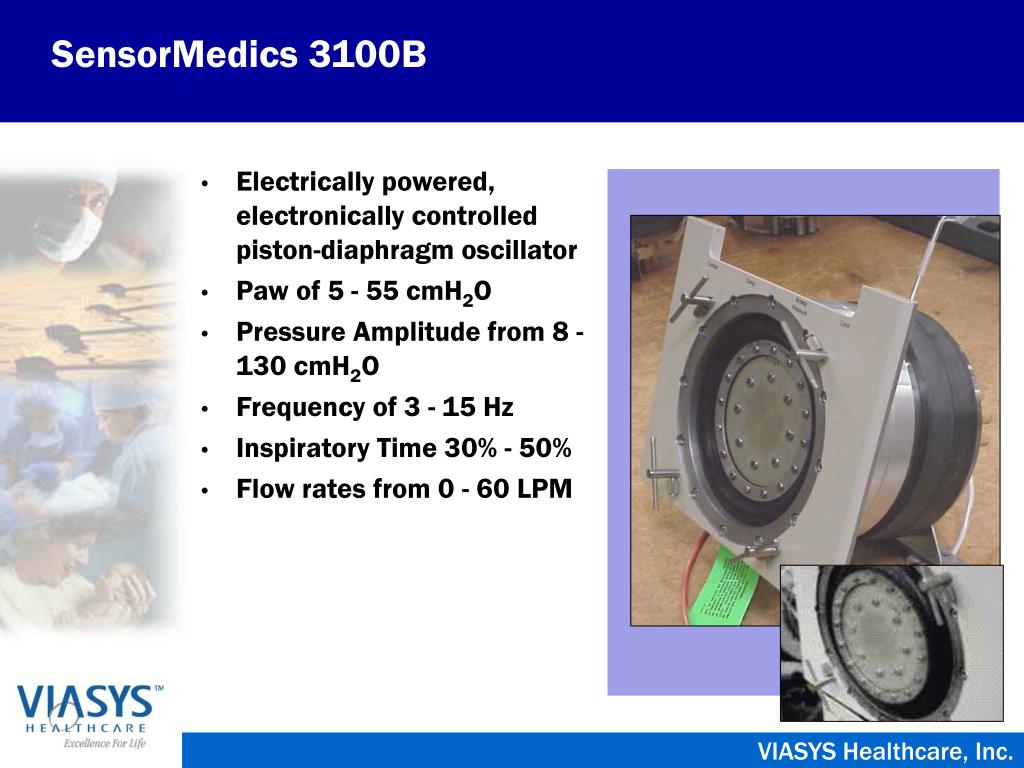

  3. SensorMedics 3100B • Electrically powered, electronically controlled piston-diaphragm oscillator • Paw of 5 - 55 cmH2O • Pressure Amplitude from 8 - 130 cmH2O • Frequency of 3 - 15 Hz • Inspiratory Time 30% - 50% • Flow rates from 0 - 60 LPM

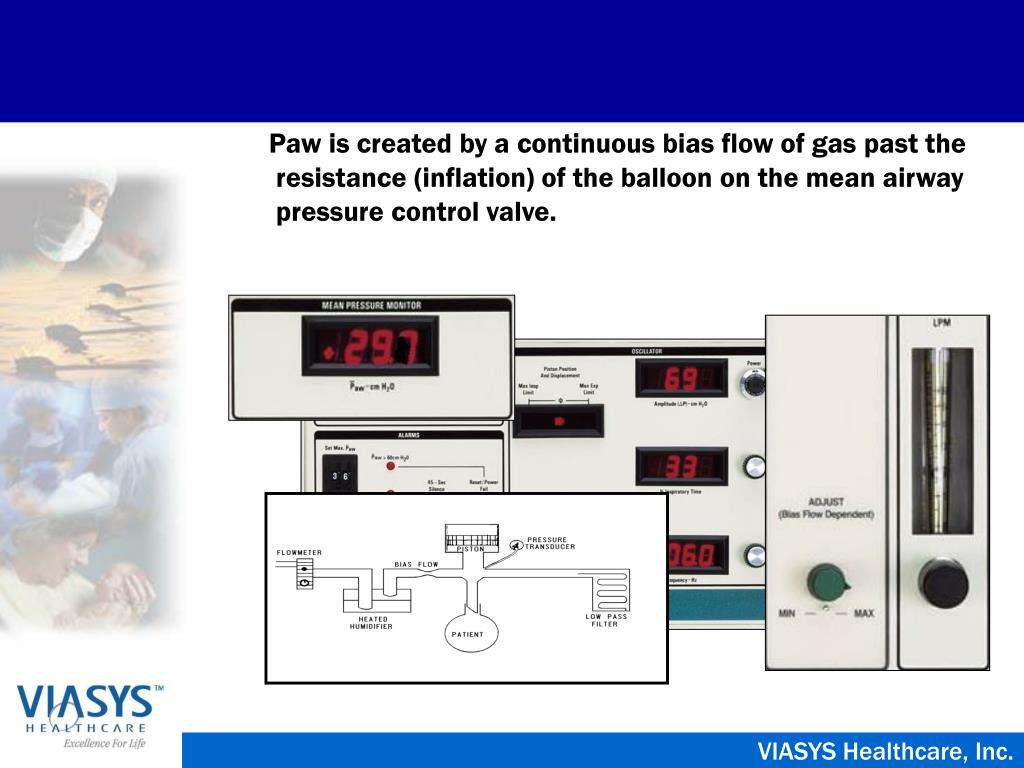

  4. Paw is created by a continuous bias flow of gas past the resistance (inflation) of the balloon on the mean airway pressure control valve.

  5. Principle of the SM 3100A HFOV “Super-CPAP” system to maintain lung volume

  6. To pressurize the patient circuit, the Reset / Power Fail button must be pressed and held until the mean airway pressure is at least 5 cmH2O

  7. Oxygenation • The Paw is used to inflate the lung and optimize the alveolar surface area for gas exchange. • Paw = Lung Volume

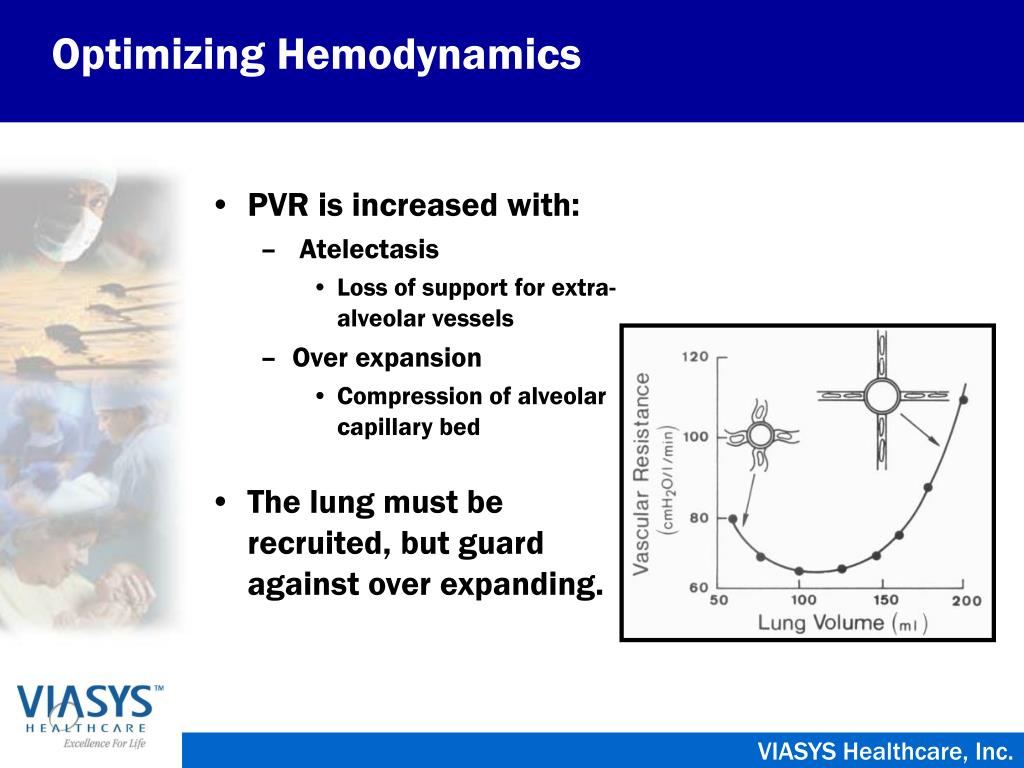

  8. Optimizing Hemodynamics • PVR is increased with: • Atelectasis • Loss of support for extra-alveolar vessels • Over expansion • Compression of alveolar capillary bed • The lung must be recruited, but guard against over expanding.

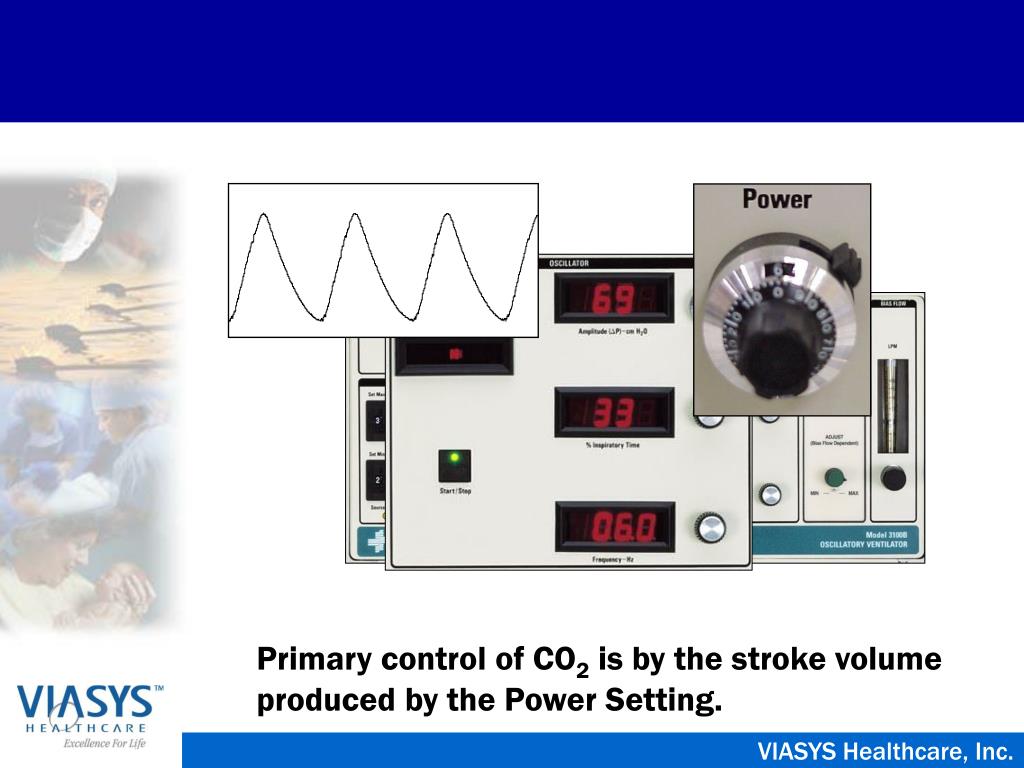

  9. Primary control of CO2 is by the stroke volume produced by the Power Setting.

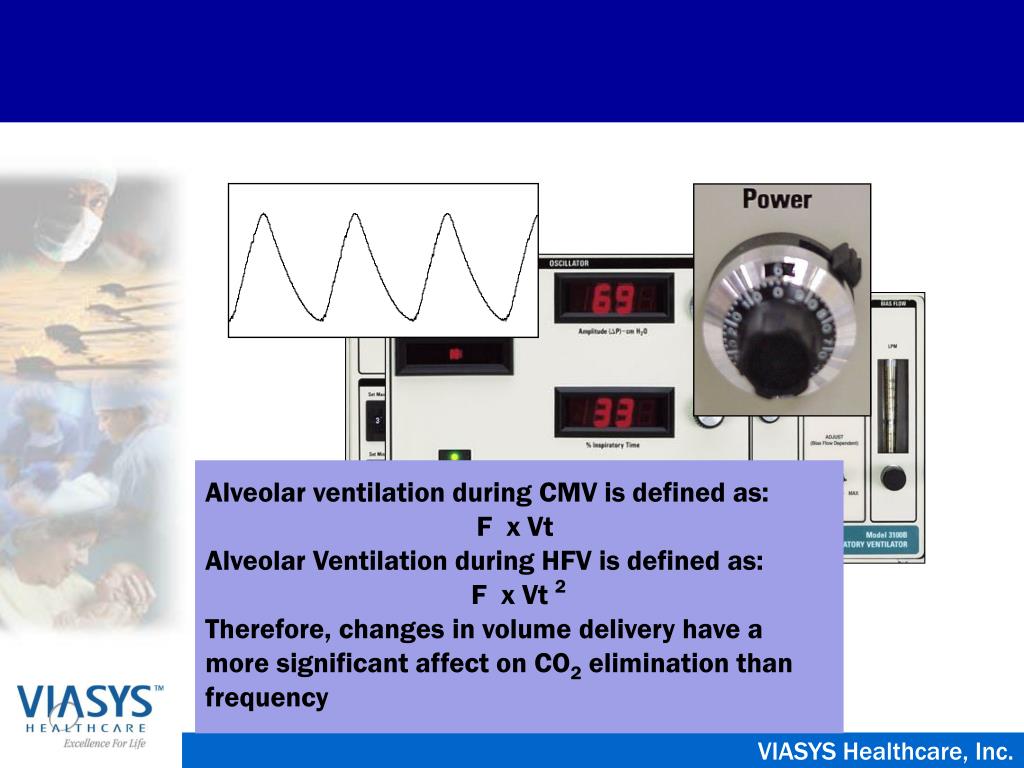

  10. Alveolar ventilation during CMV is defined as: F x Vt Alveolar Ventilation during HFV is defined as: F x Vt 2 Therefore, changes in volume delivery have a more significant affect on CO2 elimination than frequency

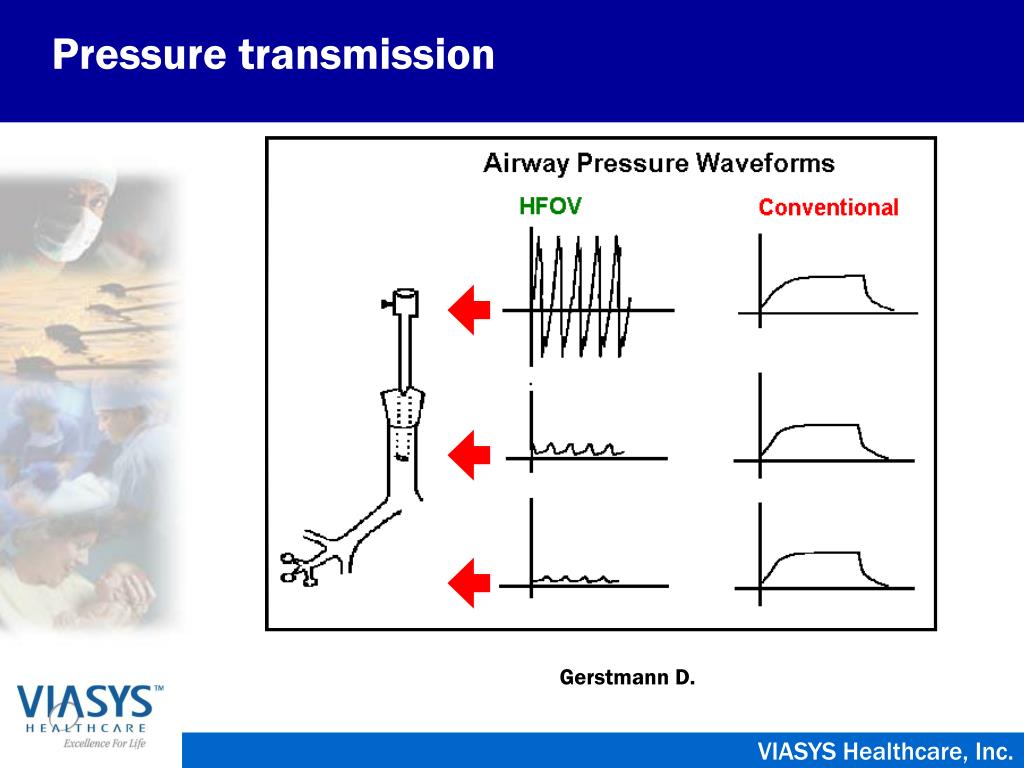

  11. Pressure transmission Gerstmann D.

  12. proximal trachea alveoli Pressure transmission HFOV P T

  13. The % Inspiratory Time also controls the time for movement of the piston, and therefore can assist with CO2 elimination. • Increasing % Inspiratory Time will also affect lung recruitment by increasing delivered Paw.

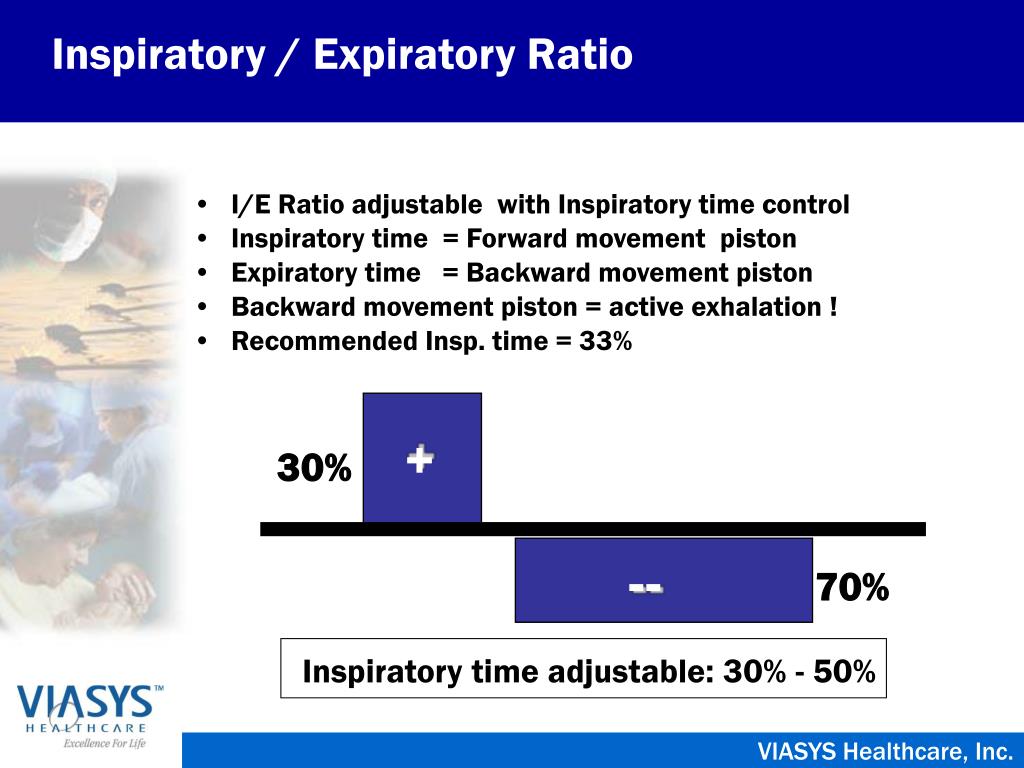

  14. Inspiratory / Expiratory Ratio • I/E Ratio adjustable with Inspiratory time control • Inspiratory time = Forward movement piston • Expiratory time = Backward movement piston • Backward movement piston = active exhalation ! • Recommended Insp. time = 33% + 30% -- 70% Inspiratory time adjustable: 30% - 50%

  15. Secondary control of PaCO2 is the set Frequency.

  16. Regulation of stroke volume • The stroke volume will increase if • The amplitude increases (higher delta P) • The frequency decreases (longer cycle time) Stroke volume

  17. Piston Centering is automatically regulated by the instrument and requires no operator intervention.

  18. The Start / Stop button is used to start and stop the oscillator. The oscillator may be stopped without a complete loss of mean airway pressure.

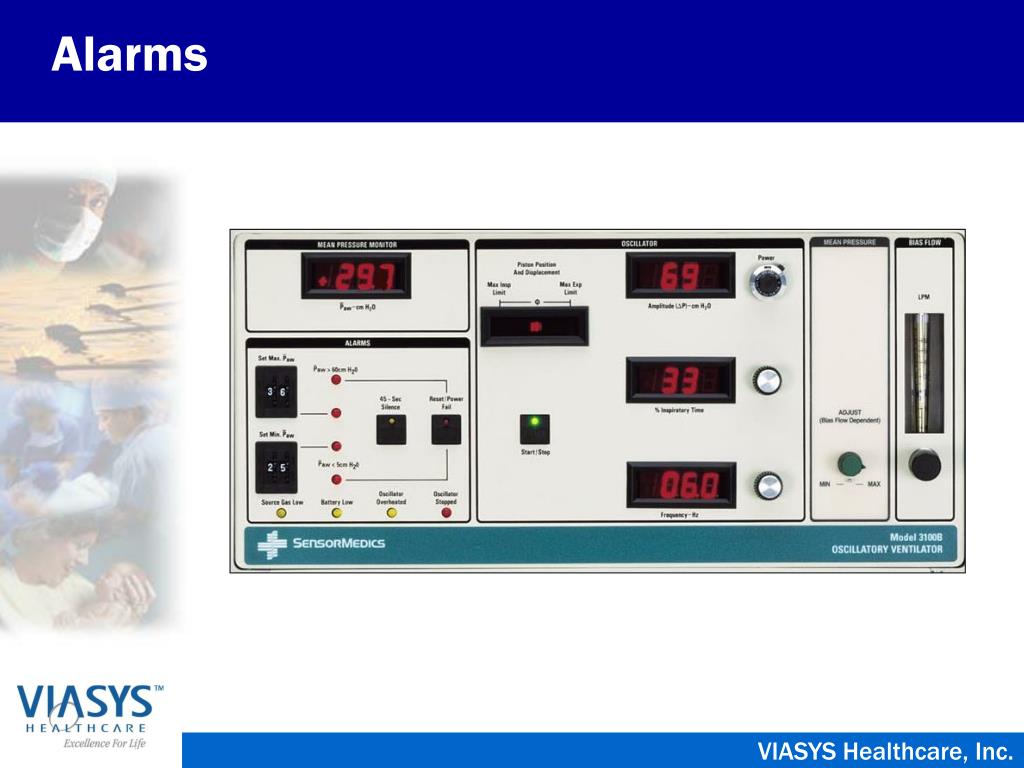

  19. Alarms

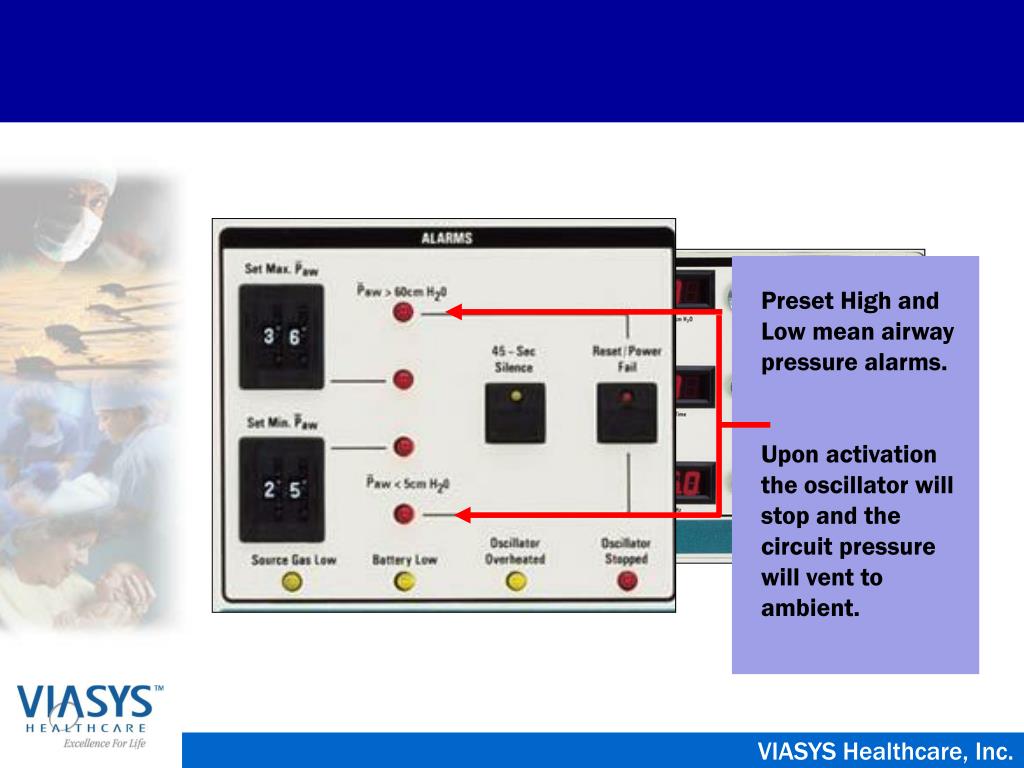

  20. Preset High and Low mean airway pressure alarms. Upon activation the oscillator will stop and the circuit pressure will vent to ambient.

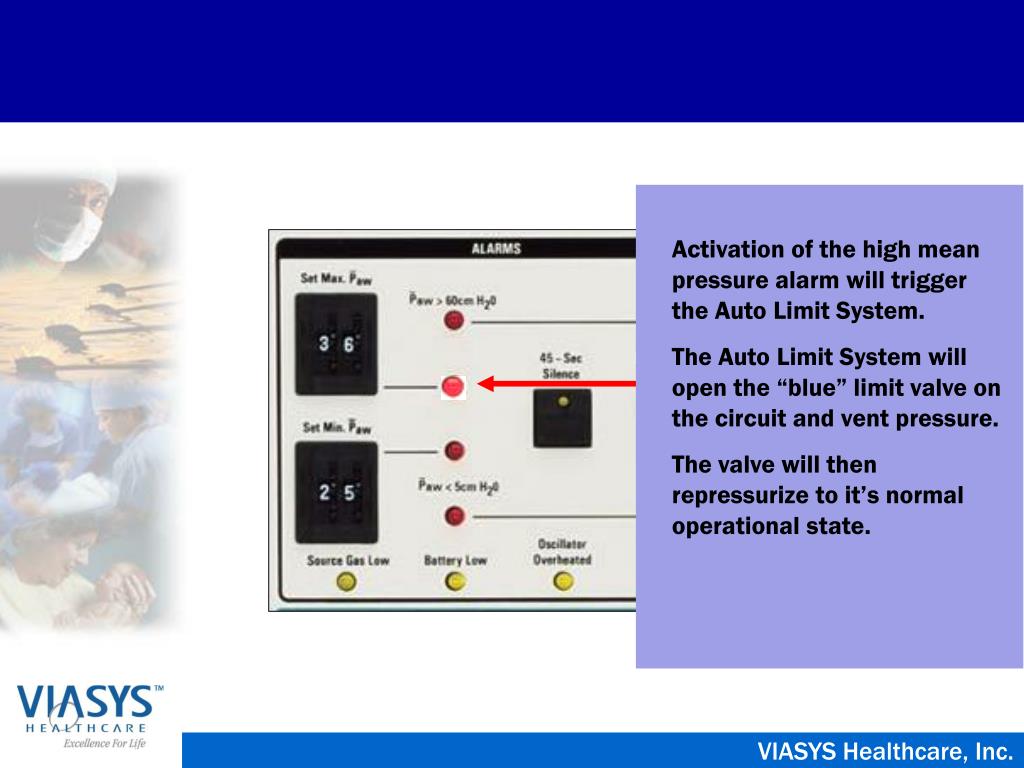

  21. Activation of the high mean pressure alarm will trigger the Auto Limit System. The Auto Limit System will open the “blue” limit valve on the circuit and vent pressure. The valve will then repressurize to it’s normal operational state.

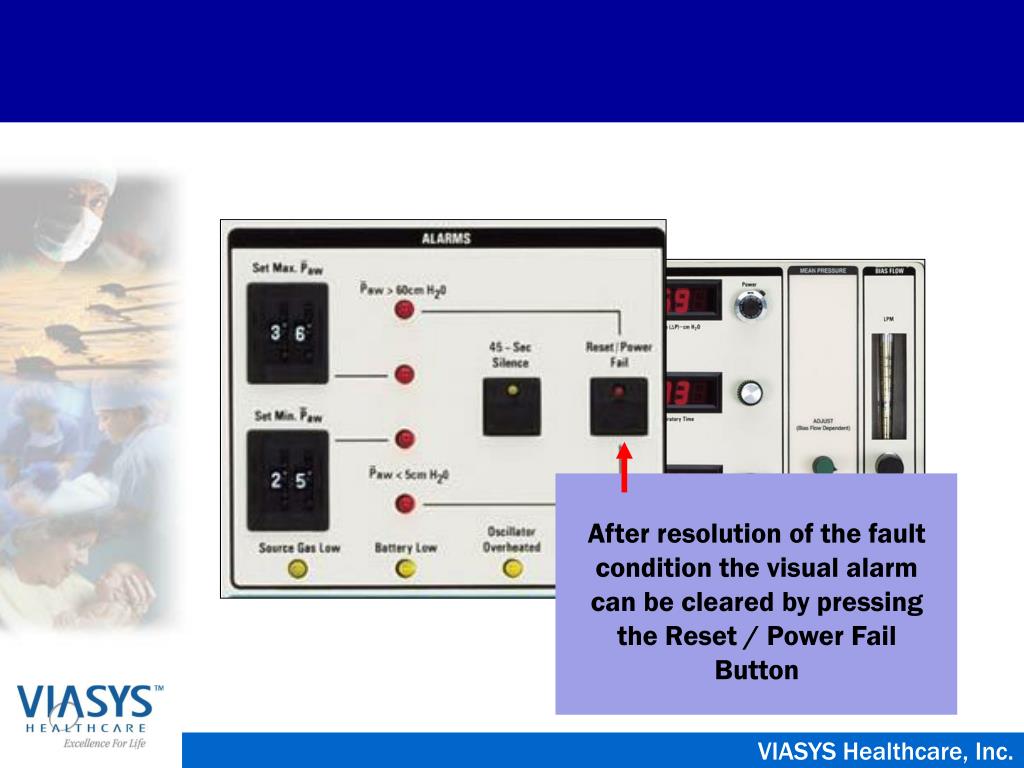

  22. After resolution of the fault condition the visual alarm can be cleared by pressing the Reset / Power Fail Button

  23. Activation of the low mean airway pressure alarm will only provide audible and visual alarms. The visual alarm will automatically reset after the fault condition has resolved

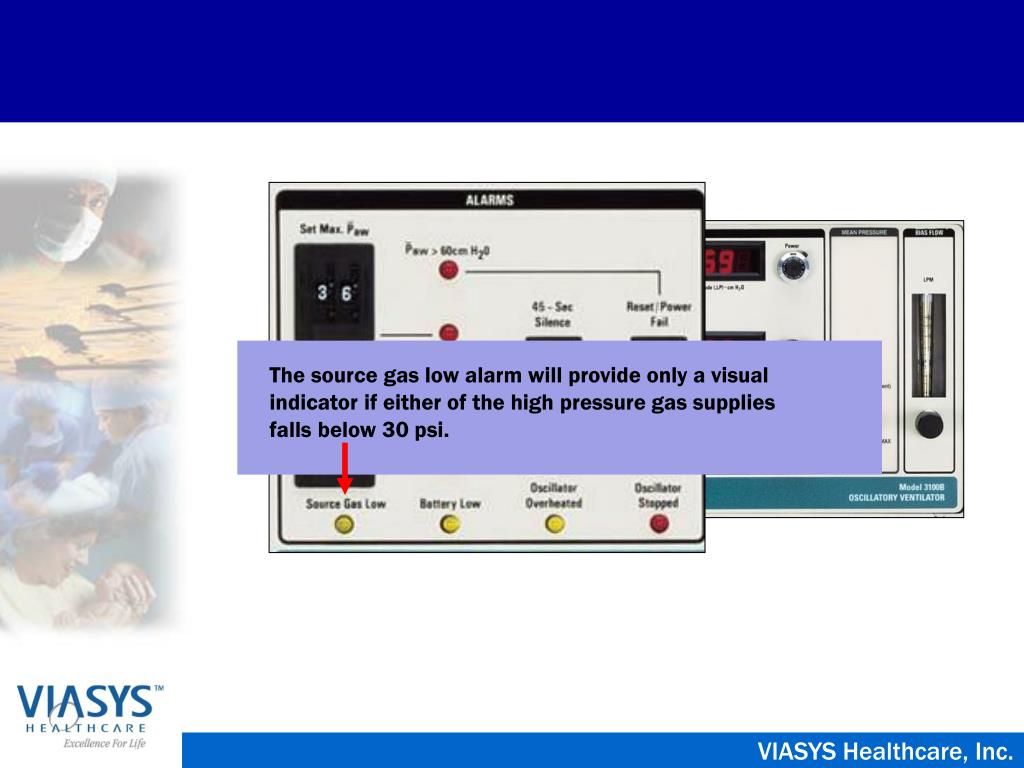

  24. The source gas low alarm will provide only a visual indicator if either of the high pressure gas supplies falls below 30 psi.

  25. The battery low alarm will provide only a visual indicator when the nine volt alarm battery needs replacement.

  26. The oscillatory overheated alarm will provide only a visual indicator if the linear motor temperature exceeds 150 degrees Centigrade.

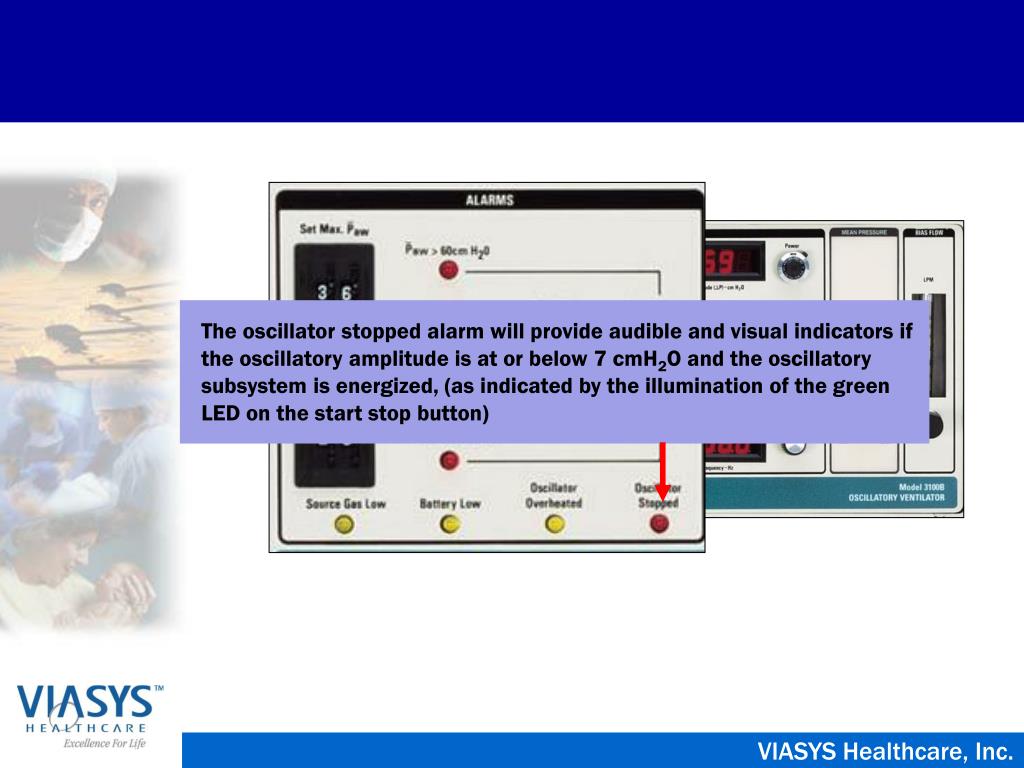

  27. The oscillator stopped alarm will provide audible and visual indicators if the oscillatory amplitude is at or below 7 cmH2O and the oscillatory subsystem is energized, (as indicated by the illumination of the green LED on the start stop button)
