  1. Non-hydrostatic sub-project report Jeff Whitaker (ESRL, sub-project lead) Jim Doyle (NRL: NEPTUNE/NUMA) Jin Lee (ESRL: NIM) ZavisaJanjic (NCEP: NMMB) S.J. Lin (GFDL: HIRAM/FV3) Bill Skamarock and Joe Klemp (NCAR: MPAS)

  2. Year 1 milestones Idealized test cases (https://earthsystemcog.org/projects/dcmip-2012/test_cases) 1) Baroclinic Wave (DCMIP 4.1, due 6/1/2014): Basic test that does not exercise non-hydro dynamics. Look for effect of ‘special’ points (8 corners of cubes, 12 pentagons on icos grid, poles/polar filters on lat/lon grid). • Integration length: 20 days • Resolution: horizontal 120/60/30 and 15km.  30 and 60 vertical levels.  • 1/0.5/0.25/0.125 deg grids for 120/60/30/15 km runs. • Model Top: ~44km/2.26hPa • No invariant tracers, 14 pressure levels (winds, temp and vorticity) plus surface pressure/temp and 10-m winds.

  3. Year 1 milestones (cont)

  4. Year 1 milestones (cont) 2) Orographic mountain wave on a reduced-radius sphere without rotation (DCMIP 2.1 with additions, due 7/1/2014). Exercises dry non-hydro dynamics. • Circular and quasi-2d mountain, with and without vertical shear. • Sphere reduced by factor of 166.5, 2-h integration. • 30km model top with sponge layer, 0.5 degree output on model native levels.

  5. Quasi-2D mtnvsanalytic solution

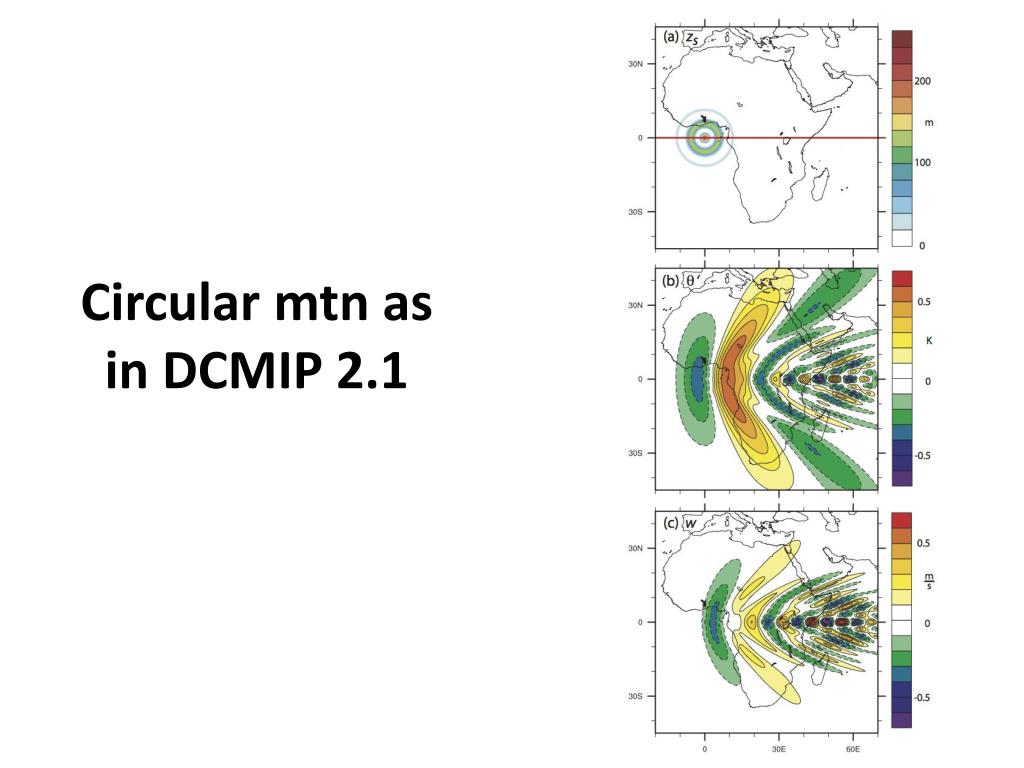

  6. Circular mtn as in DCMIP 2.1

  7. Year 1 milestones (cont) 3) Not in DCMIP: 3D supercell thunderstorm on a reduced-radius sphere without rotation, with simple Kessler microphysics (due 8/1/2014). Details TBD by end of May. Exercises dry non-hydro dynamics, includes strong convective updrafts, cold pools, etc.

  8. Year 1 milestones (cont) 4) Optional (due to late arriving funds):Idealized Tropical Cyclone with Simple Physics(DCMIP 5.1). Exercises moist hydrostatic dynamics, simulation of coherent vortices.

  9. Year 1 milestones (cont) report summarizing all the idealized test results will be distributed to the group by 9/15, delivered to program manager by 10/1/2014.

  10. Year 2 Real data tests: • Hydrostatic scale forecasts (25 km resolution, vertical levels similar to GFS, one 7-day forecast every 3.5 days for one calendar year). Due Q2FY15. • Q3-Q4FY15: 3-km global forecasts for a couple of select cases (including severe weather over CONUS, and tropical cyclones). 2-3 day duration. • HPC challenge: NCAR experience suggests on 15-20K cores, a forecast will run in near real time. This means modeling group may need up to 20K cores for 2-3 days to complete each forecast (1+ million CPU hours per forecast)!
