  1. HVAC Validation Data courtesy of Tokyo Gas Co., Ltd.

  2. Introduction • CFD is rapidly becoming a practical tool to optimise the design of HVAC by predicting the thermal environment within buildings. • Software has developed to a stage where standard models can be set up that designers and even sales engineers can use.

  3. Air-Conditioning unit 3D traverse apparatus Schematic Diagram Model Room Artificial Climate Room

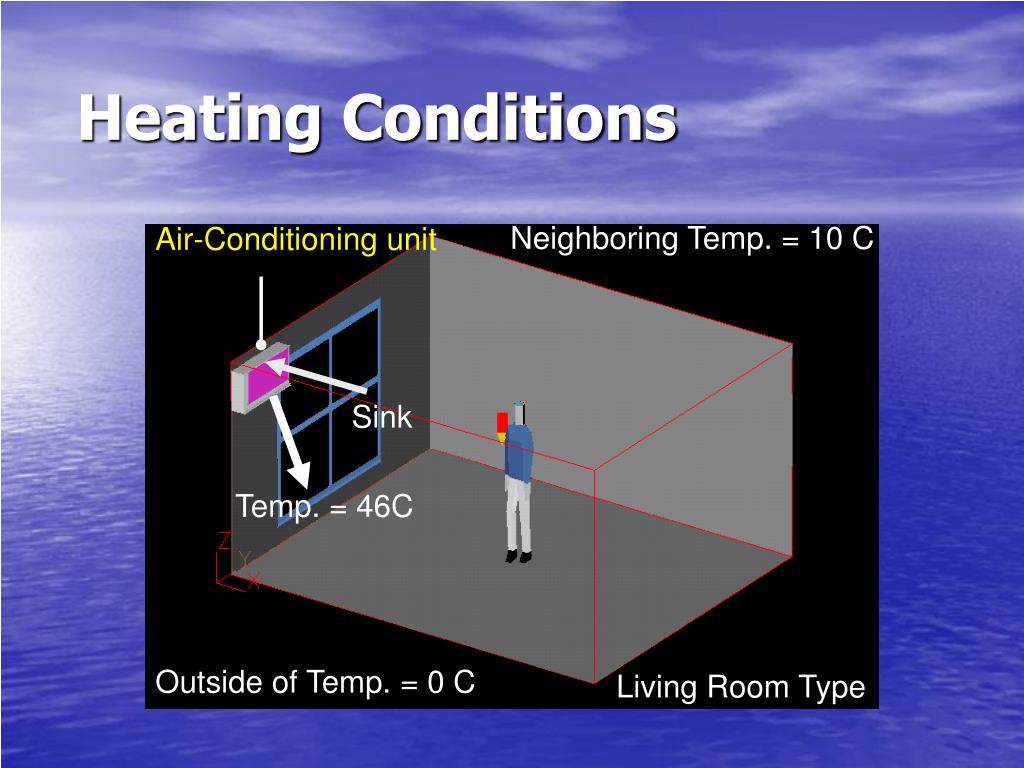

  4. Neighboring Temp. = 10 C Air-Conditioning unit Sink Temp. = 46C Outside of Temp. = 0 C Living Room Type Heating Conditions

  5. Measured Computed Center Plane of Air Conditioner

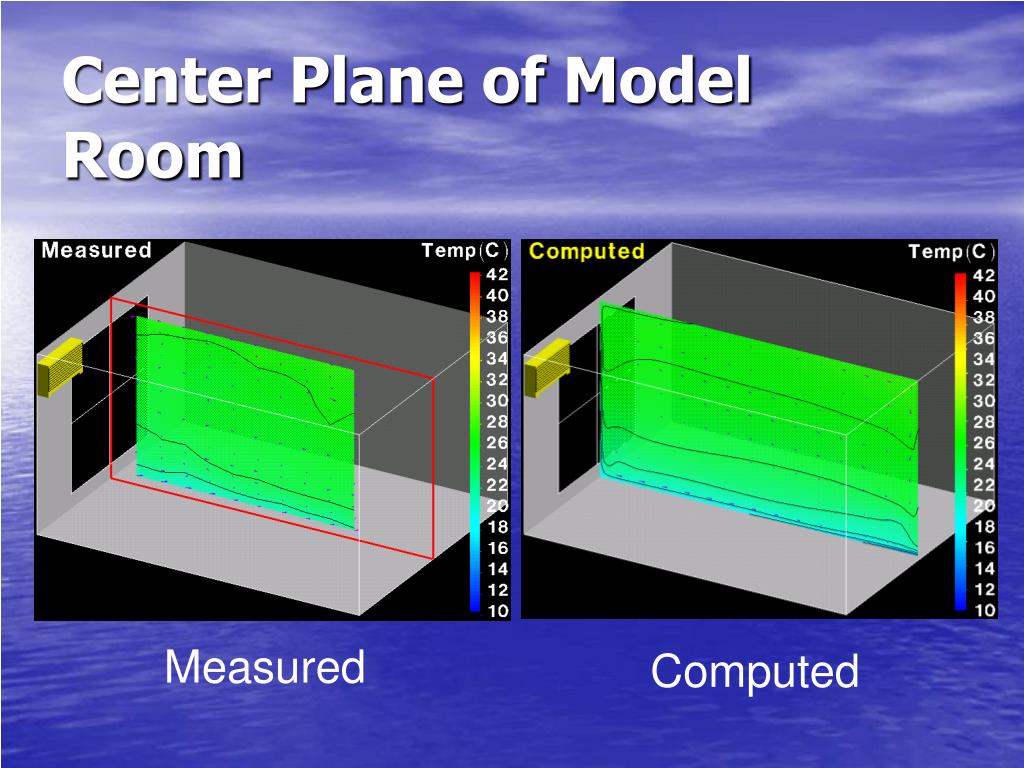

  6. Center Plane of Model Room Measured Computed

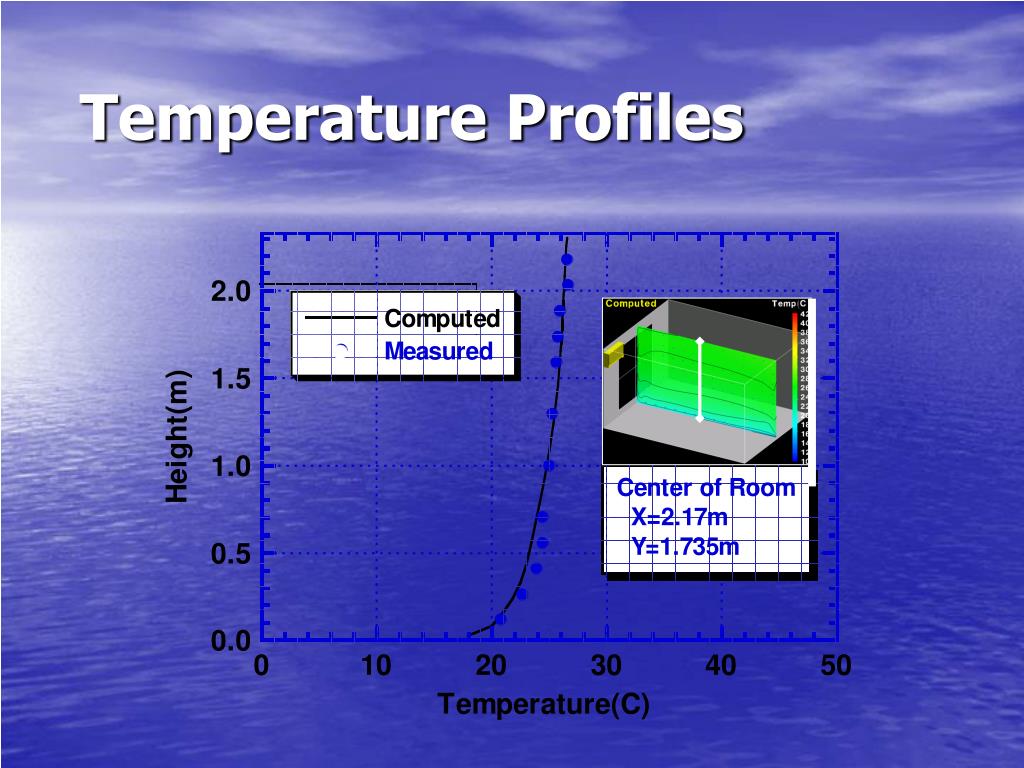

  7. ● Temperature Profiles

  8. 40 High Street, Wimbledon, London, SW19 5AU Tel: 020 8947 7651 Fax:020 8879 3497 Web: www.cham.co.uk E-mail: sales@cham.co.uk
