Hydrodynamics

Hydrodynamics. Notation: Lagrangian derivative Continuity equation Mass conservation: Time rate of change of mass density must balance mass flux into/out of a volume, hence the divergence of v in the Eulerian case. Hydrodynamics. Euler’s equation (equation of motion)

osmond
Télécharger la présentation

Hydrodynamics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

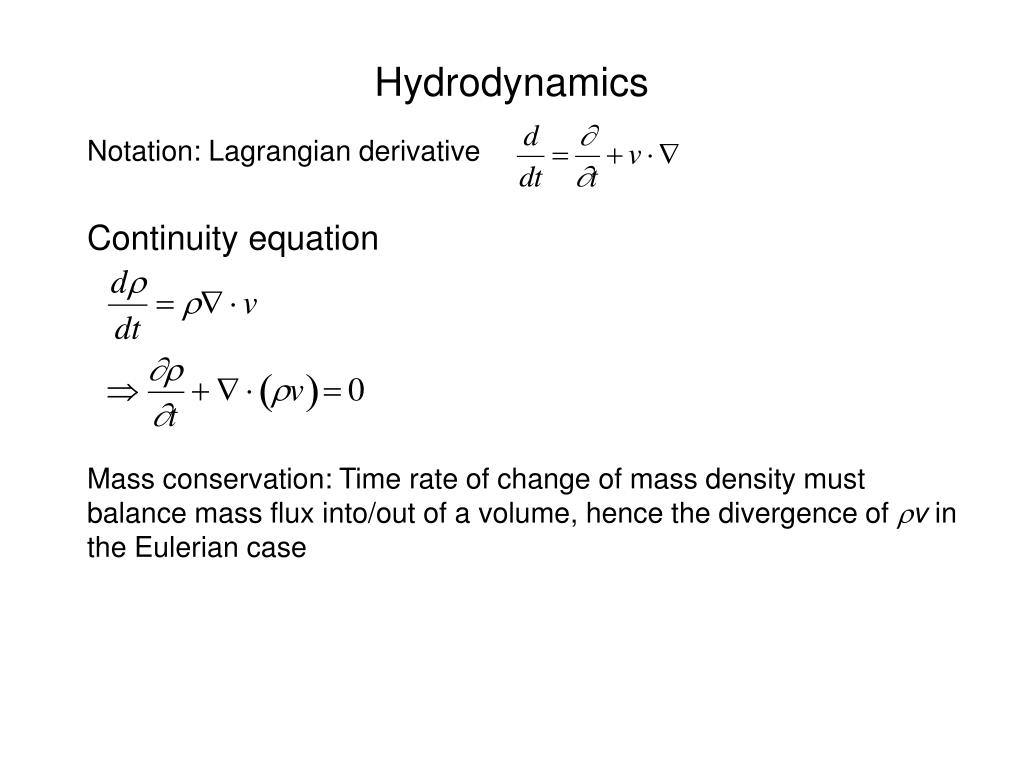

  1. Hydrodynamics Notation: Lagrangian derivative Continuity equation Mass conservation: Time rate of change of mass density must balance mass flux into/out of a volume, hence the divergence of v in the Eulerian case

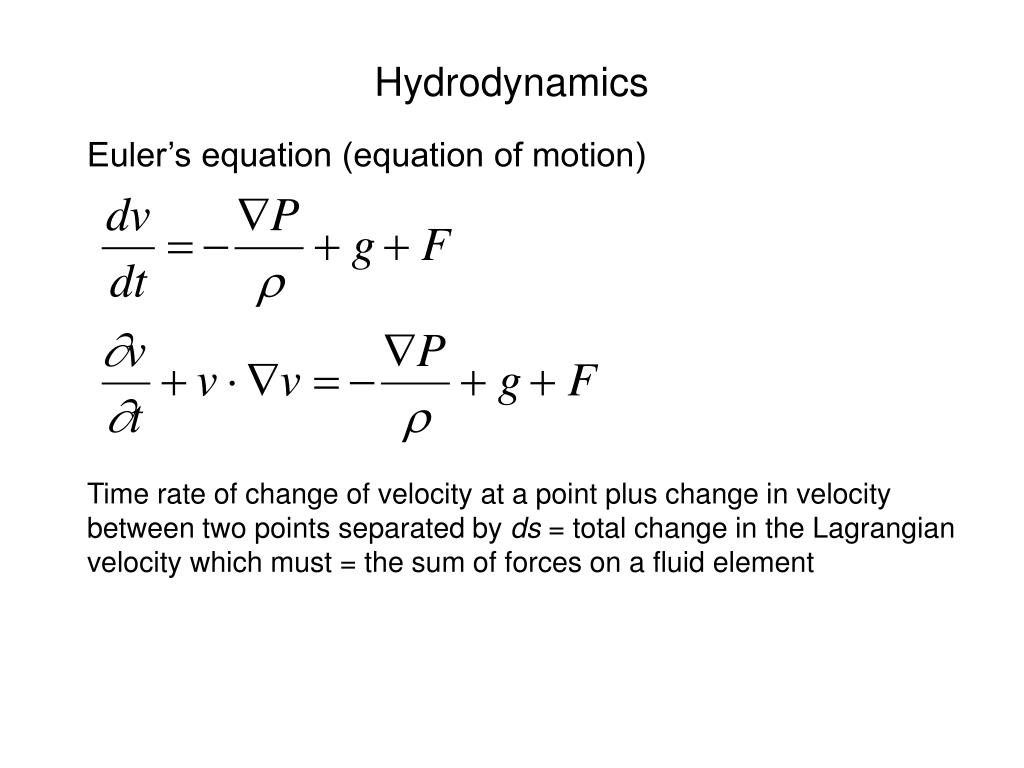

  2. Hydrodynamics Euler’s equation (equation of motion) Time rate of change of velocity at a point plus change in velocity between two points separated by ds = total change in the Lagrangian velocity which must = the sum of forces on a fluid element

  3. Hydrodynamics Energy Equation Time rate of change of kinetic + internal energy must balance divergence of mass flux carrying temperature or enthalpy change

  4. Hydrodynamics Sound waves Pressure and density are perturbed in sound waves such that P = P0+P’ ;  = 0+ ’ ; P’ or ’ << P0 or 0 Evaluate the hydro eqns neglecting small quantities of 2nd order

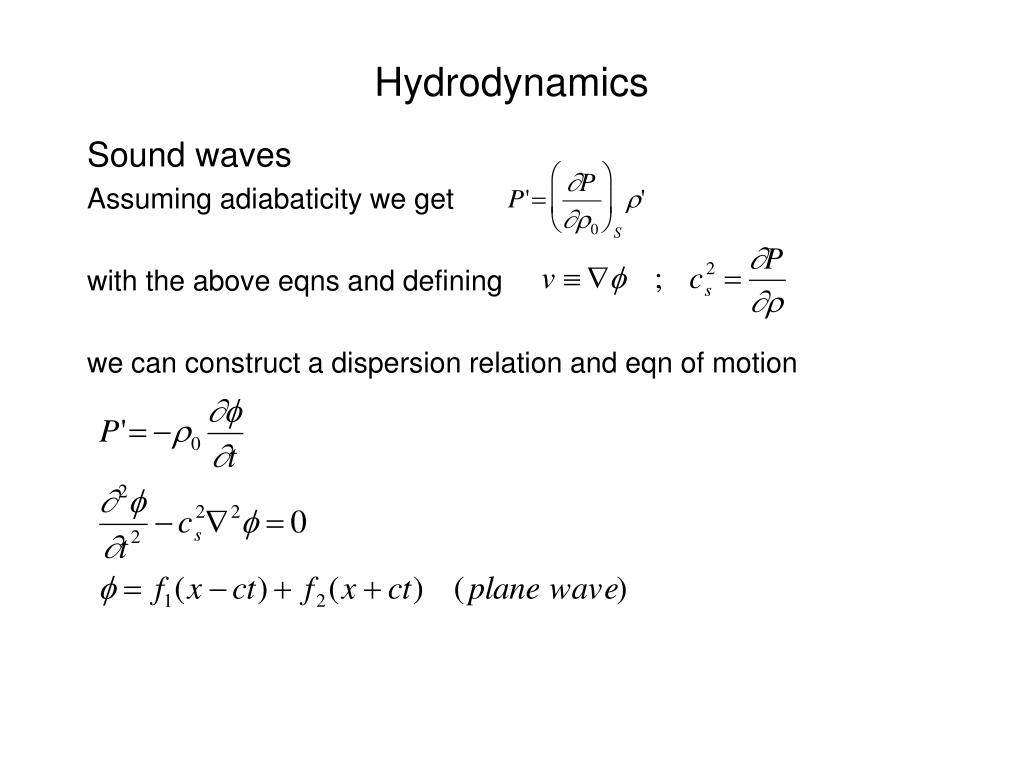

  5. Hydrodynamics Sound waves Assuming adiabaticity we get with the above eqns and defining we can construct a dispersion relation and eqn of motion

  6. Hydrodynamics Sound waves So Mach number of flow corresponds to compressibility of fluid

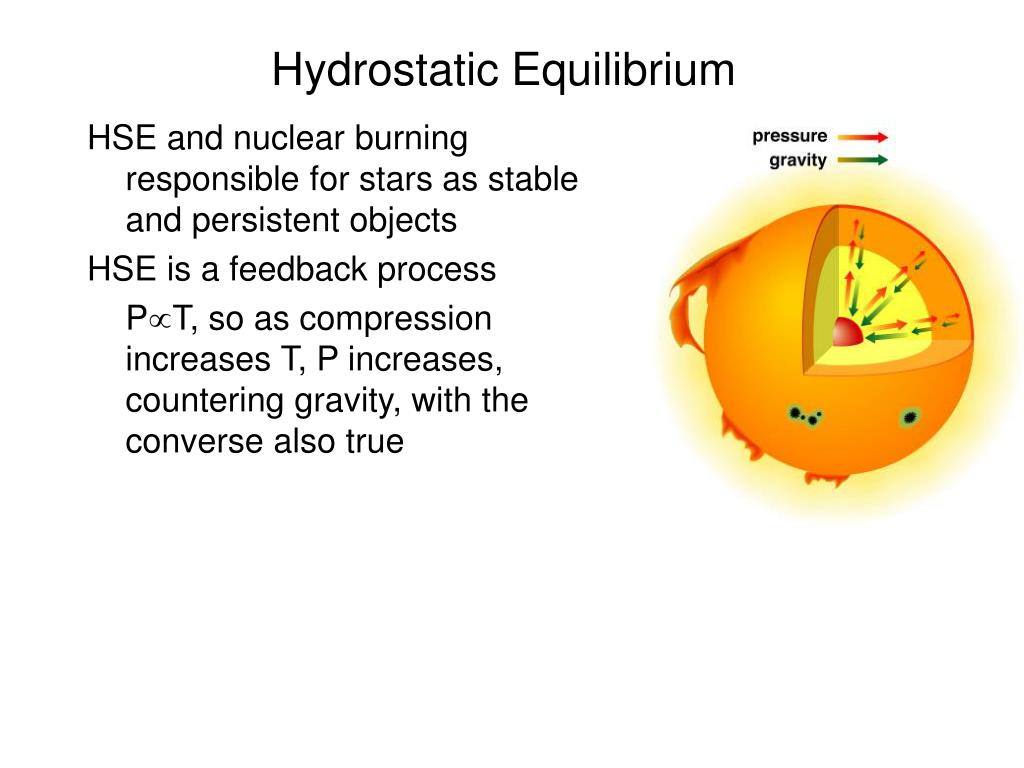

  7. Hydrostatic Equilibrium HSE and nuclear burning responsible for stars as stable and persistent objects HSE is a feedback process PT, so as compression increases T, P increases, countering gravity, with the converse also true

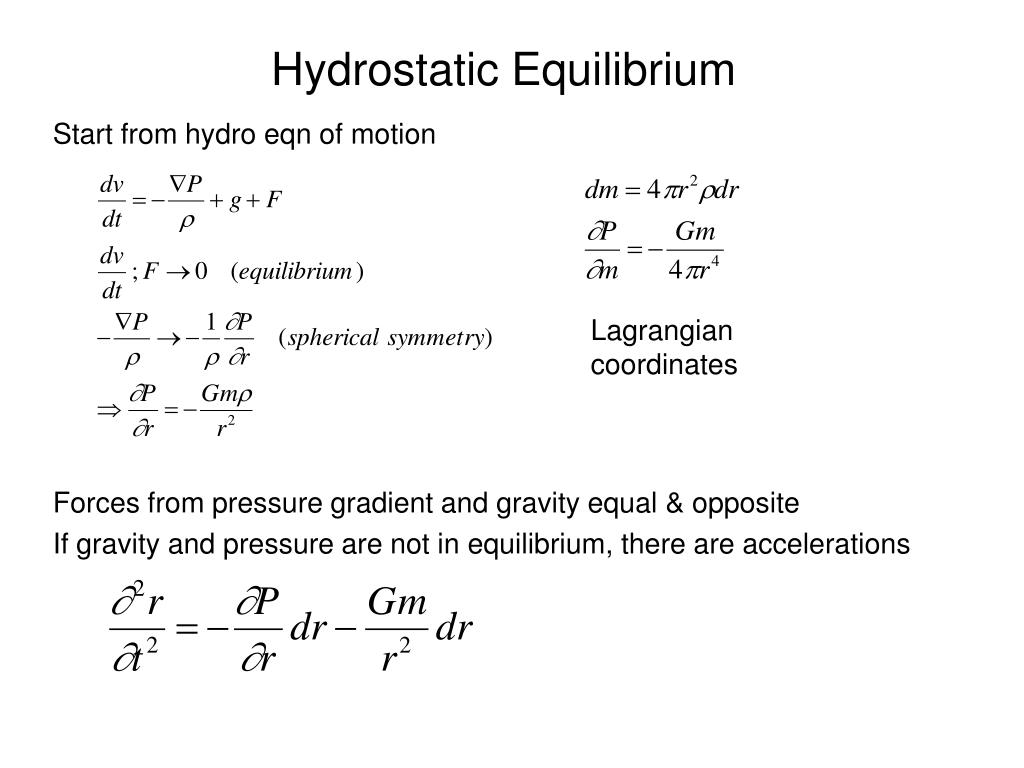

  8. Hydrostatic Equilibrium Start from hydro eqn of motion Forces from pressure gradient and gravity equal & opposite If gravity and pressure are not in equilibrium, there are accelerations Lagrangian coordinates

  9. Virial Theorem The virial theorem describes the balance between internal energy and gravitational potential energy, whether internal energy is microscopic motions of fluid particles or orbital motions of galaxies in a cluster HSE is a special case of the virial theorem, so we can use it to study the stability of stars

  10. Virial Theorem

  11. Virial Theorem For ideal gas  = 5/3 Gravitationally bound Half of potential energy into L, half into heating For radiation gas  = 4/3 W = 0 Unbound

  12. Understanding the Mass-Luminosity Relation

  13. Understanding the Mass-Luminosity Relation How do we make sense of stellar lifetimes? t ~ Enuc/L Enuc M easy so complexities enter into L(M)

  14. Understanding the Mass-Luminosity Relation Relation of pressure to luminosity At low masses ~1 HSE requires fg=-fp T doubling M requires doubling T, so L16L LM4

  15. Understanding the Mass-Luminosity Relation Relation of pressure to luminosity At high masses 0 HSE requires fg=-fp T4 doubling M requires doubling P, T21/4T L2L LM tL/M t M-3at low mass and t  const at high mass
